The P40 Series Hydraulic Directional Valve is a high-performance valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. With its manual and joystick control options, 4 section design, and robust monoblock construction, the P40 valve provides precise and reliable control of hydraulic systems. Its 40 L/min rated flow and 250 bar maximum pressure ensure efficient operation even in demanding applications.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

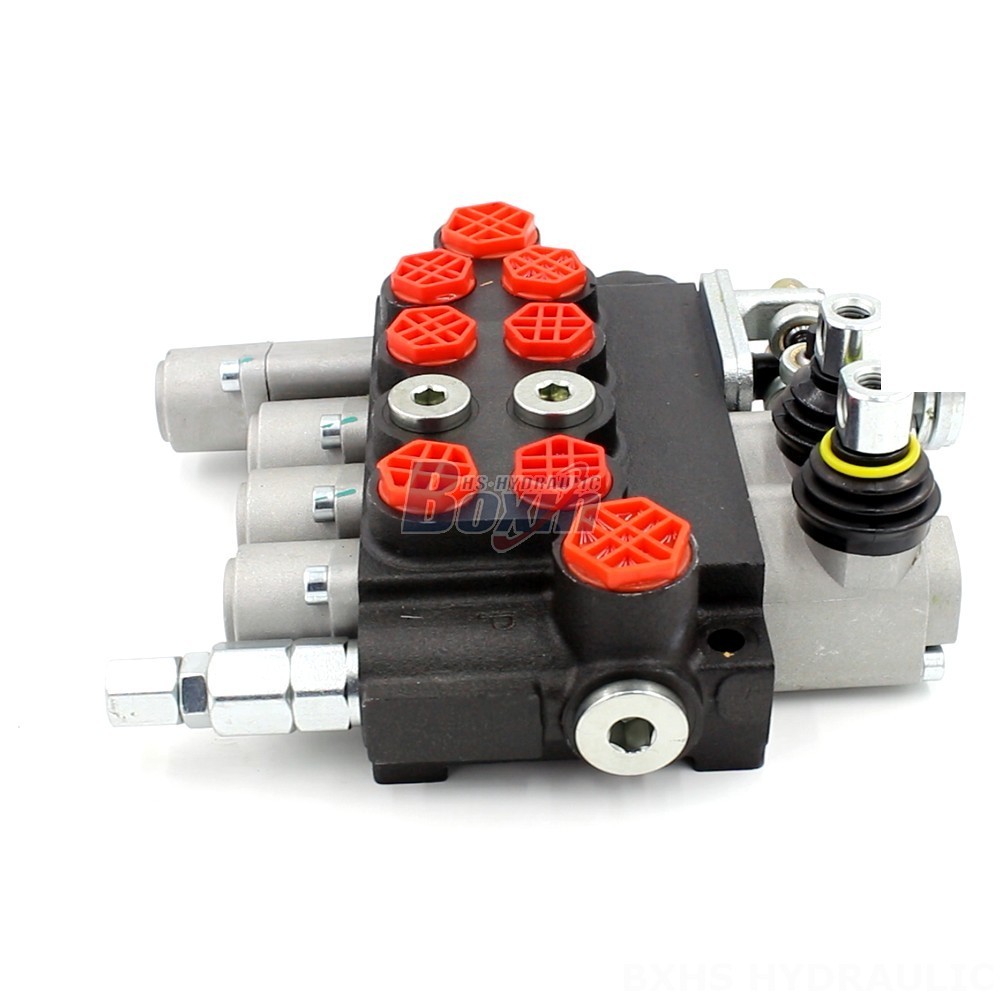

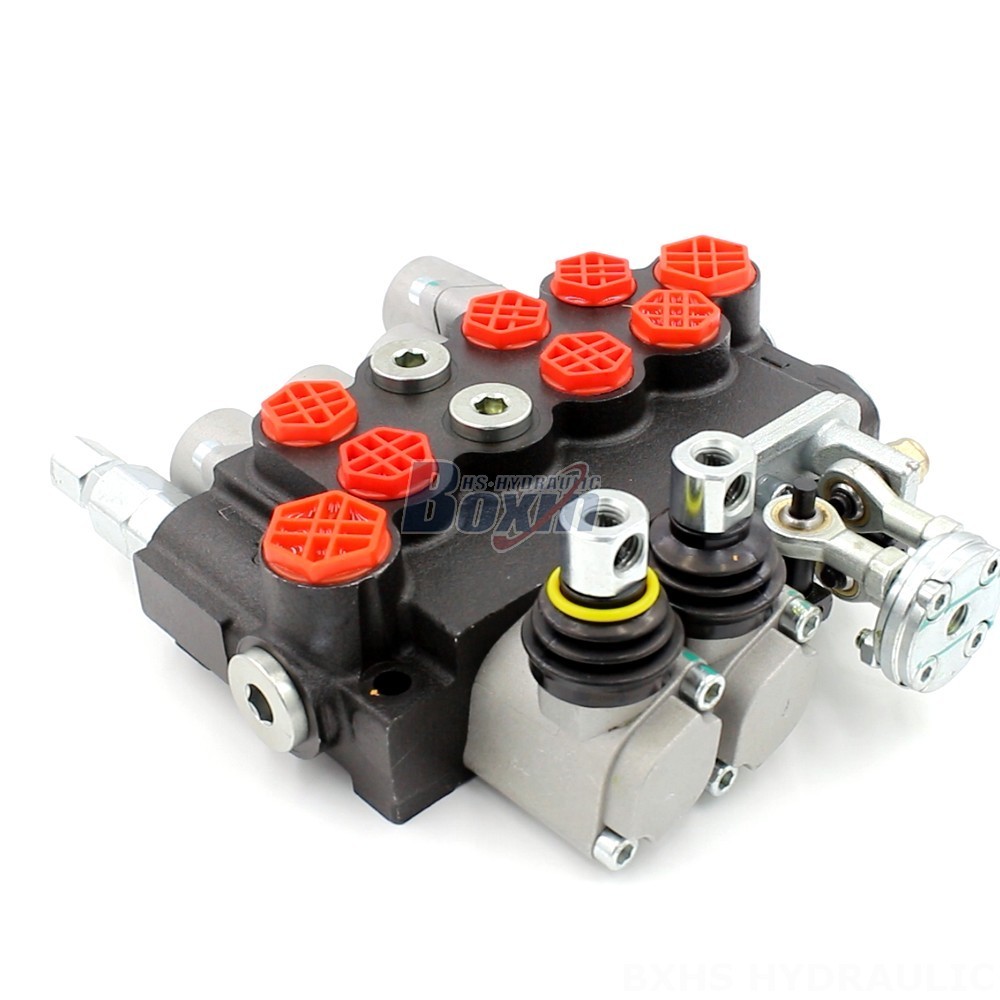

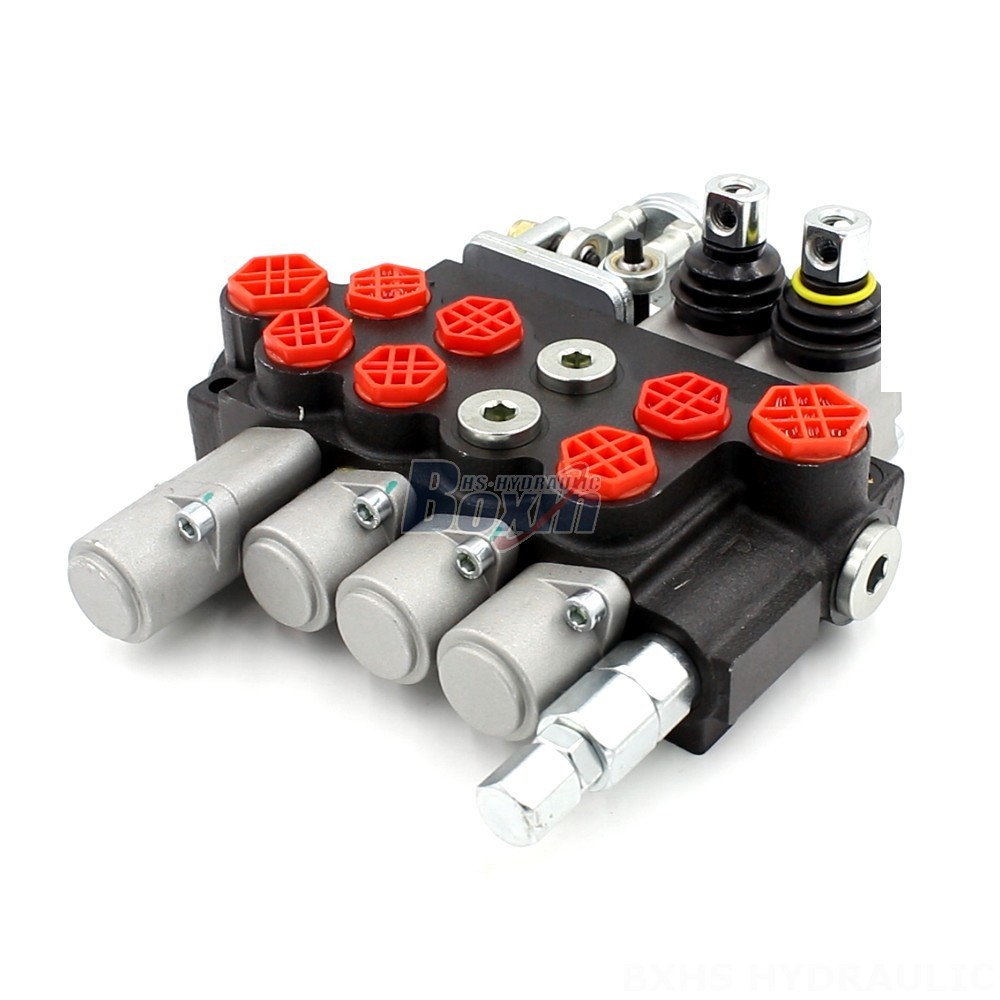

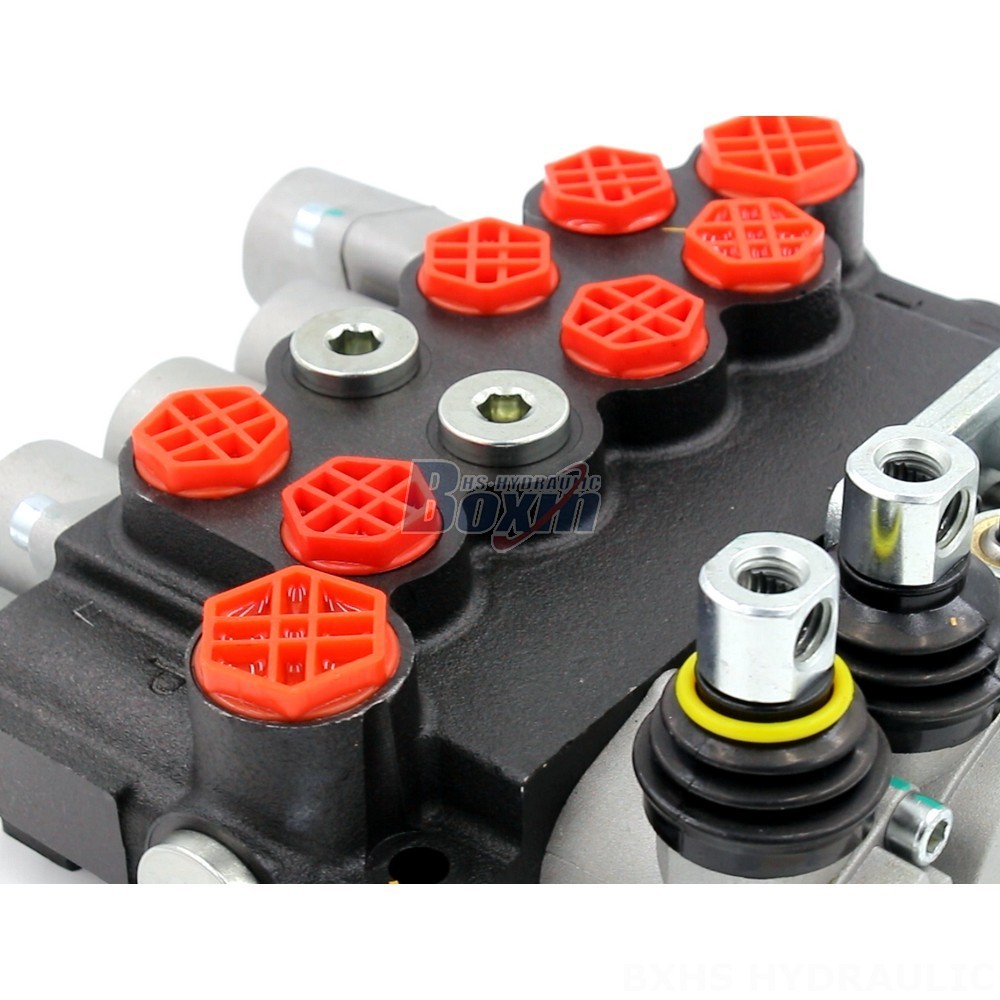

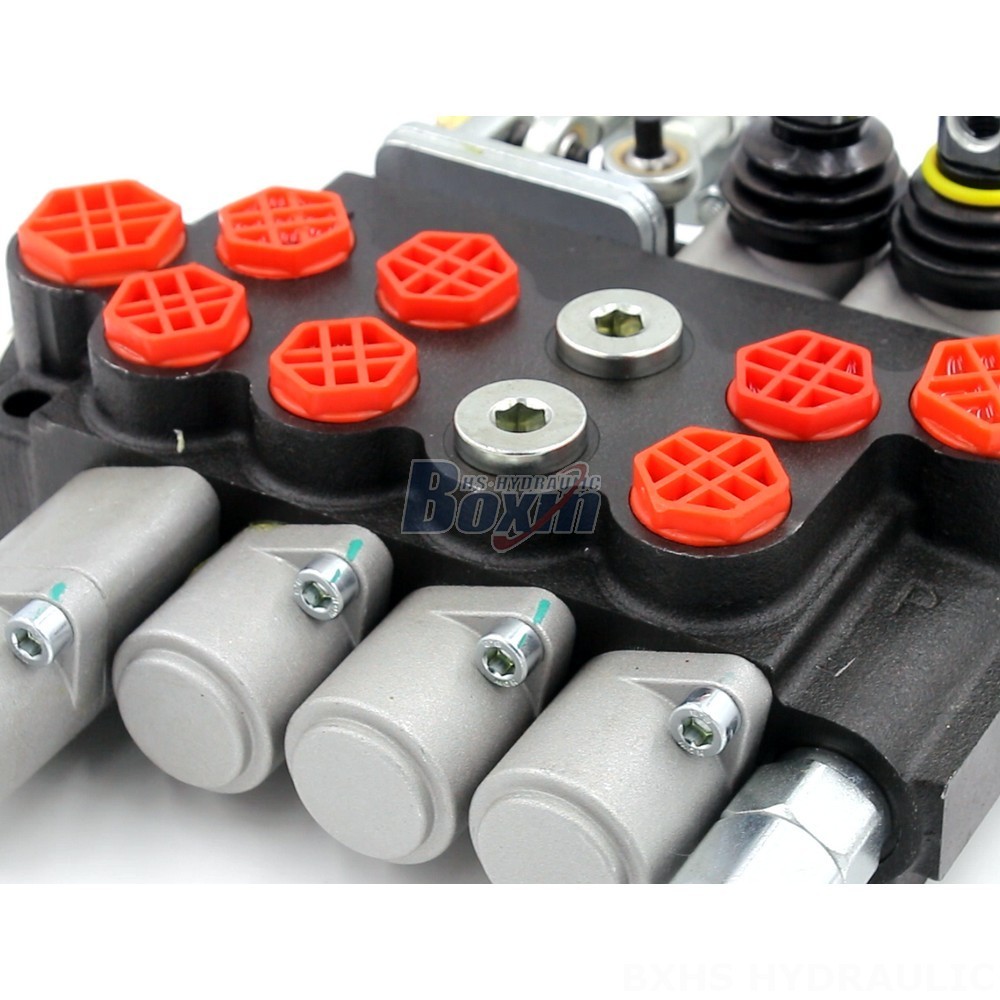

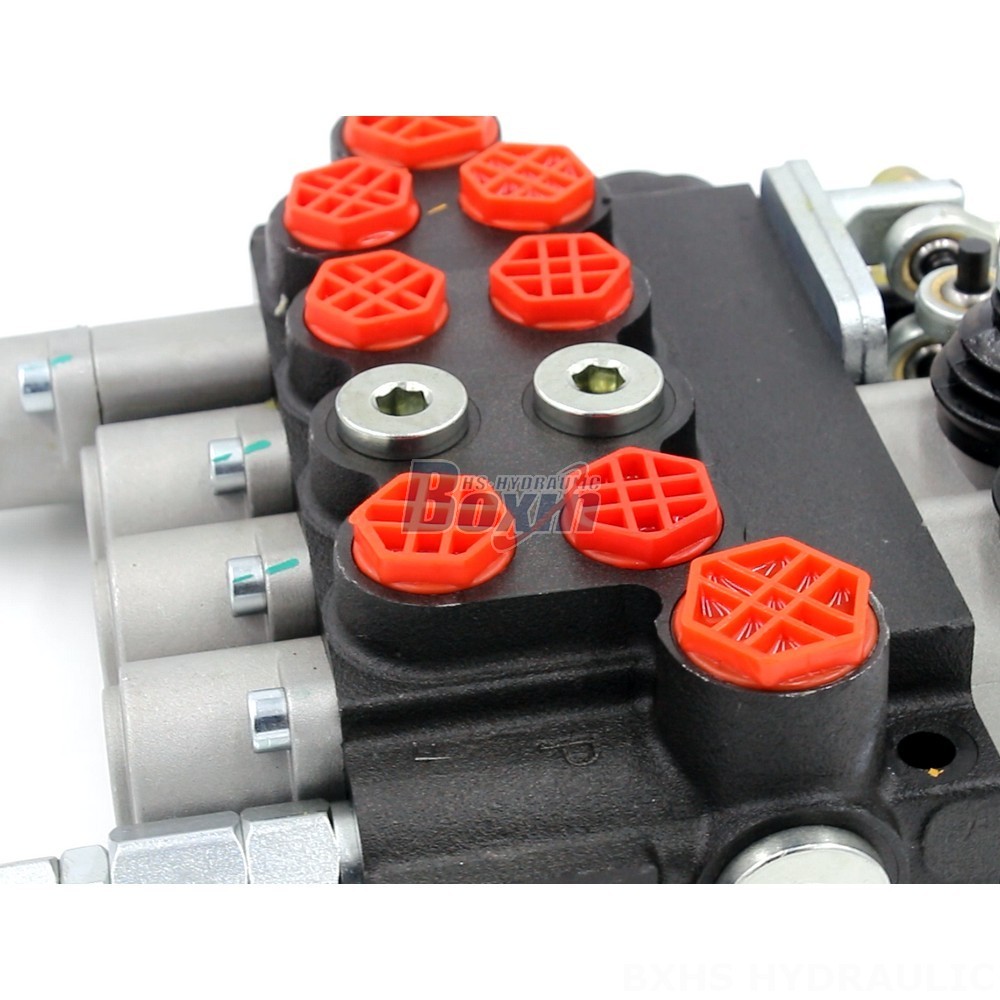

**P40 Series Hydraulic Directional Valve**
The P40 Series Hydraulic Directional Valve is a versatile and durable valve that offers exceptional performance in various hydraulic systems. Here are its key features and specifications:
**Control Method:** Manual and Joystick
**Section:** 4 Section
**Structure Type:** Monoblock Valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 4 Spool
**Series:** P40 Series
**Application Area:** Material Handling, Construction and Earth Moving, Agriculture, Industrial Vehicles
**Applicable Model:** Telehandler, Forklift, All Terrain Crane, Stacker, Aerial Platform, Motor Grader, Telehandler, Midi-Excavator, Mini-Excavator
With its robust construction, precise control, and wide range of applications, the P40 Series Hydraulic Directional Valve is an ideal choice for demanding hydraulic systems in various industries.
