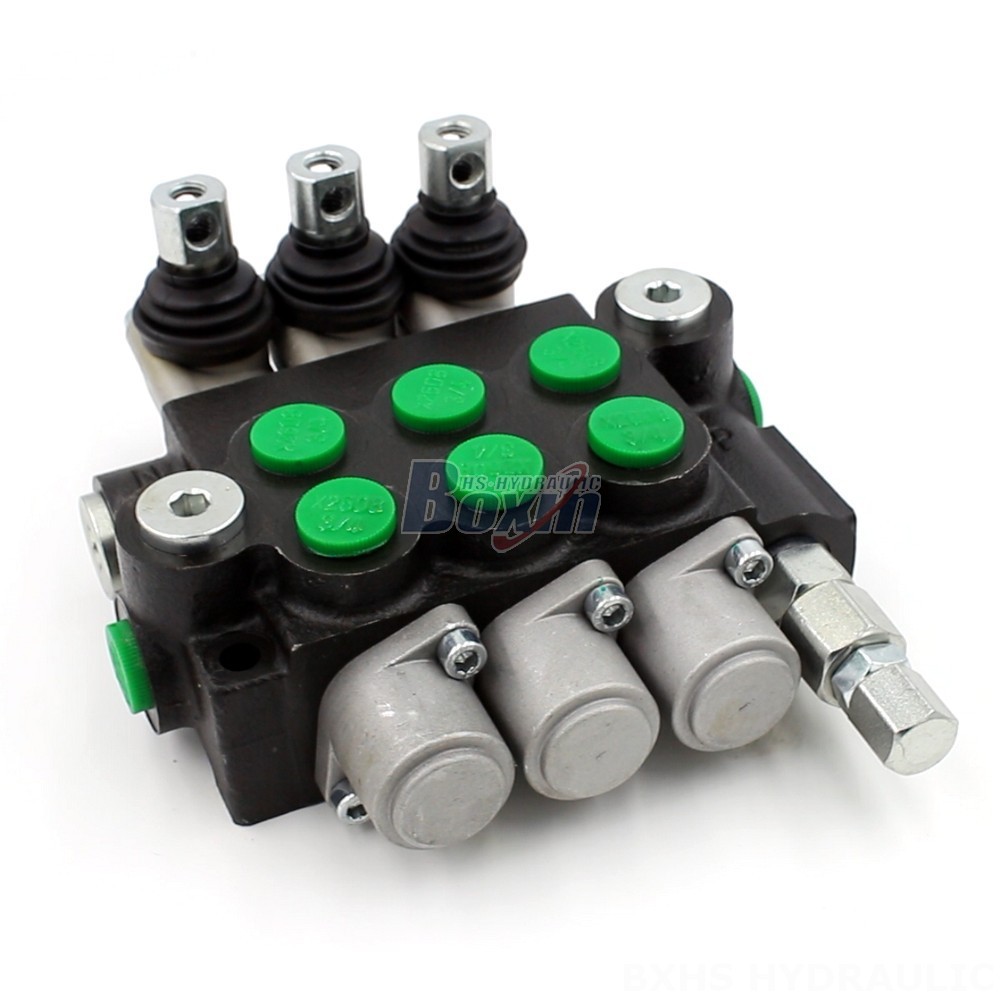

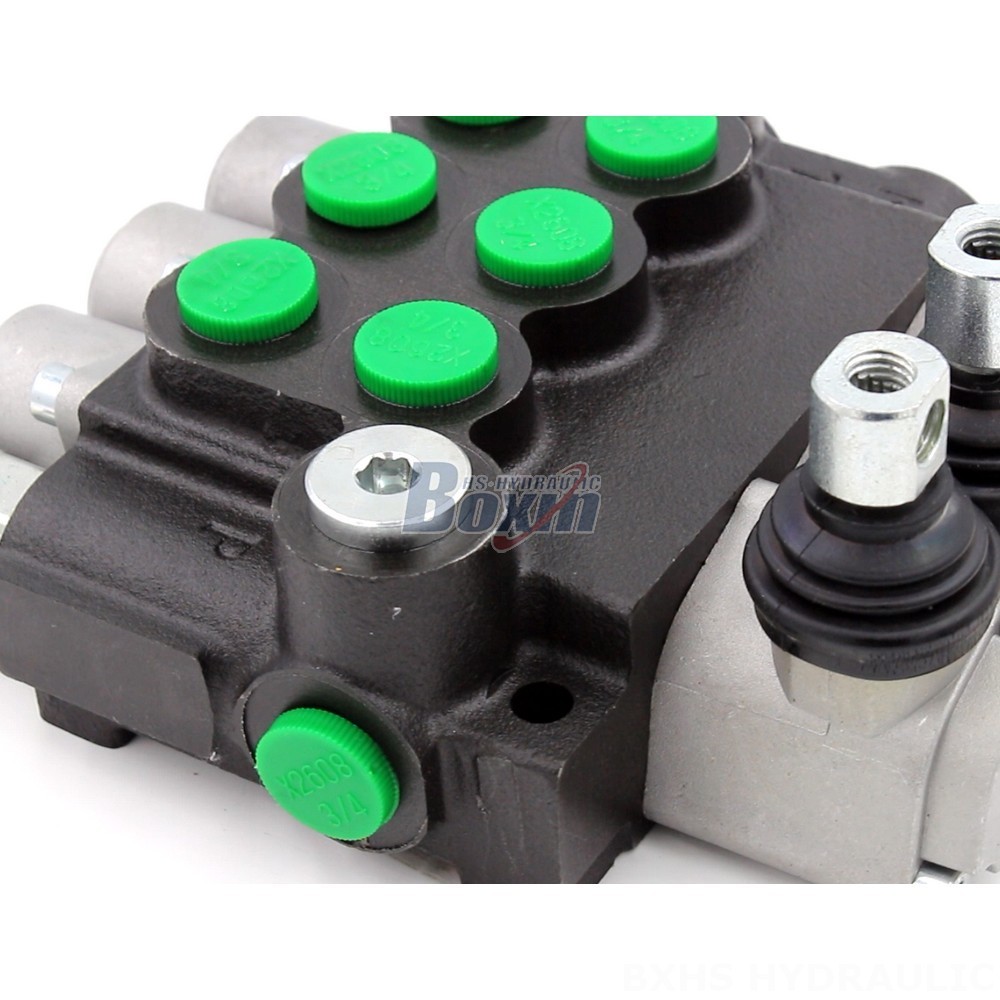

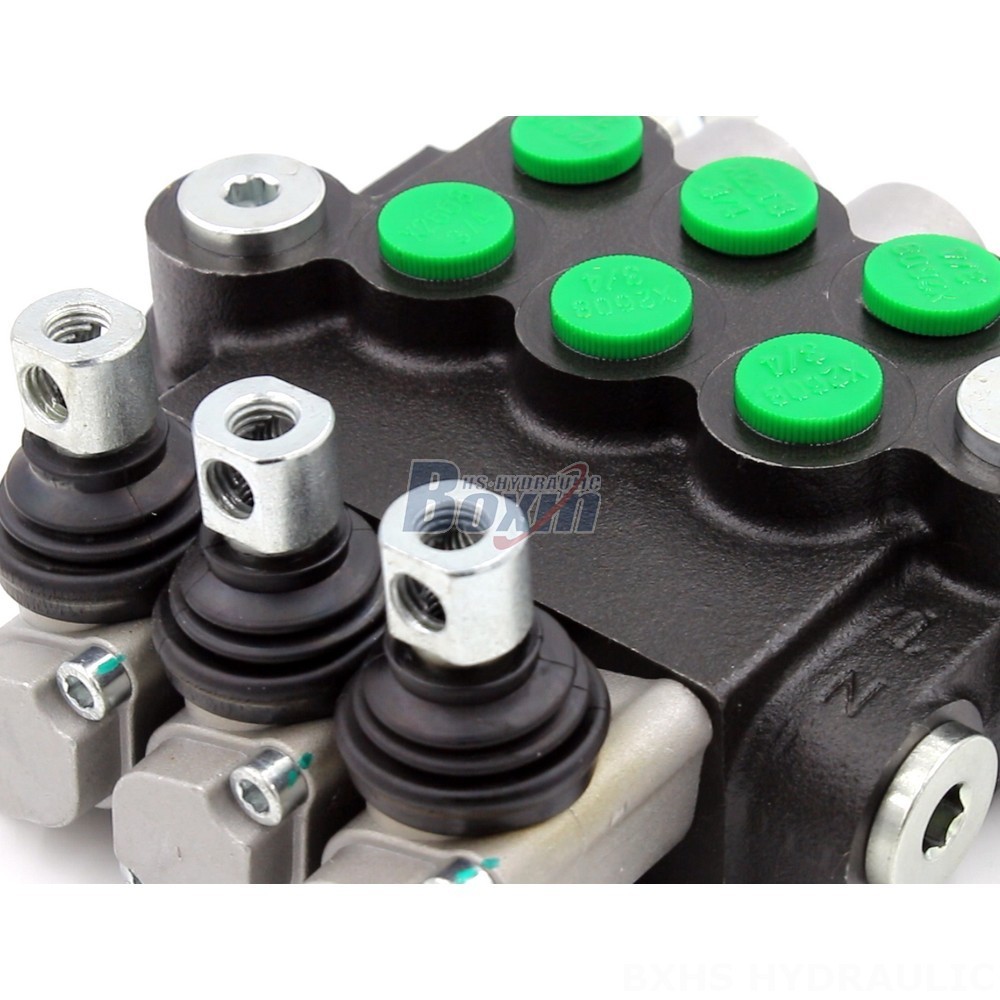

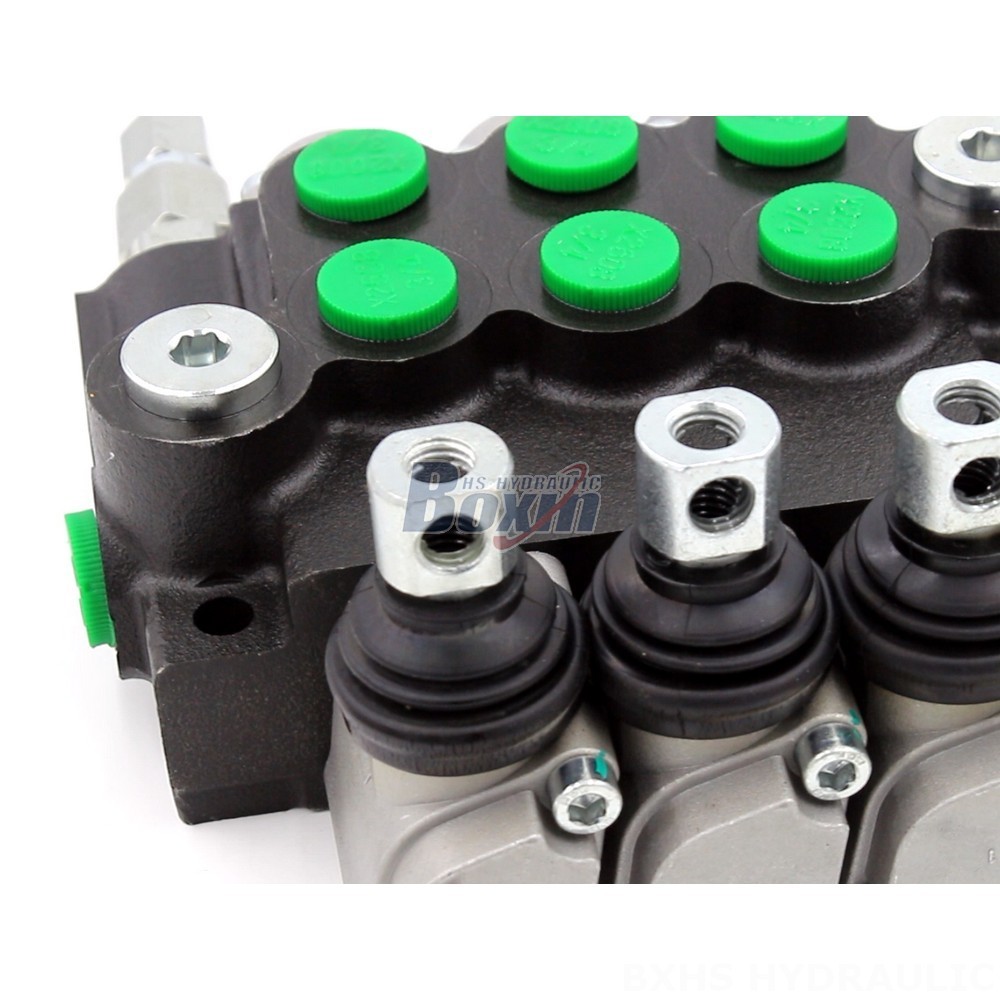

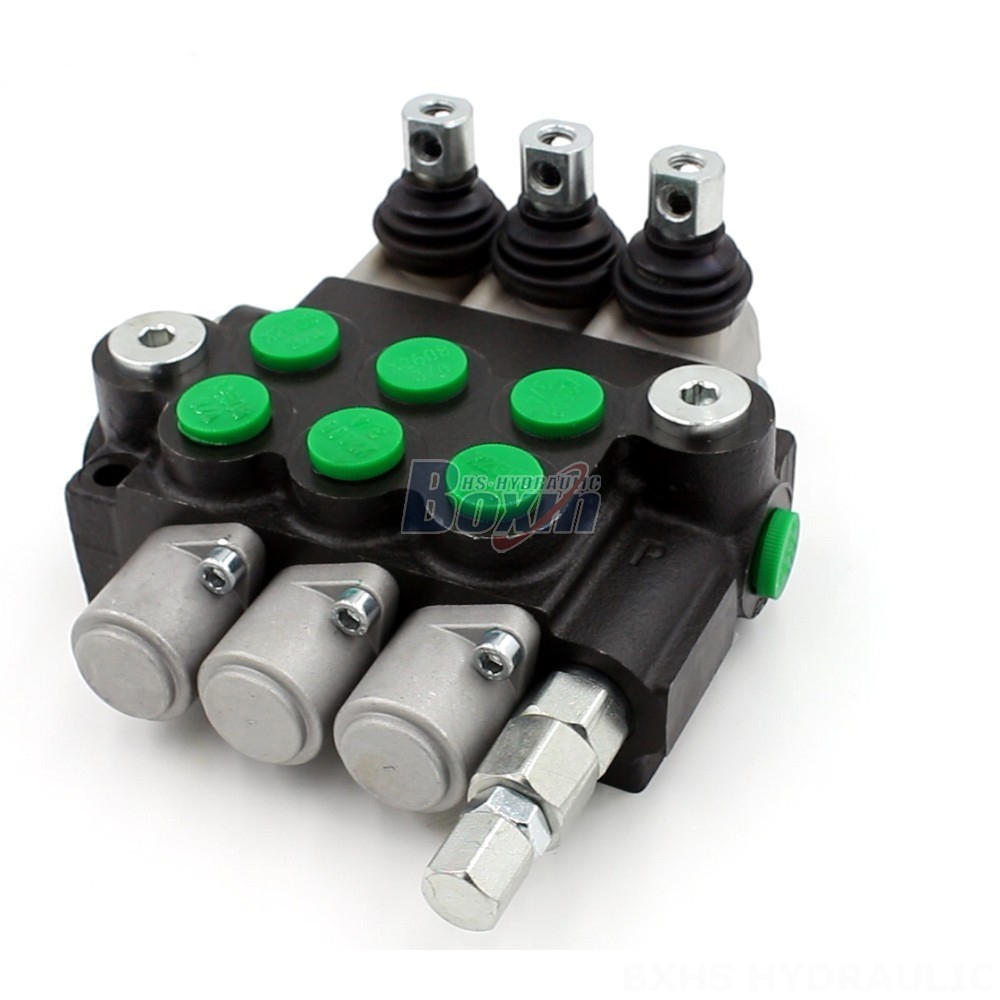

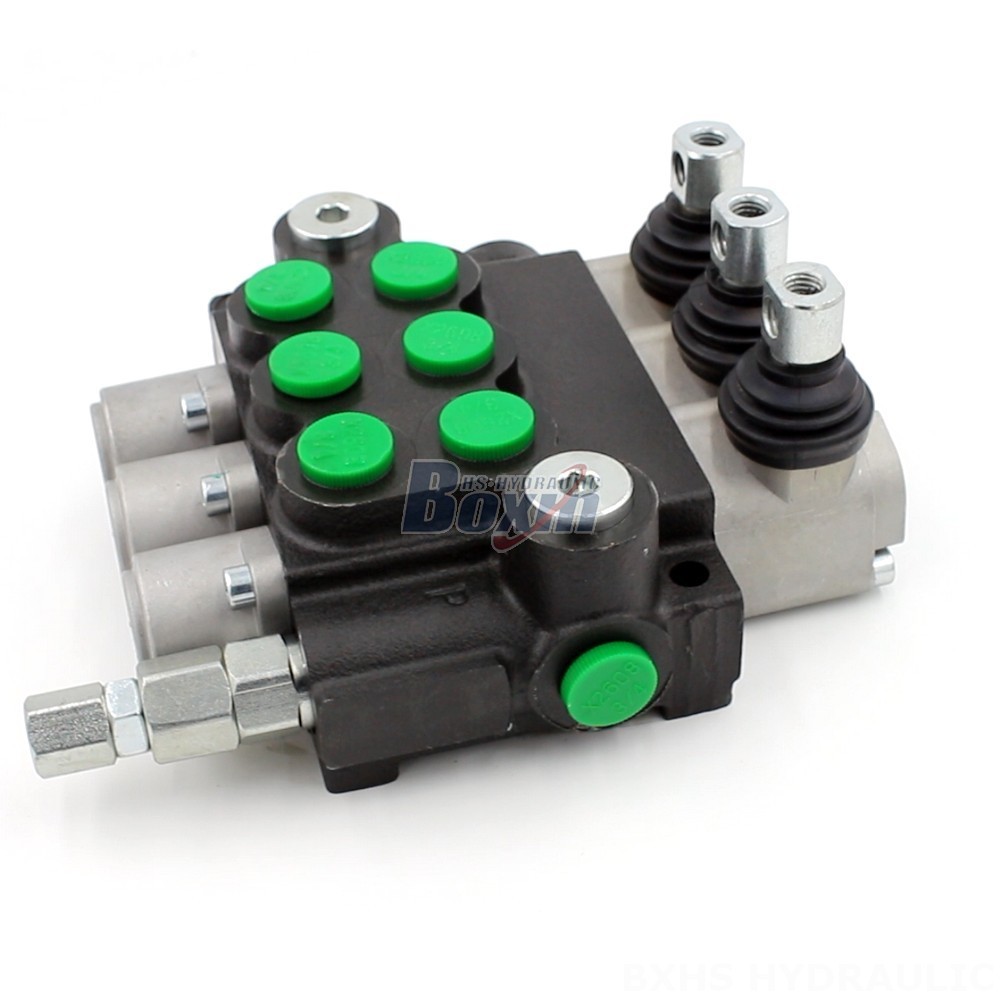

The P40-U34-OT hydraulic directional valve is a manually operated, 3-section, monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It has an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. The valve is suitable for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-U34-OT hydraulic directional valve is a high-quality, durable valve that is designed to meet the demands of the most challenging applications. It is constructed from high-strength materials and features a precision-machined spool for smooth, reliable operation. The valve is also equipped with a variety of features that make it easy to install and maintain, including:
- Manual control for precise operation
- 3-section design for versatility
- Monoblock construction for strength and durability
- 40 L/min rated flow for high performance
- 250 bar maximum pressure for demanding applications
- 15 - 75 mm²/s operating viscosity range for compatibility with a wide range of fluids
- -40°C to +80°C ambient temperature range for use in a variety of environments
- 3 spool for increased control
- P40 series for compatibility with other P40 series valves
- Suitable for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles
- Compatible with a variety of models, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders
