The HSDVG32 4-Spool Manual and Proportional Control Valves are high-performance hydraulic valves designed for a wide range of applications. These valves offer precise control, high flow rates, and exceptional durability, making them ideal for demanding hydraulic systems.
| Série HSDVG32 Válvula de Controle Proporcional Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletrohidráulico, Solenoide, Hidráulico e Manual, Cabo, Proporcional elétrico, Solenóide e Manual, Proporcional elétrico e manual |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis, 8 Carreteis, 9 Carreteis, 10 Carreteis, 11 Carreteis, 12 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula seccional |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções, 8 secções, 9 secções, 10 secções, 11 secções, 12 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 140 L/min (37 US gpm) |
| Pressão Máxima | 315 bar (4600 psi) |
| Porta de Entrada | G3/4 |
| Porta de Saída | G3/4 |
| Tamanho da Porta | G1/2, G3/4 |

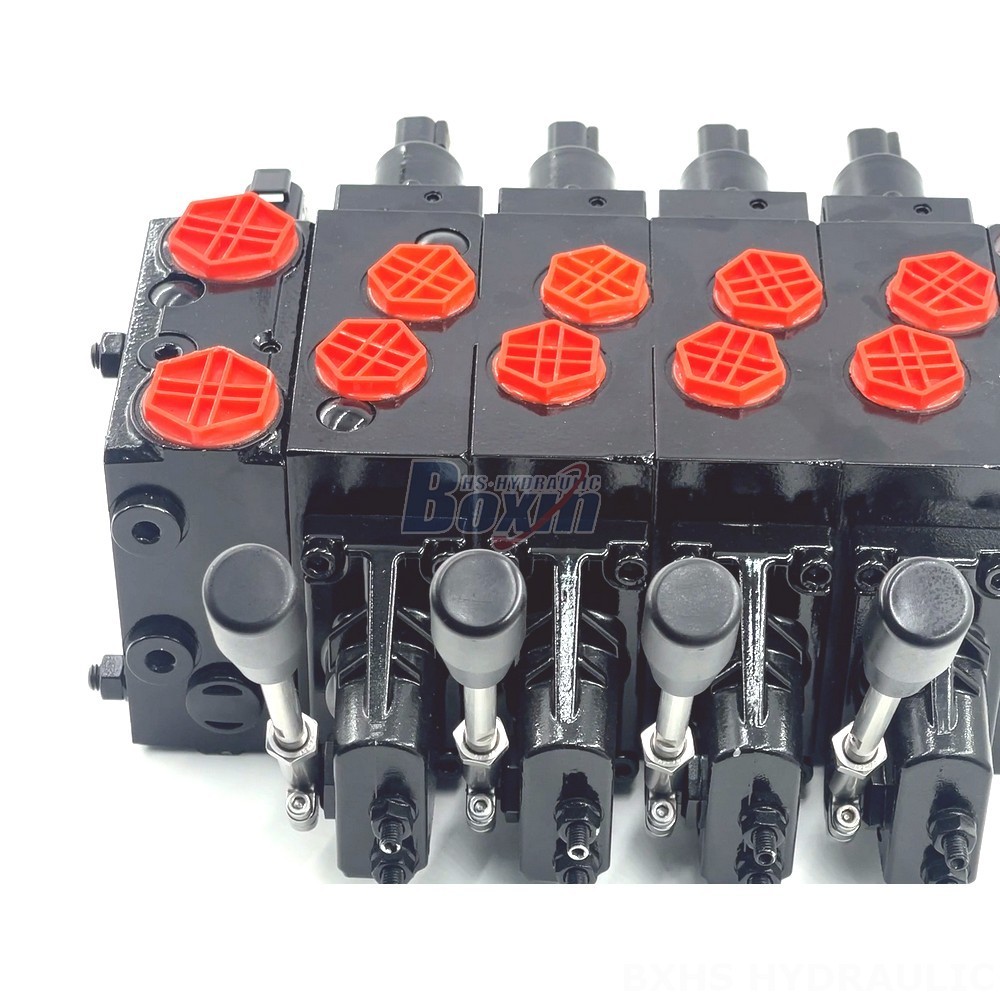

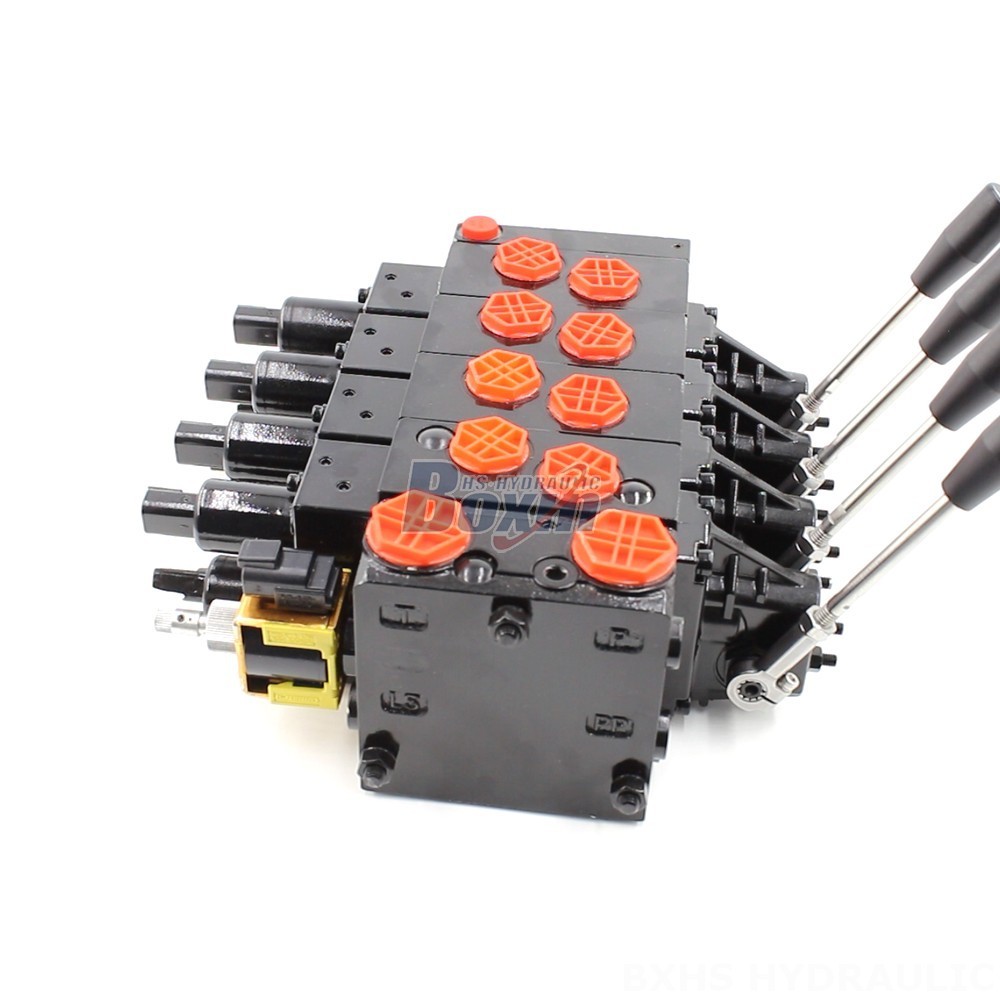

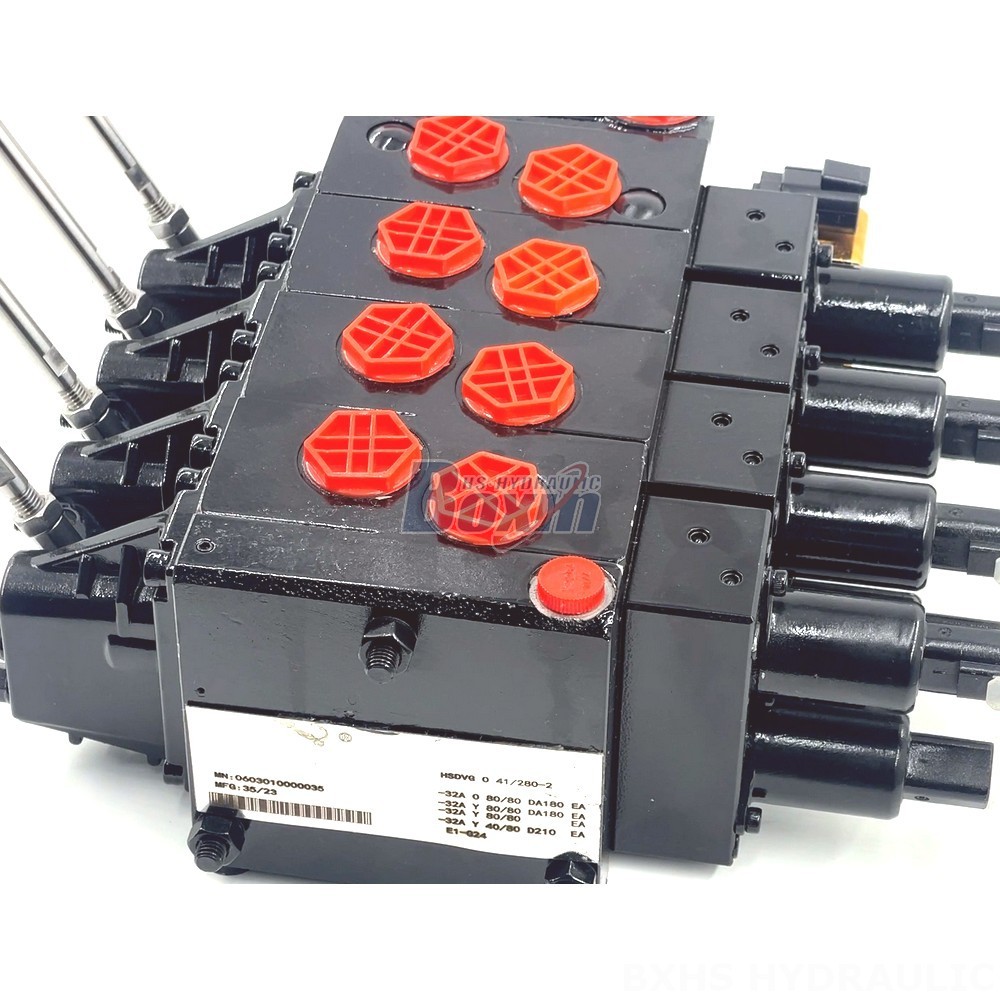

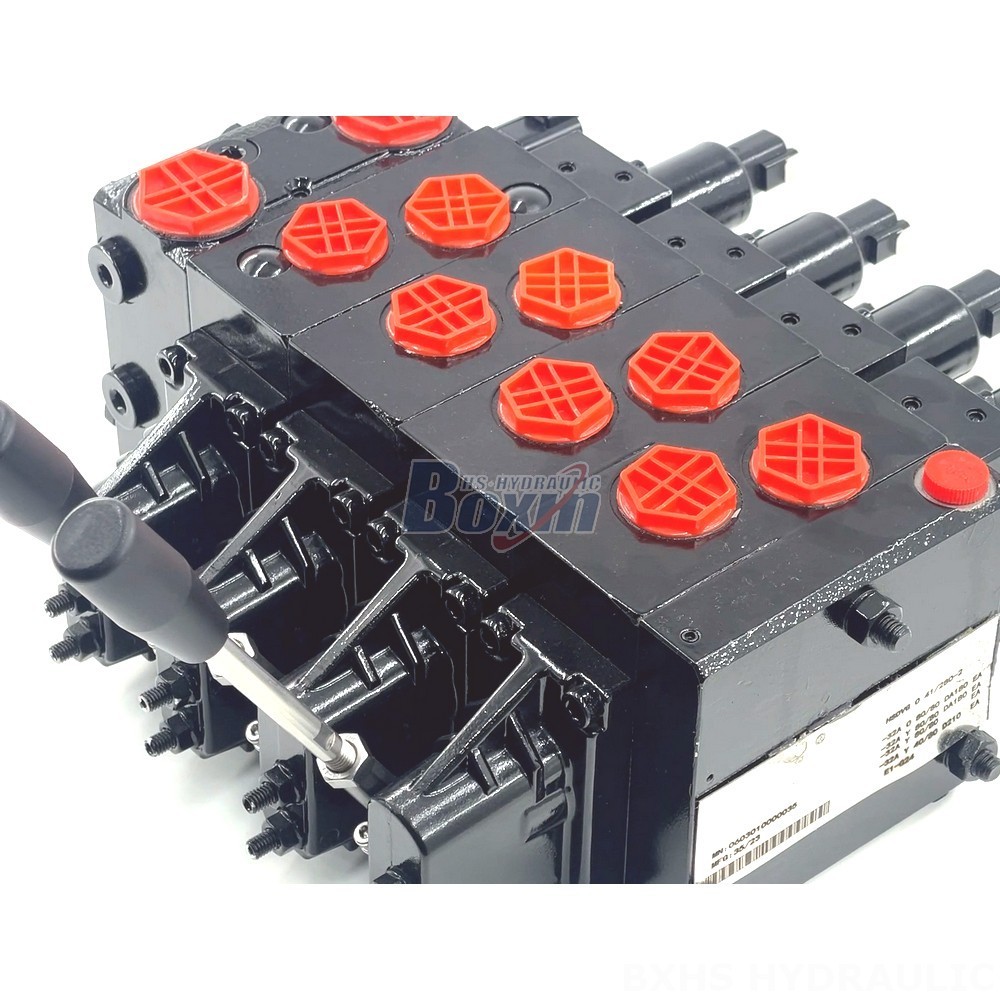

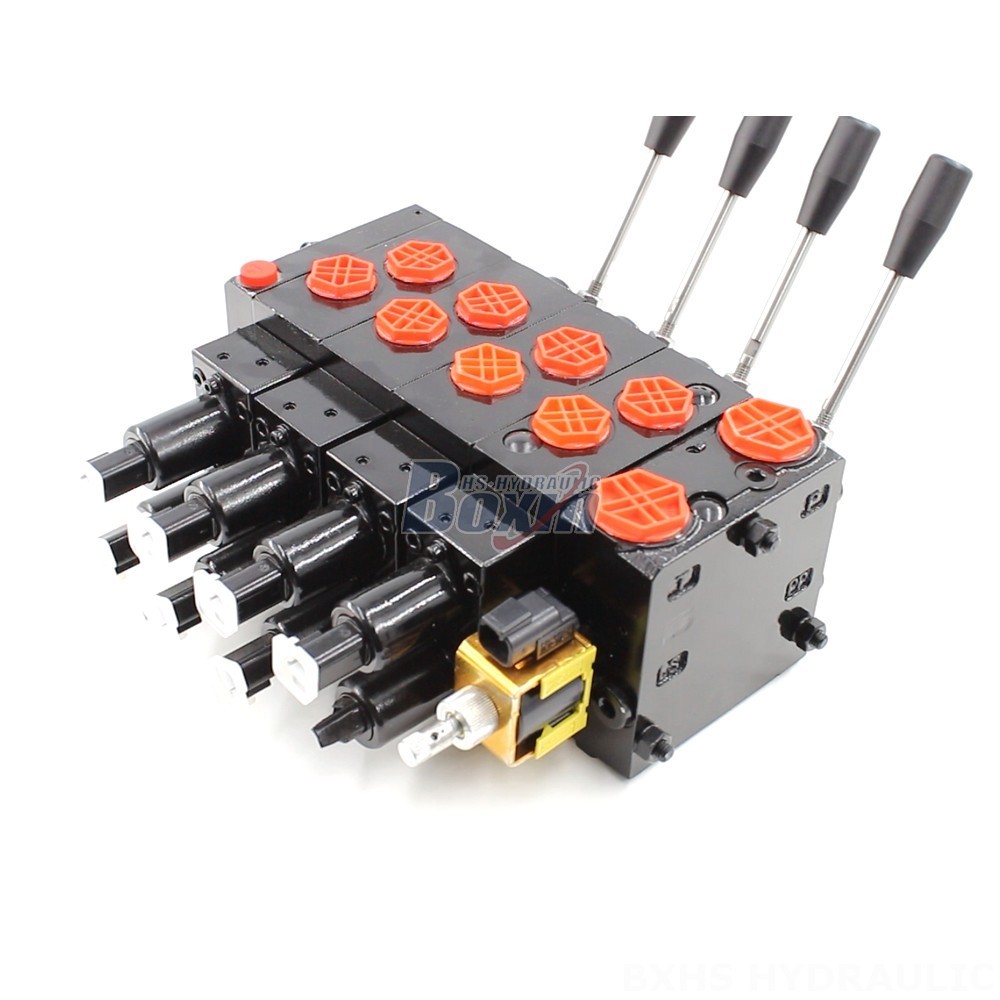

**HSDVG32 4-Spool Manual and Proportional Control Valves**
**Control Method:** Electric proportional and Manual
**Section:** 4 Section
**Structure Type:** Sectional valve
**Rated Flow:** 140 L/min (37 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 4 Spool
**Series:** HSDVG32 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER
The HSDVG32 valves are constructed from high-quality materials and feature a robust design to withstand harsh operating conditions. They are equipped with advanced proportional control technology, providing precise and responsive control over hydraulic systems. These valves are also highly efficient, minimizing energy loss and maximizing system performance.
The HSDVG32 valves are suitable for various applications, including material handling, construction, earth moving, agriculture, and industrial vehicles. They are commonly used in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders.
