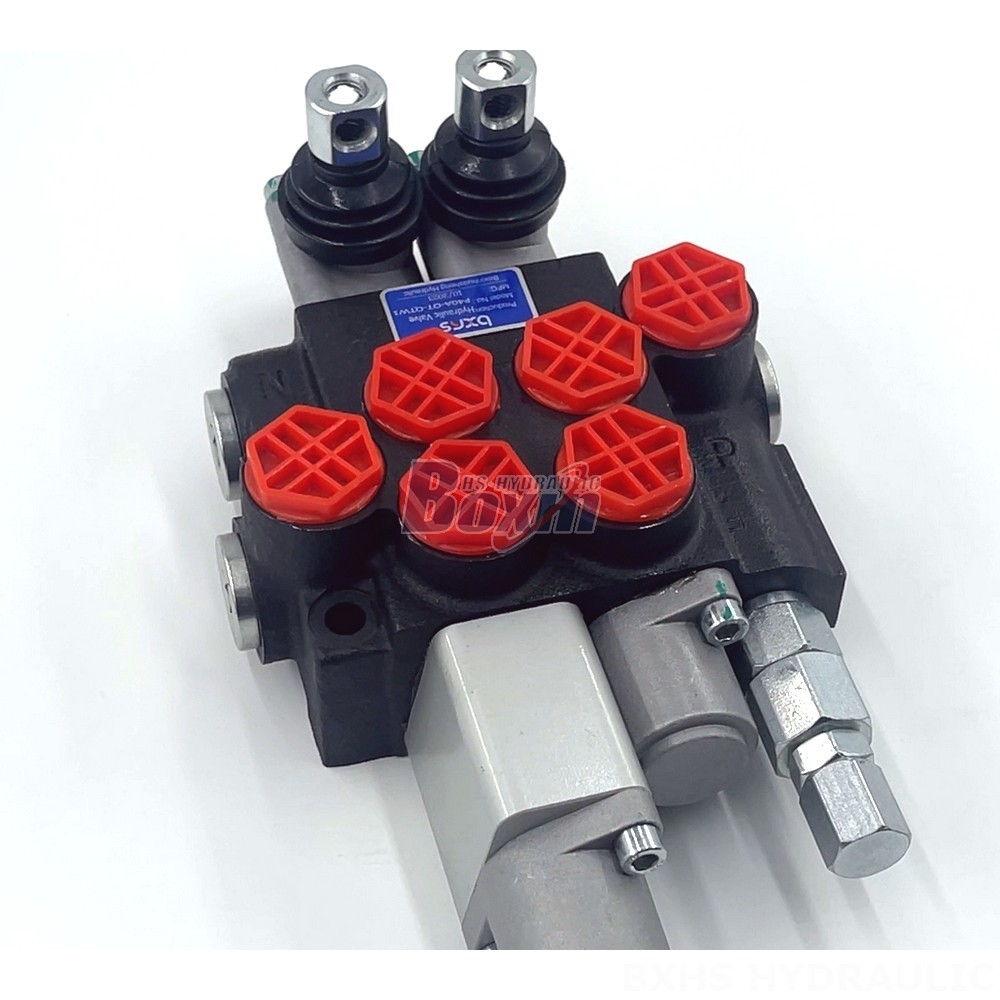

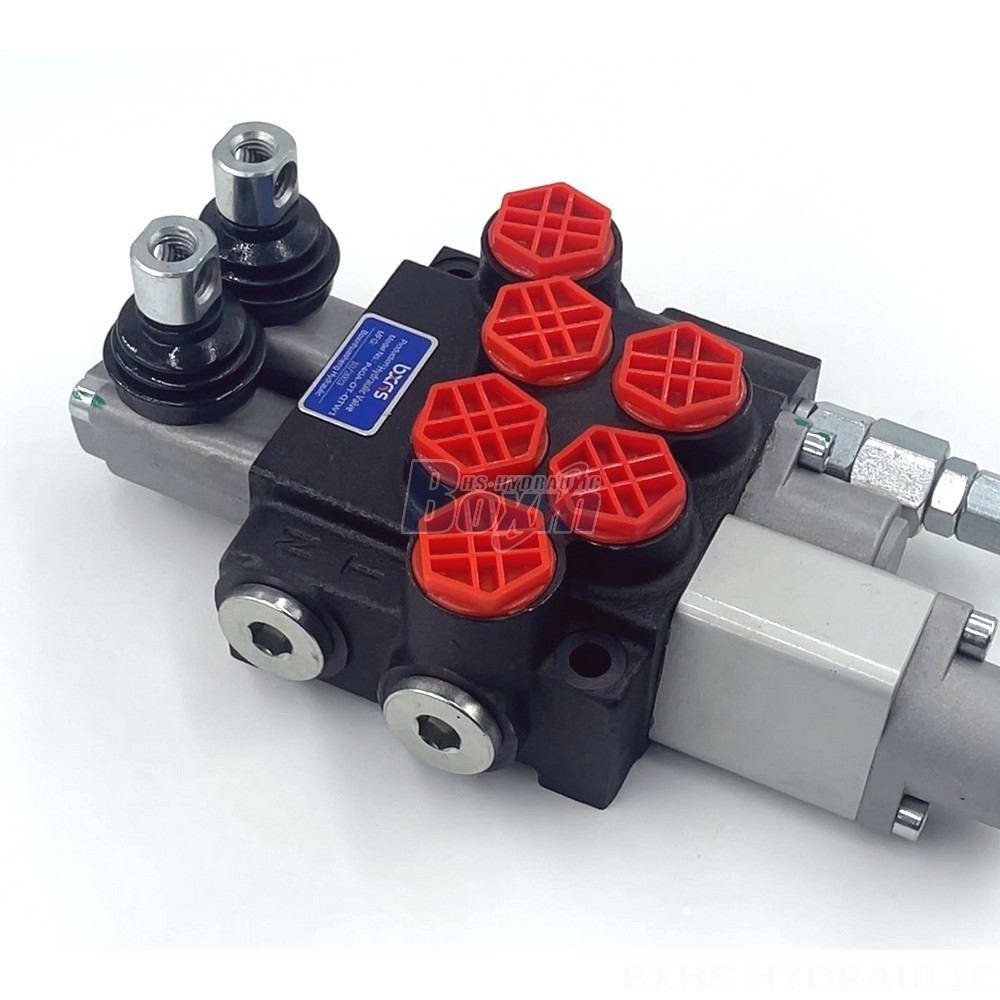

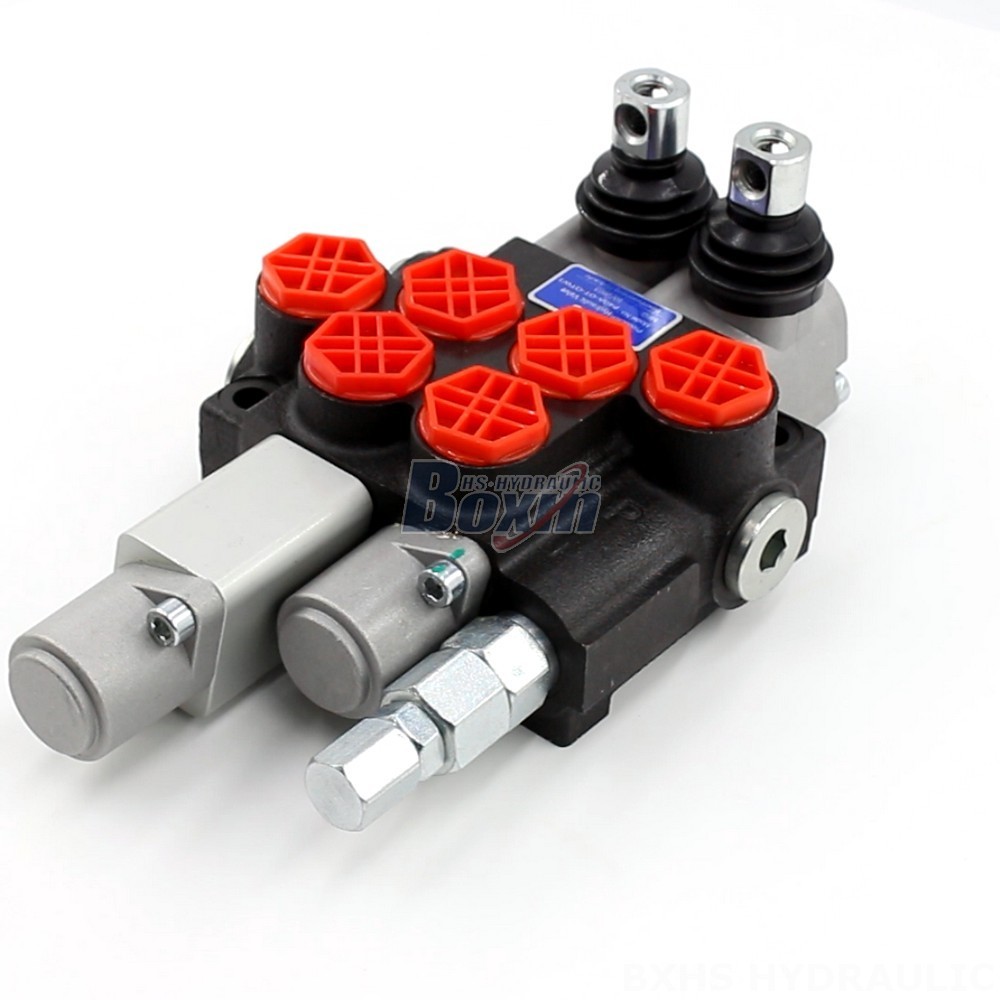

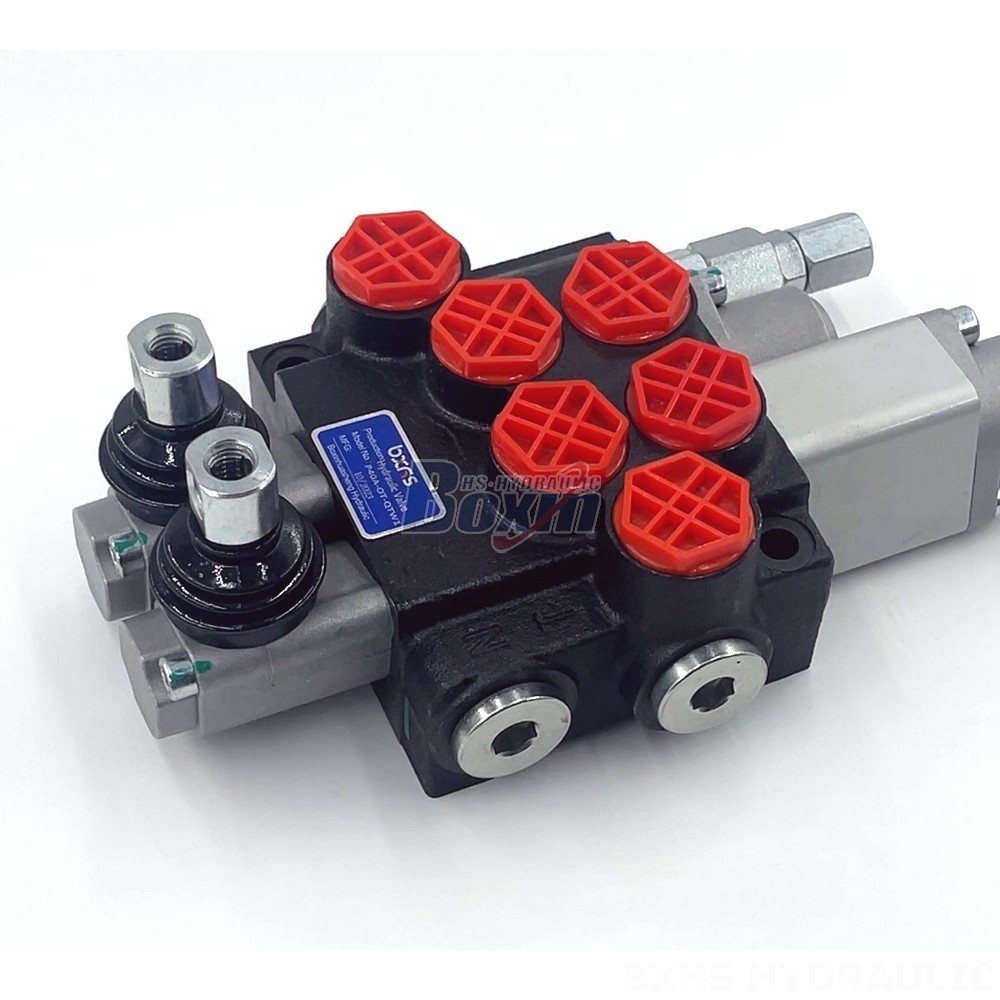

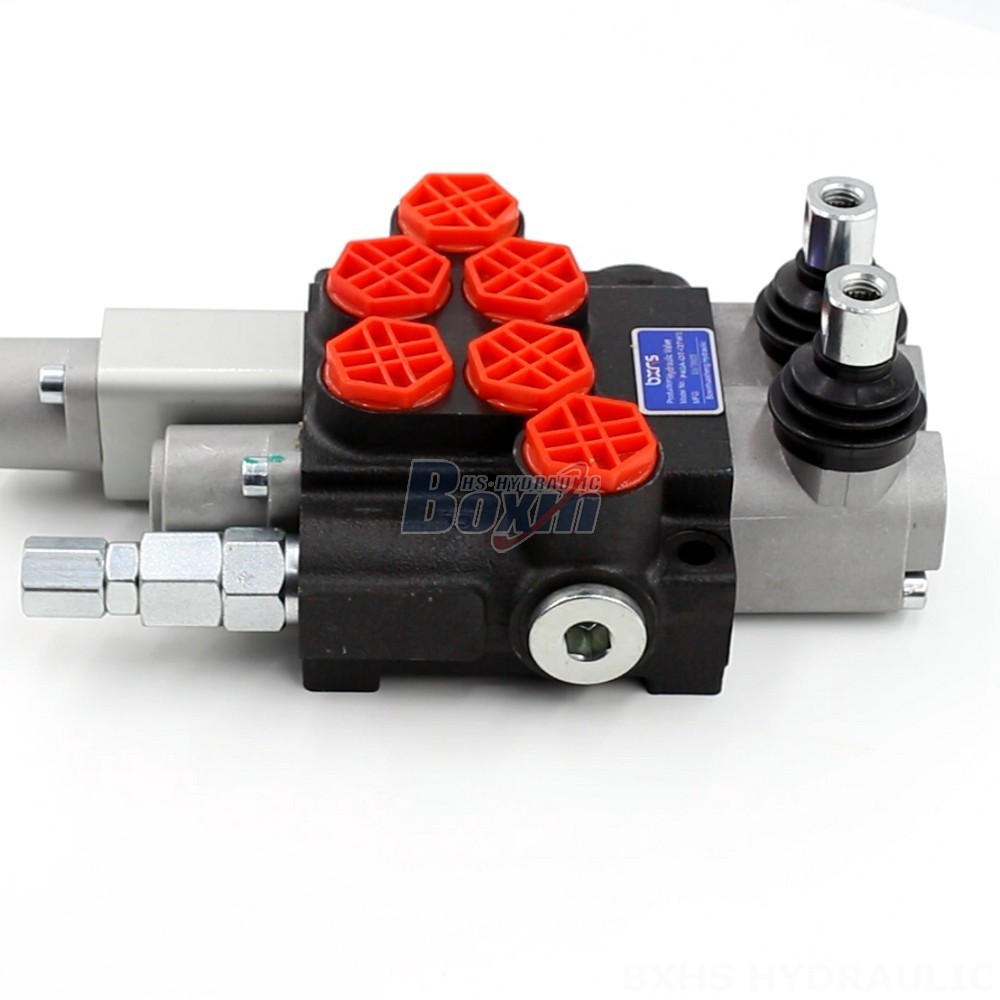

The P40A Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve provides reliable and efficient flow control in demanding operating conditions. Its compact monoblock design ensures durability and reduces installation time, making it an ideal choice for applications where space and weight are critical.
| Série P40A Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Tipo de estrutura | Válvula monobloco |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
**Key Features:**
* Manual control for precise flow adjustment
* 2 spool design for independent control of two hydraulic circuits
* Monoblock construction for durability and reduced installation time
* Rated flow of 40 L/min for efficient performance
* Maximum pressure of 250 bar for handling high-pressure systems
* Wide operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
* Ambient temperature range of -40°C to +80°C for operation in challenging environments
**Applications:**
* Material handling equipment
* Construction and earth moving machinery
* Agricultural machinery
* Industrial vehicles
* Material handling equipment: Forklifts, telehandlers, aerial platforms
* Construction and earth moving machinery: Excavators, skid steer loaders, compact wheel loaders, motor graders
