Produção e Entrega
Prazo de produção de 15 a 30 dias
1058 Visualizações estão procurando por este produto

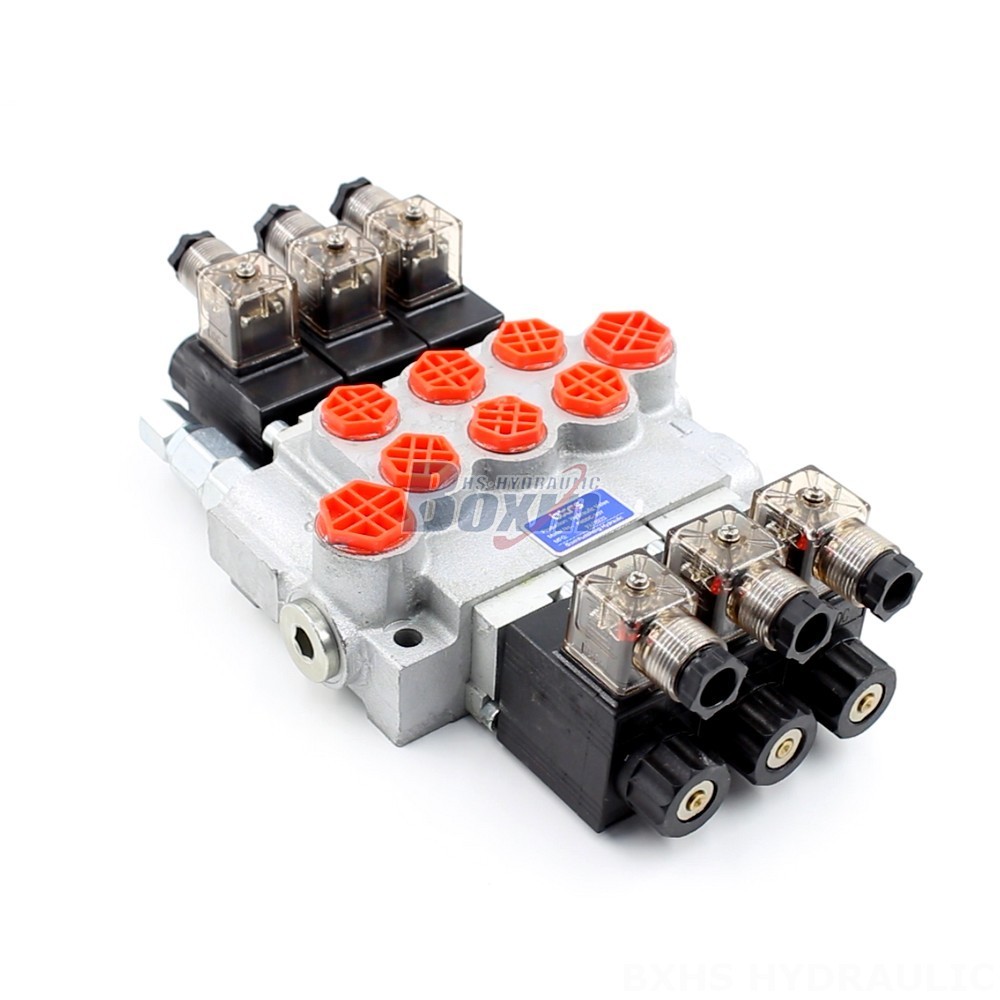

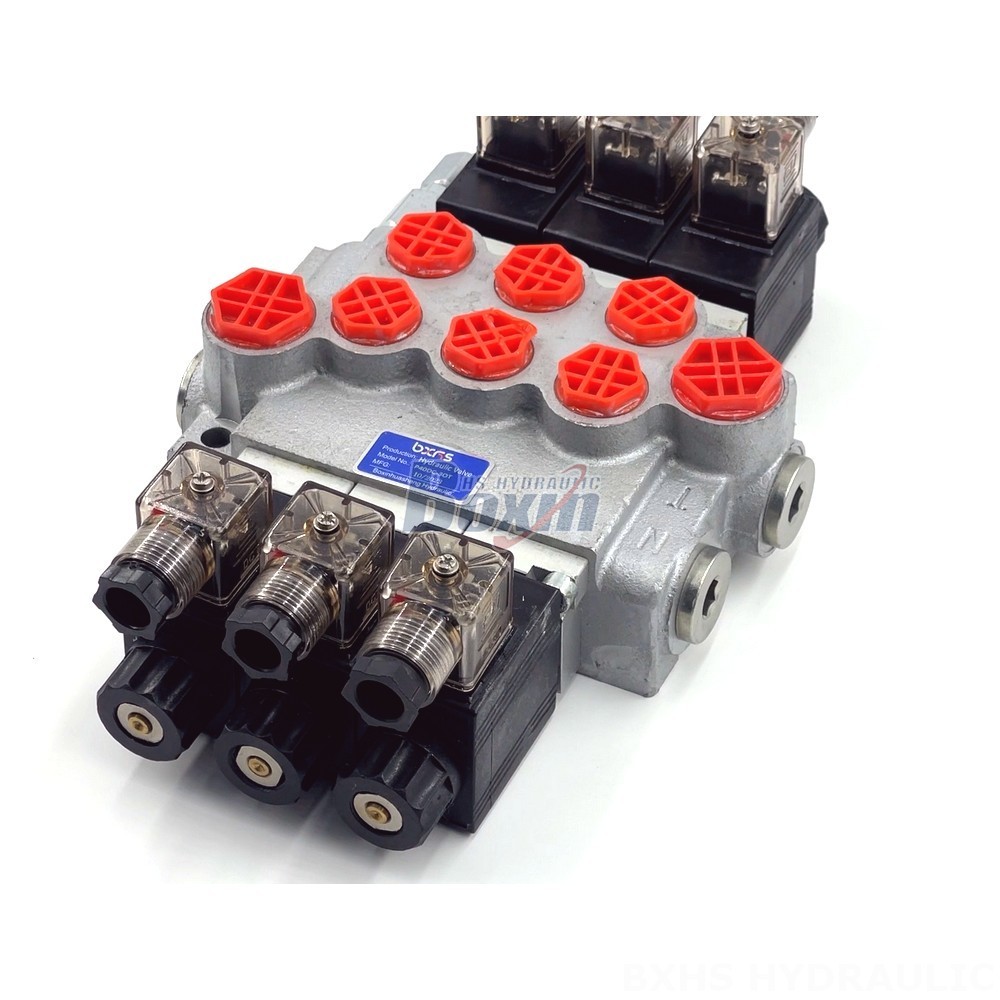

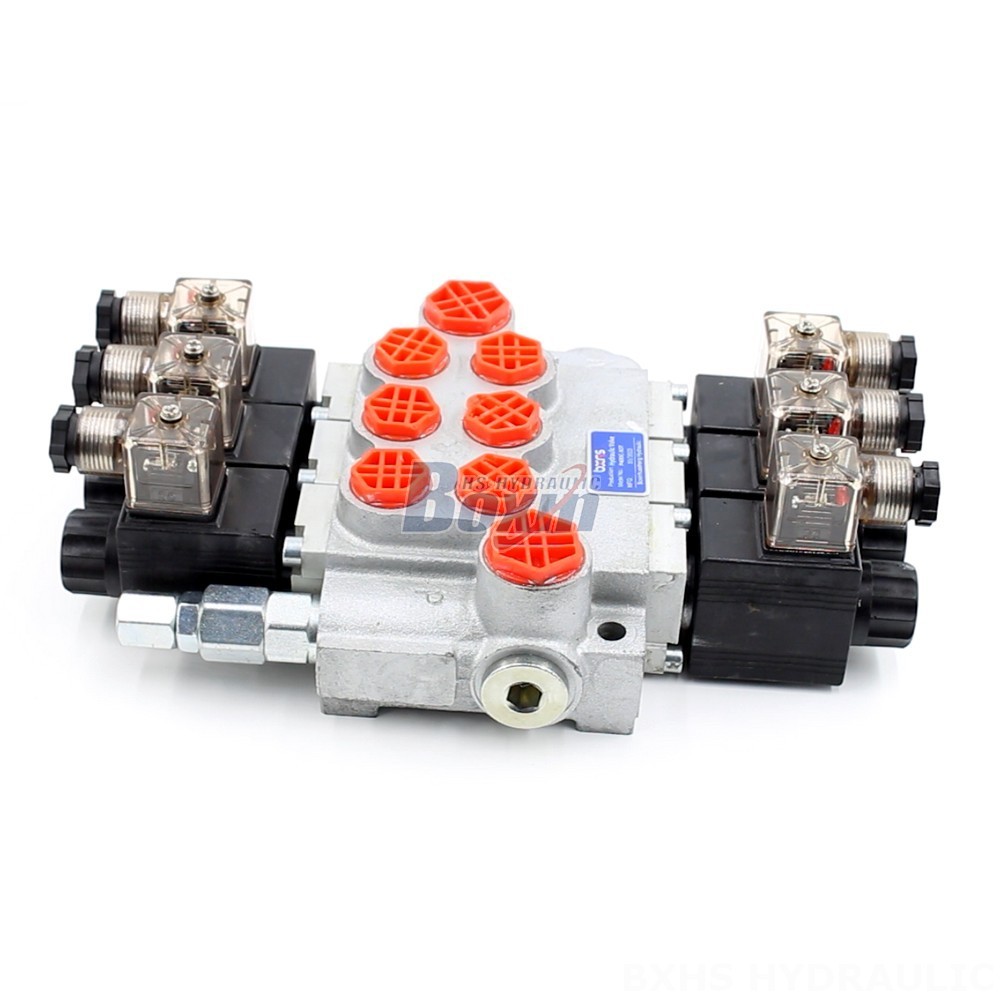

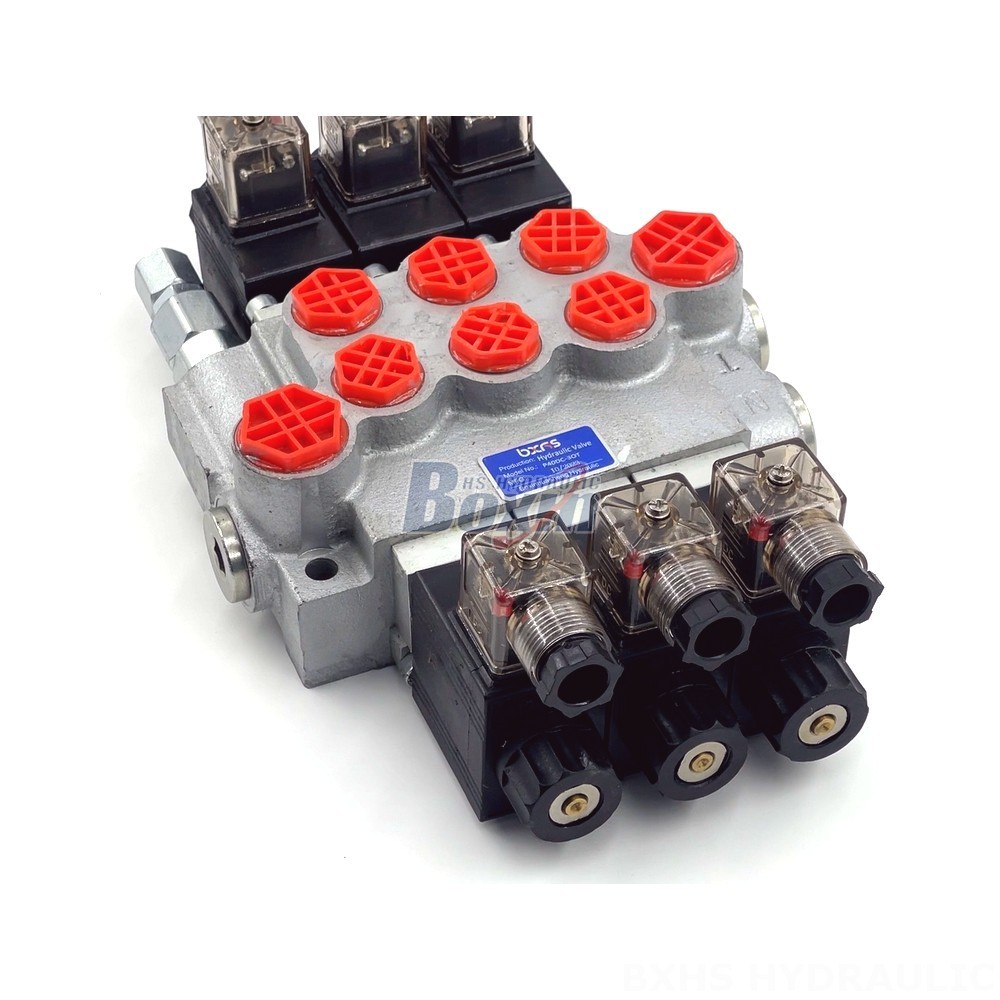

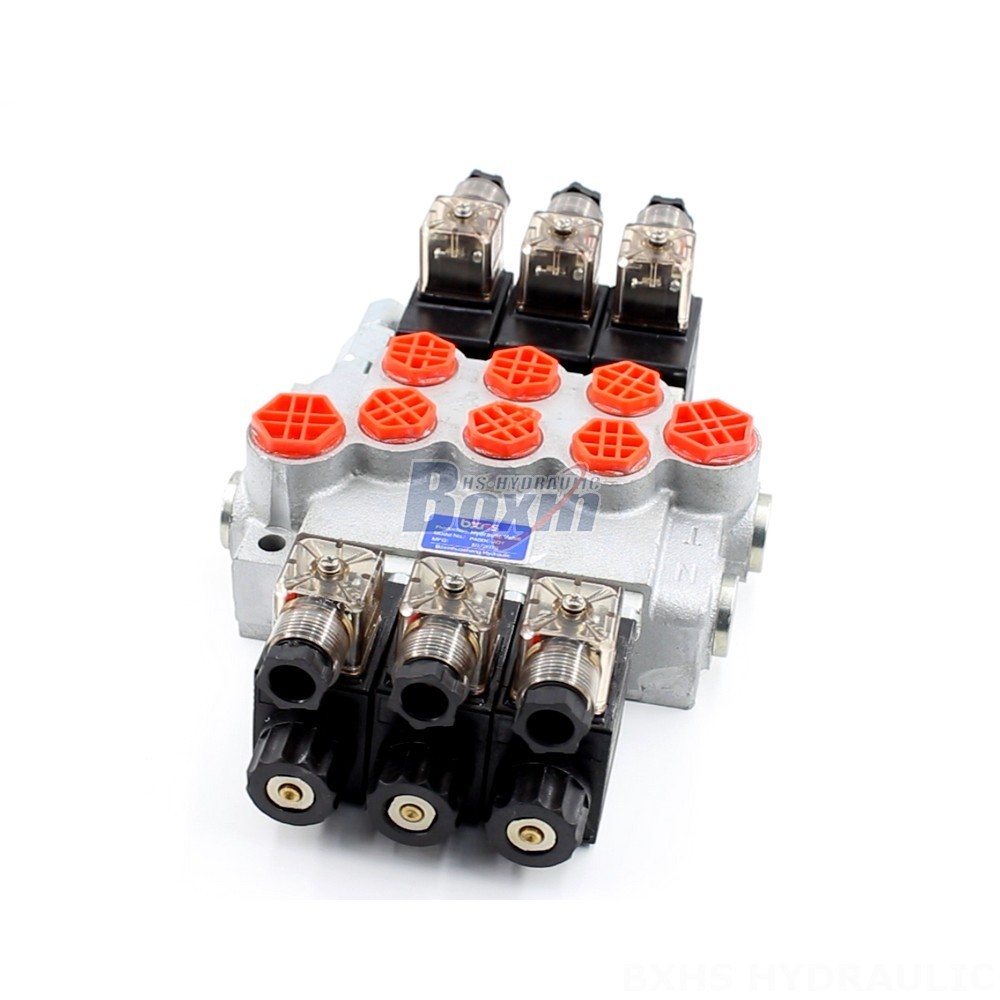

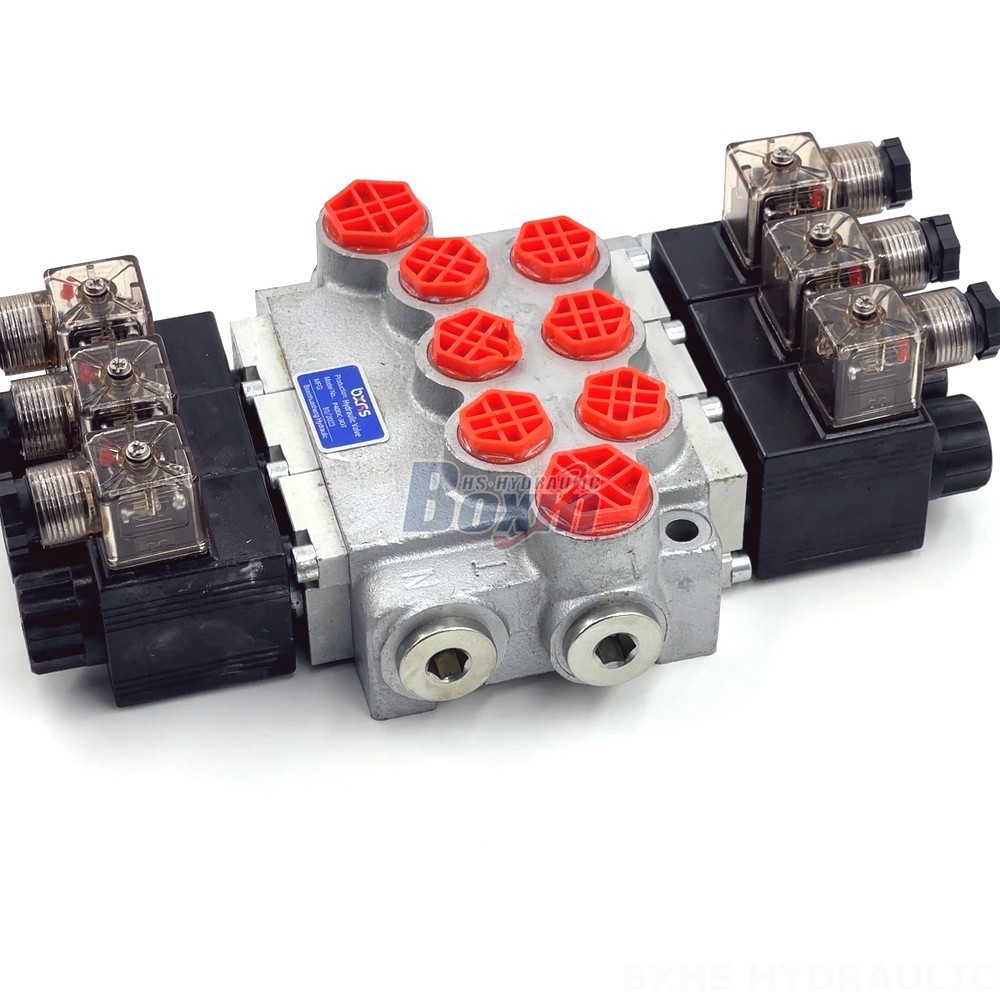

The P40-DKL Series Hydraulic Lever Hydraulic Monoblock Directional Valve is a reliable and high-performance valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This 3-section, solenoid-controlled valve features a rated flow of 40 L/min and a maximum pressure of 250 bar. It is available for wholesale and OEM purposes.
| Série P40-DKL Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Tipo de estrutura | Válvula monobloco |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
The P40-DKL Series Hydraulic Lever Hydraulic Monoblock Directional Valve is a robust and versatile solution for controlling hydraulic systems. This 3-section valve features a monoblock construction for enhanced durability and compact design. The solenoid control mechanism allows for precise and responsive operation. The valve is rated for a flow rate of 40 L/min and can handle pressures up to 250 bar. The P40-DKL Series is suitable for a wide range of applications including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, skid steer loaders, and compact wheel loaders. We offer this valve for wholesale and OEM purposes, enabling you to integrate it into your own machinery or purchase in bulk for your specific needs. Contact us for more information about this product and its availability.
