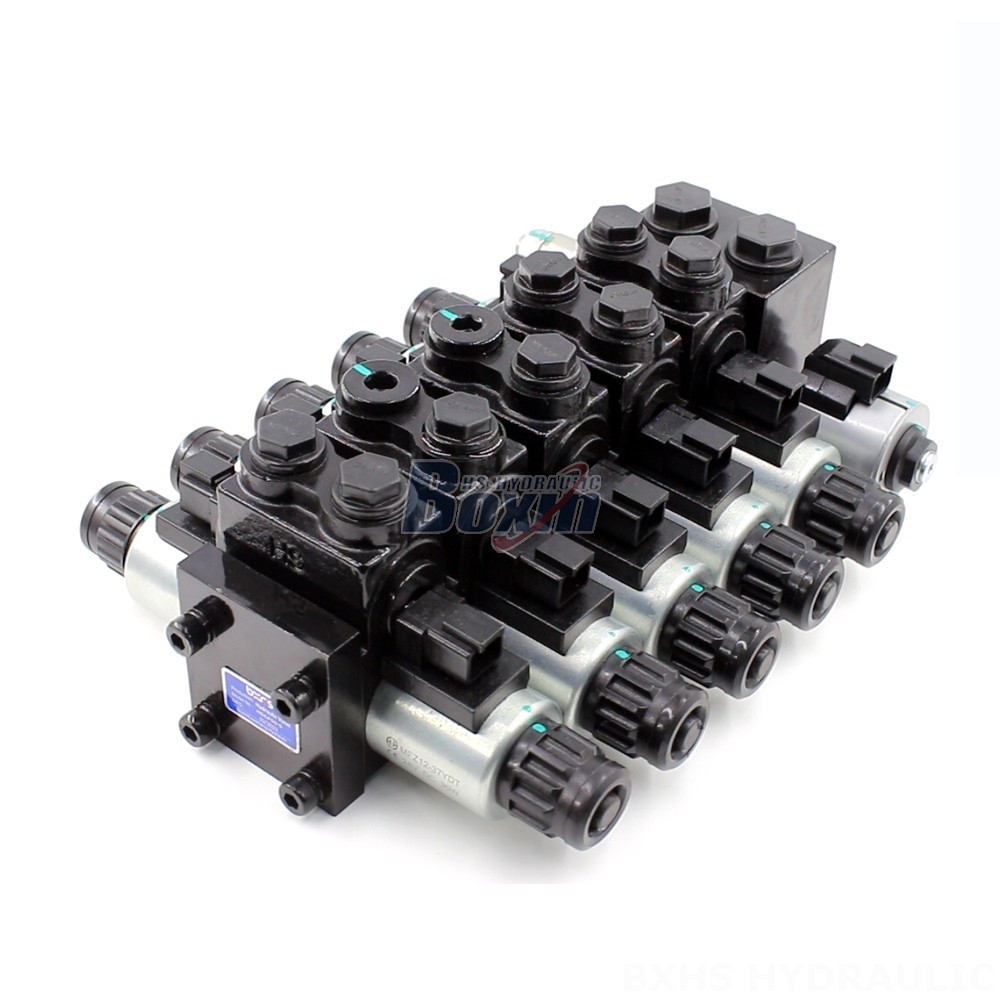

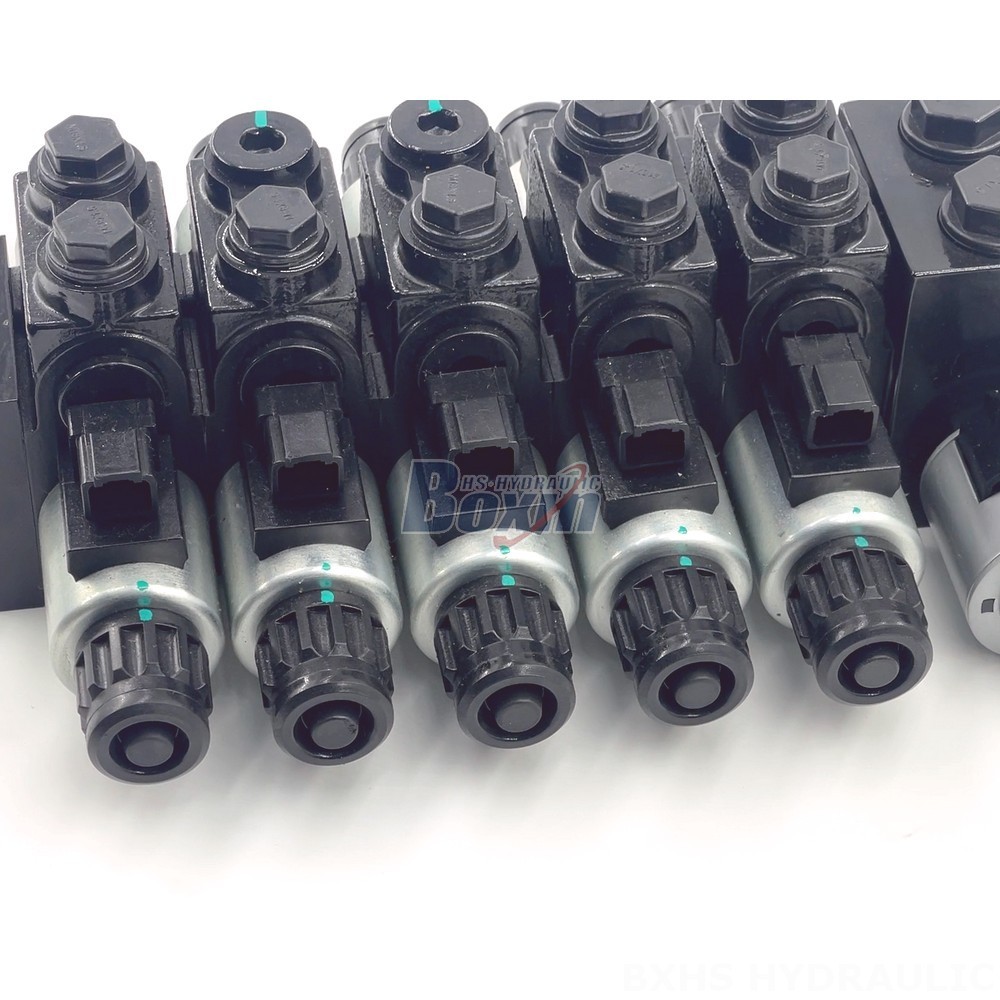

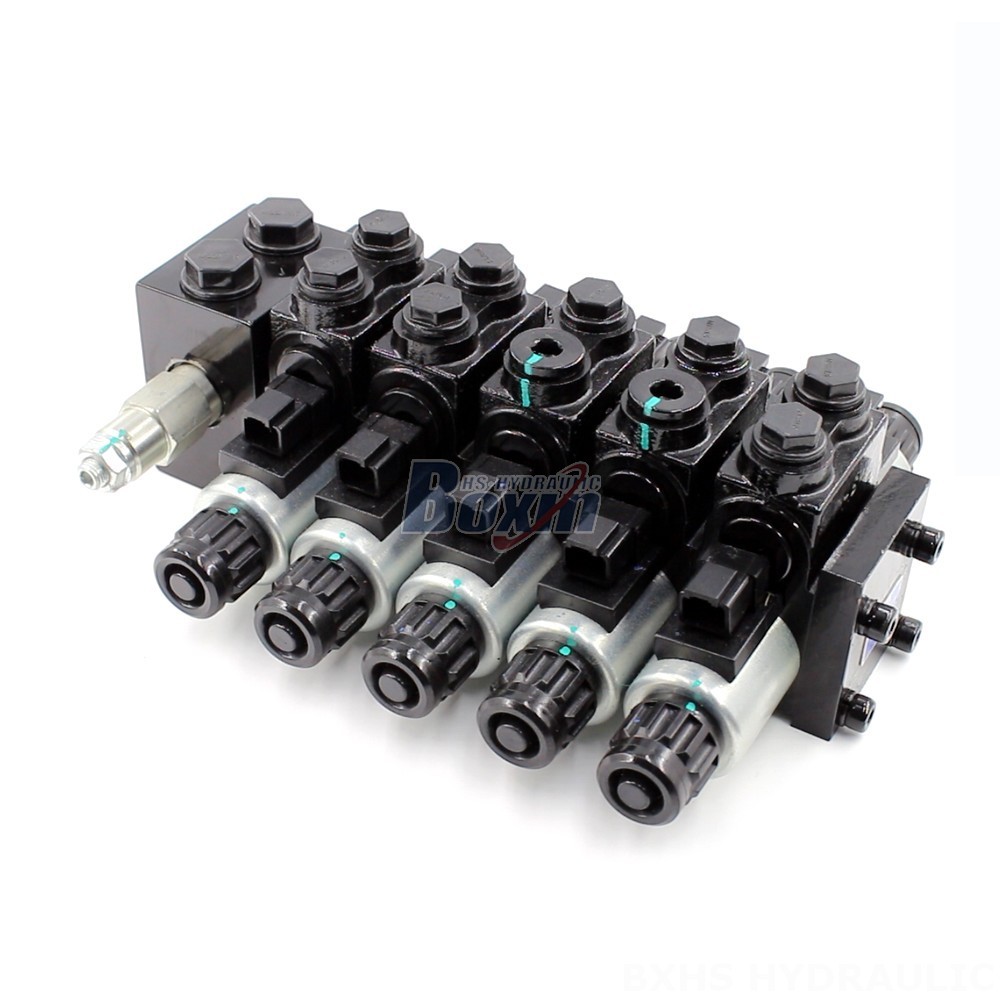

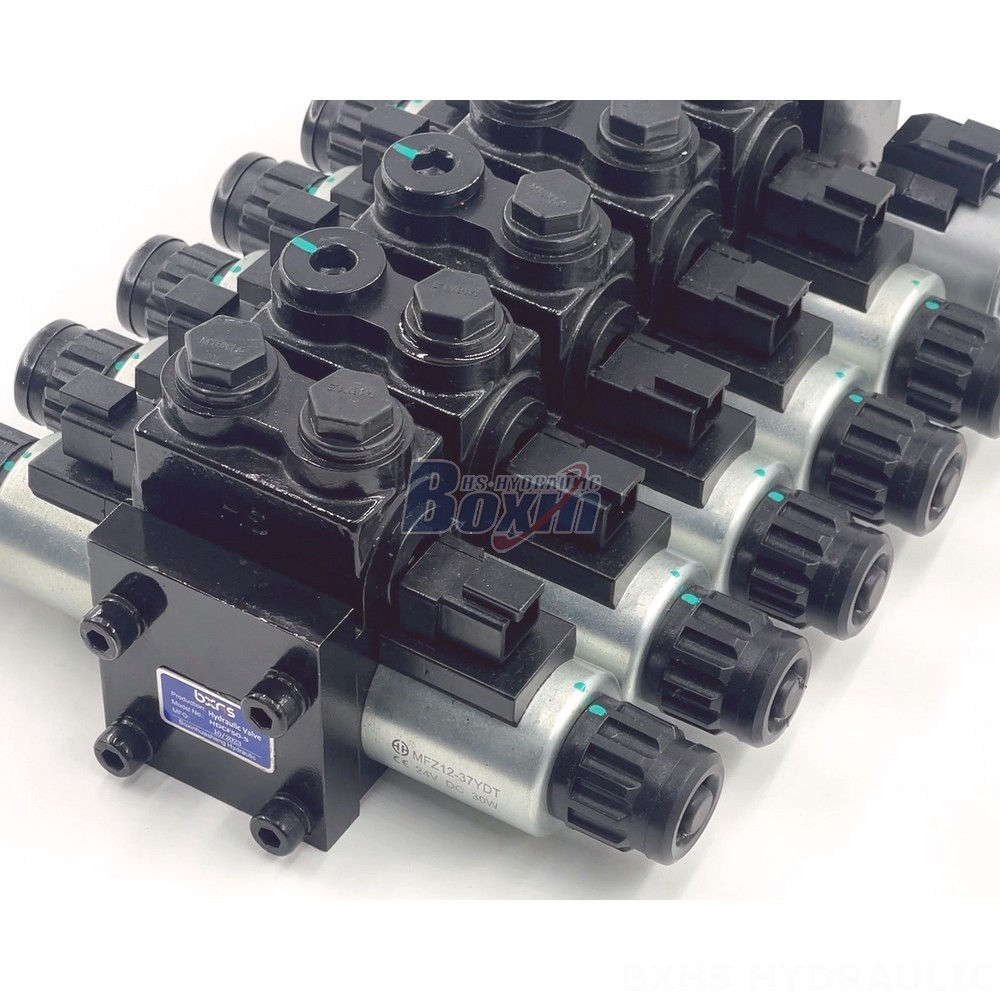

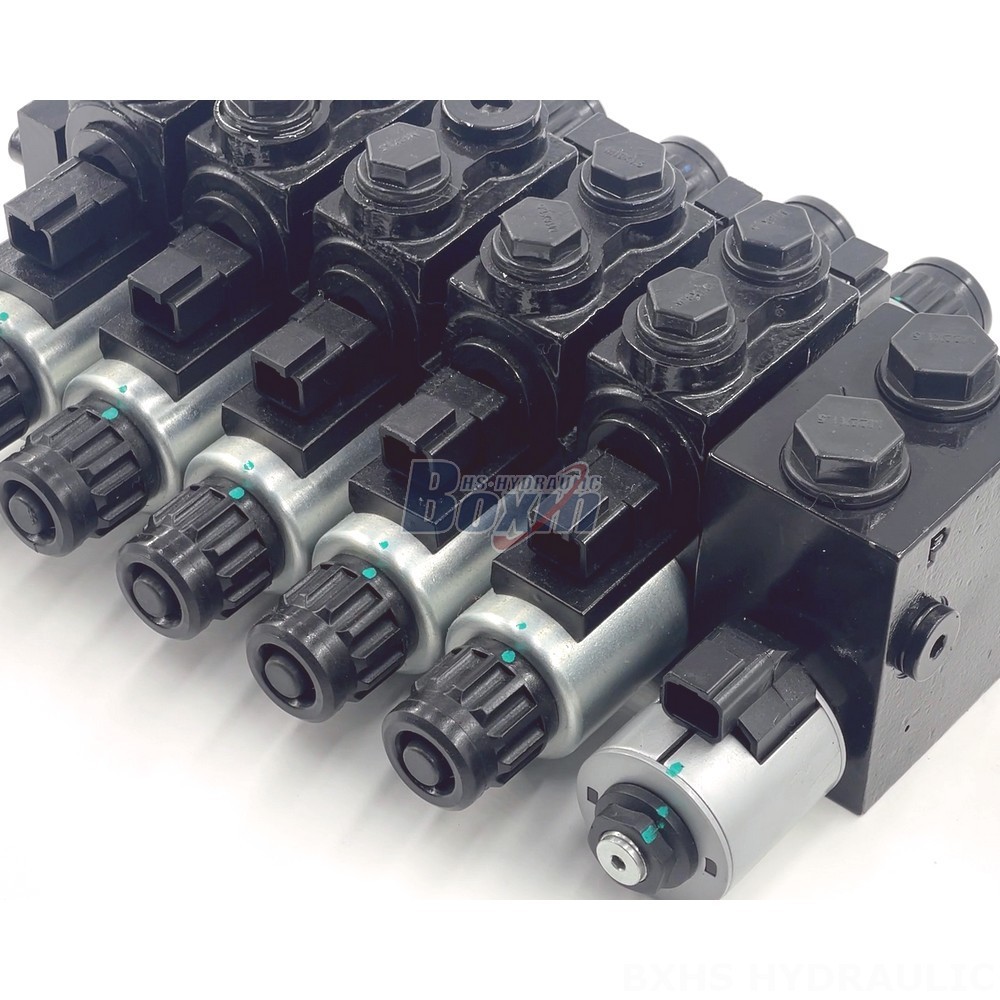

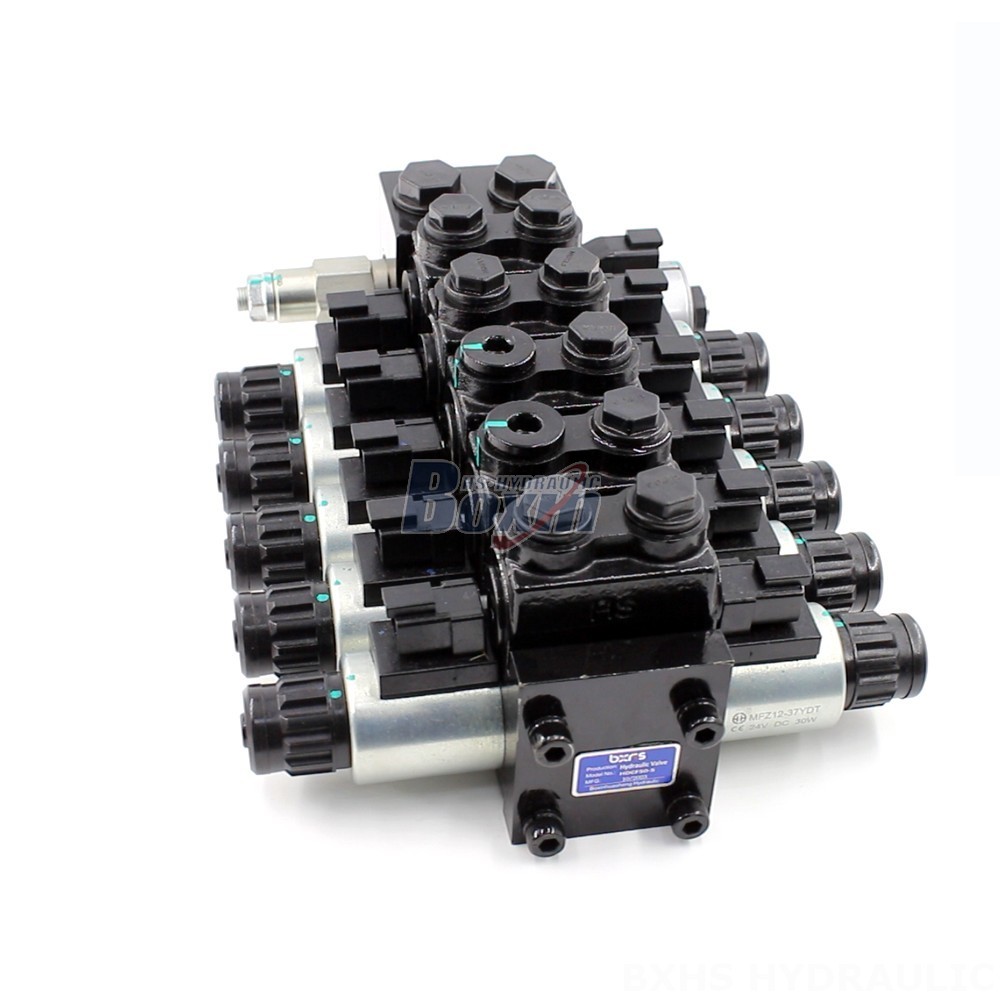

The HDCF50 Series Hydraulic Solenoid Control Valve is a high-performance, 5-section valve designed for log splitting and other heavy-duty applications. It offers a rated flow of 50 L/min, a maximum pressure of 160 bar, and operates at a wide viscosity range. Available for wholesale and OEM projects, this valve is ideal for various equipment including telehandlers, forklifts, and excavators.
| Série HDCF50 Válvula de controle solenóide Parâmetros | |
|---|---|
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis, 8 Carreteis, 9 Carreteis, 10 Carreteis |
| Método de Controle | Solenoide |
| Tamanho da Porta | M22×1.5, SAE 8 |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções, 8 secções, 9 secções, 10 secções |
| Intervalo de temperatura ambiente | -20°C a +80°C (-4°F a +176°F) |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Porta de Saída | M18×1.5, M22×1.5, SAE 8 |
| Pressão Máxima | 160 bar (2300 psi) |
| Fluxo Nominal | 50 L/min (13,2 US gpm) |
| Tipo de estrutura | Válvula seccional |
| Porta de Entrada | M18×1.5, M22×1.5, SAE 8 |
The HDCF50 Series Hydraulic Solenoid Control Valve is a robust and reliable solution for log splitting and other demanding applications. This 5-section valve boasts a rated flow of 50 L/min and a maximum pressure of 160 bar, ensuring powerful and efficient operation. Its wide operating viscosity range of 15-75 mm²/s allows for use in diverse environments and with various hydraulic fluids. The valve is designed for durability and performance with a temperature range of -20°C to +80°C. Available in both 12V and 24V versions, this versatile valve is suitable for a wide range of equipment including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. We offer wholesale and OEM options to meet your specific needs.
