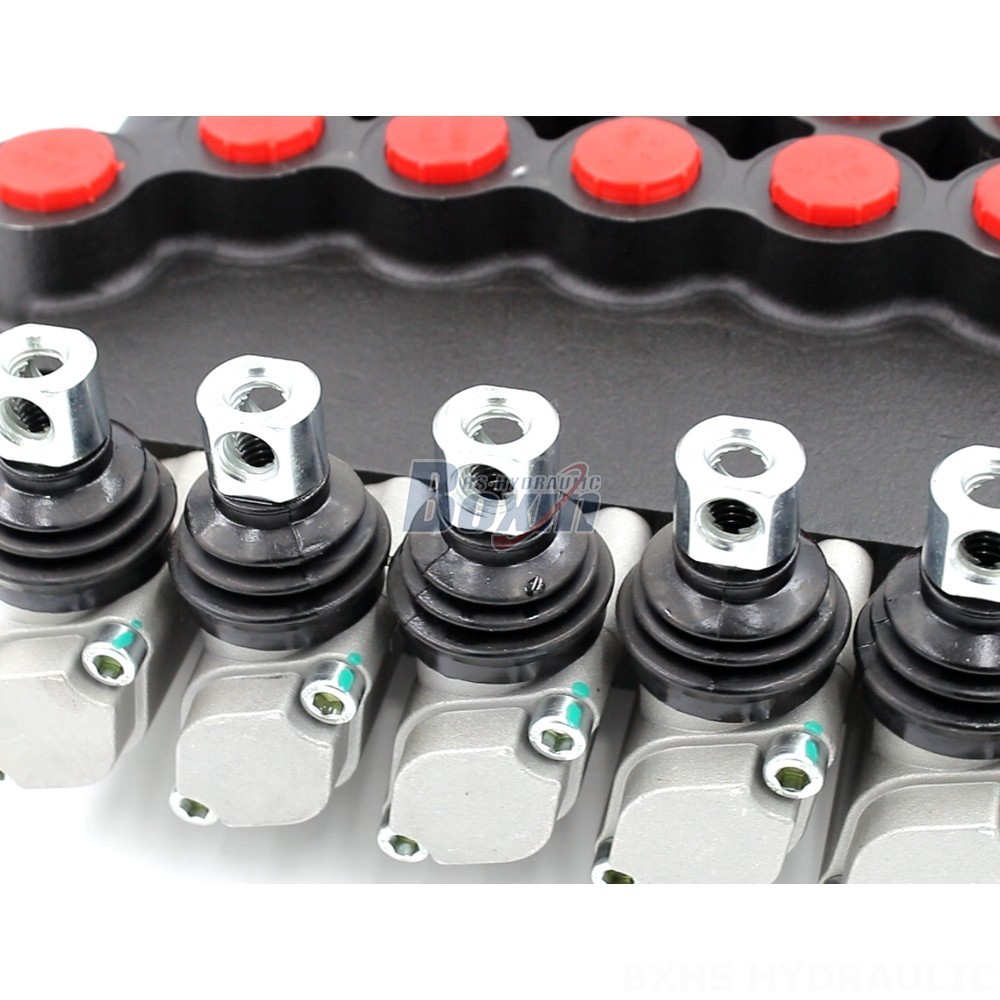

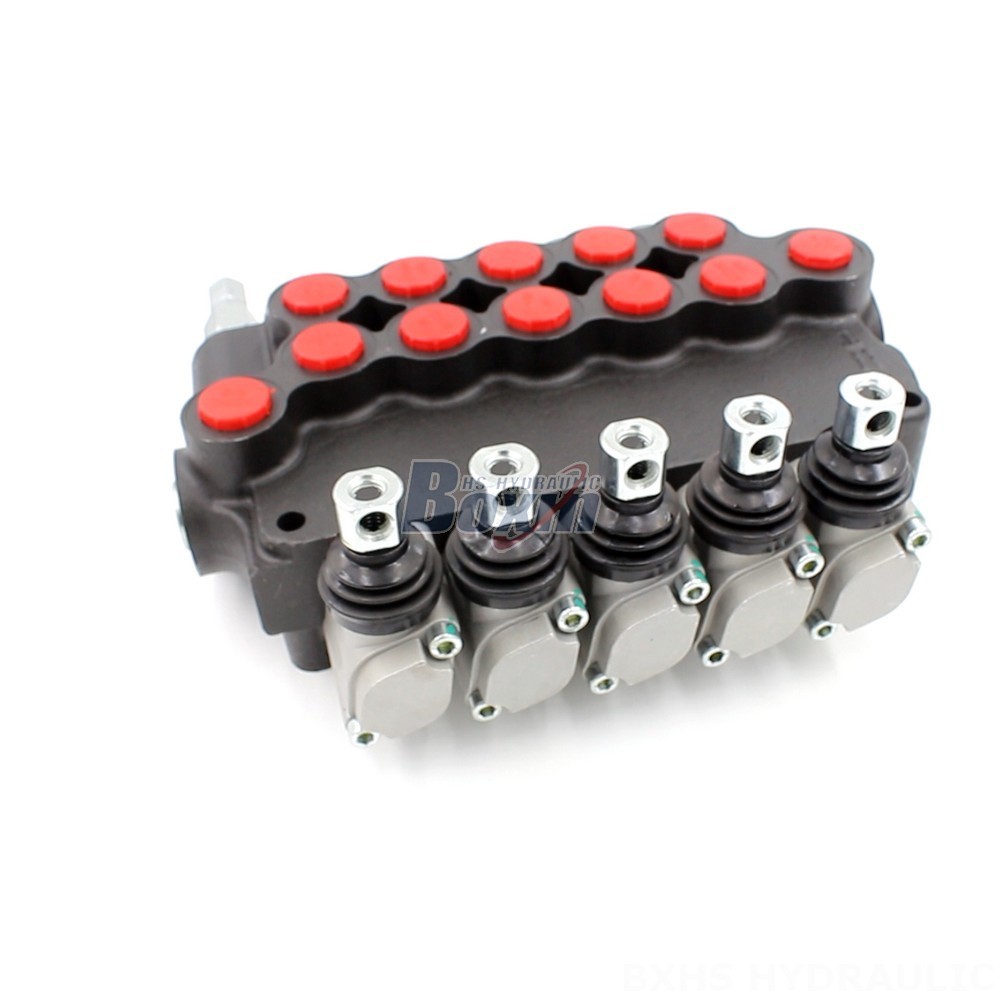

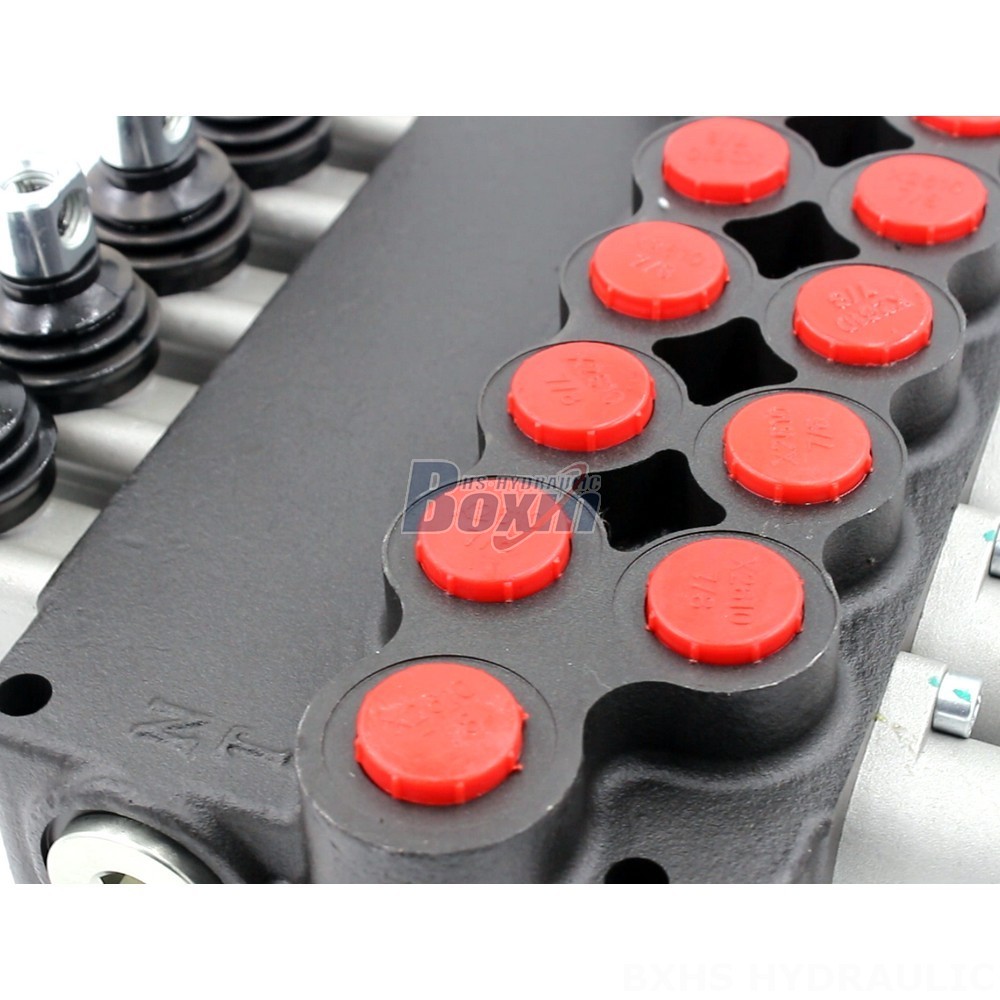

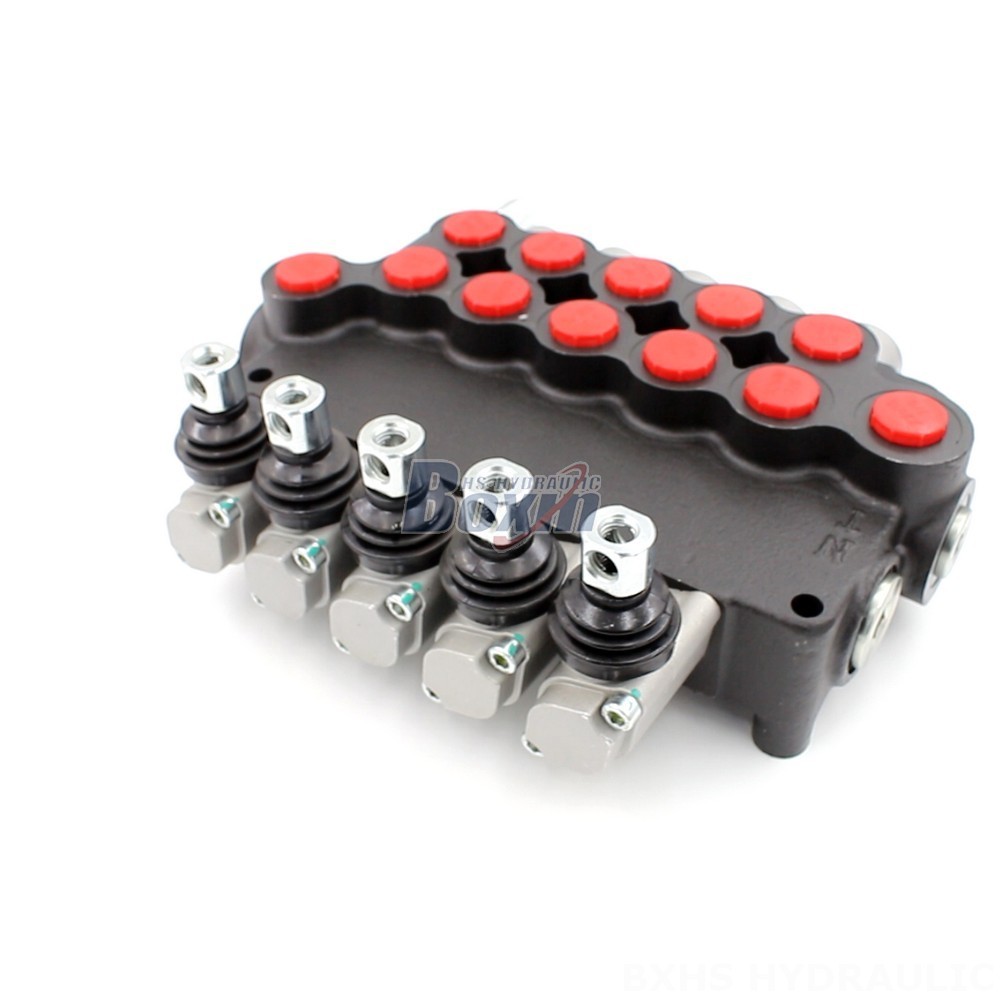

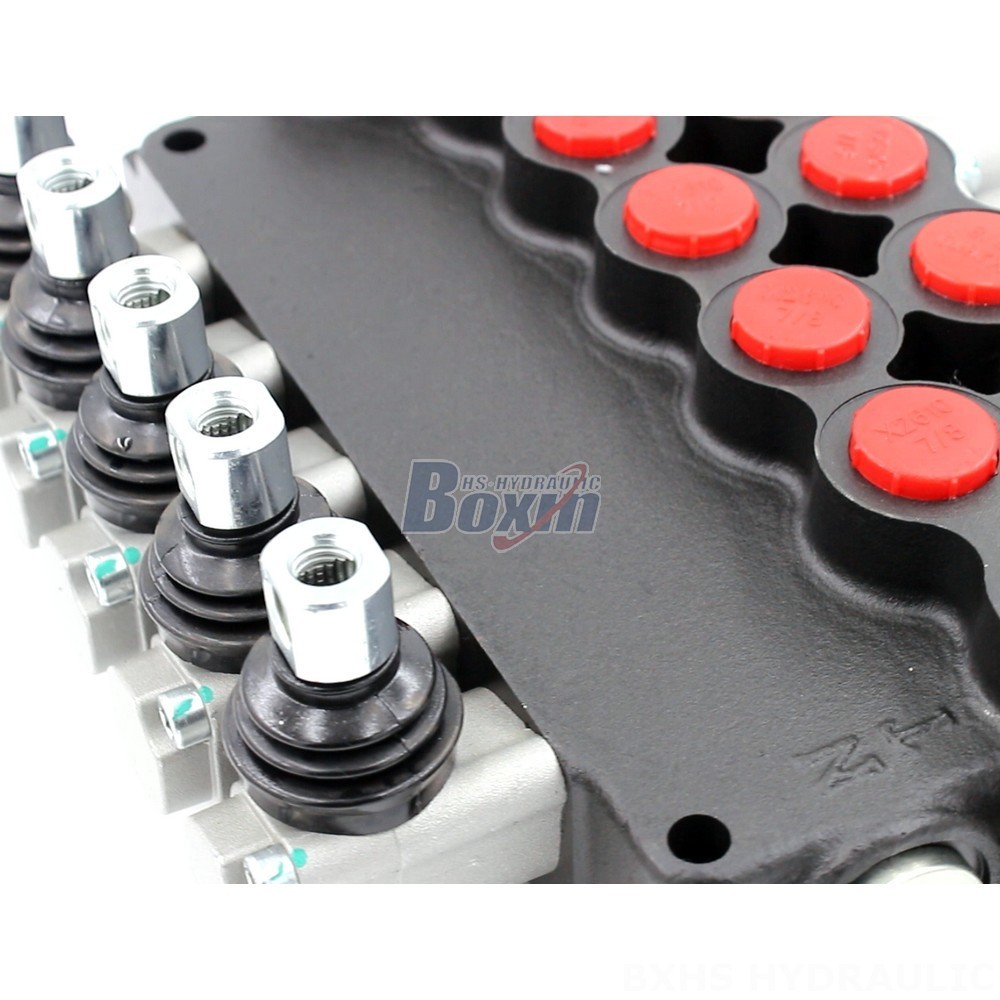

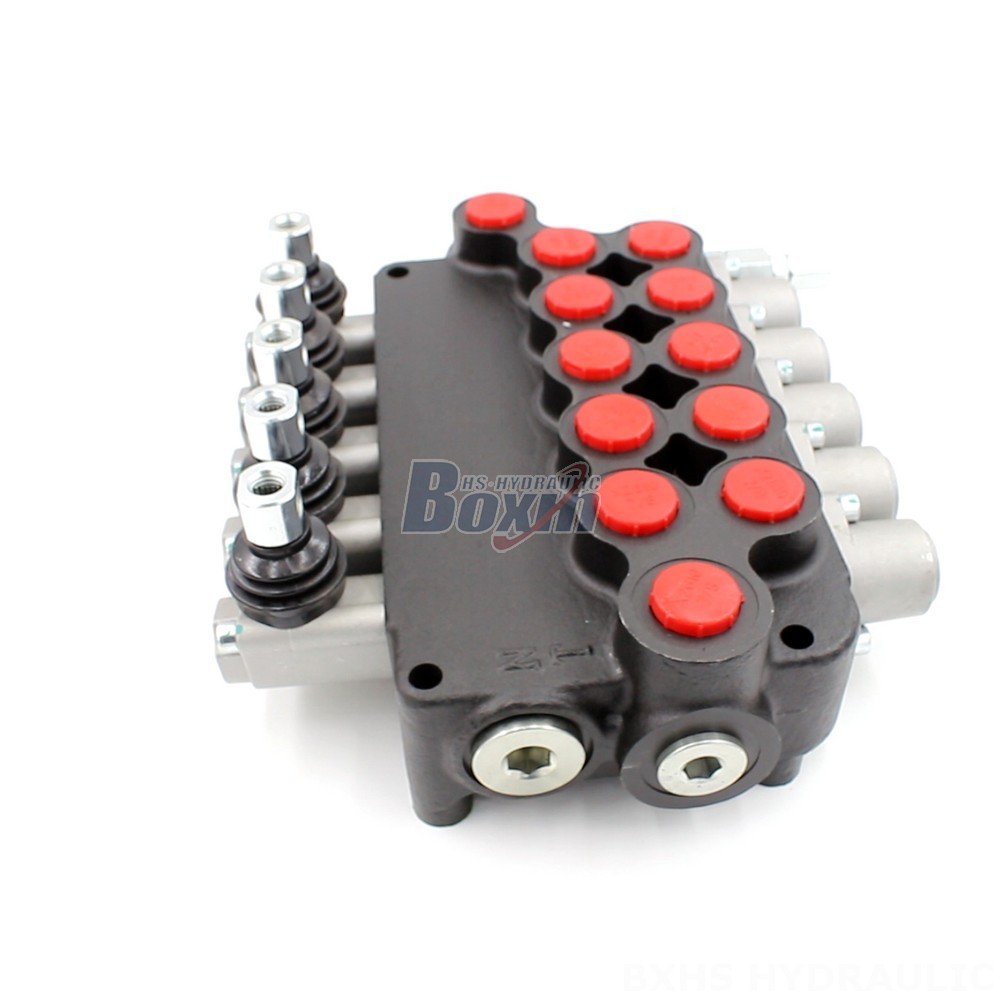

The P80-U116-U78-OT Directional Control Valve is a high-performance hydraulic valve designed for demanding applications in various industries. It features a robust monoblock construction, manual control, and a compact 5-section design.
| Série P80 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 80 L/min (21,2 US gpm) |
| Pressão Máxima | 315 bar (4600 psi) |
| Porta de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Porta de Saída | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamanho da Porta | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**P80-U116-U78-OT Directional Control Valve**
**Product Overview:**
The P80-U116-U78-OT Directional Control Valve is a versatile and reliable hydraulic component engineered to provide precise control over fluid flow in hydraulic systems. It is widely used in mobile and industrial applications, including material handling, construction, agriculture, and industrial vehicles.
**Key Features:**
* Manual control for intuitive operation
* Monoblock construction for durability and compactness
* 5-section design for versatility and customization
* Rated flow of 80 L/min for high flow capacity
* Maximum pressure of 250 bar for robust performance
* Operating viscosity range of 15 - 75 mm²/s for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C for wide-ranging applications
* 5 spool design for precise flow control
* Compatible with P80 Series valves for system integration
**Applications:**
The P80-U116-U78-OT Directional Control Valve finds applications in a wide range of hydraulic systems, including:
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
* Wheel loaders
