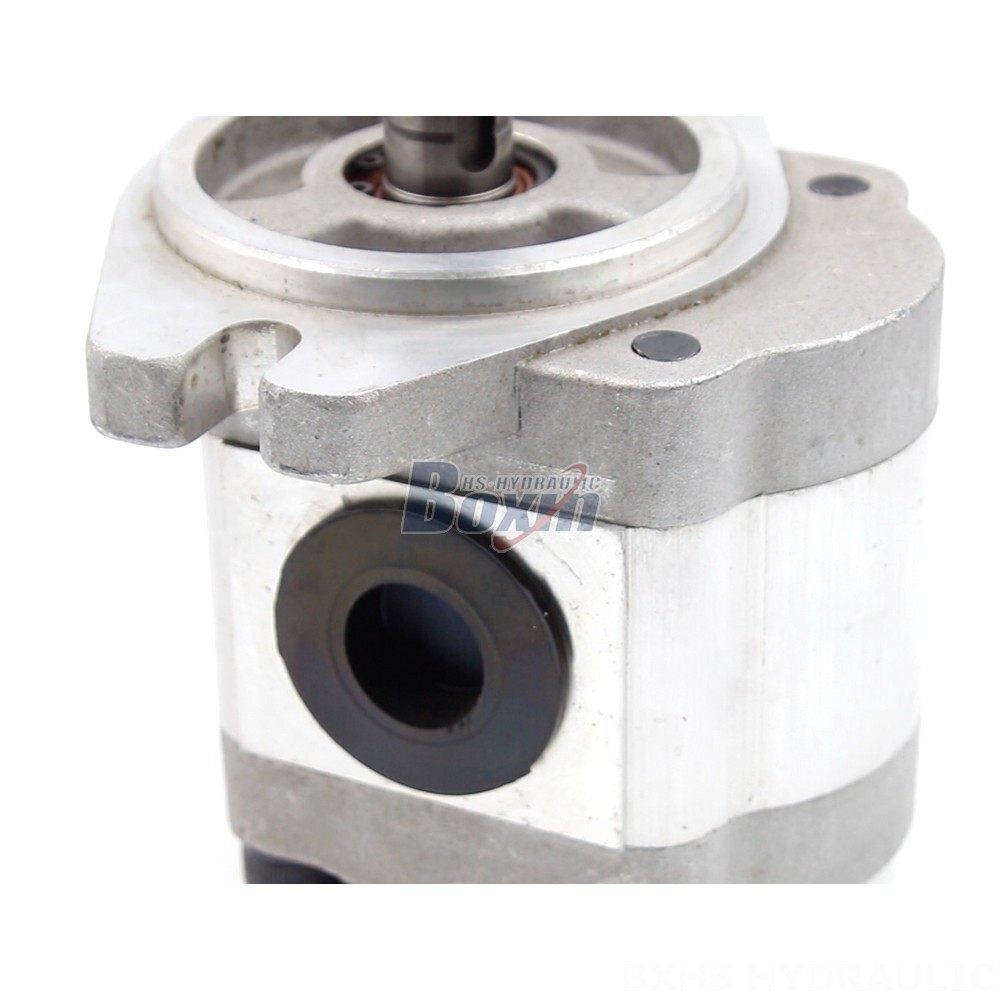

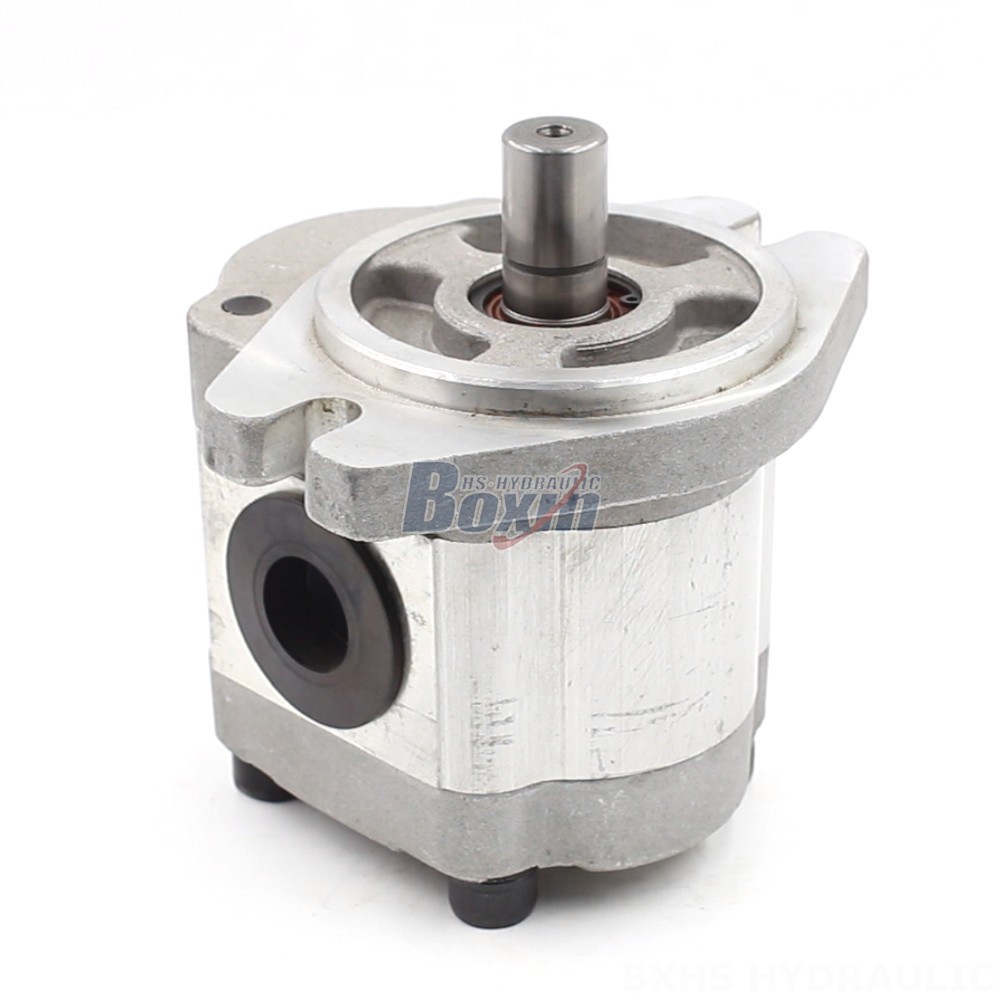

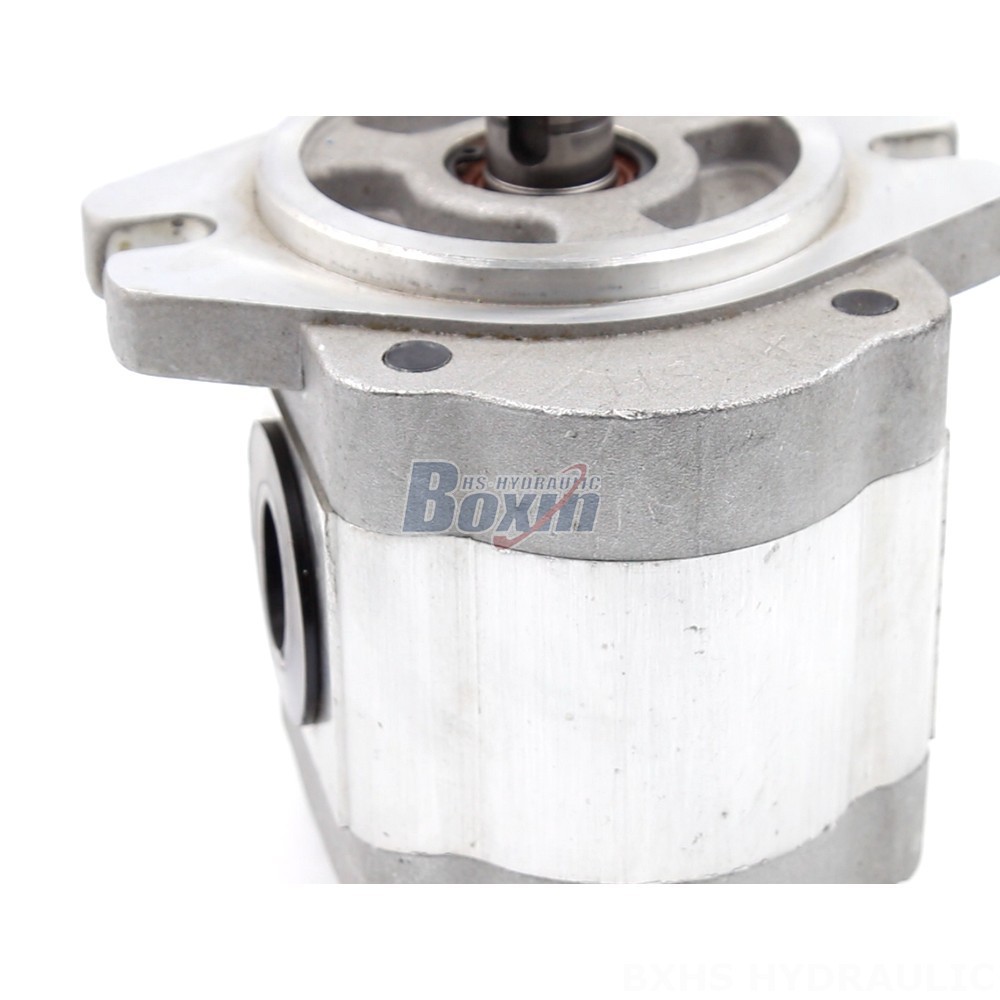

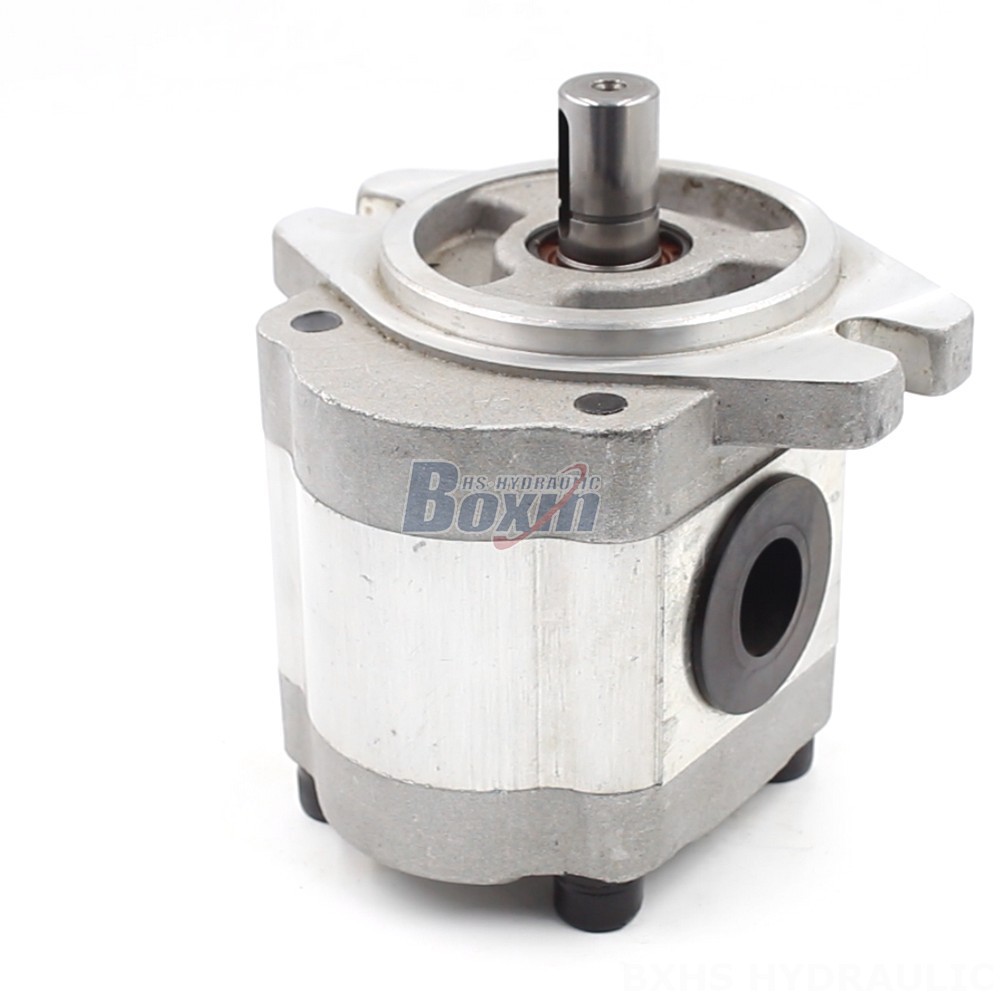

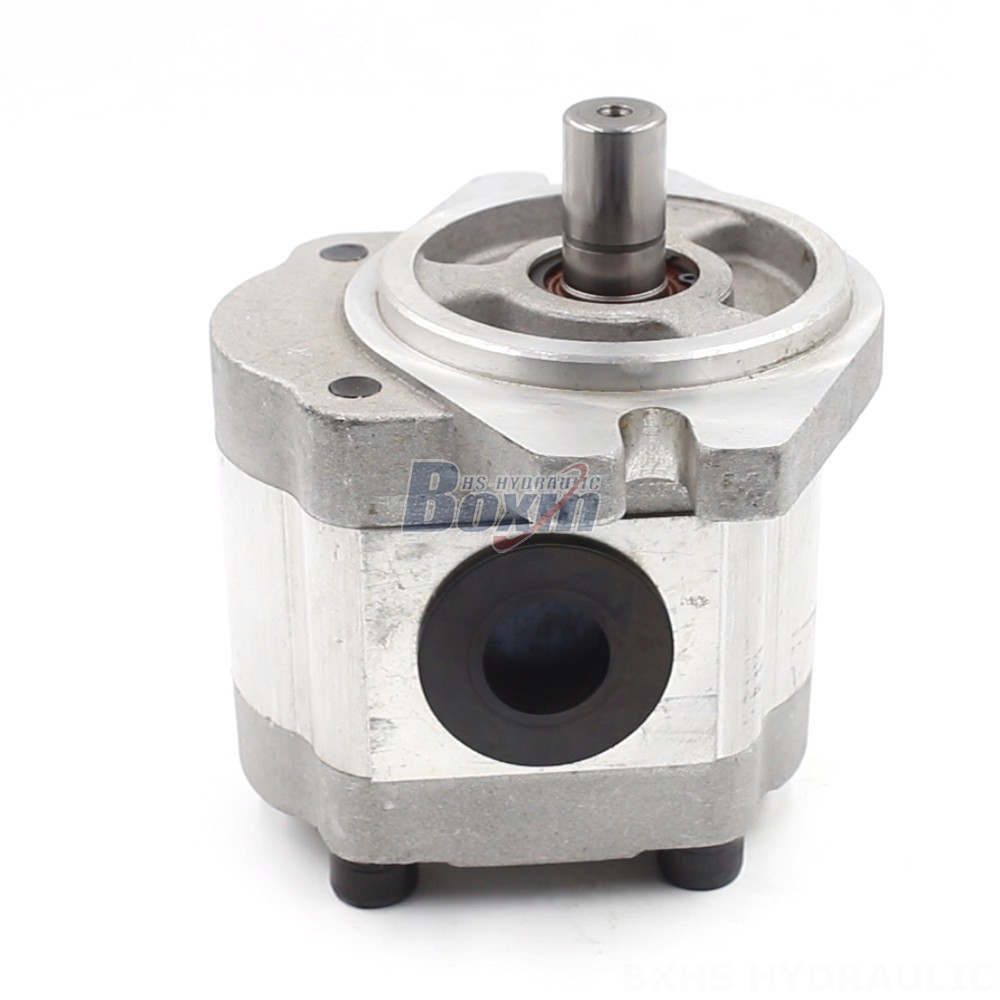

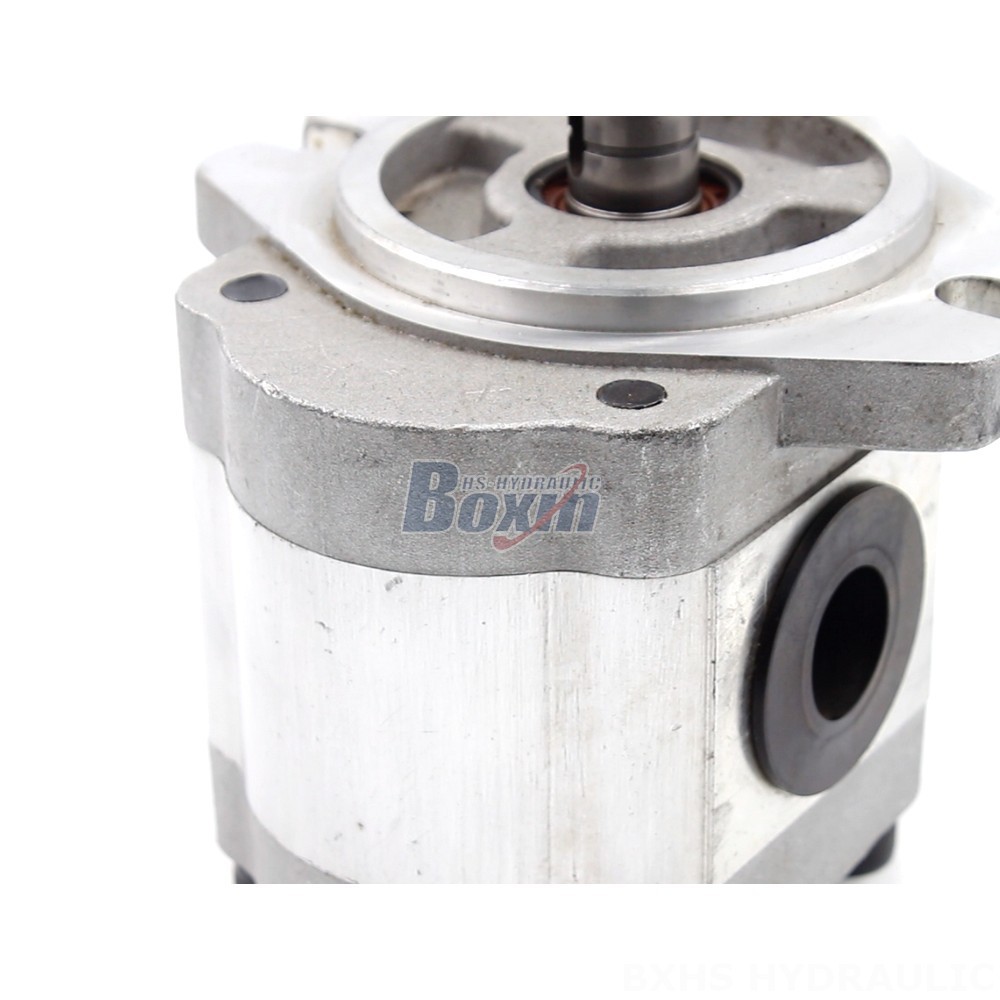

The CBHS-FL3 Series Industrial Gear Pump is a reliable and efficient hydraulic pump with a displacement of 10 cc/rev, rated pressure of 20 MPa (2900 psi), and rated speed of 2000 r/min. It is designed for various applications in construction, agriculture, industrial vehicles, and material handling.
| Série CBHS-FL3 Bomba de engrenagem hidráulica Parâmetros | |
|---|---|
| Deslocamento | 10 cc/rev, 4 cc/rev, 20 cc/rev, 16 cc/rev, 14 cc/rev, 6 cc/rev |
| Pressão Nominal | 20 MPa (2900 psi) |
| Pressão Máxima | 25 MPa (3625 psi) |
| Velocidade Nominal | 2000 rpm |
| Velocidade Máxima | 3000 rpm |
| Rotação | L: Esquerdo (sentido anti-horário), R: Direito (sentido horário) |
| Material | Alumínio |
| Estrutura | Bomba de engrenagem externa |
| Versão da flange | Flange oval A |
| Tipo de veio | H: Chaveta retangular, X: Chaveta involuta, P: Chave Simples |
The CBHS-FL3 Series Industrial Gear Pump is a high-performance hydraulic pump designed for demanding applications in construction, agriculture, industrial vehicles, and material handling. It features a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min. The pump is constructed with an internal gear design, utilizing durable aluminum materials for strength and longevity. It offers a variety of flange versions and shaft types to suit diverse mounting configurations, making it adaptable to a wide range of machinery. The pump's A-Oval flange and Plain Key shaft design ensure secure and reliable connections. Its compact size and lightweight construction make it easy to install and maintain. The CBHS-FL3 Series is suitable for applications such as telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, harvesters, balers, and sprayers.
