Produção e Entrega
Prazo de produção de 15 a 30 dias
1146 Visualizações estão procurando por este produto

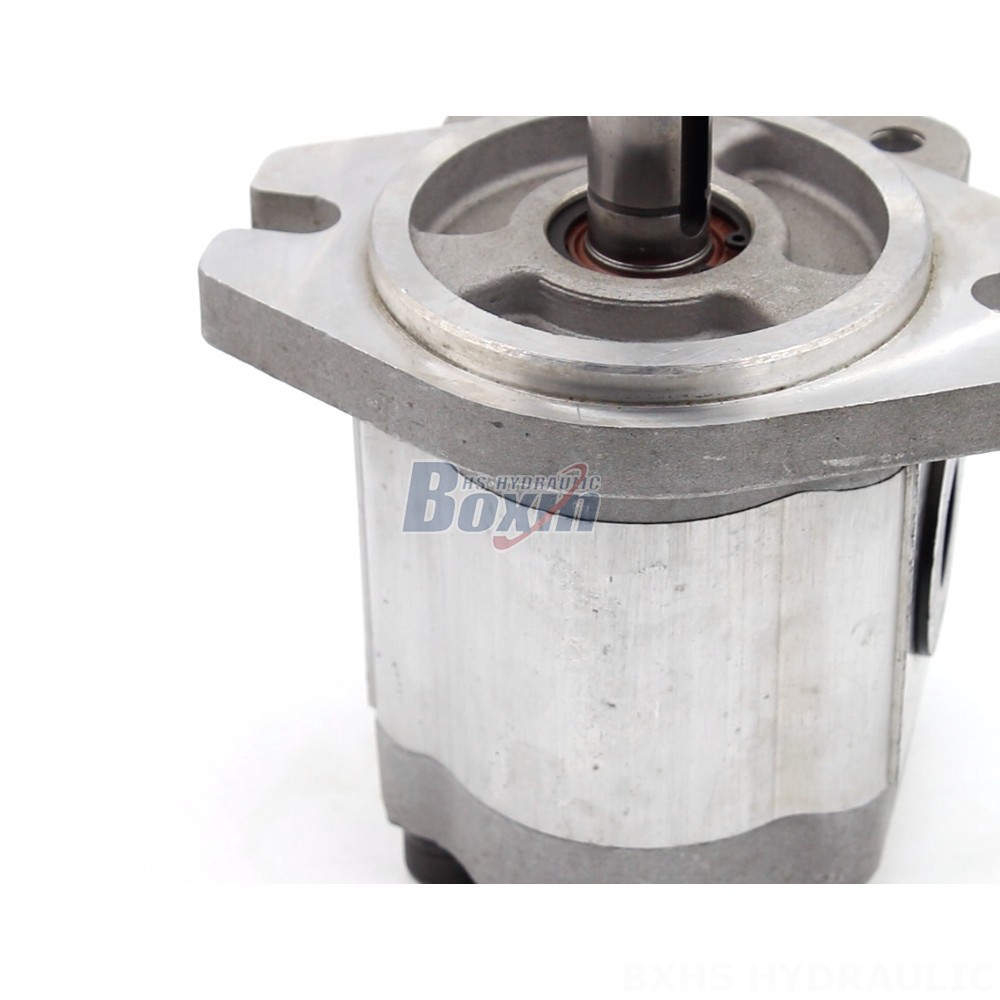

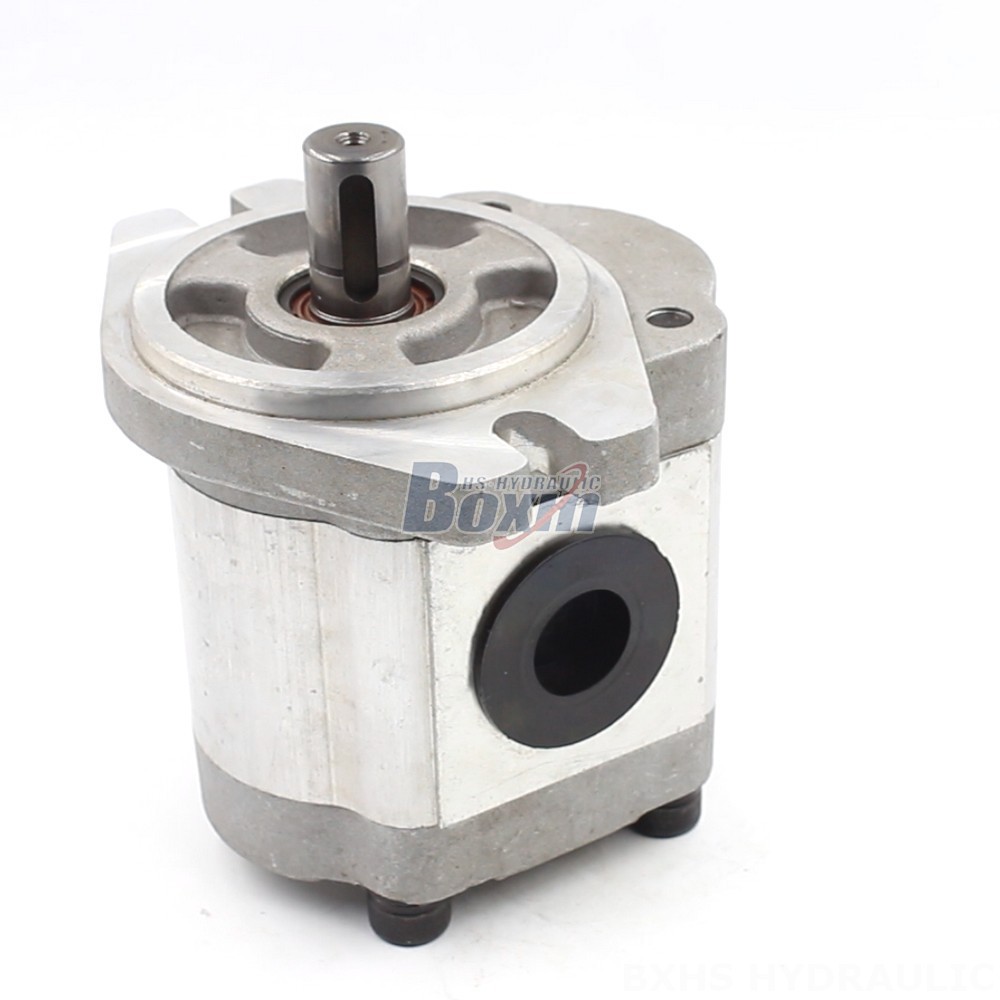

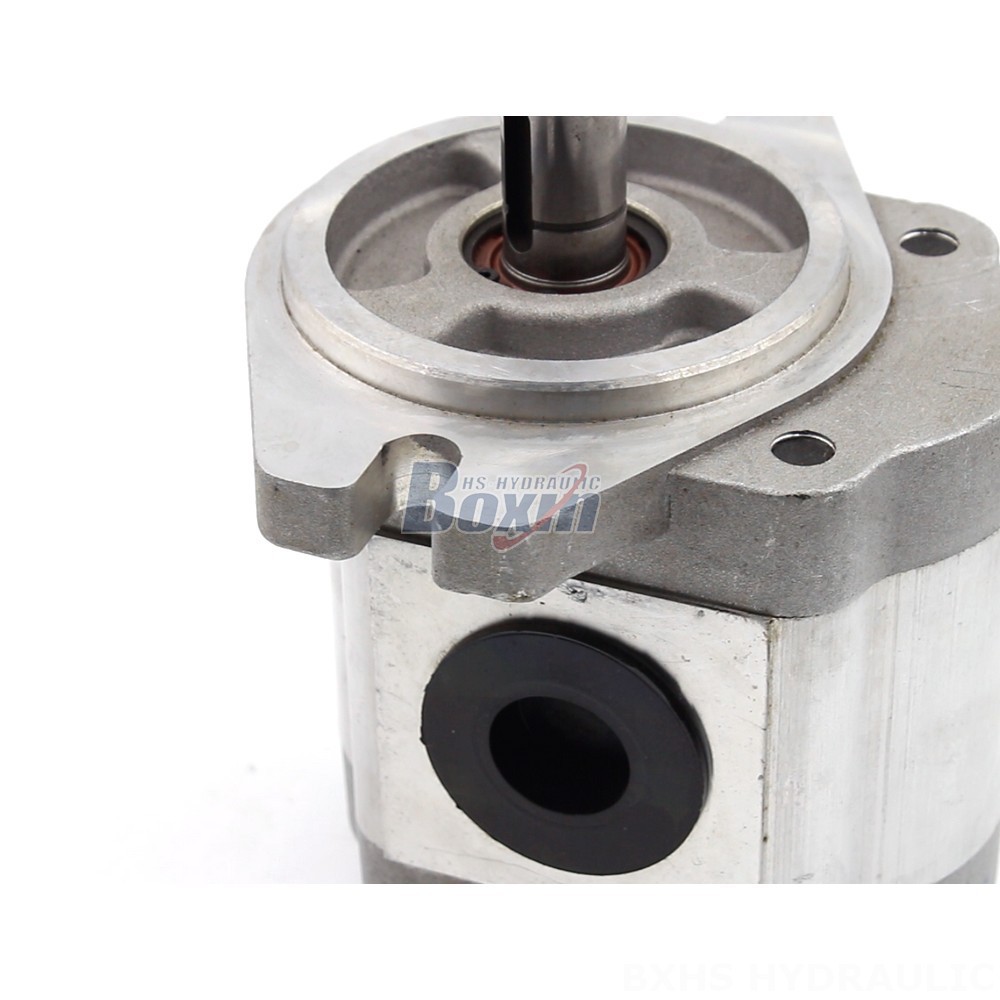

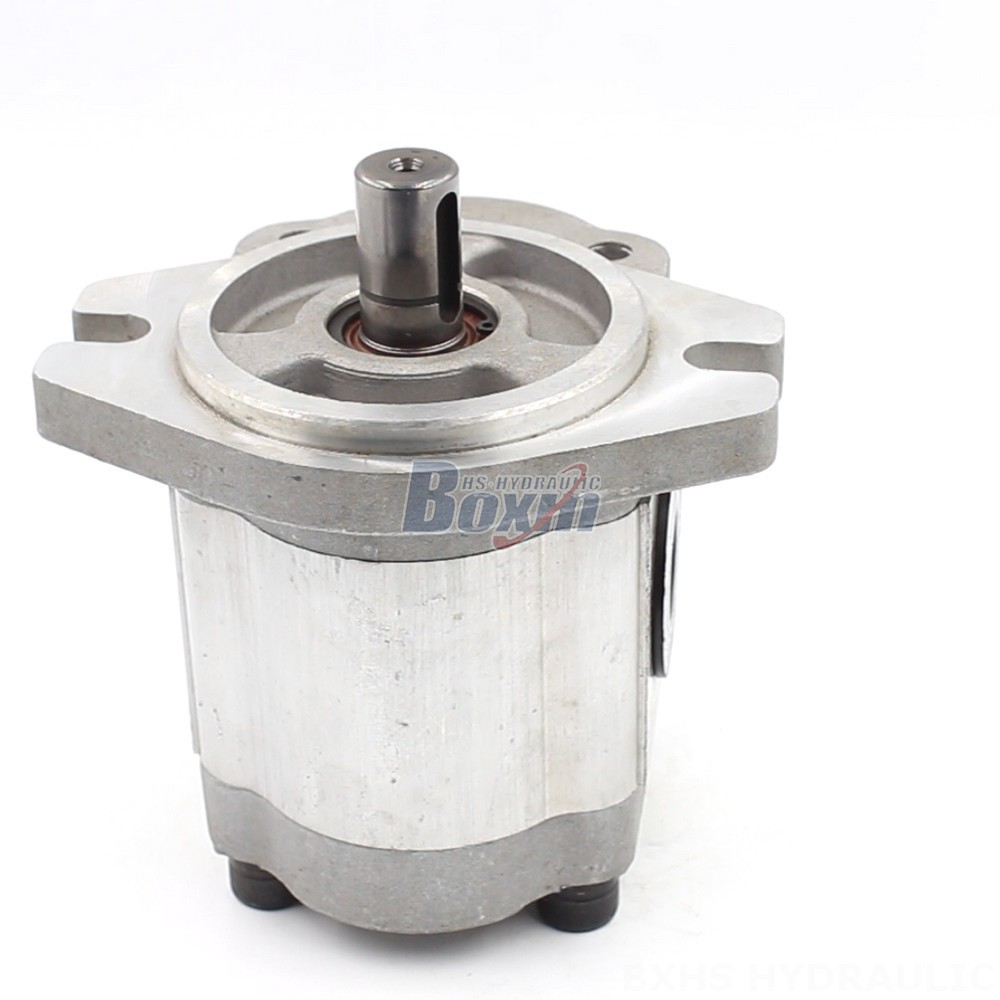

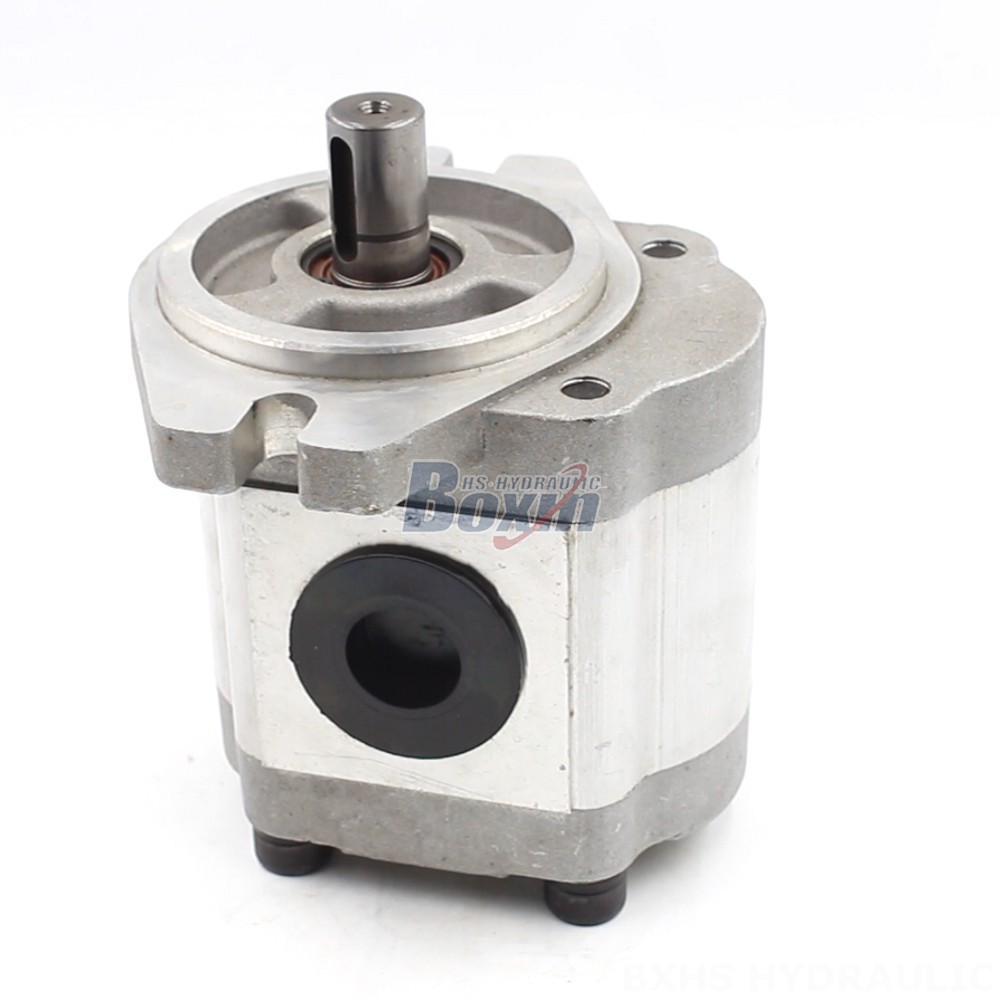

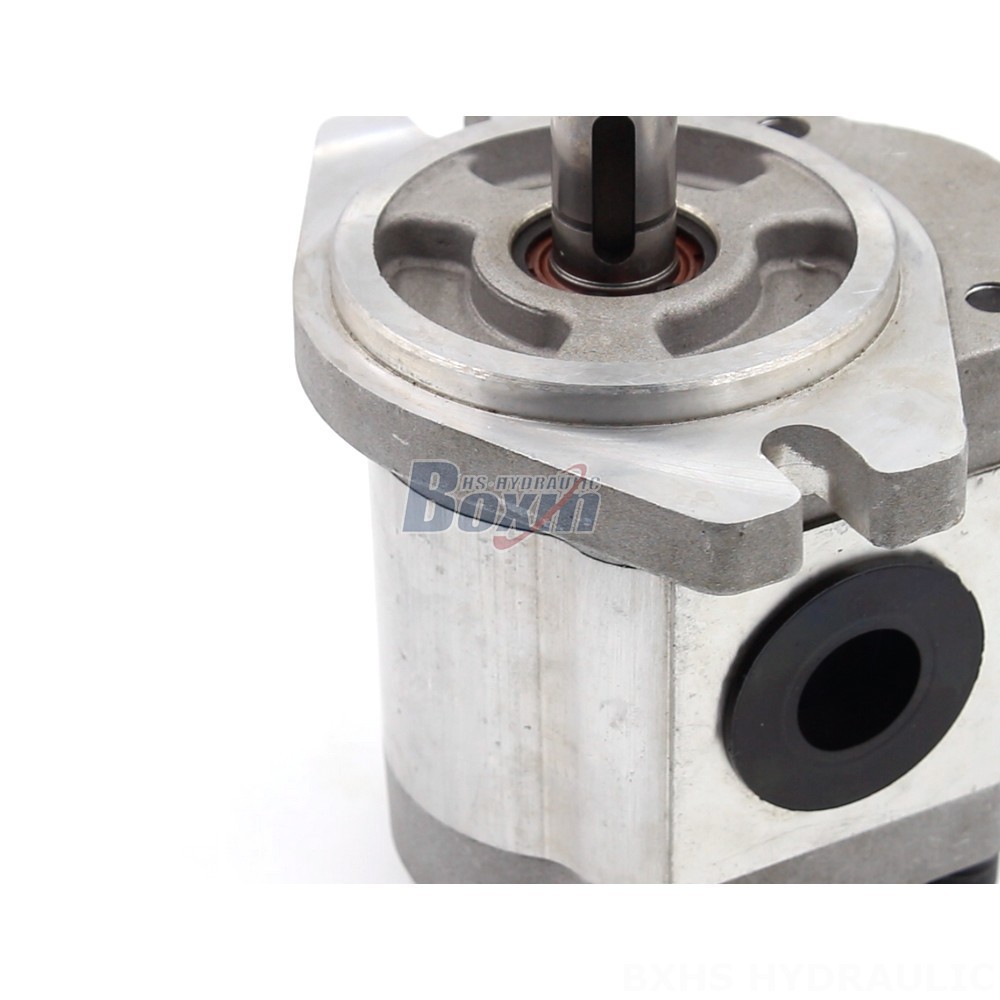

This industrial-grade 14 cc/rev hydraulic gear pump offers customizable solutions for a wide range of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles. It features a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min. The pump is constructed with an internal gear design and aluminium material, providing reliable performance and durability.
| Série CBHS-FL3 Bomba de engrenagem hidráulica Parâmetros | |
|---|---|
| Deslocamento | 10 cc/rev, 4 cc/rev, 20 cc/rev, 16 cc/rev, 14 cc/rev, 6 cc/rev |
| Pressão Nominal | 20 MPa (2900 psi) |
| Pressão Máxima | 25 MPa (3625 psi) |
| Velocidade Nominal | 2000 rpm |
| Velocidade Máxima | 3000 rpm |
| Rotação | L: Esquerdo (sentido anti-horário), R: Direito (sentido horário) |
| Material | Alumínio |
| Estrutura | Bomba de engrenagem externa |
| Versão da flange | Flange oval A |
| Tipo de veio | H: Chaveta retangular, X: Chaveta involuta, P: Chave Simples |
This high-performance hydraulic gear pump is designed for demanding industrial applications. It boasts a displacement of 10 cc/rev and a rated pressure of 20 MPa (2900 psi), ensuring powerful and efficient operation. The pump can handle speeds up to 3000 r/min and is available in both left and right rotation configurations. Its internal gear pump design, combined with its robust aluminium construction, provides exceptional durability and reliability. The A-Oval flange and plain key shaft make it compatible with a wide range of systems. This versatile pump is ideally suited for use in forklifts, telehandlers, mini-excavators, skid steer loaders, and tractors, making it a valuable asset for various industries.
