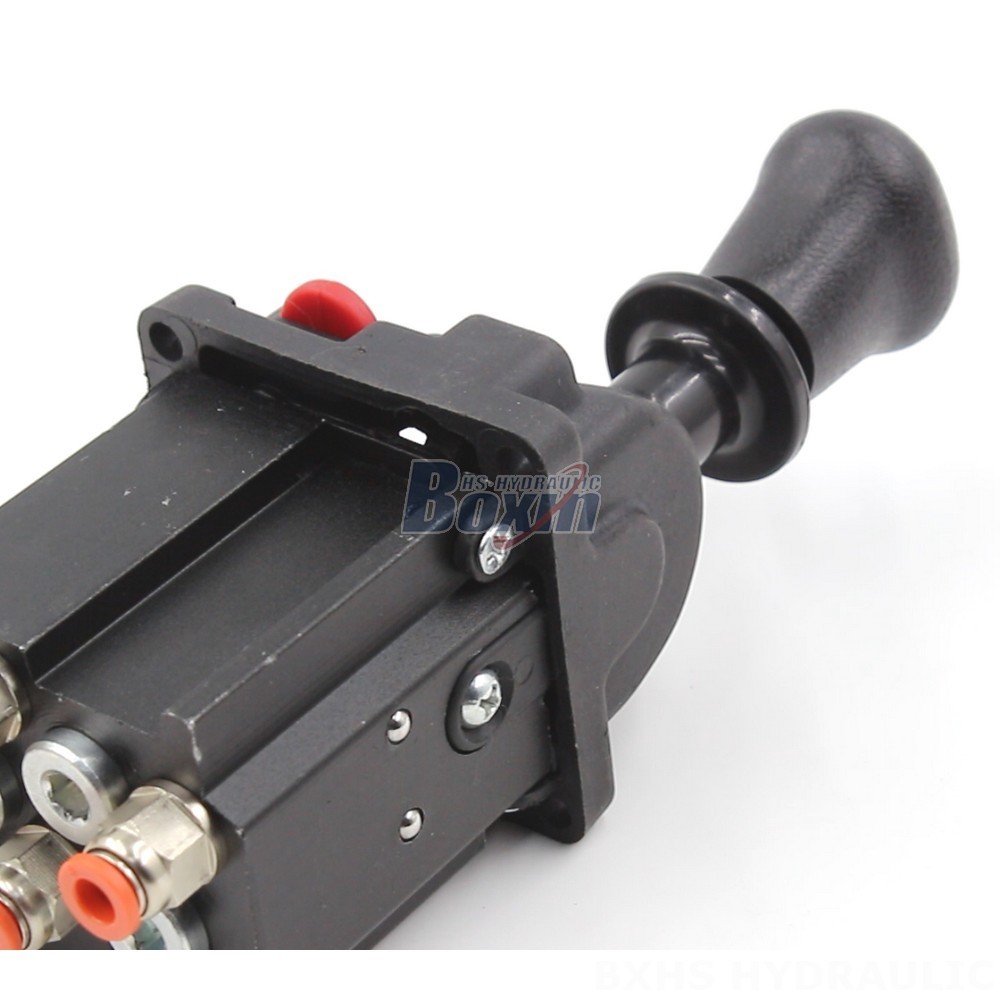

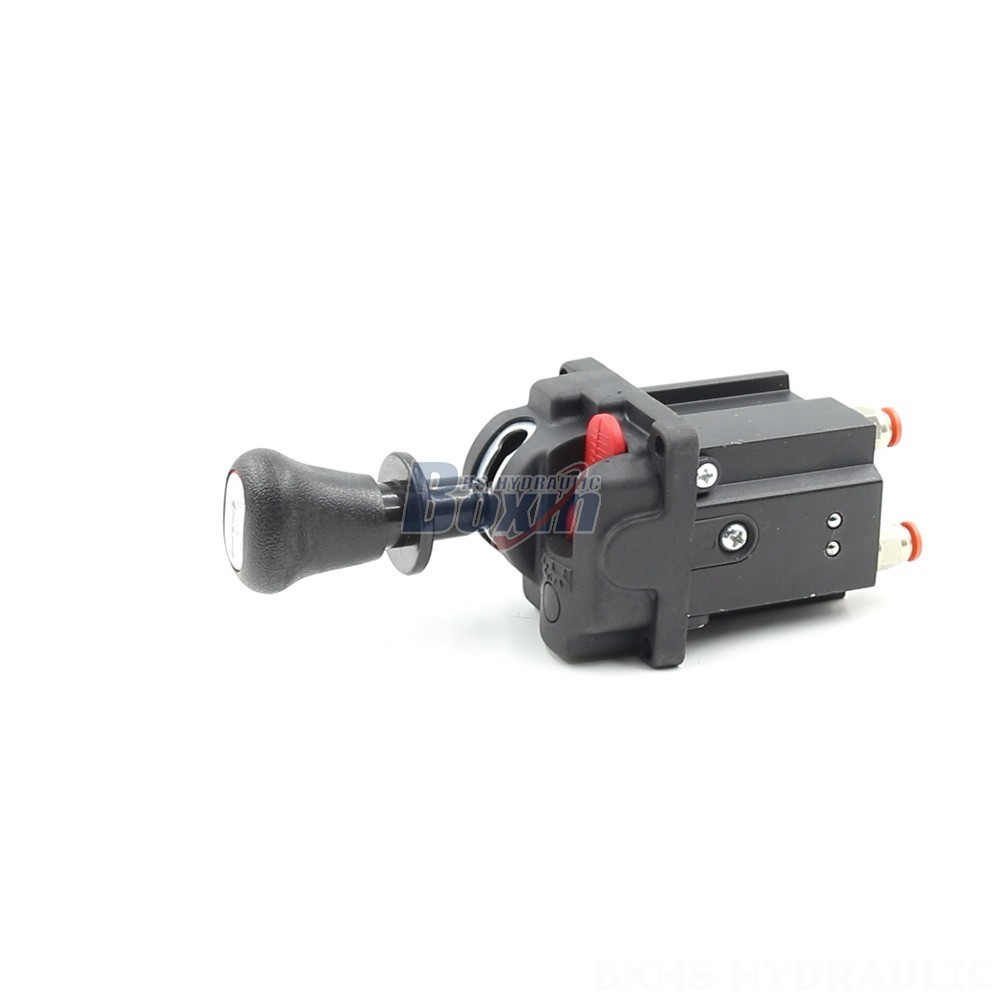

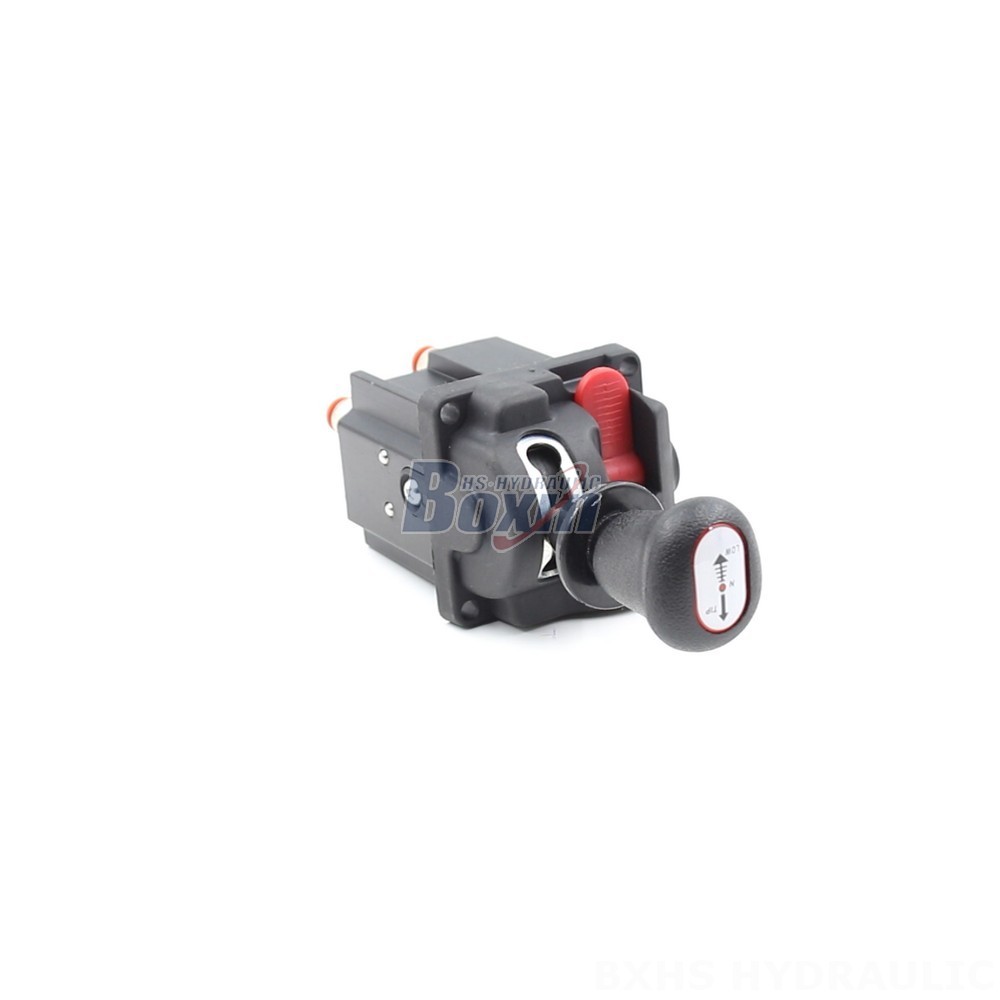

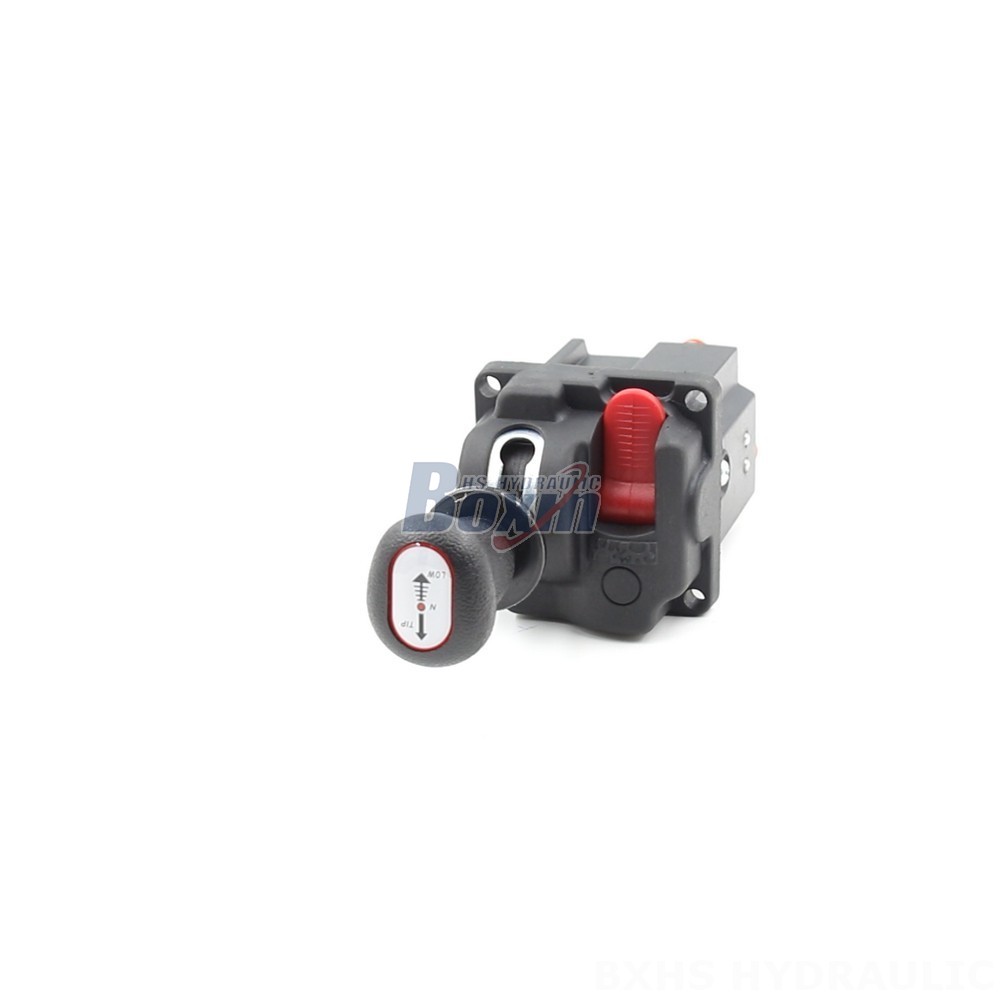

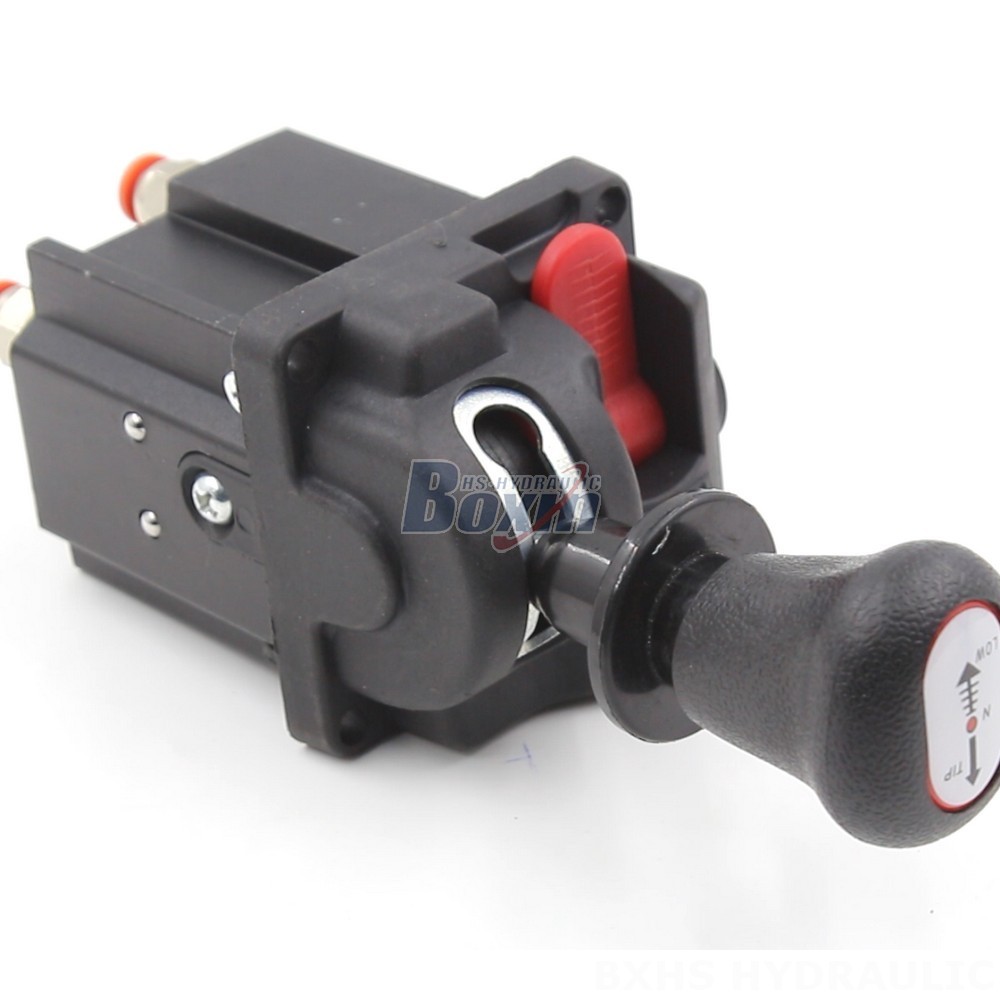

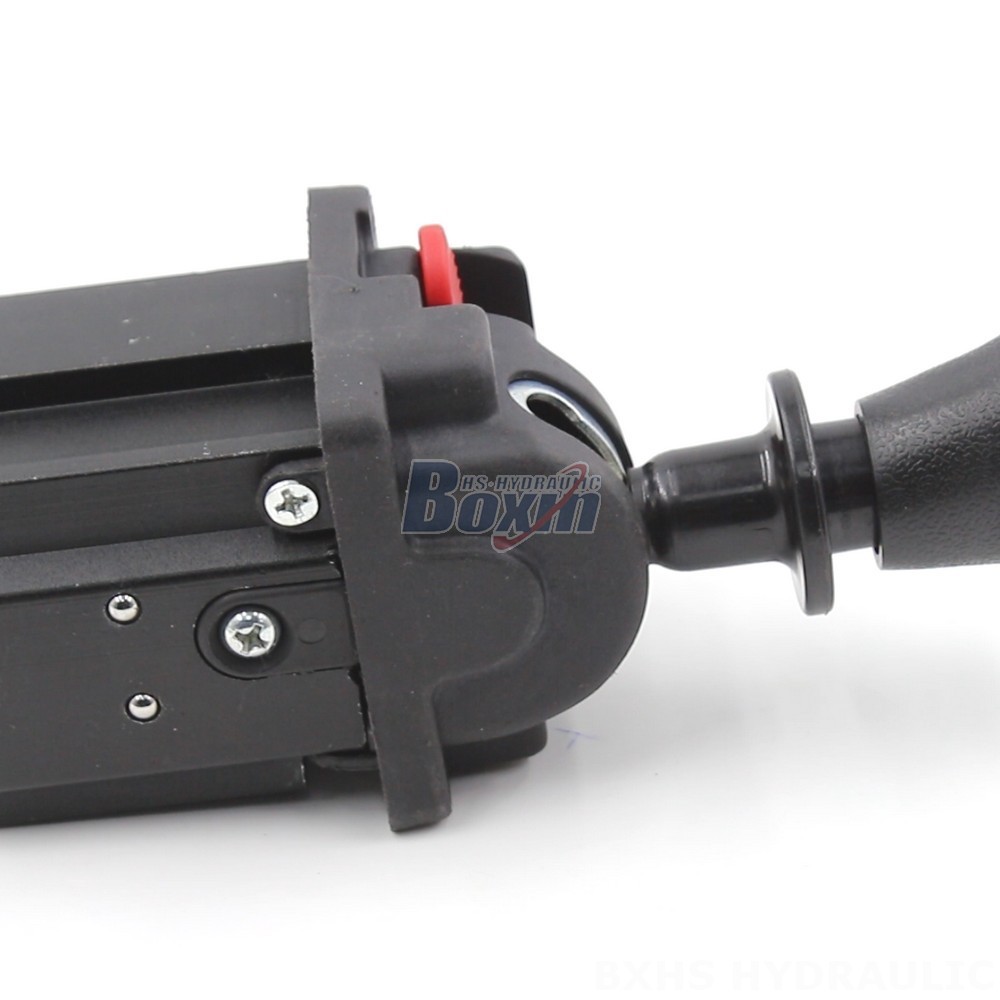

This BKQF34 Series Hydraulic Joystick Cable Controls Industrial Pneumatic Control Valve is a single-spool, direct-supply valve designed for a wide range of construction, material handling, and industrial vehicles. Featuring a robust monoblock design, it provides reliable pneumatic control with a rated flow of 40 L/min and a maximum pressure of 1 MPa.
| Série BKQF34 Válvula de Controle Pneumática Parâmetros | |
|---|---|
| Método de Controle | Pneumático |
| Carrétel | 1 Carretel |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção |
| Intervalo de viscosidade operacional | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | Pressão nominal |
| Porta de Entrada | G1/4 |
| Porta de Saída | G1/4 |
| Tamanho da Porta | G1/4 |
This 1-section BKQF34 Series Hydraulic Joystick Cable Controls Industrial Pneumatic Control Valve offers a reliable and efficient solution for controlling hydraulic functions in various applications. It is specifically designed for use in construction and earthmoving equipment, material handling machinery, agricultural vehicles, and industrial vehicles. The valve features a robust monoblock structure, a single spool for direct control, and a rated flow of 40 L/min. It operates at a maximum pressure of 1 MPa (145 psi) and is suitable for operating viscosities ranging from 12 to 400 mm²/s (12 cSt to 400 cSt). This valve is built to withstand demanding operating environments with a temperature range of -40°C to +80°C (-40°F to +176°F). Its versatility makes it ideal for various models, including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, and backhoe loaders.
