Produção e Entrega
Prazo de produção de 15 a 30 dias
1274 Visualizações estão procurando por este produto

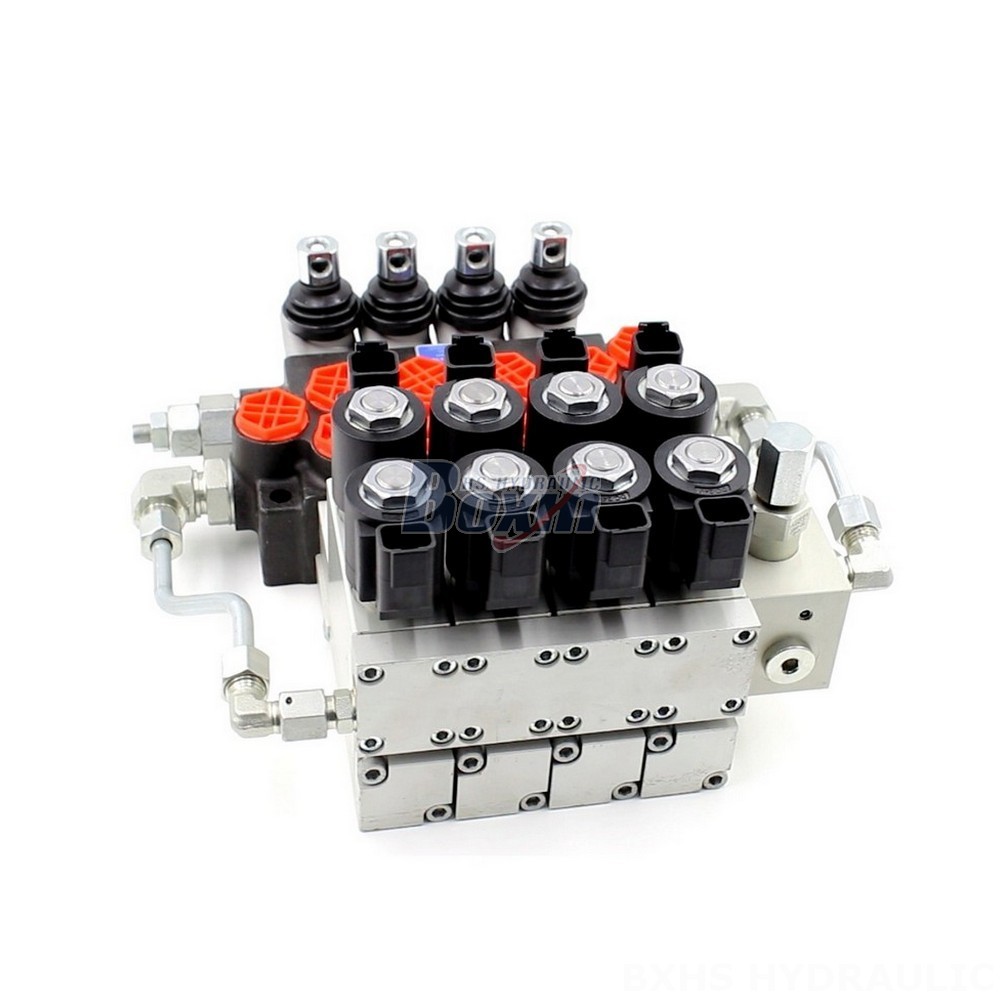

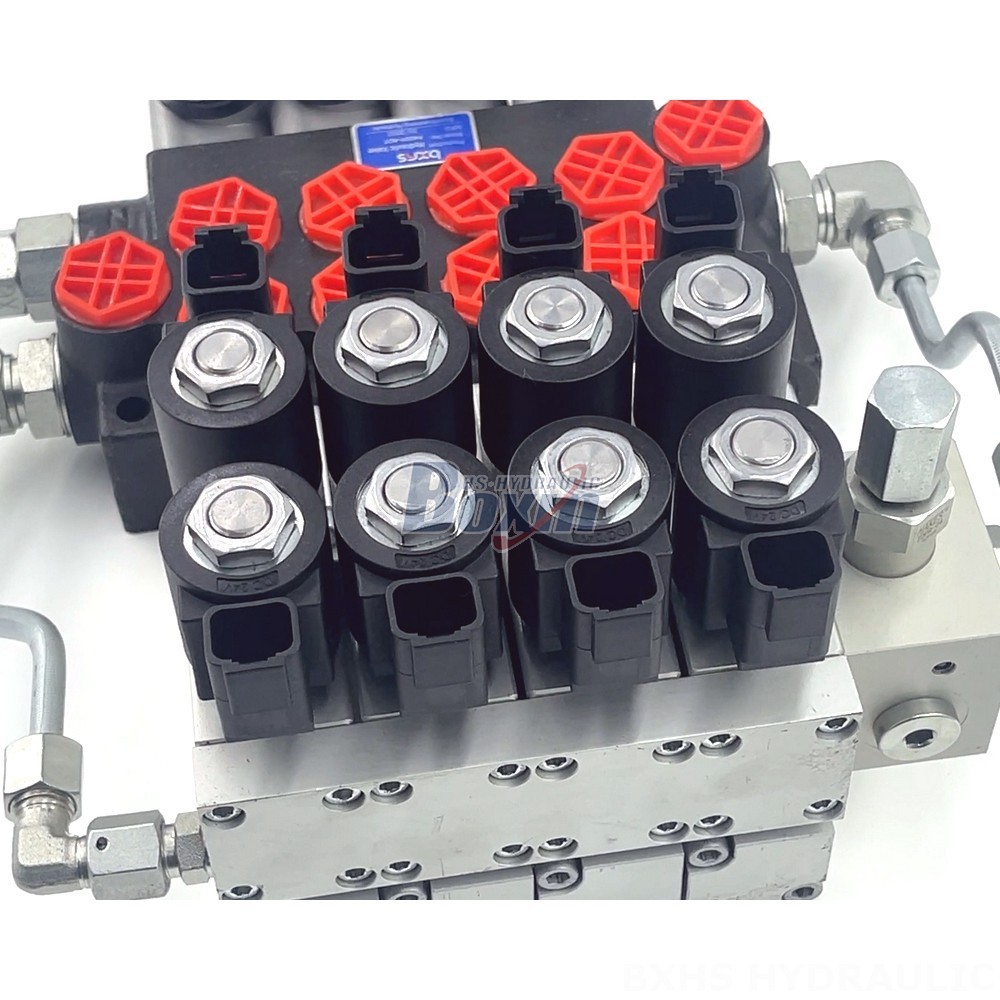

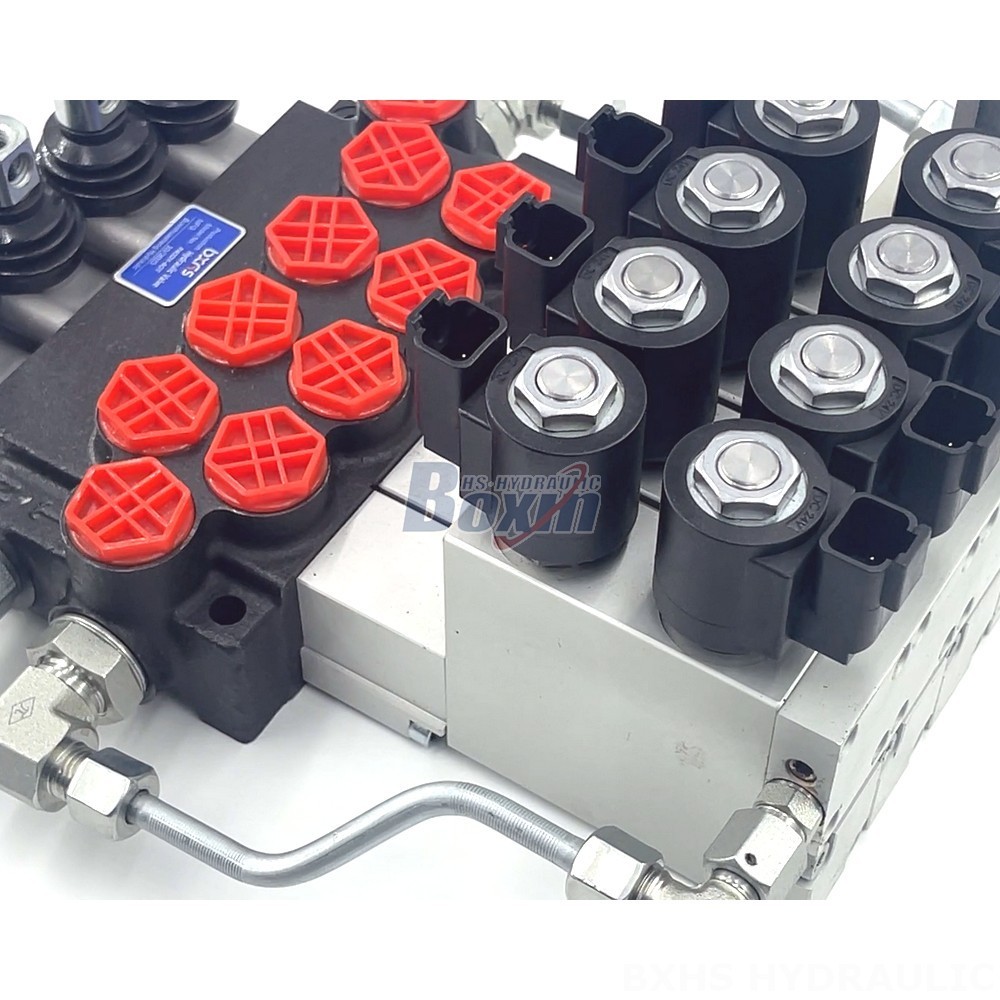

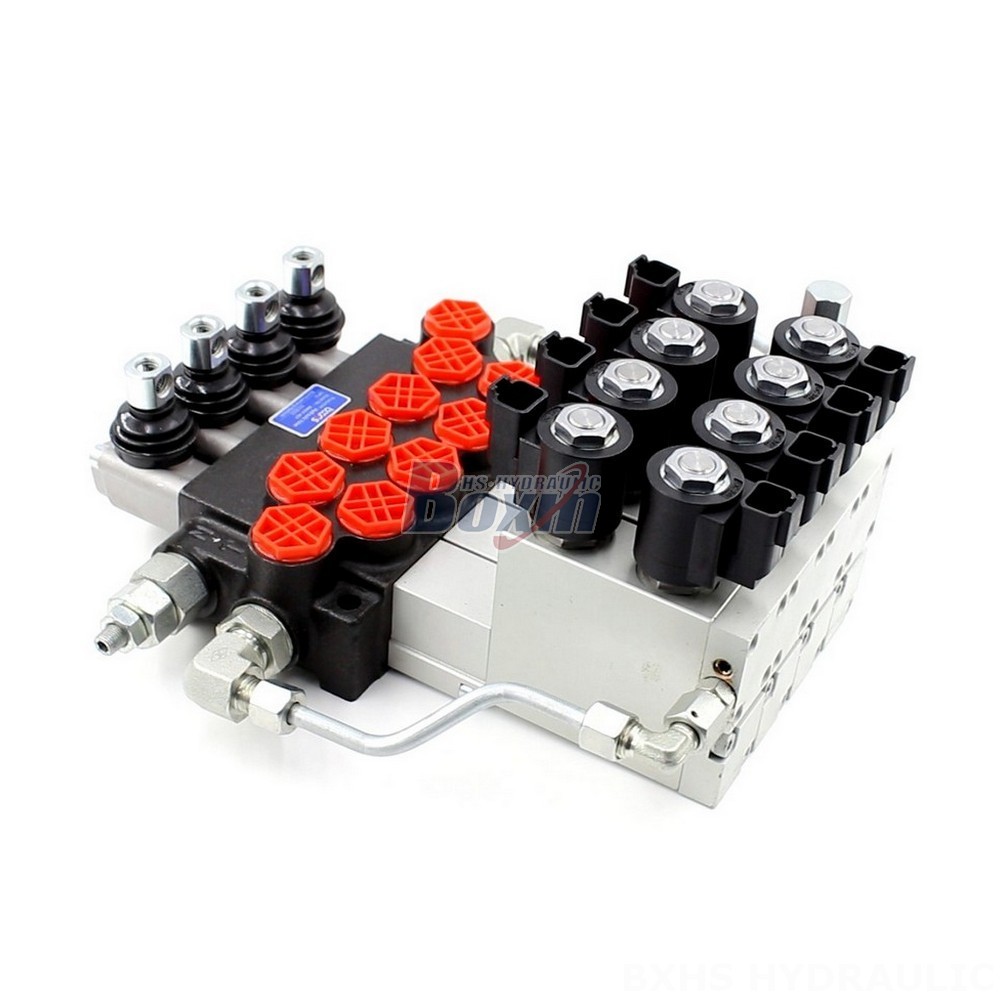

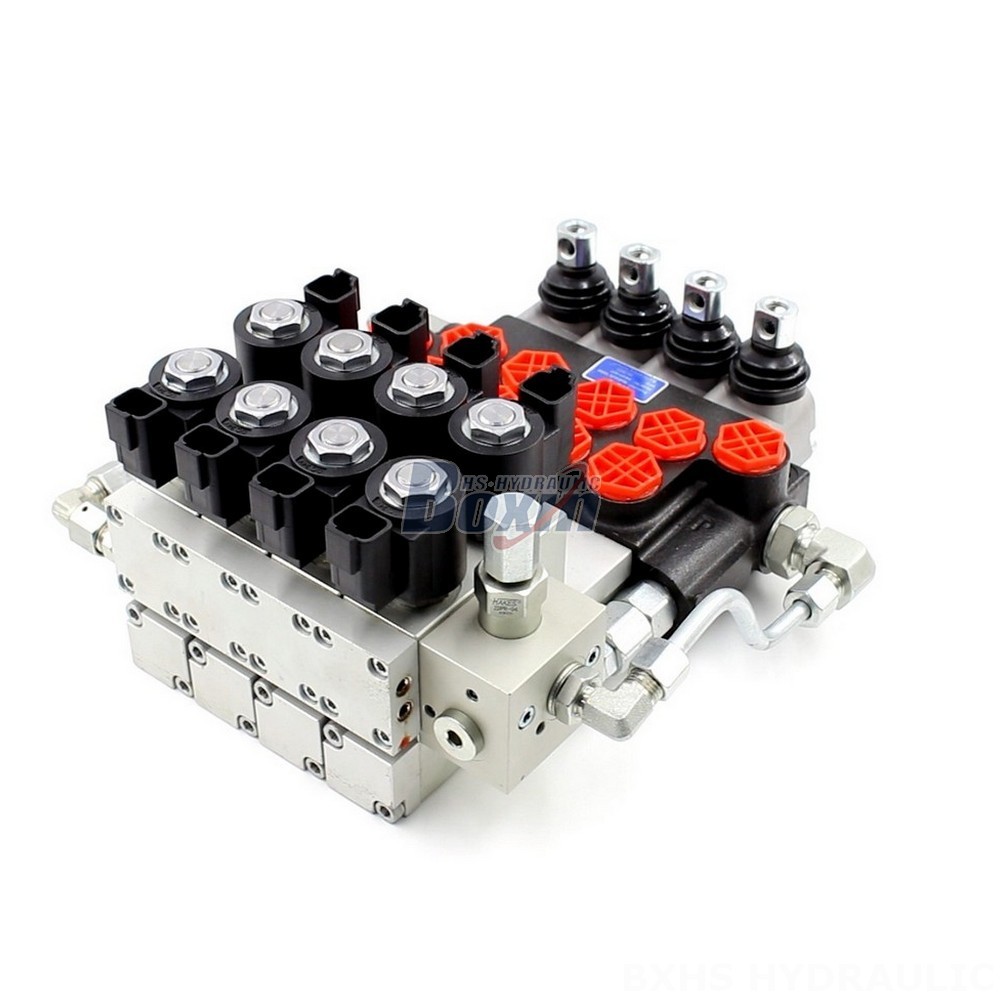

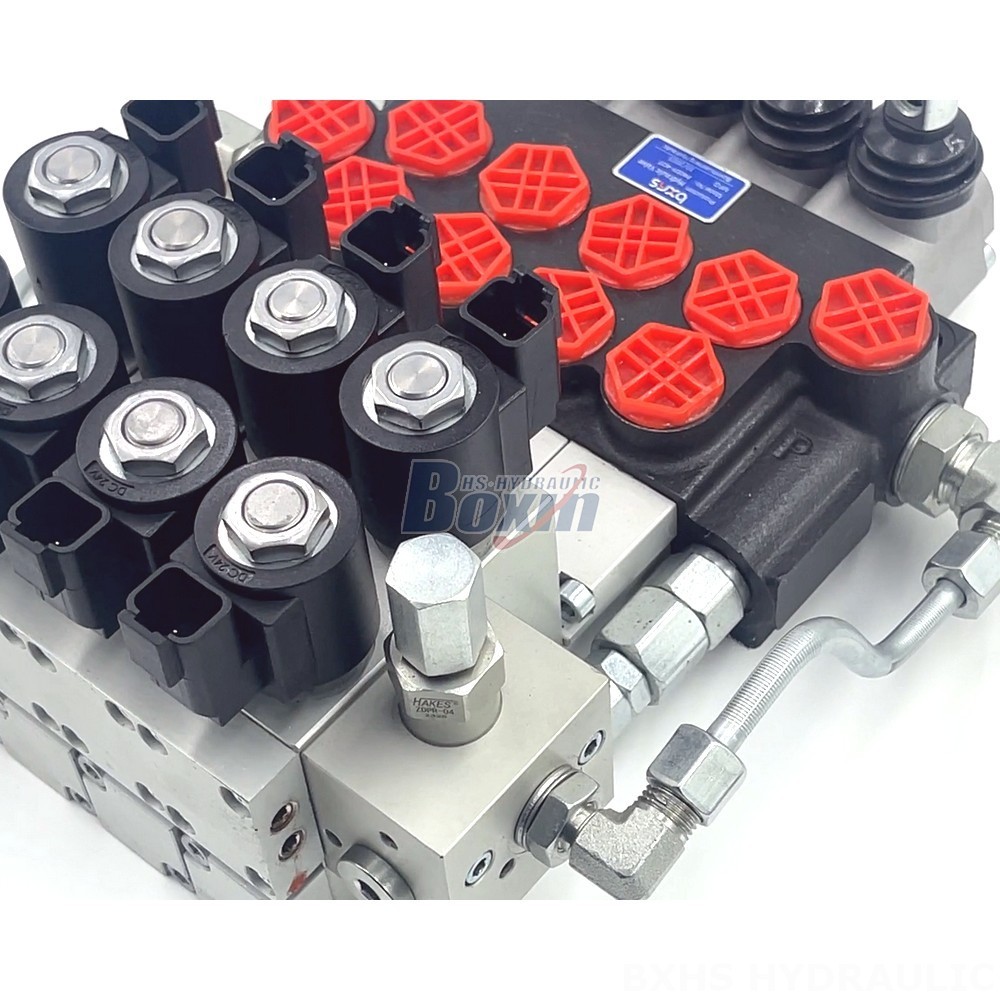

Introducing the innovative P40 Series hydraulic valve control with joystick, designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This electro-hydraulic, 4-section monoblock valve boasts a rated flow of 40 L/min, max pressure of 250 bar, and a compact design for easy integration.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series hydraulic valve control features a robust, compact monoblock design, offering reliable performance and ease of installation. With its electro-hydraulic control, the valve allows for precise and responsive operation, making it ideal for a wide range of applications. The valve is rated for a flow rate of 40 L/min and a maximum pressure of 250 bar, making it suitable for demanding heavy-duty equipment. Its 4-section design offers versatile control capabilities, while its joystick operation provides intuitive and ergonomic control. The P40 Series valve is compatible with various types of equipment, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, wheel loaders, and backhoe loaders. Its wide operating temperature range ensures reliable performance in diverse environments. Choose the P40 Series hydraulic valve control for superior performance, reliability, and ease of operation.
