The Manual 3 Spool Sectional Directional Valve - DCV58 Series is a high-performance hydraulic valve designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles. It features a sectional design, allowing for easy customization and configuration to meet specific system requirements.
| Série DCV58 Válvula direcional seccional Parâmetros | |
|---|---|
| Método de Controle | Solenoide, Solenóide e Manual |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis, 8 Carreteis, 9 Carreteis, 10 Carreteis, 11 Carreteis, 12 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula seccional |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções, 8 secções, 9 secções, 10 secções, 11 secções, 12 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 350 bar (5100 psi) |
| Porta de Entrada | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Porta de Saída | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Tamanho da Porta | G1/2, M22×1.5, SAE 10, 1/2 NPT |

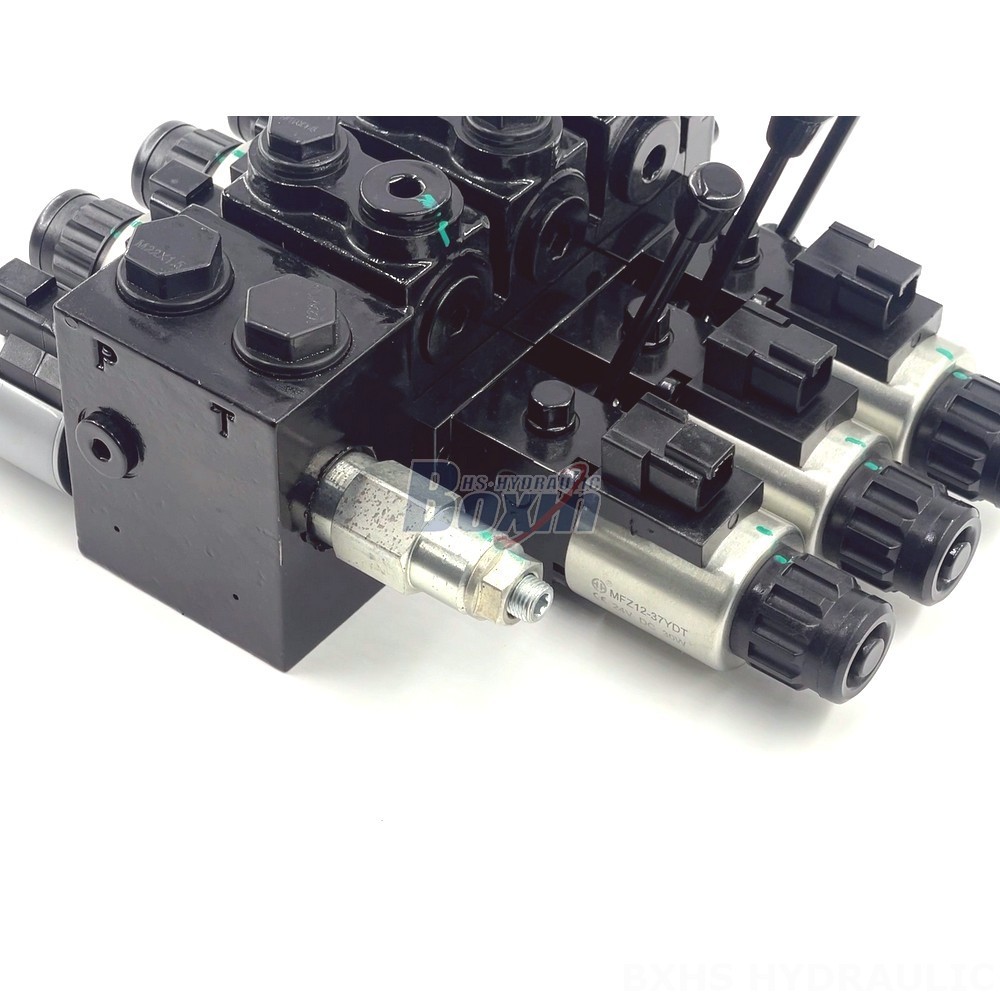

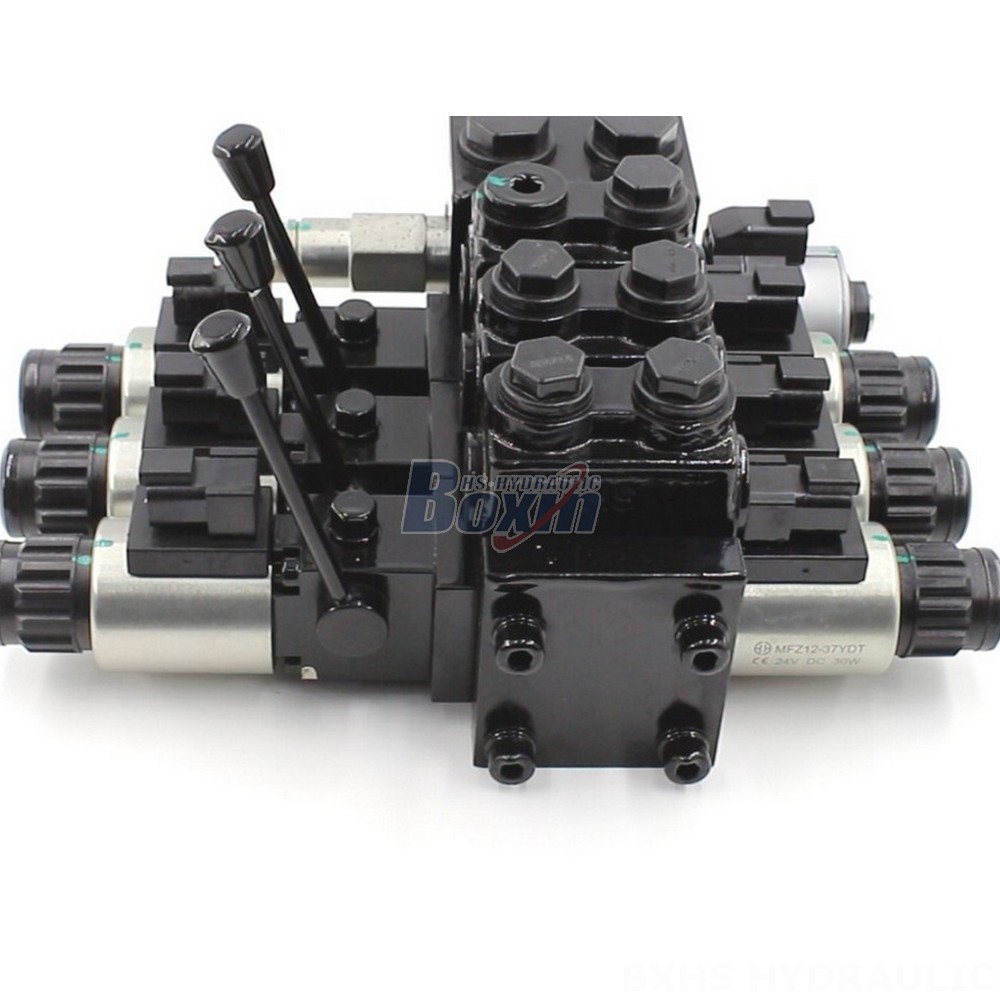

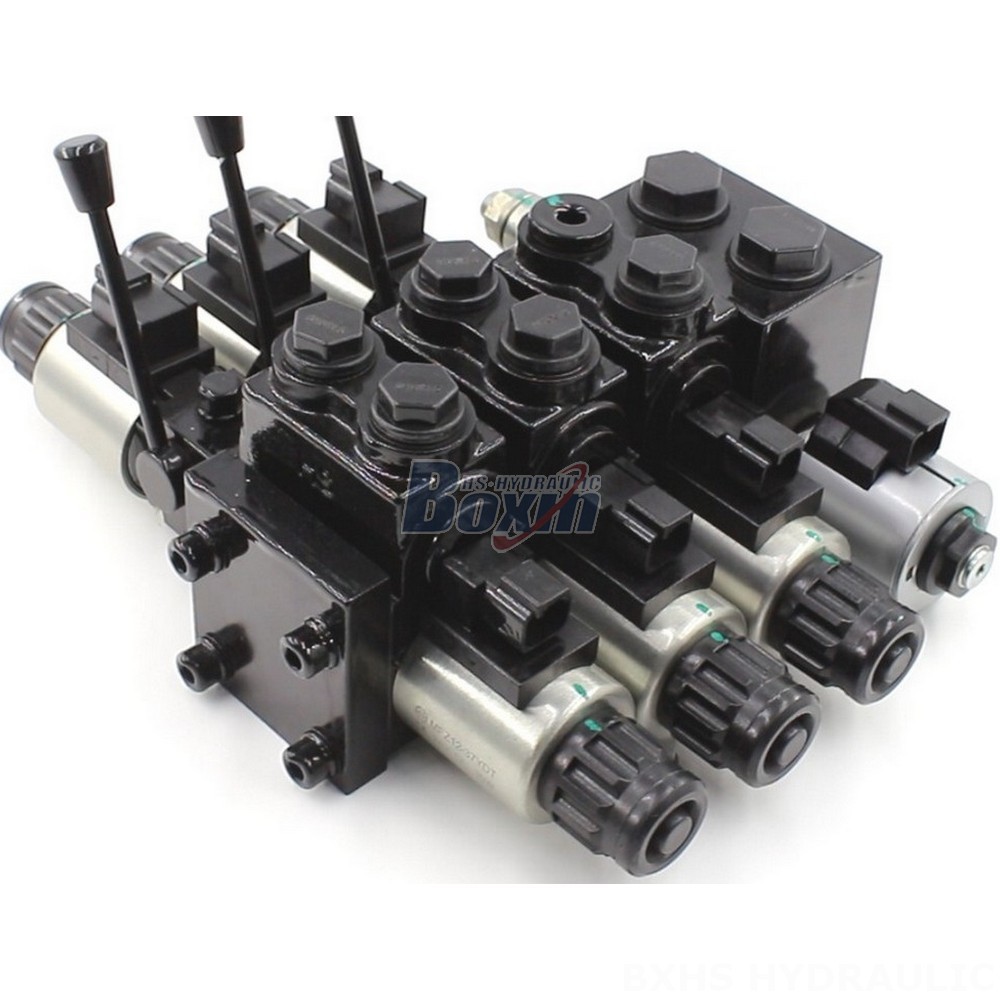

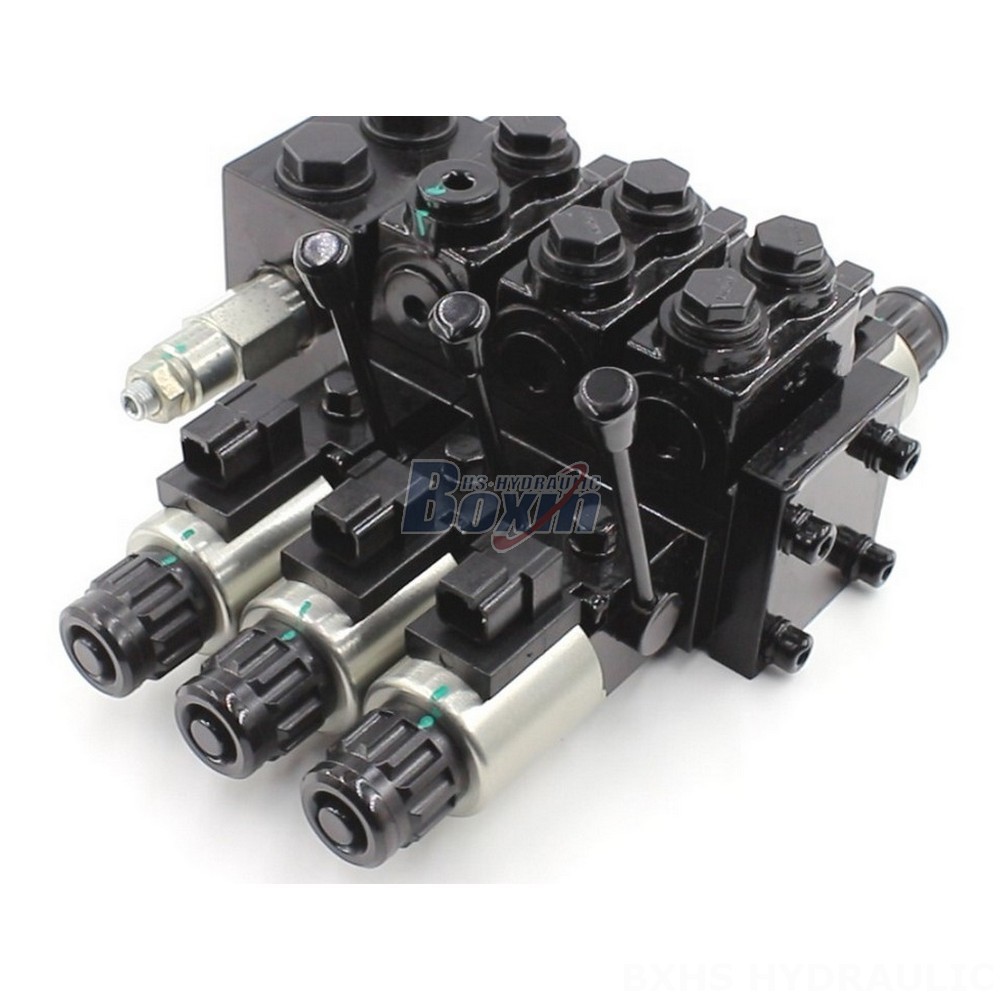

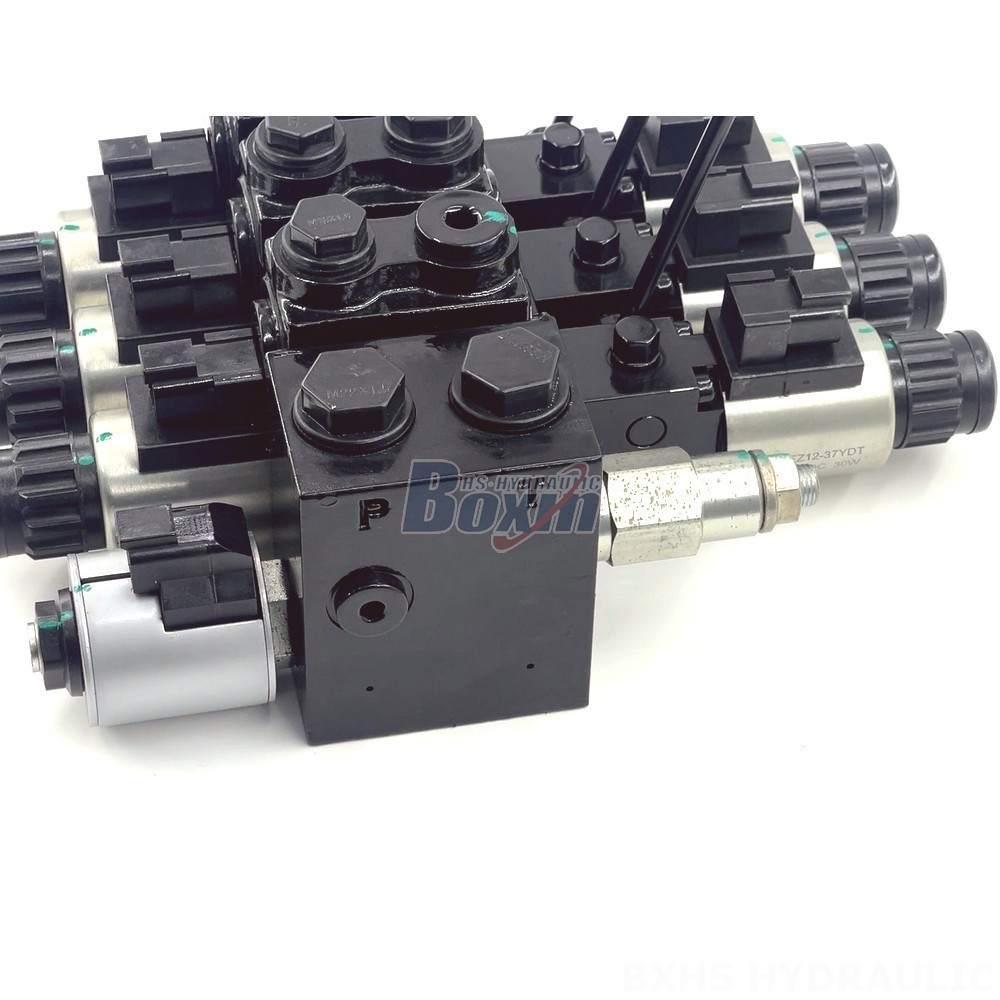

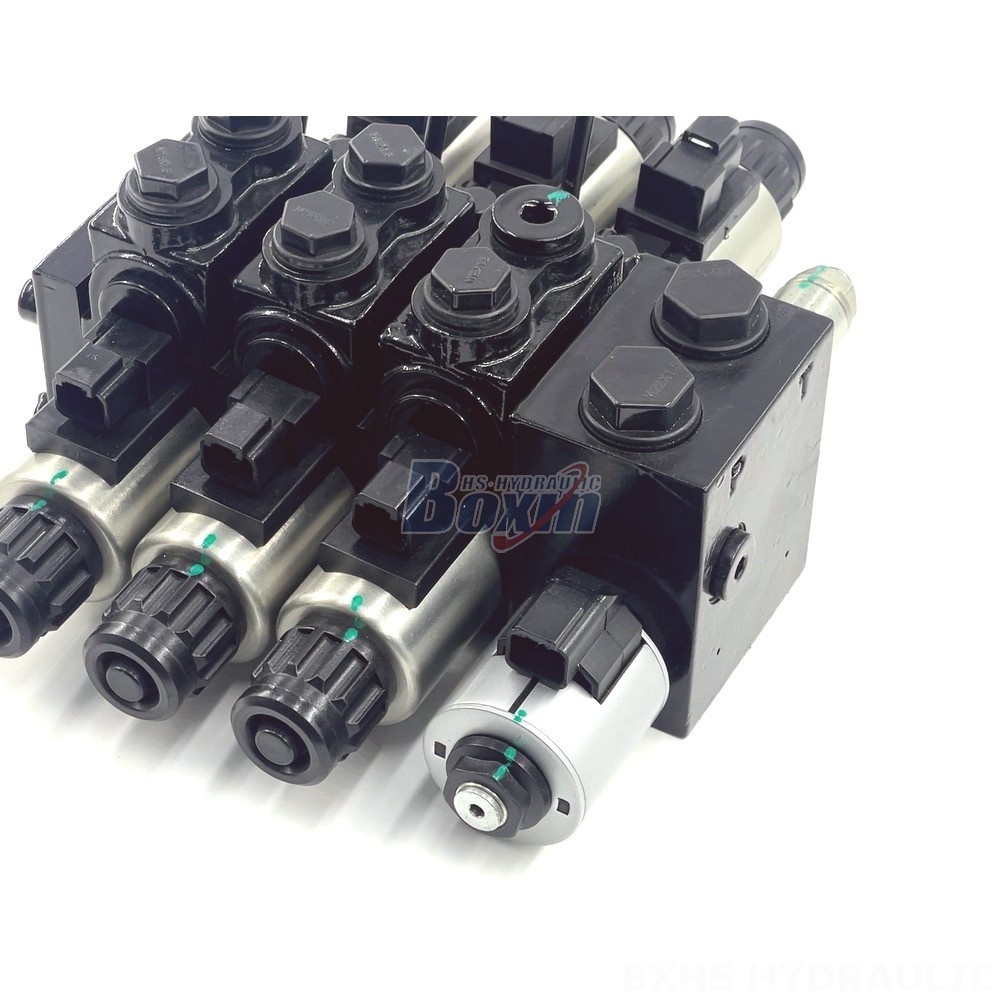

**Manual 3 Spool Sectional Directional Valve - DCV58 Series**
The DCV58 Series Manual 3 Spool Sectional Directional Valve is a versatile and reliable valve designed to control the flow of hydraulic fluid in a wide range of applications. With its robust construction, high-pressure capabilities, and precise control, this valve is ideal for use in demanding hydraulic systems.
**Key Features:**
* 3 spool design for precise control of multiple hydraulic functions
* Sectional design for easy customization and configuration
* Rated flow of 60 L/min (15.8 US gpm) for high-volume applications
* Max pressure of 350 bar (5100 psi) for heavy-duty applications
* Solenoid and manual control options for flexible operation
* Wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for use in harsh environments
**Applications:**
* Material Handling: Telehandlers, forklifts, stackers, aerial platforms
* Construction and Earth Moving: Excavators, motor graders, cranes
* Agriculture: Tractors, harvesters, sprayers
* Industrial Vehicles: Sweepers, scrubbers, lift trucks
**Benefits:**
* Improved system performance and efficiency
* Reduced downtime and maintenance costs
* Increased productivity and operator safety
* Versatile and customizable to meet specific application requirements
