Manual Hydraulic Directional Valve P40-U34: Customizable & OEM Available

Método de Controle:Manual

Carrétel:6 Carreteis

Fluxo Nominal:40 L/min (10,5 US gpm)

Pressão Máxima:250 bar (3600 psi)

Porta de Entrada:SAE 8

Porta de Saída:SAE 8

Tamanho da Porta:SAE 8

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série P40 Válvula Direcional Monobloco

Tamanho da embalagem:32*23*13

Peso bruto:11.40 kg

Disponibilidade: Em estoque

1114 Visualizações estão procurando por este produto

Manual Hydraulic Directional Valve P40-U34: Customizable & OEM Available

Manual Hydraulic Directional Valve P40-U34: Customizable & OEM Available

Manual Hydraulic Directional Valve P40-U34: Customizable & OEM Available drawing image

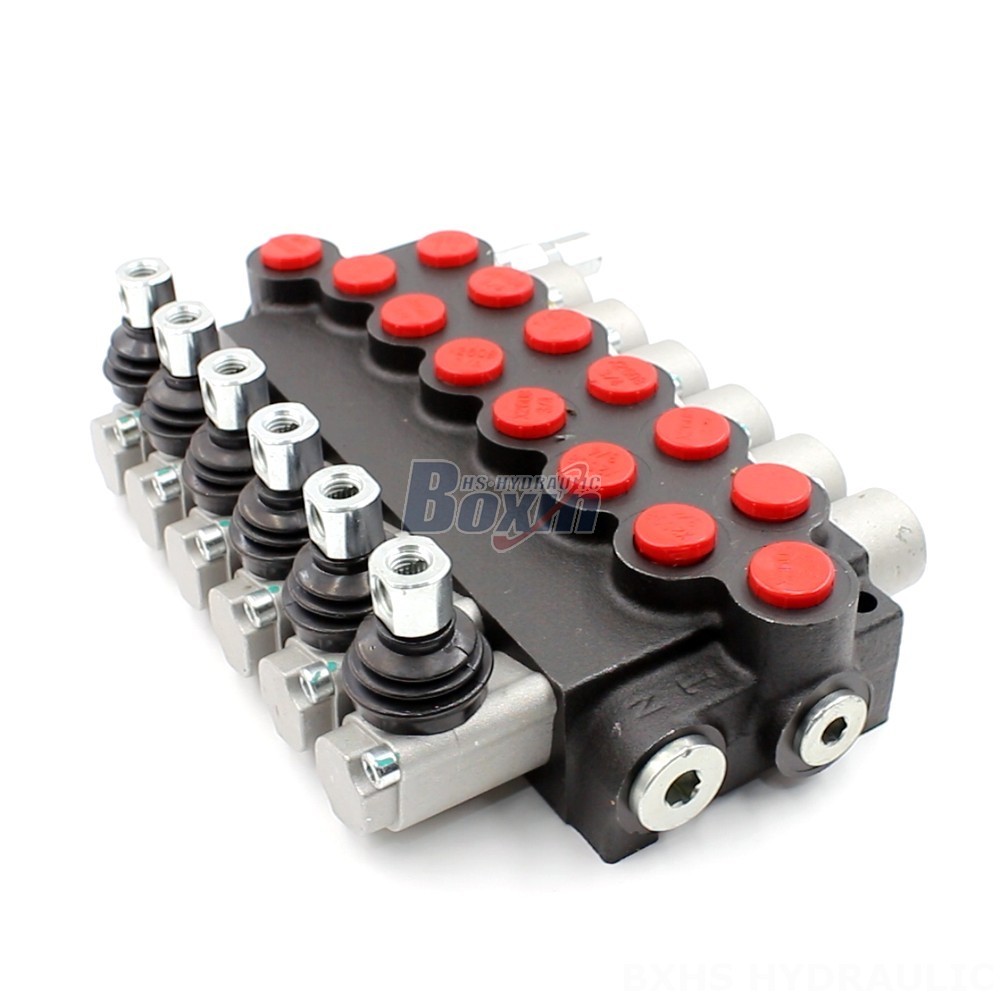

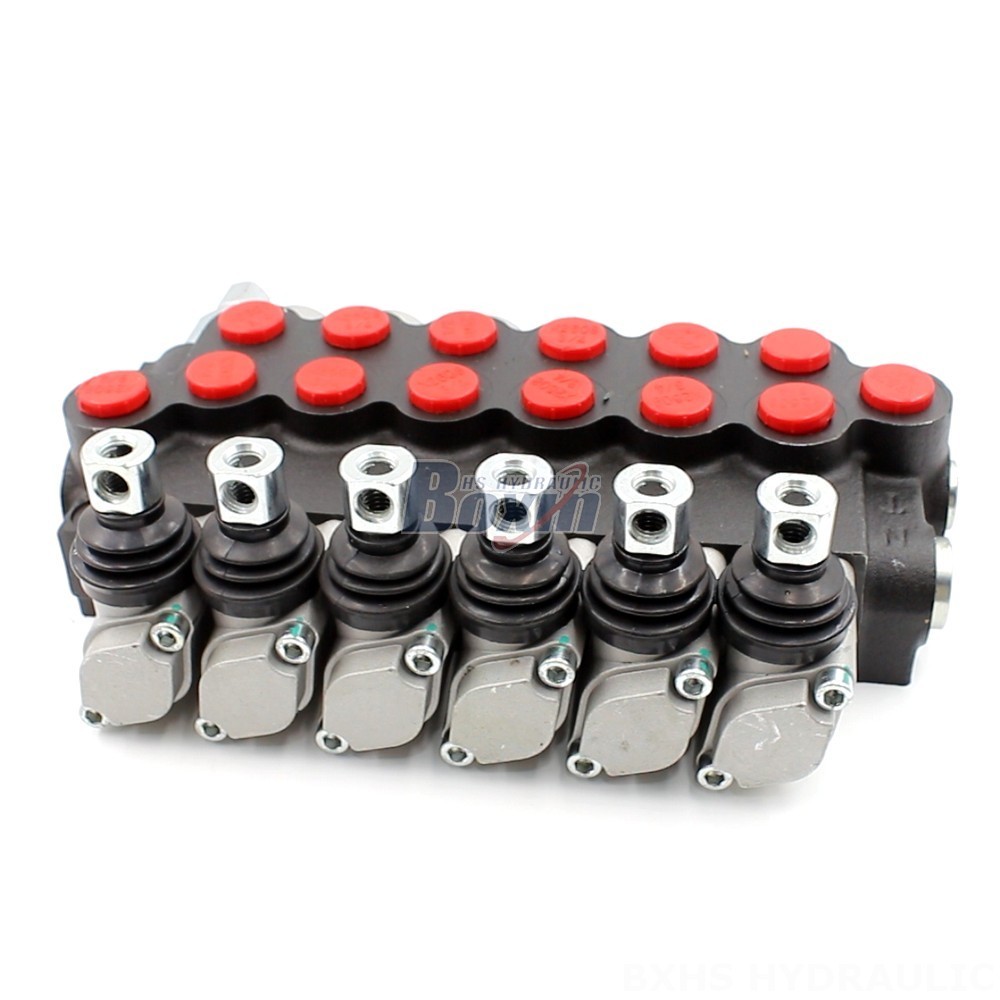

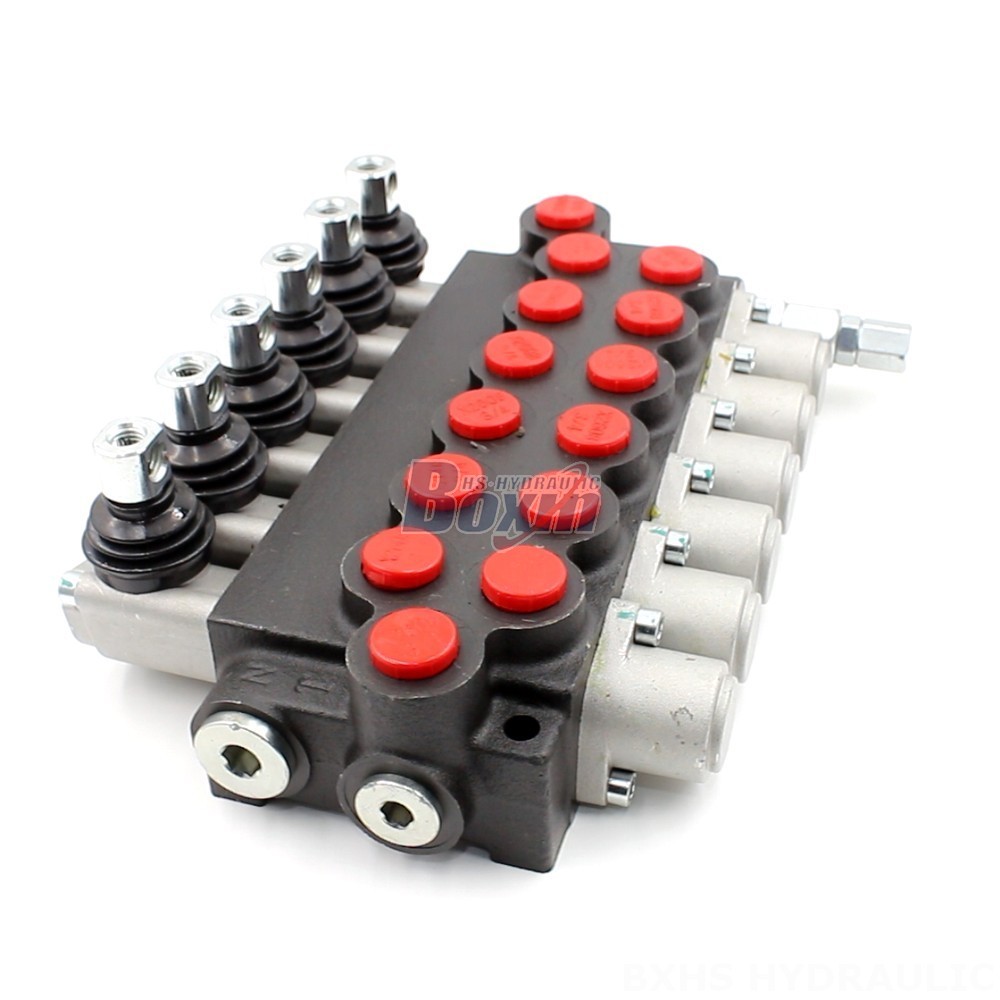

The P40-U34 is a 6-section, manual hydraulic directional valve designed for use in a variety of industrial, construction, and agricultural applications. It features a robust monoblock design, rated flow of 40 L/min, and maximum pressure of 250 bar. This versatile valve is customizable and available for OEM applications.

Série P40 Válvula Direcional Monobloco Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula monobloco
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)
Fluxo Nominal 40 L/min (10,5 US gpm)
Pressão Máxima 250 bar (3600 psi)
Porta de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Porta de Saída G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamanho da Porta G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-U34 is a high-performance, 6-section manual hydraulic directional valve built for durability and reliability. With its monoblock construction, it provides exceptional strength and stability. The valve is rated for a flow rate of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), making it suitable for a wide range of demanding applications. It operates with a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This valve is specifically designed for use in industrial vehicles, construction and earthmoving equipment, and agriculture applications. It is compatible with a variety of models, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and wheel loaders. As a manufacturer, we offer a range of services including manufacturing, OEM, private labeling, customization, and wholesale distribution. We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
