Produção e Entrega
Prazo de produção de 15 a 30 dias
942 Visualizações estão procurando por este produto

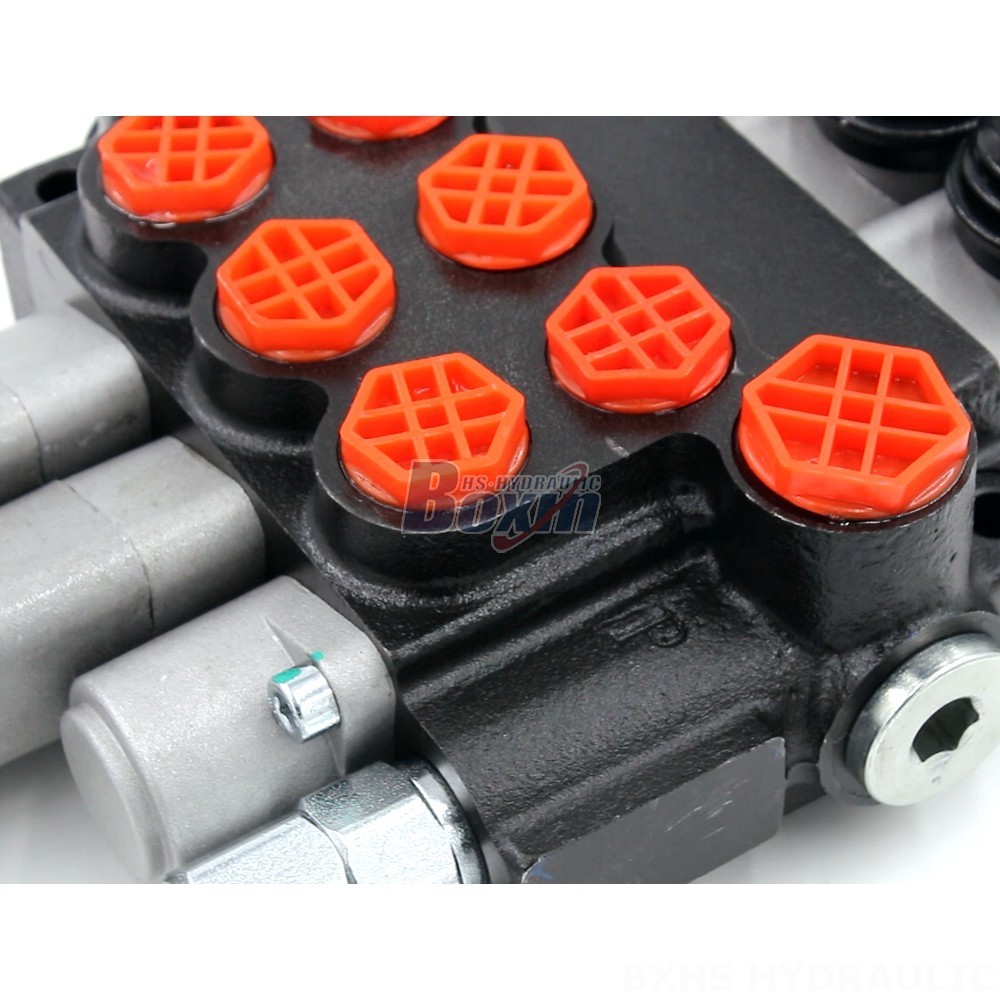

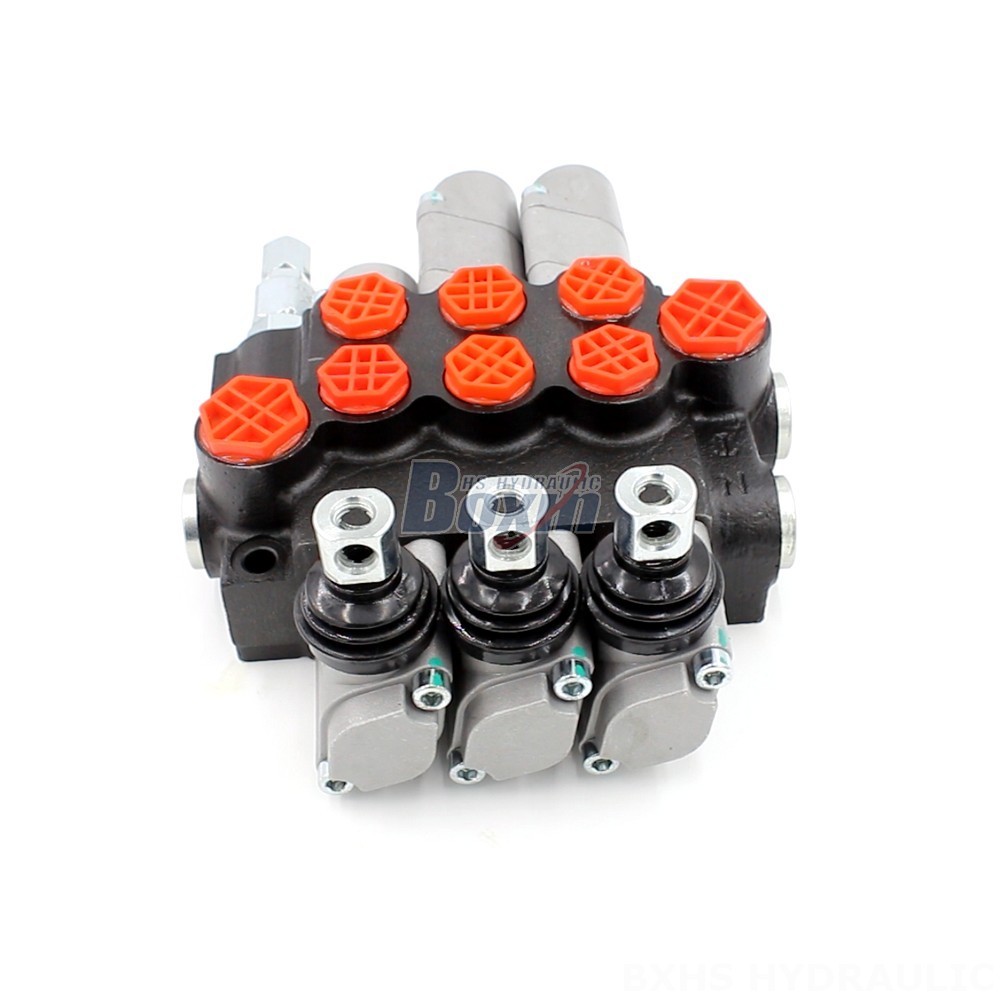

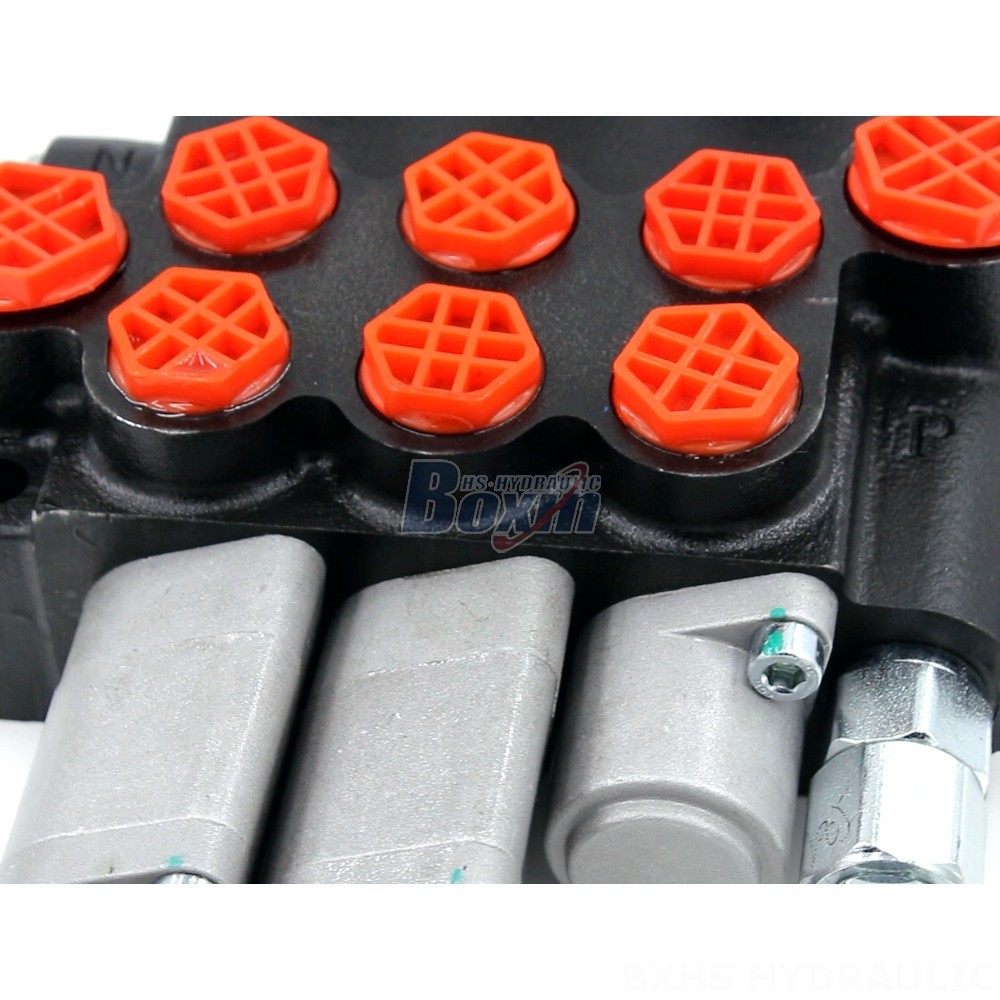

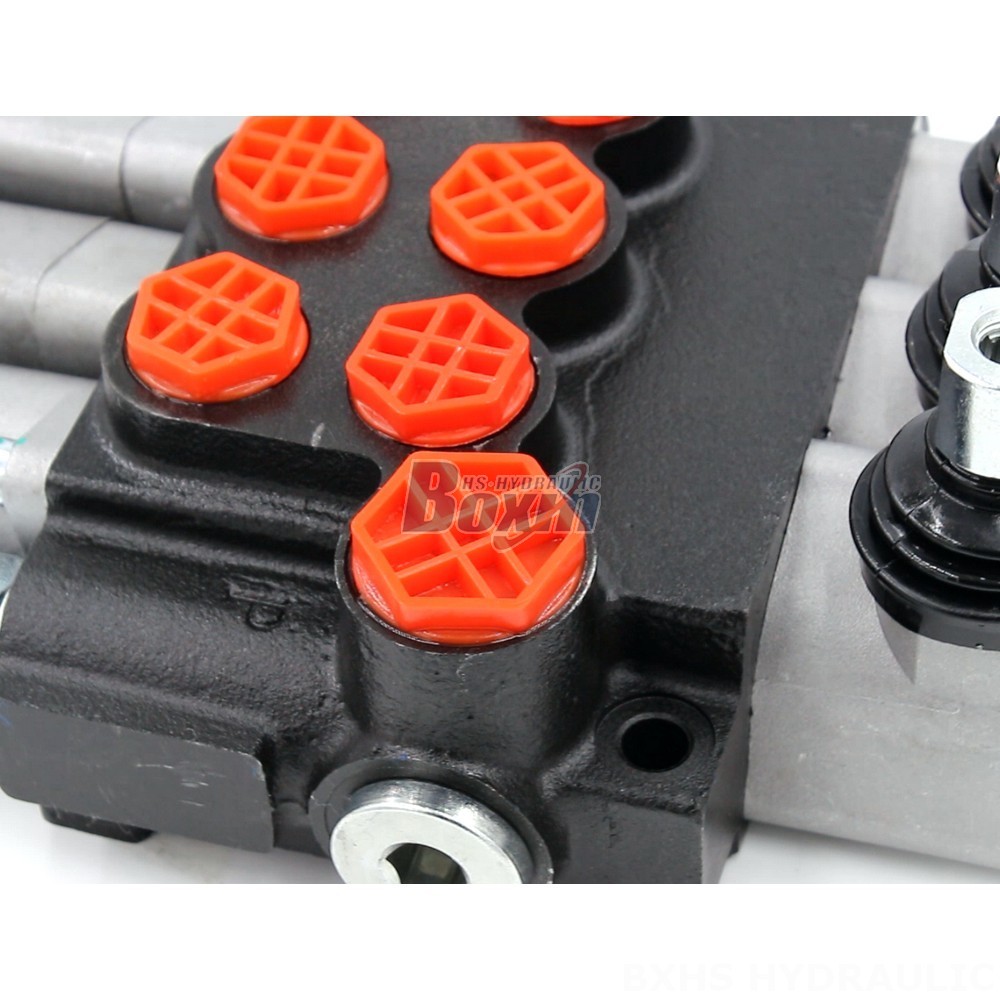

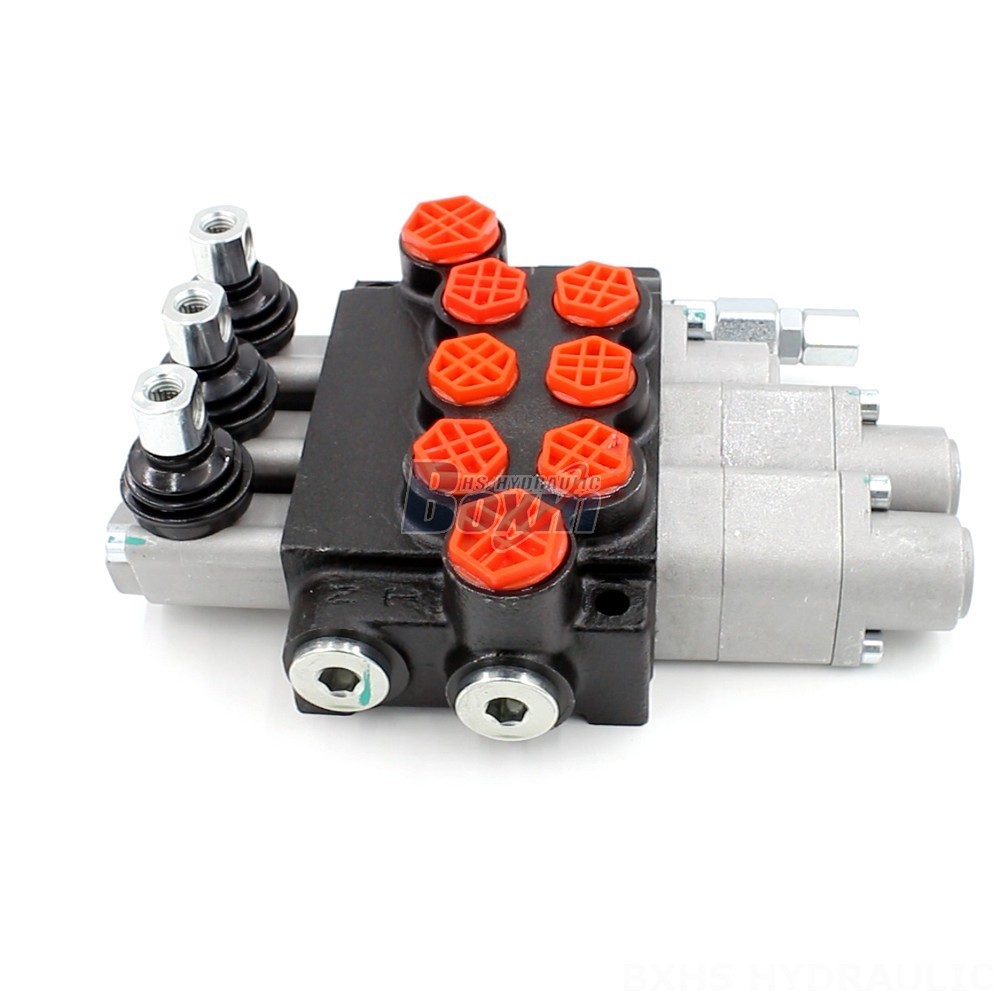

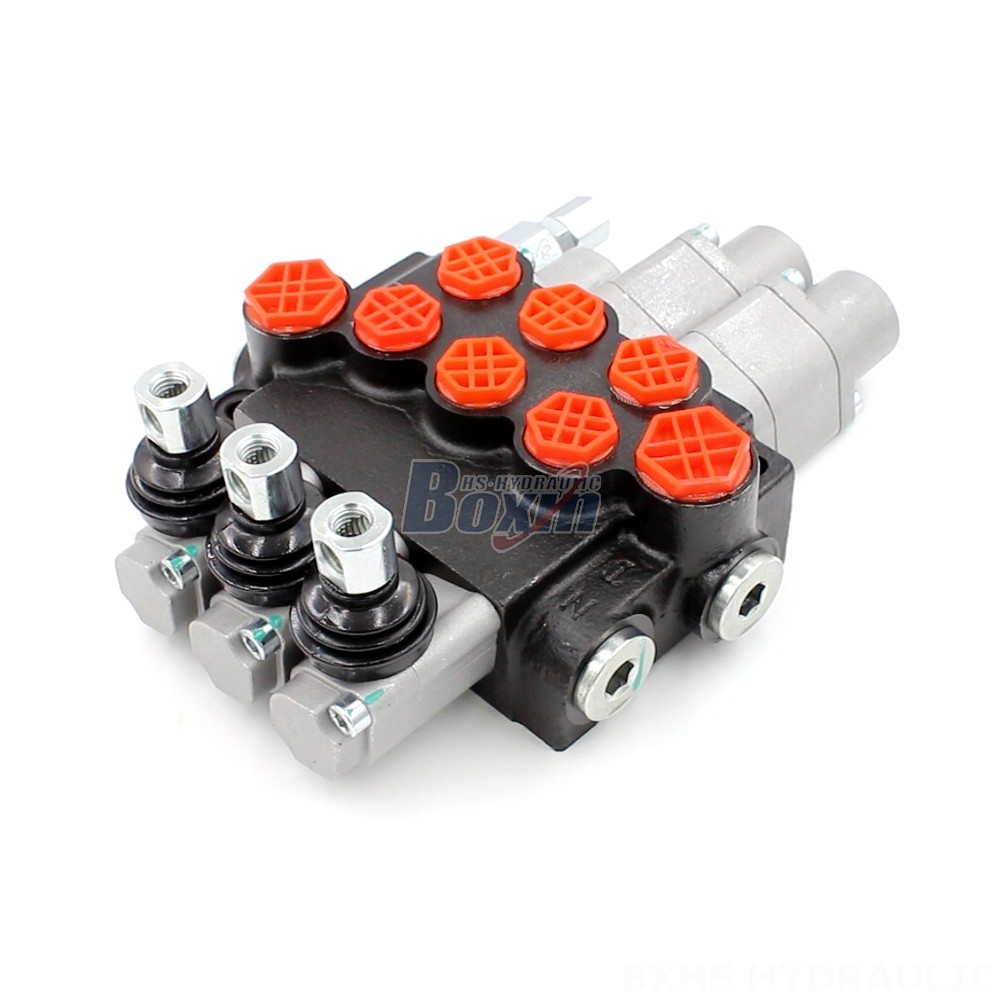

The Manual Monoblock Directional Valve - P40-G12-G38-OT-2QTW Series is a high-performance hydraulic valve designed for use in various industrial applications. It features a manual control method, a 3-section monoblock structure, a rated flow of 40 L/min, and a maximum pressure of 250 bar.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Monoblock Directional Valve is constructed with a robust design to withstand the demanding conditions of construction, material handling, agriculture, and industrial vehicle applications. Its compact size and modular design make it easy to integrate into existing hydraulic systems. The valve offers precise control over fluid flow direction, ensuring efficient and reliable operation of hydraulic machinery. Key features include:
* Manual control for precise and responsive operation
* 3-section monoblock design for compact and efficient installation
* Rated flow of 40 L/min for high flow capacity
* Maximum pressure of 250 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
* Ambient temperature range of -40°C to +80°C for reliable operation in harsh environments
* 3 spool configuration for versatile flow control
* Wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, wheel loaders, and backhoe loaders
