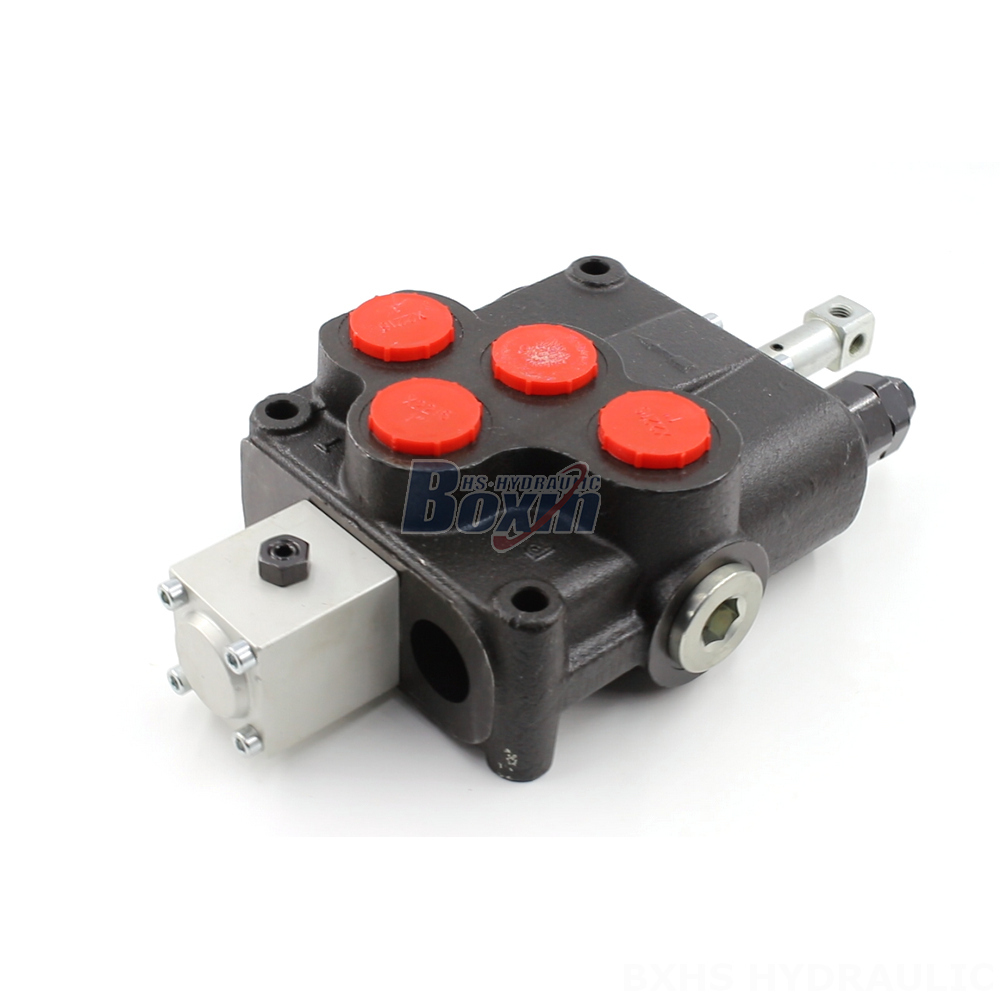

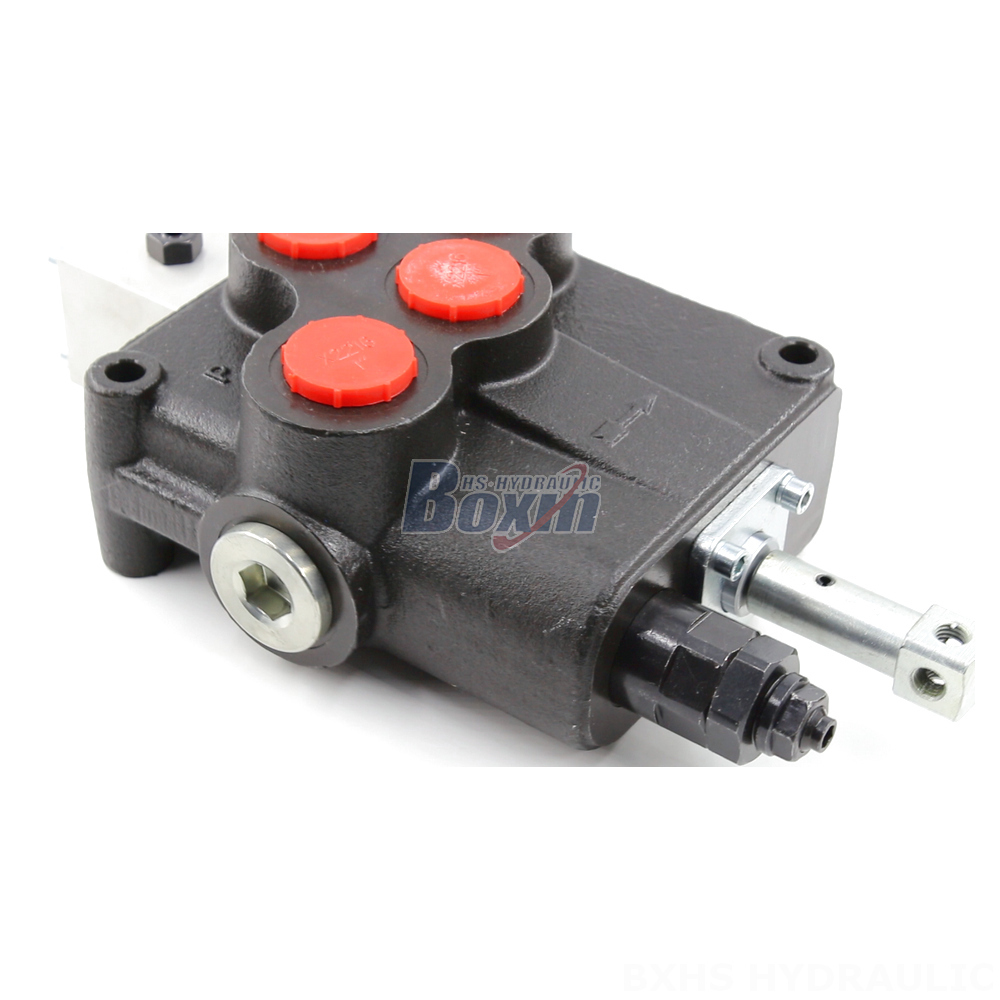

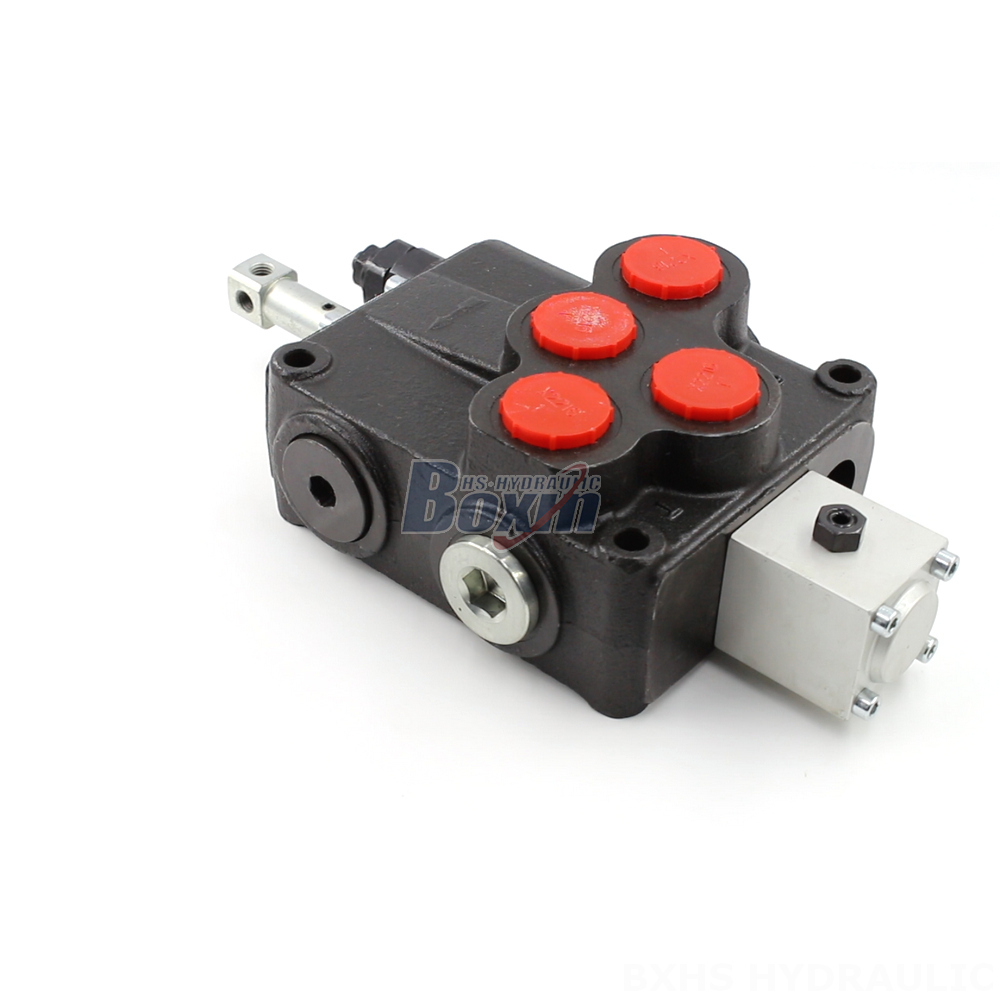

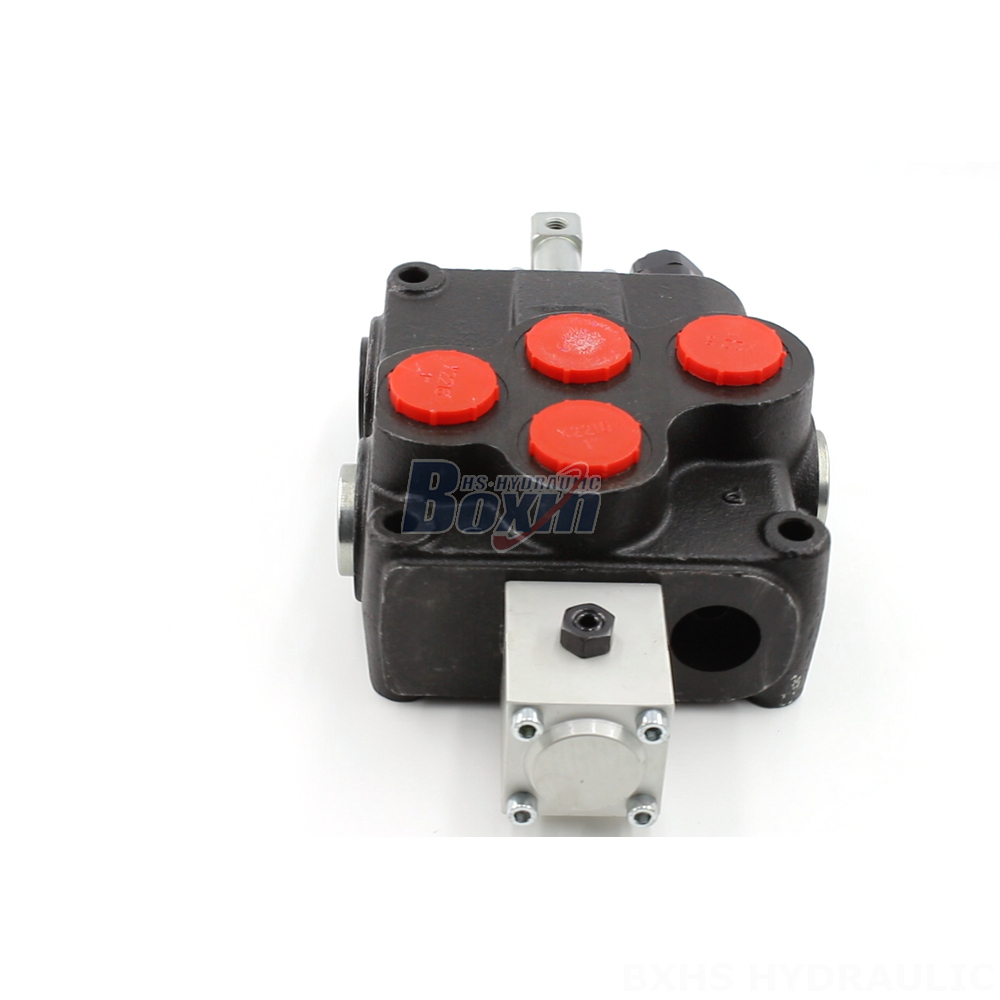

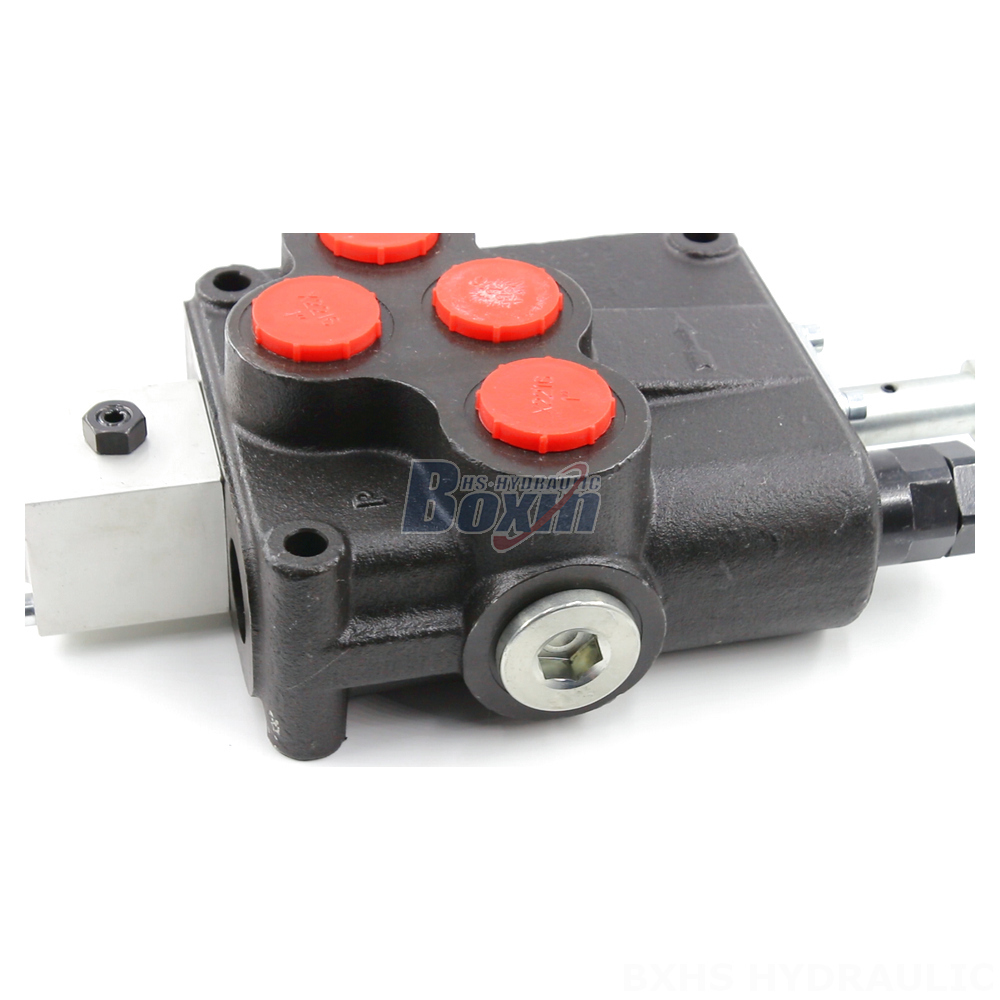

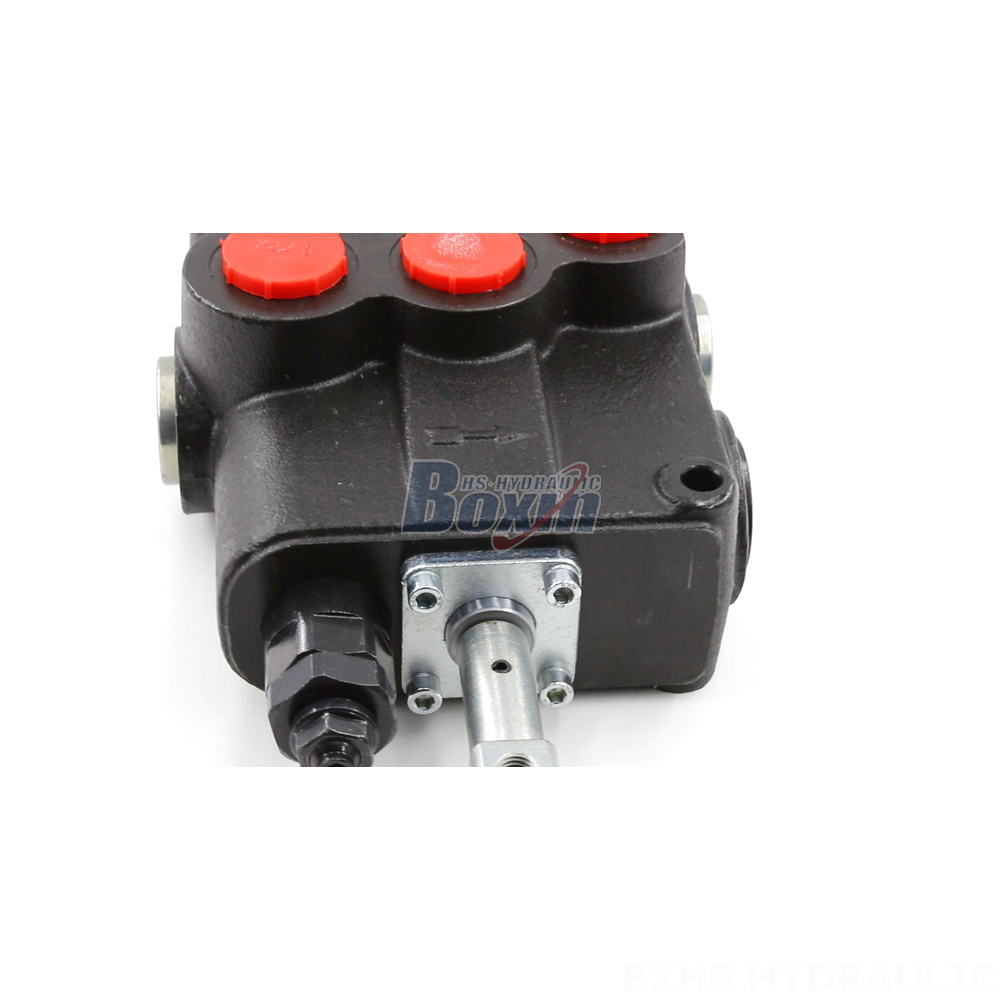

The SD18 Series Log Splitter Hydraulic Lever Manual Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a robust monoblock construction, manual control, and a rated flow of 120 L/min (31.7 US gpm) at a maximum pressure of 315 bar (4600 psi). Ideal for use in telehandlers, forklifts, cranes, stackers, backhoes, seeding machines, harvesters, balers, skip loaders, and wood splitters.
| SD18 Series Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Hidráulico, Hidráulico e Manual, Cabo, Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis |
| Fluxo Nominal | 160 L/min (42,2 US gpm) |
| Pressão Máxima | 305 bar (4400 psi) |
| Porta de Entrada | G1/2, G1, SAE 16 |
| Porta de Saída | G1, SAE 16 |
| Tamanho da Porta | G1, SAE 16 |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções |
| Tipo de estrutura | Válvula monobloco |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Intervalo de viscosidade operacional | 12 - 400 mm²/s (12 cSt a 400 cSt) |
This SD18 Series hydraulic valve is a manual, monoblock directional valve specifically designed for log splitting applications. It offers a single section with one spool, providing efficient and reliable control of hydraulic flow. The valve features a rated flow of 120 L/min (31.7 US gpm) and a maximum operating pressure of 315 bar (4600 psi), ensuring it can handle demanding tasks. Its robust construction and wide operating viscosity range (-40°C to +80°C/-40°F to +176°F) make it suitable for various environments. The SD18 Series is an excellent choice for manufacturers and distributors seeking a high-quality, reliable, and efficient hydraulic valve for their log splitting equipment.
