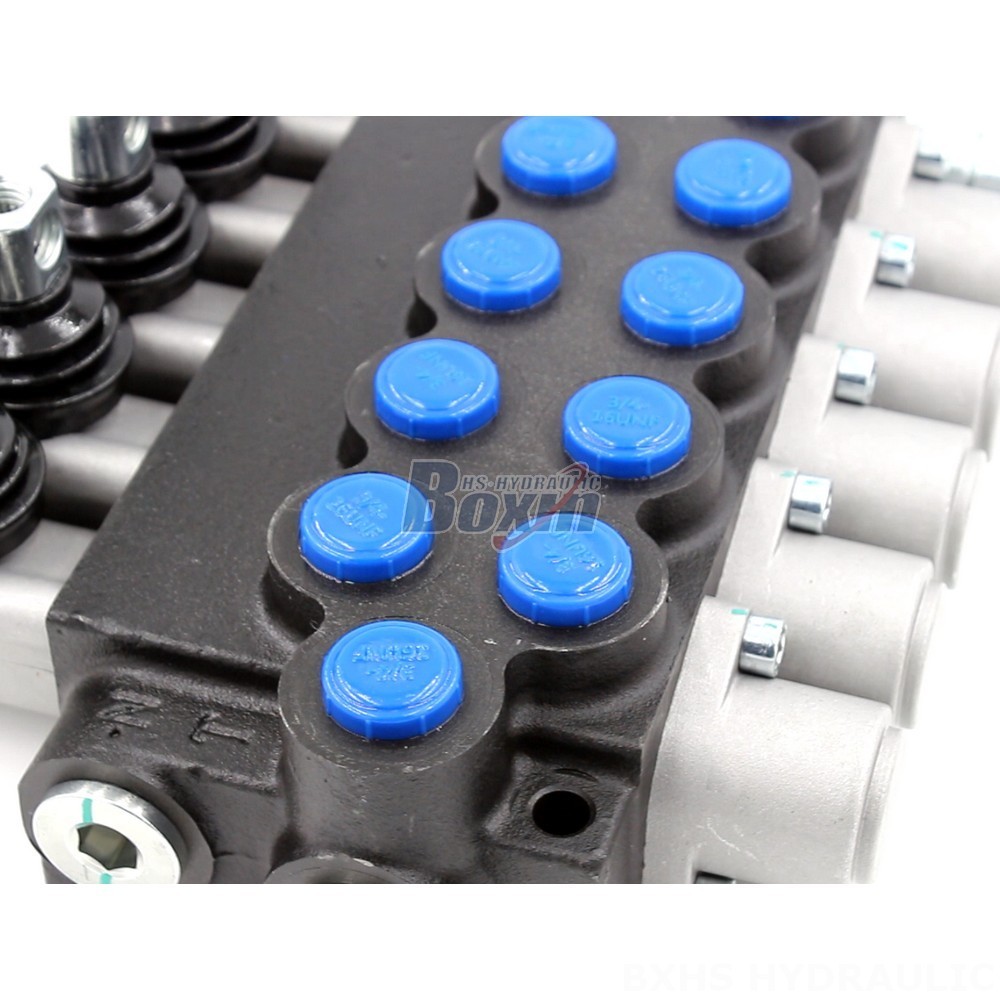

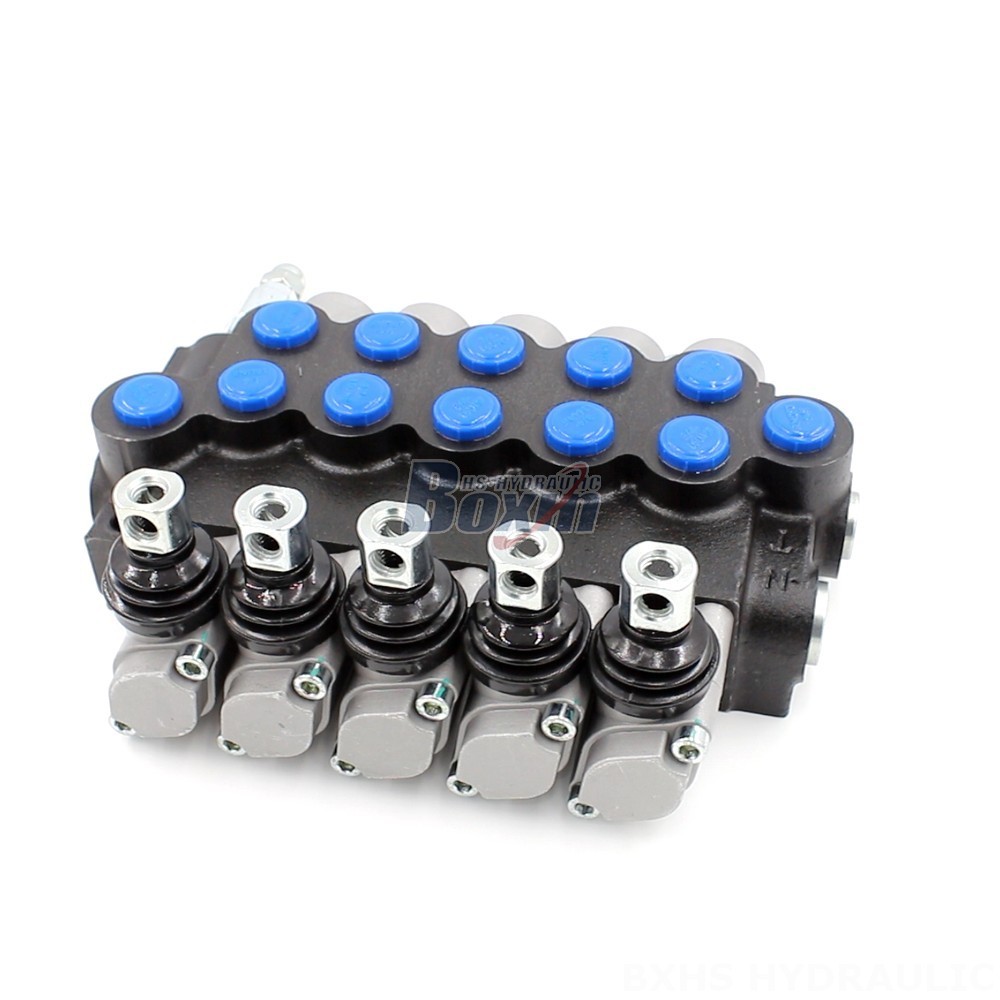

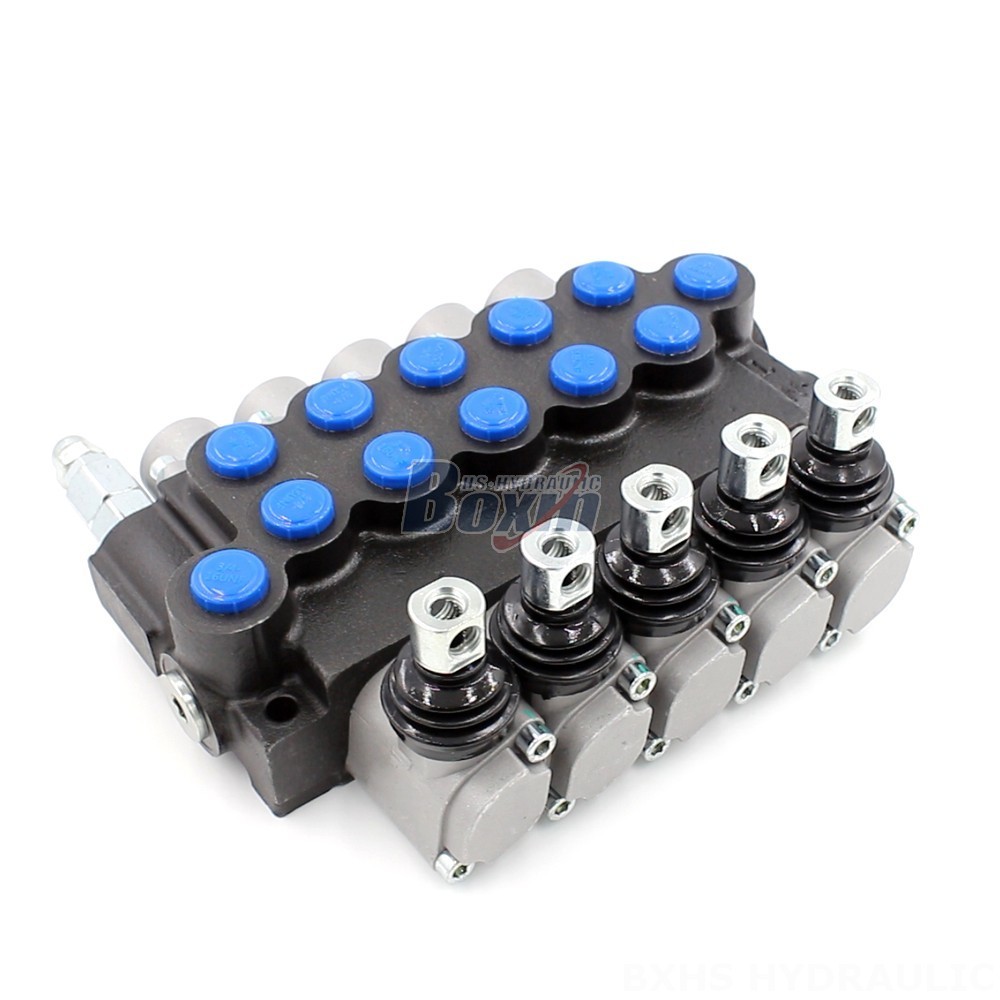

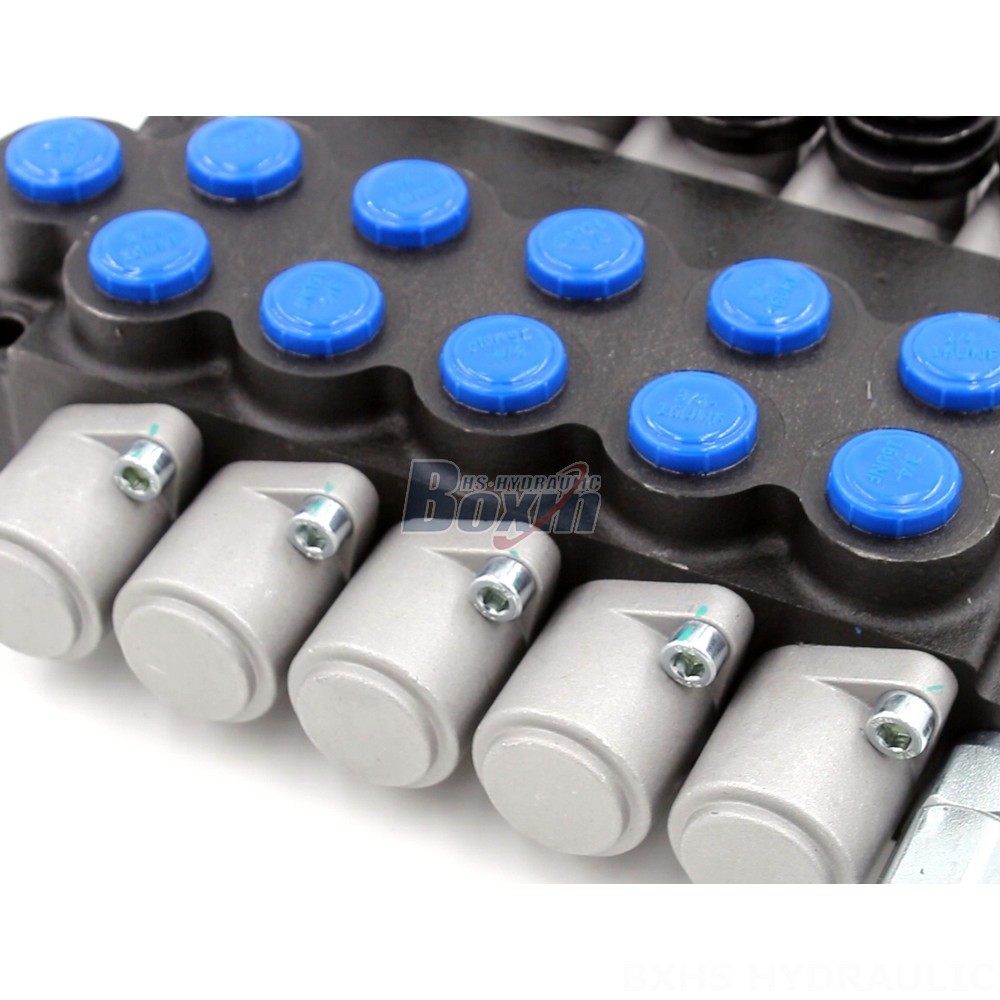

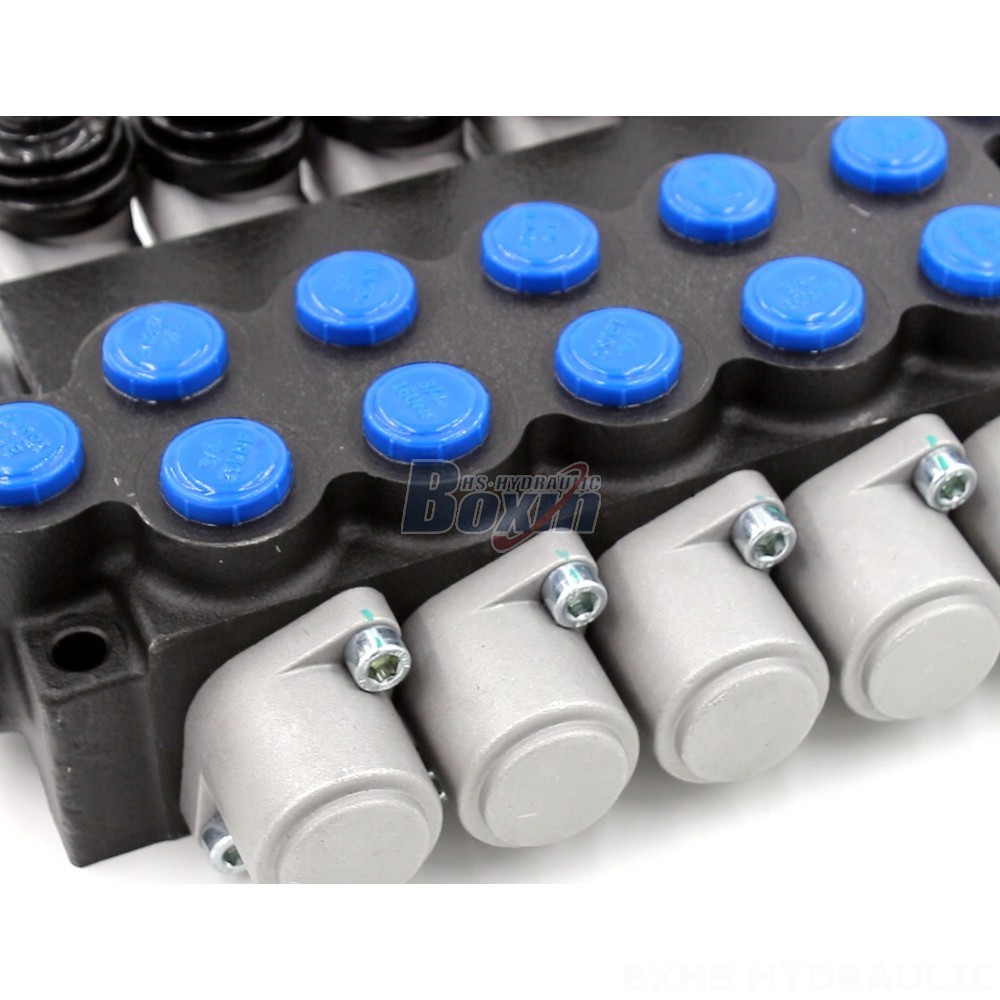

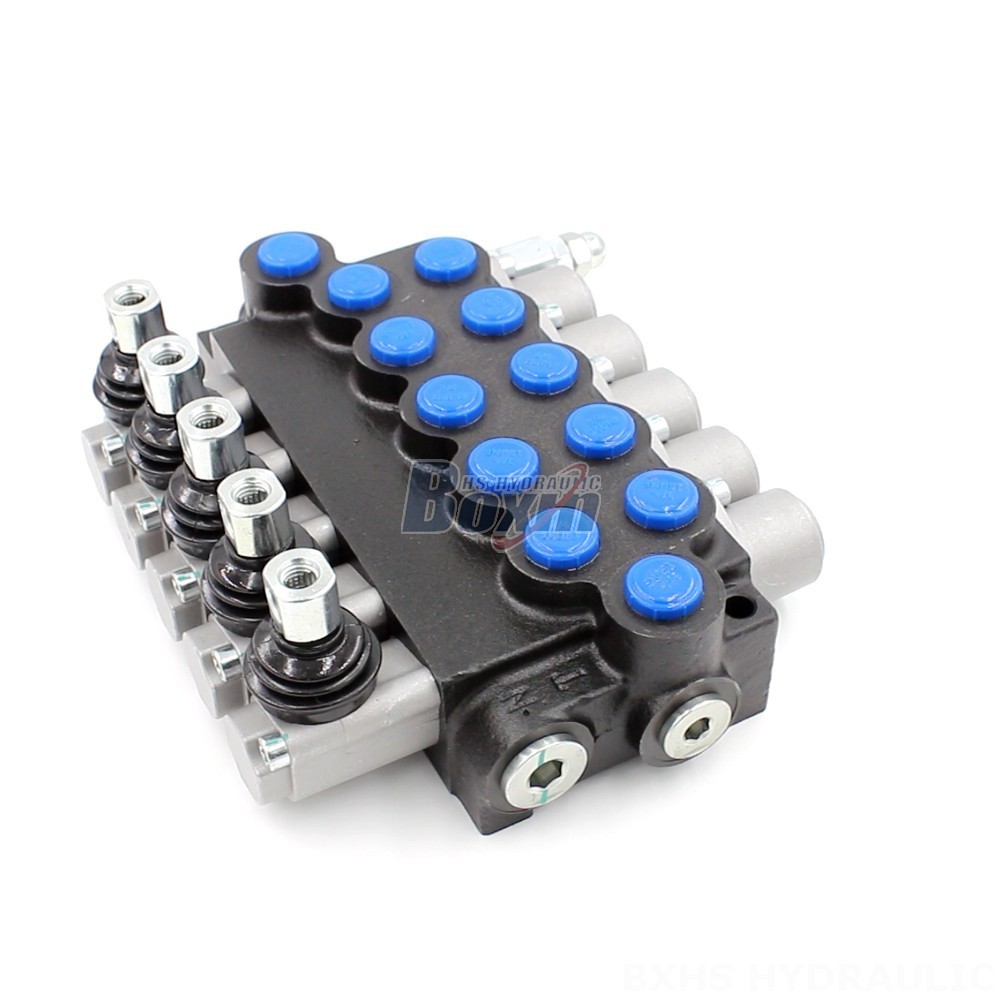

The P40-U78 Series Hydraulic Log Splitter Monoblock Directional Control Valve is a high-performance valve designed for use in a wide range of applications, including material handling, construction, and agriculture. This 5-section, manually controlled valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for powering log splitters and other heavy-duty equipment.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-U78 Series Hydraulic Log Splitter Monoblock Directional Control Valve is a robust and reliable solution for controlling hydraulic systems in a variety of applications. This 5-section, monoblock valve features a manual control method, making it easy to operate. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is capable of handling demanding hydraulic tasks. Its wide operating viscosity range (15-75 mm²/s) and ambient temperature range (-40°C to +80°C) ensure optimal performance in a variety of environments. The P40-U78 Series is available in OEM and wholesale quantities, making it a perfect choice for manufacturers and distributors looking for high-quality hydraulic components. This valve is suitable for use in various types of equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
