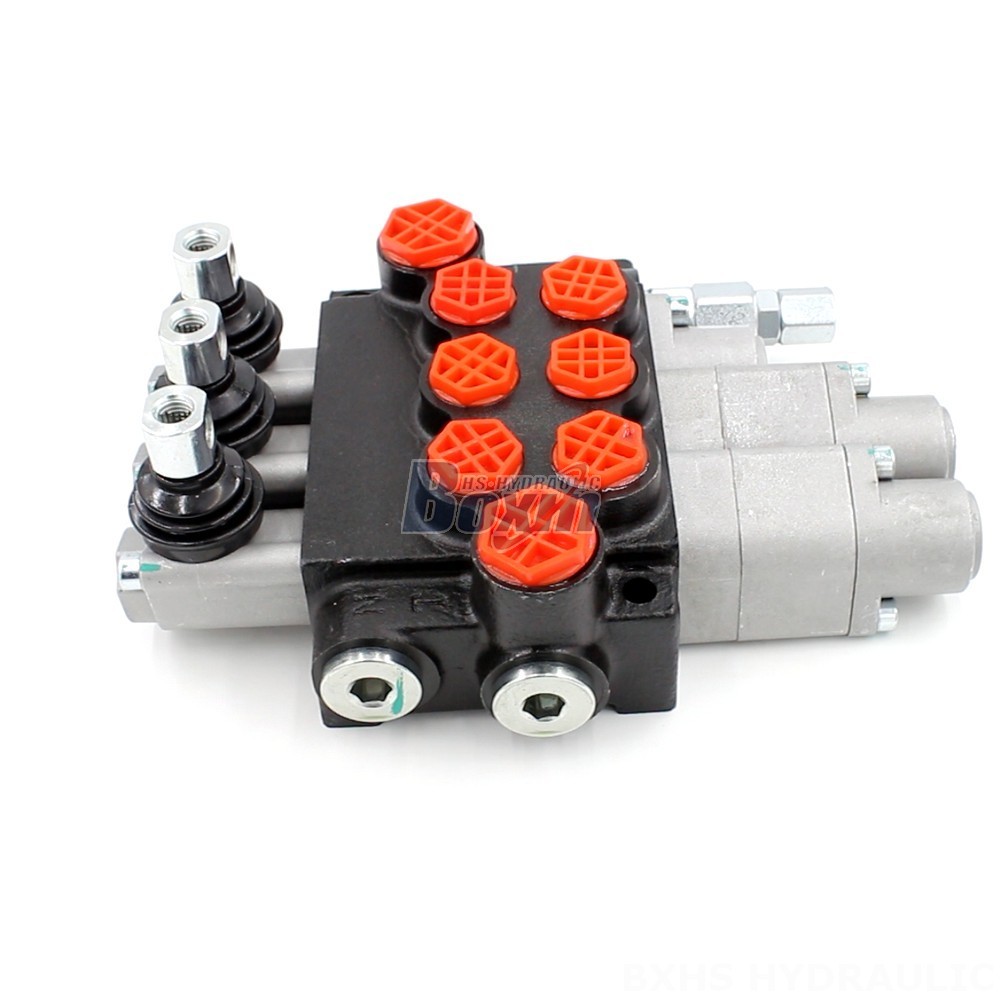

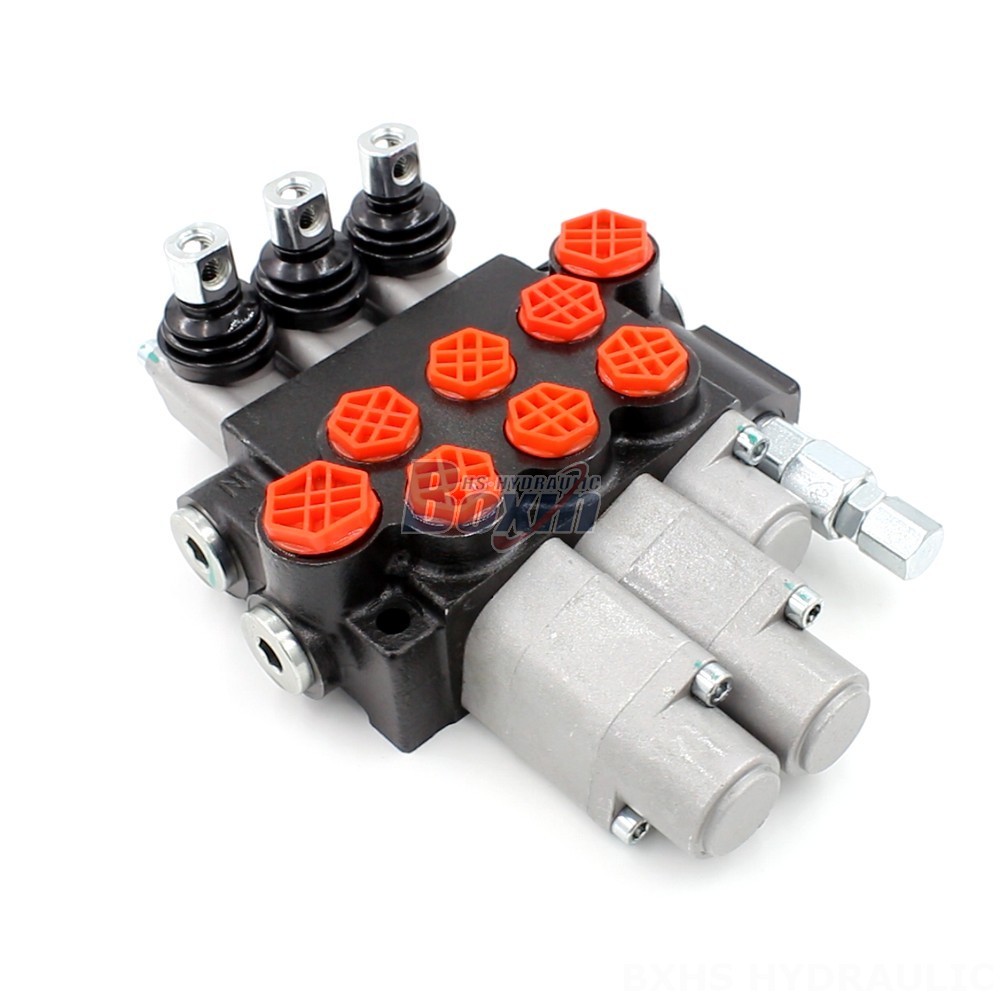

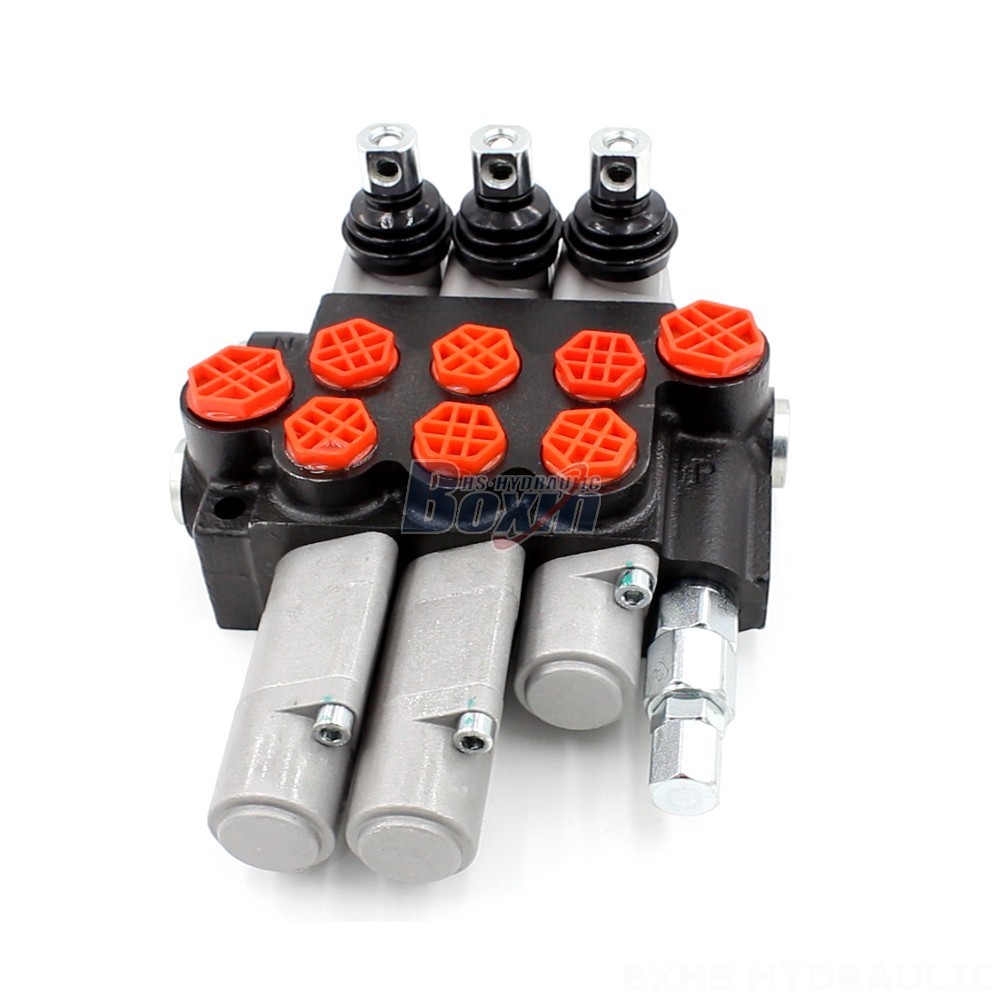

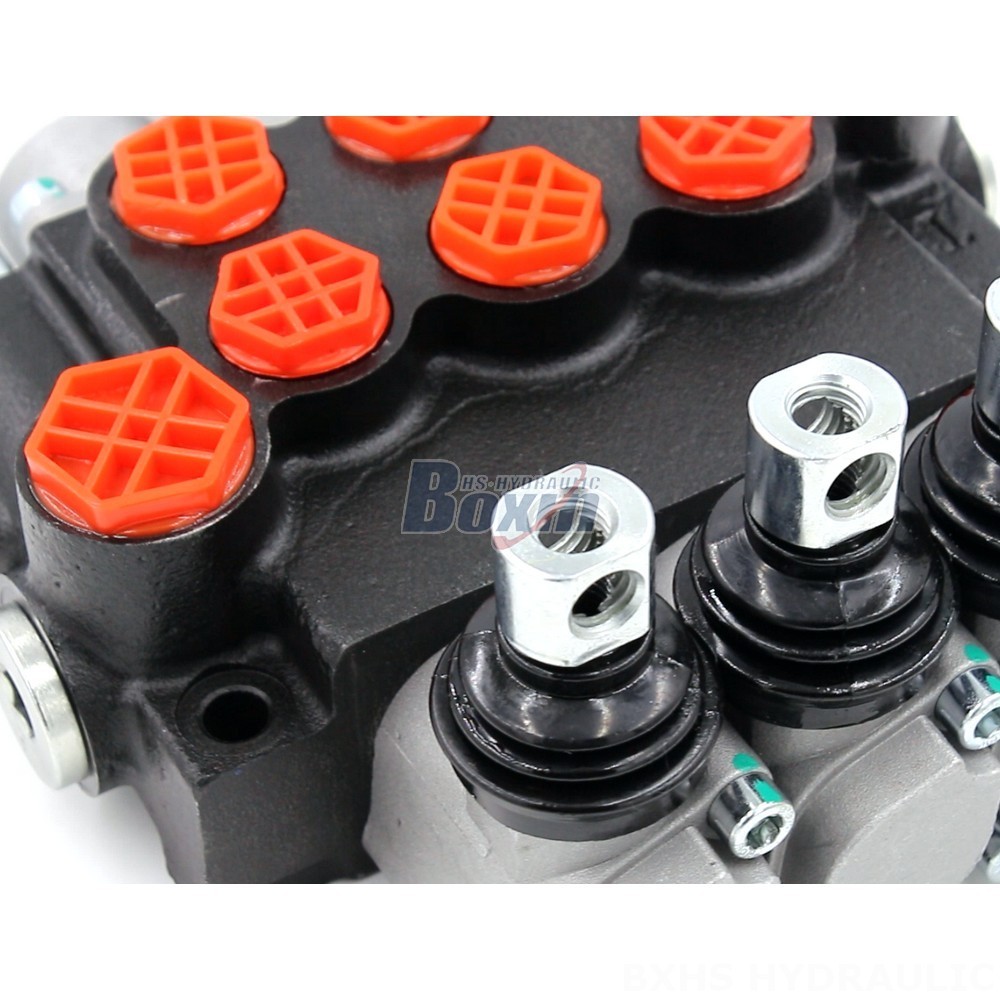

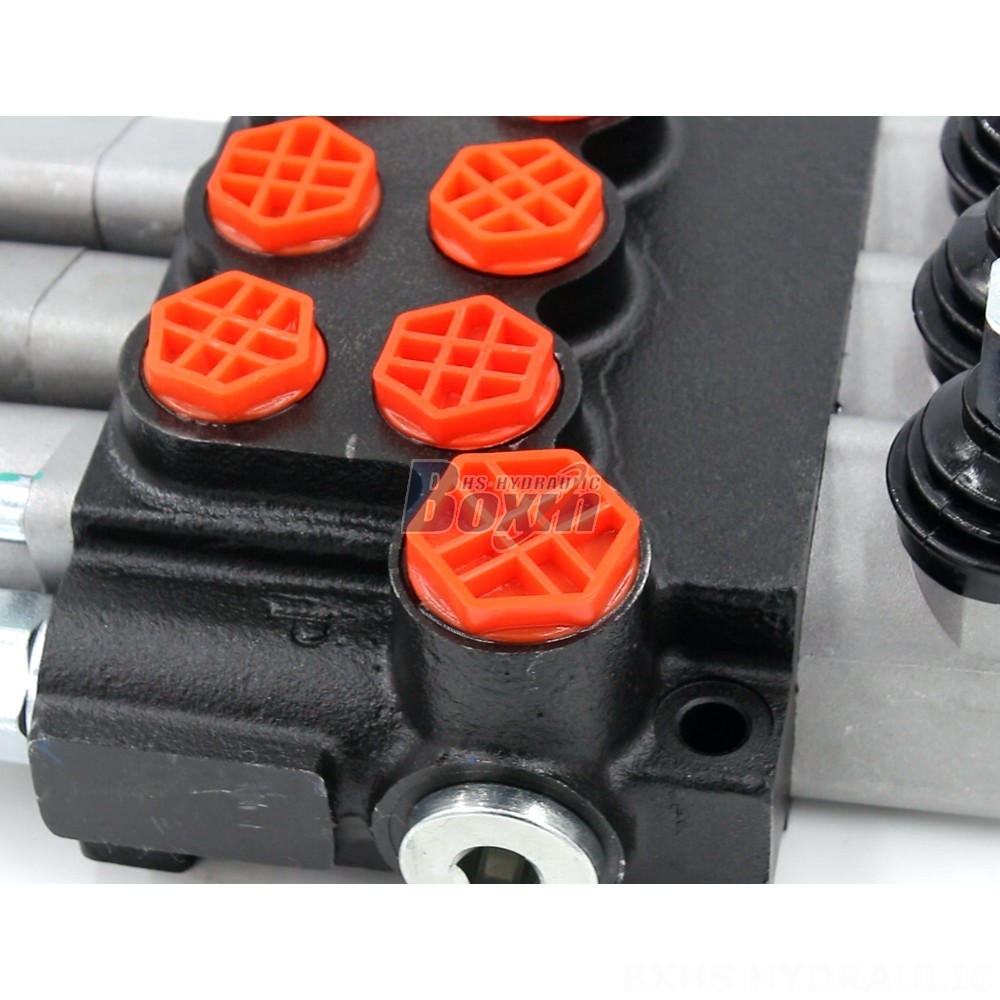

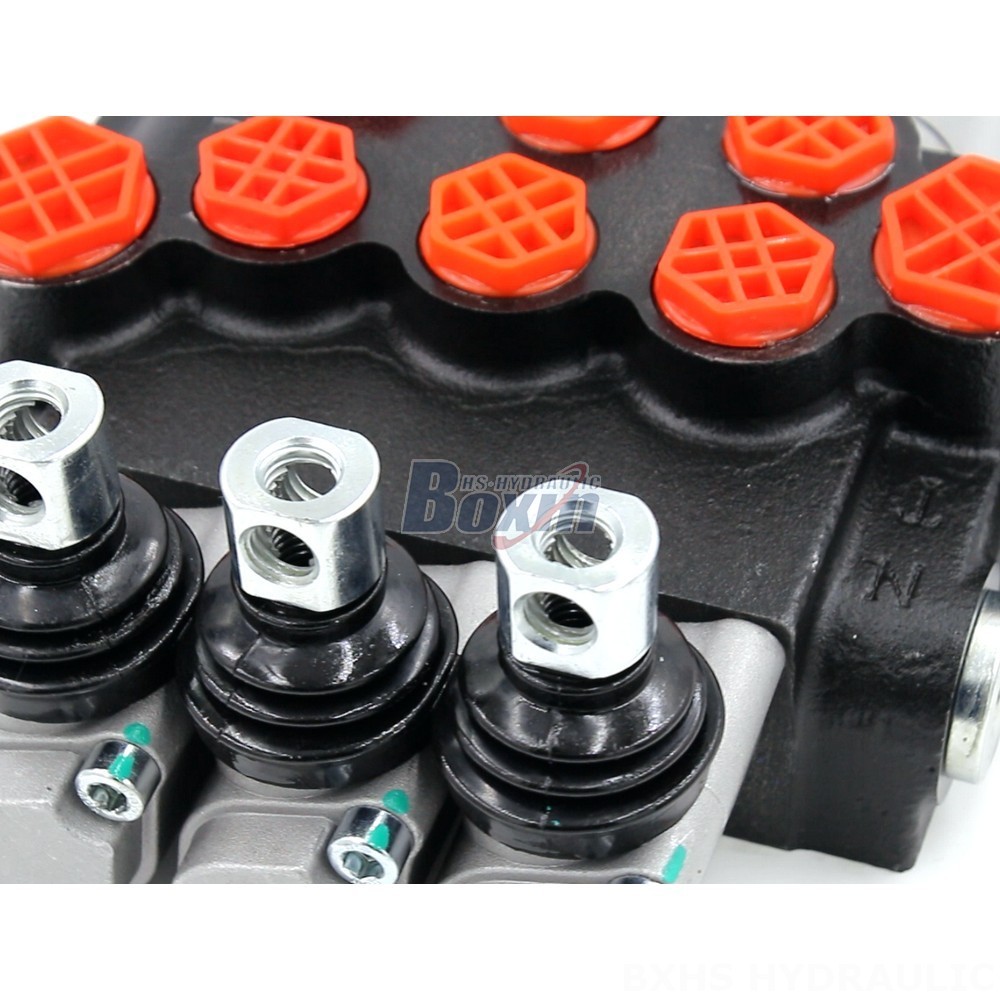

Monoblock Hydraulic Valve | P40-G12-G38-OT-2QTW Series

Método de Controle:Manual

Carrétel:3 Carreteis

Fluxo Nominal:40 L/min (10,5 US gpm)

Pressão Máxima:250 bar (3600 psi)

Porta de Entrada:G1/2

Porta de Saída:G1/2

Tamanho da Porta:G3/8

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série P40 Válvula Direcional Monobloco

Tamanho da embalagem:24*21*13

Peso bruto:7.00 kg

Disponibilidade: Em estoque

1162 Visualizações estão procurando por este produto

Monoblock Hydraulic Valve | P40-G12-G38-OT-2QTW Series

Monoblock Hydraulic Valve | P40-G12-G38-OT-2QTW Series

Monoblock Hydraulic Valve | P40-G12-G38-OT-2QTW Series drawing image

The P40-G12-G38-OT-2QTW Series is a high-performance, manual-controlled hydraulic valve designed for various construction and industrial applications. This 3-section monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar, suitable for telehandlers, forklifts, cranes, and other heavy-duty machinery.

Série P40 Válvula Direcional Monobloco Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula monobloco
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)
Fluxo Nominal 40 L/min (10,5 US gpm)
Pressão Máxima 250 bar (3600 psi)
Porta de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Porta de Saída G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamanho da Porta G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This Tractor Hydraulic Control Electric Valve Monoblock Hydraulic Valve from the P40 Series is a robust and reliable solution for controlling hydraulic systems in various applications, including construction, material handling, agriculture, and industrial vehicles. The valve features a manual control method and a 3-section monoblock structure. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, wheel loaders, and backhoe loaders. The P40-G12-G38-OT-2QTW Series offers a wide operating viscosity range of 15-75 mm²/s and can withstand ambient temperatures from -40°C to +80°C, ensuring reliable performance in diverse environments.
