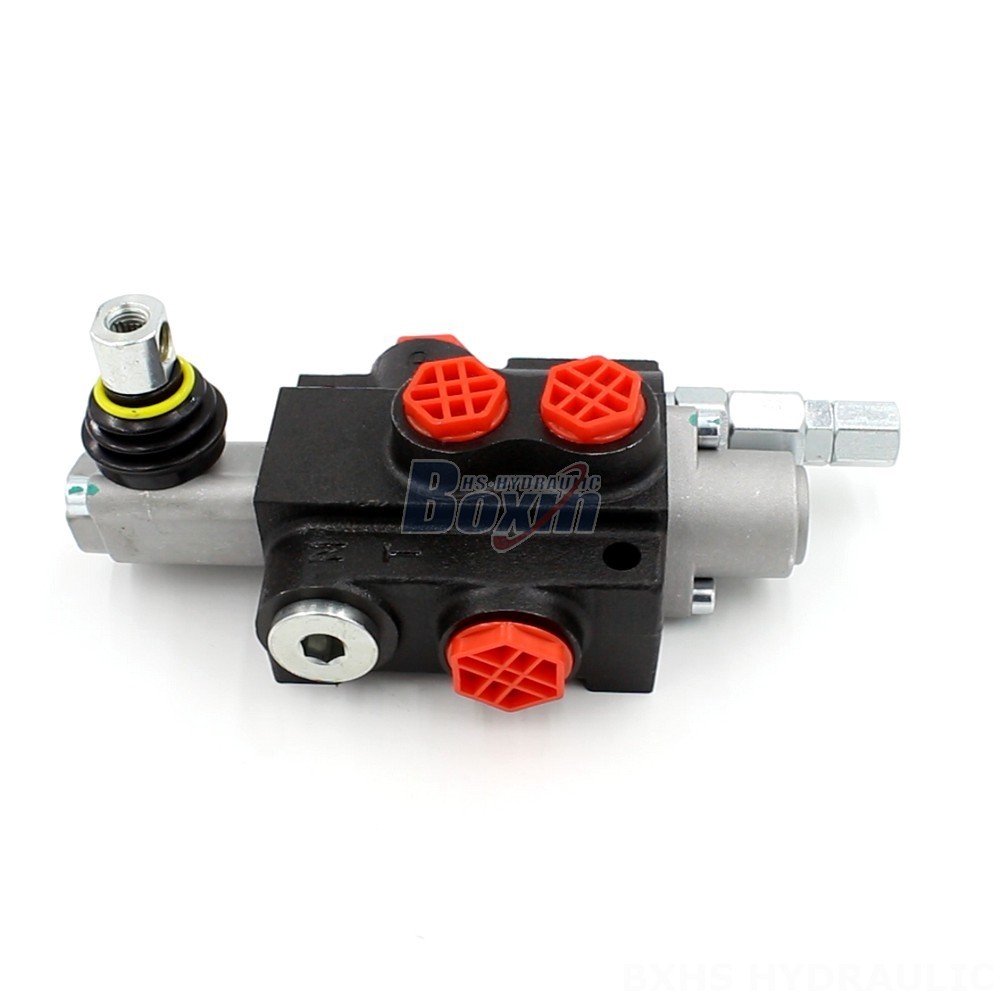

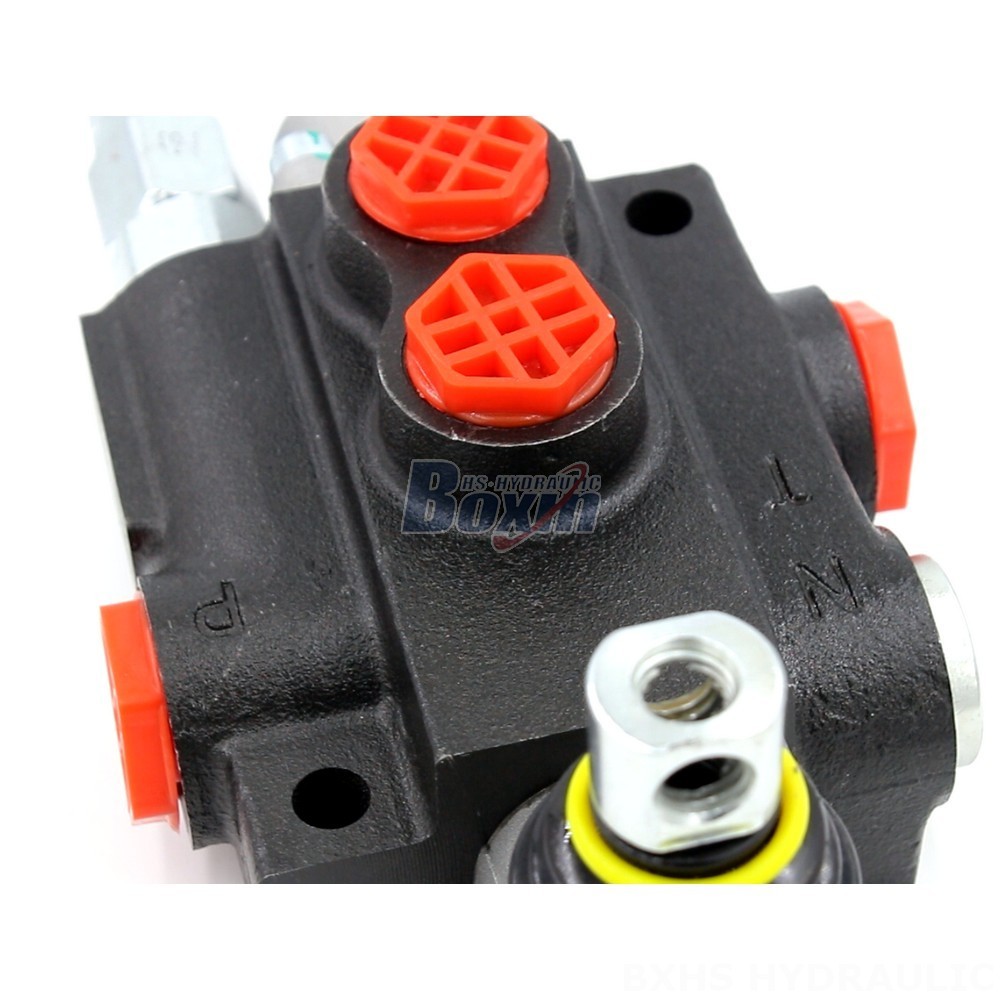

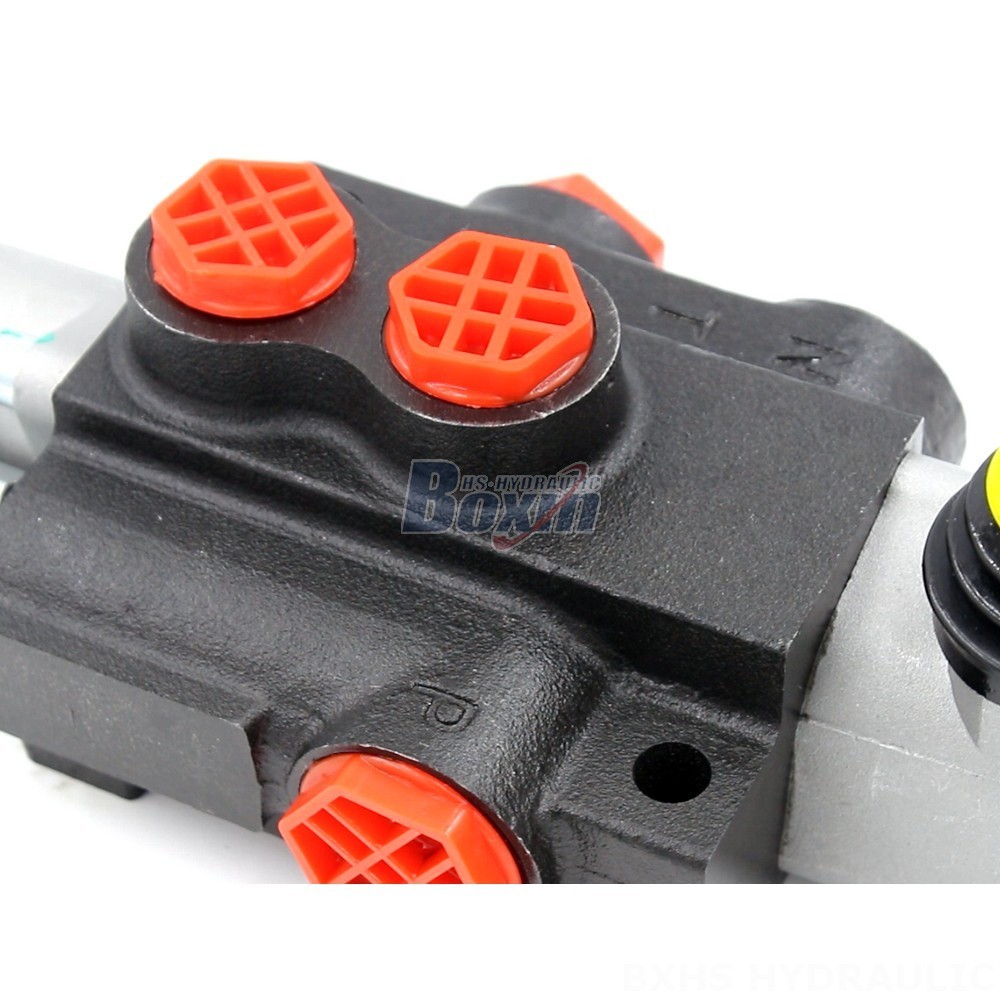

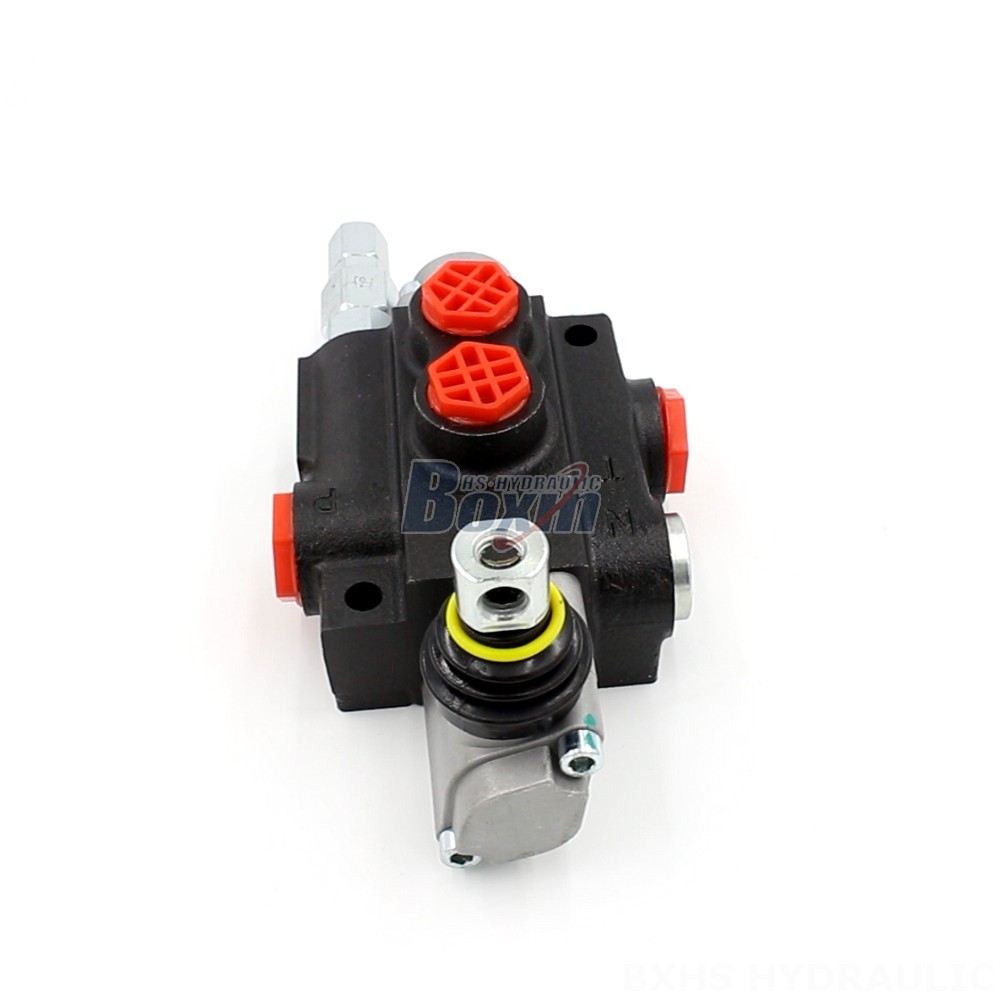

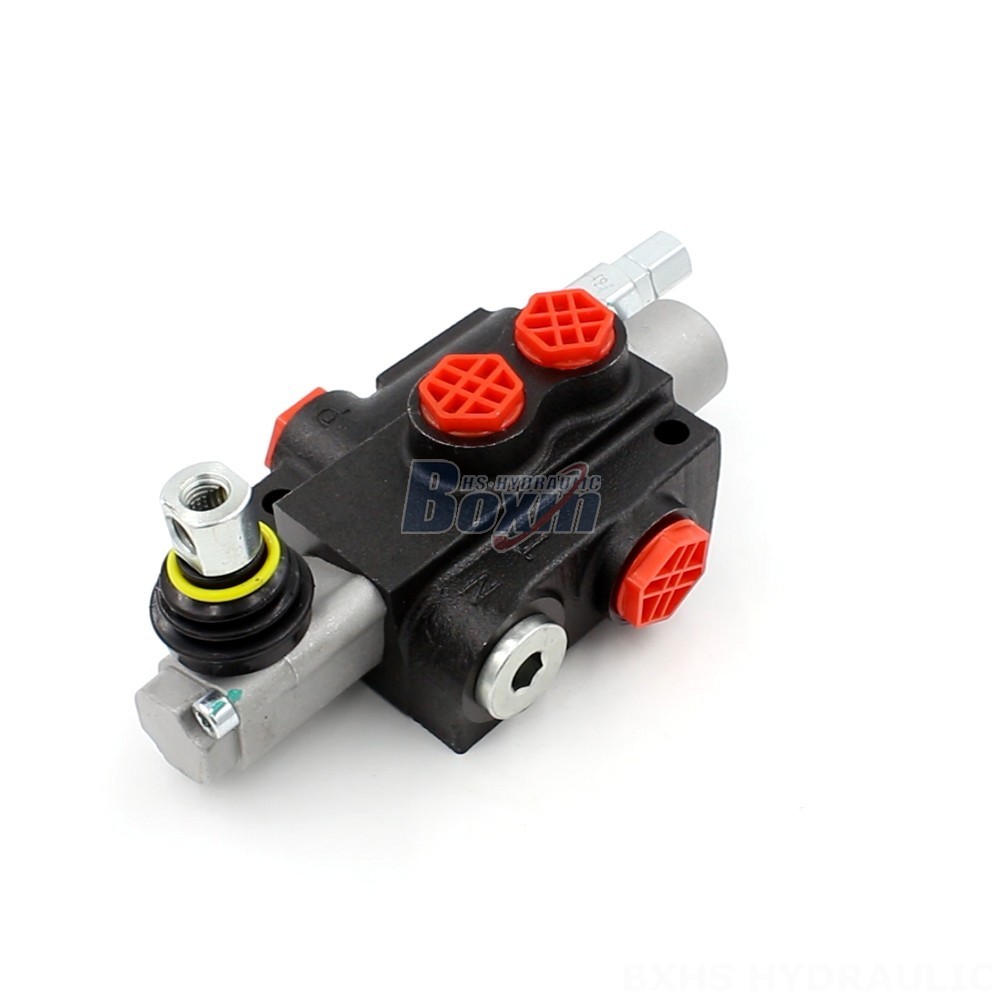

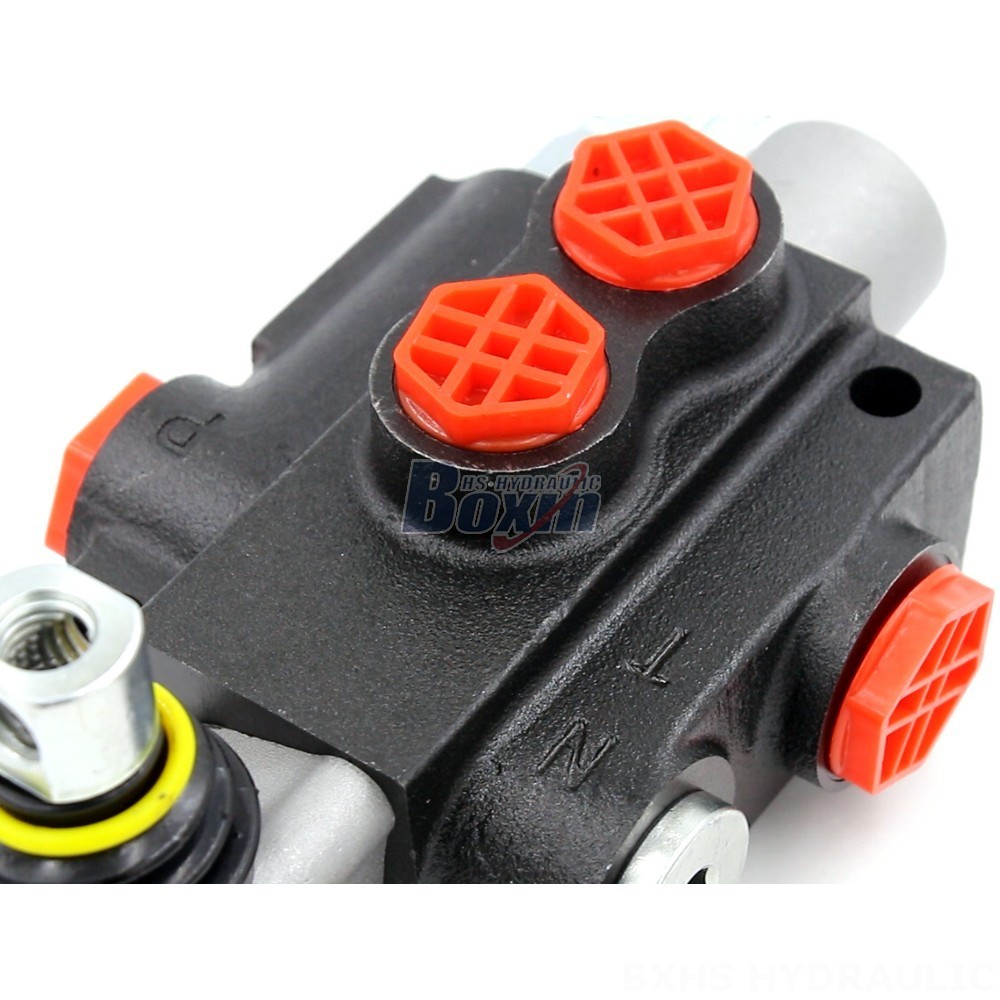

Monoblock Valve P40-OW: Superior Quality and Exceptional Value

Método de Controle:Manual

Carrétel:1 Carretel

Fluxo Nominal:40 L/min (10,5 US gpm)

Pressão Máxima:250 bar (3600 psi)

Porta de Entrada:G1/2

Porta de Saída:G1/2

Tamanho da Porta:G3/8

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série P40 Válvula Direcional Monobloco

Tamanho da embalagem:23*16*11

Peso bruto:3.00 kg

Disponibilidade: Em estoque

1133 Visualizações estão procurando por este produto

Monoblock Valve P40-OW: Superior Quality and Exceptional Value

Monoblock Valve P40-OW: Superior Quality and Exceptional Value

Monoblock Valve P40-OW: Superior Quality and Exceptional Value drawing image

The P40-OW Hydraulic Cut Off Solenoid Valve is a high-quality, reliable valve designed for a wide range of applications, including material handling, construction, and agriculture. It features a monoblock design, rated flow of 40 L/min, and a maximum pressure of 250 bar.

Série P40 Válvula Direcional Monobloco Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula monobloco
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)
Fluxo Nominal 40 L/min (10,5 US gpm)
Pressão Máxima 250 bar (3600 psi)
Porta de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Porta de Saída G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamanho da Porta G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-OW Hydraulic Cut Off Solenoid Valve is a superior quality and exceptional value monoblock valve designed for a variety of demanding applications. It features a manual control method, 1 section, 1 spool, and a rated flow of 40 L/min (10.5 US gpm). This valve is capable of handling pressures up to 250 bar (3600 psi) and operates with a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Its ambient temperature range is -40°C to +80°C (-40°F to +176°F), making it suitable for a wide range of operating environments. Designed for reliability and durability, this valve is ideal for use in material handling, construction, and agriculture. It is compatible with a range of equipment including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
