The P120-G1-OT Hydraulic Control Valve is a high-quality, high-performance valve designed for use in a wide range of industrial applications. With its manual control, 3 section design, and monoblock valve construction, this valve offers precise control and durability. The valve has a rated flow of 120 L/min (31.7 US gpm), a maximum pressure of 250 bar (3600 psi), and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It also has a wide ambient temperature range of -40°C to +80°C (-40°F to +176°F).
| Série P120 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Cabo, Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis |
| Fluxo Nominal | 120 L/min (31.7 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Porta de Saída | G1, SAE 16, 1 NPT, M36×2 |
| Tamanho da Porta | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções |
| Tipo de estrutura | Válvula monobloco |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |

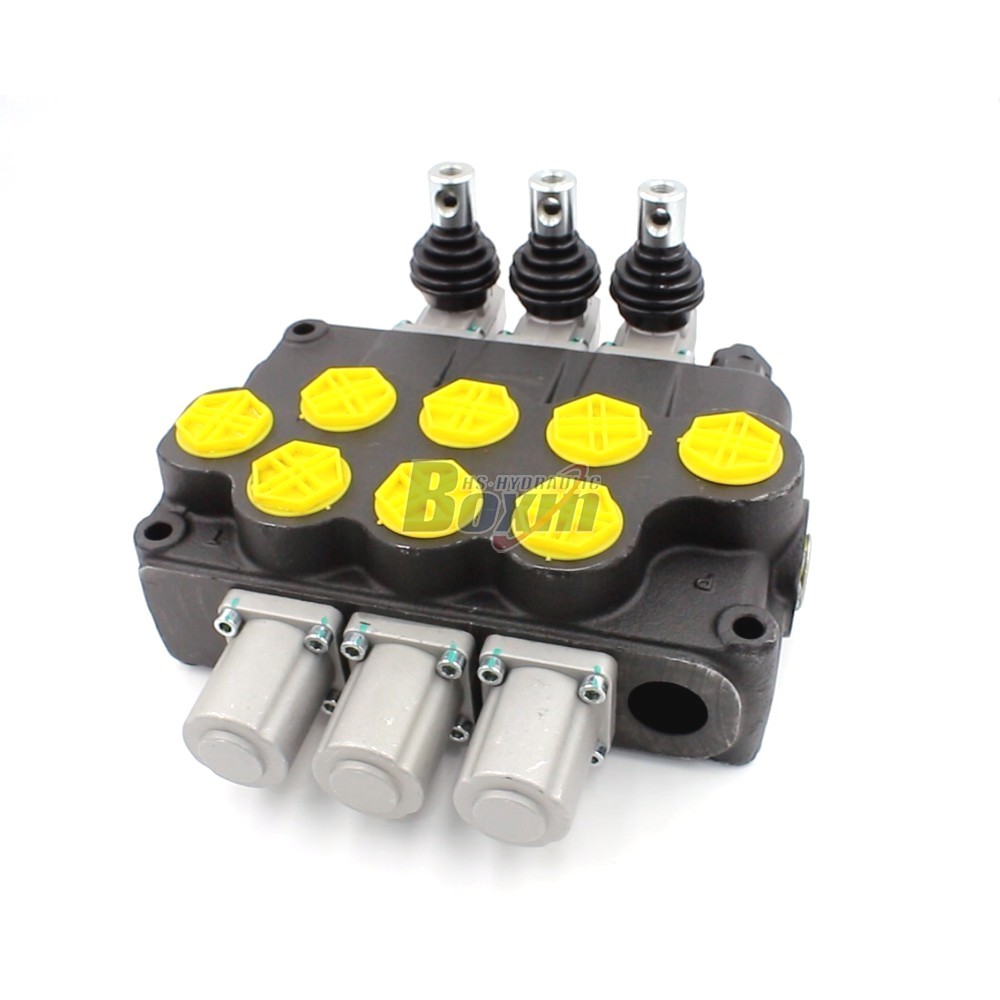

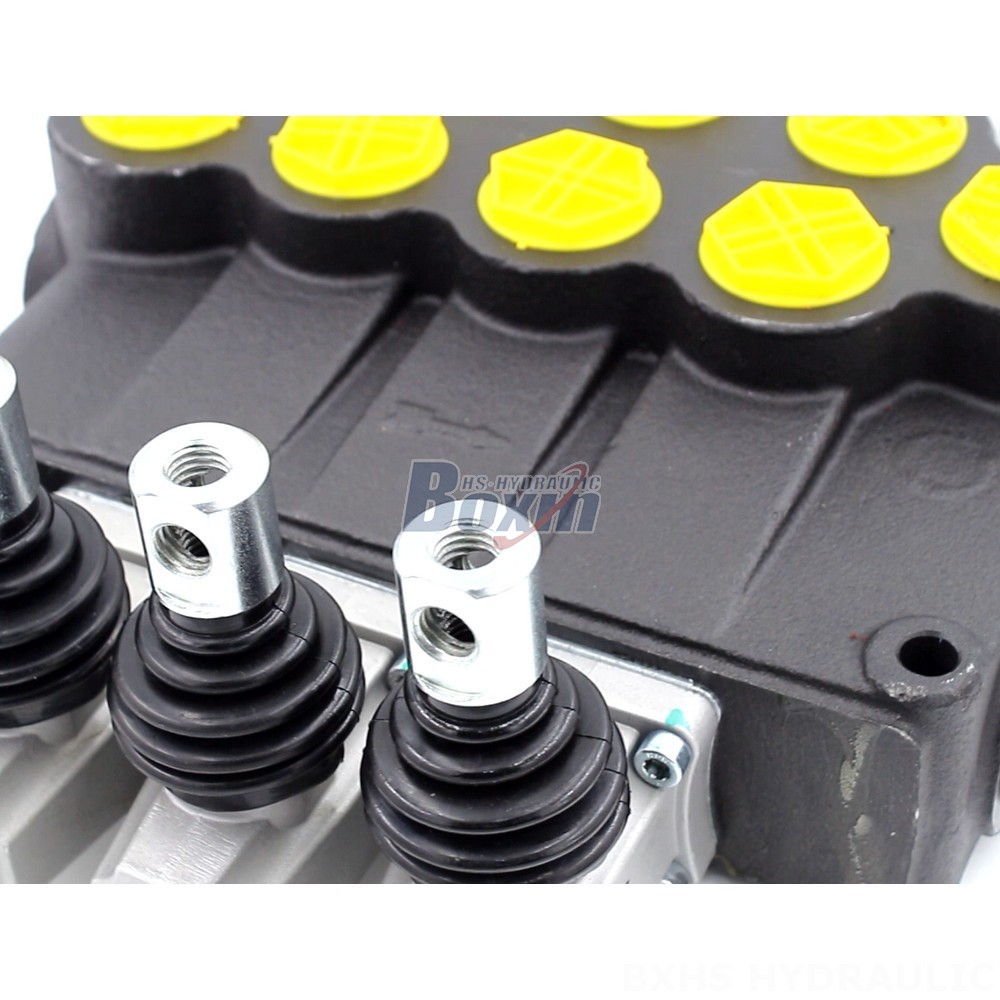

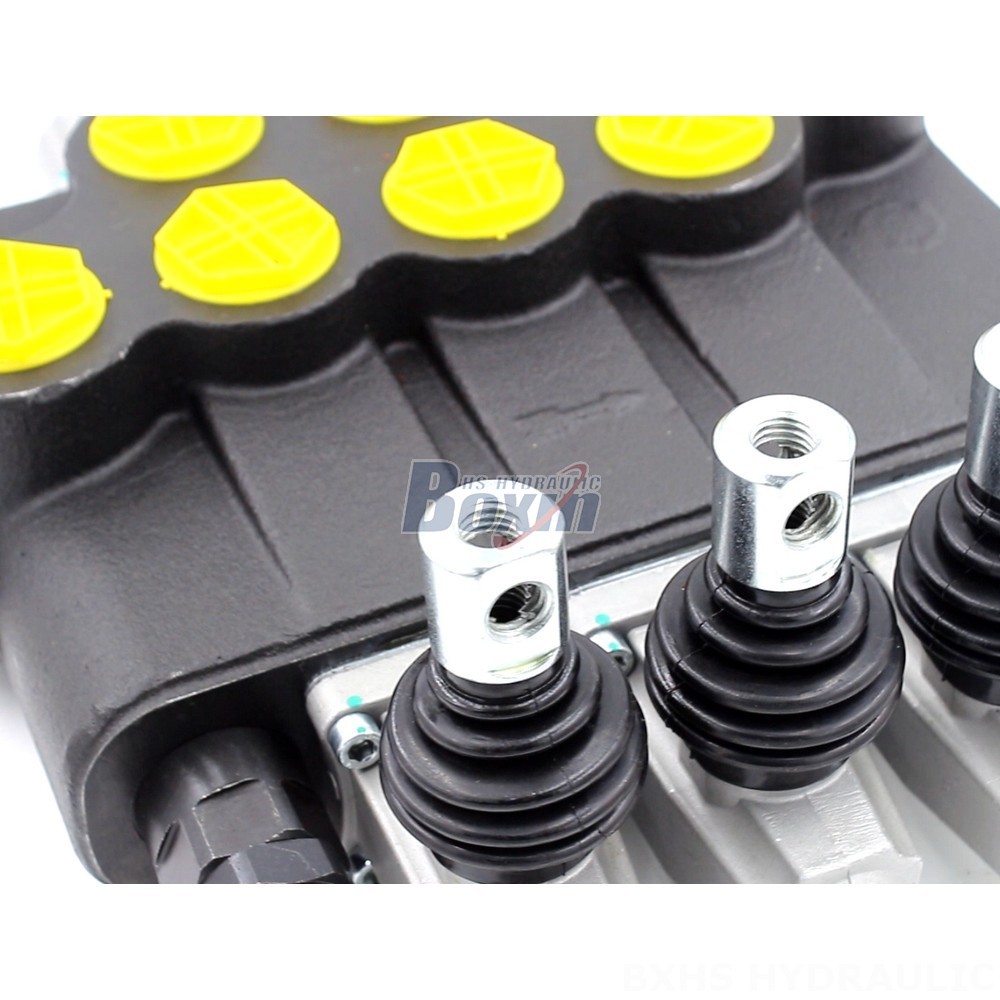

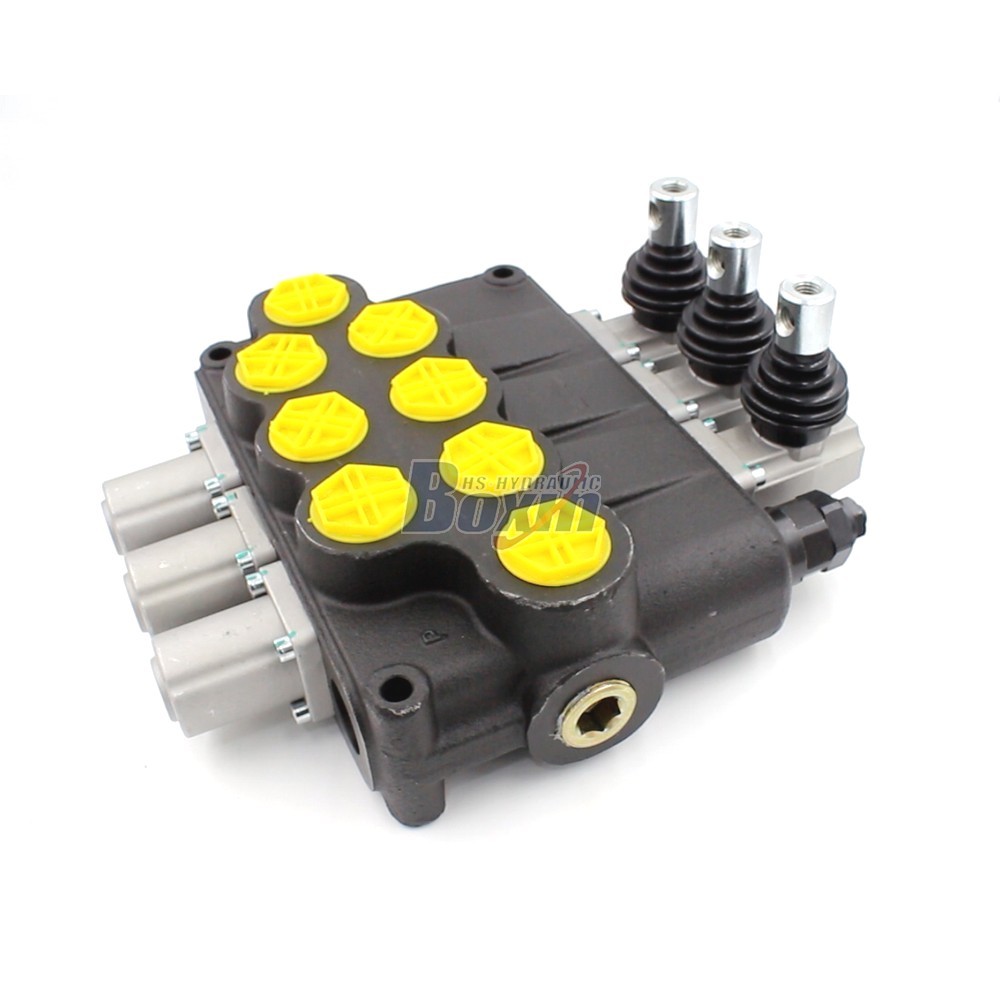

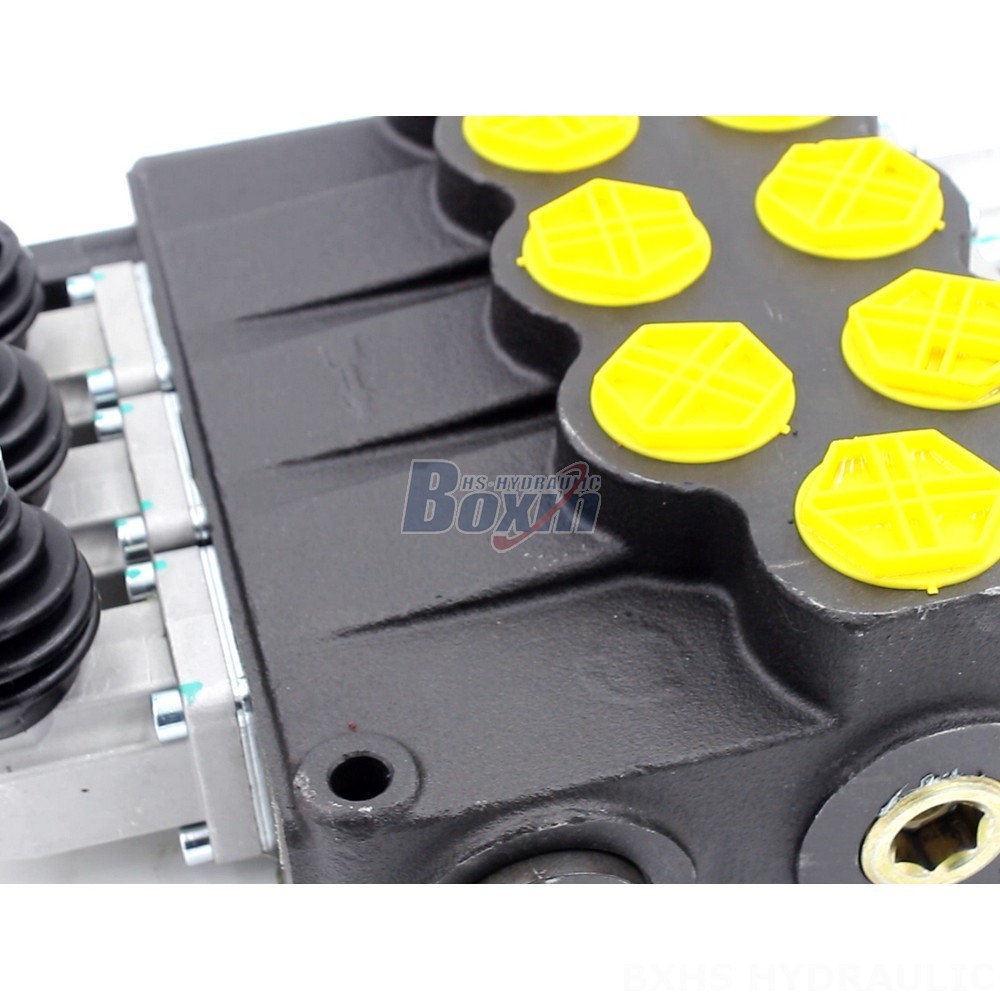

**P120-G1-OT Hydraulic Control Valve: Industry-Leading Quality and Performance**
**Control Method:** Manual
**Section:** 3 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 120 L/min (31.7 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 3 Spool
**Series:** P120 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER,WHEEL LOADER,BACKHOE LOADER,DUMPER
The P120-G1-OT Hydraulic Control Valve is a high-performance valve designed for use in a wide range of industrial applications. With its manual control, 3 section design, and monoblock valve construction, this valve offers precise control and durability. The valve has a rated flow of 120 L/min (31.7 US gpm), a maximum pressure of 250 bar (3600 psi), and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It also has a wide ambient temperature range of -40°C to +80°C (-40°F to +176°F).
**Key Features:**
* Manual control for precise operation
* 3 section design for versatility
* Monoblock valve construction for durability
* Rated flow of 120 L/min (31.7 US gpm)
* Maximum pressure of 250 bar (3600 psi)
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F)
* 3 Spool
* P120 Series
* Application Area: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
* Applicable Model: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER,WHEEL LOADER,BACKHOE LOADER,DUMPER
