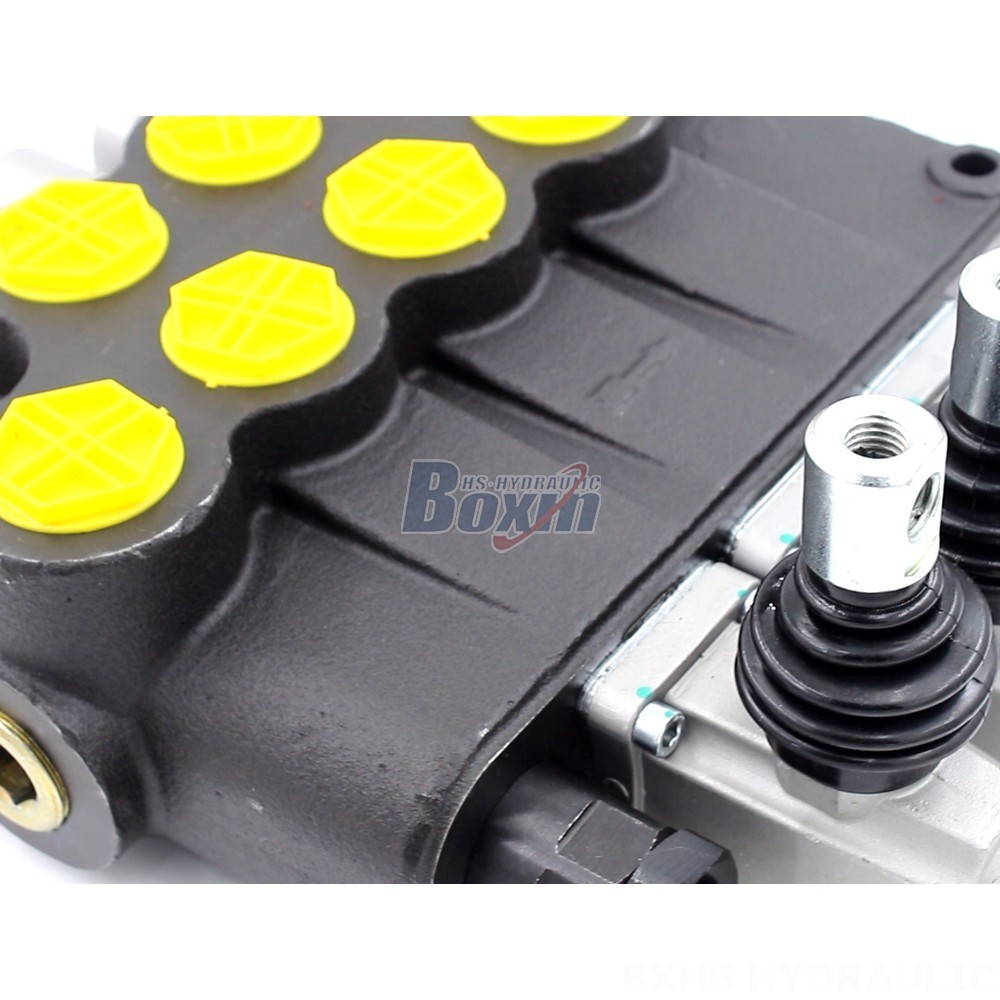

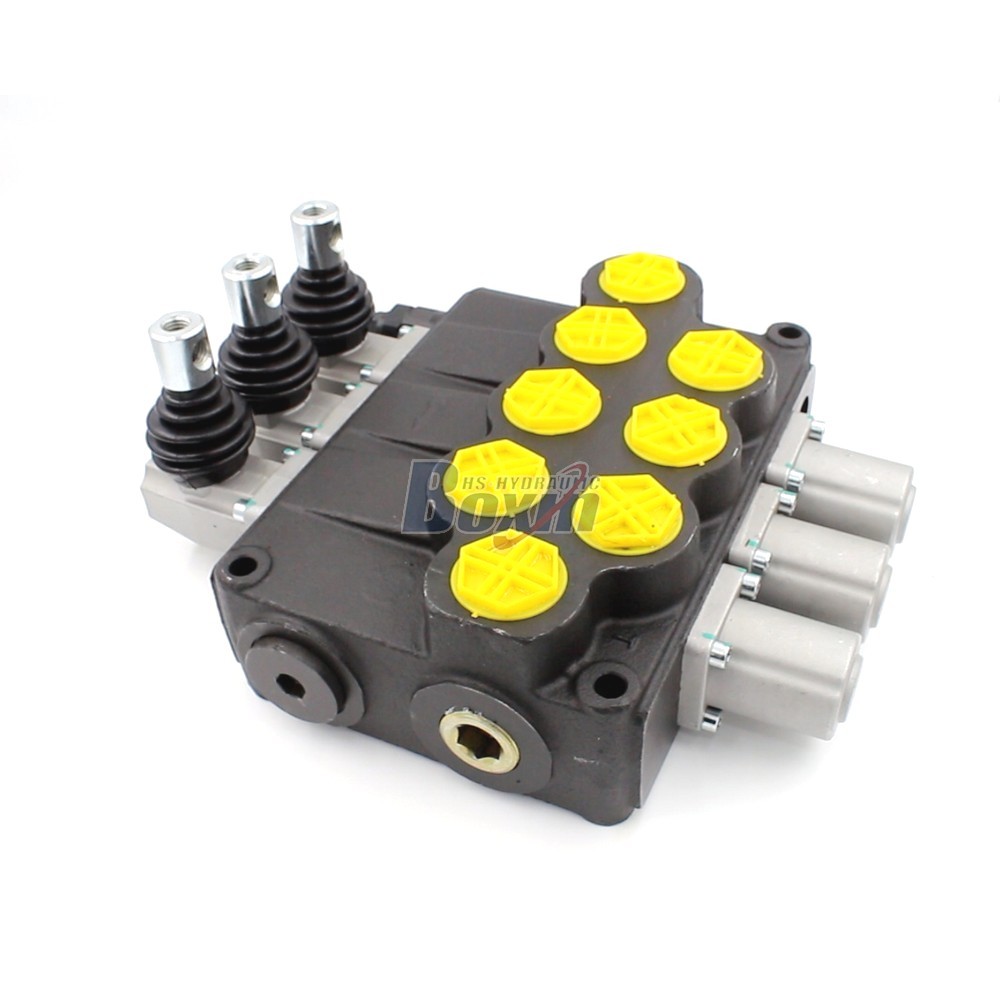

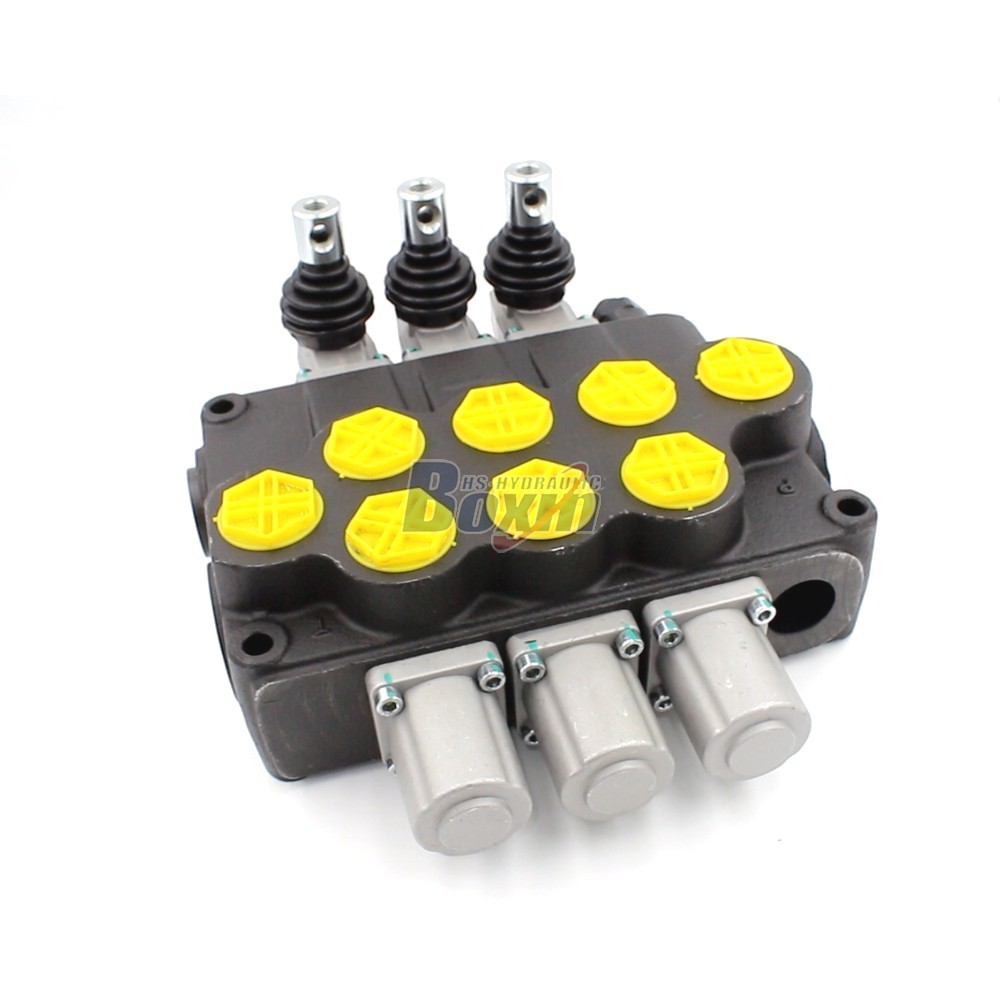

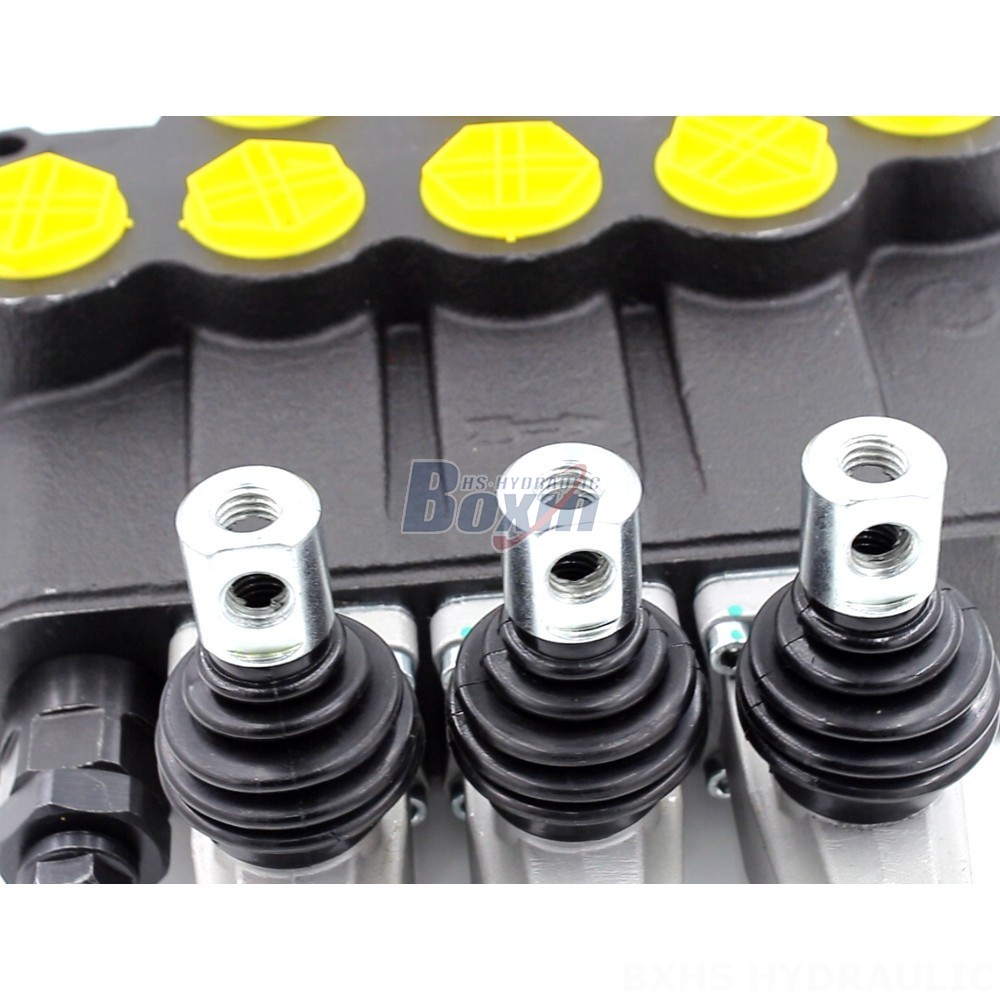

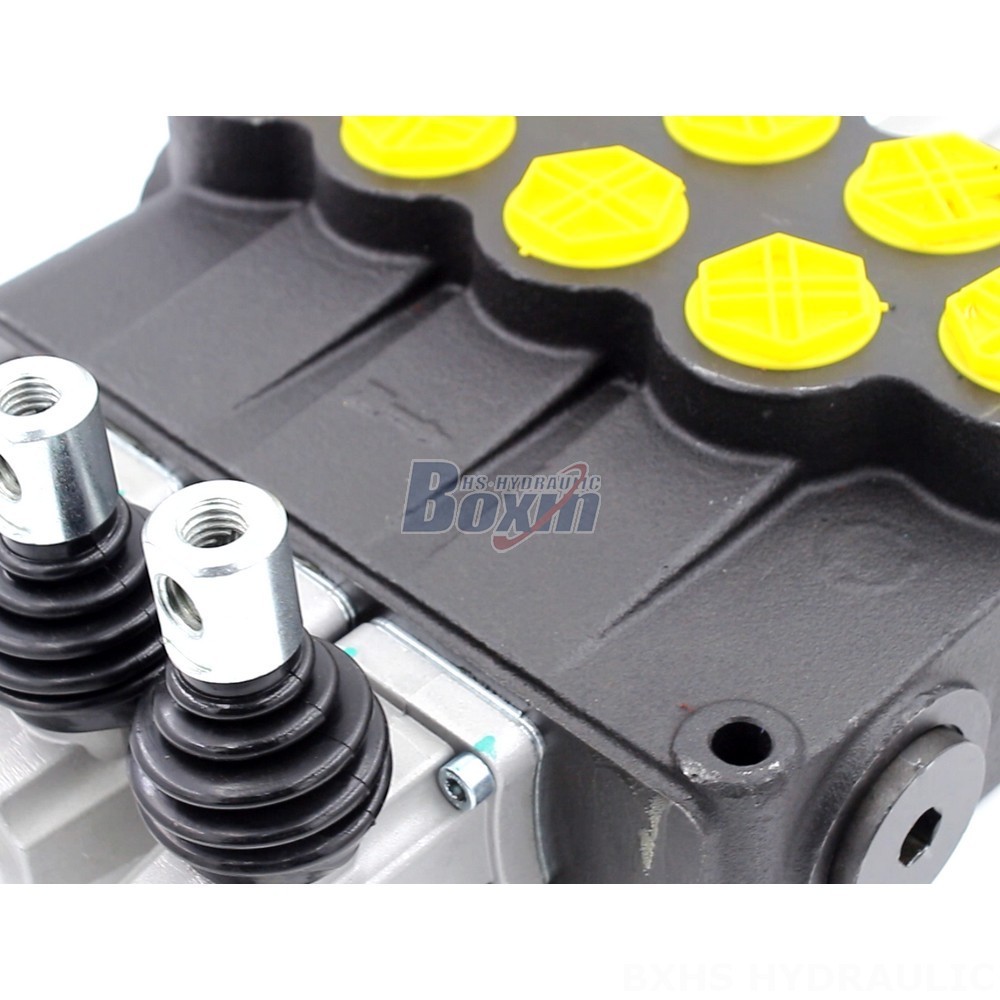

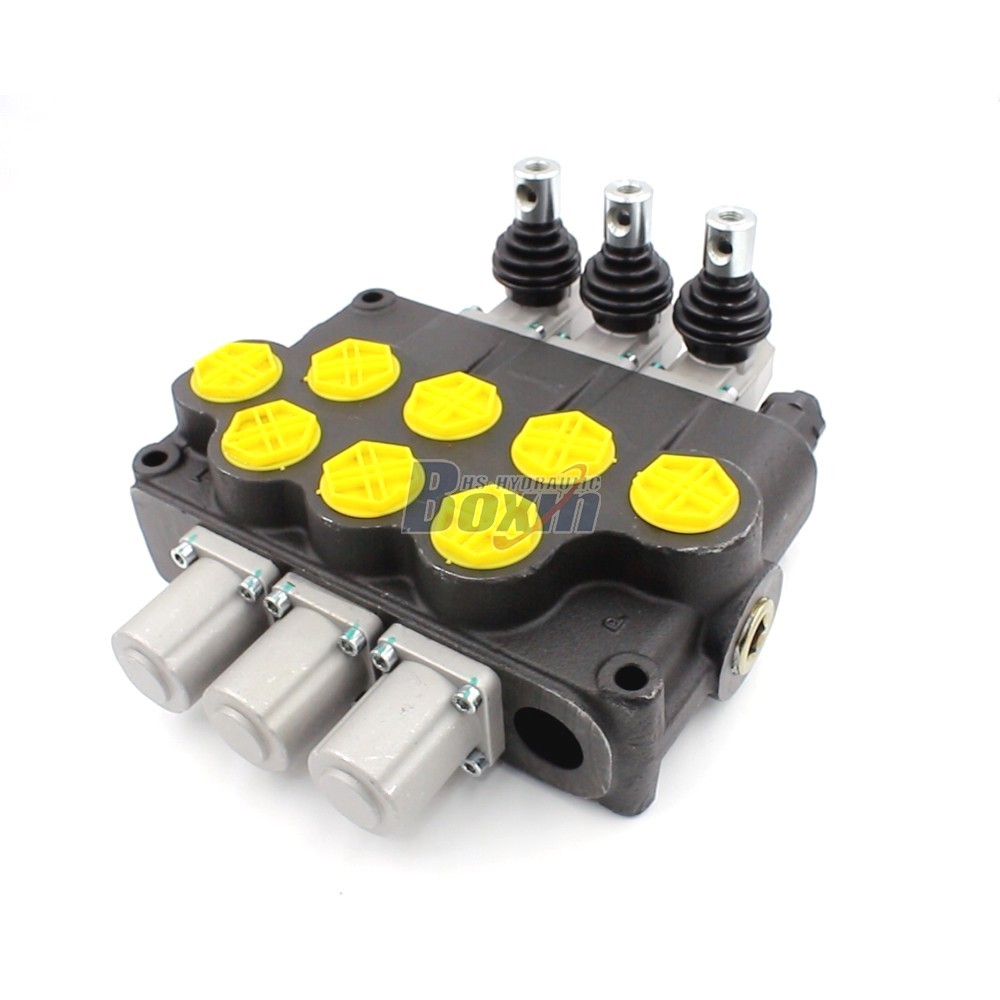

The P120-G1-OT Hydraulic Forward And Reverse Valve is a high-performance, manual control monoblock valve designed for a variety of construction, material handling, and industrial applications. It features a 3-section design, 120 L/min rated flow, and a maximum pressure of 250 bar.
| Série P120 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Cabo, Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis |
| Fluxo Nominal | 120 L/min (31.7 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Porta de Saída | G1, SAE 16, 1 NPT, M36×2 |
| Tamanho da Porta | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções |
| Tipo de estrutura | Válvula monobloco |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
This P120 Series hydraulic valve is a 3-section, manual control monoblock valve with a rated flow of 120 L/min and a maximum pressure of 250 bar. It is ideal for use in a wide range of applications, including construction equipment (telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders), material handling equipment (telehandlers, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers), and agricultural machinery. The valve operates with an operating viscosity range of 15 - 75 mm²/s and is suitable for ambient temperatures ranging from -40°C to +80°C. The P120-G1-OT valve offers reliable performance and durability, making it an excellent choice for demanding applications.
