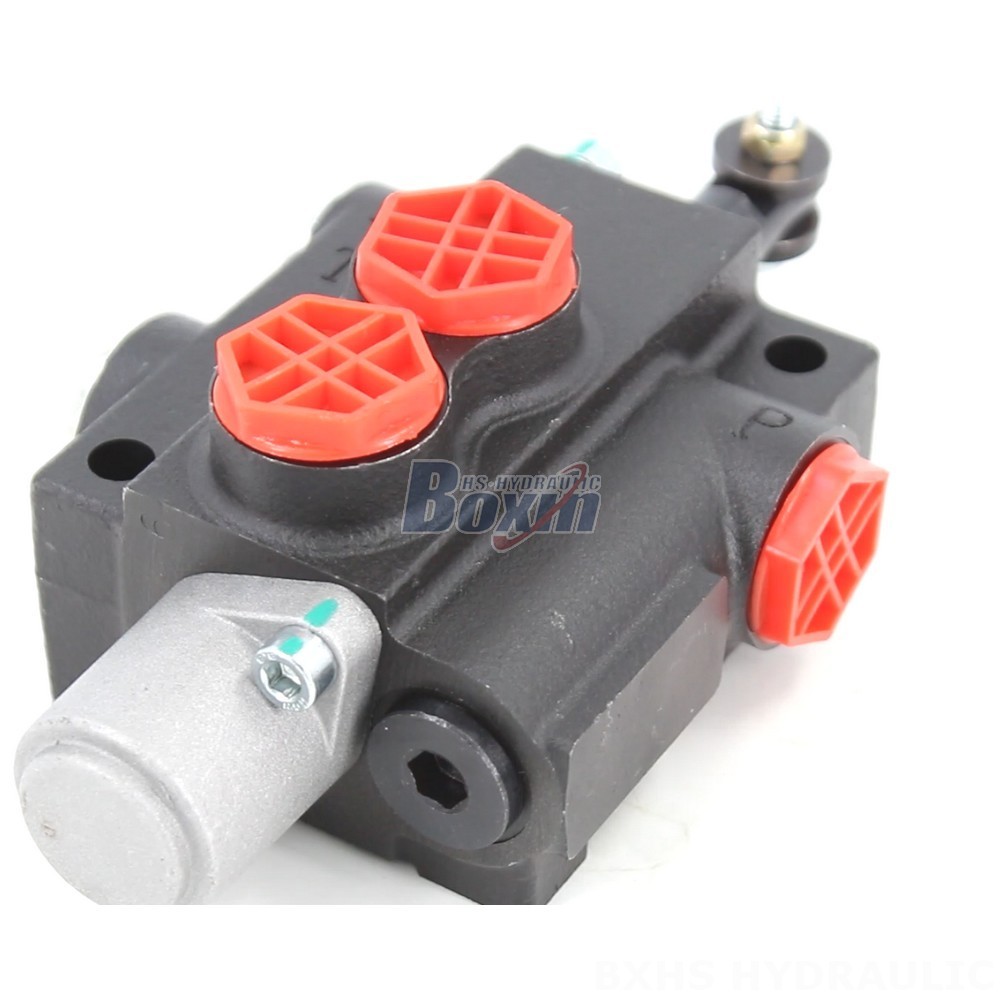

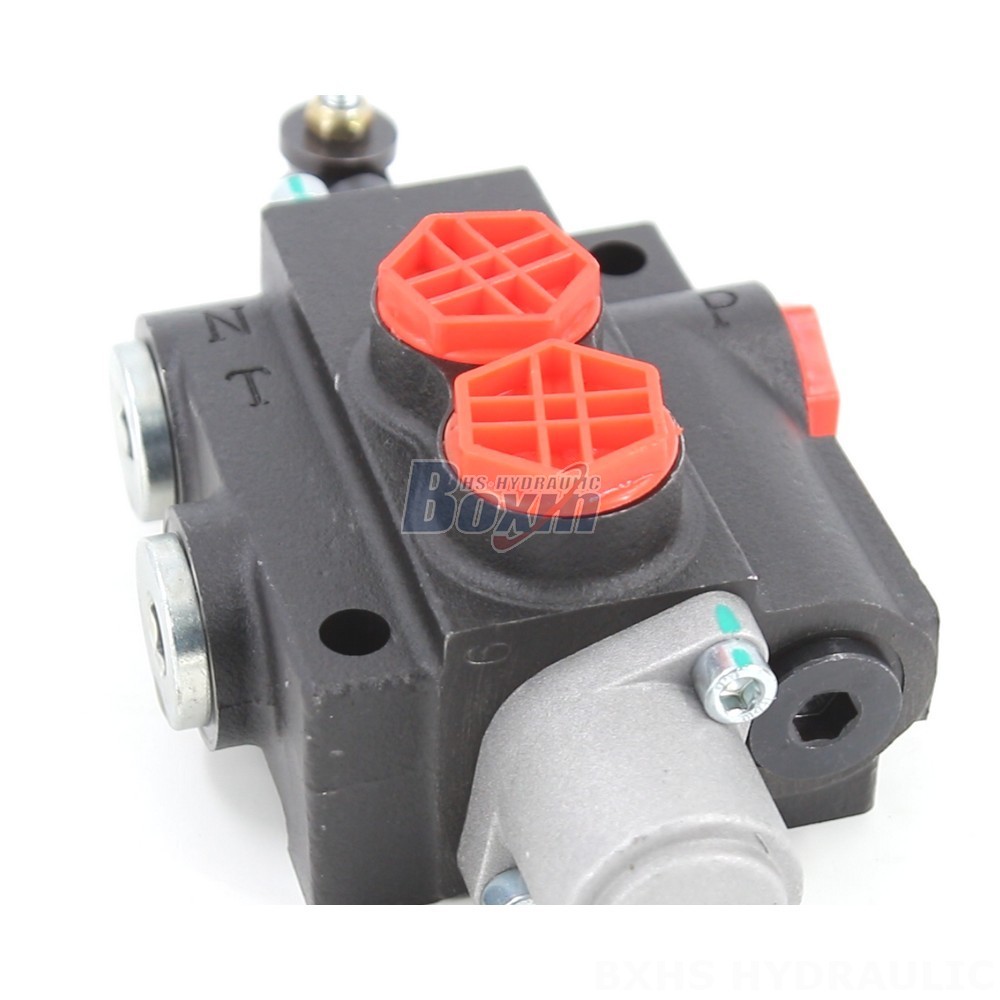

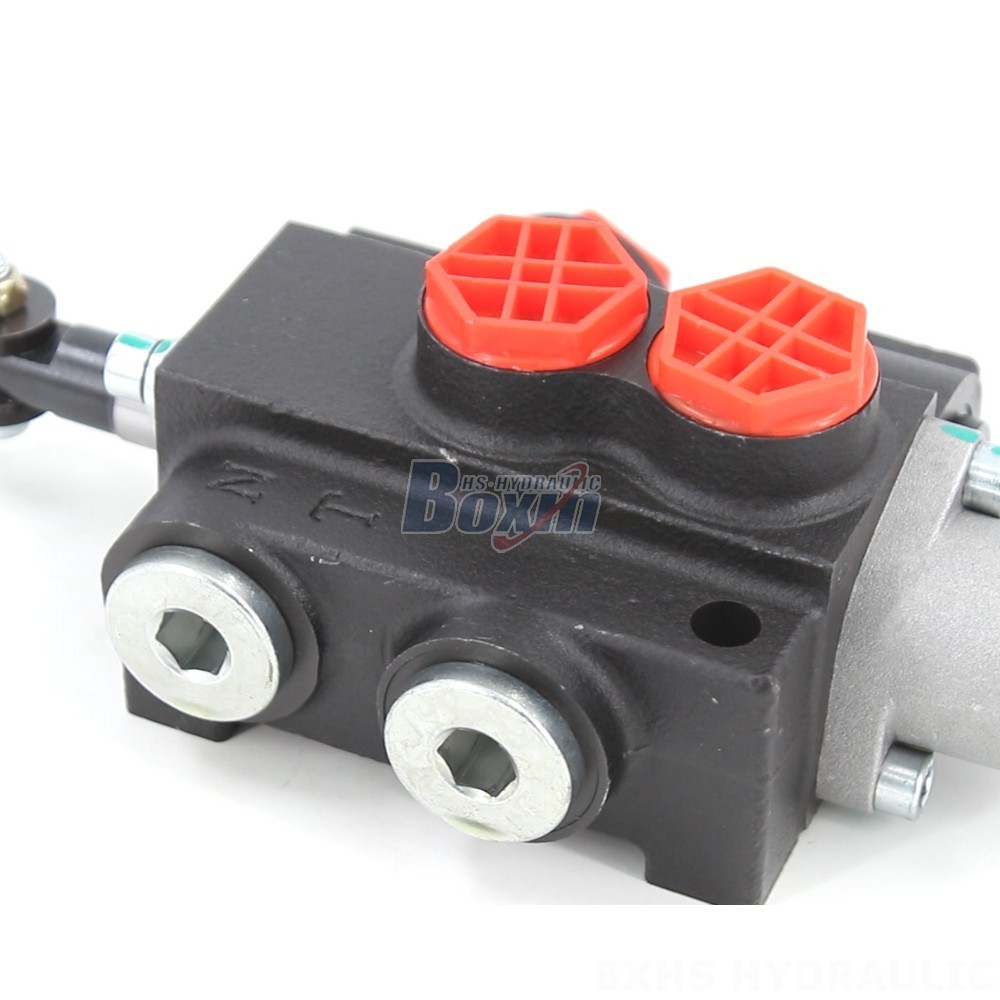

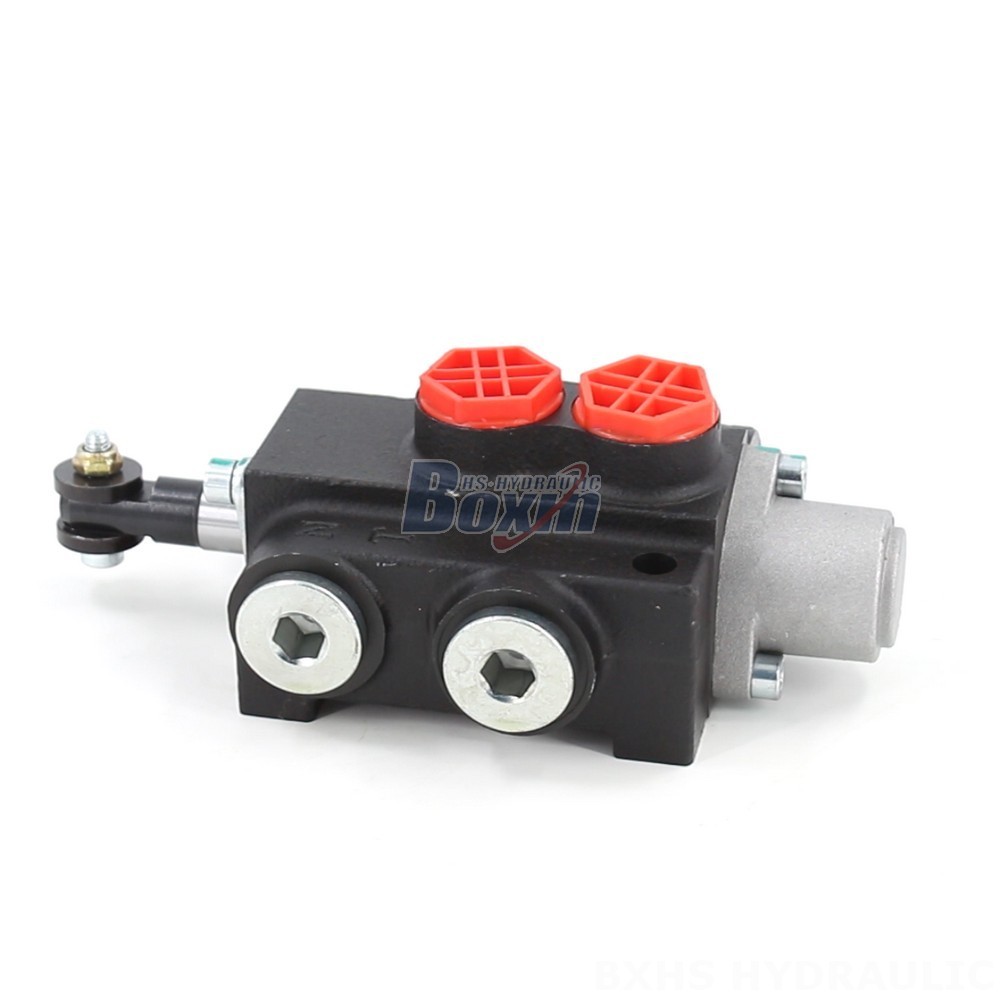

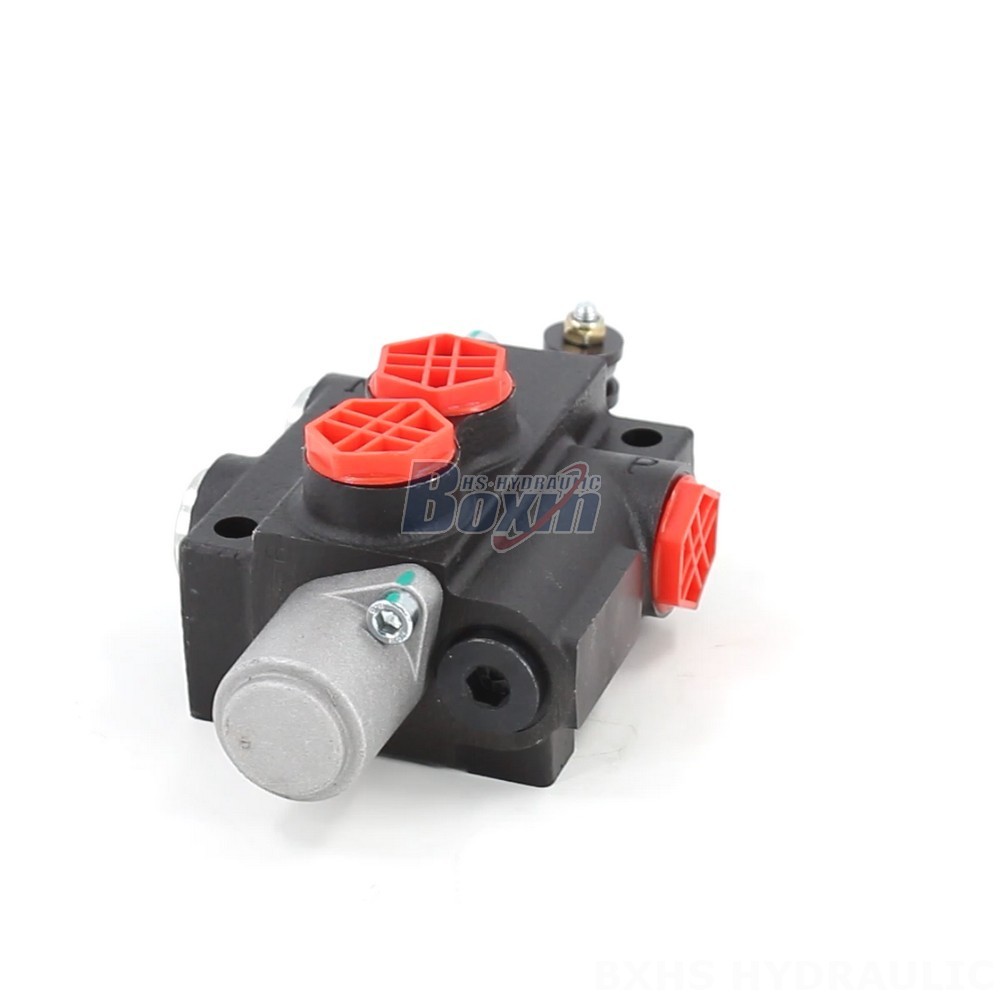

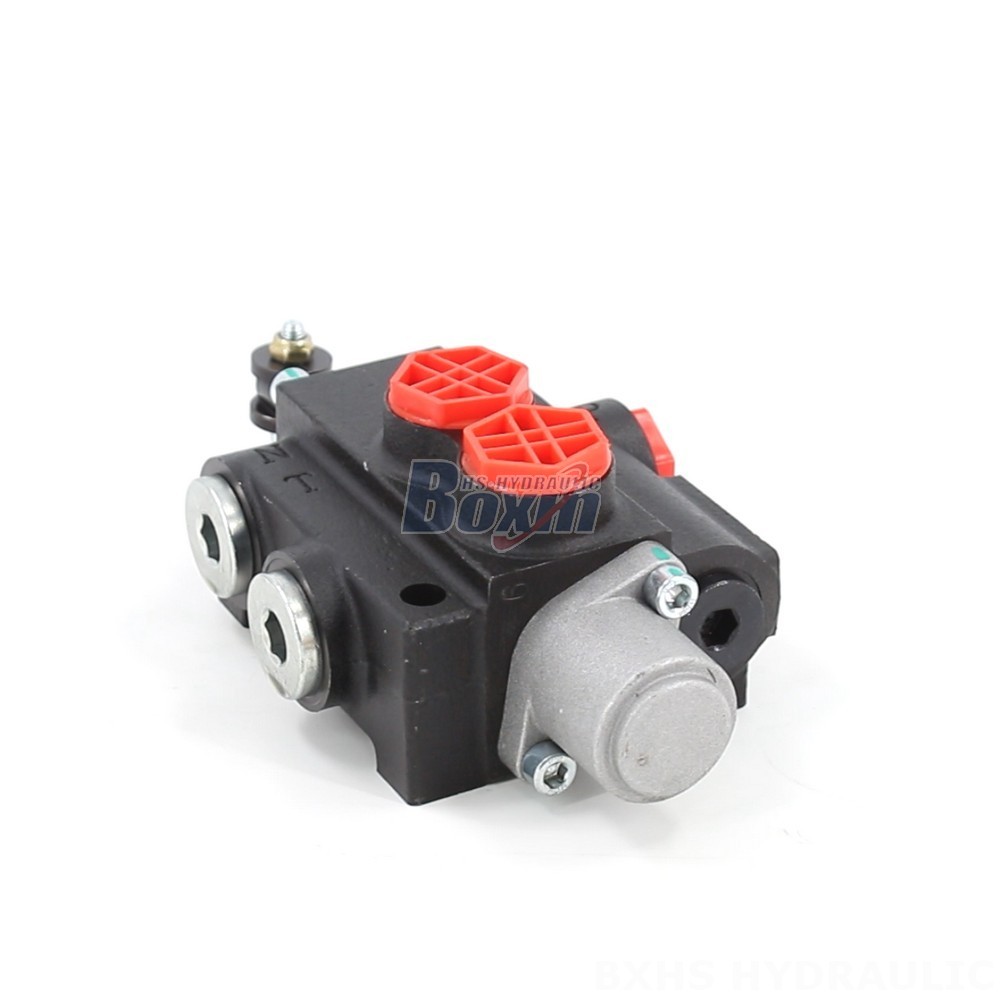

P40-201 Manual 1 Spool Monoblock Directional Valve - Factory Direct

Método de Controle:Manual

Carrétel:1 Carretel

Fluxo Nominal:40 L/min (10,5 US gpm)

Pressão Máxima:250 bar (3600 psi)

Porta de Entrada:G1/2

Porta de Saída:G1/2

Tamanho da Porta:G1/2

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série P40 Válvula Direcional Monobloco

Tamanho da embalagem:23*16*11

Peso bruto:3.20 kg

Disponibilidade: Em estoque

542 Visualizações estão procurando por este produto

P40-201 Manual 1 Spool Monoblock Directional Valve - Factory Direct

P40-201 Manual 1 Spool Monoblock Directional Valve - Factory Direct

P40-201 Manual 1 Spool Monoblock Directional Valve - Factory Direct drawing image

P40-201 Manual 1 Spool Monoblock Directional Valve, factory direct. High flow rate (40 L/min), high pressure (250 bar), and wide temperature range (-40°C to +80°C). Ideal for material handling, construction, and agricultural applications.

Série P40 Válvula Direcional Monobloco Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula monobloco
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)
Fluxo Nominal 40 L/min (10,5 US gpm)
Pressão Máxima 250 bar (3600 psi)
Porta de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Porta de Saída G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamanho da Porta G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-201 Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic component, perfect for various applications including material handling, construction, and agriculture. This factory-direct valve boasts a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), ensuring reliable operation in demanding environments. Its robust monoblock construction and wide operating temperature range (-40°C to +80°C) guarantee durability and longevity. The valve is specifically suitable for forklifts, tractors, excavators, and other industrial vehicles.

**Key Features:**
* **Manual Control:** Simple and easy operation.
* **Monoblock Design:** Robust and compact structure.
* **High Flow Rate:** 40 L/min (10.5 US gpm).
* **High Pressure Rating:** 250 bar (3600 psi).
* **Wide Temperature Range:** -40°C to +80°C (-40°F to +176°F).
* **Versatile Applications:** Material Handling, Construction, Agriculture, Industrial Vehicles.
