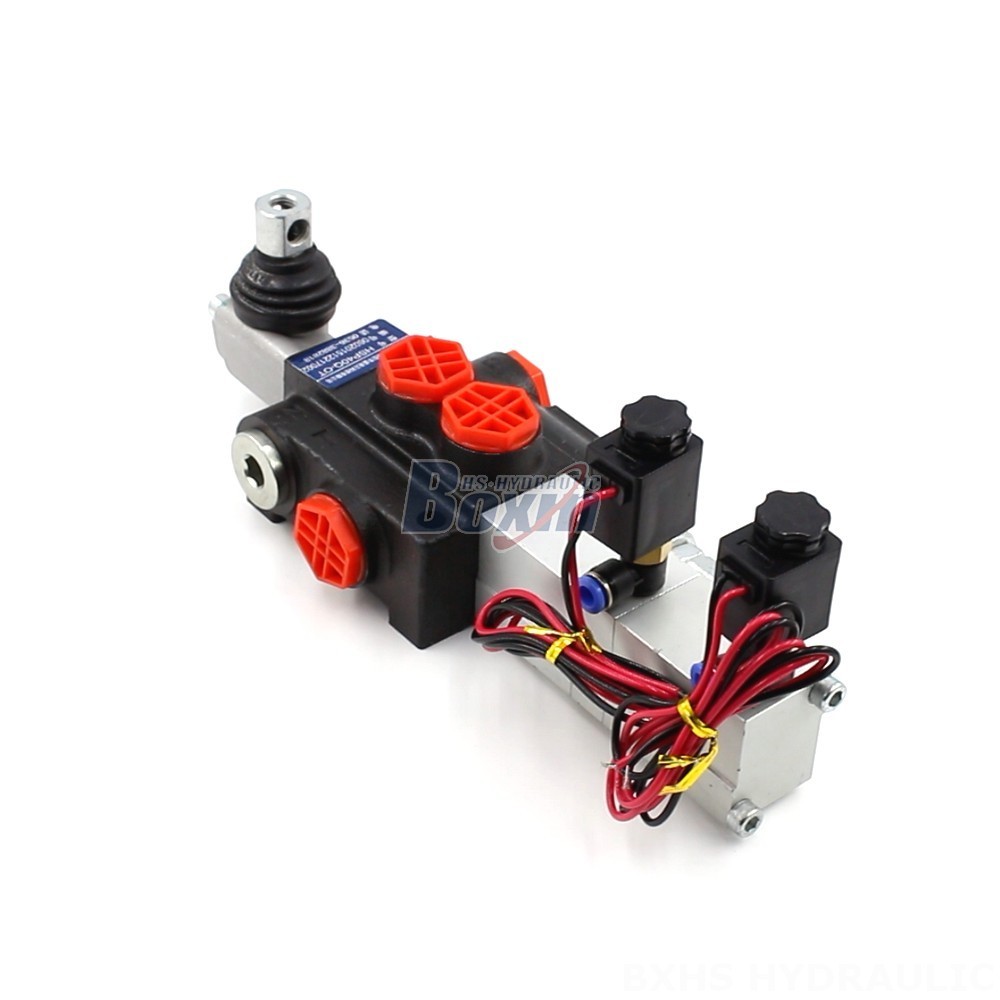

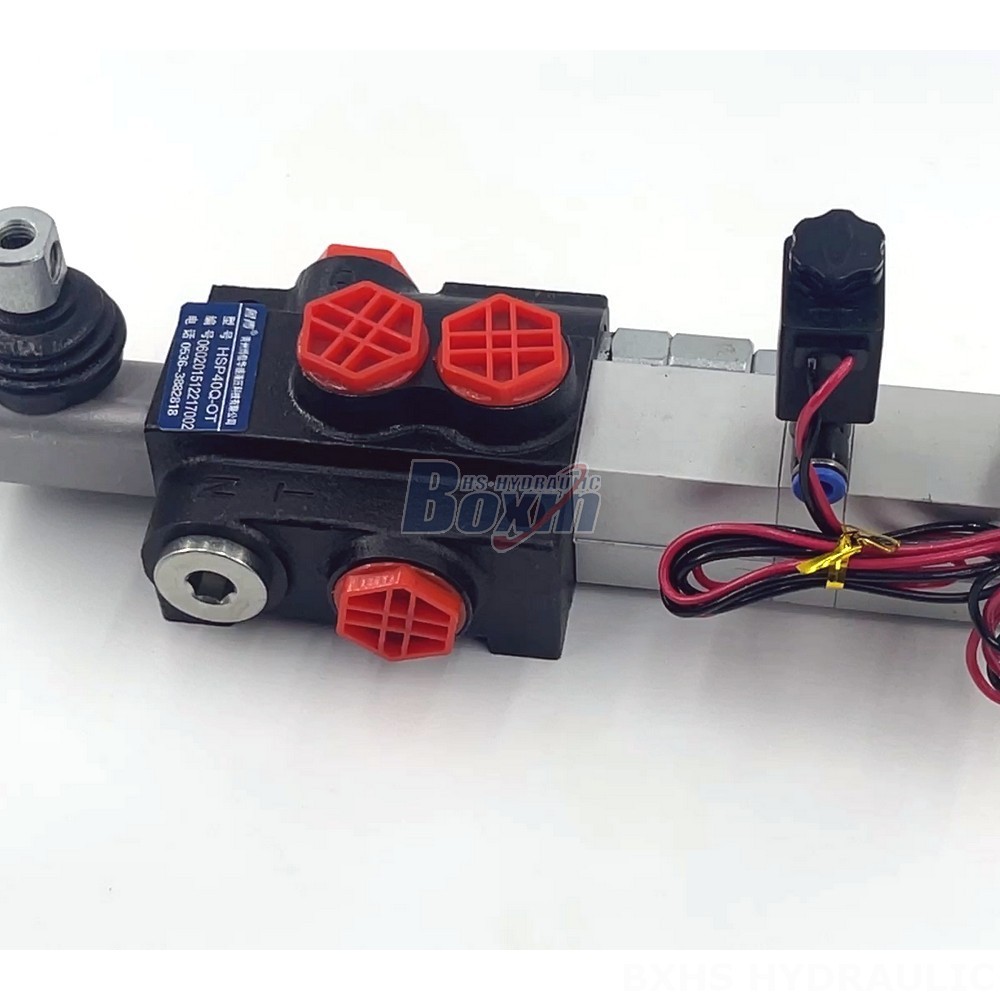

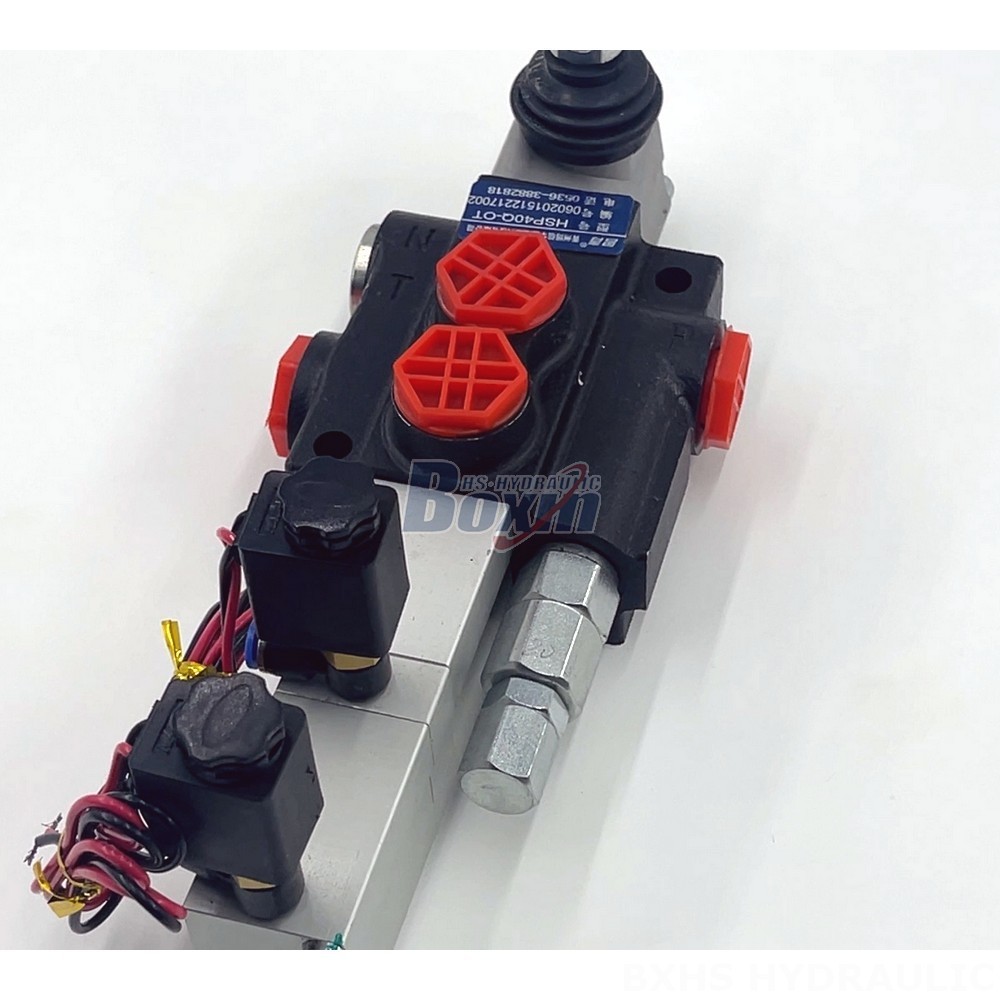

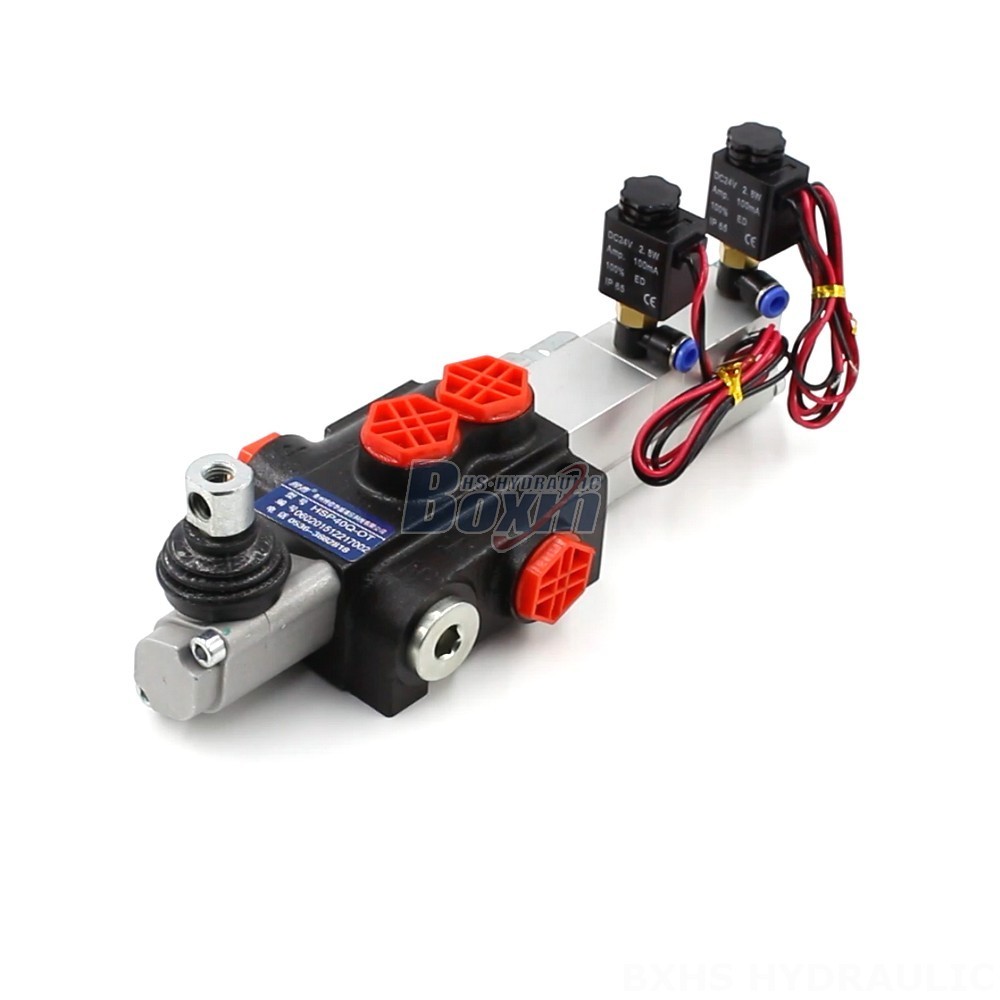

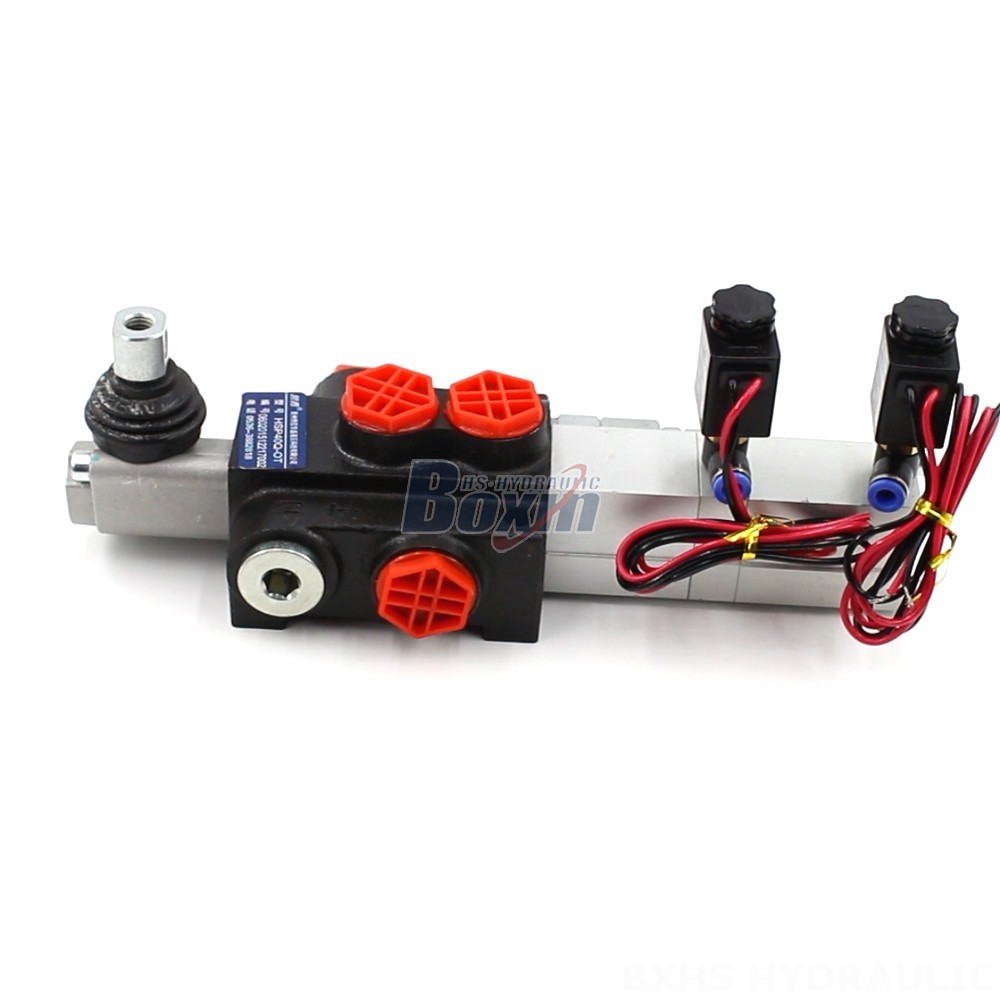

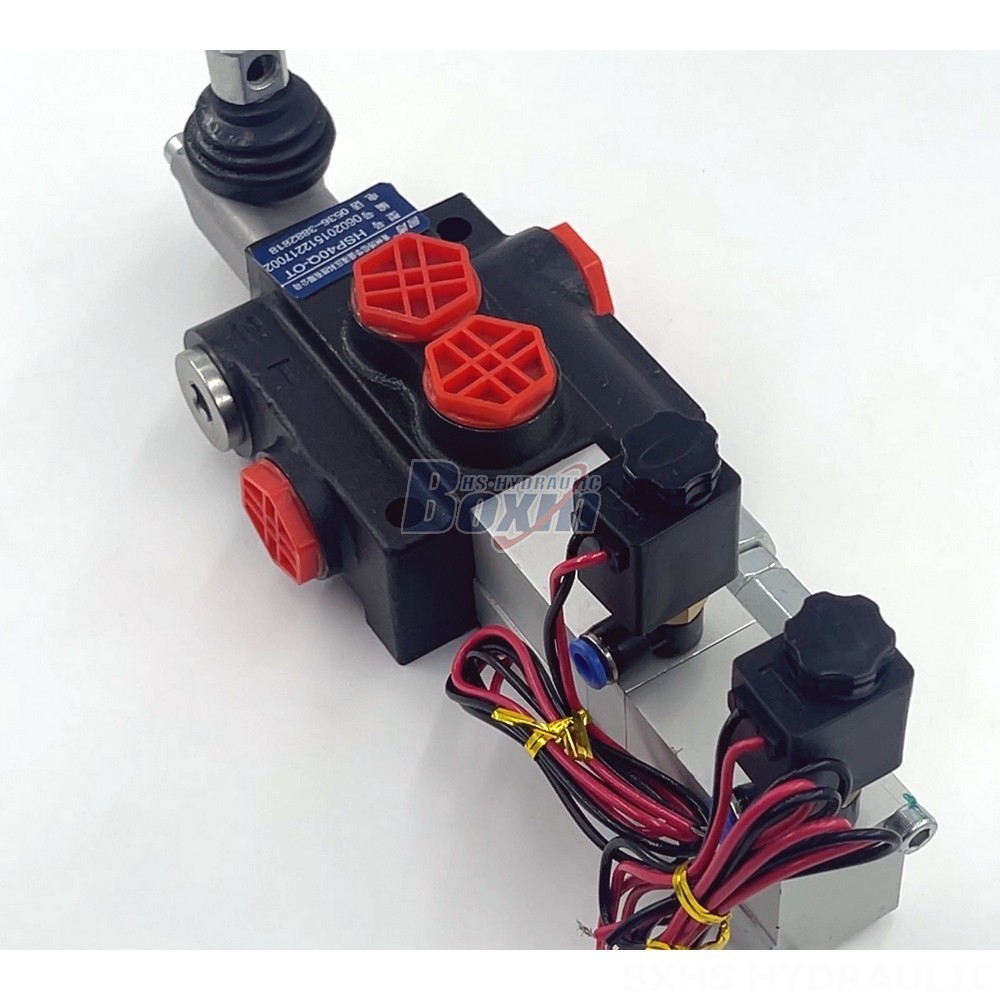

The P40 Series 3 Spool Hydraulic Directional Control Valve is an electro-pneumatically controlled monoblock valve designed for heavy-duty applications in material handling, construction, agriculture, and industrial vehicles. This high-performance valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for various machinery including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, and compact loaders.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This 3 Spool Hydraulic Directional Control Valve from the P40 Series is a robust electro-pneumatic monoblock valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a single section, monoblock structure, and a rated flow of 40 L/min (10.5 US gpm) with a maximum pressure rating of 250 bar (3600 psi). The valve operates effectively within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). Its compact design and reliable performance make it an ideal choice for a wide range of machinery, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
