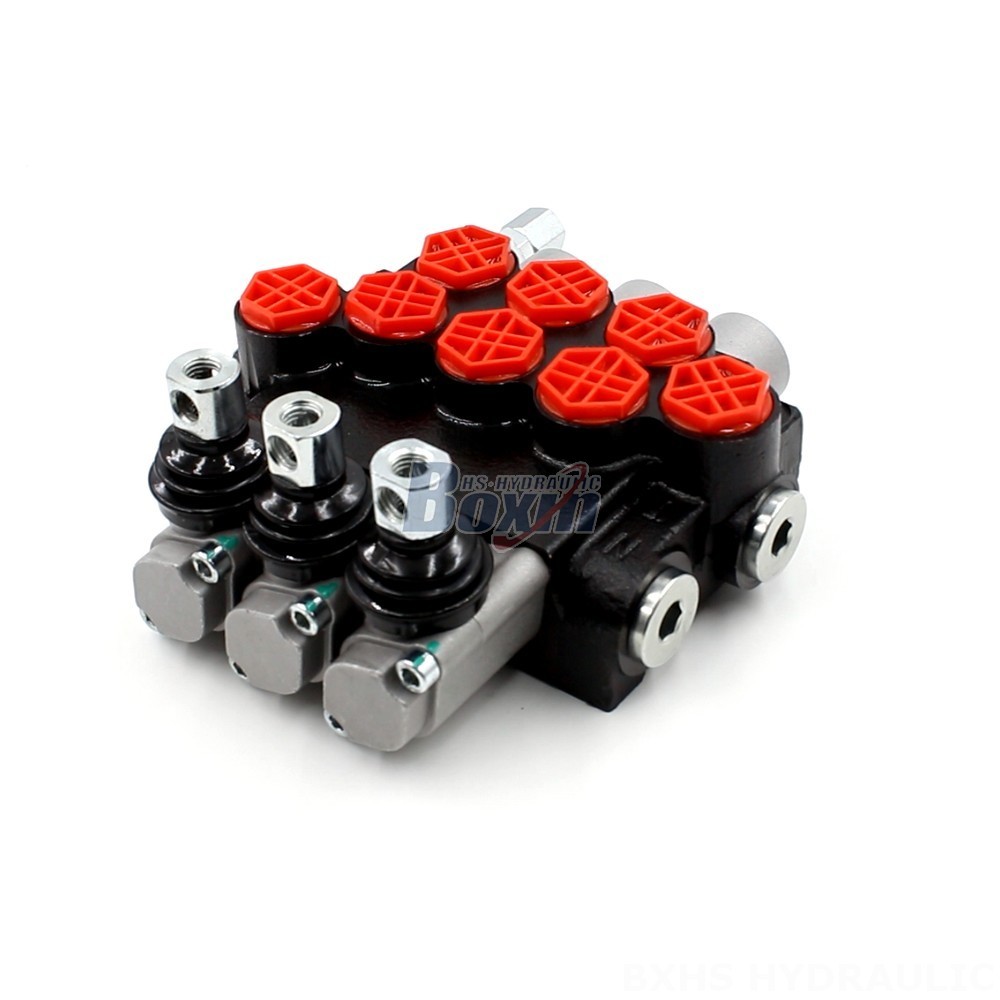

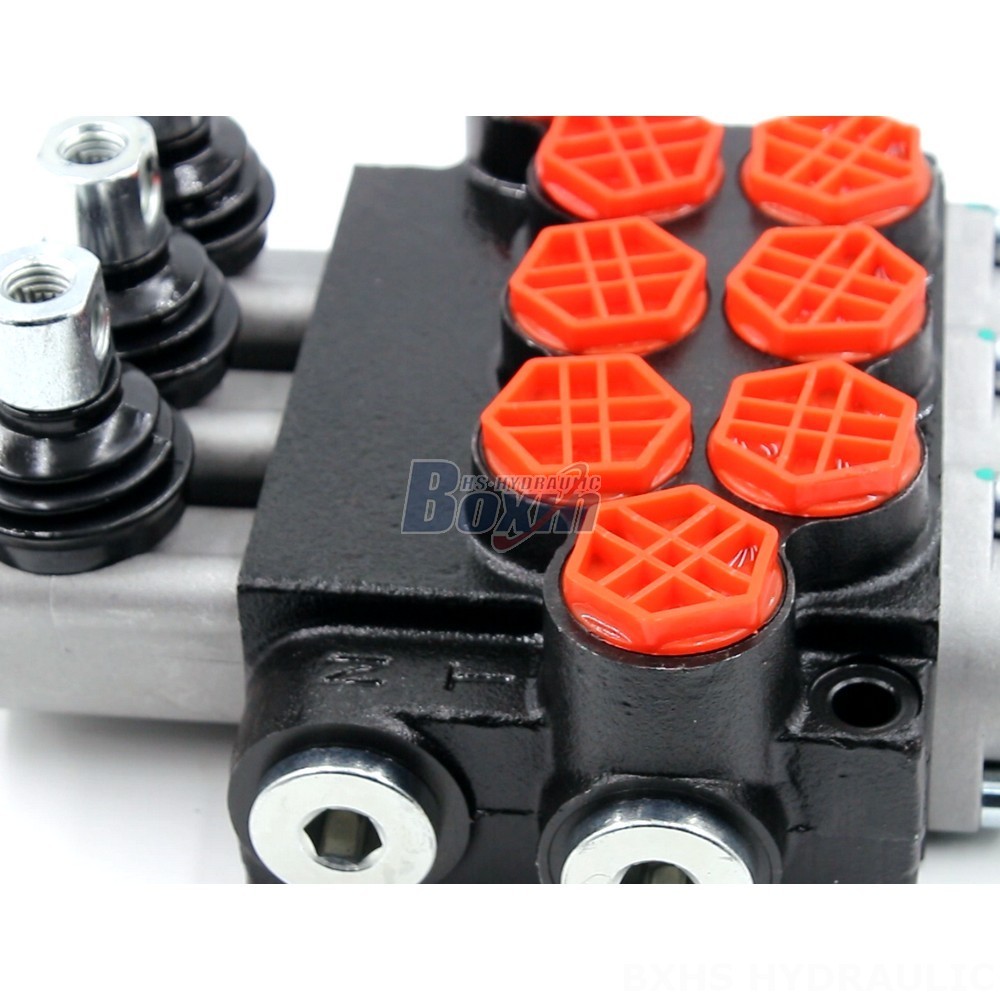

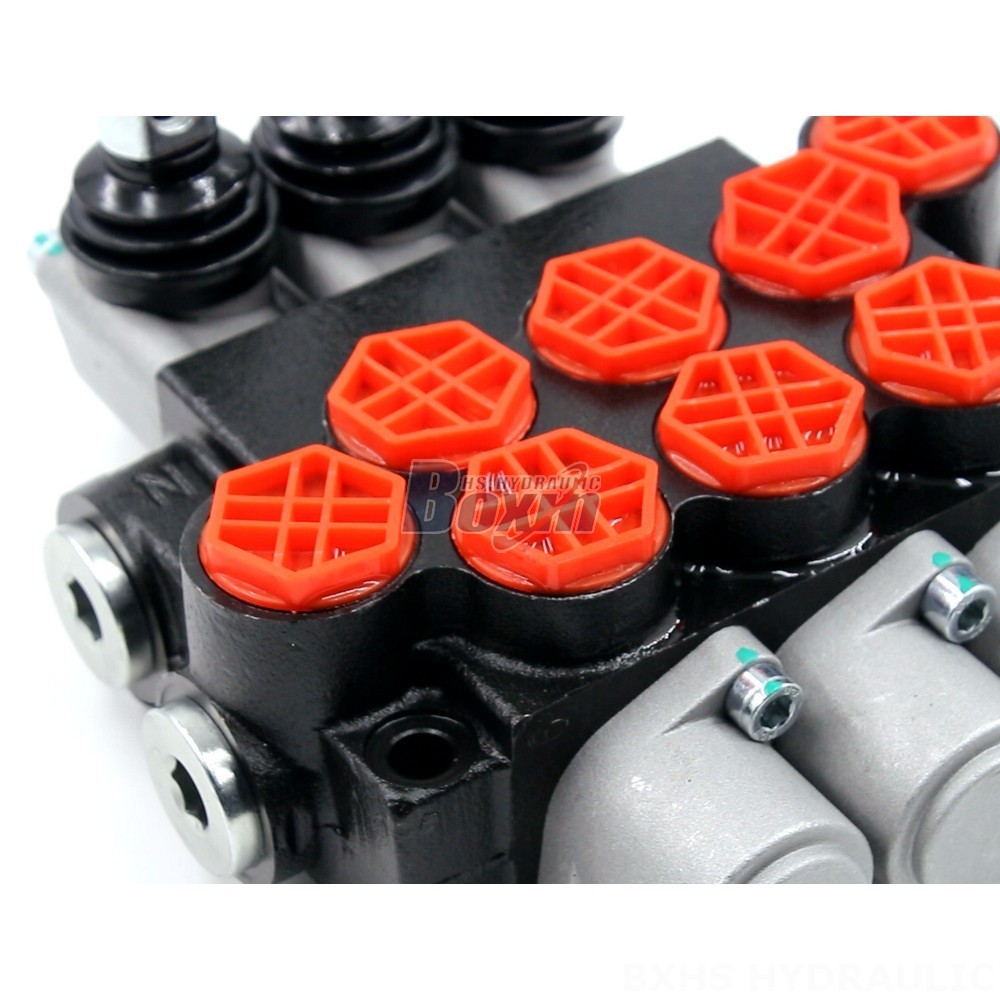

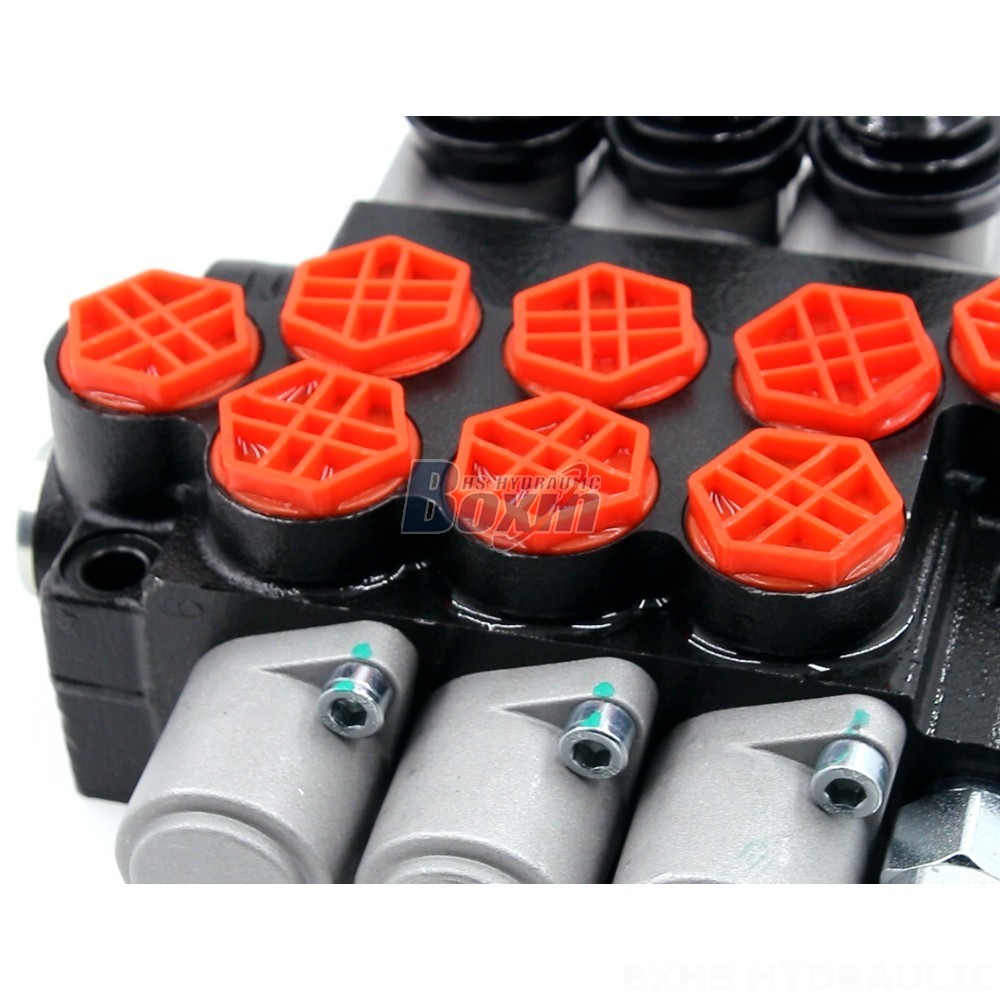

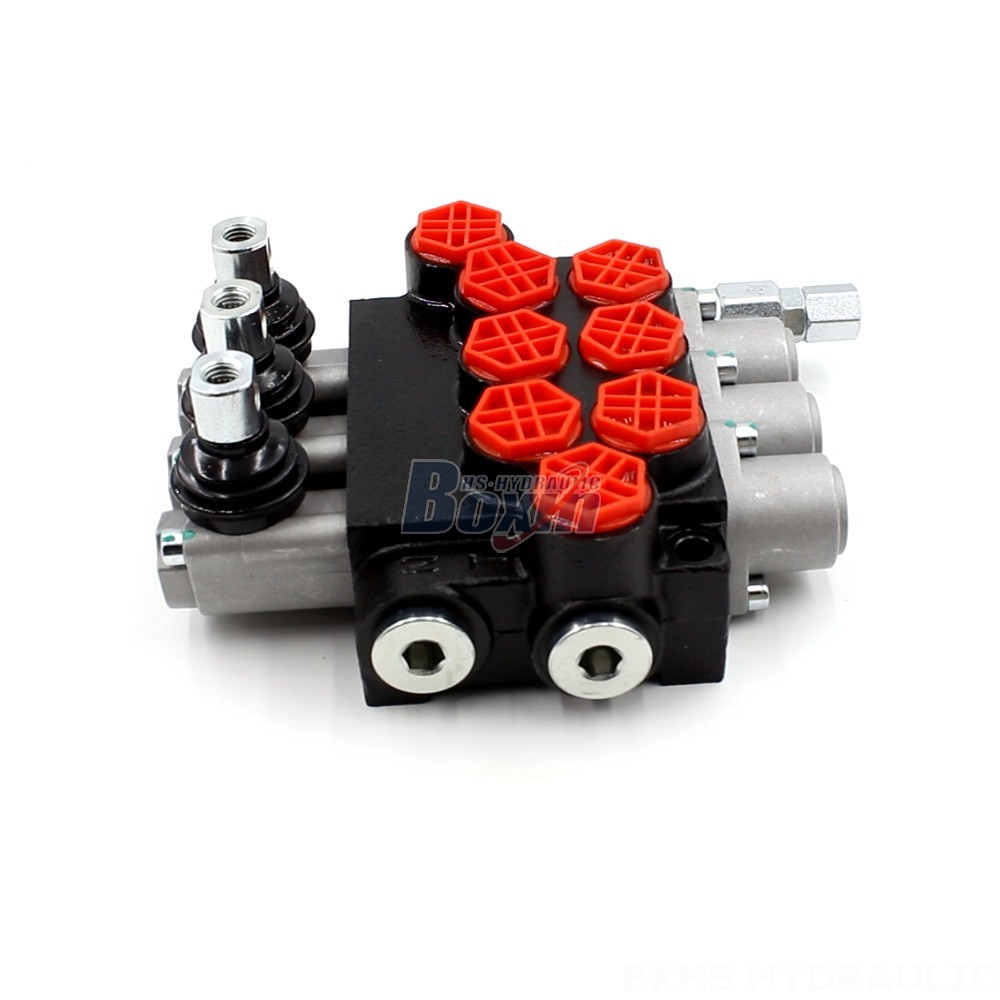

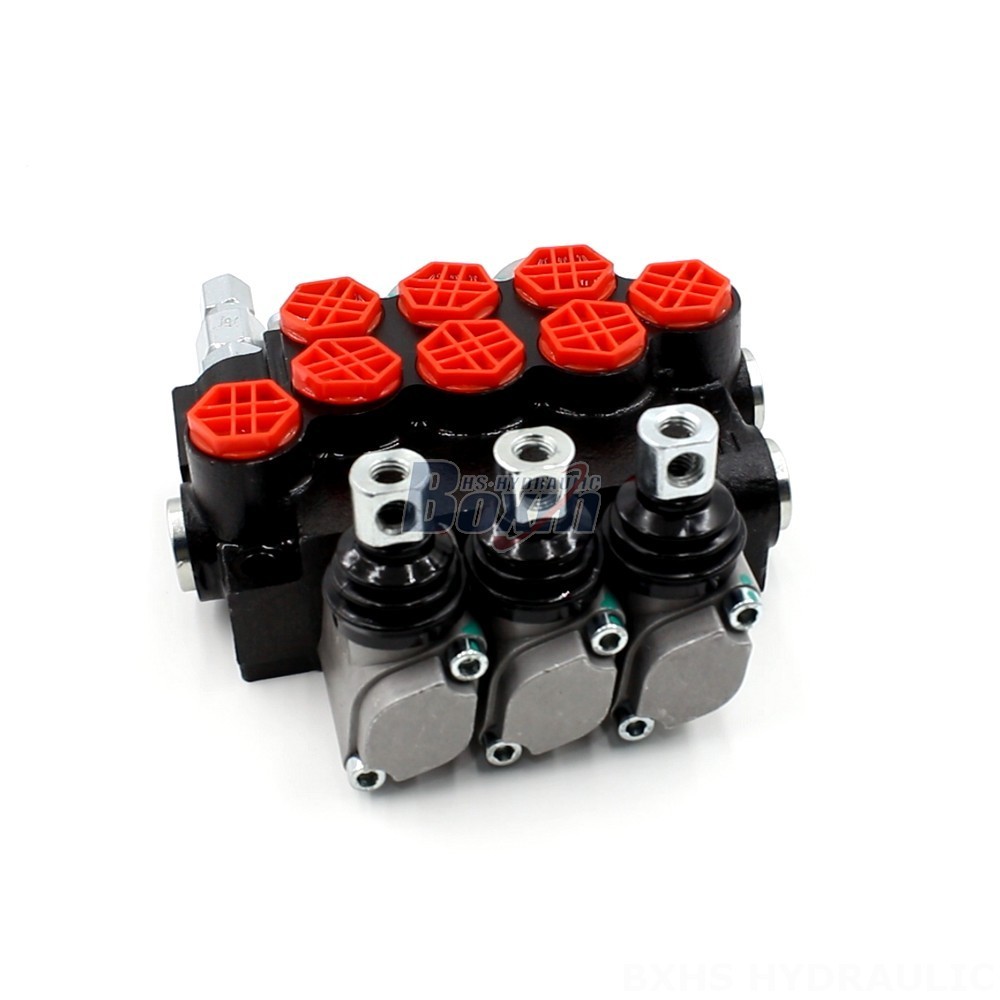

The P40-G12 4 Way Hydraulic Manifold Block is a robust and versatile directional control valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. Featuring a monoblock design, 3 sections, and manual control, this valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar. It is customizable to meet your specific needs.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This 4 Way Hydraulic Manifold Block from the P40 series is a reliable and efficient solution for controlling hydraulic circuits. Its monoblock construction ensures durability and compact size. The valve features 3 sections and manual control, providing precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it is suitable for demanding applications in various industries. The P40-G12 is designed to work with a wide range of operating viscosities and temperatures. It is ideal for use in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. This valve is customizable to meet your specific requirements, making it a versatile choice for a variety of hydraulic systems.
