P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications

Método de Controle:Manual

Carrétel:4 Carreteis

Fluxo Nominal:40 L/min (10,5 US gpm)

Pressão Máxima:250 bar (3600 psi)

Porta de Entrada:G1/2

Porta de Saída:G1/2

Tamanho da Porta:G3/8

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série P40 Válvula Direcional Monobloco

Tamanho da embalagem:24*23*13

Peso bruto:8.20 kg

Disponibilidade: Em estoque

1447 Visualizações estão procurando por este produto

P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications

P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications

P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications drawing image

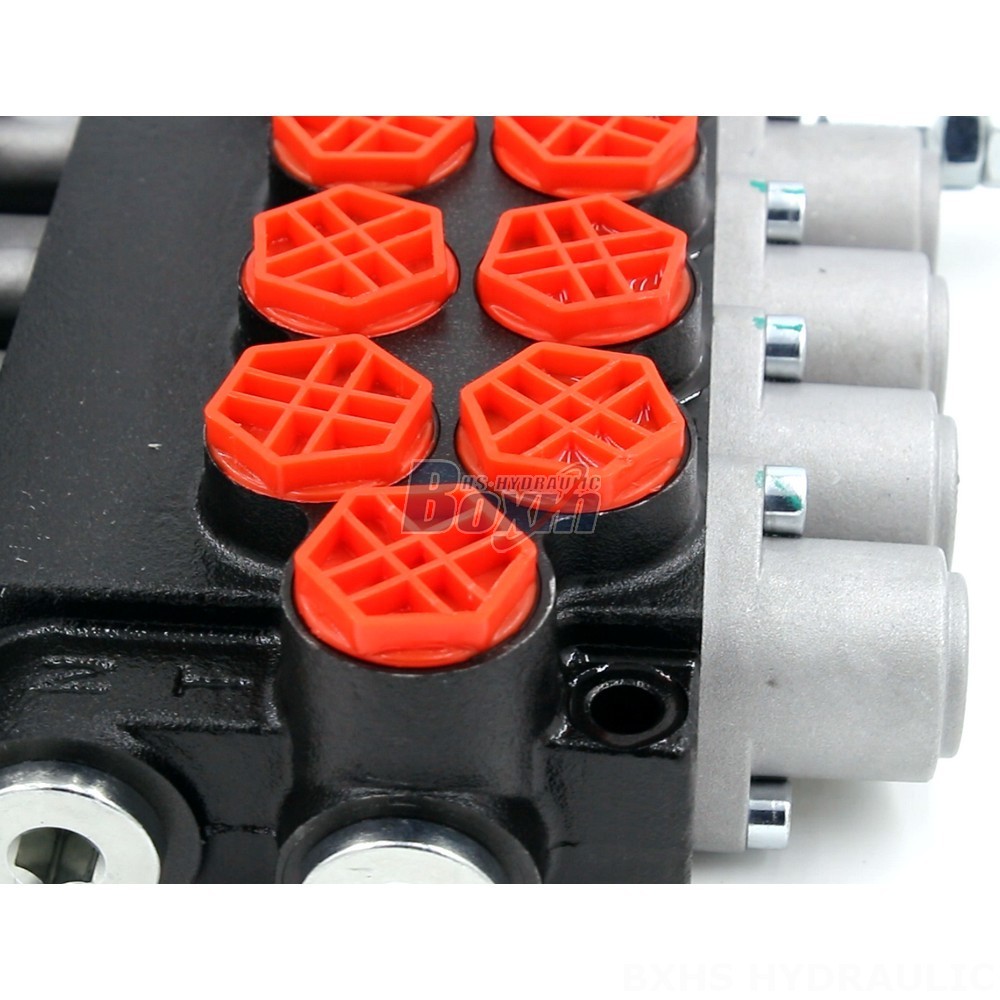

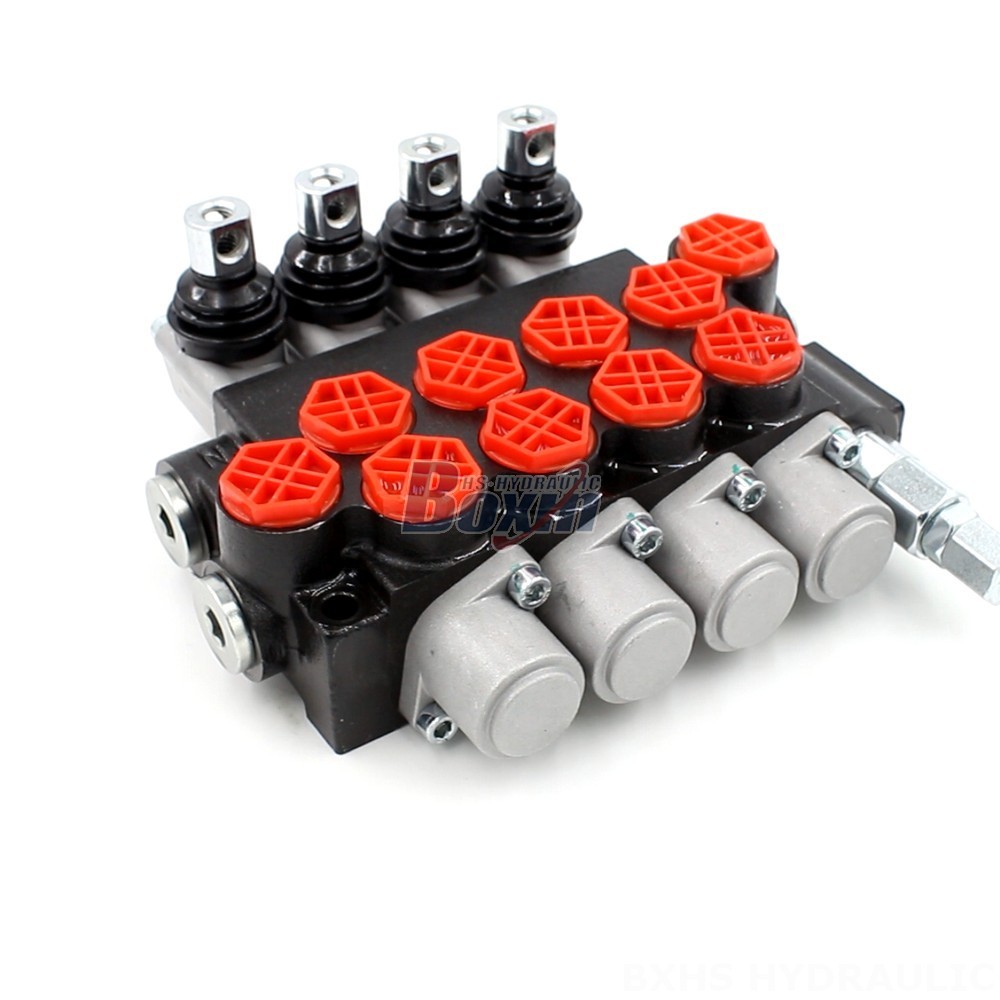

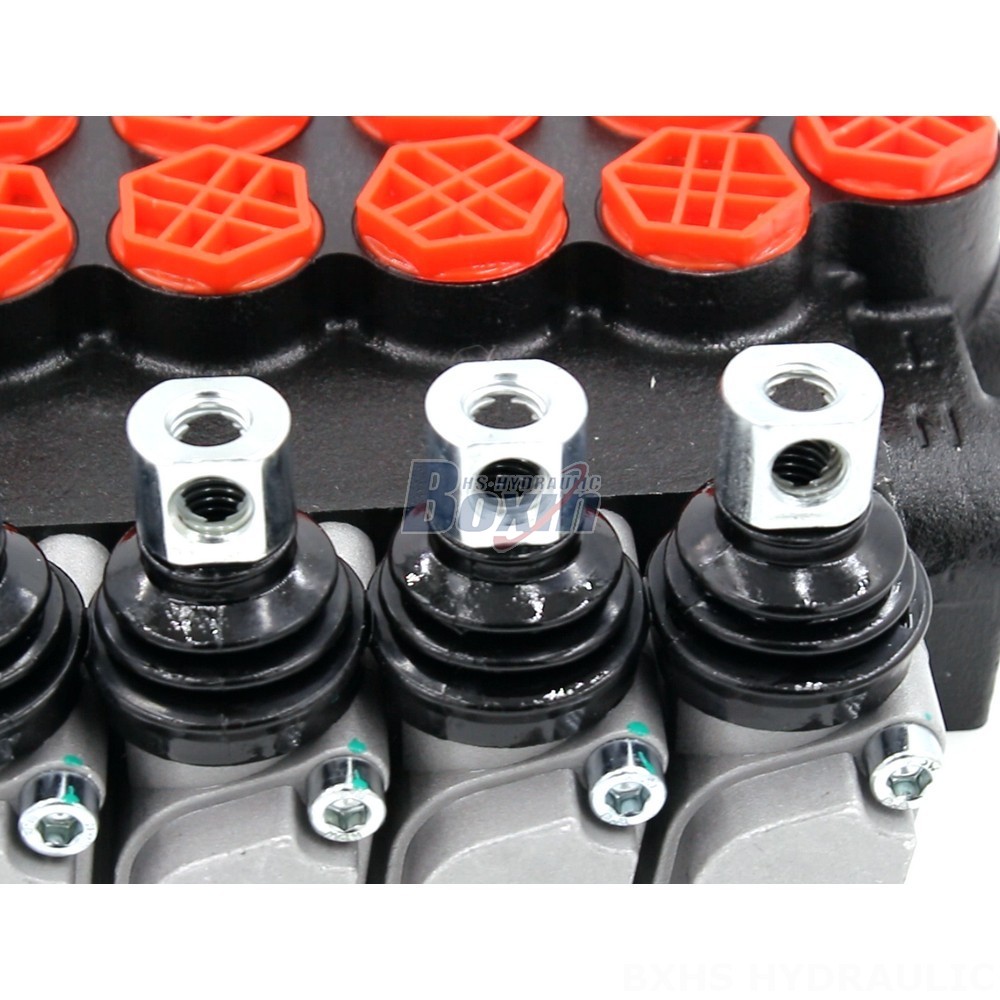

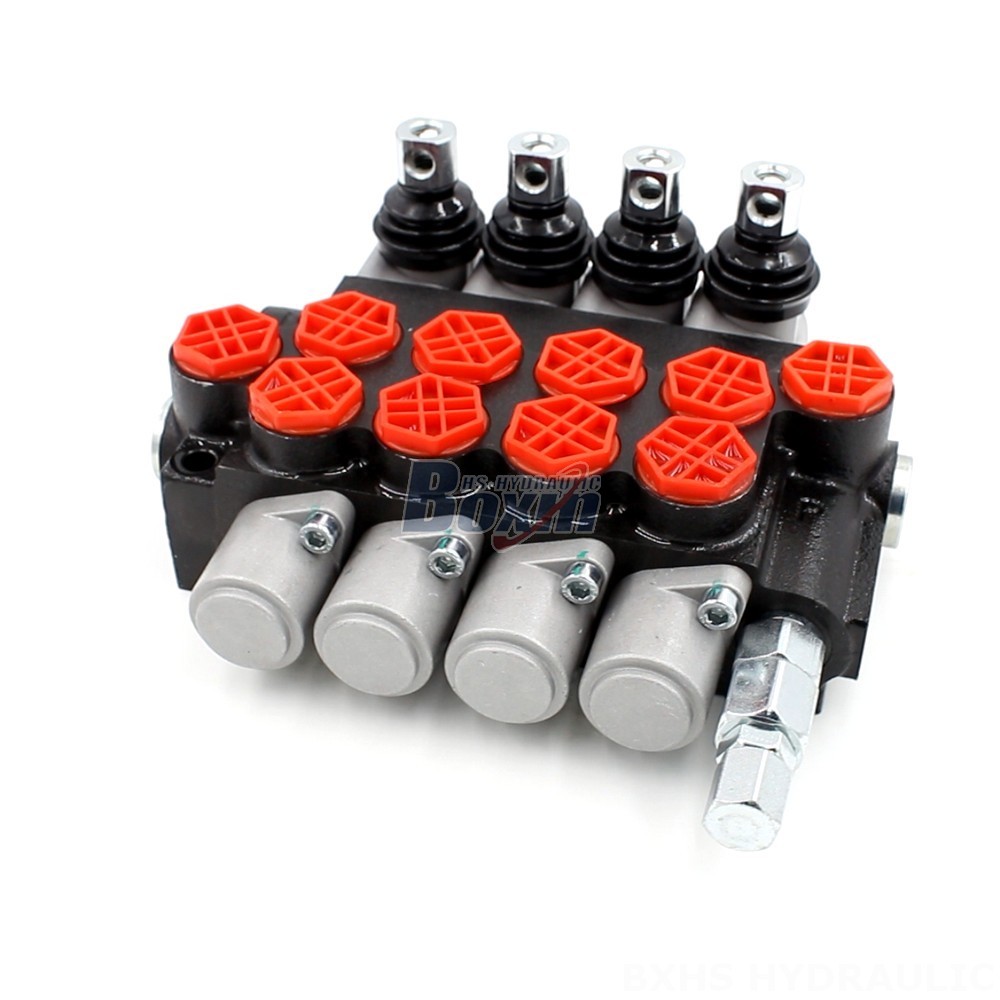

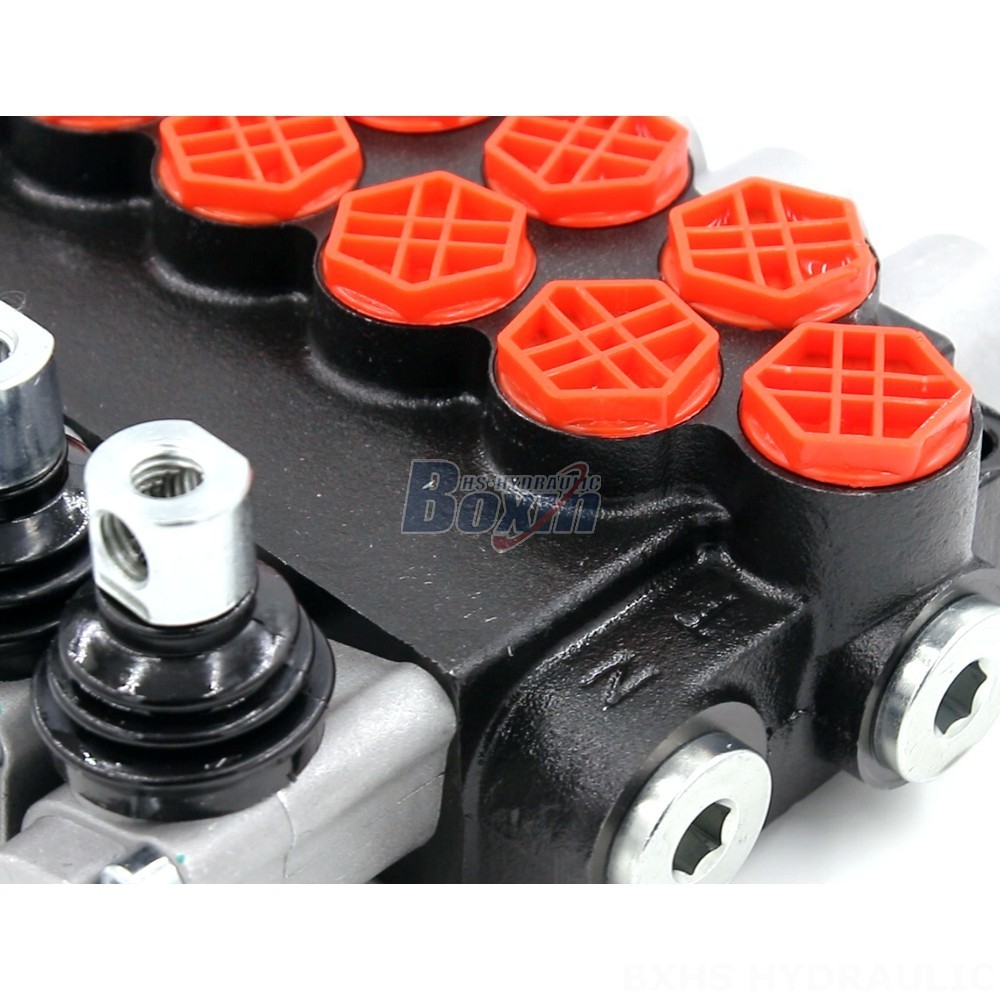

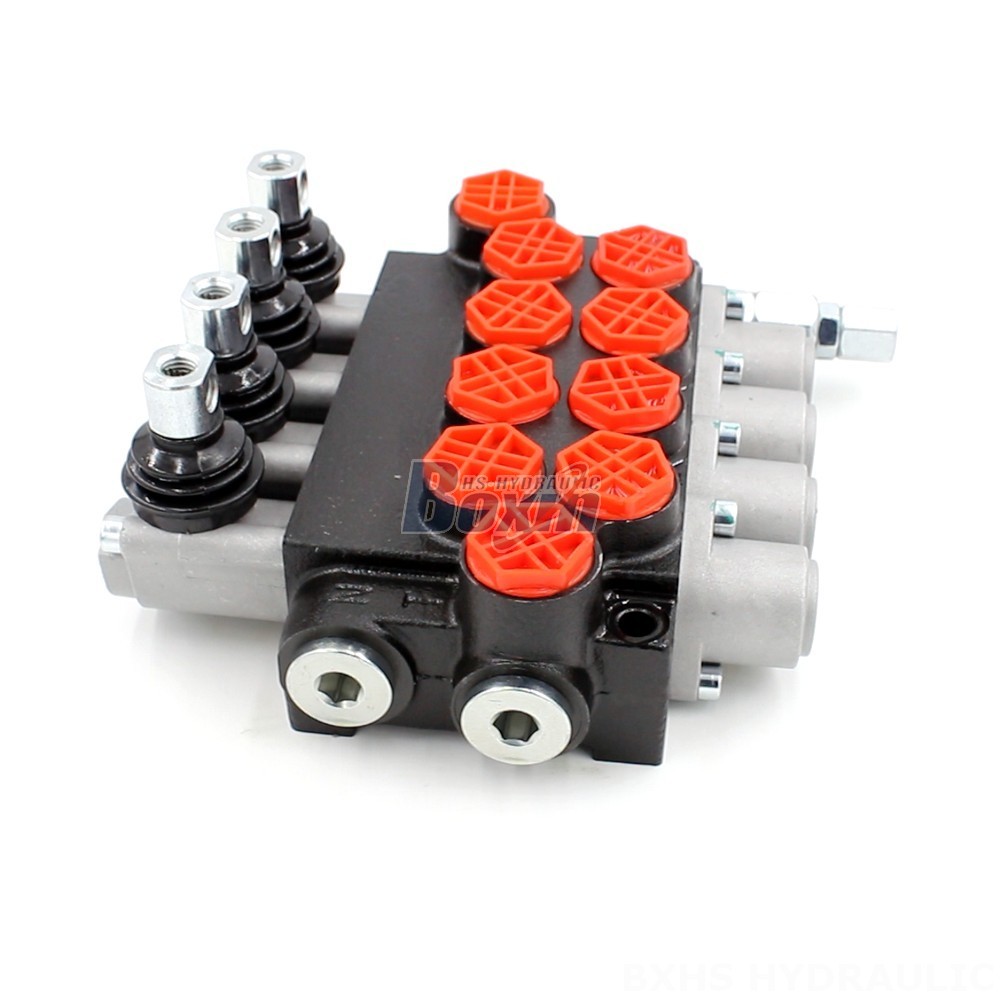

The Dcv Pneumatic P40-G12-G38-4OT Directional Control Valve is a high-performance, 4-section, manual control valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. This monoblock valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of mobile hydraulic systems.

Série P40 Válvula Direcional Monobloco Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula monobloco
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)
Fluxo Nominal 40 L/min (10,5 US gpm)
Pressão Máxima 250 bar (3600 psi)
Porta de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Porta de Saída G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamanho da Porta G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The Dcv Pneumatic P40-G12-G38-4OT Directional Control Valve is a robust and reliable hydraulic component designed for demanding applications. Its monoblock construction provides a compact and durable design, while its manual control method offers precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is capable of handling high-flow, high-pressure applications. Its operating viscosity range of 15 - 75 mm²/s ensures optimal performance in a variety of operating conditions. The valve is suitable for a wide range of applications including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. Its versatile design and robust construction make it an ideal choice for various mobile hydraulic systems in construction, material handling, agriculture, and industrial vehicles.
