P40-G12-G38 Hydraulic Valve: Trusted Choice for Industrial Applications

Método de Controle:Manual

Carrétel:4 Carreteis

Fluxo Nominal:40 L/min (10,5 US gpm)

Pressão Máxima:250 bar (3600 psi)

Porta de Entrada:G1/2

Porta de Saída:G1/2

Tamanho da Porta:G3/8

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série P40 Válvula Direcional Monobloco

Tamanho da embalagem:24*23*13

Peso bruto:9.00 kg

Disponibilidade: Em estoque

972 Visualizações estão procurando por este produto

P40-G12-G38 Hydraulic Valve: Trusted Choice for Industrial Applications

P40-G12-G38 Hydraulic Valve: Trusted Choice for Industrial Applications

P40-G12-G38 Hydraulic Valve: Trusted Choice for Industrial Applications drawing image

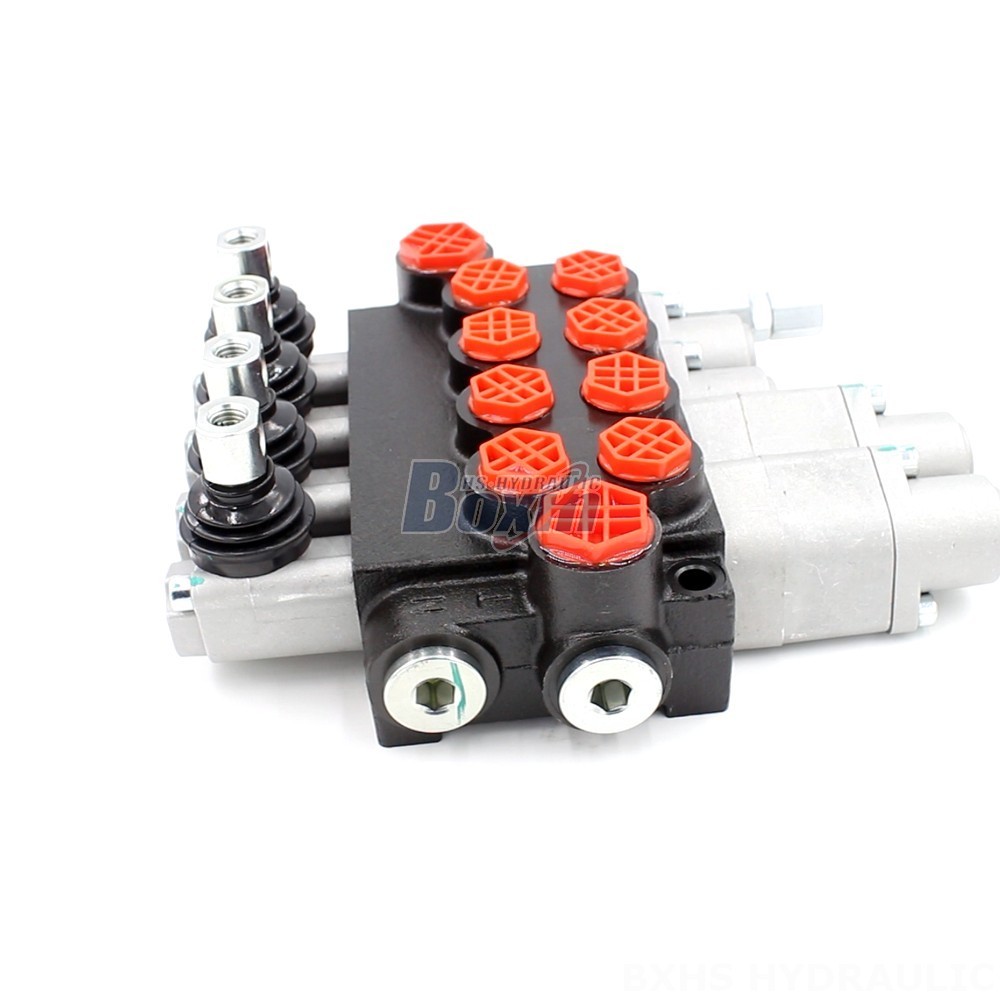

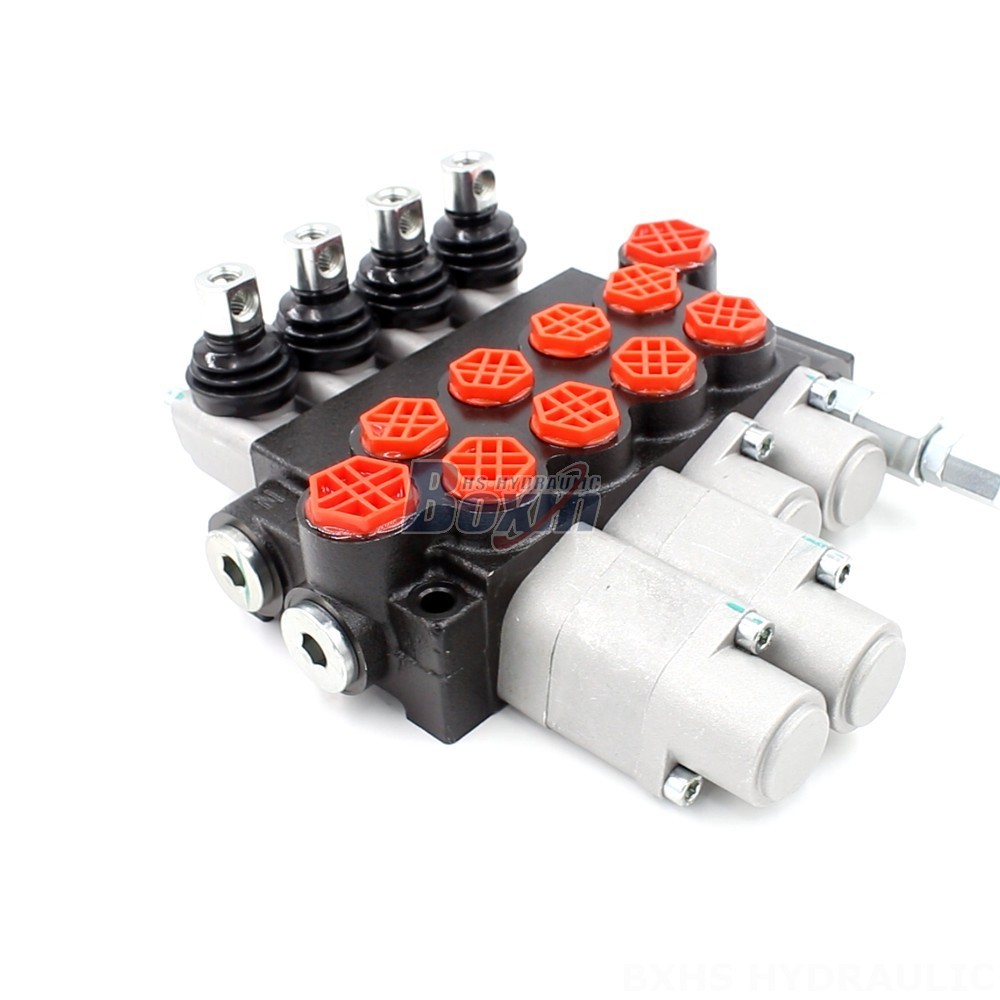

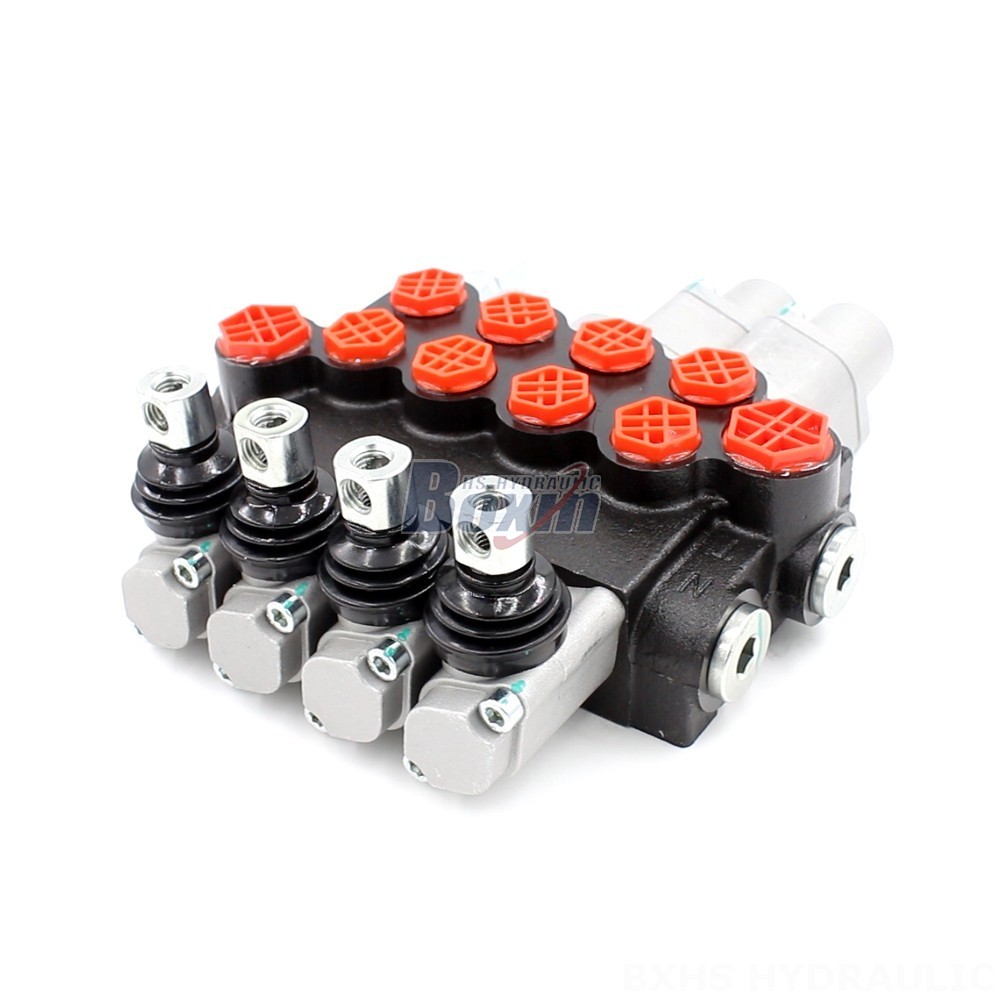

The P40-G12-G38 Hydraulic Valve is a robust and reliable 4-section, manually controlled monoblock valve designed for a wide range of industrial applications, including construction, material handling, agriculture, and industrial vehicles. It offers high performance and durability with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi).

Série P40 Válvula Direcional Monobloco Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula monobloco
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)
Fluxo Nominal 40 L/min (10,5 US gpm)
Pressão Máxima 250 bar (3600 psi)
Porta de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Porta de Saída G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamanho da Porta G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-G38 Hydraulic Valve is a premium choice for demanding applications. It features a robust monoblock construction with 4 sections, providing excellent control and responsiveness. The manual control method ensures precise operation and ease of use. This valve is designed to handle high flow rates up to 40 L/min (10.5 US gpm) and withstand pressures up to 250 bar (3600 psi). With its wide operating viscosity range (15-75 mm²/s) and ambient temperature range (-40°C to +80°C), the valve is suitable for a variety of environments. It is specifically designed for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. This makes it a versatile and reliable choice for a wide range of industrial equipment.
