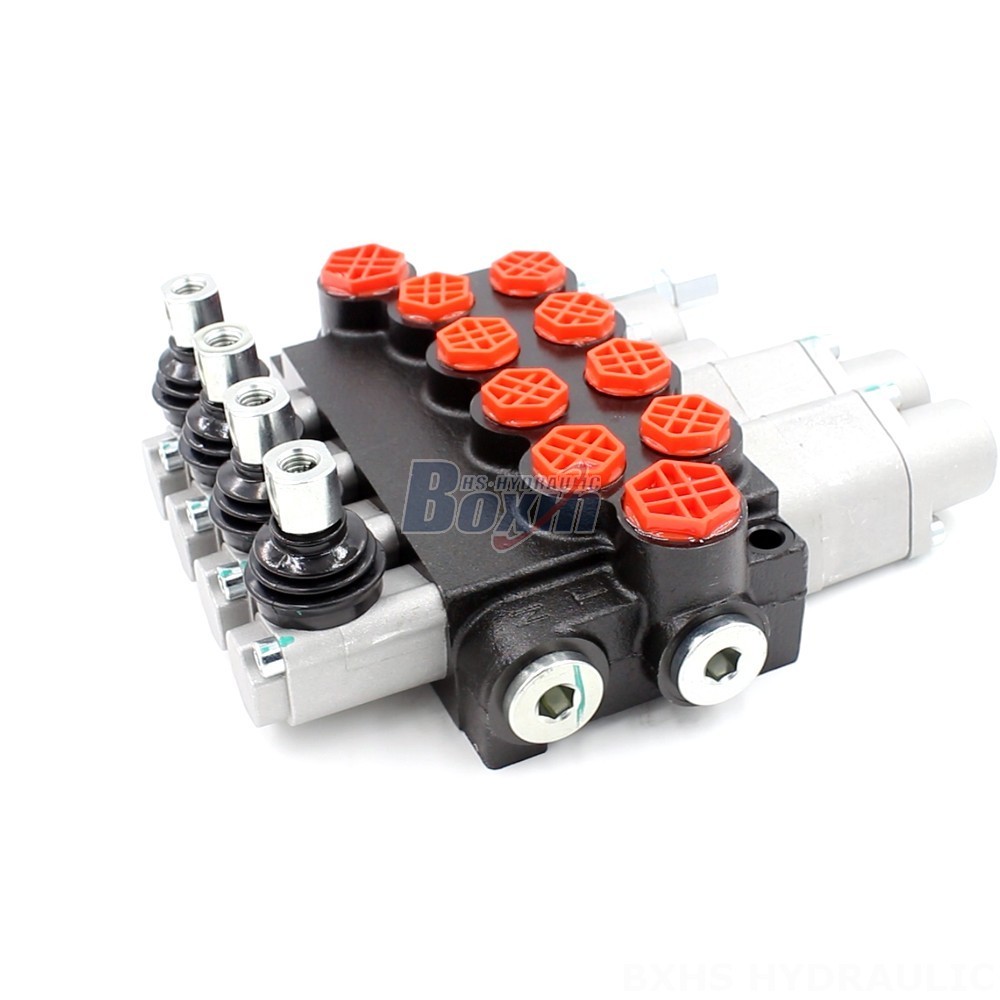

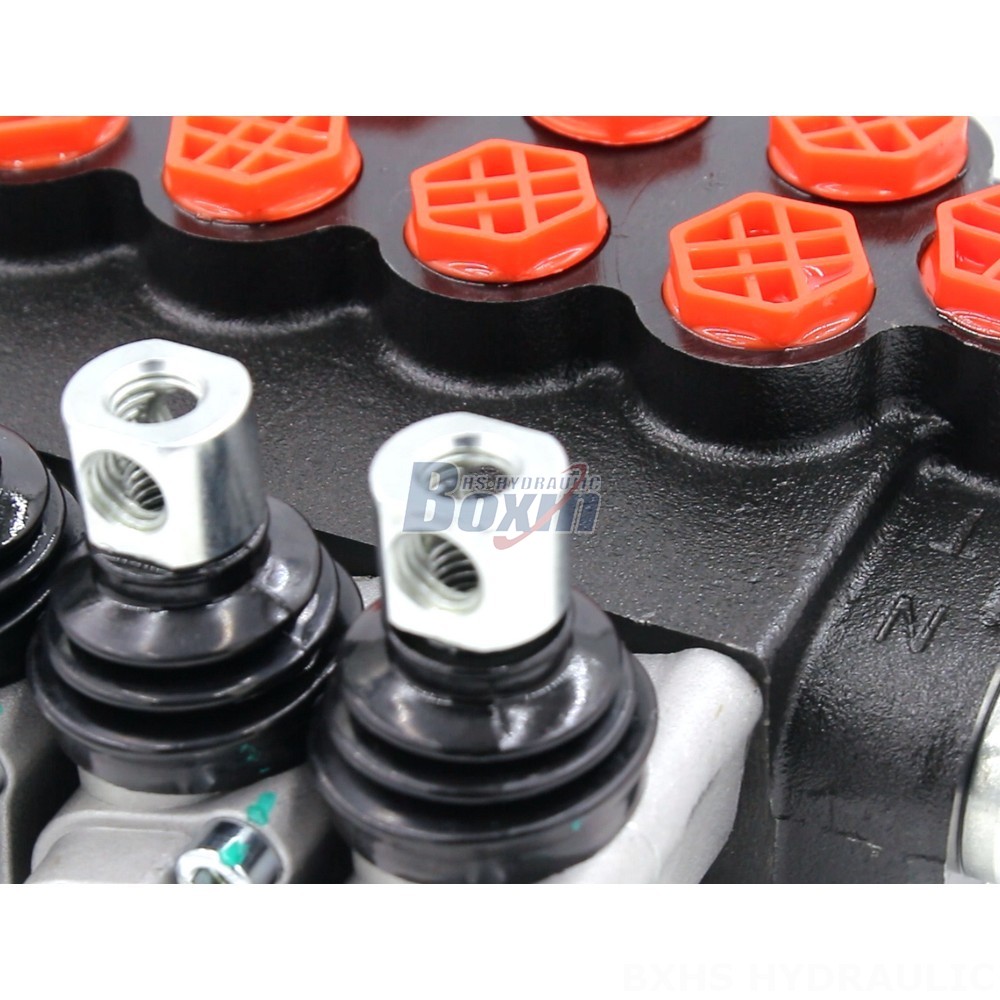

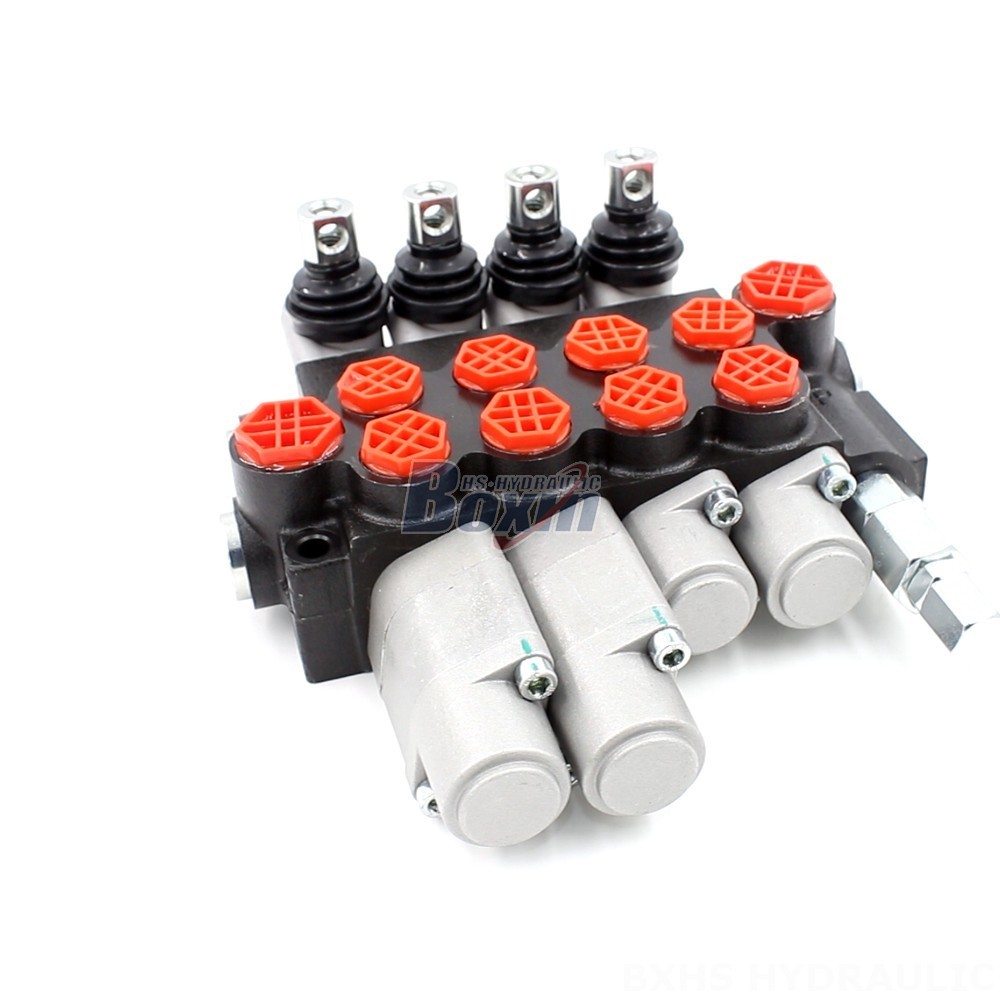

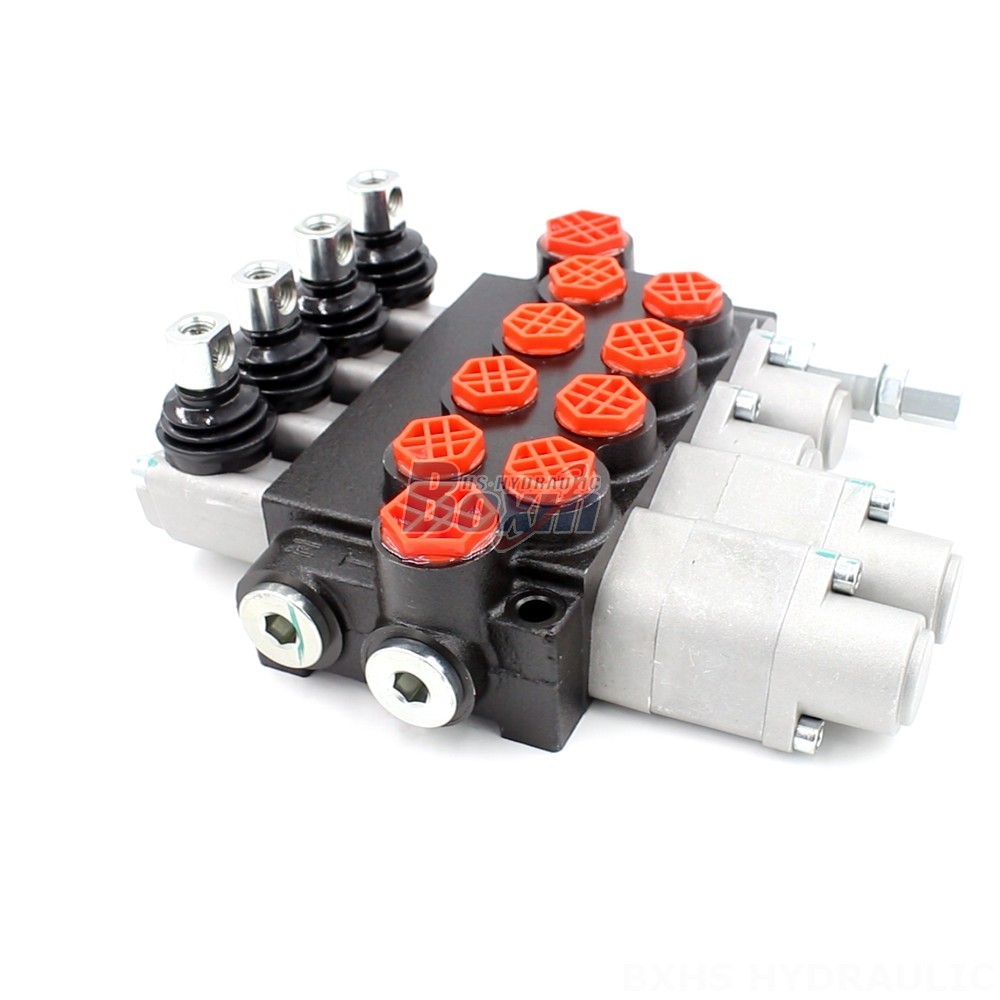

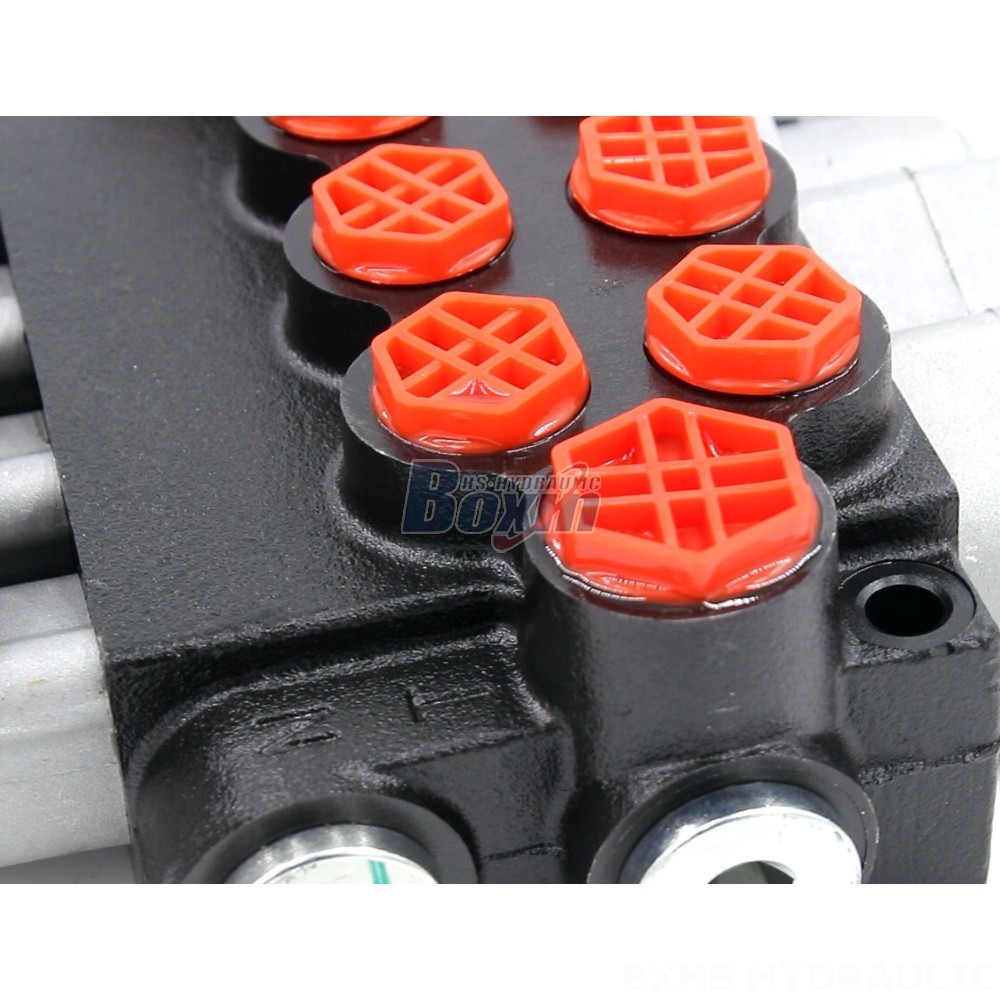

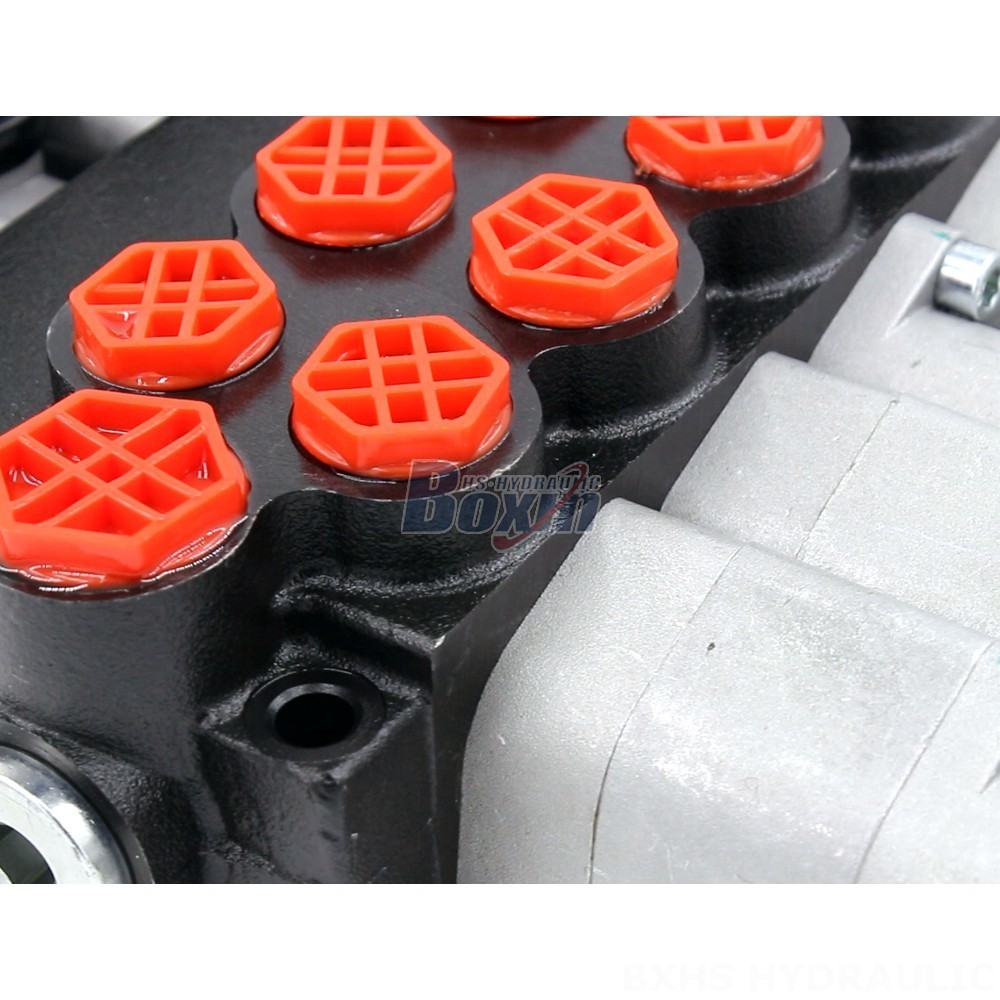

The P40-G12-G38 Monoblock Valve is a high-performance, 4-section pneumatic membrane valve designed for demanding hydraulic applications in construction, material handling, agriculture, and industrial vehicles. It features a robust monoblock design, a high flow rate of 40 L/min, and a maximum pressure rating of 250 bar. This valve is perfect for controlling hydraulic actuators in telehandlers, forklifts, cranes, and other heavy equipment.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 series pneumatic membrane valve is a reliable and durable solution for your hydraulic control needs. With its 4-section, 4-spool configuration, it provides precise and responsive control of hydraulic actuators. The valve features a manual control method and a robust monoblock construction for maximum strength and durability. It is rated for a maximum pressure of 250 bar (3600 psi) and a flow rate of 40 L/min (10.5 US gpm). Designed for demanding applications, this valve operates in a wide temperature range (-40°C to +80°C) and handles a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). This valve is ideal for a variety of applications including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. Contact us today to learn more about this high-performance hydraulic valve.
