P40-G12-G38-OT 2-Spool Directional Valve | Factory Direct & Customizable

Método de Controle:Manual

Carrétel:2 Carreteis

Fluxo Nominal:40 L/min (10,5 US gpm)

Pressão Máxima:250 bar (3600 psi)

Porta de Entrada:G1/2

Porta de Saída:G1/2

Tamanho da Porta:G3/8

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série P40 Válvula Direcional Monobloco

Tamanho da embalagem:23*18*13

Peso bruto:5.50 kg

Disponibilidade: Em estoque

1055 Visualizações estão procurando por este produto

P40-G12-G38-OT 2-Spool Directional Valve | Factory Direct & Customizable

P40-G12-G38-OT 2-Spool Directional Valve | Factory Direct & Customizable

P40-G12-G38-OT 2-Spool Directional Valve | Factory Direct & Customizable drawing image

The Steering Unit P40-G12-G38-OT 2-Spool Directional Valve is a robust and reliable hydraulic valve designed for a variety of applications in material handling, construction, agriculture, and industrial vehicles. This monoblock valve features manual control, a 40 L/min rated flow, and a maximum pressure of 250 bar, making it suitable for demanding operating conditions. Available for factory direct purchase and customization, this valve is perfect for OEM and ODM needs.

Série P40 Válvula Direcional Monobloco Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula monobloco
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)
Fluxo Nominal 40 L/min (10,5 US gpm)
Pressão Máxima 250 bar (3600 psi)
Porta de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Porta de Saída G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamanho da Porta G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

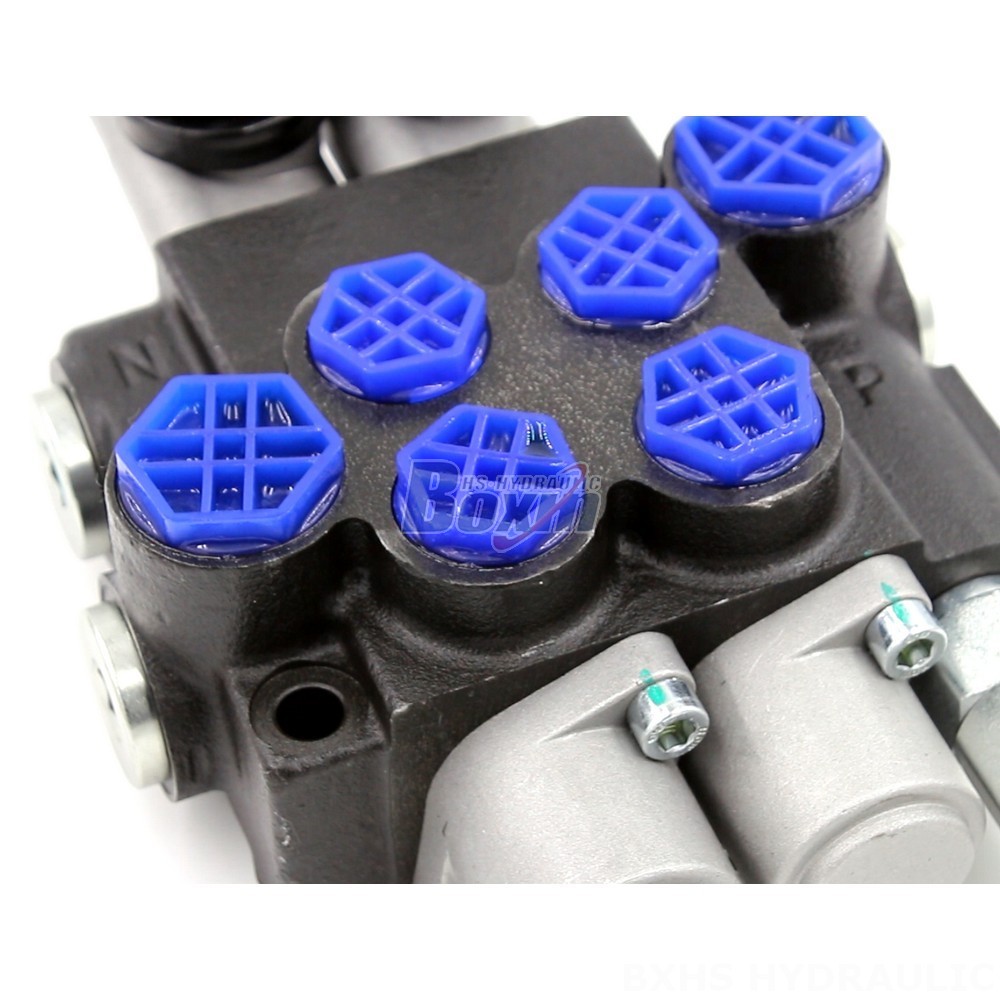

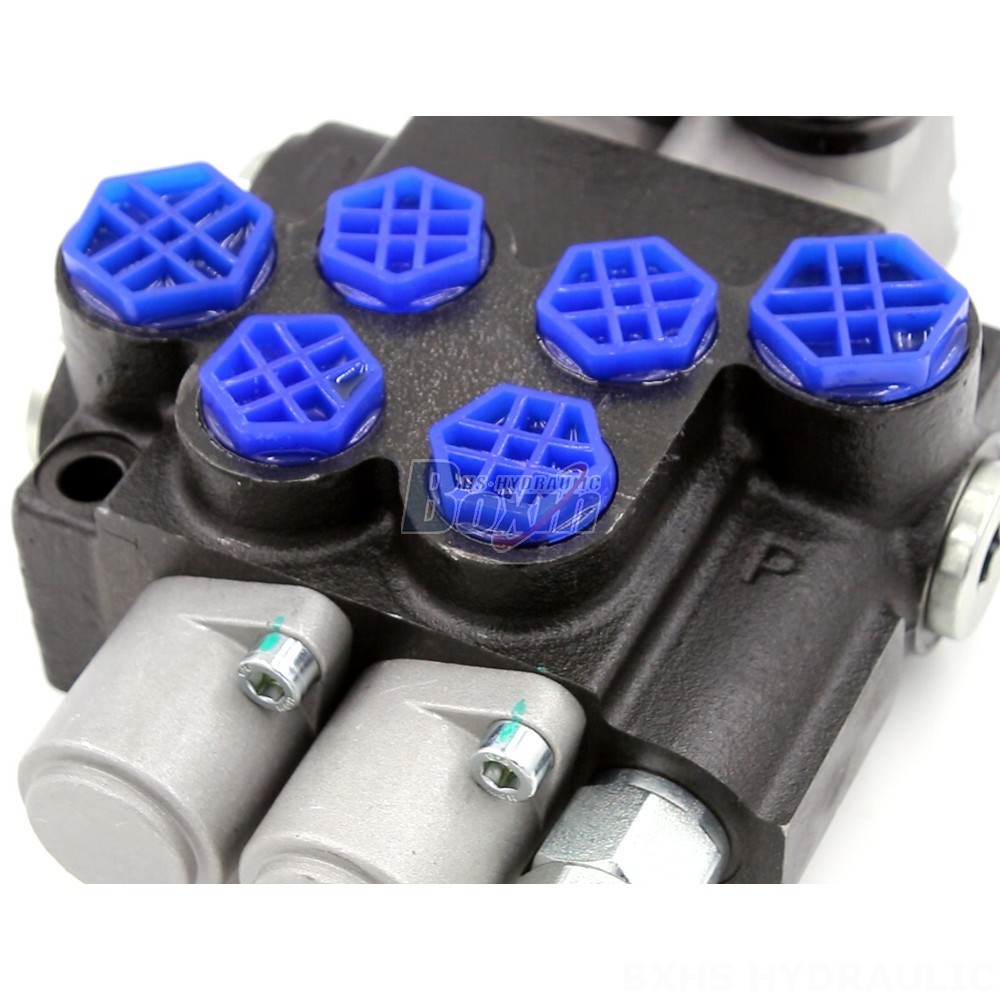

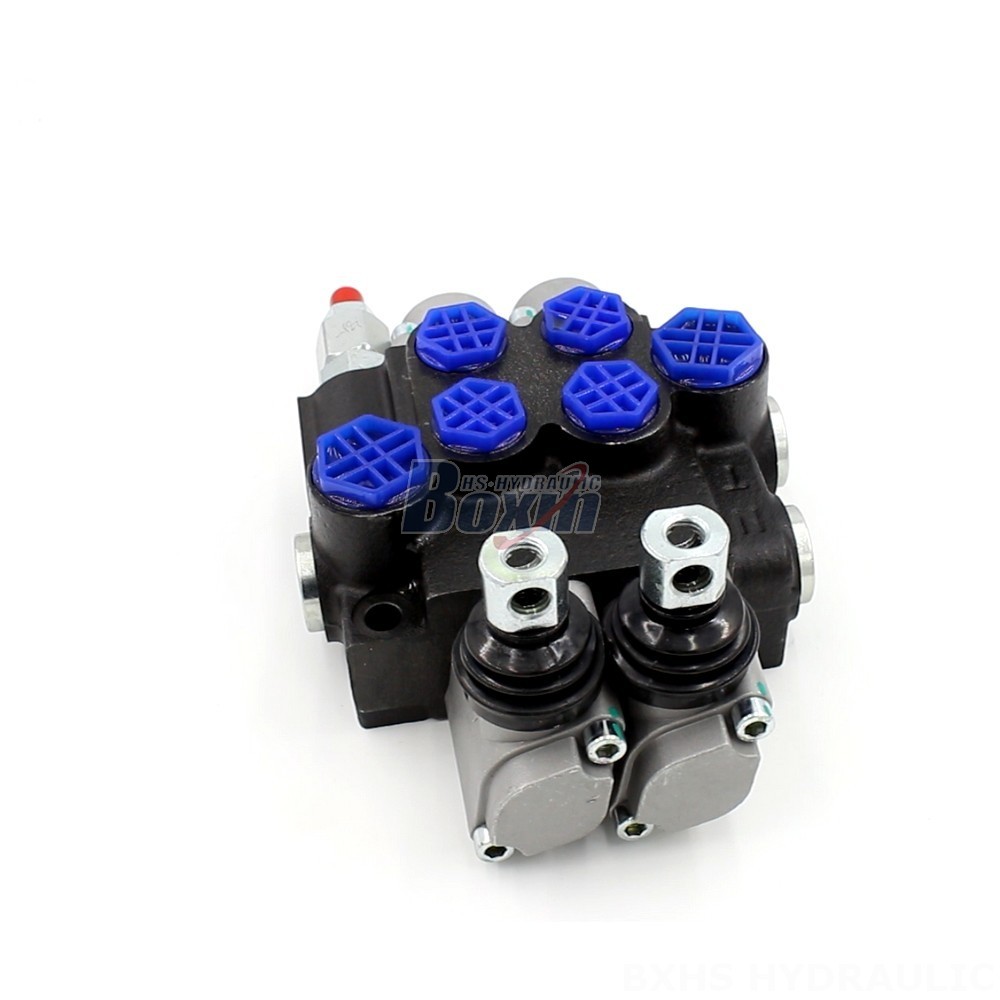

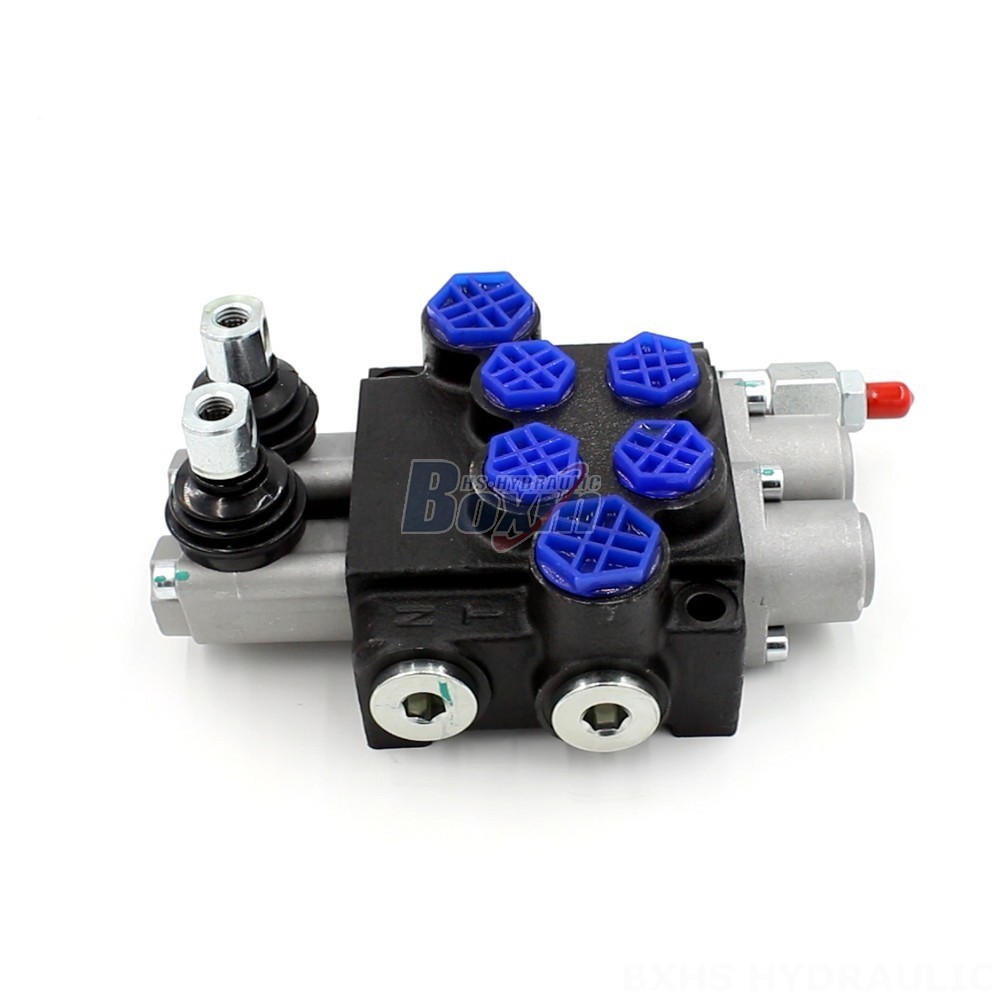

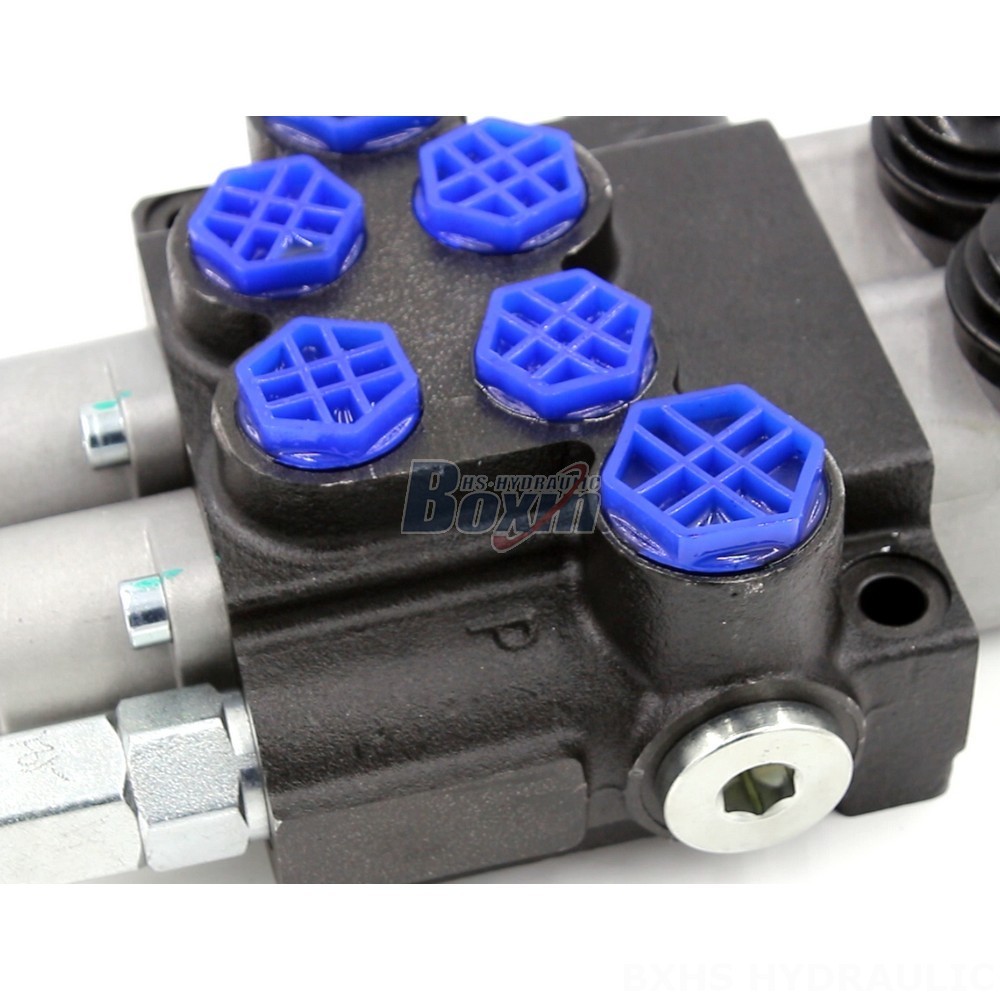

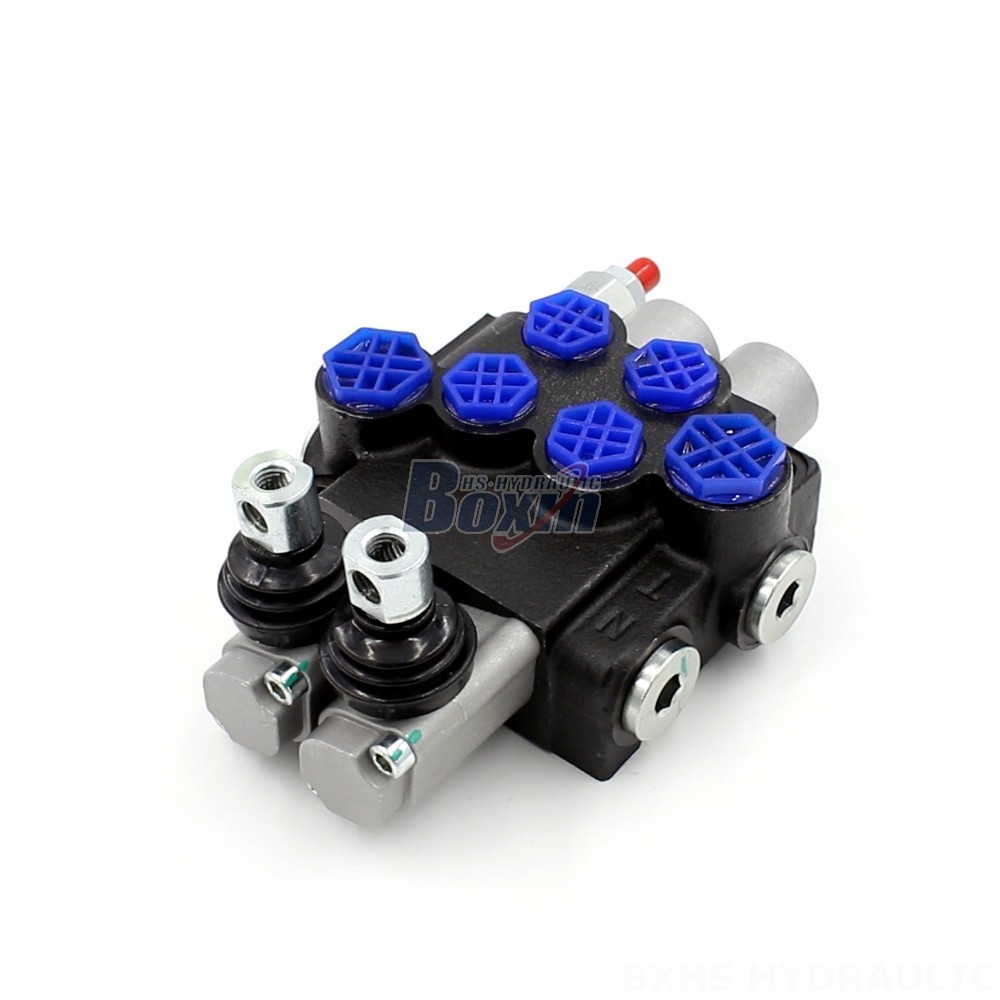

The P40-G12-G38-OT 2-Spool Directional Valve is a high-performance hydraulic component designed for precise steering control in various applications. This 2-section monoblock valve features a manual control method, providing operators with direct control over the steering system. With a rated flow of 40 L/min and a maximum pressure of 250 bar, the valve is capable of handling demanding workloads. Its wide operating viscosity range of 15 - 75 mm²/s ensures optimal performance across different operating temperatures. The valve's durable construction and robust design allow it to withstand harsh environments and demanding operating conditions. The P40 Series valve is ideal for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, and other industrial vehicles. This versatile valve is available for factory direct purchase and offers customization options to meet specific requirements. As a manufacturer, we provide OEM and ODM services, offering wholesale pricing for bulk orders. We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
