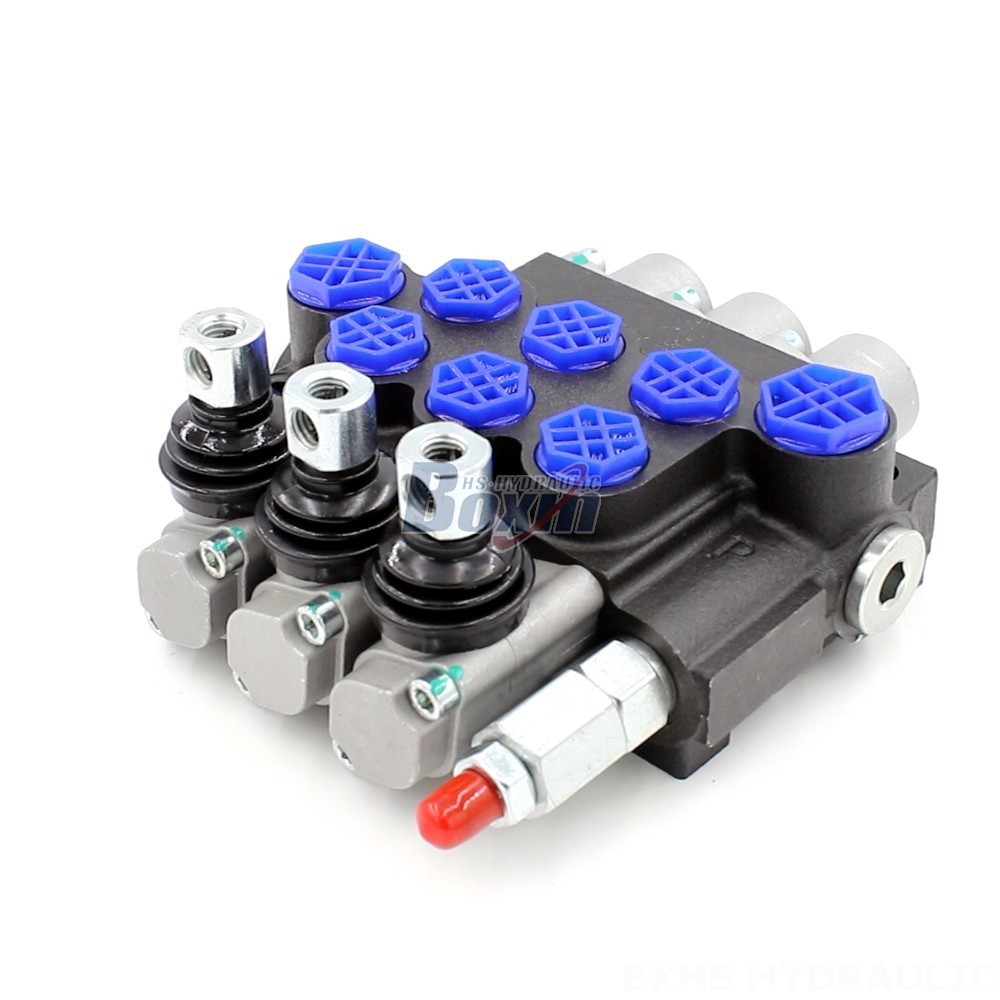

The P40-G12-G38-OT Hydraulic Directional Valve is a high-performance directional control valve designed for use in a wide range of hydraulic applications. With a rated flow rate of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for use in demanding applications in industries such as material handling, construction, agriculture, and industrial vehicles.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-G38-OT Hydraulic Directional Valve features a robust monoblock construction for enhanced durability. Its manual control mechanism provides precise and responsive operation, while its three-section design allows for independent control of multiple hydraulic circuits. The valve's operating viscosity range of 15 - 75 mm²/s and ambient temperature range of -40°C to +80°C ensure reliable performance in a variety of operating conditions. This valve is part of the P40 Series, known for its high quality and reliability. It is suitable for use in various applications, including telehandlers, forklifts, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and backhoe loaders.
