The P40-G12-G38-OT Monoblock Valve is a high-performance hydraulic valve designed for use in a wide range of applications. It features a durable and efficient design, with a rated flow of 40 L/min and a maximum pressure of 250 bar. The valve is suitable for use with a variety of fluids, including hydraulic oil, and has an operating viscosity range of 15 - 75 mm²/s. The valve is also temperature resistant, with an ambient temperature range of -40°C to +80°C.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

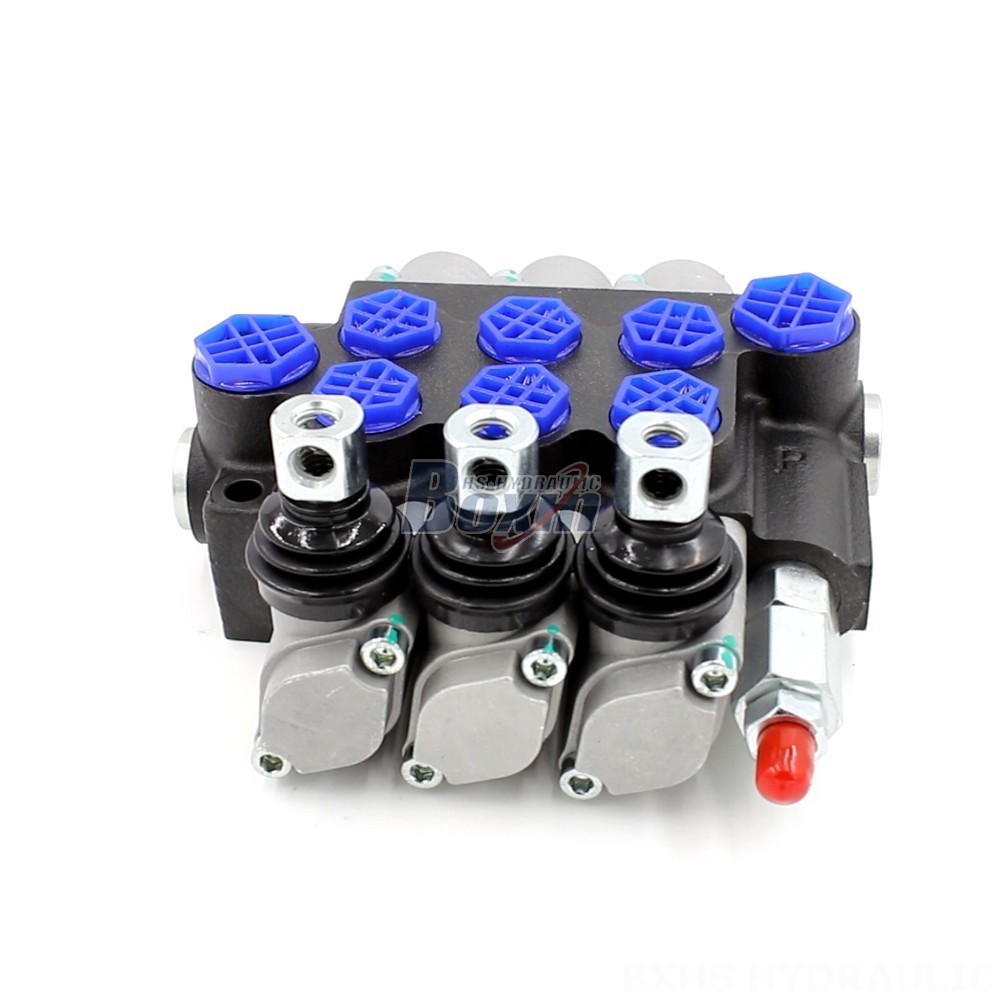

The P40-G12-G38-OT Monoblock Valve is a 3-section, 3-spool valve that is ideal for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. The valve is designed to control the flow of hydraulic fluid in a system, and can be used to direct the fluid to different parts of the system. The valve is made from high-quality materials and is built to last. It is also easy to install and maintain.
**Key Features:**
* Durable and efficient design
* Rated flow of 40 L/min
* Maximum pressure of 250 bar
* Operating viscosity range of 15 - 75 mm²/s
* Ambient temperature range of -40°C to +80°C
* 3-section, 3-spool valve
* Suitable for use with a variety of fluids
* Easy to install and maintain
