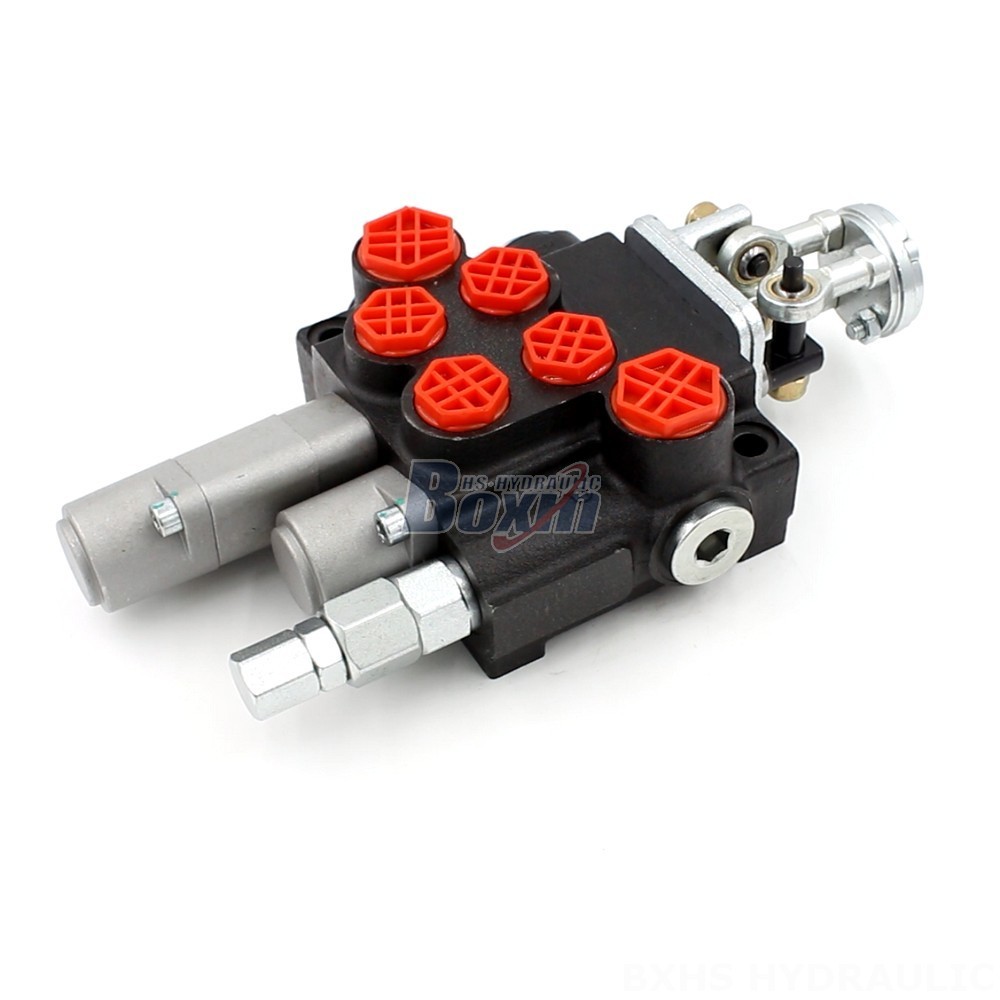

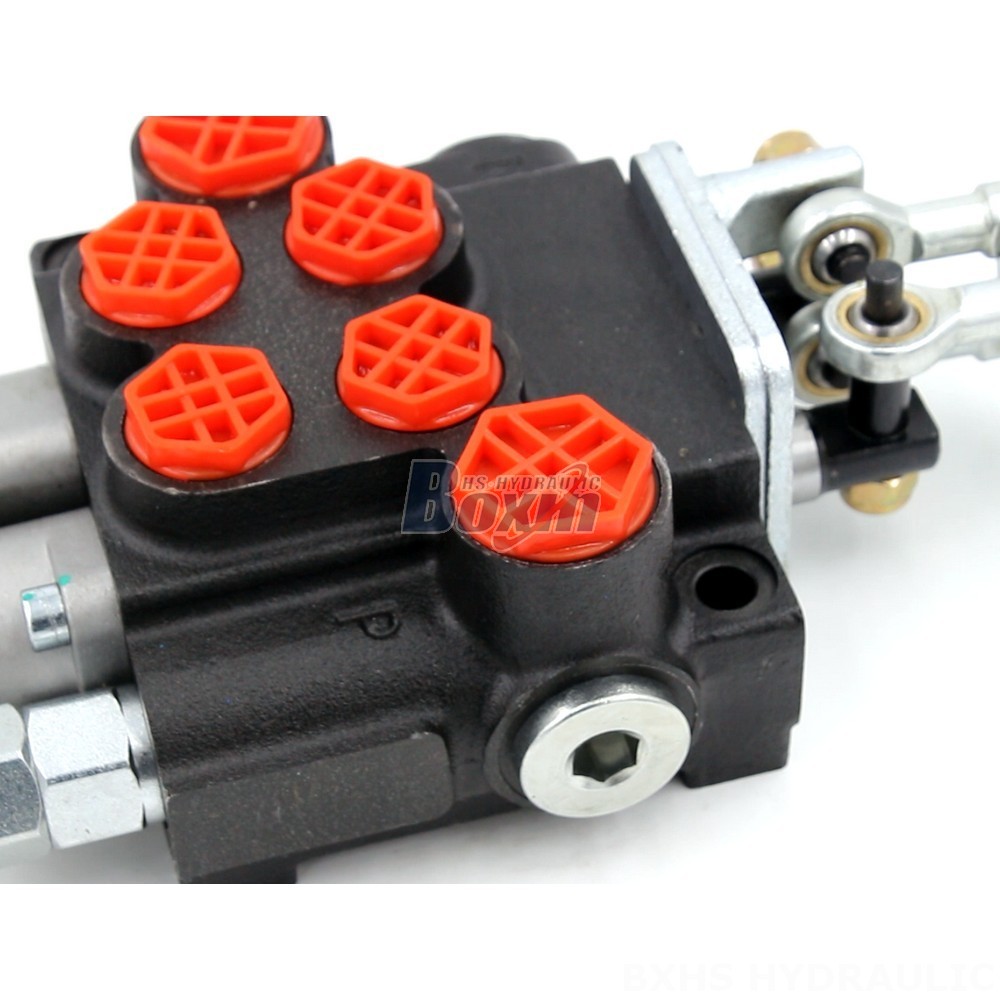

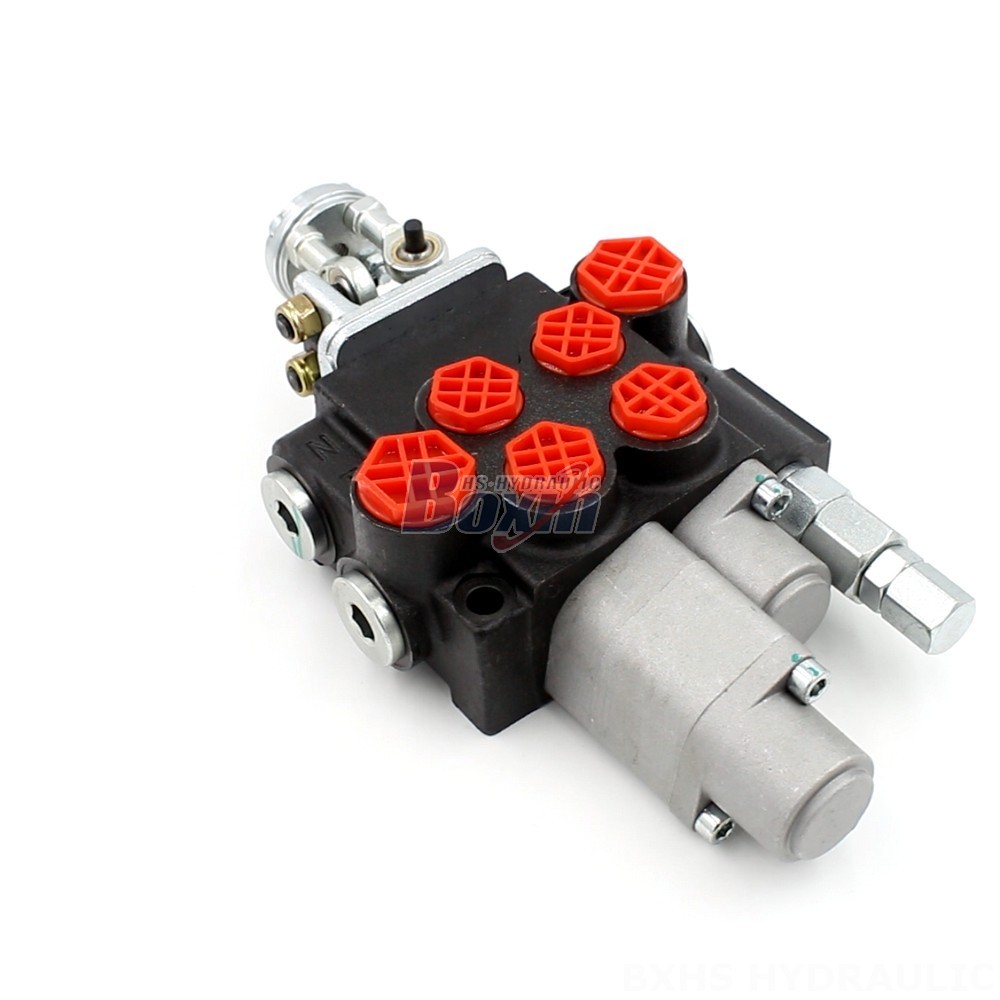

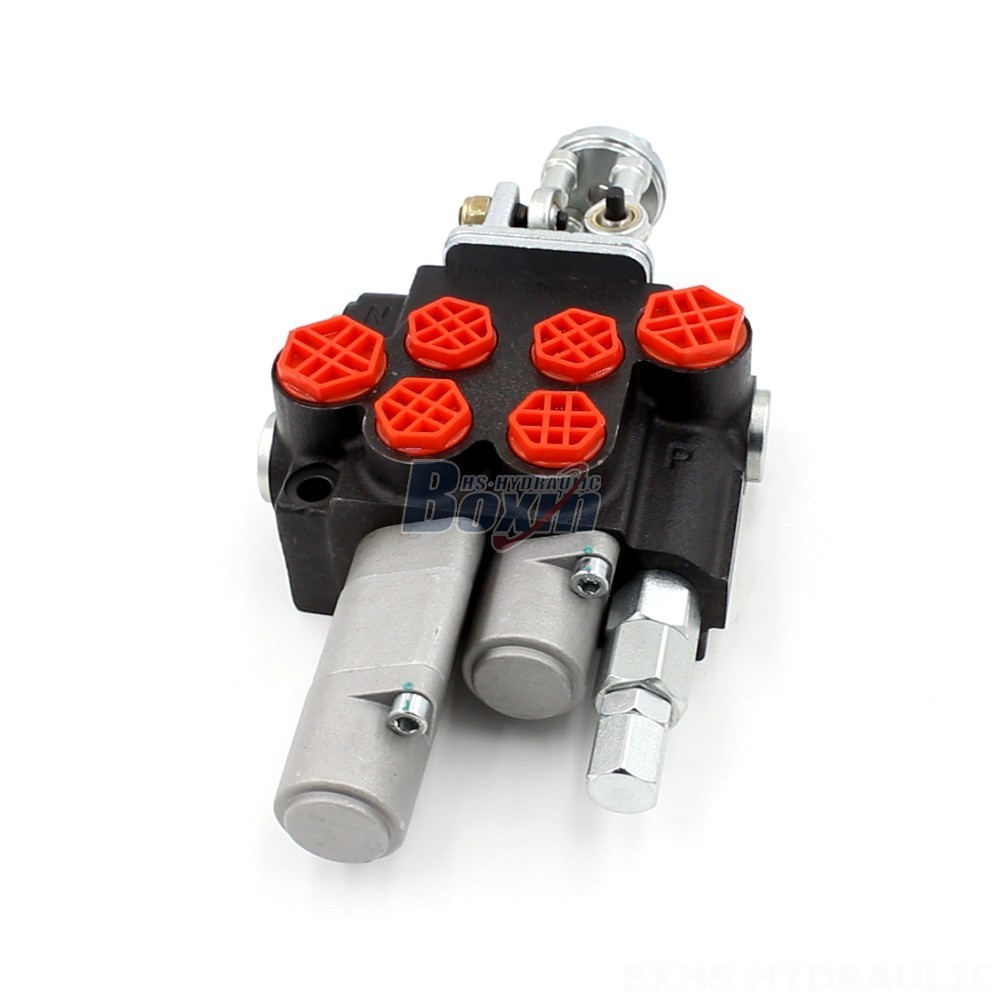

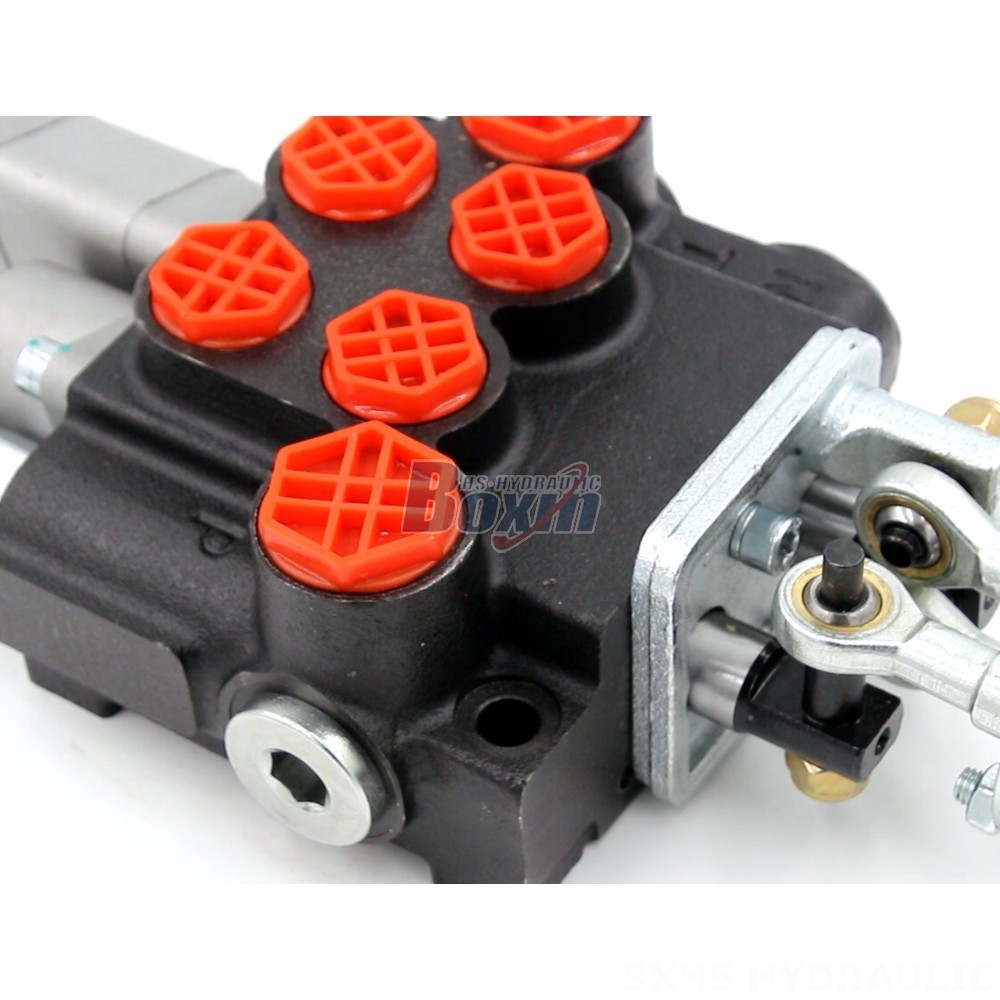

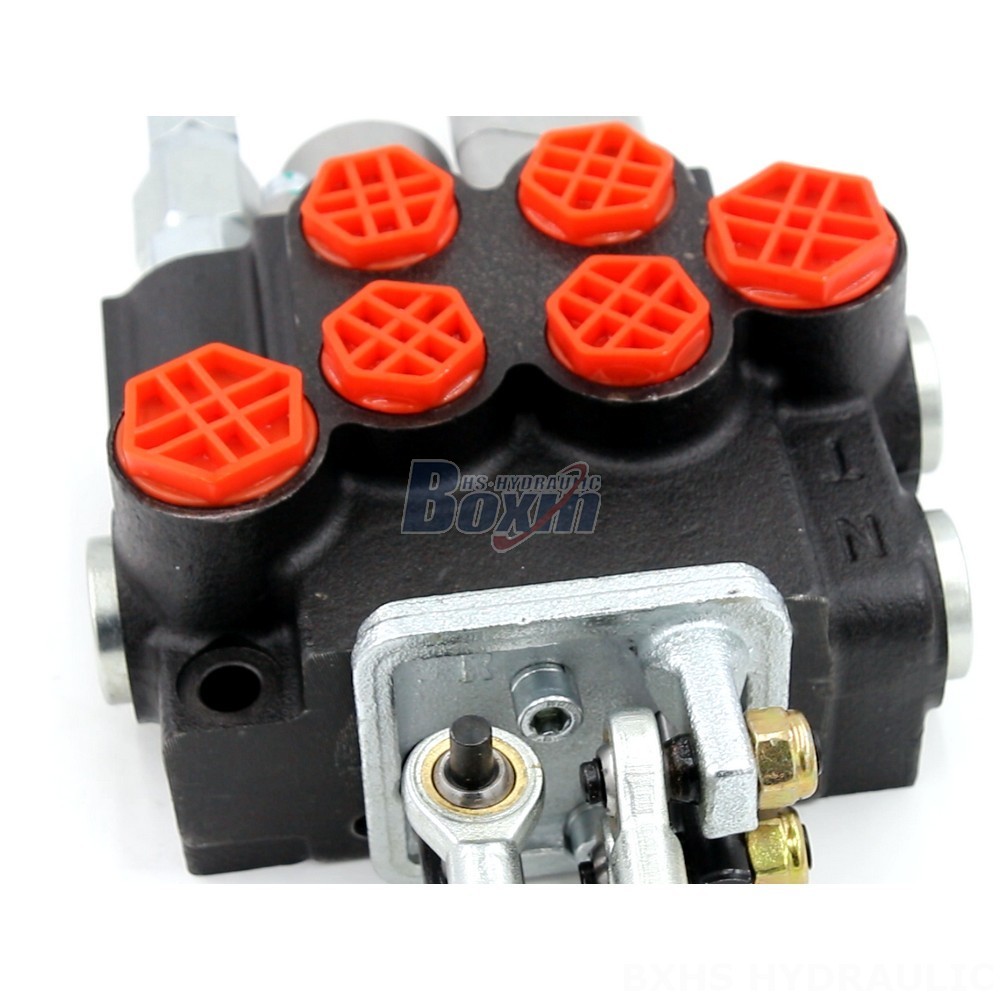

P40-G12-G38-OT-QTW Hydraulic Directional Valve is a 2-section, monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It is suitable for applications in material handling, construction and earth moving, agriculture, and industrial vehicles. The valve can be controlled manually or by joystick and has an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. It is part of the P40 Series and is suitable for use in various models of equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40-G12-G38-OT-QTW Hydraulic Directional Valve**
**Manufacturer: [Your Company Name]**
**Factory Direct Supply & Global Distribution**
The P40-G12-G38-OT-QTW Hydraulic Directional Valve is a high-quality product that is manufactured to meet the highest standards. It is designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
**Features:**
* 2-section, monoblock valve
* Rated flow: 40 L/min (10.5 US gpm)
* Maximum pressure: 250 bar (3600 psi)
* Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
* 2 spool
* Manual and joystick control
* P40 Series
**Applications:**
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
**Benefits:**
* High quality and durability
* Factory direct supply and wholesale prices
* Global distribution
* Excellent customer service
**Contact us today to learn more about the P40-G12-G38-OT-QTW Hydraulic Directional Valve and how it can benefit your business.**
