The P40 Series Hydraulic Solenoid Valve is a high-performance, 12VDC monoblock directional valve designed for demanding applications in construction, agriculture, and material handling. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for a wide range of equipment, including telehandlers, forklifts, and excavators. Its robust design and reliable operation make it a top choice for OEMs and wholesalers.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

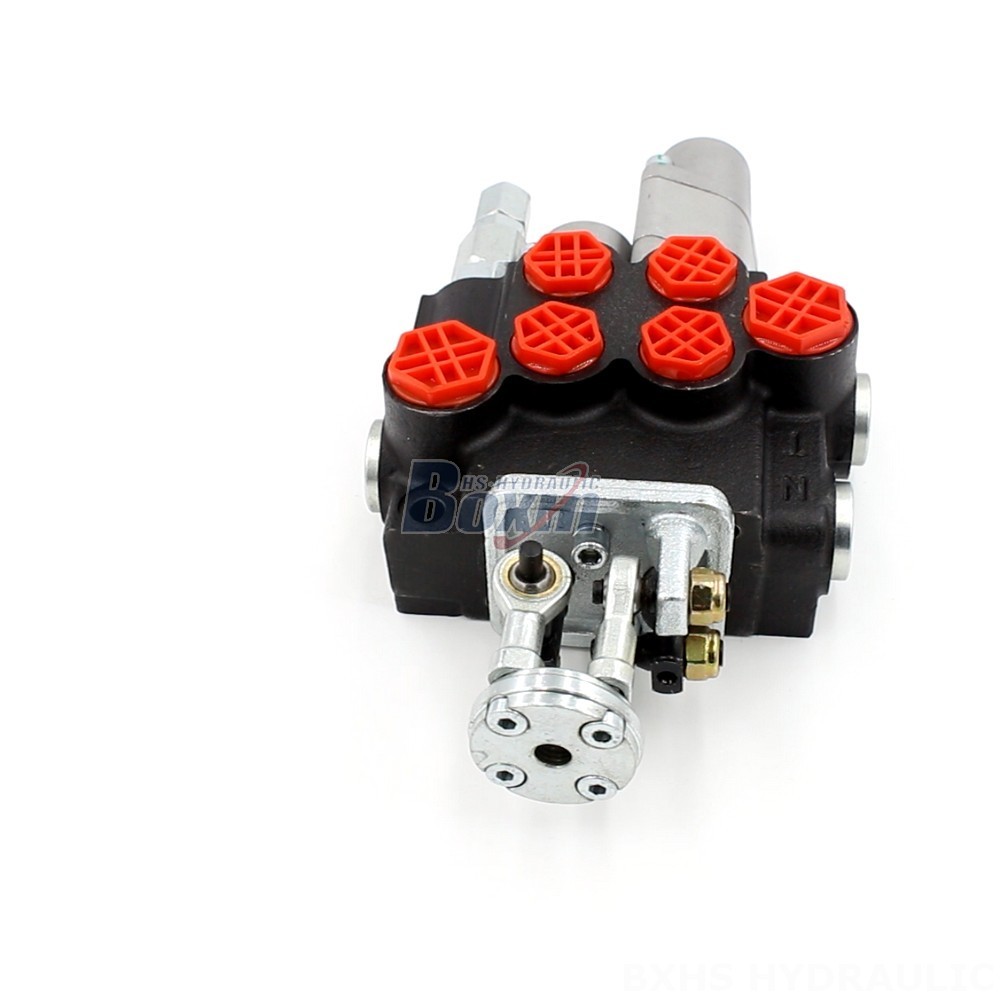

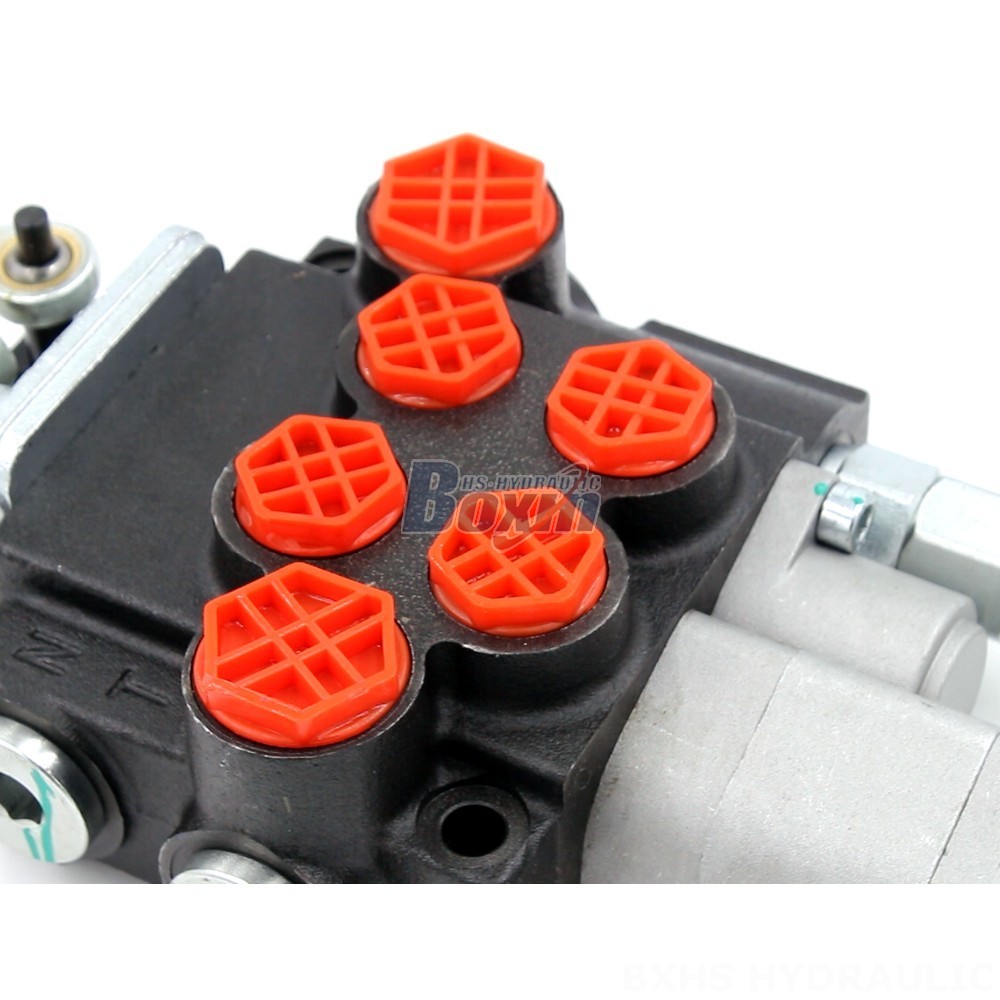

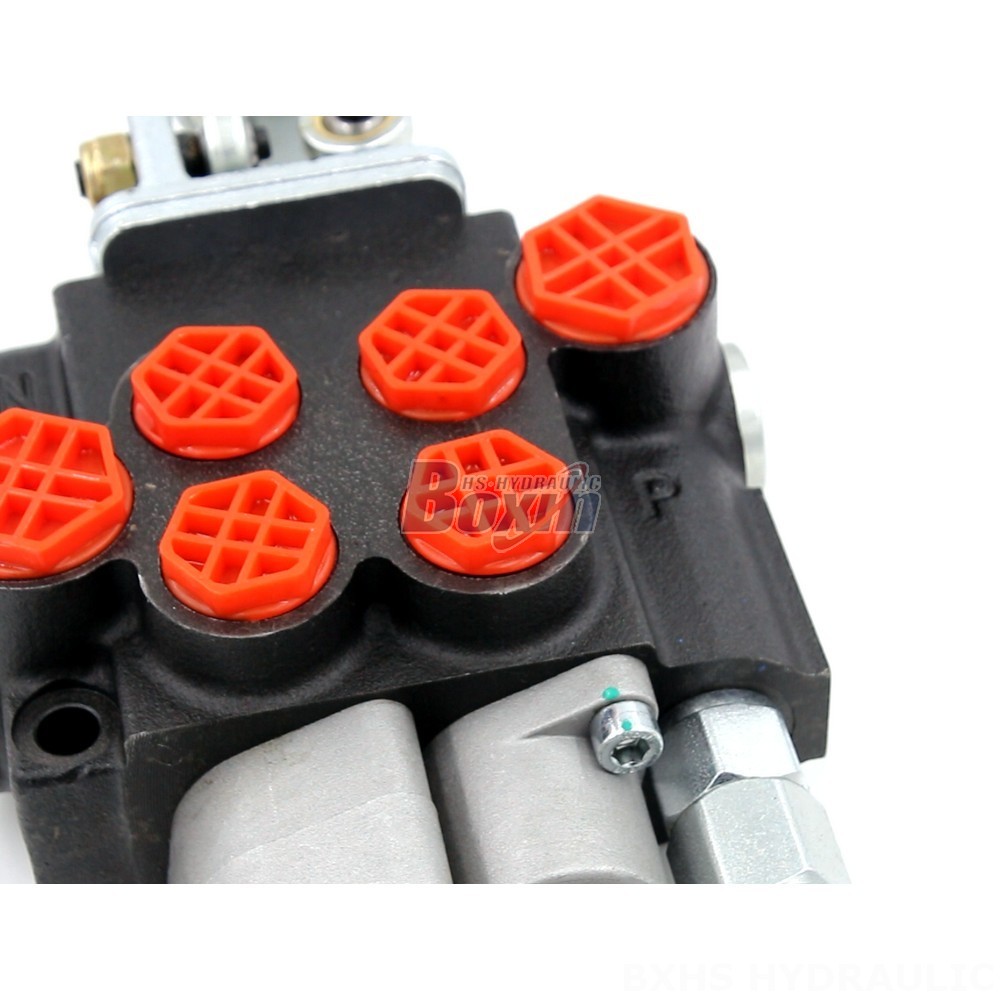

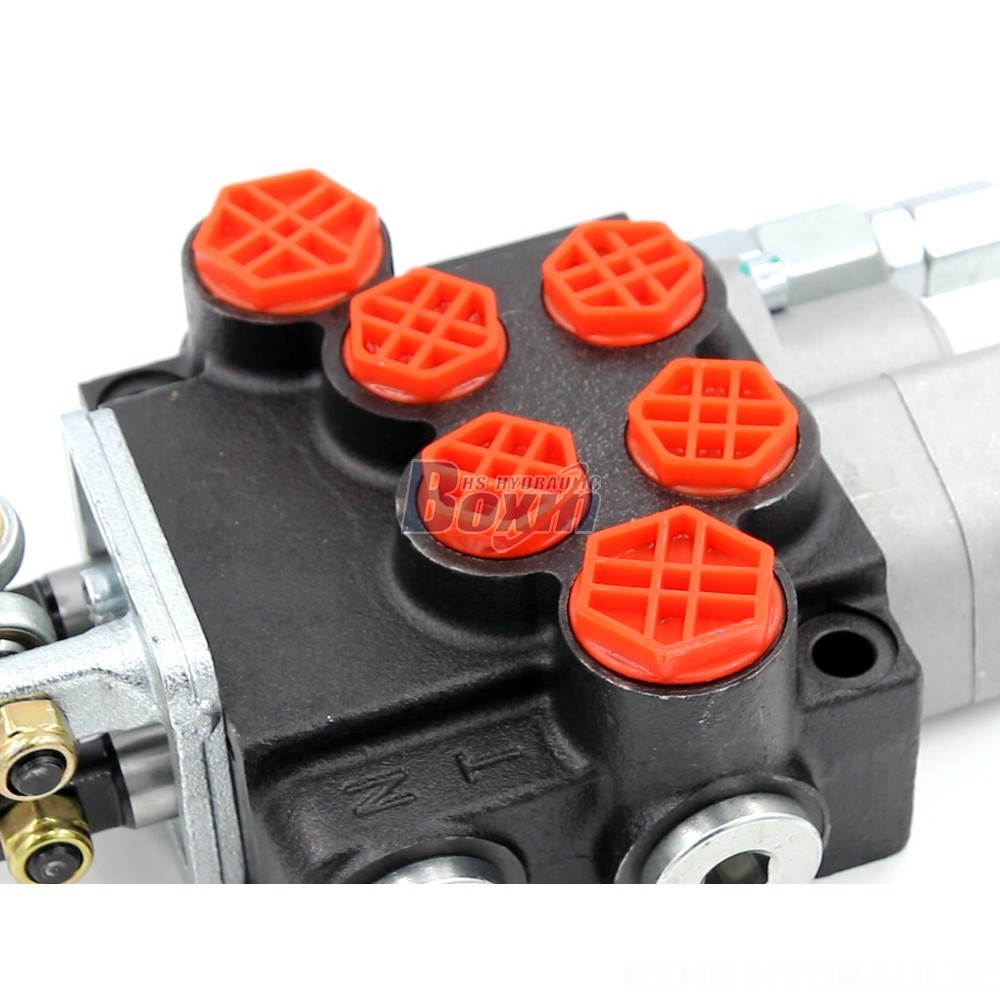

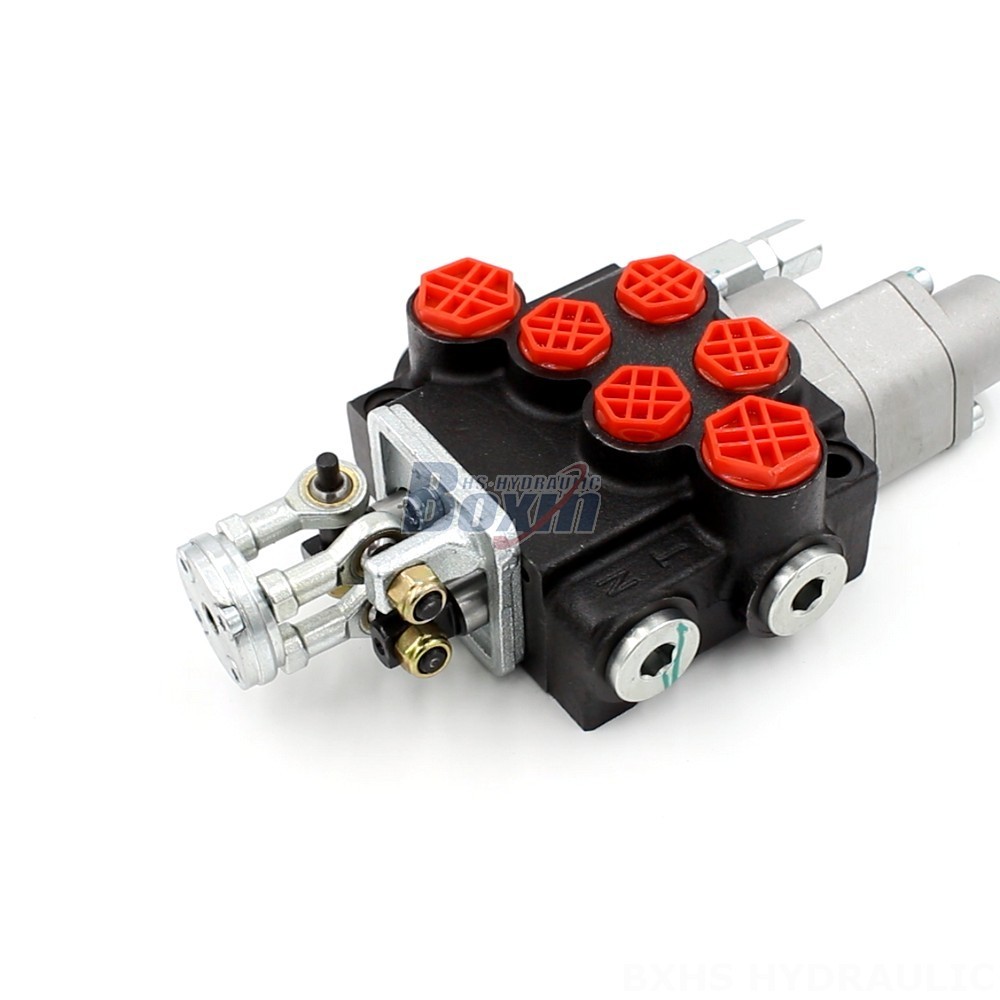

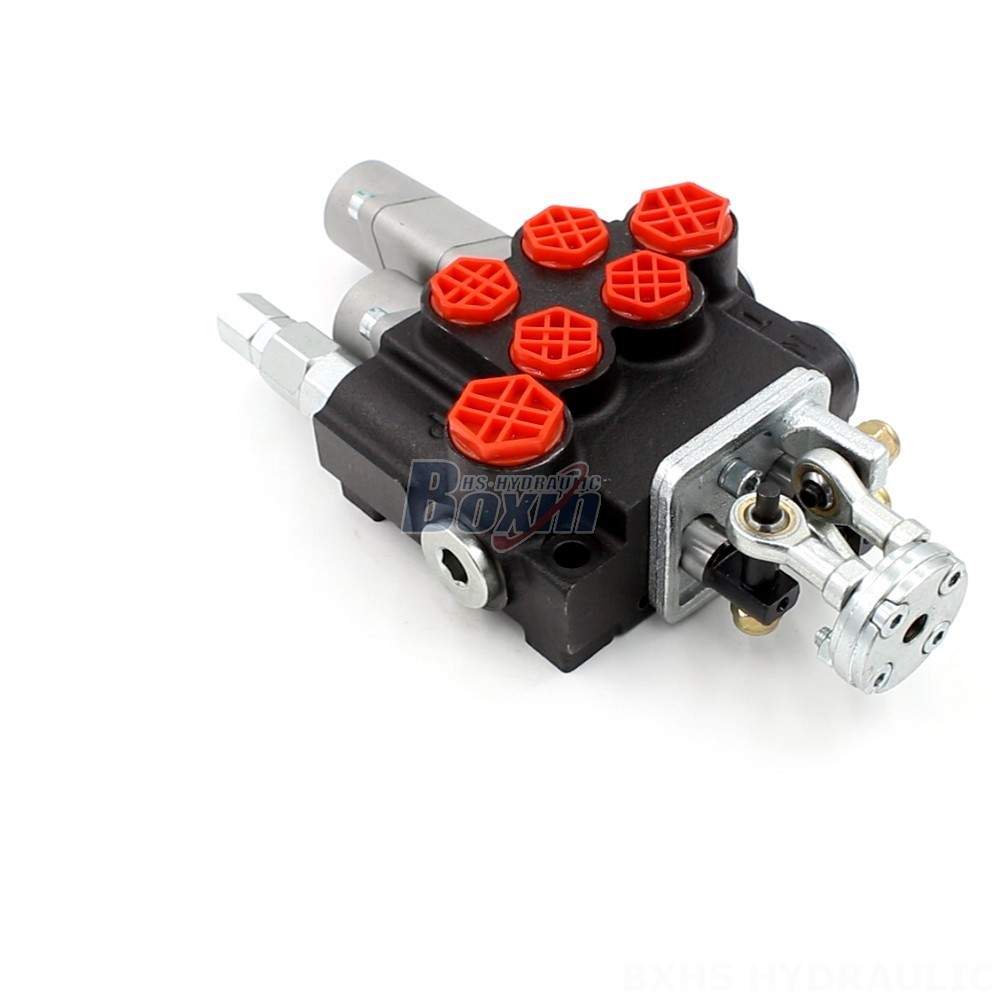

The P40-G12-G38-OT-QTW Hydraulic Solenoid Valve is a 2-section, 2-spool monoblock directional valve with manual and joystick control. It offers a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), making it suitable for a variety of heavy-duty applications. This valve is designed to operate within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and withstand temperatures from -40°C to +80°C (-40°F to +176°F). The P40 series is specifically engineered for use in construction, agriculture, and material handling equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. We offer this valve in wholesale quantities and as an OEM solution for manufacturers. We also provide custom design and manufacturing services to meet specific application requirements.
