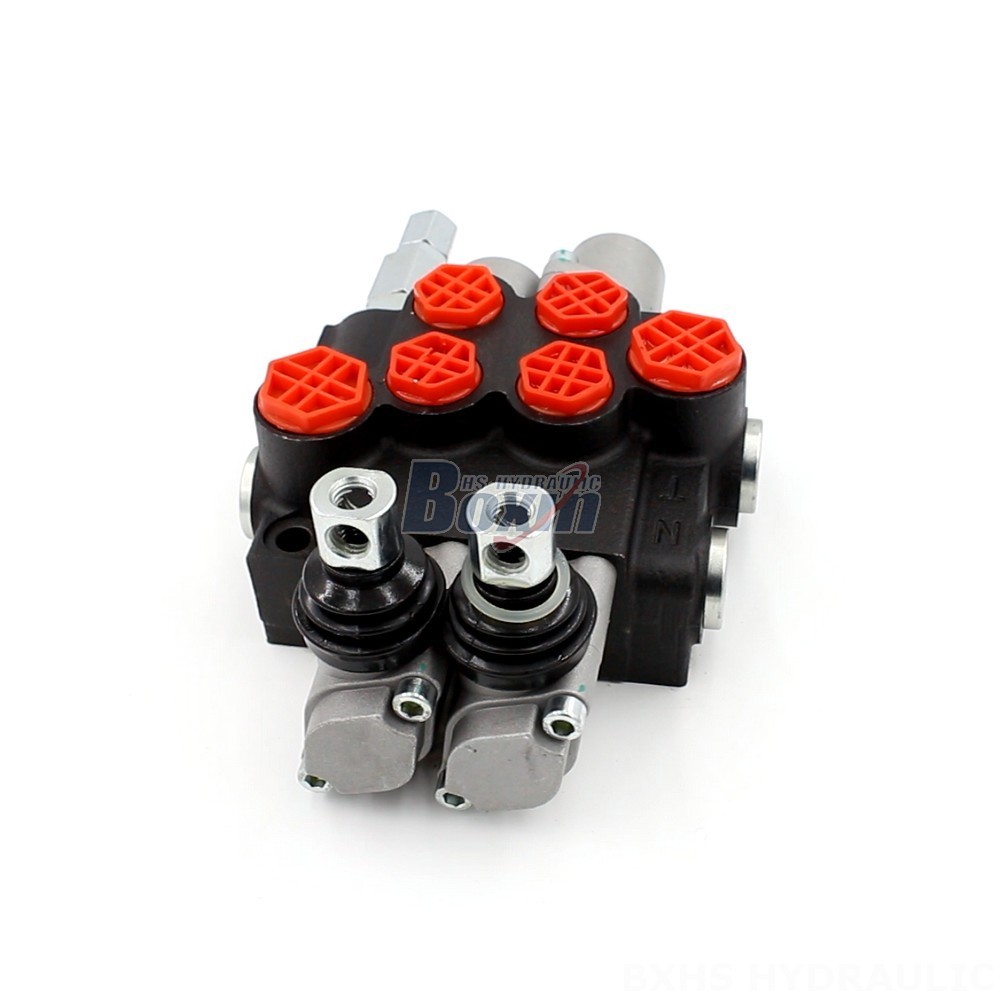

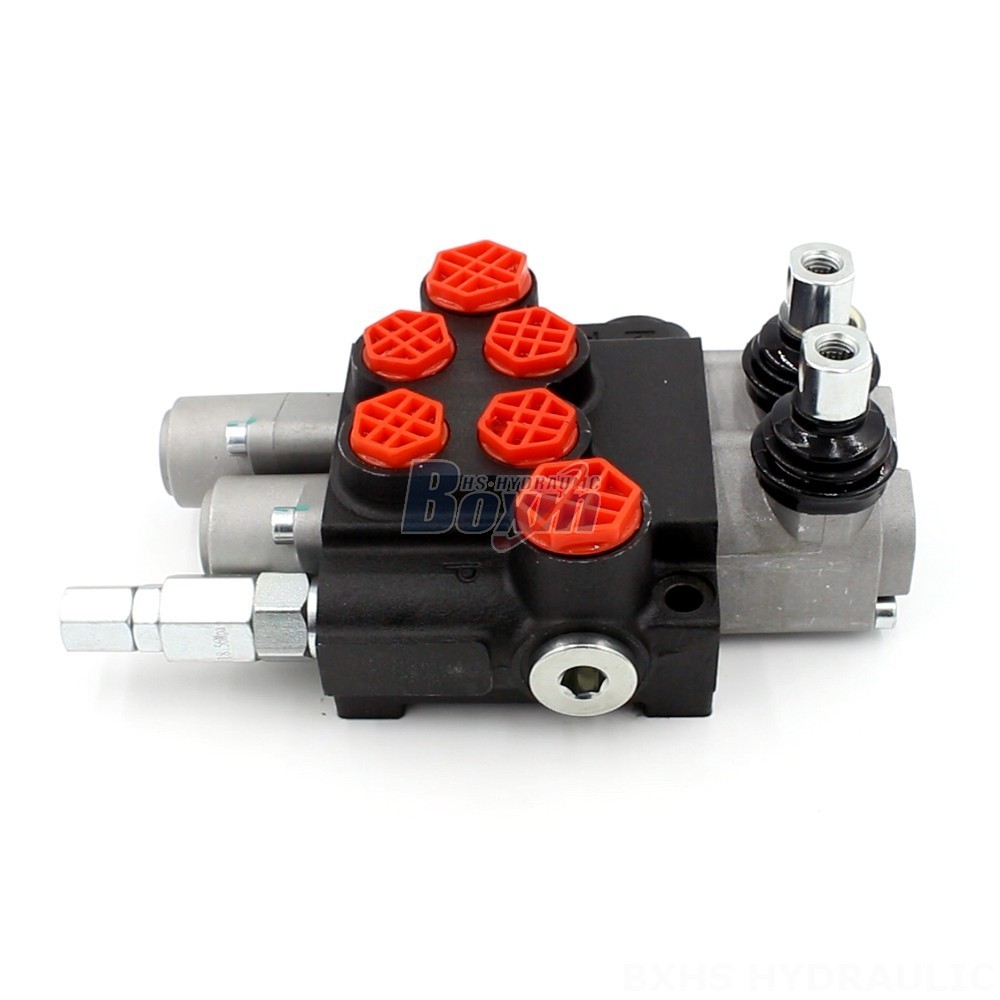

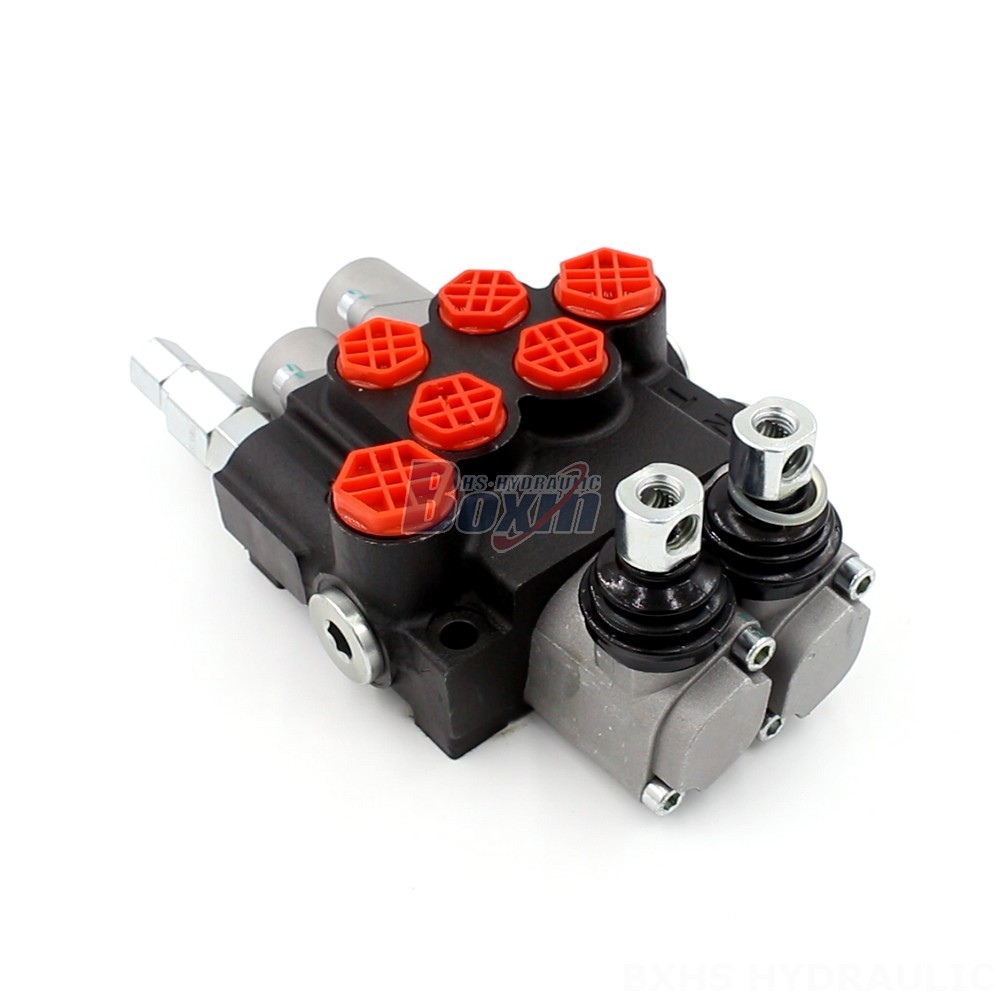

The P40-G12-G38-OT-QTW Monoblock Valve is a solenoid operated, 2-section directional control valve designed for demanding hydraulic applications in industries such as material handling, construction, and agriculture. It features a maximum operating pressure of 250 bar and a rated flow of 40 L/min, making it suitable for a wide range of machinery including telehandlers, forklifts, and excavators.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series directional control valve is a robust, monoblock construction offering manual control. The valve is designed for demanding hydraulic applications, boasting a rated flow of 40 L/min and a maximum operating pressure of 250 bar. Its operating viscosity range spans from 15 to 75 mm²/s, suitable for various hydraulic fluids. The valve is equipped with two spools, allowing for precise control over hydraulic circuits. The P40-G12-G38-OT-QTW valve is ideally suited for heavy-duty machinery within material handling, construction, and agriculture industries, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. Its compact design and high performance make it a reliable choice for demanding hydraulic applications.
