Produção e Entrega
Prazo de produção de 15 a 30 dias

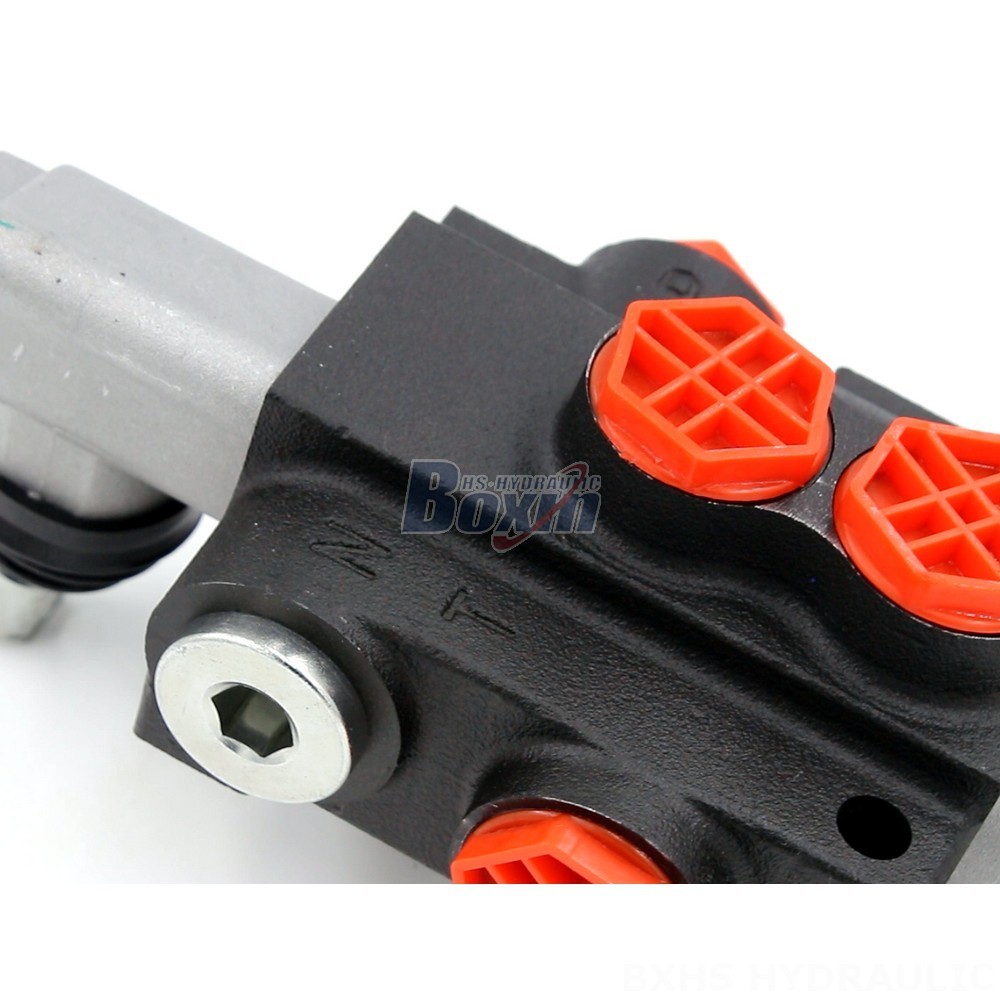

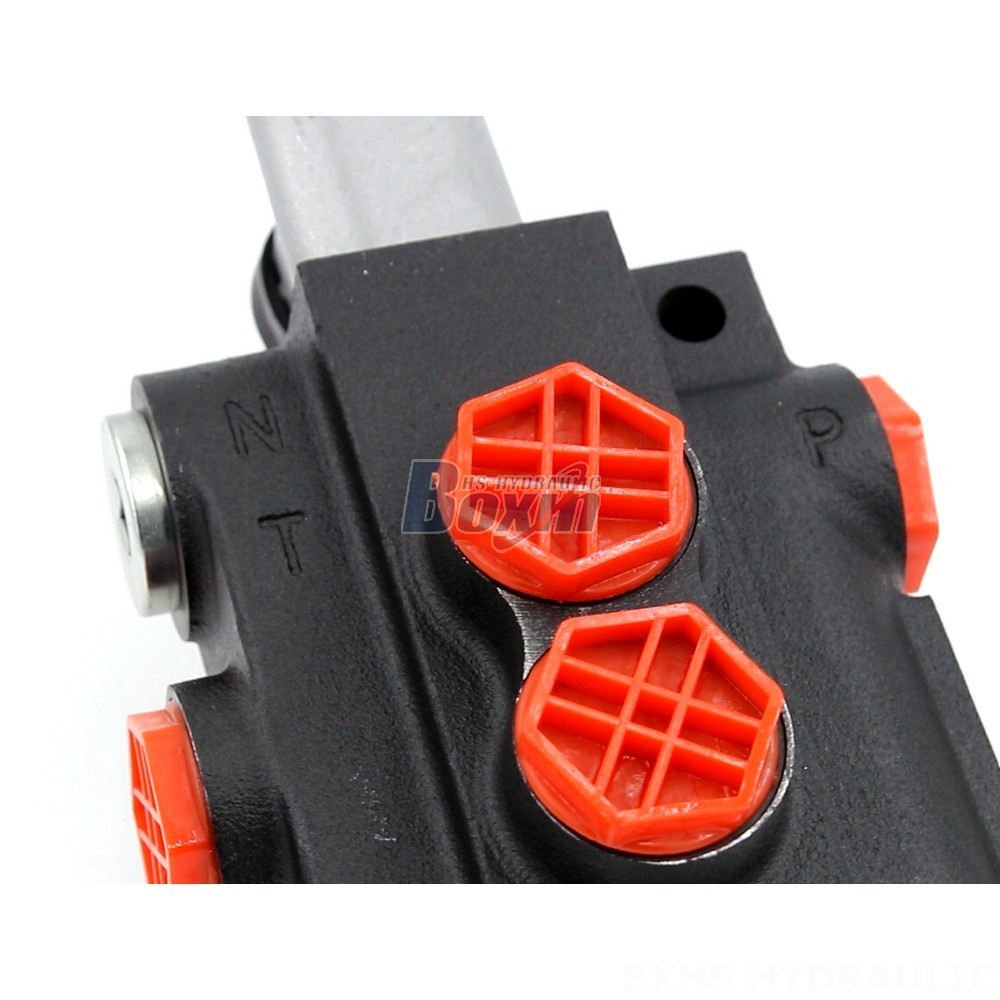

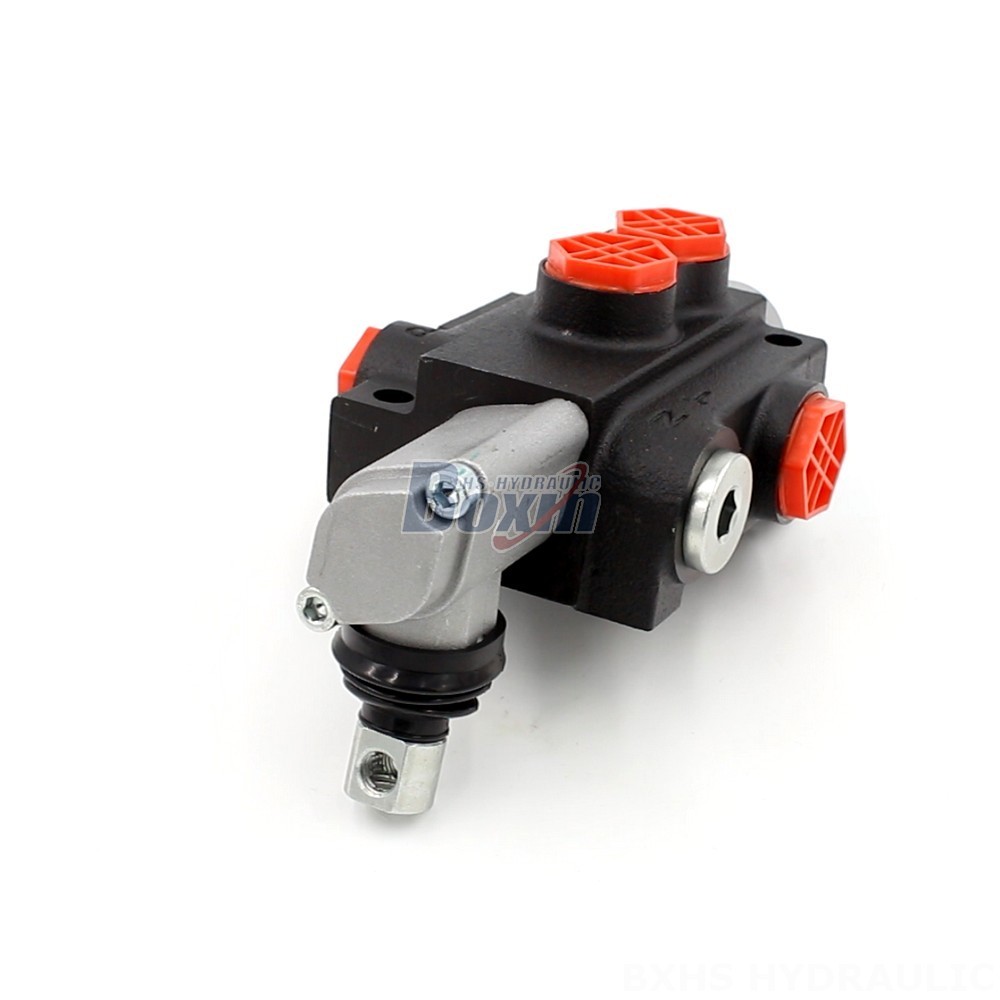

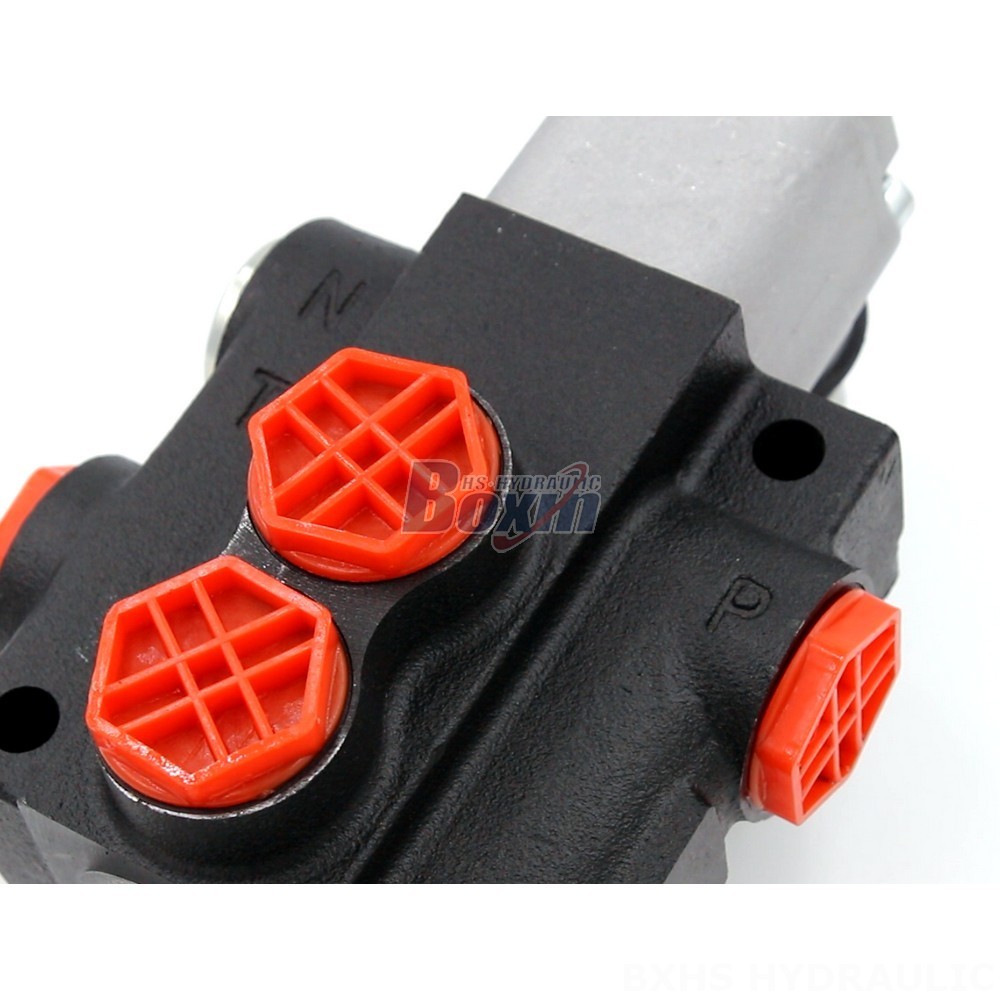

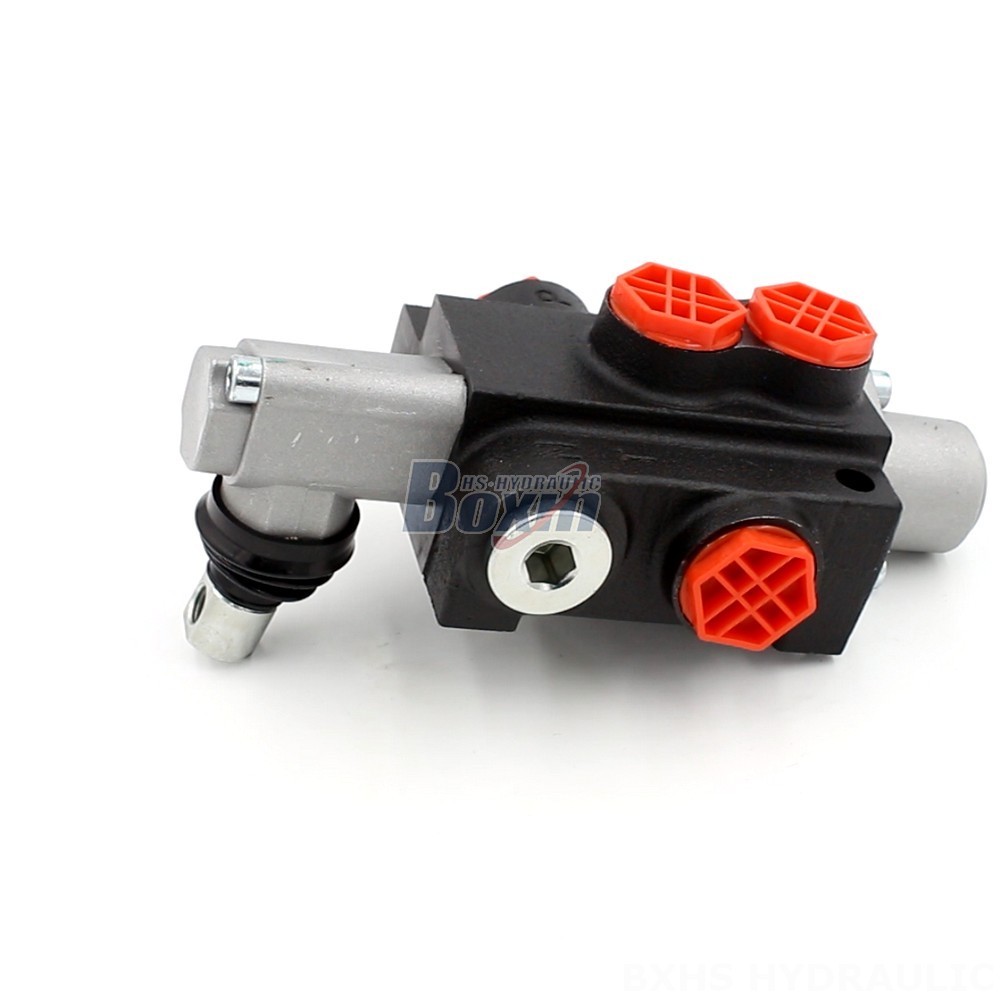

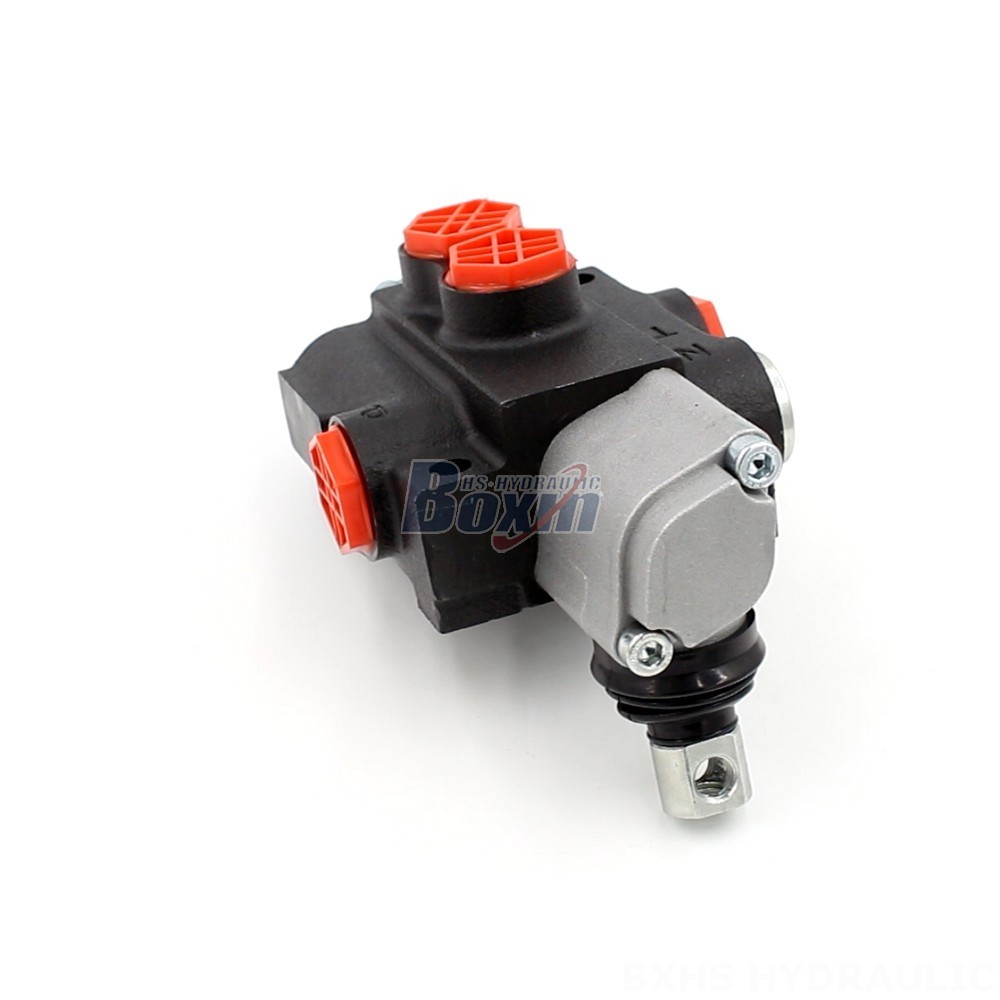

The P40-G12-OT Tipper Control Valve is a high-performance hydraulic directional valve designed for demanding applications in material handling, construction, earthmoving, agriculture, and industrial vehicles. It features a manual control method, 1 section, monoblock valve structure, 40 L/min rated flow, and 250 bar maximum pressure. This valve is available factory direct and customizable to meet your specific needs.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-OT Tipper Control Valve is a reliable and durable hydraulic valve designed for heavy-duty applications. It offers a compact and robust design with a 1-section monoblock valve structure. This valve is manually controlled, providing precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve delivers powerful hydraulic performance. It's suitable for a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, and skid steer loaders. The P40-G12-OT Tipper Control Valve is manufactured with high-quality materials and rigorous testing to ensure long-lasting performance and reliability. It's available factory direct, offering flexibility for customization to meet your specific requirements. This valve is ideal for demanding applications where robust performance and reliability are essential.
