Produção e Entrega
Prazo de produção de 15 a 30 dias
1054 Visualizações estão procurando por este produto

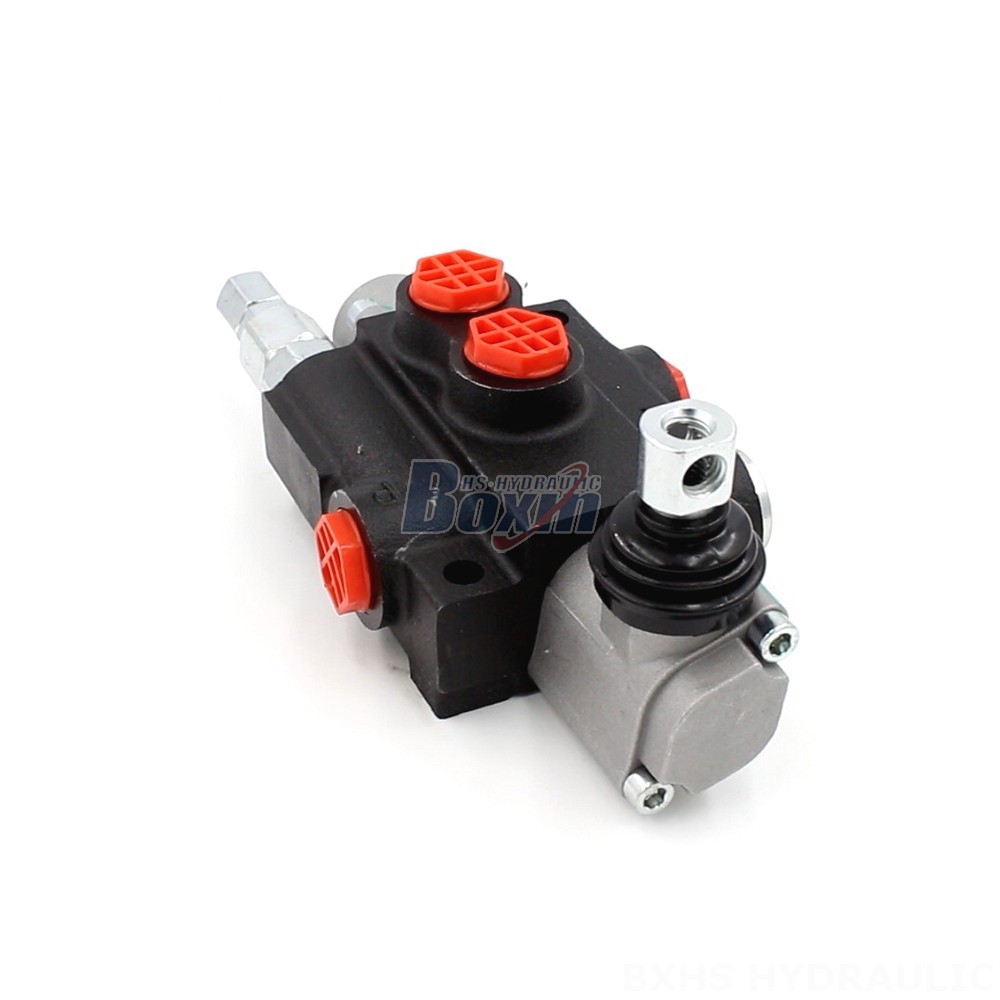

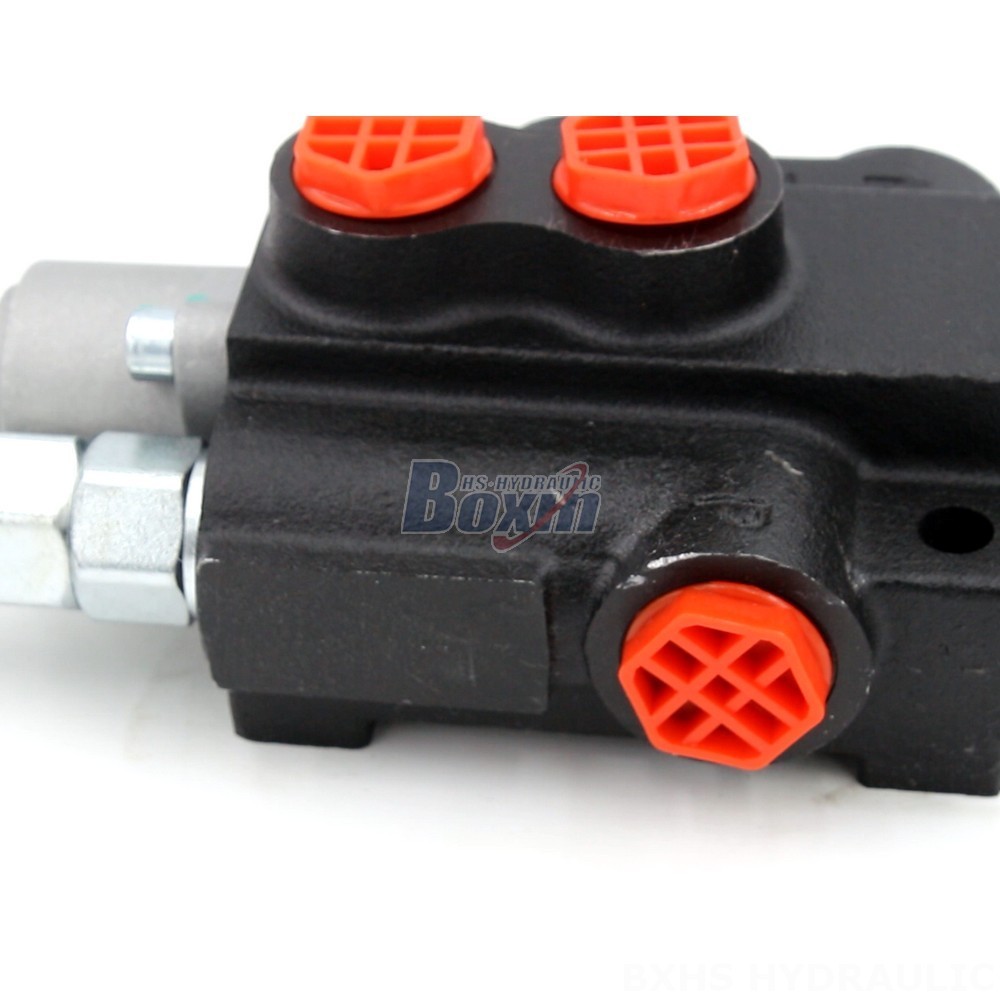

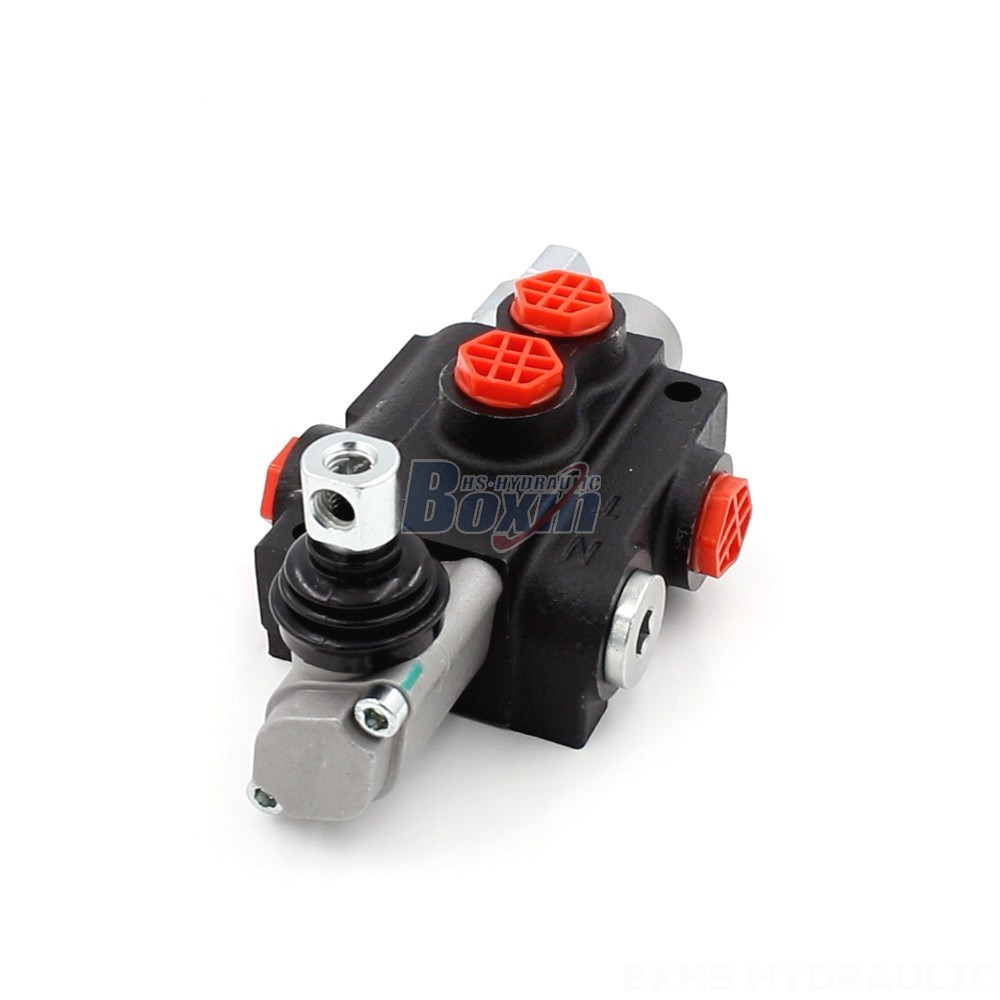

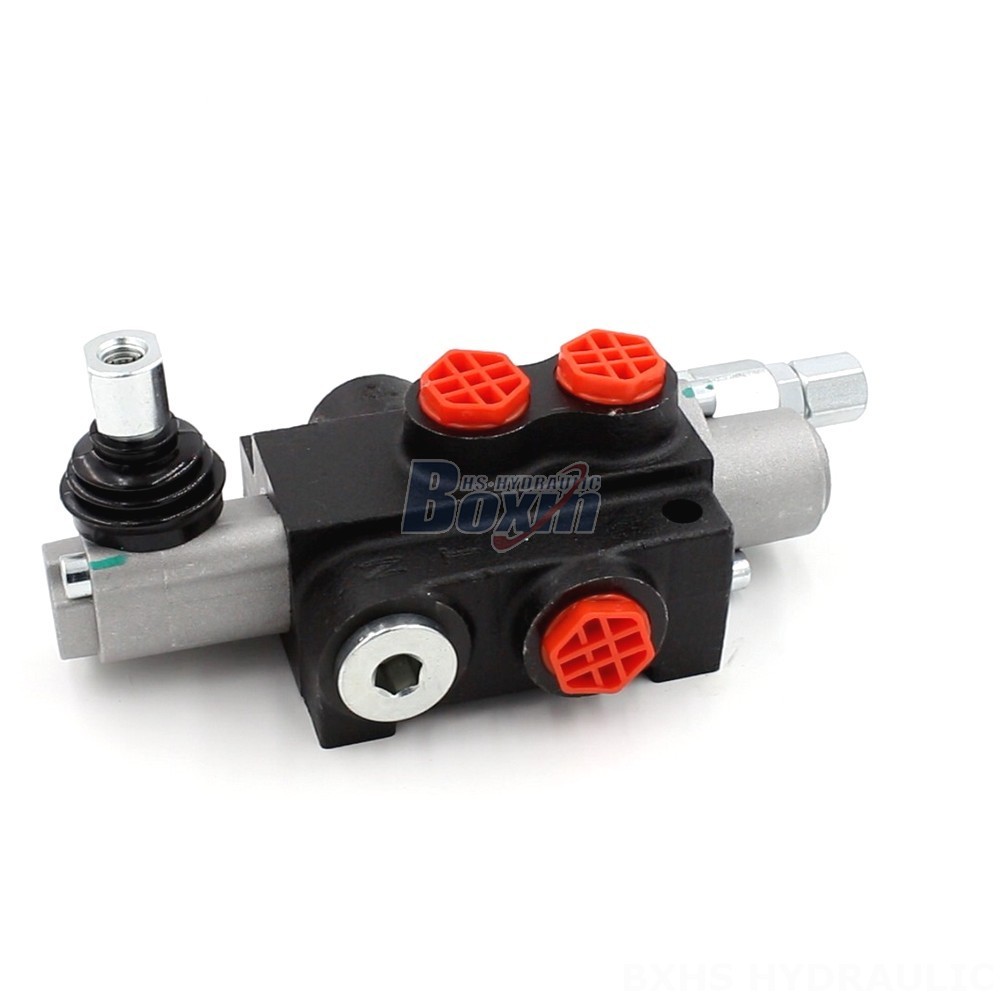

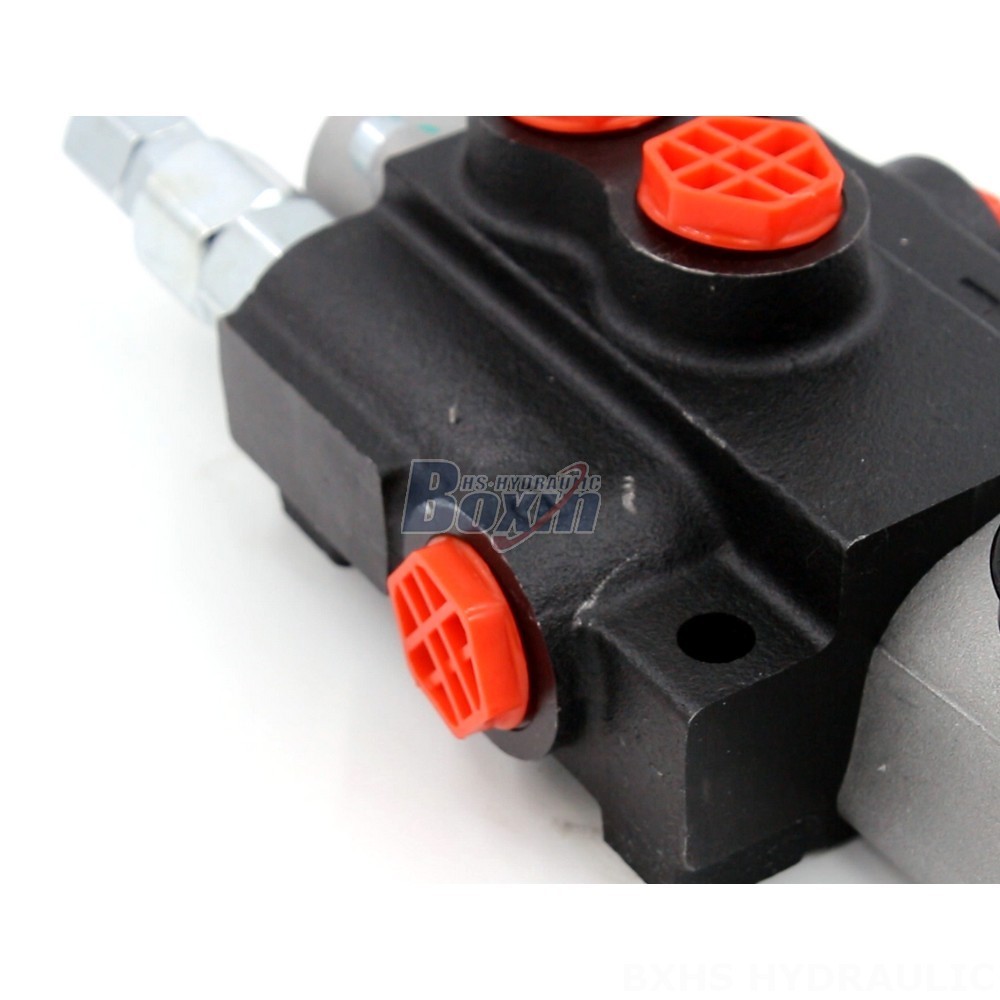

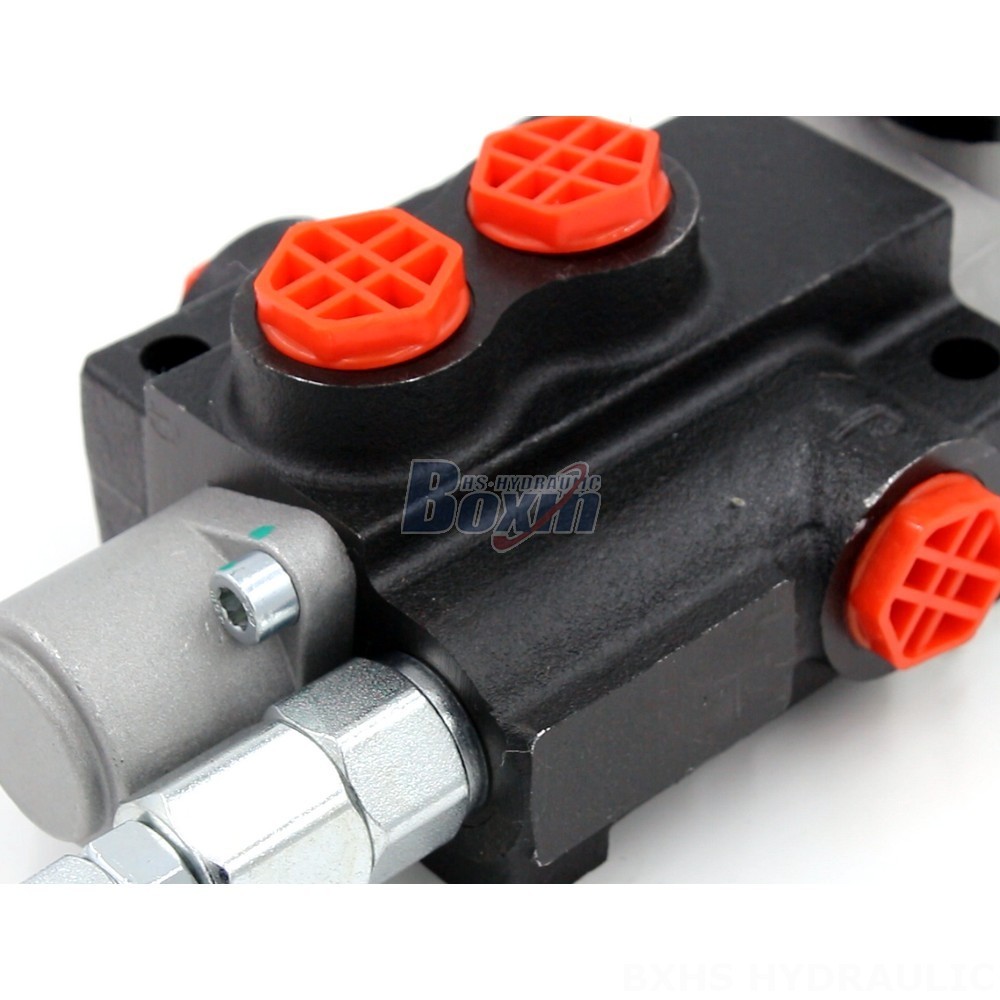

The Hydraulic Flow Divider P40-G38 Directional Valve is a reliable and efficient solution for controlling hydraulic flow in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. This manual control valve features a monoblock structure, a rated flow of 40 L/min, and a maximum pressure of 250 bar, making it suitable for telehandlers, forklifts, cranes, stackers, aerial platforms, and more.
| Série P40 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | 250 bar (3600 psi) |
| Porta de Entrada | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Porta de Saída | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Tamanho da Porta | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G38 Directional Valve is a 1-section monoblock valve designed for manual control of hydraulic flow. It features a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve is compatible with operating viscosities ranging from 15 to 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). Its 1-spool design ensures precise control of hydraulic flow, while its robust construction ensures long-lasting performance. The P40-G38 Directional Valve is an ideal choice for a variety of applications, including material handling, construction, agriculture, and industrial vehicles, such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
