P40-U34-2OT Manual Hydraulic Valve | Customizable & Private Label

Método de Controle:Manual

Carrétel:2 Carreteis

Fluxo Nominal:40 L/min (10,5 US gpm)

Pressão Máxima:250 bar (3600 psi)

Porta de Entrada:SAE 8

Porta de Saída:SAE 8

Tamanho da Porta:SAE 8

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série P40 Válvula Direcional Monobloco

Tamanho da embalagem:23*18*13

Peso bruto:4.80 kg

Disponibilidade: Em estoque

1018 Visualizações estão procurando por este produto

P40-U34-2OT Manual Hydraulic Valve | Customizable & Private Label

P40-U34-2OT Manual Hydraulic Valve | Customizable & Private Label

P40-U34-2OT Manual Hydraulic Valve | Customizable & Private Label drawing image

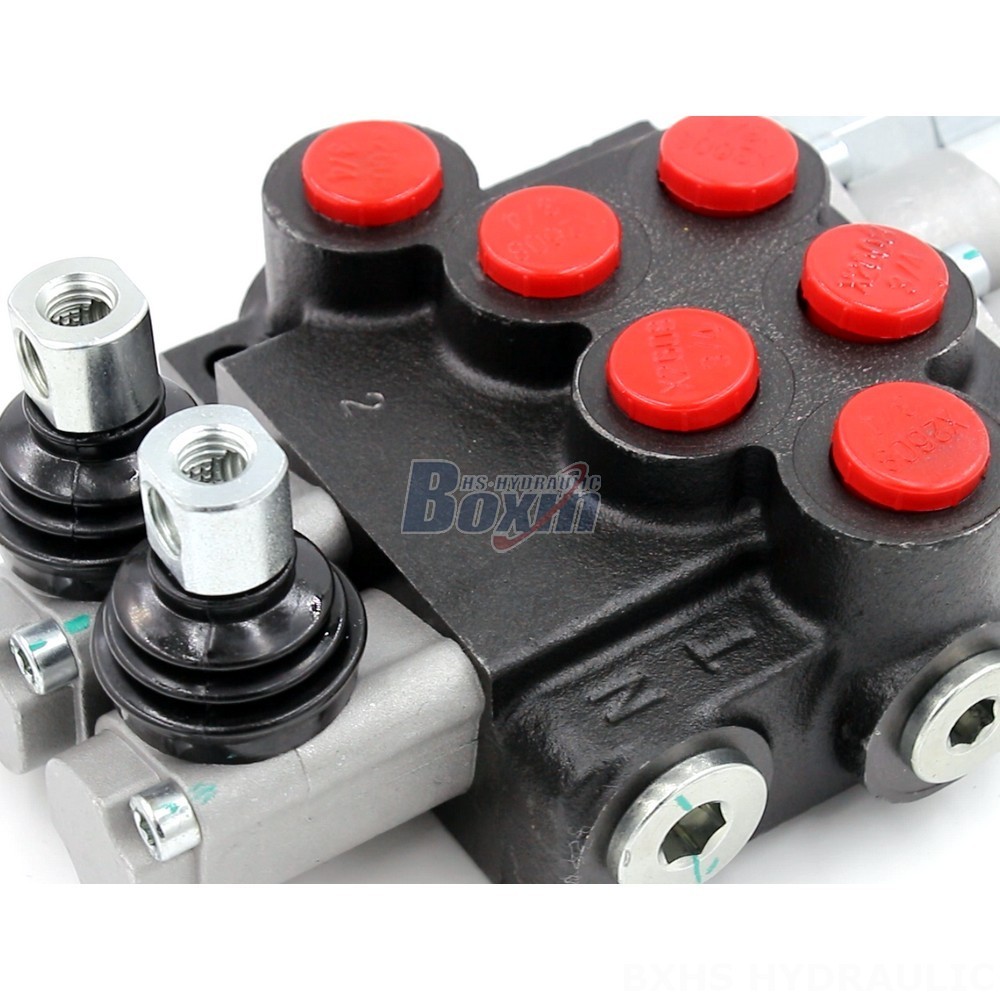

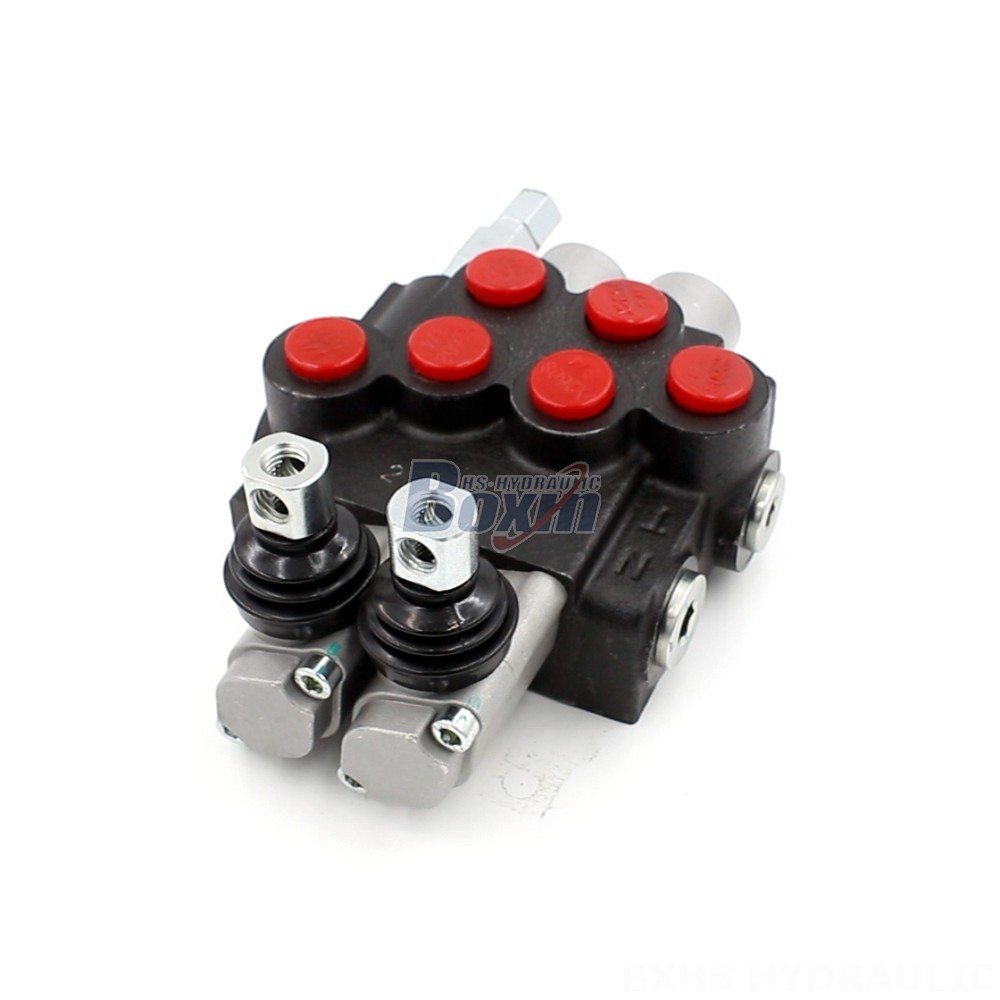

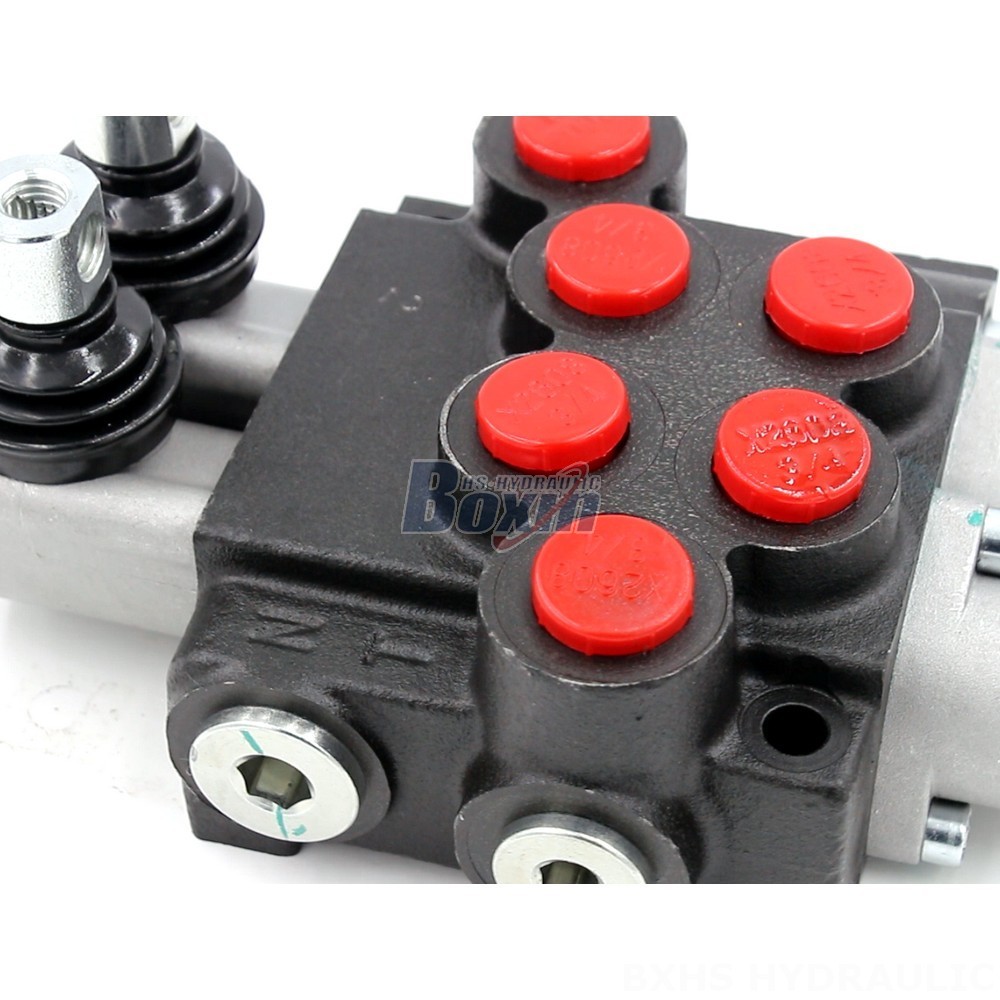

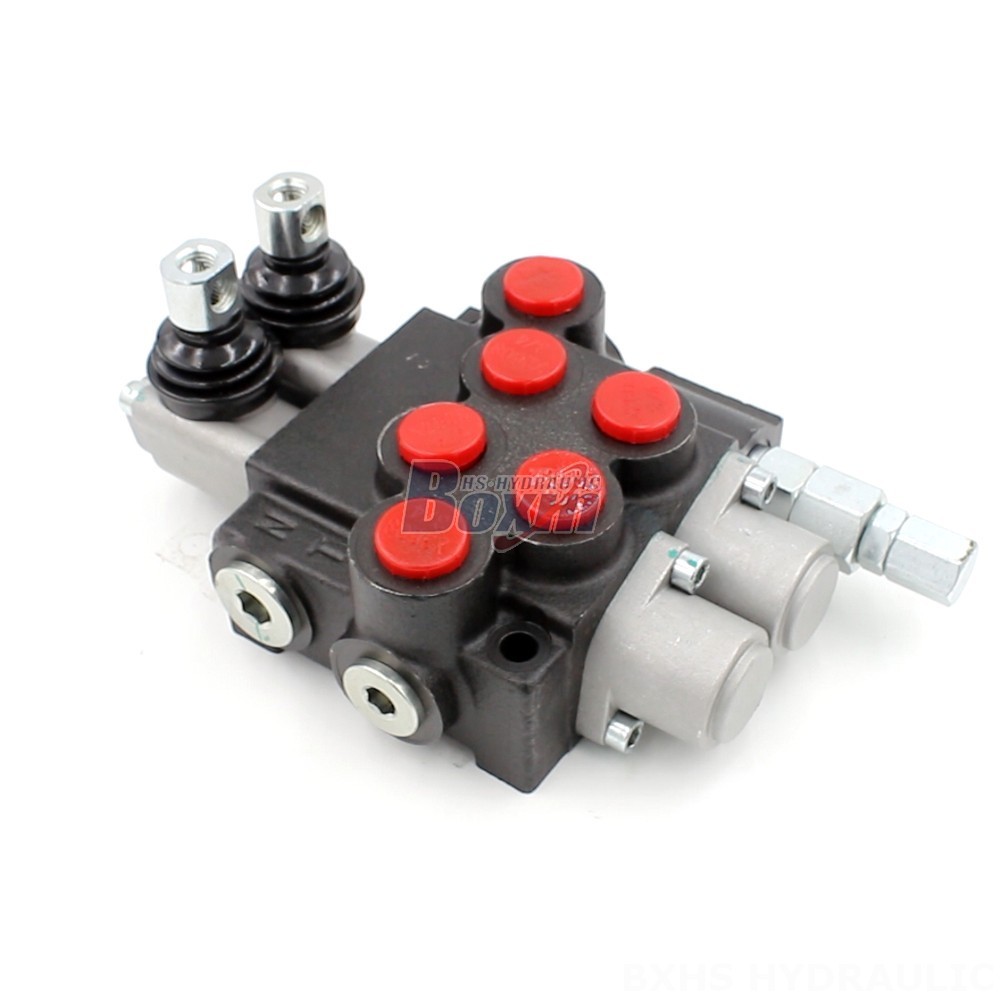

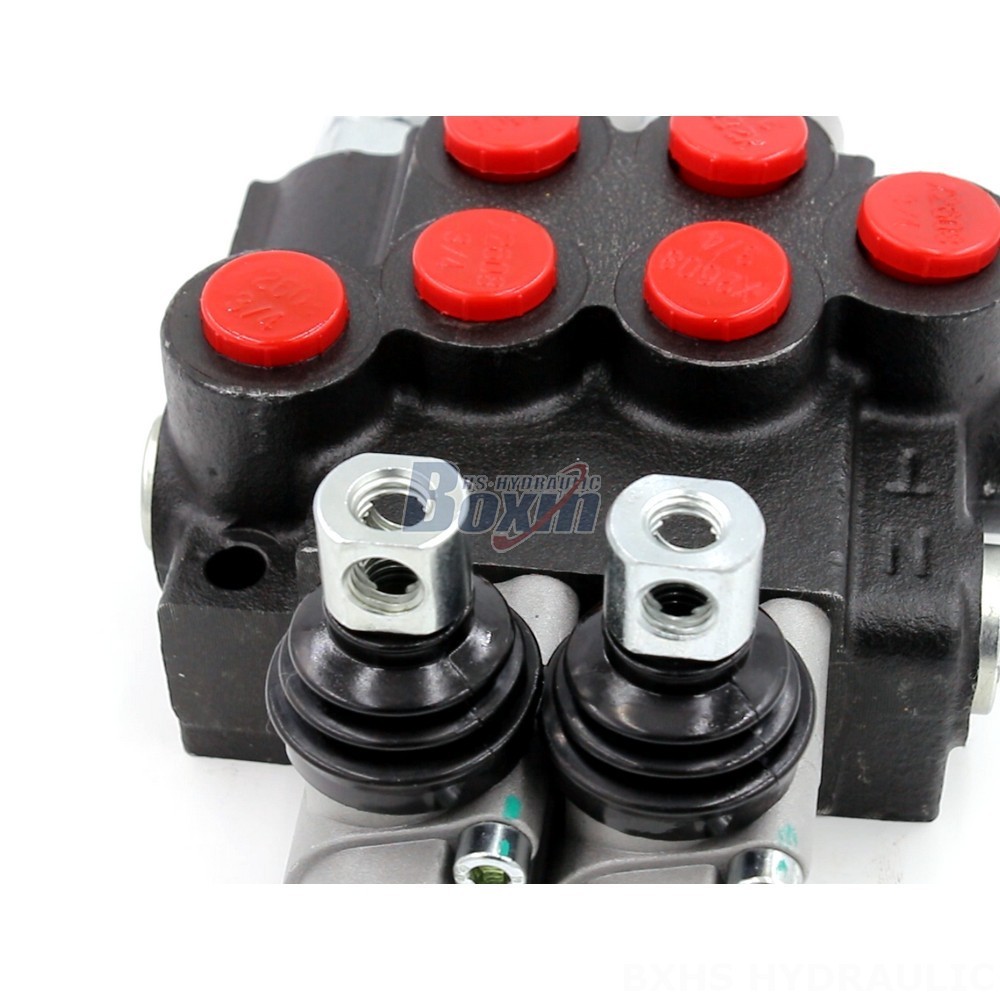

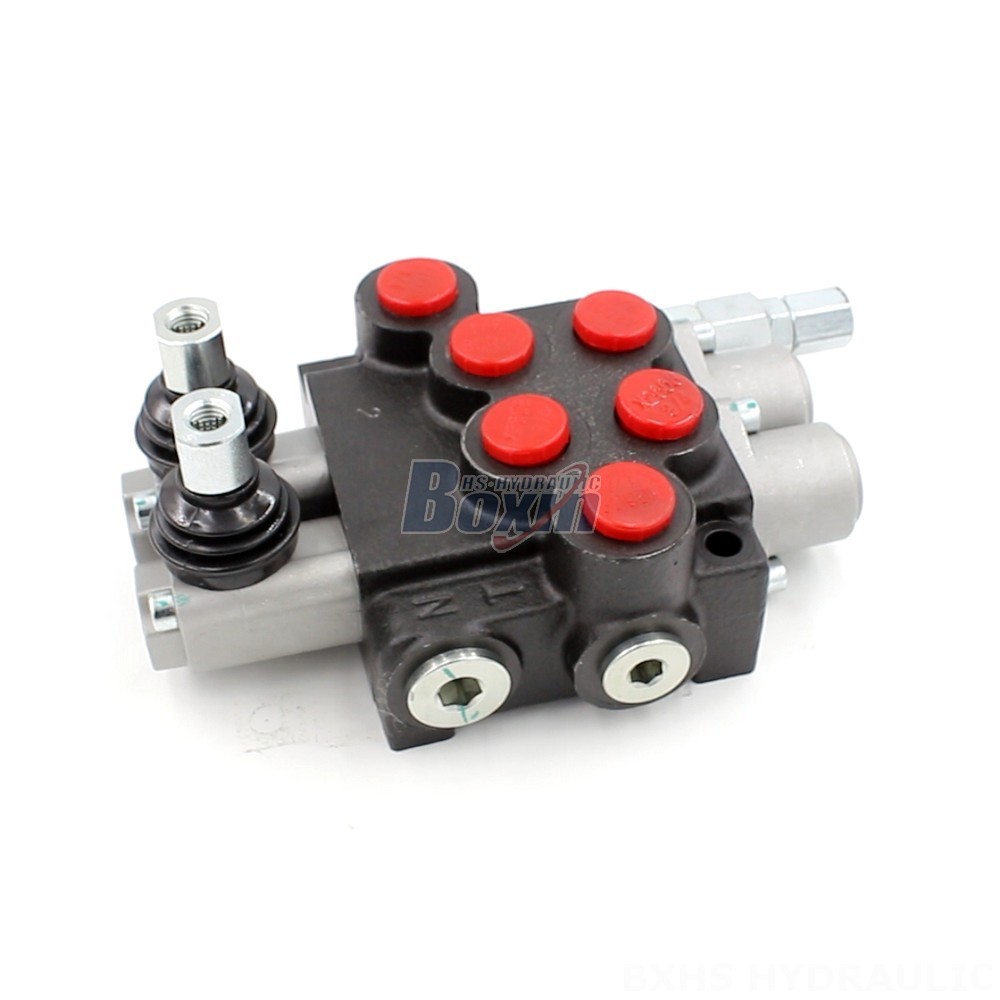

This P40 Series Directional Control Valve is a manually operated, monoblock valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. It features a 2-section design, a rated flow of 40 L/min, and a maximum pressure of 250 bar. The valve is customizable and available with private label options.

Série P40 Válvula Direcional Monobloco Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Solenoide e Joystick, Manual e Joystick, Solenoide e cabo
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula monobloco
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)
Fluxo Nominal 40 L/min (10,5 US gpm)
Pressão Máxima 250 bar (3600 psi)
Porta de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Porta de Saída G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamanho da Porta G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This high-performance P40 Series Directional Control Valve is a reliable solution for various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. Its manual operation provides precise control over hydraulic circuits. The valve is engineered with a robust monoblock structure for superior durability and long service life. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve delivers efficient performance in demanding environments. It operates within a wide viscosity range of 15-75 mm²/s (15 cSt to 75 cSt) and withstands ambient temperatures from -40°C to +80°C (-40°F to +176°F). We offer customization options to meet your specific requirements. This valve is also available for private label branding, allowing you to create a unique identity for your products.
