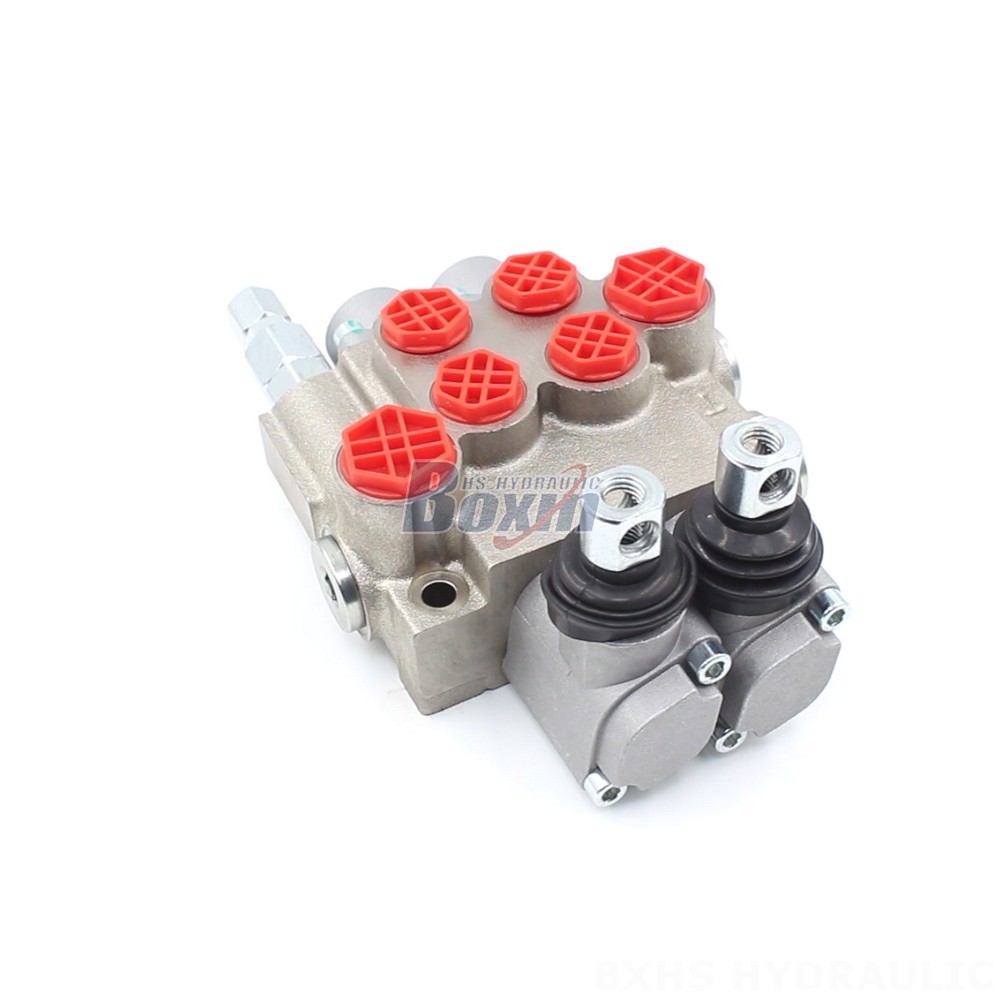

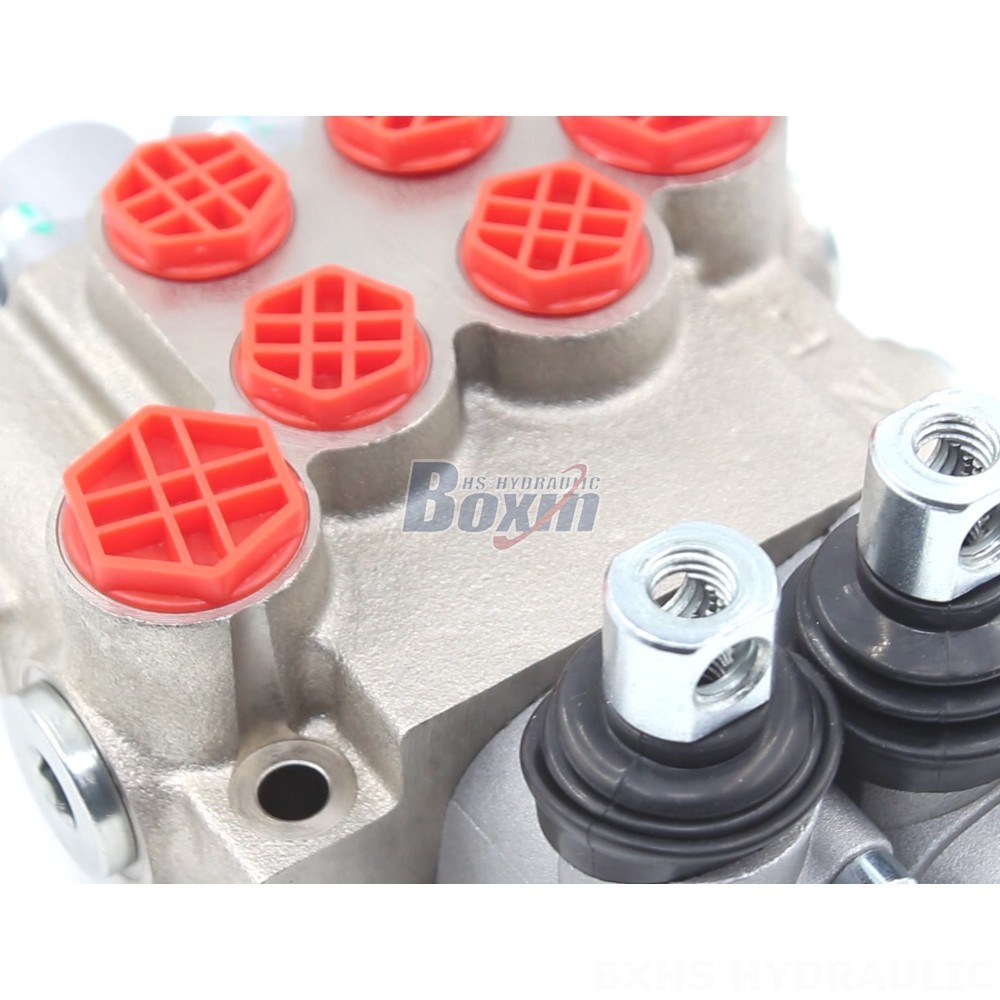

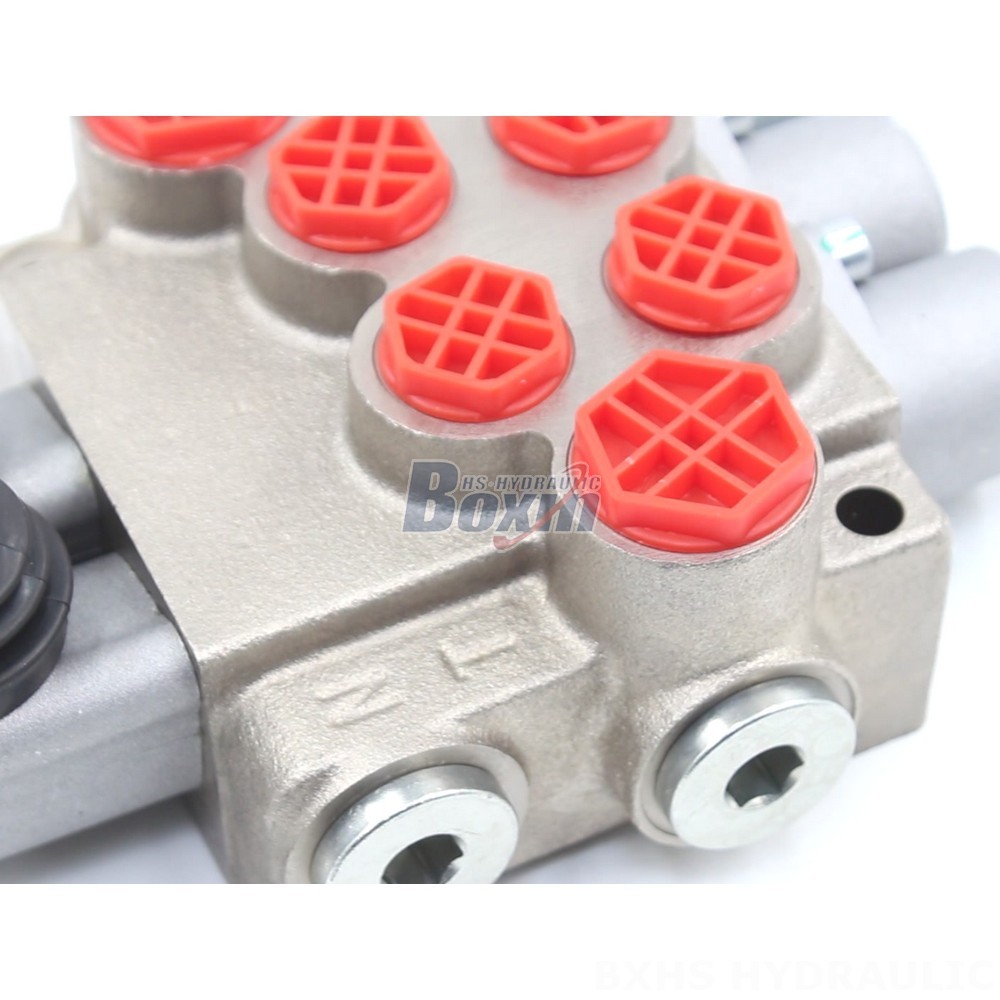

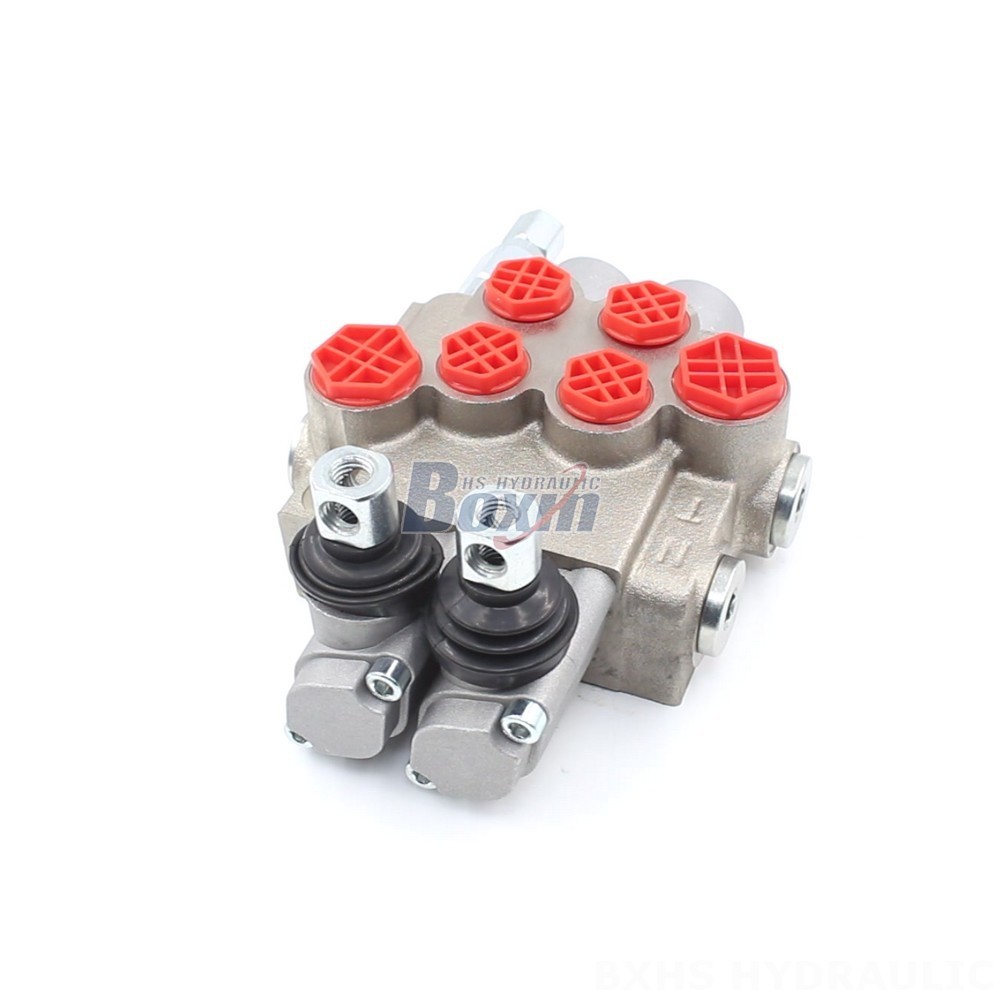

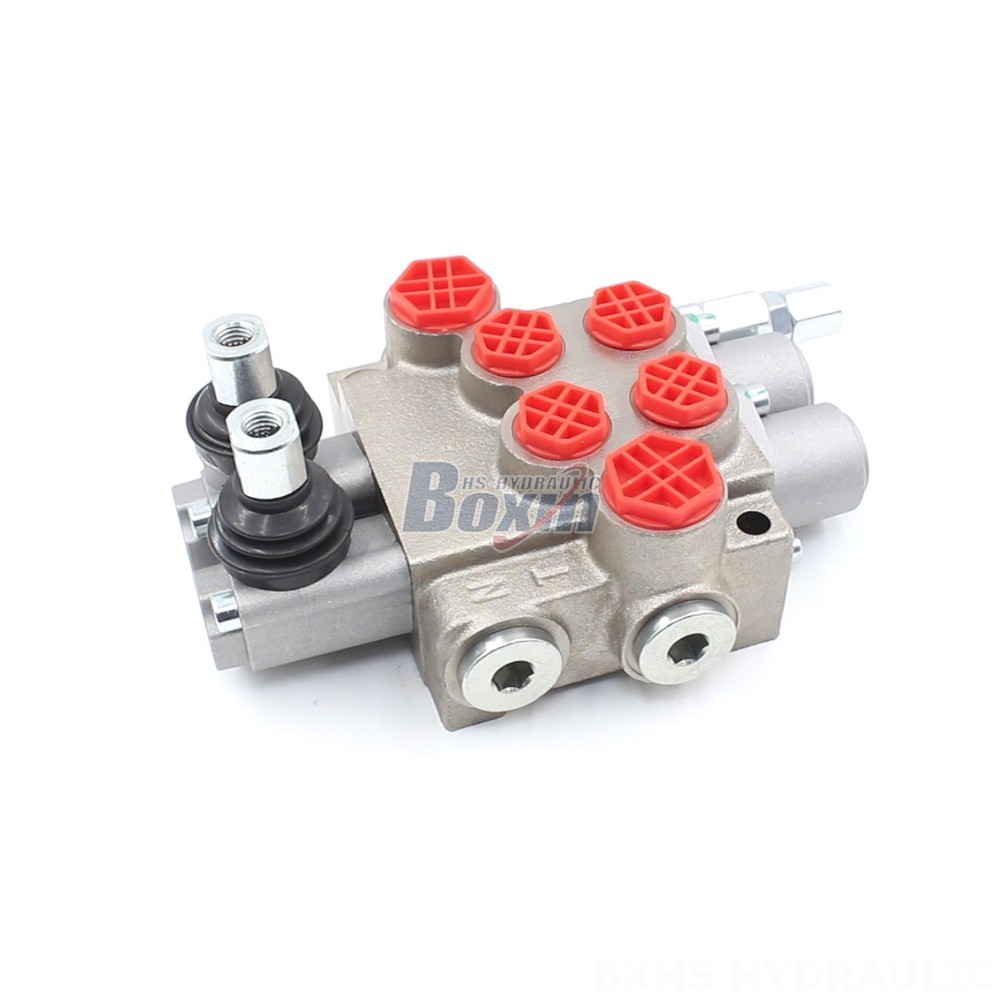

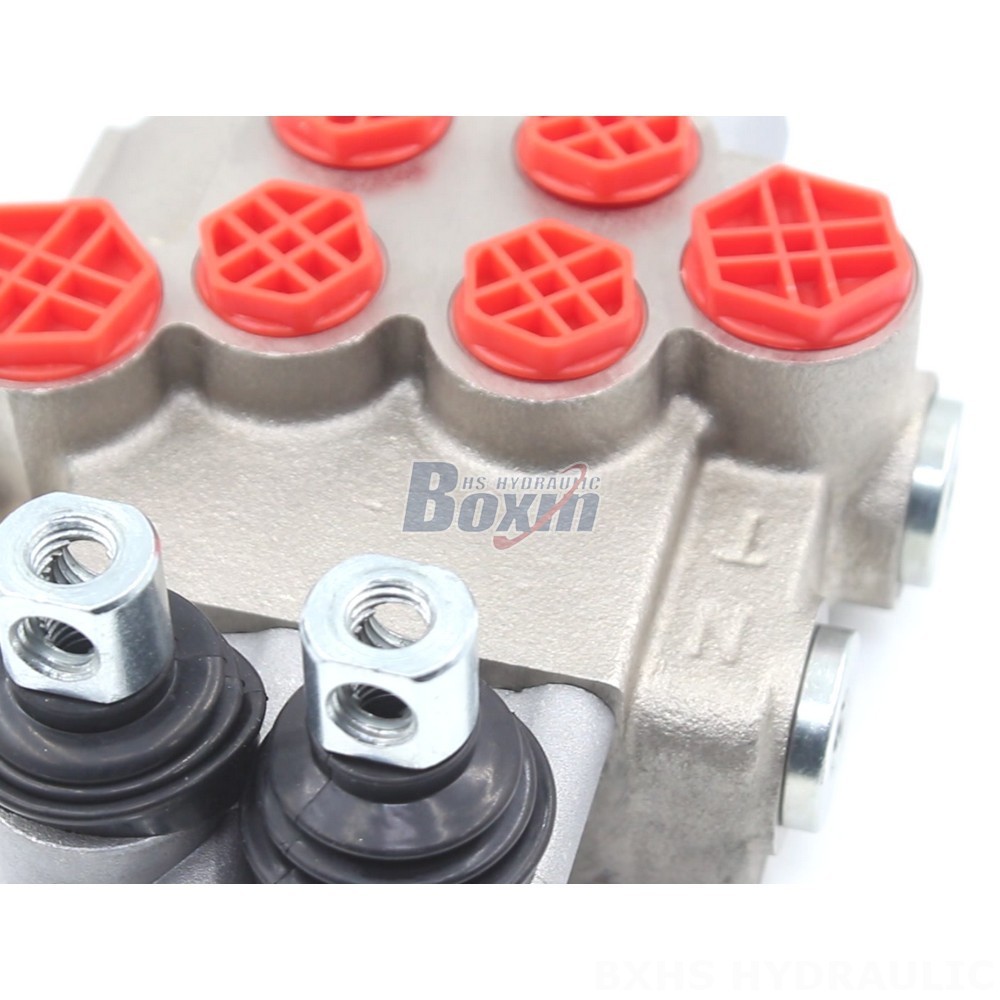

P40-XNHJ Monoblock Directional Valve: Wholesale Prices from the Factory

Método de Controle:Manual

Carrétel:2 Carreteis

Fluxo Nominal:40 L/min (10,5 US gpm)

Pressão Máxima:250 bar (3600 psi)

Porta de Entrada:G1/2

Porta de Saída:G1/2

Tamanho da Porta:G3/8

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série P40-XNHJ Válvula Direcional Monobloco

Tamanho da embalagem:23*18*11

Peso bruto:5.00 kg

Disponibilidade: Em estoque

507 Visualizações estão procurando por este produto

P40-XNHJ Monoblock Directional Valve: Wholesale Prices from the Factory

P40-XNHJ Monoblock Directional Valve: Wholesale Prices from the Factory

P40-XNHJ Monoblock Directional Valve: Wholesale Prices from the Factory drawing image

High-quality P40-XNHJ series monoblock directional hydraulic valves, offering 40 L/min flow rate and 250 bar max pressure. Ideal for material handling, construction, agriculture, and industrial vehicles. Factory direct wholesale prices available.

Série P40-XNHJ Válvula Direcional Monobloco Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Manual e Joystick
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Fluxo Nominal 40 L/min (10,5 US gpm)
Pressão Máxima 250 bar (3600 psi)
Porta de Entrada G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Porta de Saída G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Tamanho da Porta G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Tipo de estrutura Válvula monobloco
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)

The P40-XNHJ Monoblock Directional Valve is a robust and reliable hydraulic control solution, perfect for a wide range of applications. This 2-section, manual control valve boasts a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). Its operating viscosity range is 15-75 mm²/s (15 cSt to 75 cSt), and it's designed to withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). Featuring a 2-spool design, this valve is ideal for various equipment including forklifts, telehandlers, skid steer loaders, tractors, mini-excavators, backhoes, balers, harvesters, and sprayers.

As a leading **manufacturer** and factory supplier of hydraulic valves, we offer **wholesale** prices directly from our factory. We also provide **OEM**, **private labeling** and **customization** services to meet your specific needs. We are actively seeking reliable **distributors**, **wholesalers**, **agents**, and **trading companies** globally to partner with us and expand our market reach. Contact us today to discuss your requirements and explore mutually beneficial collaborations. We offer competitive pricing and excellent quality for all your **hydraulic valve** needs. Choose our **factory direct** supply for superior value and guaranteed satisfaction. Our **P40 valve** is a high-performance solution you can trust.
