The P80 Electro-hydraulic 3 Spool Monoblock Directional Valve is a high-performance valve designed for use in demanding hydraulic systems. It features a robust monoblock construction, electro-hydraulic control, and a flow rate of 80 L/min. The valve is suitable for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles.
| Série P80 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 80 L/min (21,2 US gpm) |
| Pressão Máxima | 315 bar (4600 psi) |
| Porta de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Porta de Saída | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamanho da Porta | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

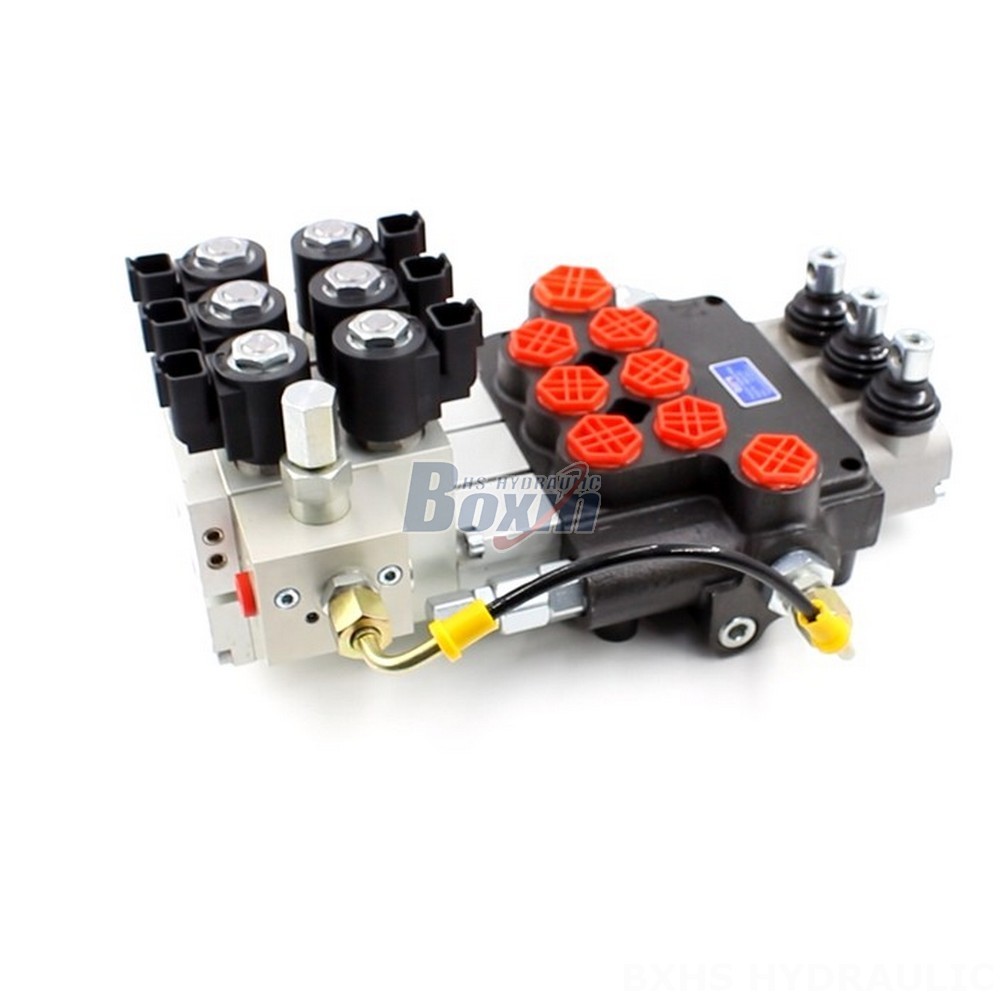

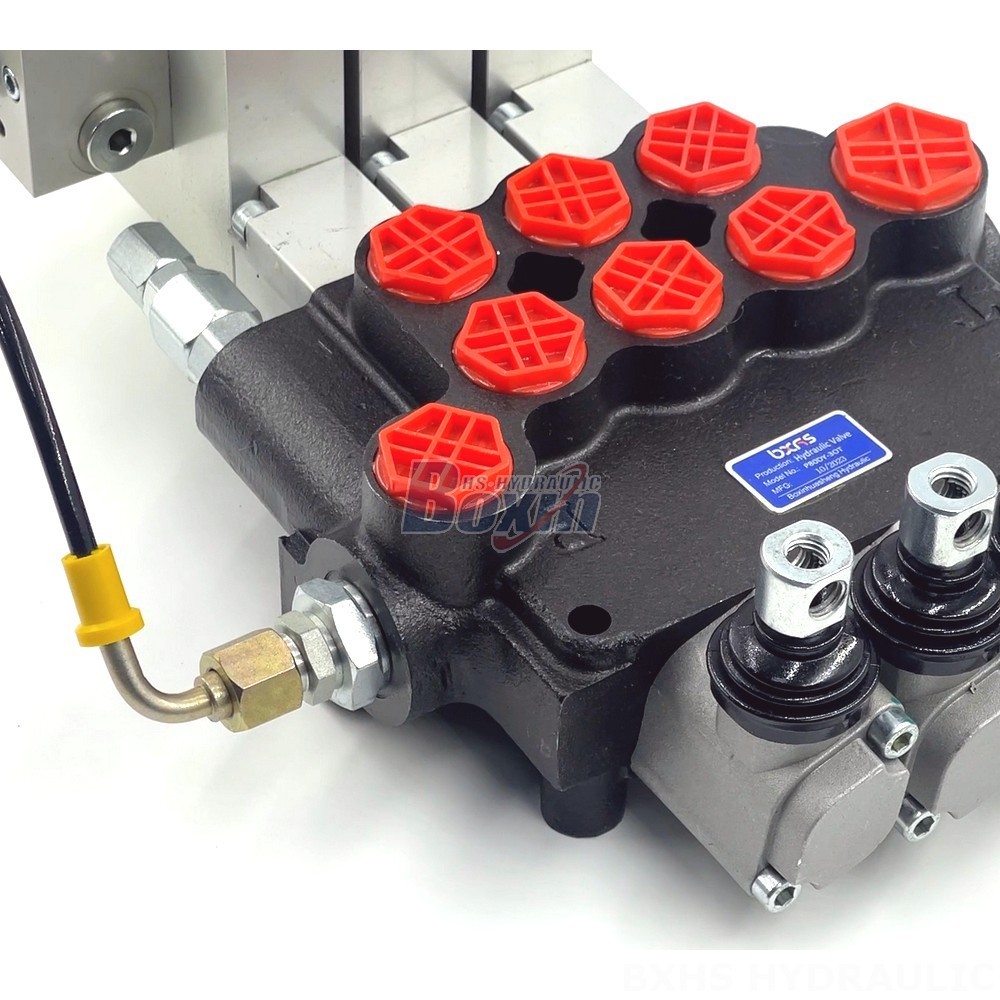

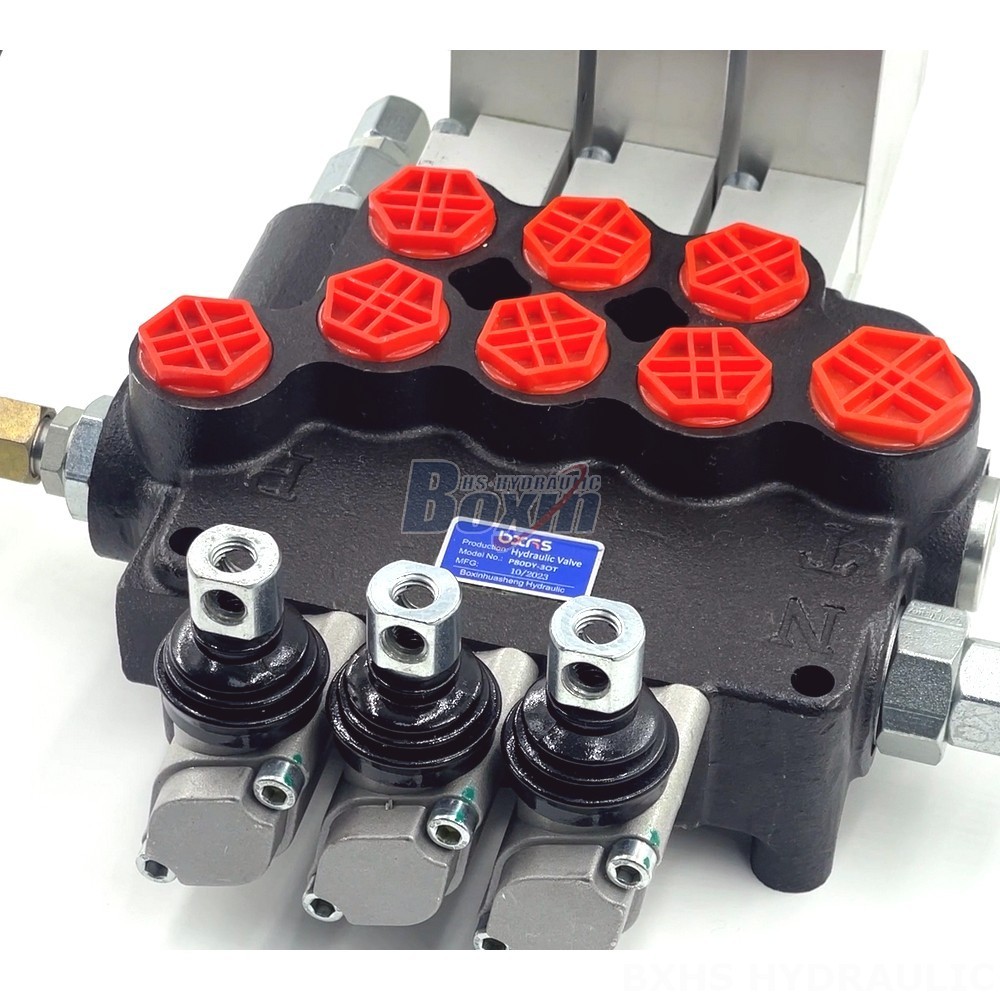

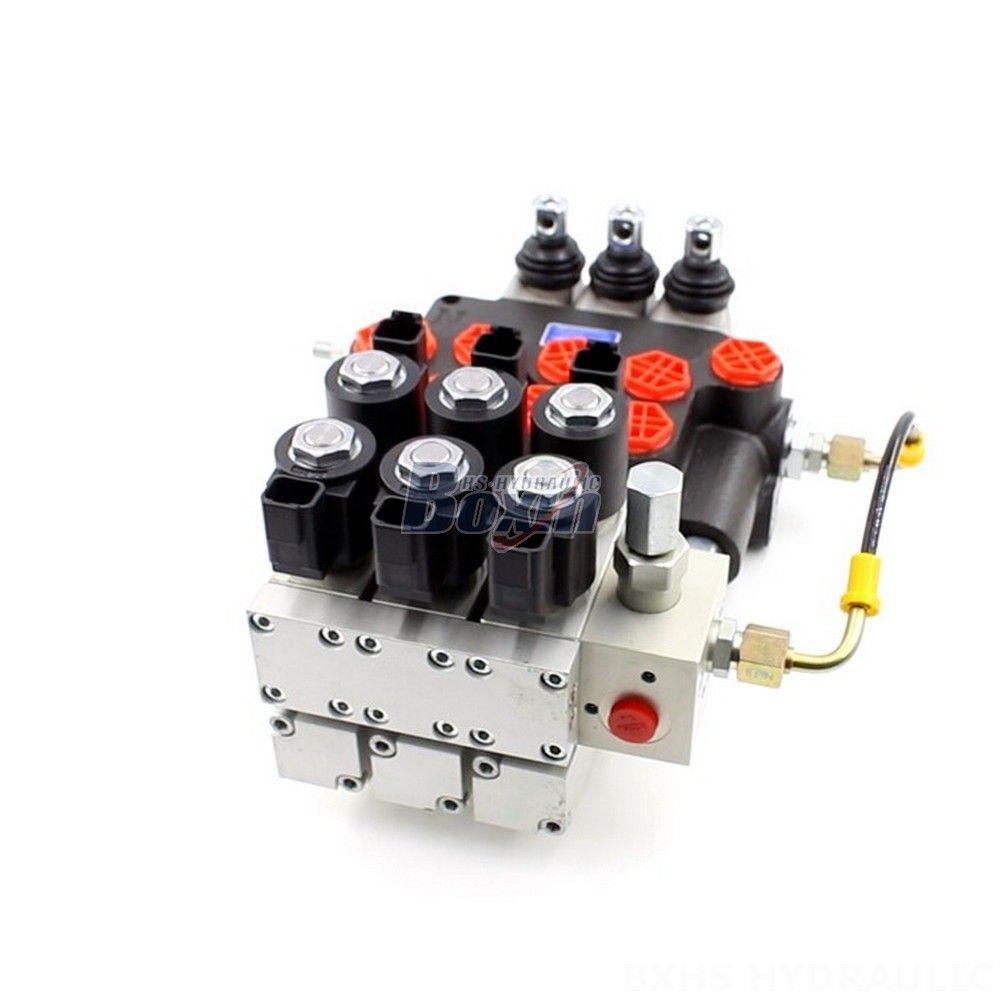

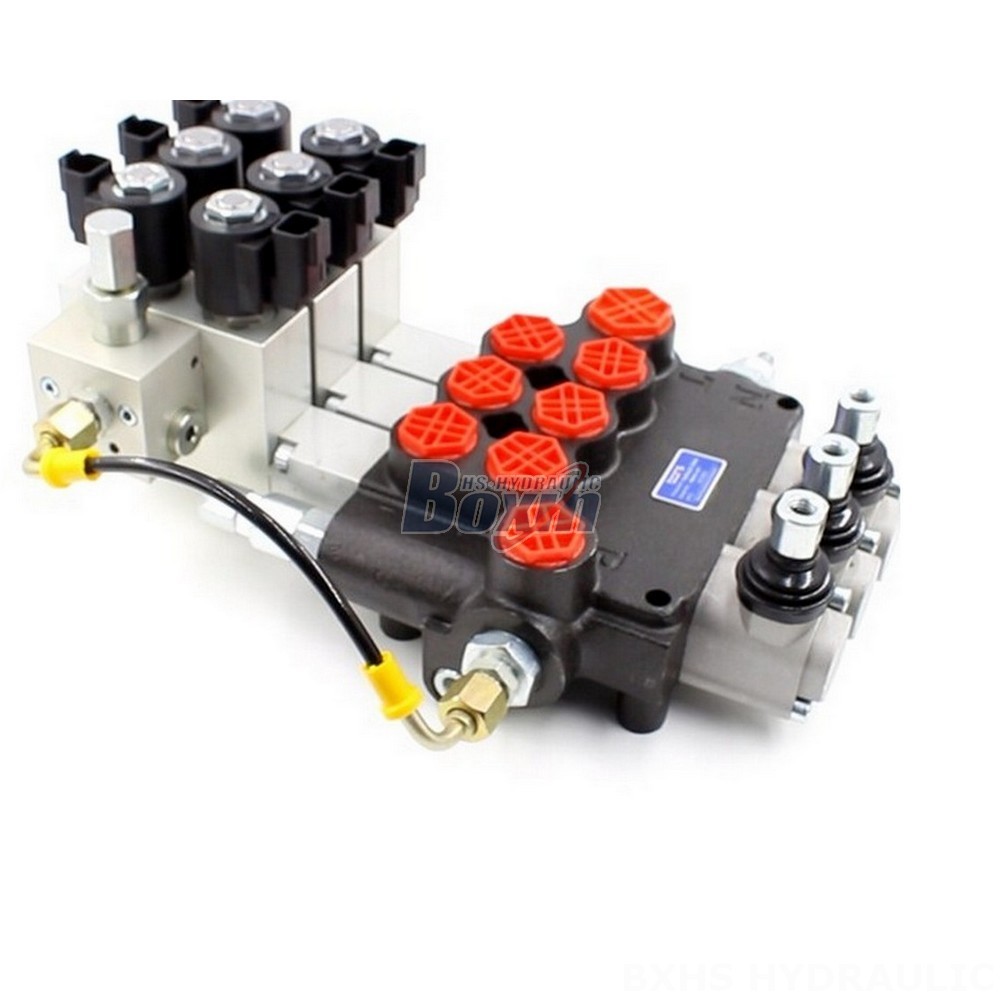

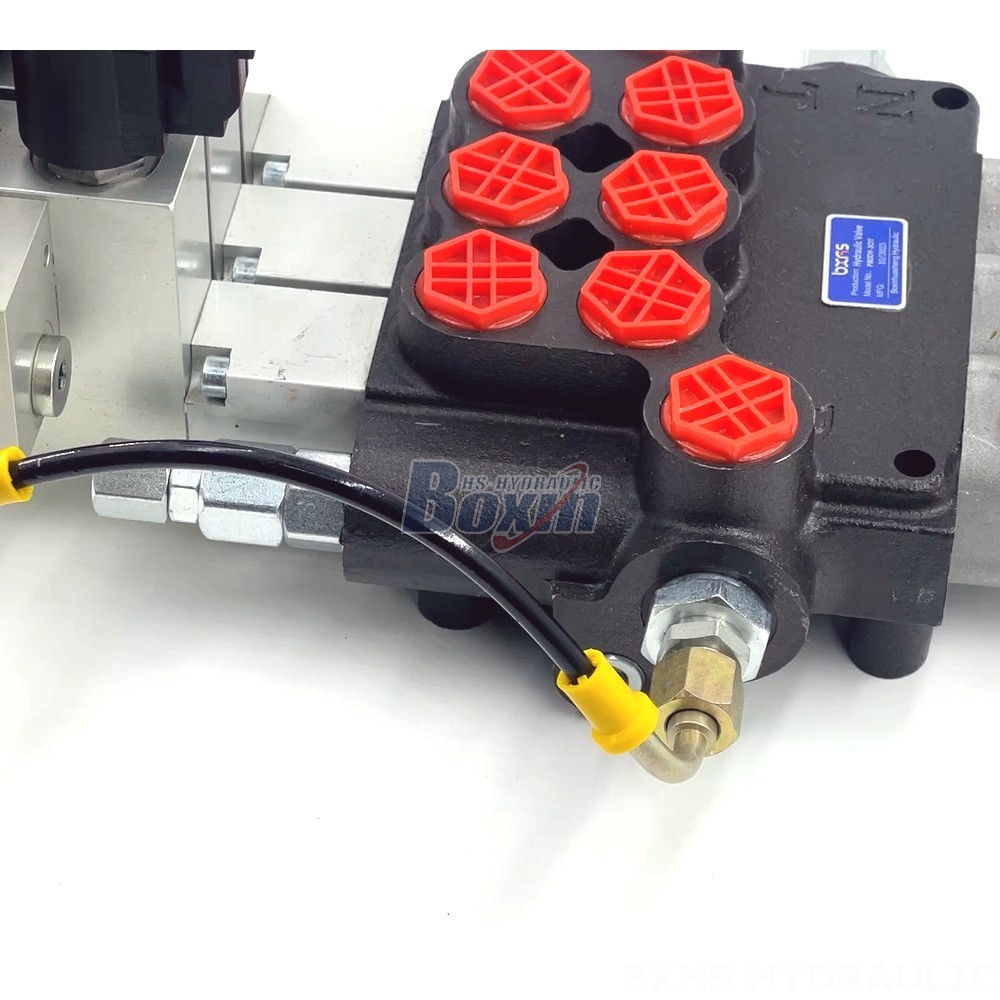

**P80 Electro-hydraulic 3 Spool Monoblock Directional Valve**
The P80 Electro-hydraulic 3 Spool Monoblock Directional Valve is a versatile and reliable valve that is ideal for use in a variety of hydraulic systems. It features a robust monoblock construction that provides excellent strength and durability. The valve is also equipped with electro-hydraulic control, which allows for precise and responsive operation. With a flow rate of 80 L/min and a maximum pressure of 250 bar, the P80 valve is capable of handling even the most demanding applications.
**Key Features:**
* Monoblock construction for strength and durability
* Electro-hydraulic control for precise and responsive operation
* Flow rate of 80 L/min
* Maximum pressure of 250 bar
* Suitable for a wide range of applications
**Applications:**
* Material handling
* Construction
* Agriculture
* Industrial vehicles
