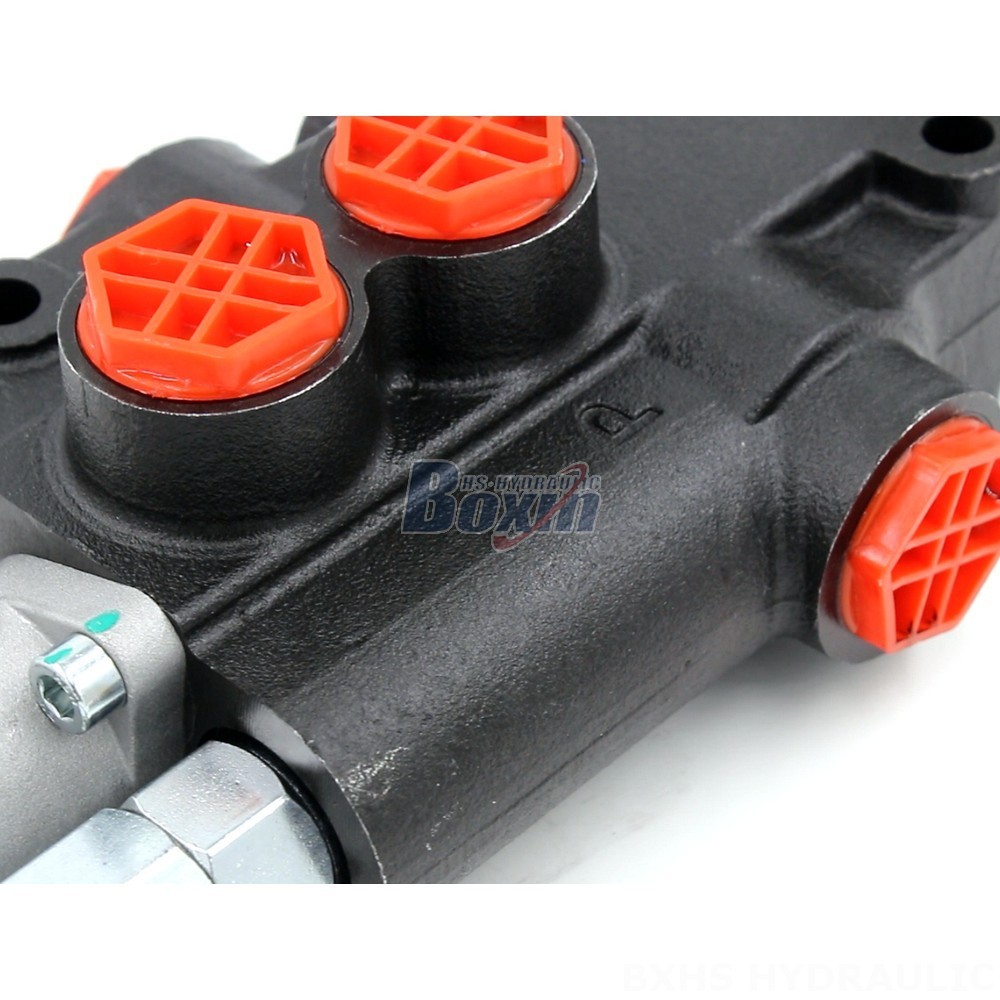

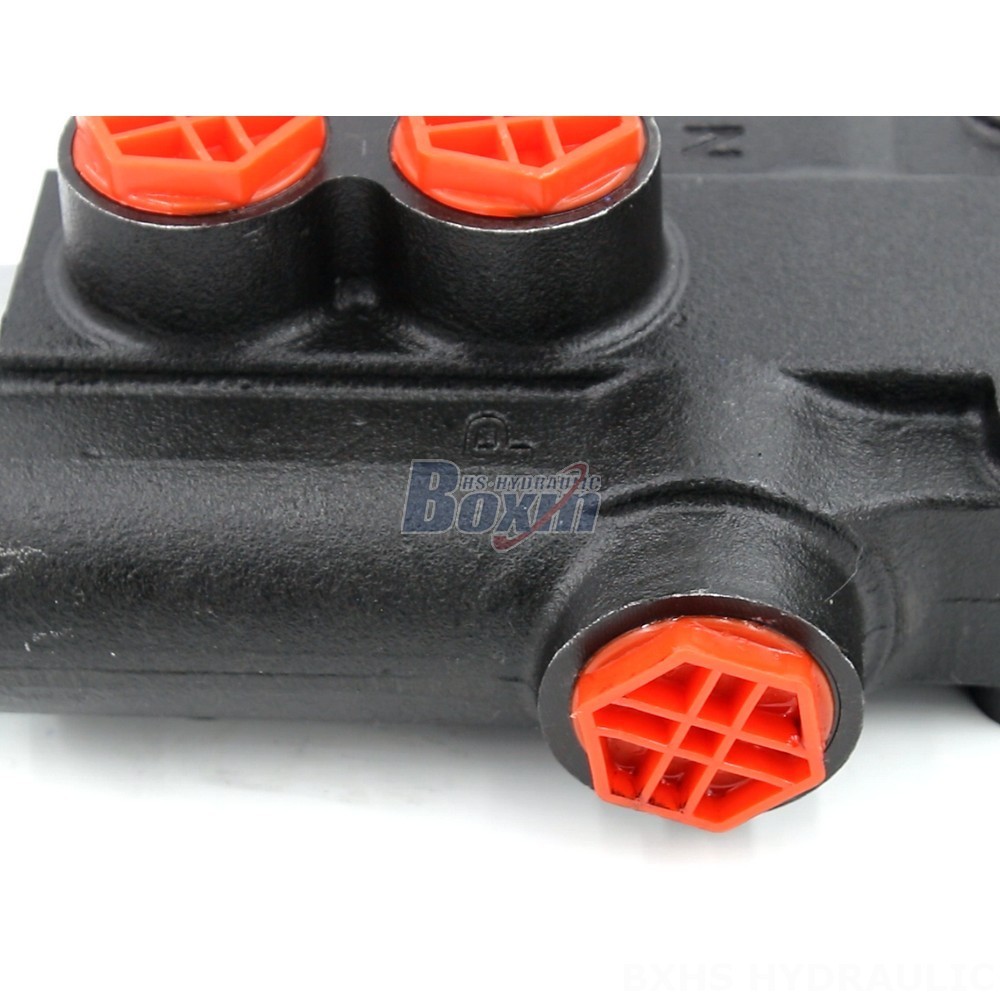

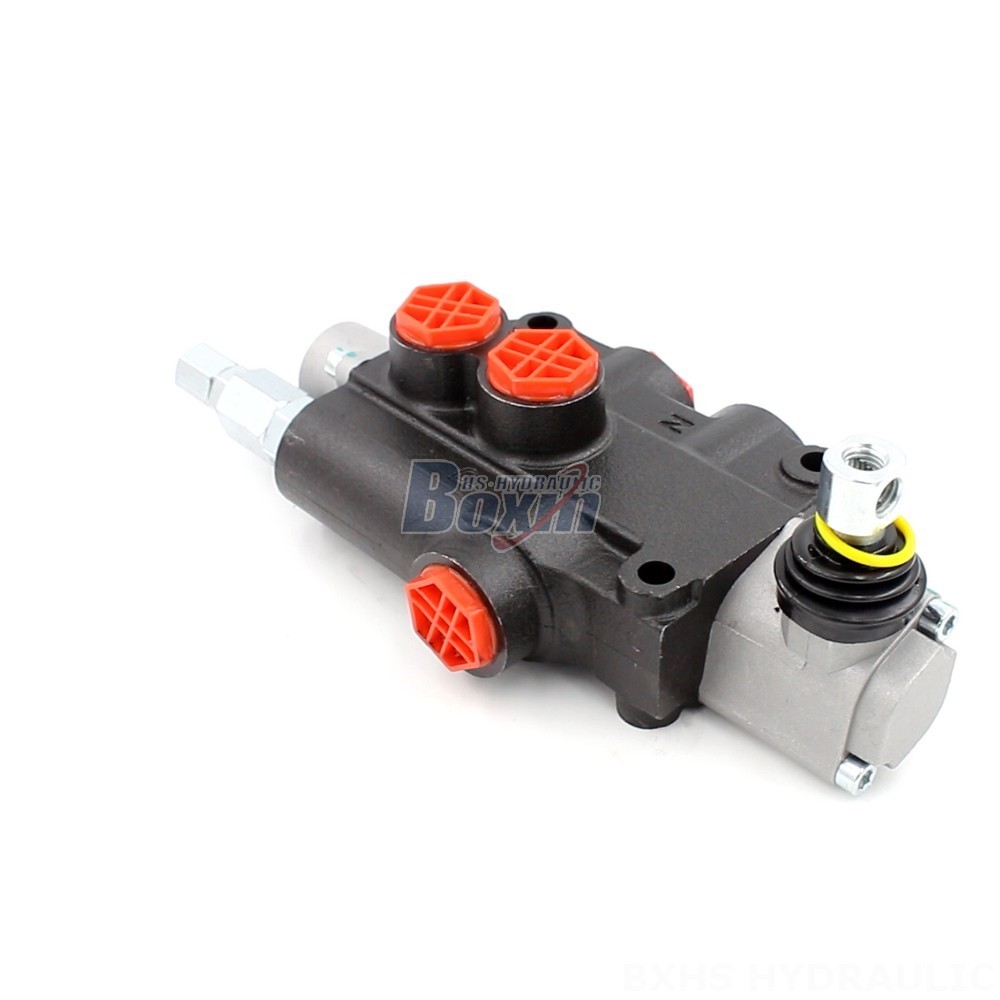

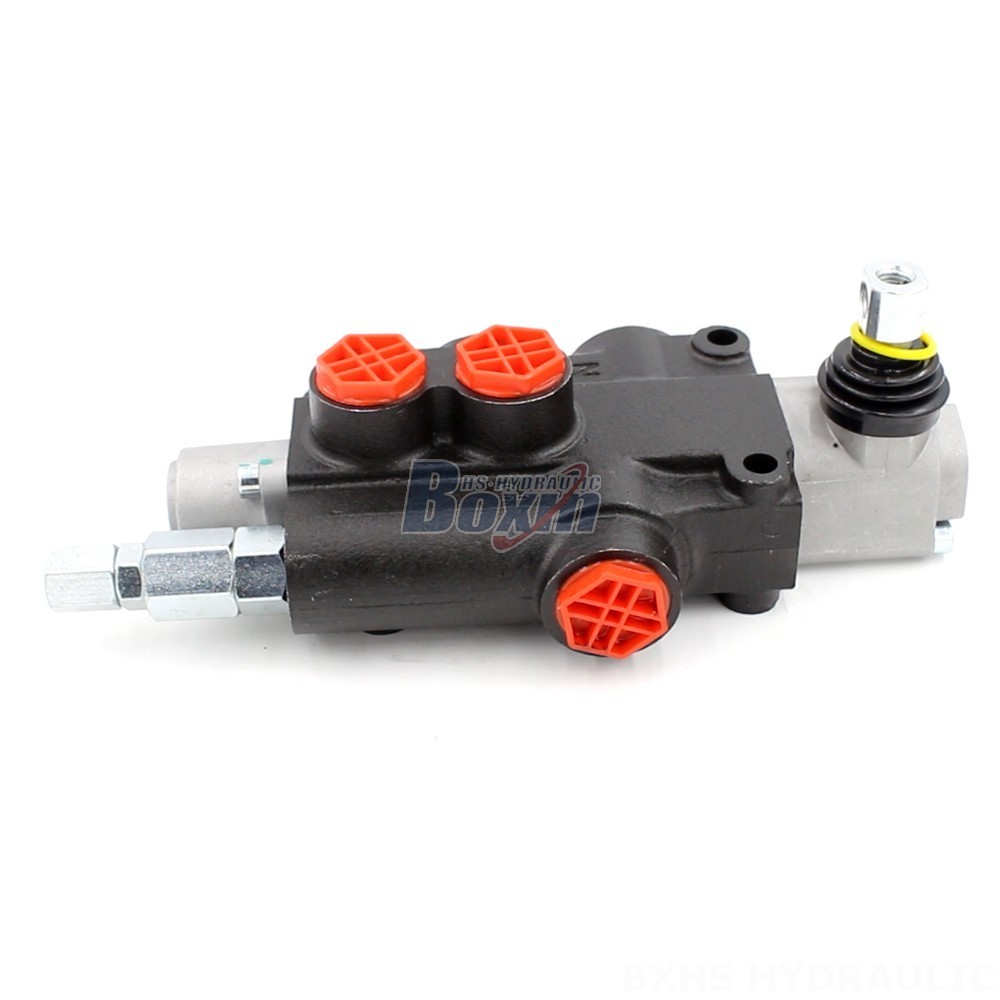

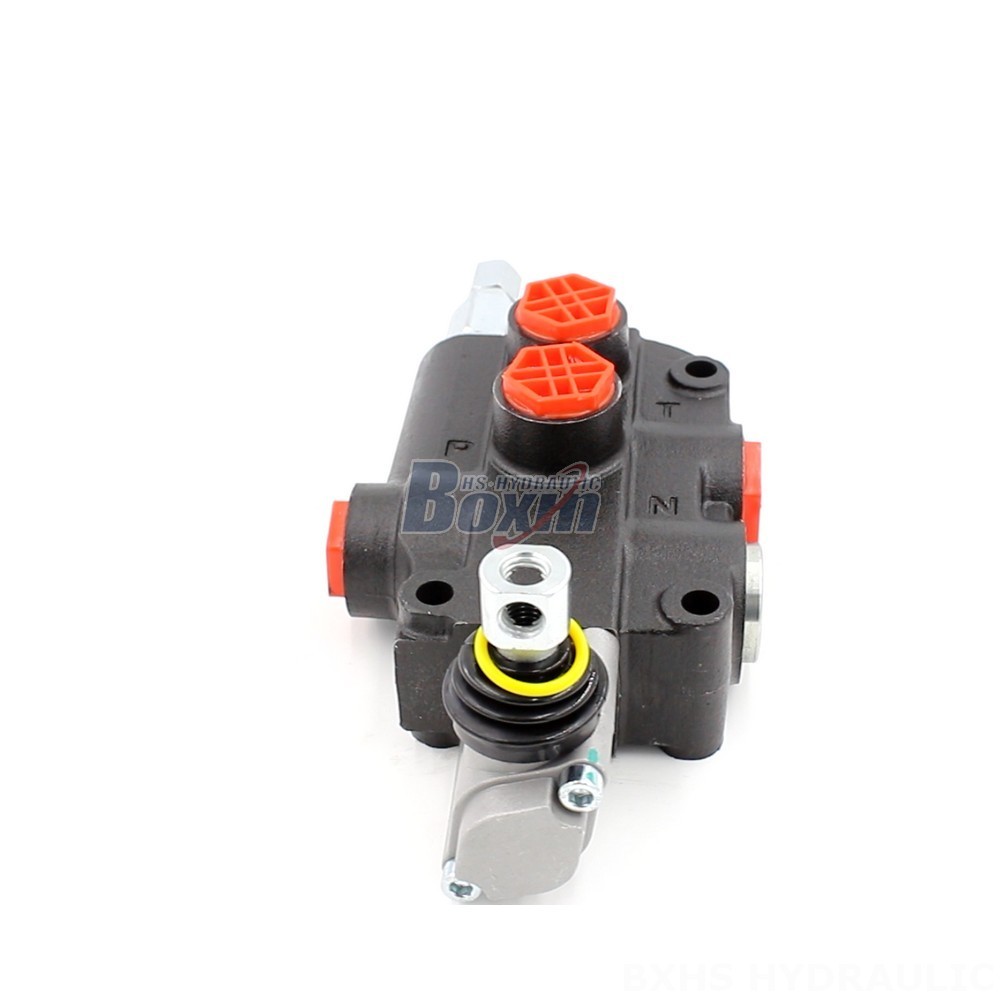

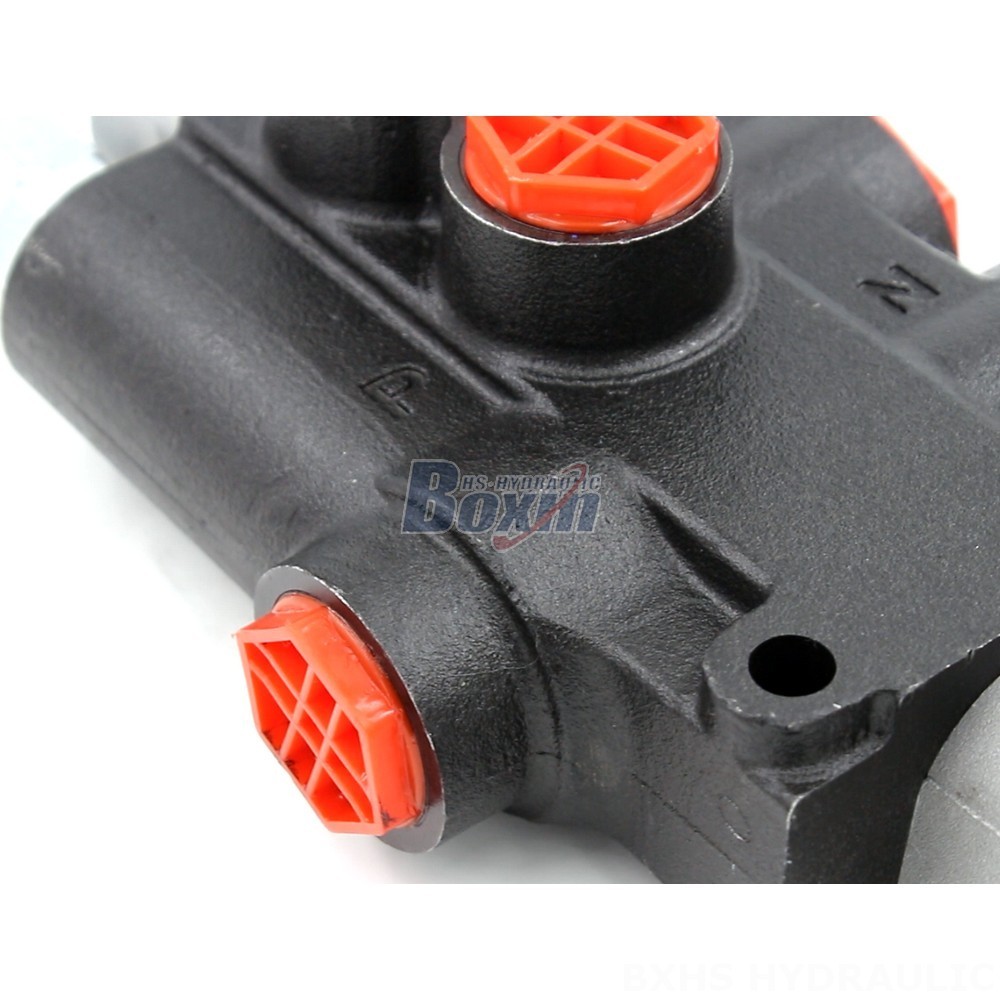

The P80-G12-1OW 1-Spool Directional Control Valve is a high-performance valve designed for use in various hydraulic systems. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it provides excellent flow and pressure control capabilities. Its robust construction and wide operating temperature range make it suitable for demanding applications in industries such as material handling, construction, agriculture, and industrial vehicles.
| Série P80 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 80 L/min (21,2 US gpm) |
| Pressão Máxima | 315 bar (4600 psi) |
| Porta de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Porta de Saída | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamanho da Porta | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features:**
- Manual control for precise and responsive operation
- Monoblock construction for durability and compactness
- High flow capacity of 80 L/min for efficient system operation
- High pressure rating of 250 bar for demanding applications
- Wide operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
- Ambient temperature range of -40°C to +80°C for reliable performance in extreme conditions
- Single spool design for simple and effective flow control
**Applications:**
- Telehandlers
- Forklifts
- All-terrain cranes
- Stackers
- Aerial platforms
- Motor graders
- Mini excavators
- Skid steer loaders
- Compact wheel loaders
The P80-G12-1OW 1-Spool Directional Control Valve offers a combination of performance, reliability, and versatility, making it an ideal choice for a wide range of hydraulic system requirements.
