Manual 5 Spool Monoblock Directional Valve, part of the P80 series, is ideally suited for various industries including material handling, construction, and agriculture. With a rated flow of 80 l/min and a max pressure of 250 bar, it ensures efficient and reliable operation in demanding applications.
| Série P80 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 80 L/min (21,2 US gpm) |
| Pressão Máxima | 315 bar (4600 psi) |
| Porta de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Porta de Saída | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamanho da Porta | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

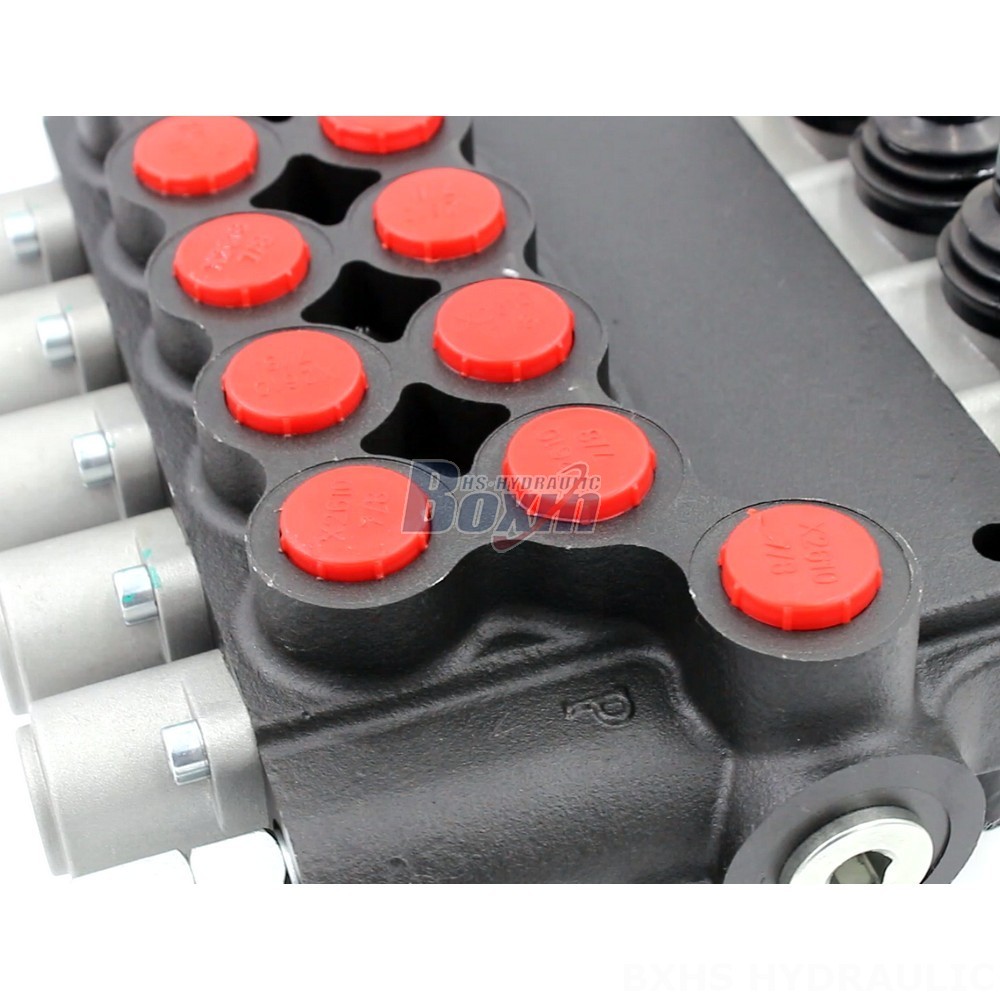

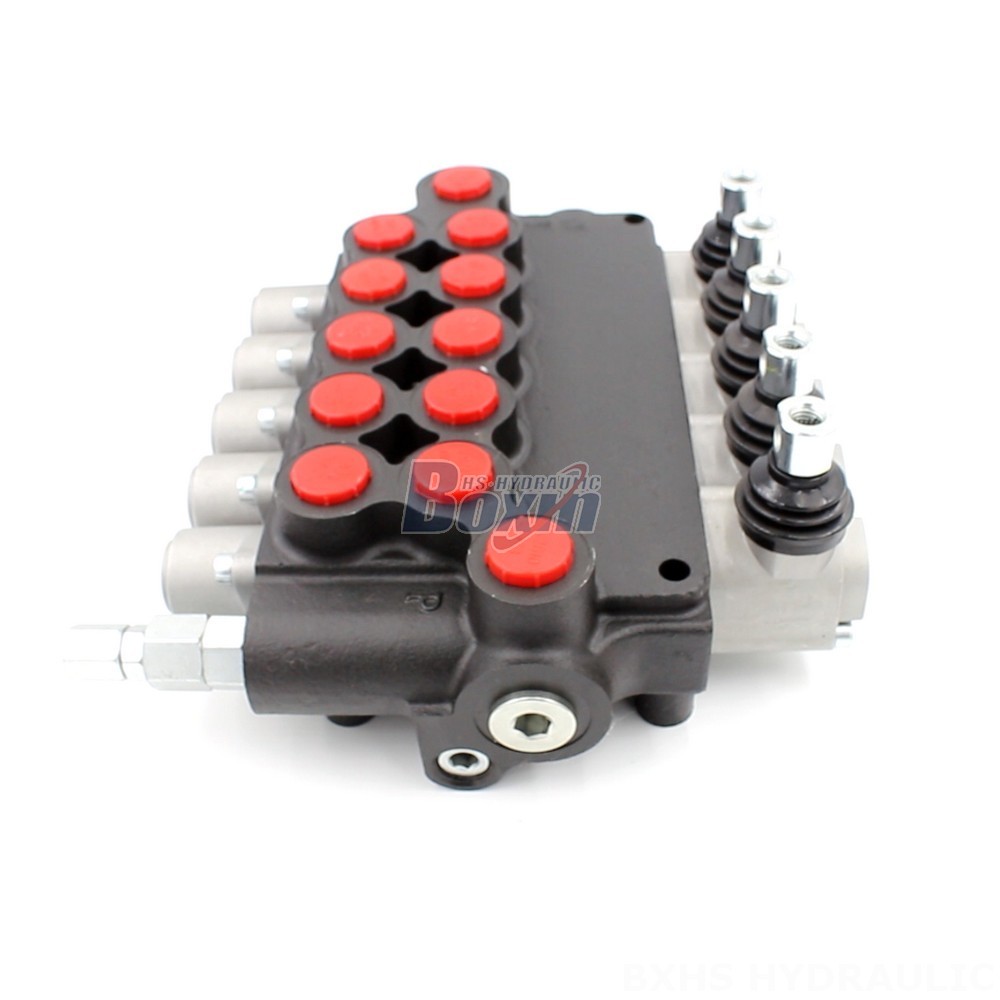

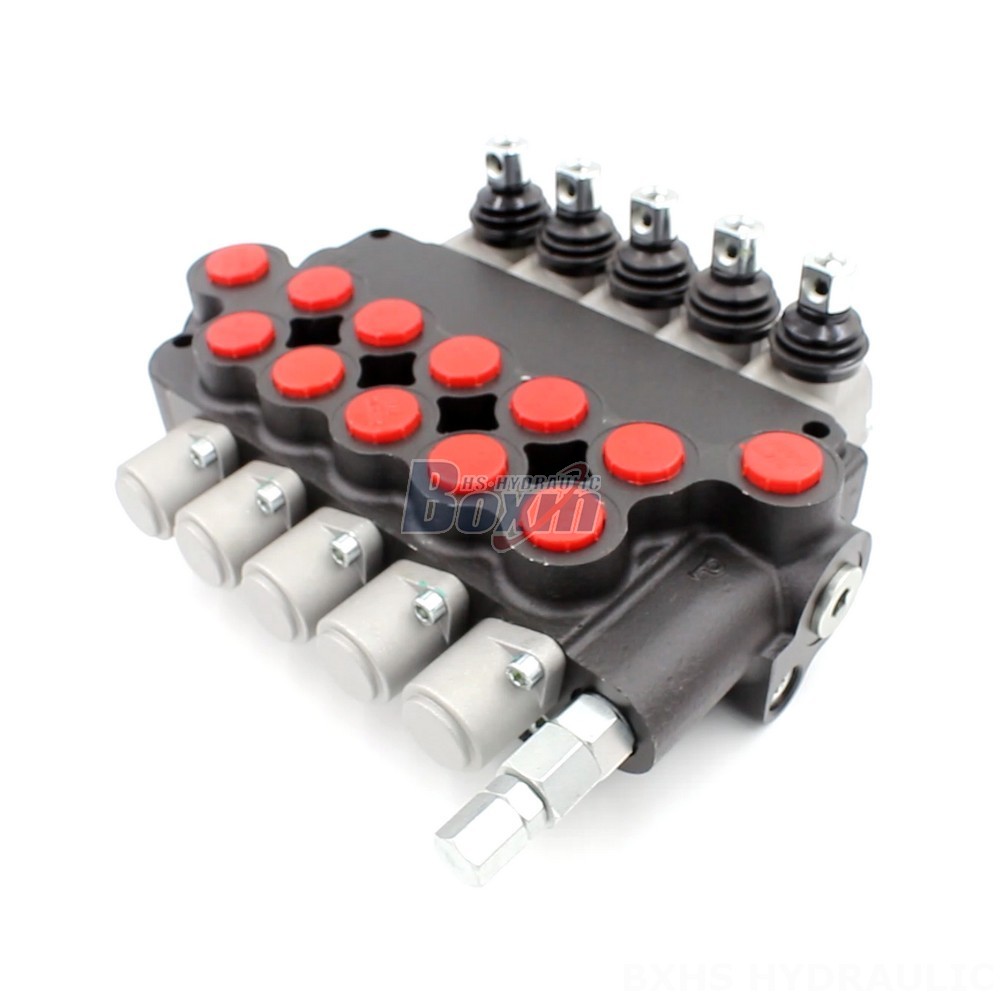

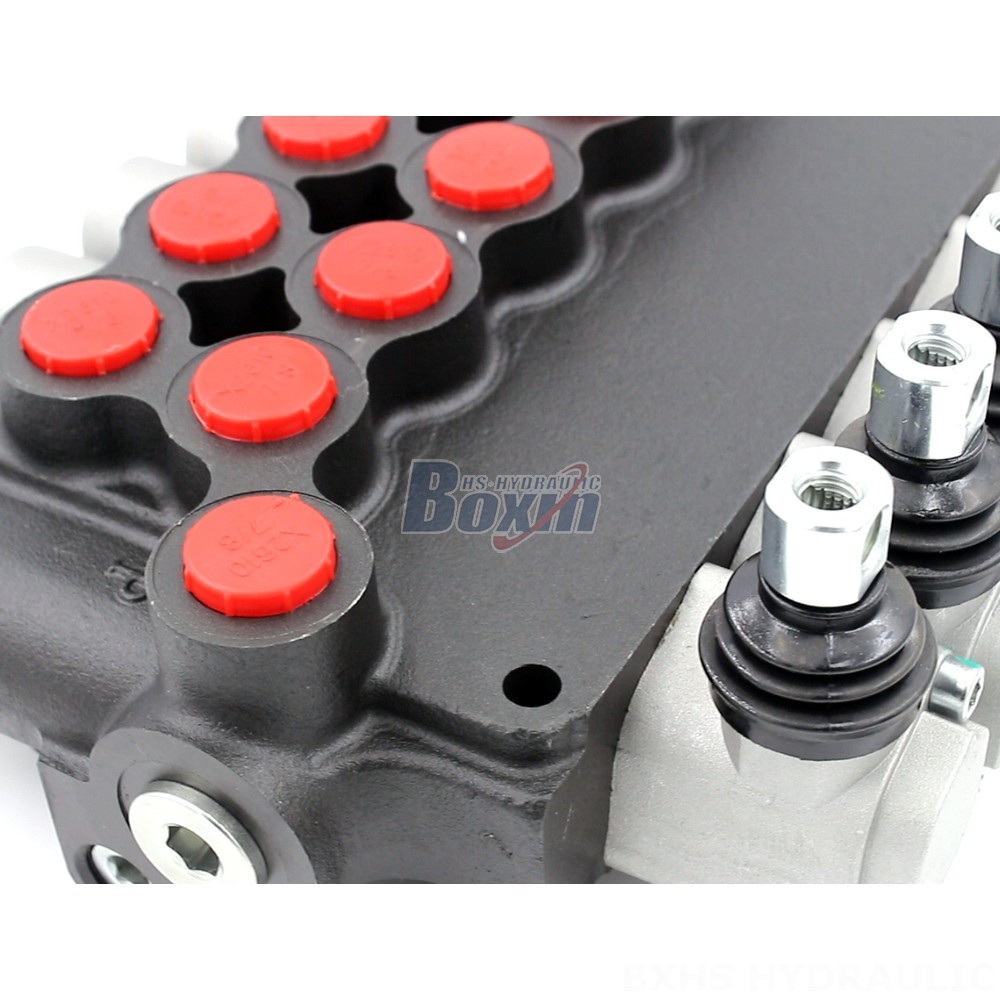

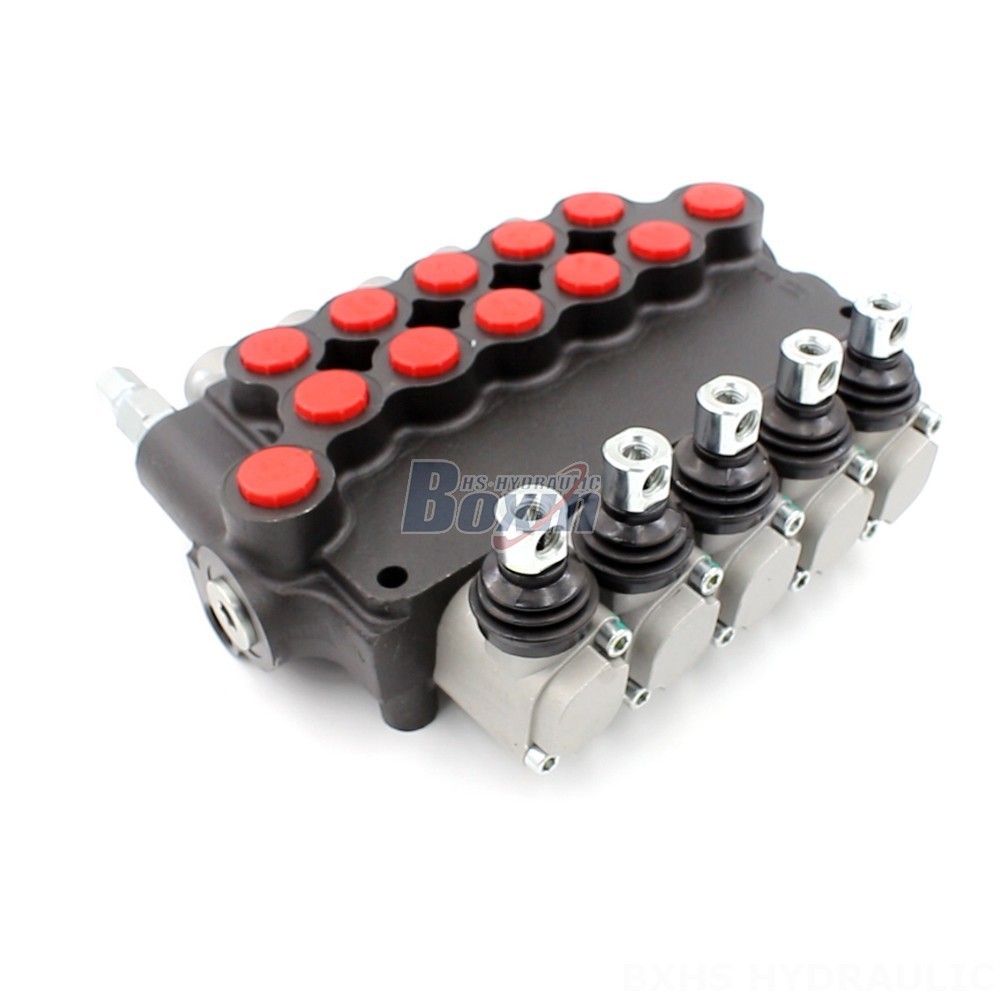

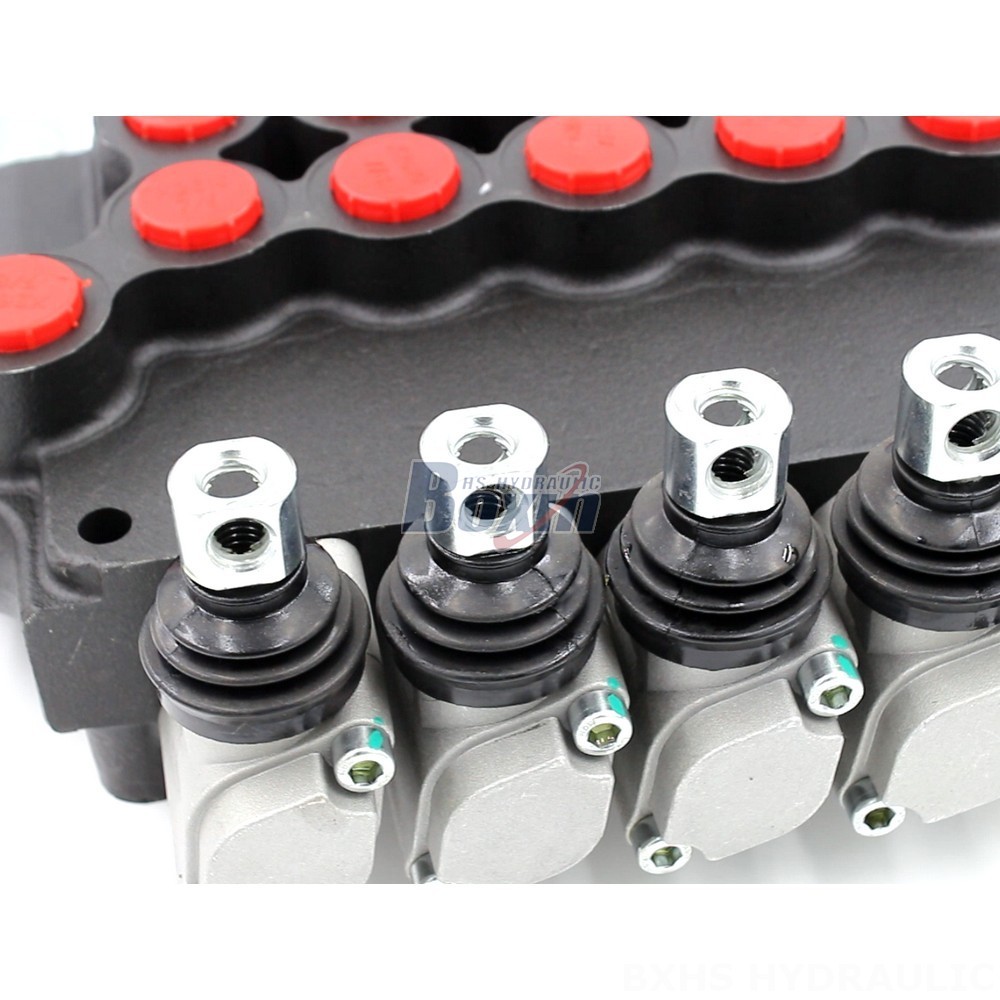

**P80-U116-U78-OT Manual 5 Spool Monoblock Directional Valve**
This valve features a manual control method and a monoblock structure, providing high durability and ease of maintenance. It boasts a 5 section design, enabling precise control of multiple hydraulic functions simultaneously. The valve's operating viscosity range (15 - 75 mm²/s) and ambient temperature range (-40°C to +80°C) ensure optimal performance in diverse operating conditions.
**Key Features:**
- Manual control method for precise operation
- Monoblock design for enhanced durability and compactness
- 5 spool configuration for versatile hydraulic control
- Rated flow of 80 l/min for efficient hydraulic system operation
- Max pressure of 250 bar for demanding applications
- Wide operating viscosity range (15 - 75 mm²/s) for adaptability to various hydraulic fluids
- Extended ambient temperature range (-40°C to +80°C) for reliable performance in harsh environments
**Applications:**
This valve finds application in a wide range of industries, including:
- Material handling: forklifts, telehandlers, stackers
- Construction and earth moving: excavators, wheel loaders, motor graders
- Agriculture: tractors, harvesters, sprayers
- Industrial vehicles: aerial platforms, sweepers, scrubbers
