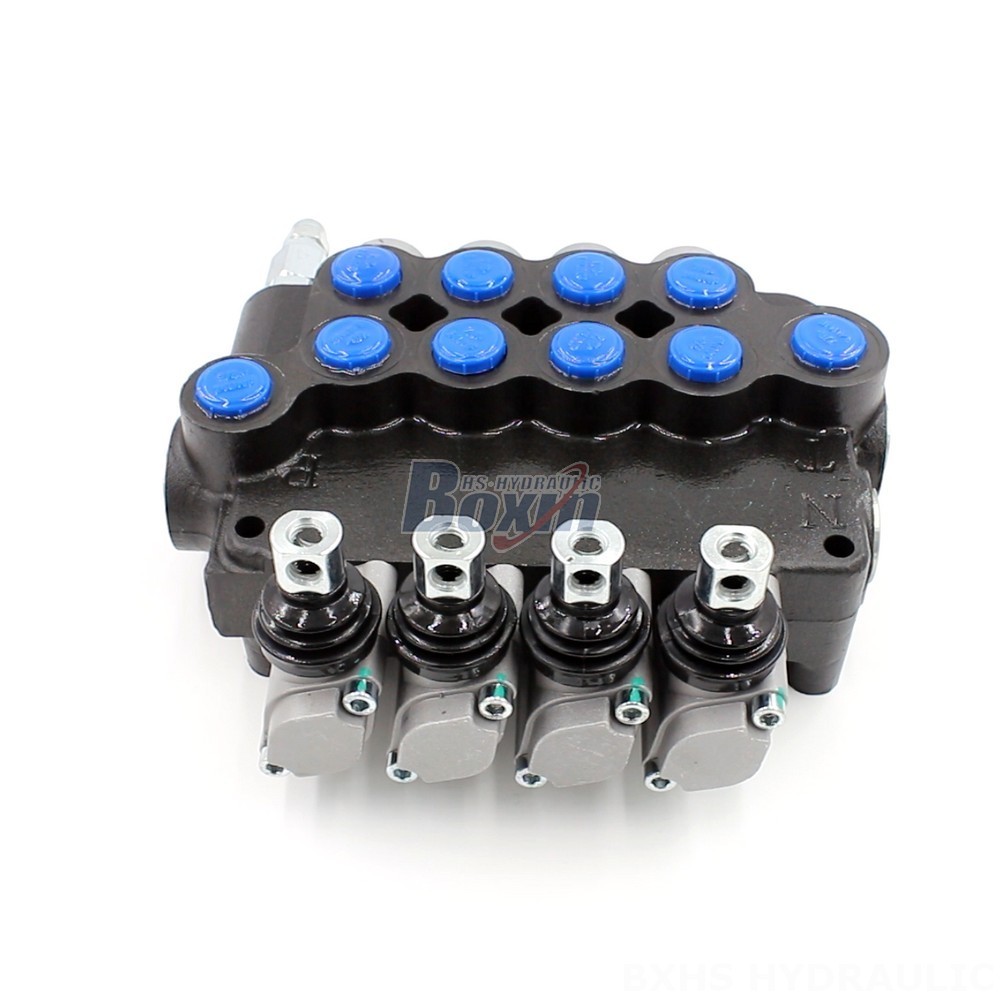

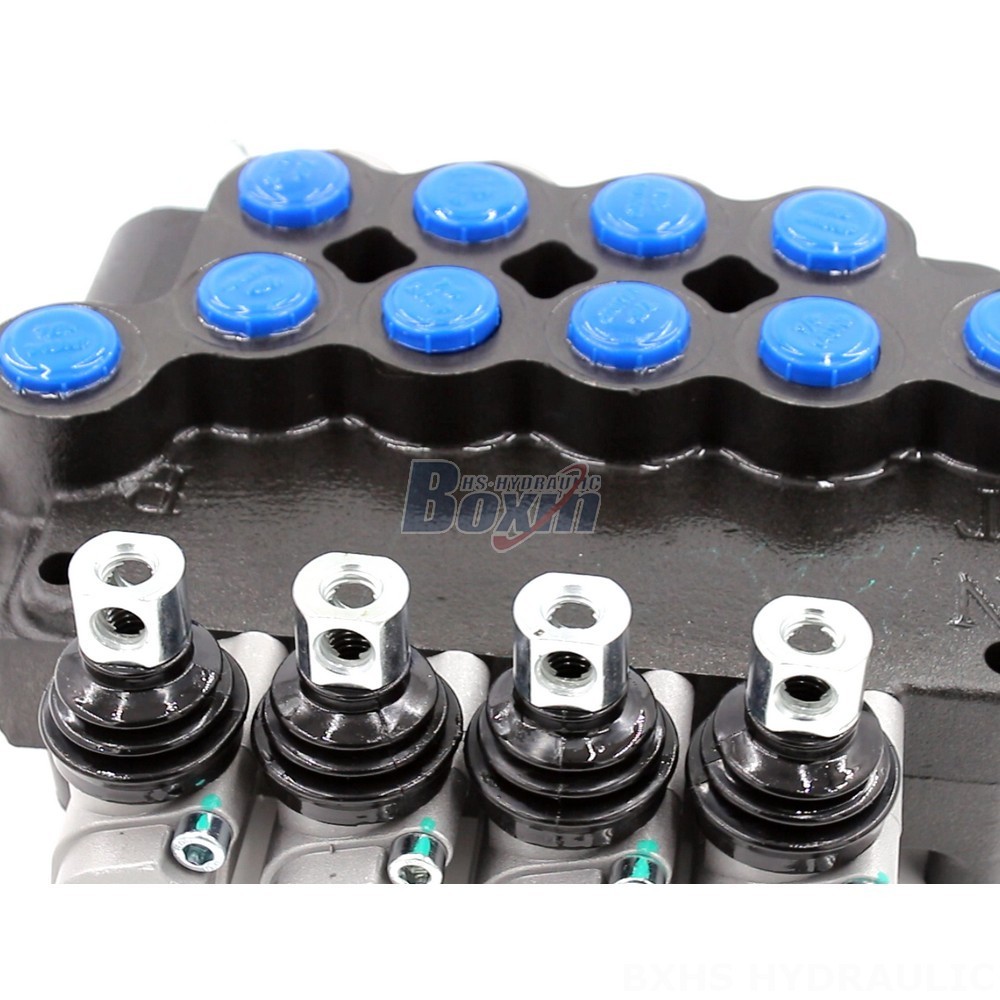

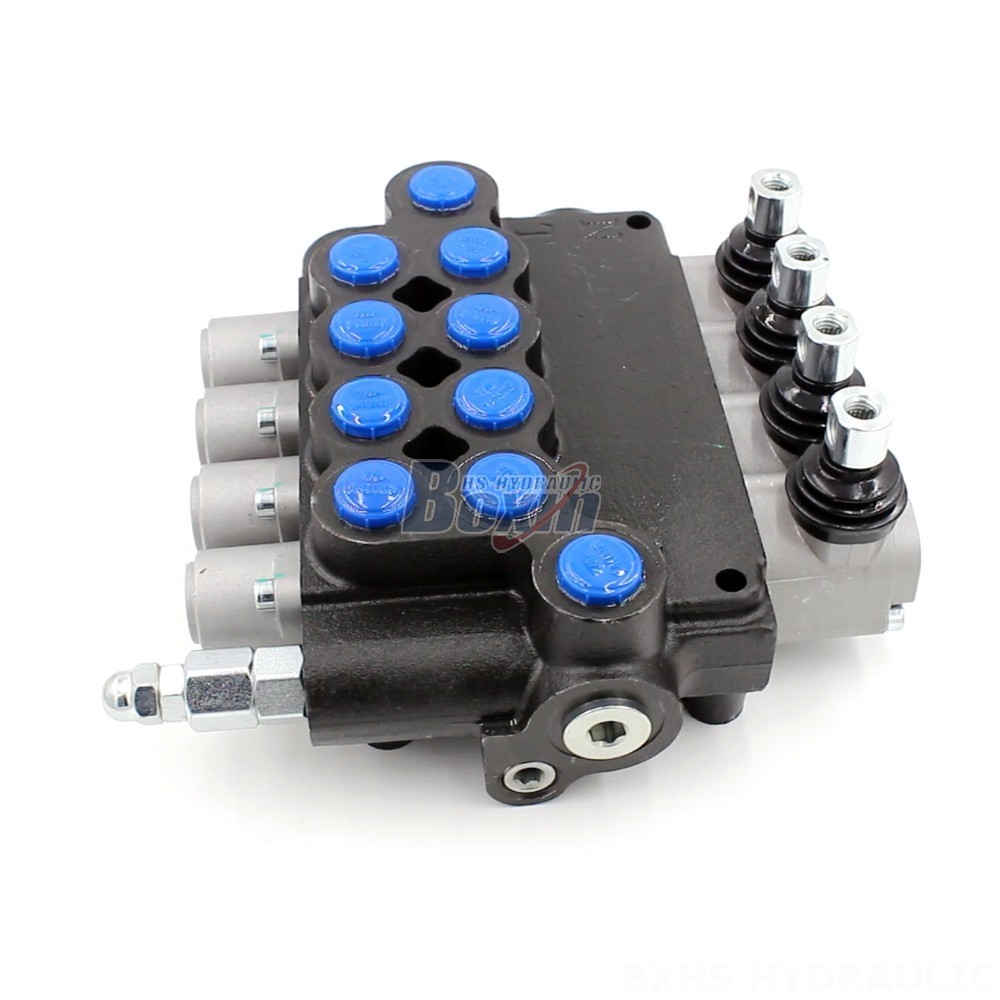

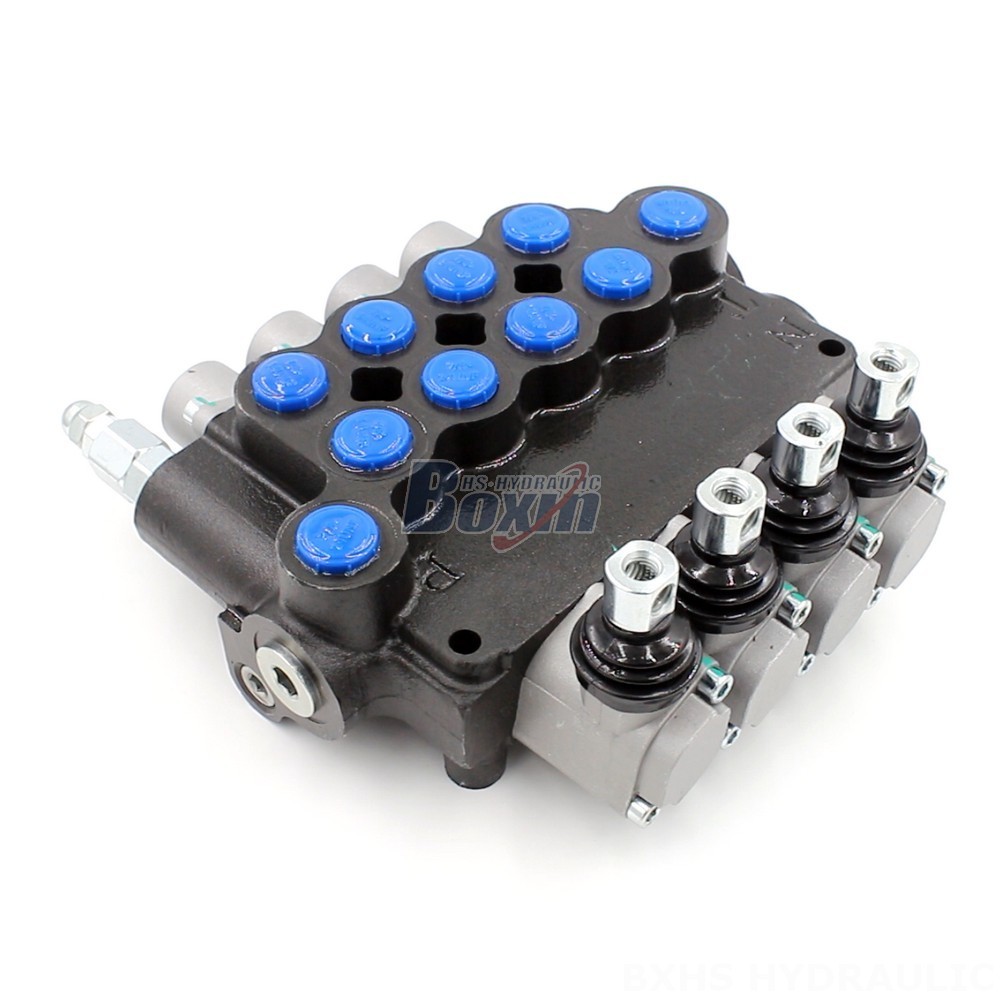

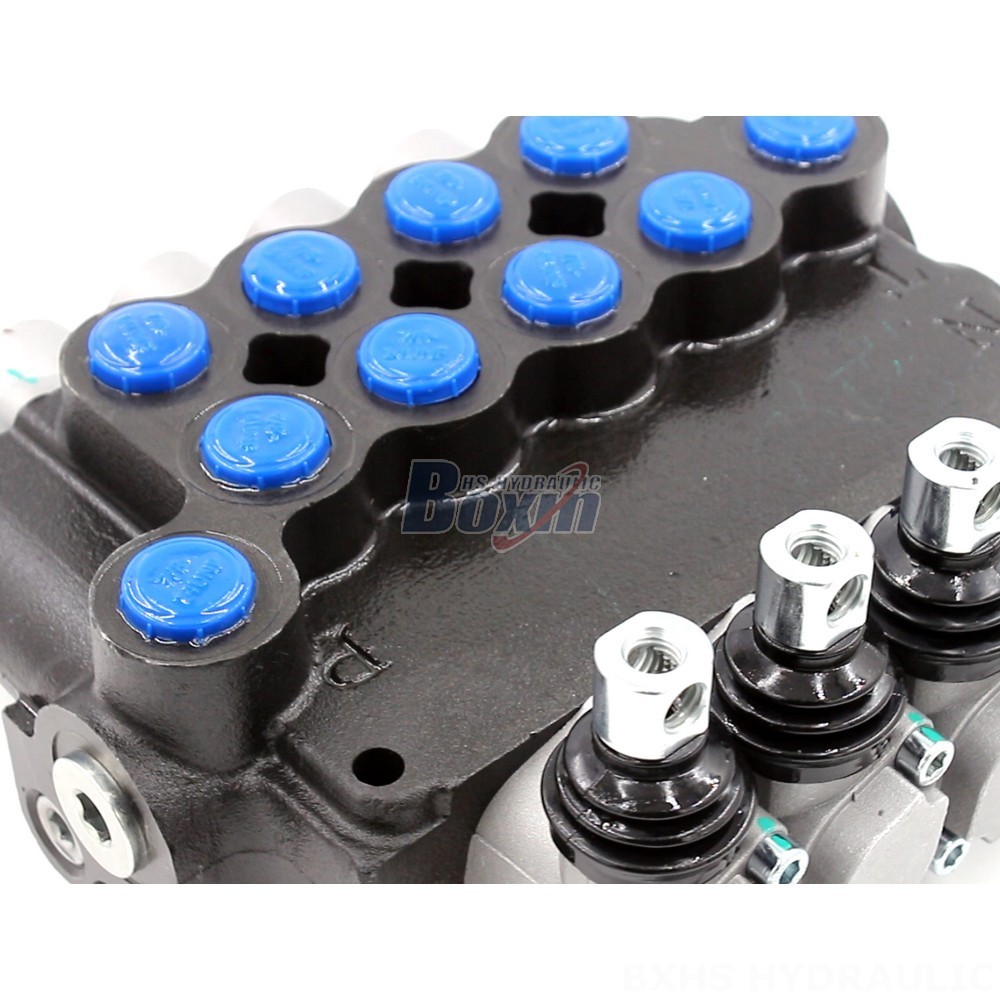

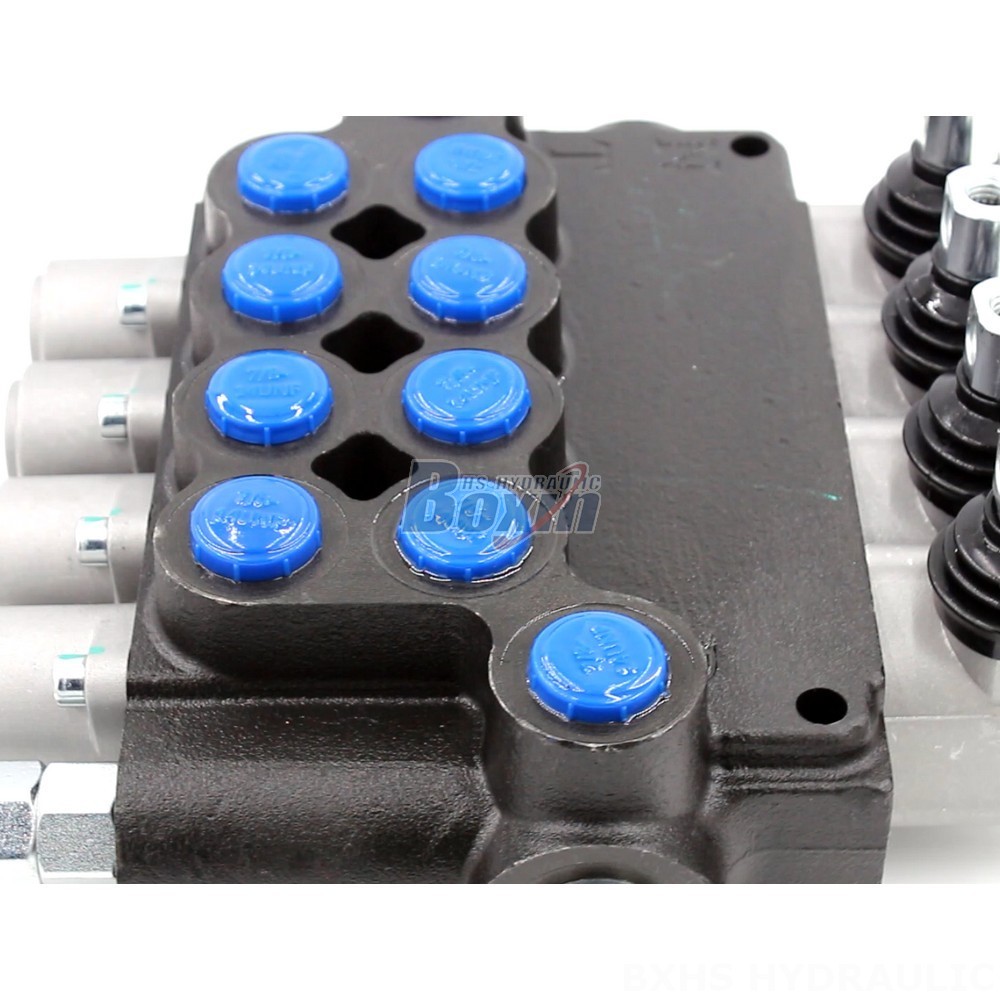

P80-U78-4OT Monoblock Directional Valve | Hydraulic Control Solutions

Método de Controle:Manual

Carrétel:4 Carreteis

Fluxo Nominal:80 L/min (21,2 US gpm)

Pressão Máxima:250 bar (3600 psi)

Porta de Entrada:SAE 10

Porta de Saída:SAE 10

Tamanho da Porta:SAE 10

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série P80 Válvula Direcional Monobloco

Tamanho da embalagem:26*27*11

Peso bruto:13.40 kg

Disponibilidade: Em estoque

1257 Visualizações estão procurando por este produto

P80-U78-4OT Monoblock Directional Valve | Hydraulic Control Solutions

P80-U78-4OT Monoblock Directional Valve | Hydraulic Control Solutions

P80-U78-4OT Monoblock Directional Valve | Hydraulic Control Solutions drawing image

The P80-U78-4OT Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This manual control valve features a 4-section design with a rated flow of 80 L/min and a maximum pressure of 250 bar, making it ideal for a wide range of machinery.

Série P80 Válvula Direcional Monobloco Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Manual e Joystick
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula monobloco
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)
Fluxo Nominal 80 L/min (21,2 US gpm)
Pressão Máxima 315 bar (4600 psi)
Porta de Entrada G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Porta de Saída G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Tamanho da Porta G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This P80 Series monoblock directional valve is a robust and reliable hydraulic solution for controlling hydraulic systems in various applications. With its 4-section design, it offers precise control of multiple hydraulic functions. The valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, ensuring efficient operation even under demanding conditions. The manual control method provides straightforward operation, while the compact monoblock design minimizes installation space. Suitable for a wide range of machinery, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and wheel loaders, this valve is a reliable choice for various industrial and agricultural applications.
