P80A Hydraulic System Components | Factory Supply & Distribution

Método de Controle:Manual

Carrétel:2 Carreteis

Fluxo Nominal:80 L/min (21,2 US gpm)

Pressão Máxima:250 bar (3600 psi)

Porta de Entrada:G1/2

Porta de Saída:G1/2

Tamanho da Porta:G1/2

Marca:BXHS

Tipo de produto:Válvula Direcional Monobloco

Série de produtos:Série P80A Válvula Direcional Monobloco

Tamanho da embalagem:28*30*13

Peso bruto:8.00 kg

Disponibilidade: Em estoque

1056 Visualizações estão procurando por este produto

P80A Hydraulic System Components | Factory Supply & Distribution

P80A Hydraulic System Components | Factory Supply & Distribution

P80A Hydraulic System Components | Factory Supply & Distribution drawing image

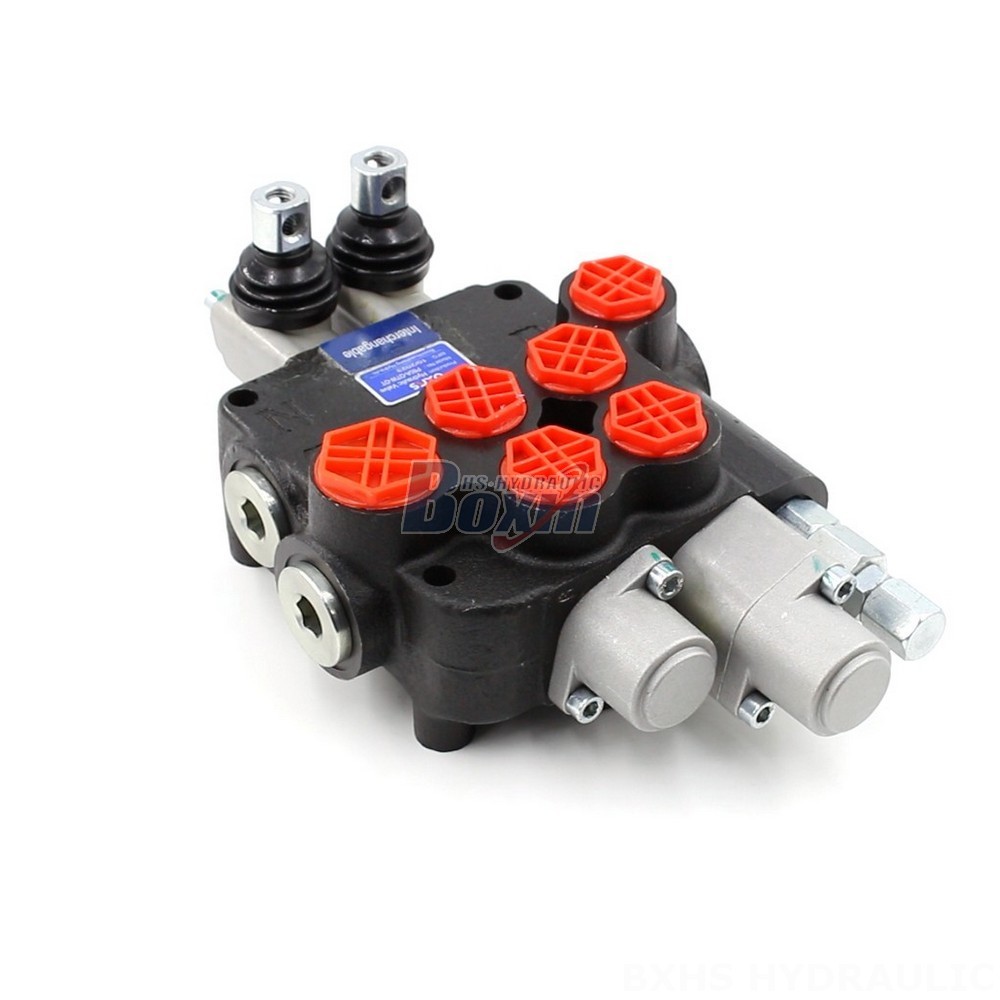

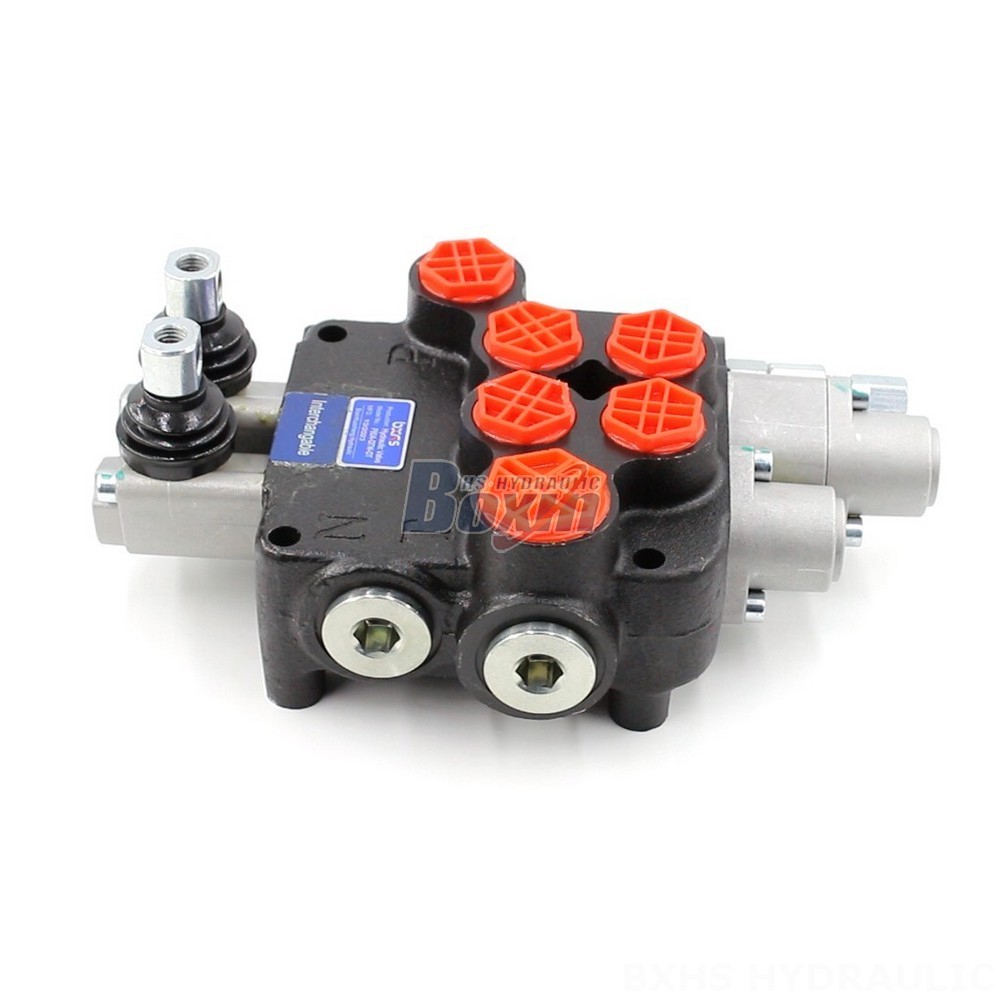

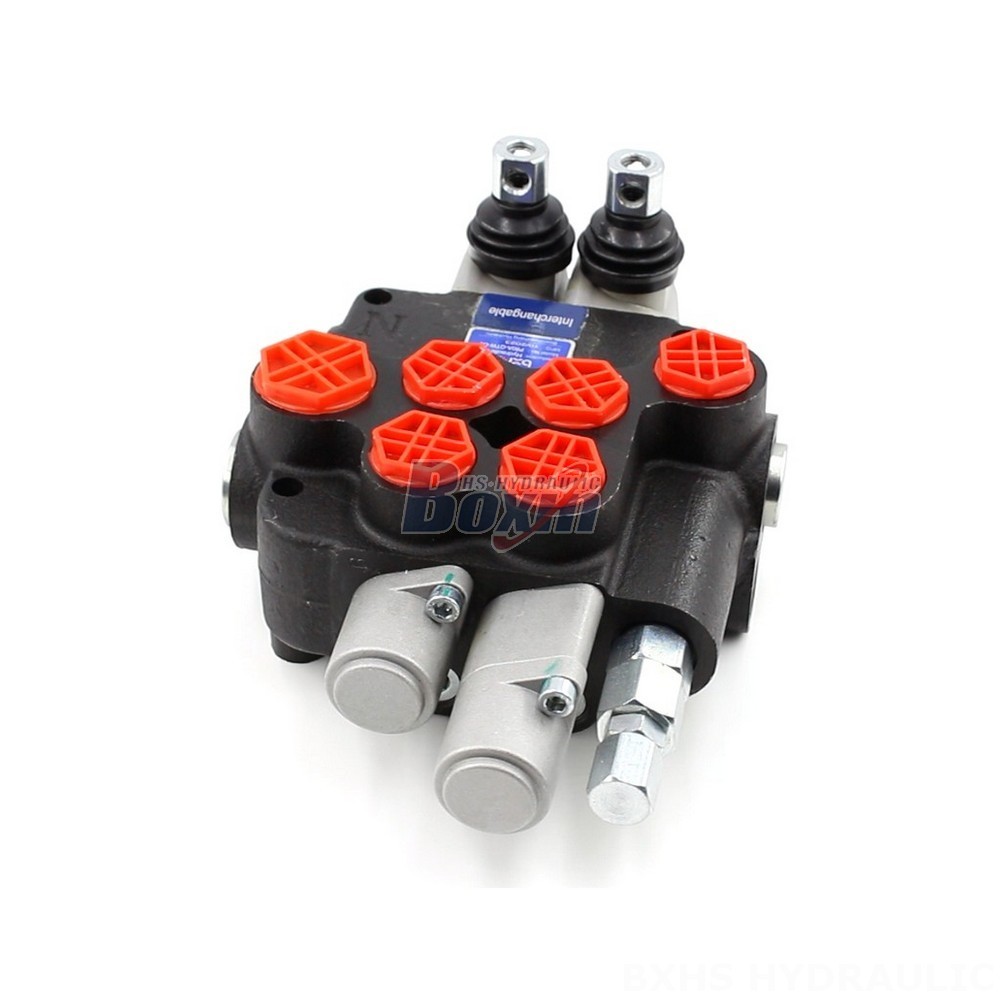

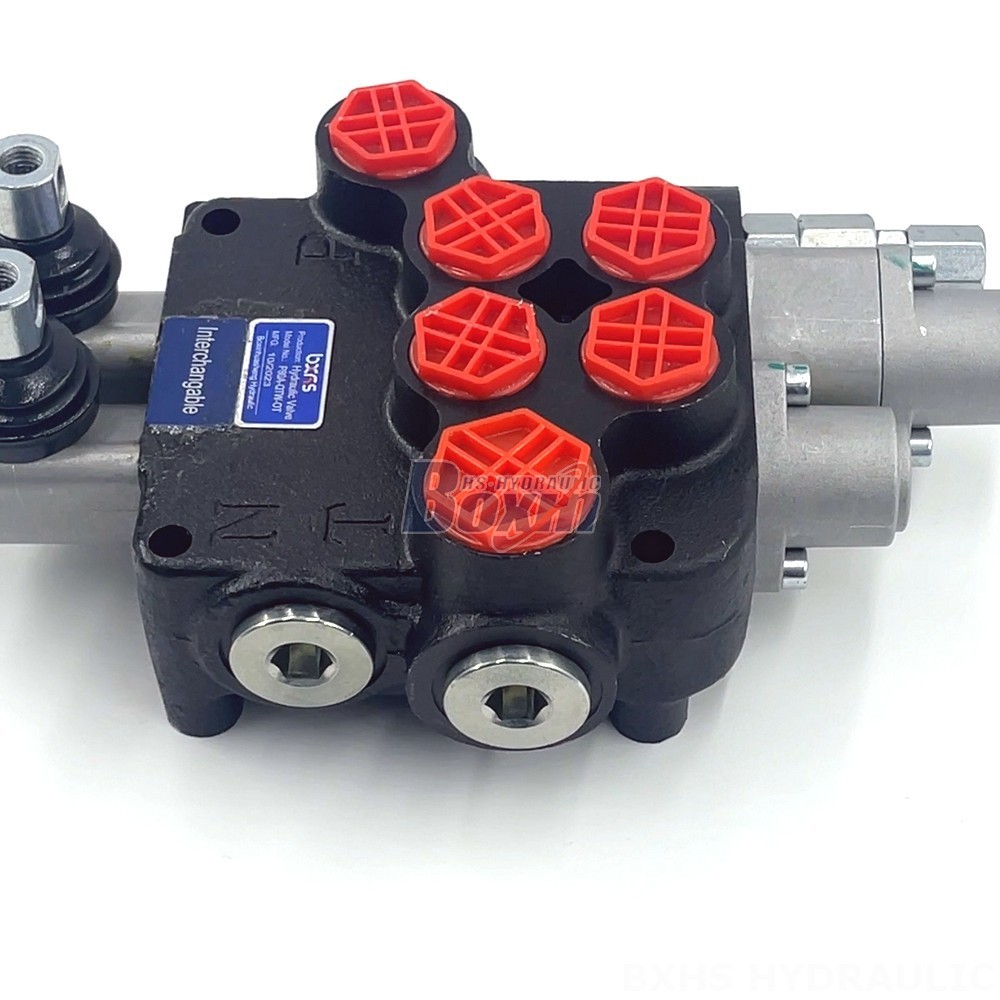

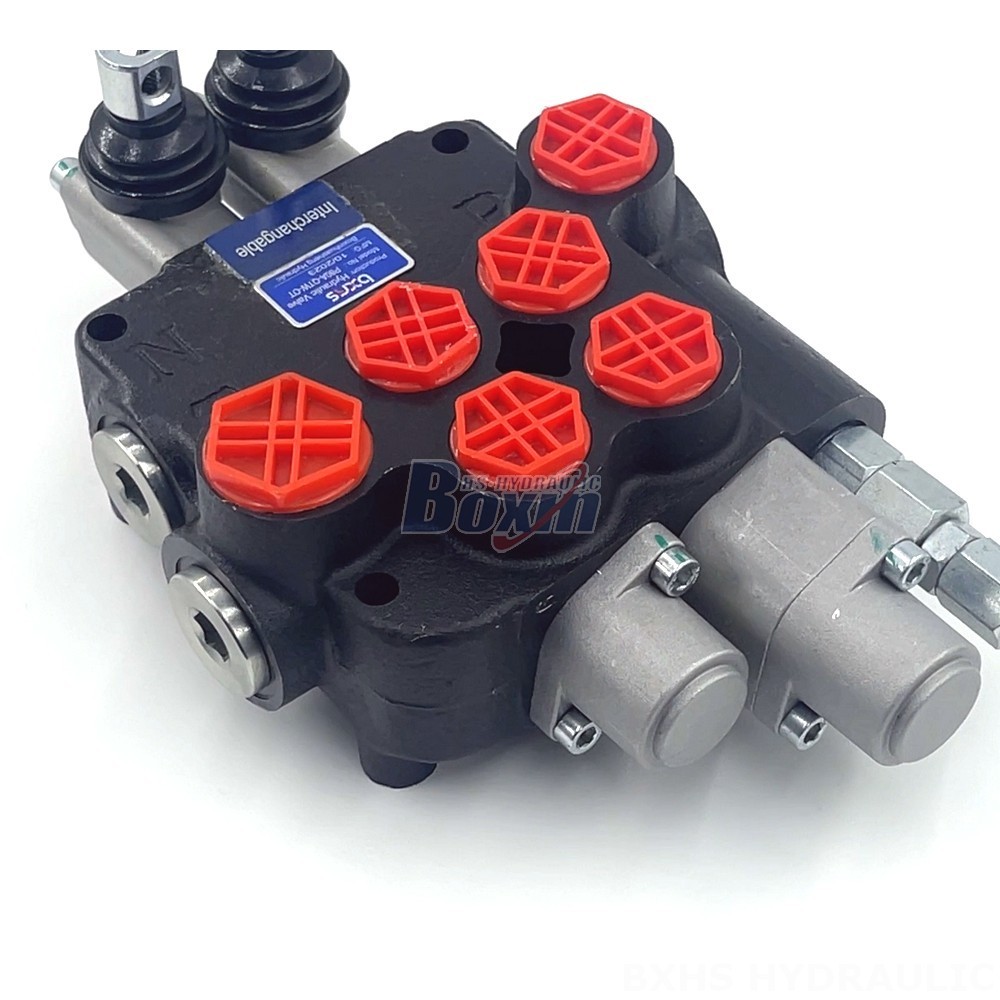

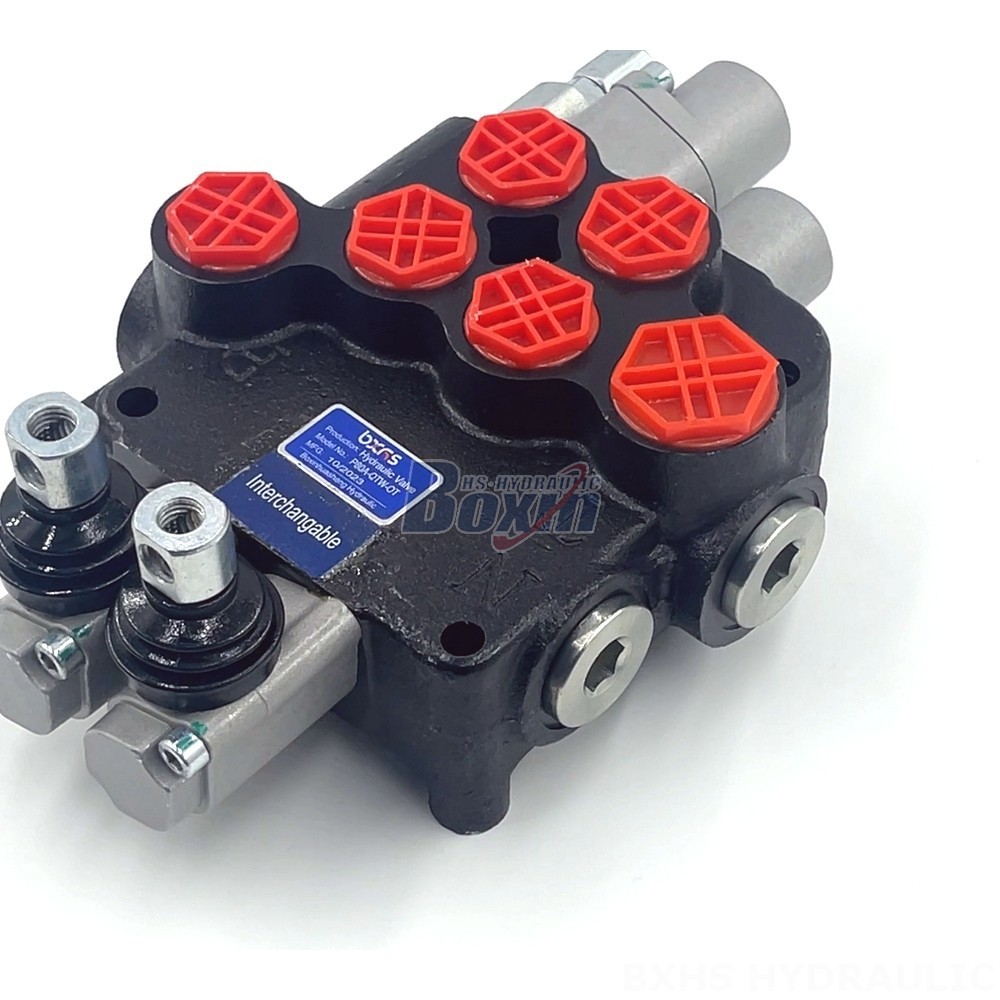

The P80A Series Hydraulic Control Valve is a high-performance, 2-section monoblock valve designed for manual control of hydraulic systems. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it's ideal for various applications in material handling, construction, and agriculture.

Série P80A Válvula Direcional Monobloco Parâmetros
Método de Controle Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Elétrico, Solenóide e Manual, Solenoide e Joystick, Manual e Joystick
Carrétel 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis
Intervalo de temperatura ambiente -40 °C a +80 °C (-40 °F a +176 °F)
Tipo de estrutura Válvula monobloco
Secção 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções
Intervalo de viscosidade operacional 15 - 75 mm²/s (15 cSt a 75 cSt)
Fluxo Nominal 80 L/min (21,2 US gpm)
Pressão Máxima 315 bar (4600 psi)
Porta de Entrada G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Porta de Saída G1/2, G3/4, M27×2.0, SAE 12, 1/2 NPT, 3/4 NPT
Tamanho da Porta G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

The P80A Series Hydraulic Control Valve is a reliable and durable solution for a wide range of hydraulic applications. It features a robust monoblock construction, a manual control method, and a 2-section design for versatile operation. The valve is rated for a flow of 80 L/min and can withstand a maximum pressure of 250 bar, making it suitable for heavy-duty applications. Its 2-spool configuration allows for precise control of hydraulic functions. The P80A Series is ideal for use in a variety of equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, and mini-excavators. We offer manufacturing, OEM, private label, and customization options to meet your specific requirements. We are also looking for distributors, wholesalers, agents, and traders worldwide to partner with us in bringing our high-quality hydraulic products to a wider audience.
