Produção e Entrega
Prazo de produção de 15 a 30 dias
1172 Visualizações estão procurando por este produto

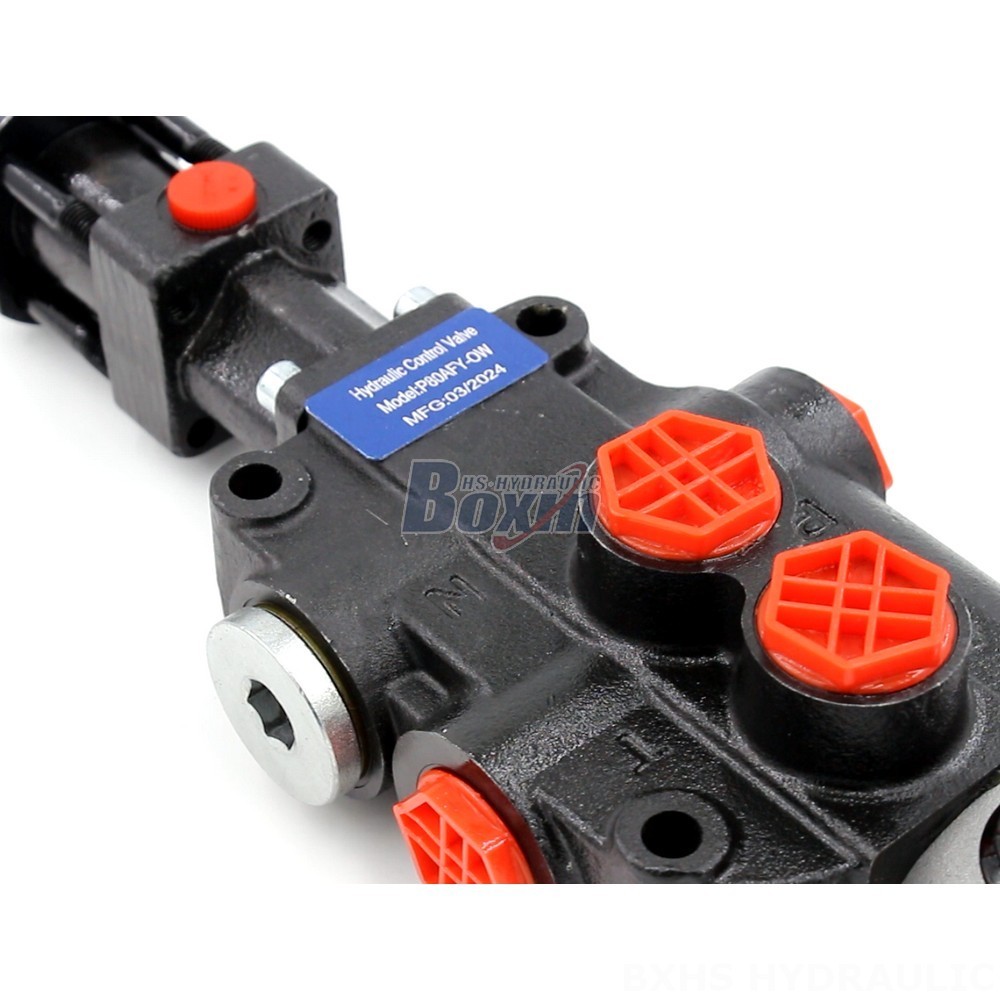

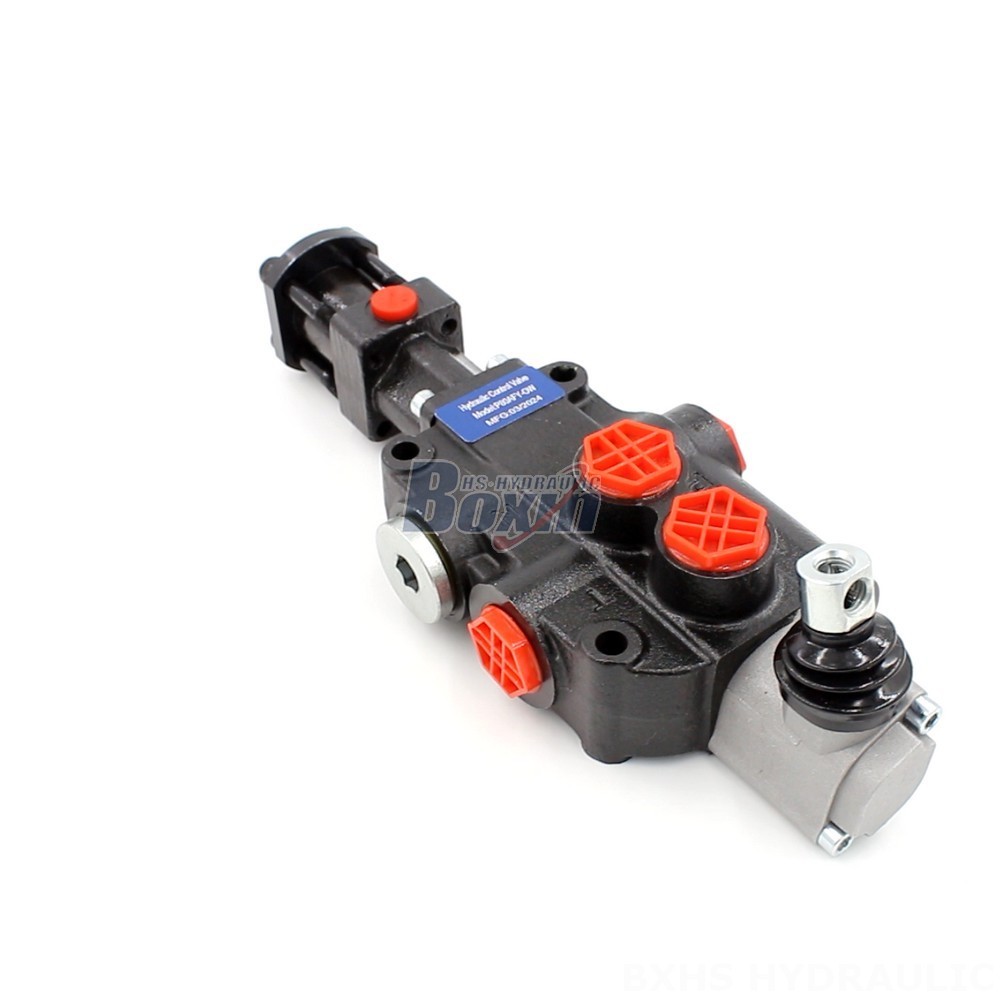

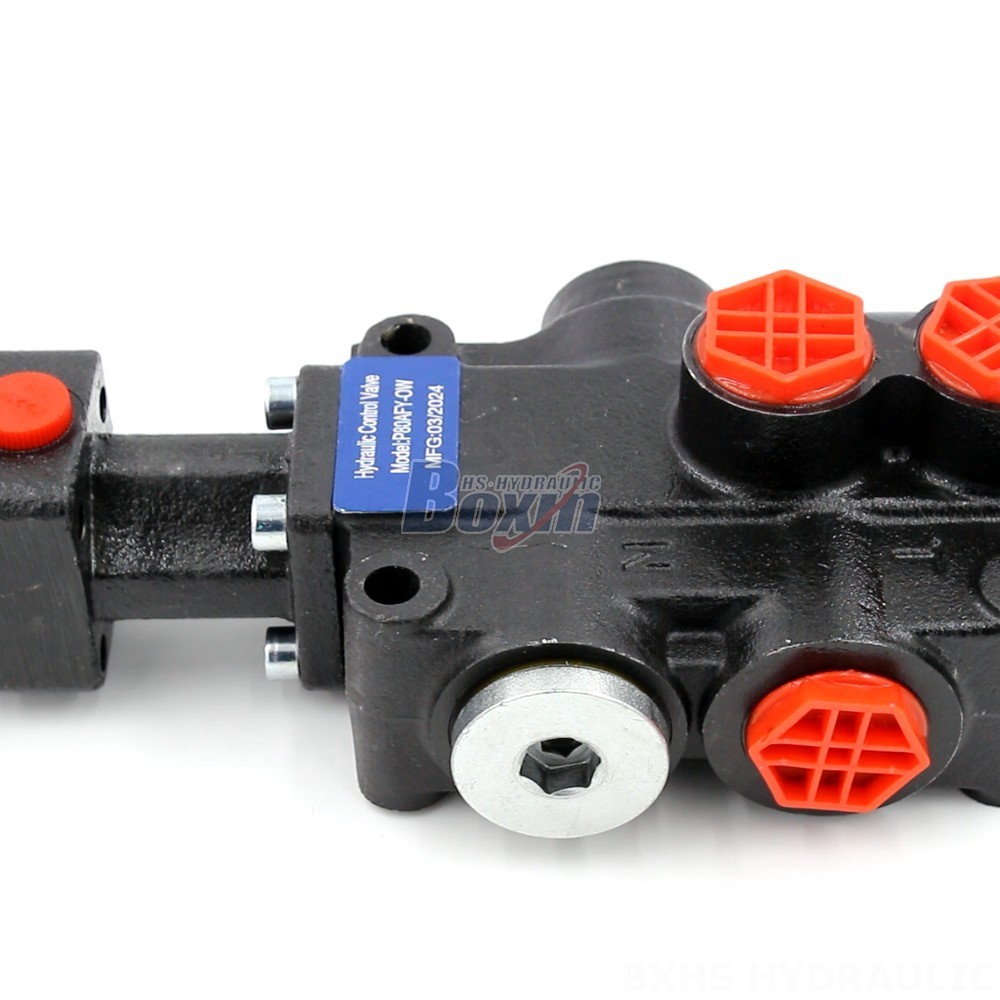

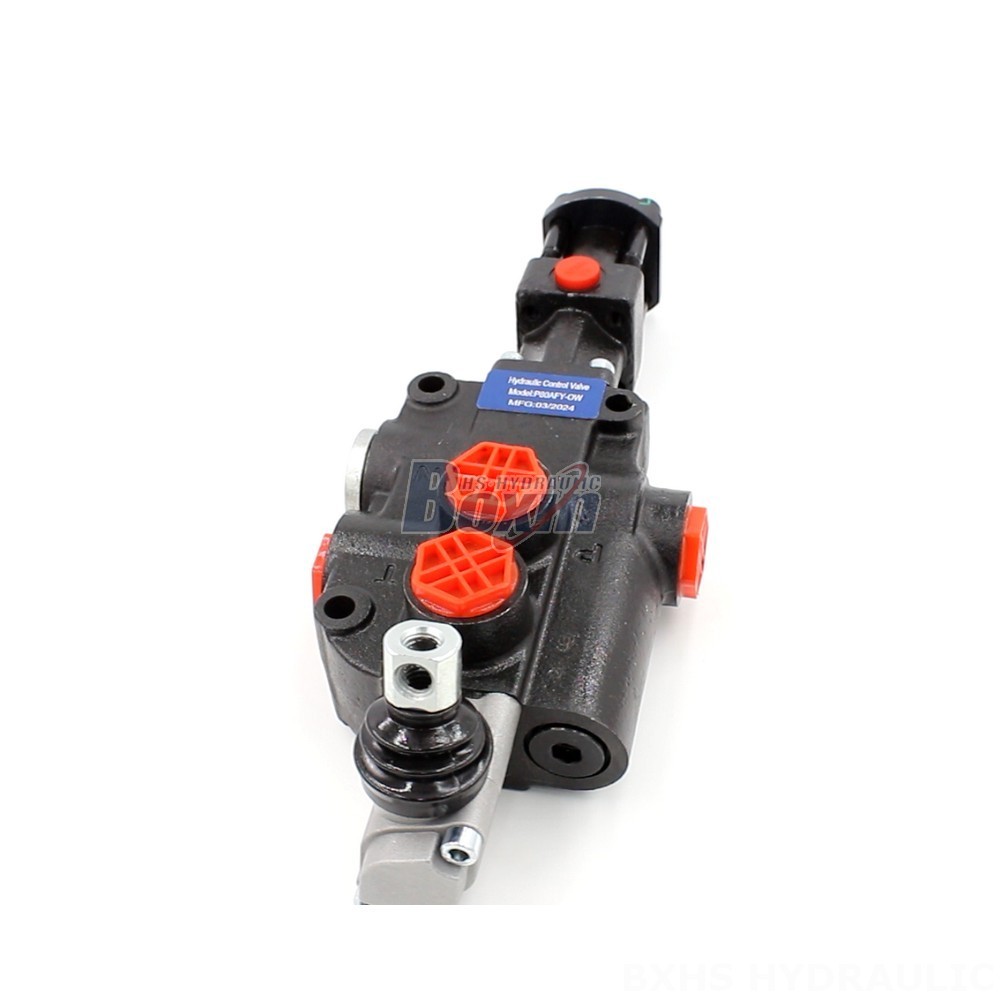

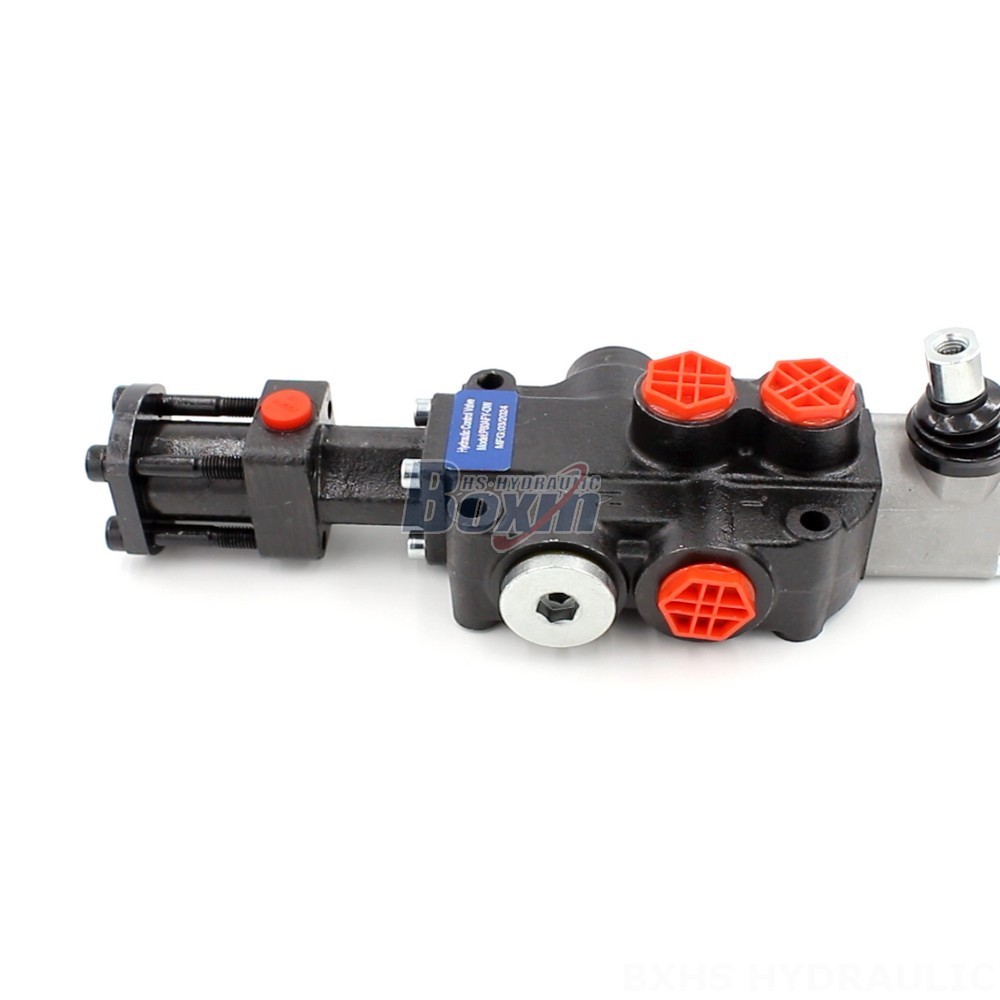

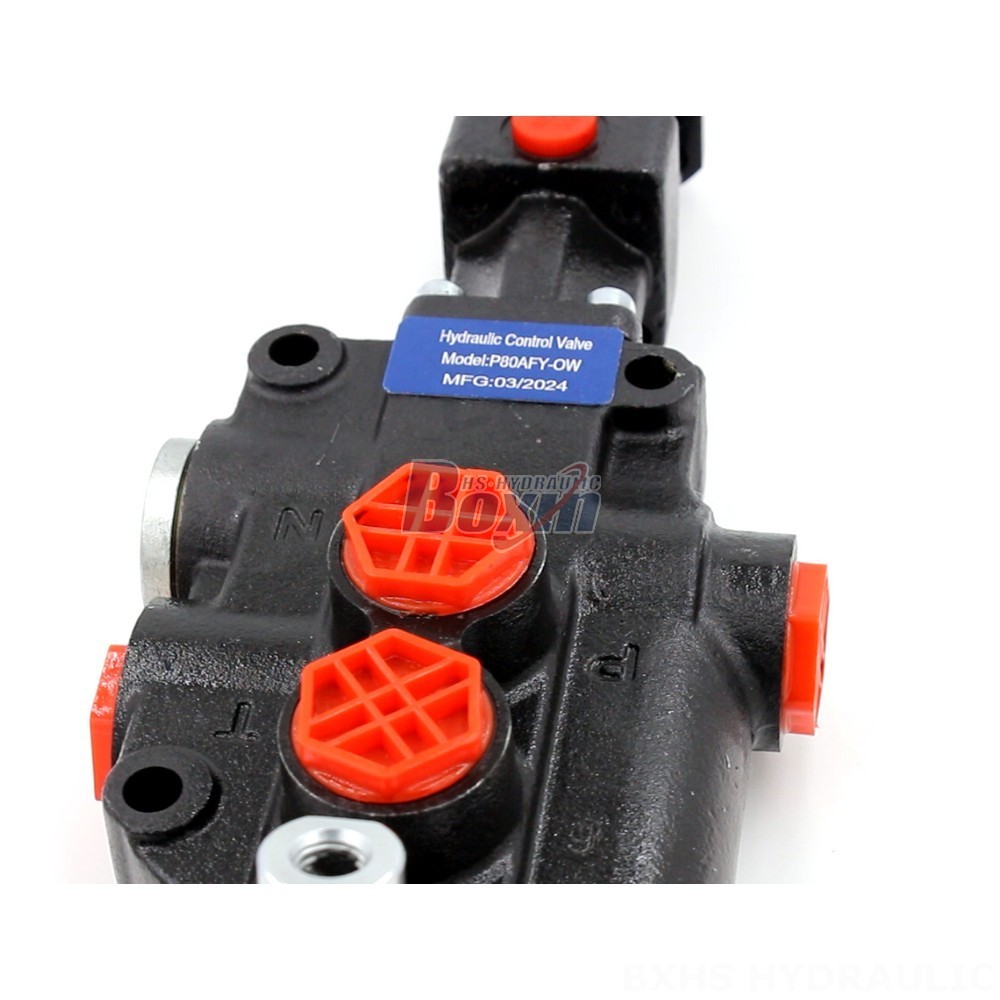

The 6 Port Solenoid Diverter Valve P80F-G34 is a high-performance hydraulic valve designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. This single-spool monoblock valve offers a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), making it ideal for demanding environments. Available for OEM and wholesale orders.
| Série P80F Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick |
| Tamanho da Porta | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Porta de Saída | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT |
| Pressão Máxima | 315 bar (4600 psi) |
| Fluxo Nominal | 80 L/min (21,2 US gpm) |
| Tipo de estrutura | Válvula monobloco |
| Porta de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
The 6 Port Solenoid Diverter Valve P80F-G34 is a single-spool monoblock valve with 6 ports. It features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi). This valve is designed for use in a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, face drill rigs, concrete boom pumps, pave rollers, rotary drilling, crushers, and stone cutters. The valve is constructed with high-quality materials and is designed to withstand harsh operating environments. It features a wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F). This valve is available for OEM and wholesale orders.
