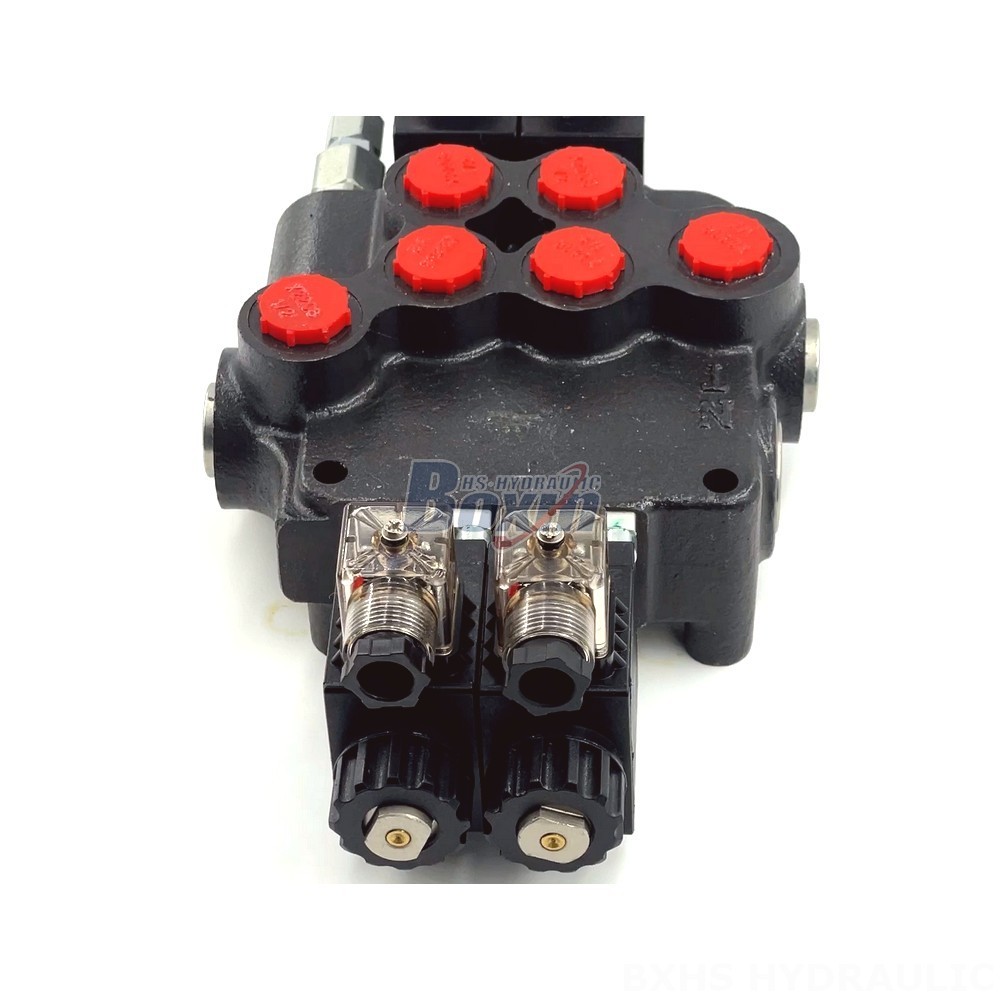

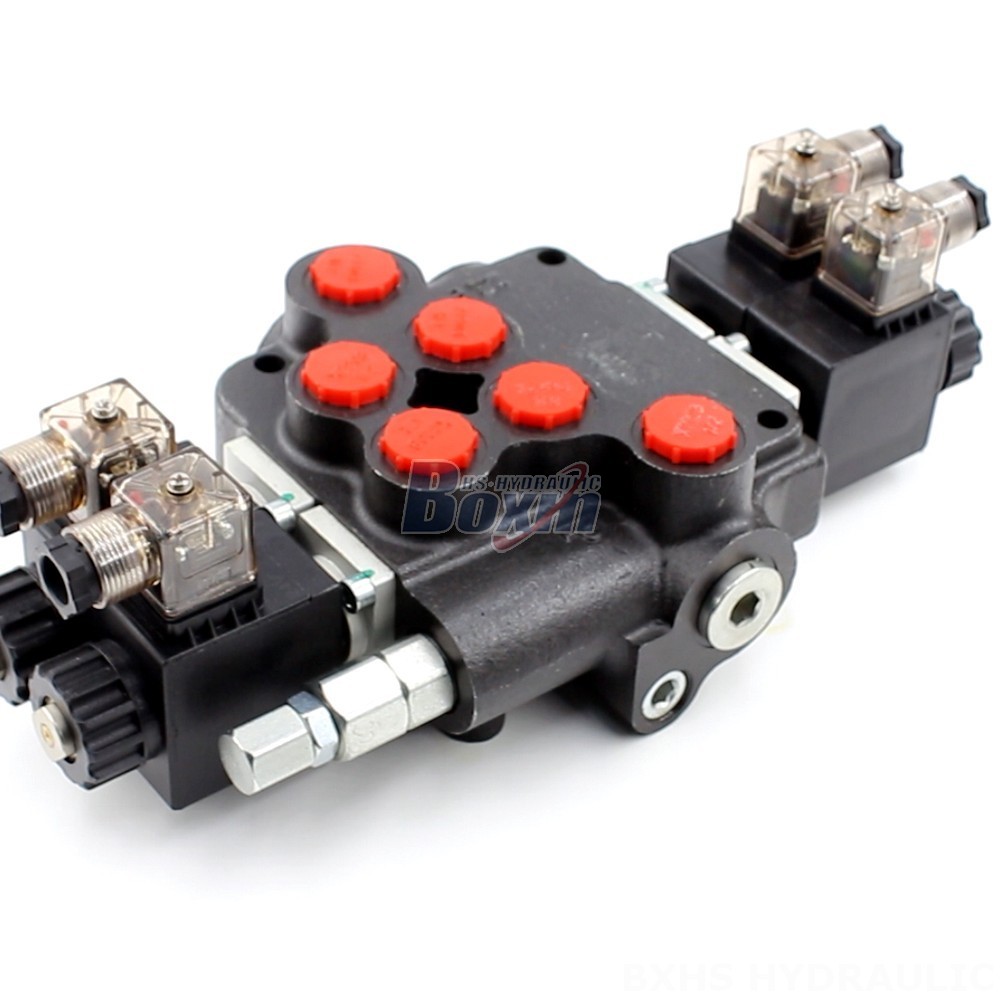

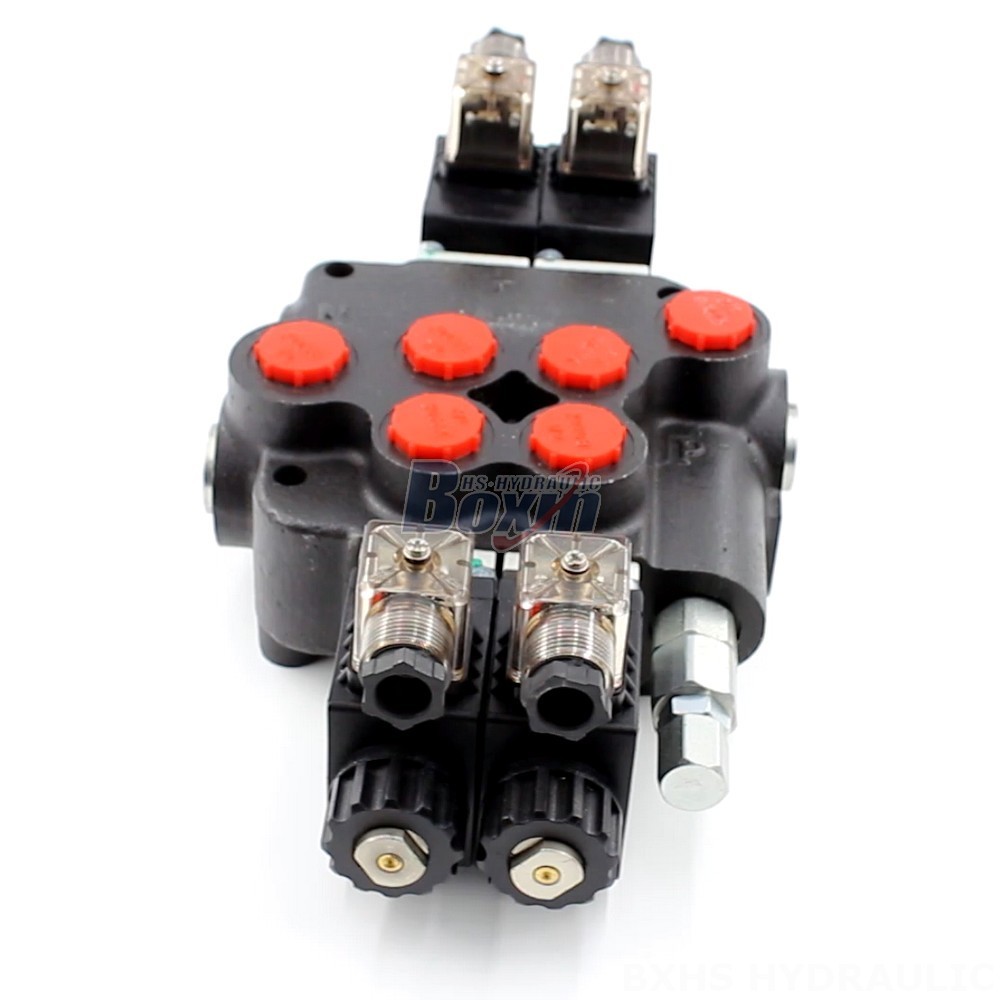

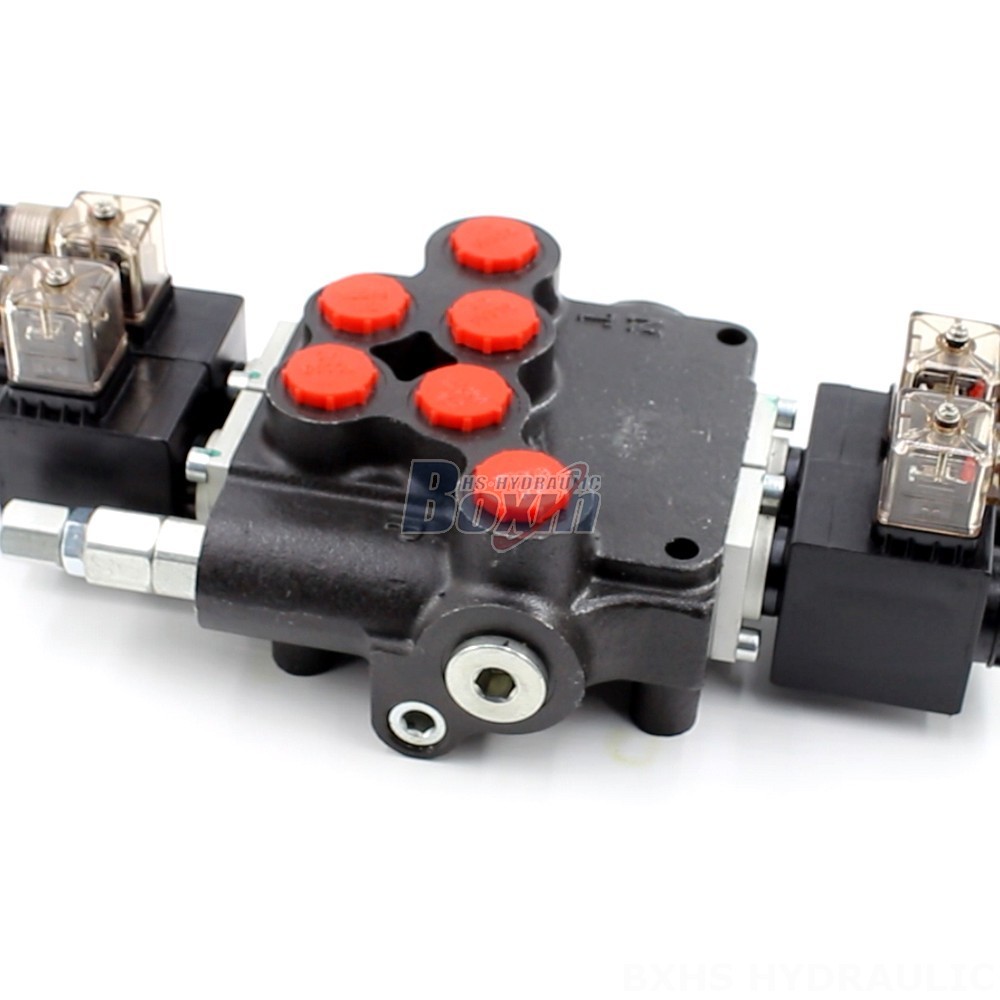

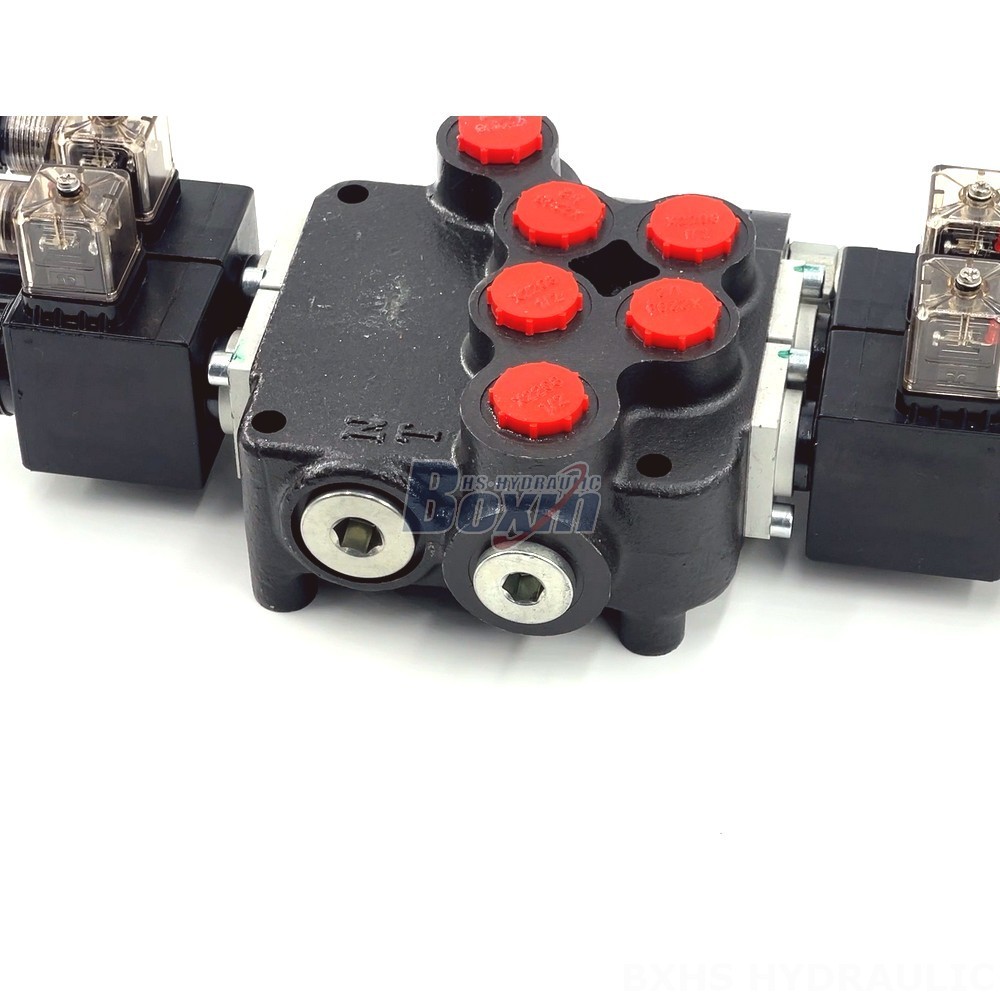

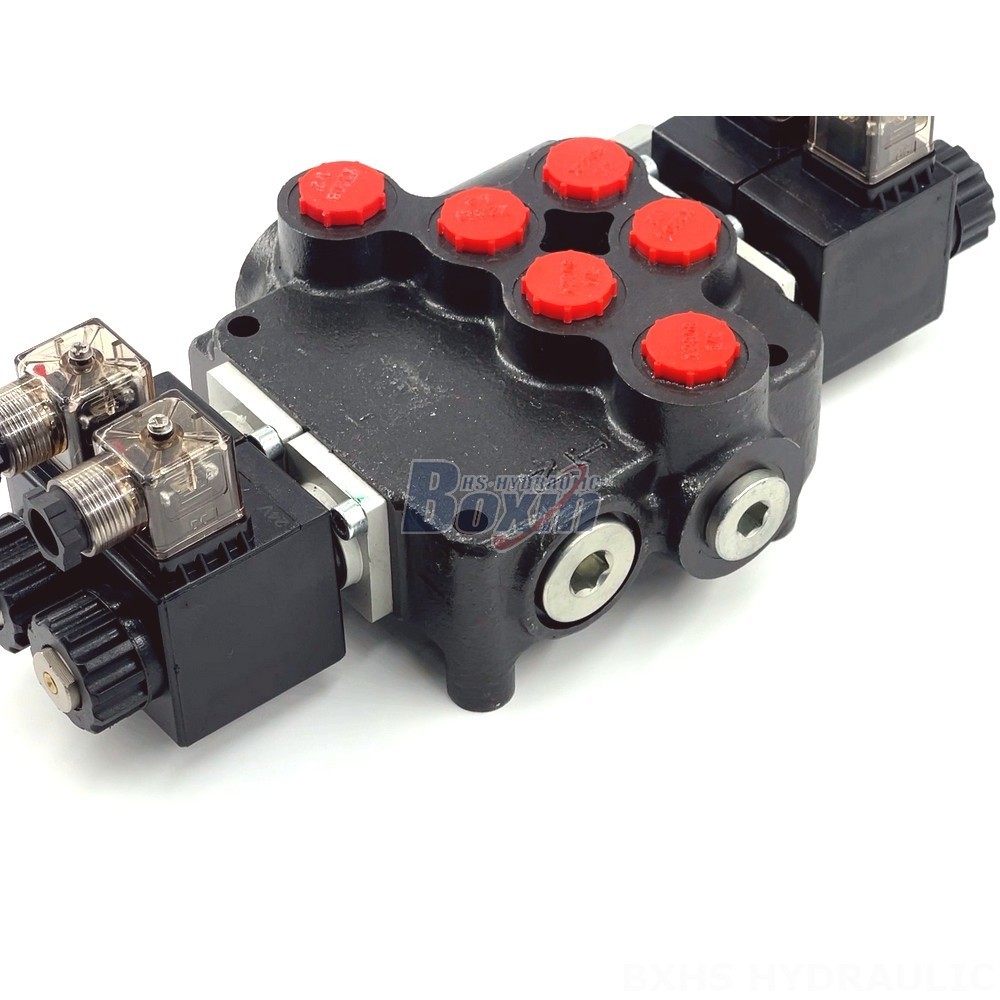

The Partner with Us: Distribute the P80 Solenoid 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. It features a solenoid control method, 2 section monoblock structure, 80 L/min rated flow, 250 bar max pressure, and 15-75 mm²/s operating viscosity range. It also has a wide ambient temperature range of -40 to 80°C and is available in 2 spool and P80 Series configurations. The valve is suitable for use in a variety of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
| Série P80 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 80 L/min (21,2 US gpm) |
| Pressão Máxima | 315 bar (4600 psi) |
| Porta de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Porta de Saída | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamanho da Porta | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The Partner with Us: Distribute the P80 Solenoid 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles.
The valve features a solenoid control method, 2 section monoblock structure, 80 L/min rated flow, 250 bar max pressure, and 15-75 mm²/s operating viscosity range. It also has a wide ambient temperature range of -40 to 80°C and is available in 2 spool and P80 Series configurations.
The valve is suitable for use in a variety of applications, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
We are looking for distributors, wholesalers, agents, and traders to help us distribute the P80 Solenoid 2 Spool Monoblock Directional Valve to a global market. We offer a variety of support services to our partners, including marketing materials, technical support, and training. If you are interested in becoming a partner, please contact us today.
