Partner with us and distribute the P80 Solenoid 5 Spool Monoblock Directional Valve, engineered for demanding hydraulic applications. This robust valve offers precise control, high flow capacity (80 L/min), and durability under extreme conditions (-40°C to +80°C). Ideal for material handling, construction, agriculture, and industrial vehicles, it seamlessly integrates into various systems, including telehandlers, forklifts, and excavators.
| Série P80 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Manual e Joystick |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis, 6 Carreteis, 7 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 80 L/min (21,2 US gpm) |
| Pressão Máxima | 315 bar (4600 psi) |
| Porta de Entrada | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Porta de Saída | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Tamanho da Porta | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

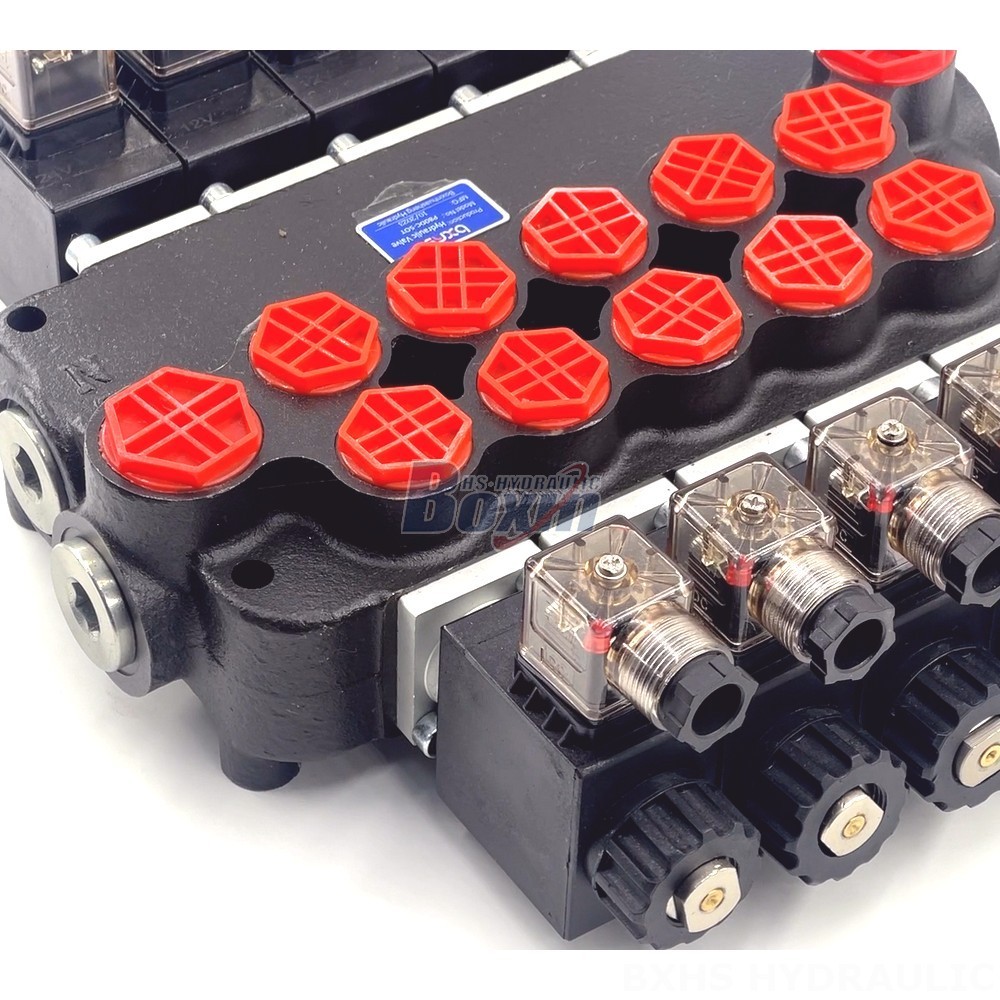

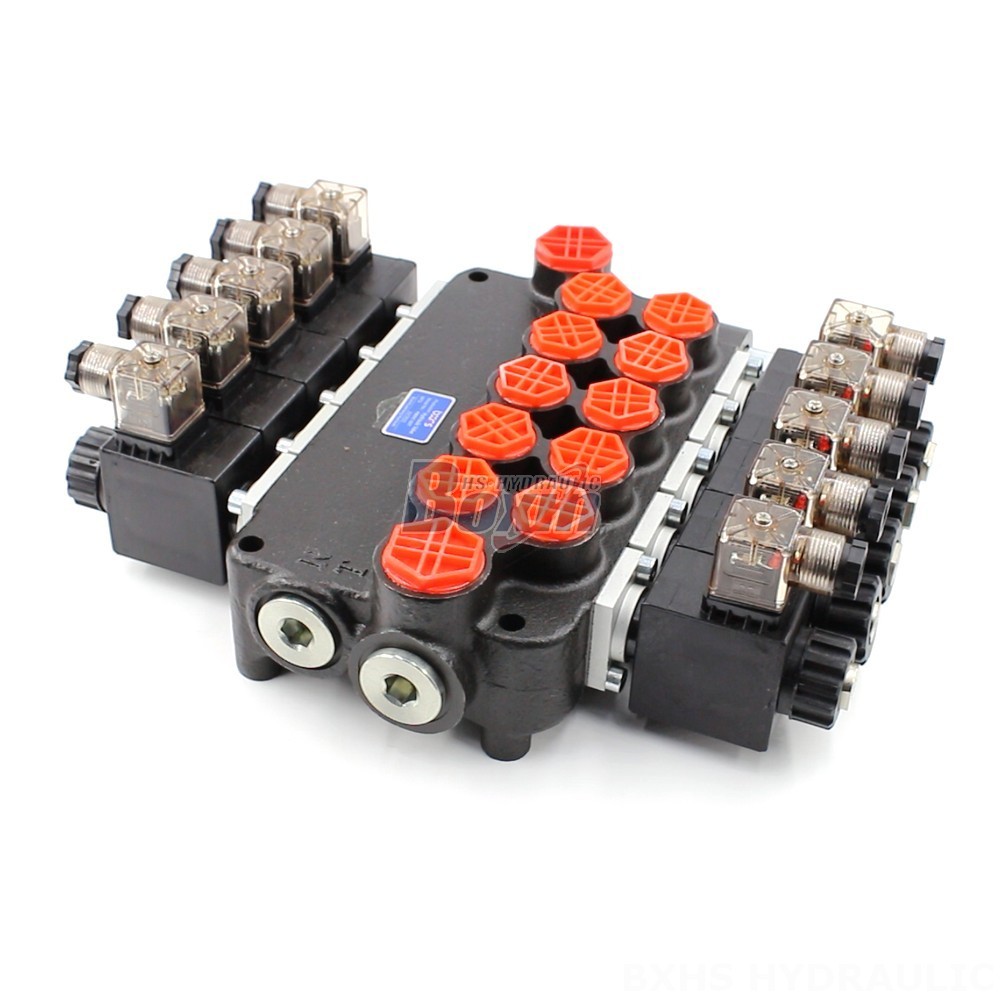

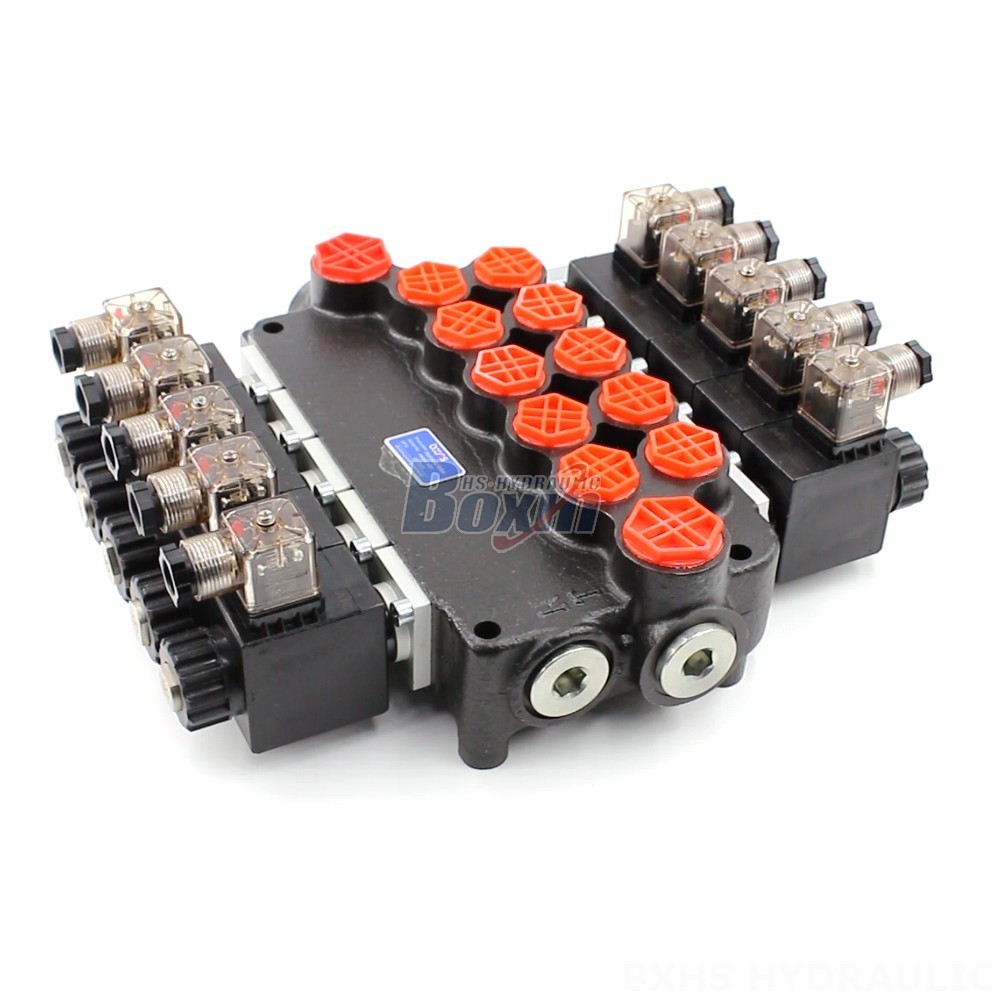

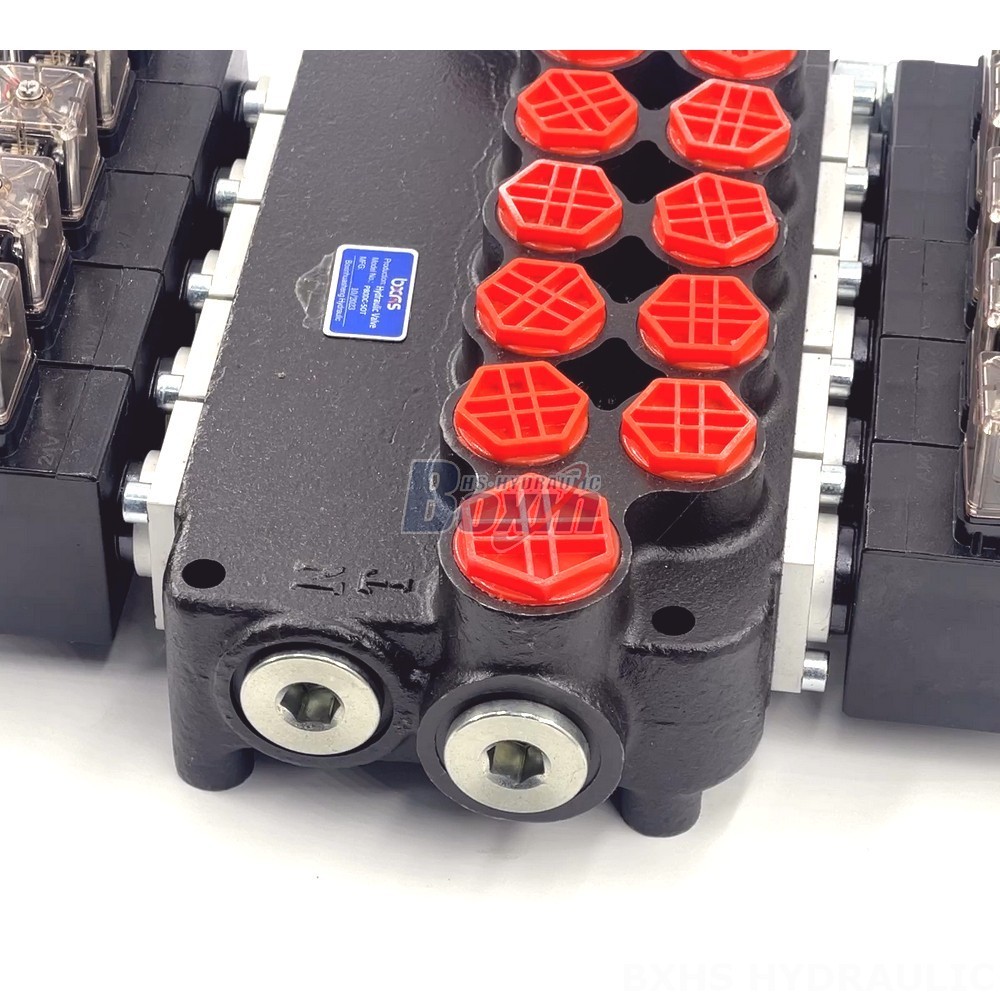

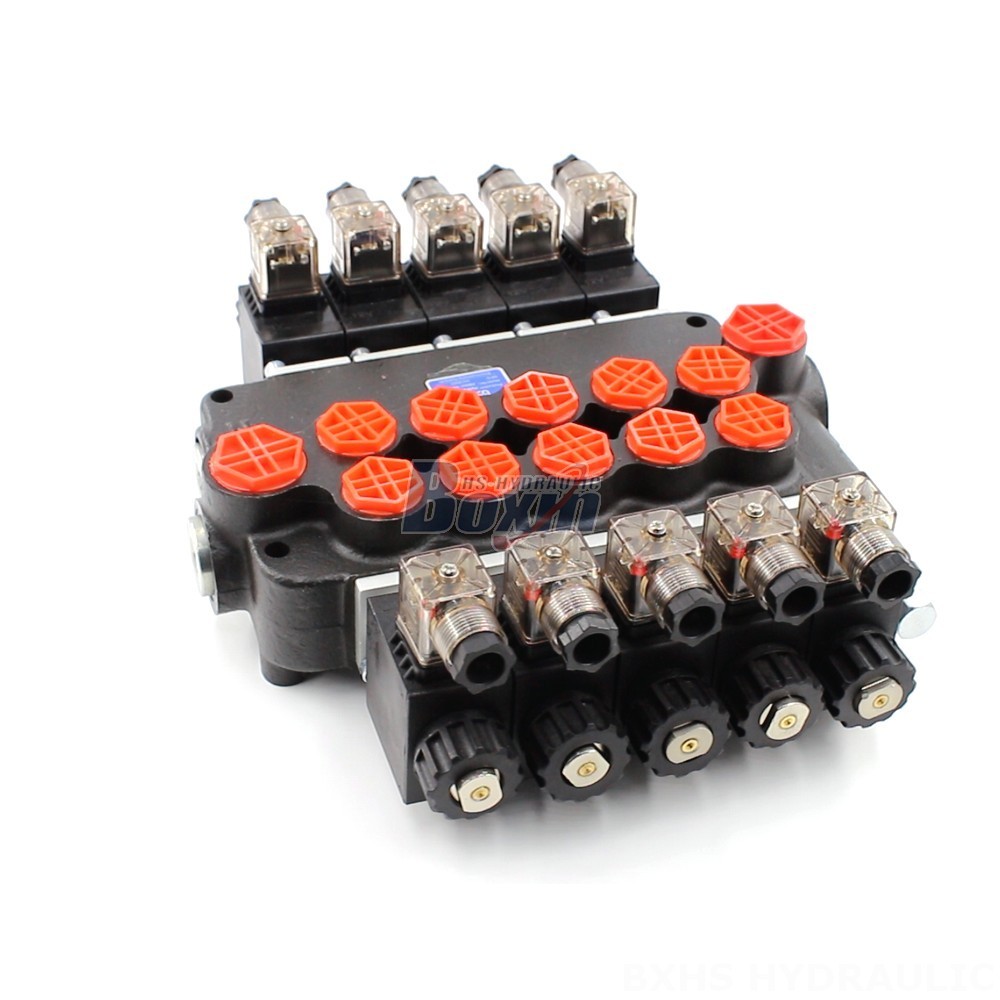

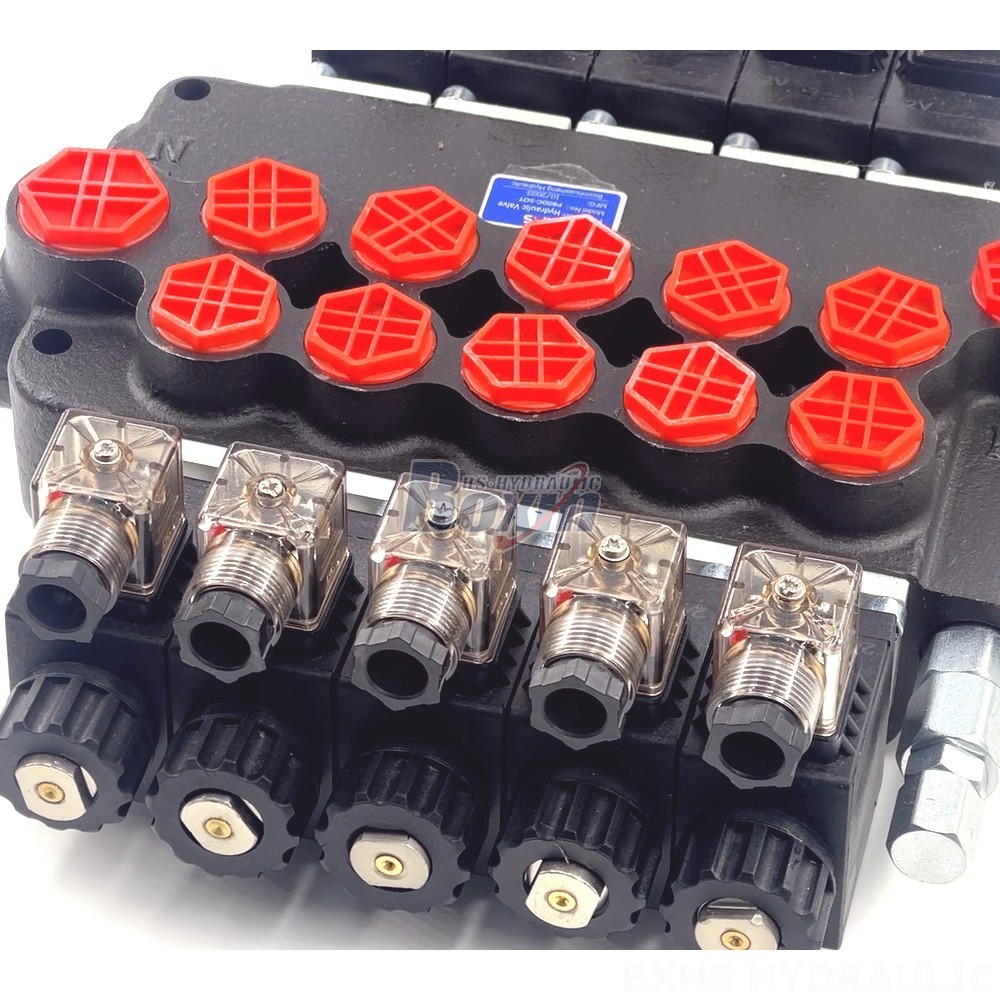

**P80 Solenoid 5 Spool Monoblock Directional Valve**
**Key Features:**
* Solenoid control for precise operation
* 5 spool design for versatile flow management
* Monoblock construction for compact and reliable performance
* Rated flow of 80 L/min (21.2 US gpm) for efficient hydraulic systems
* Maximum pressure of 250 bar (3600 psi) for demanding applications
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for reliable operation in harsh environments
**Application Areas:**
* Material Handling: Telehandlers, forklifts, stackers
* Construction and Earth Moving: All-terrain cranes, motor graders, excavators
* Agriculture: Tractors, harvesters, sprayers
* Industrial Vehicles: Sweepers, scrubbers, aerial platforms
**Partnership Opportunities:**
We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach. Our flexible partnership models include:
* Distribution agreements
* Private label (OEM) manufacturing
* Custom engineering solutions
* Technical support and training
Contact us today to explore the opportunities and collaborate in delivering cutting-edge hydraulic solutions to your customers.
