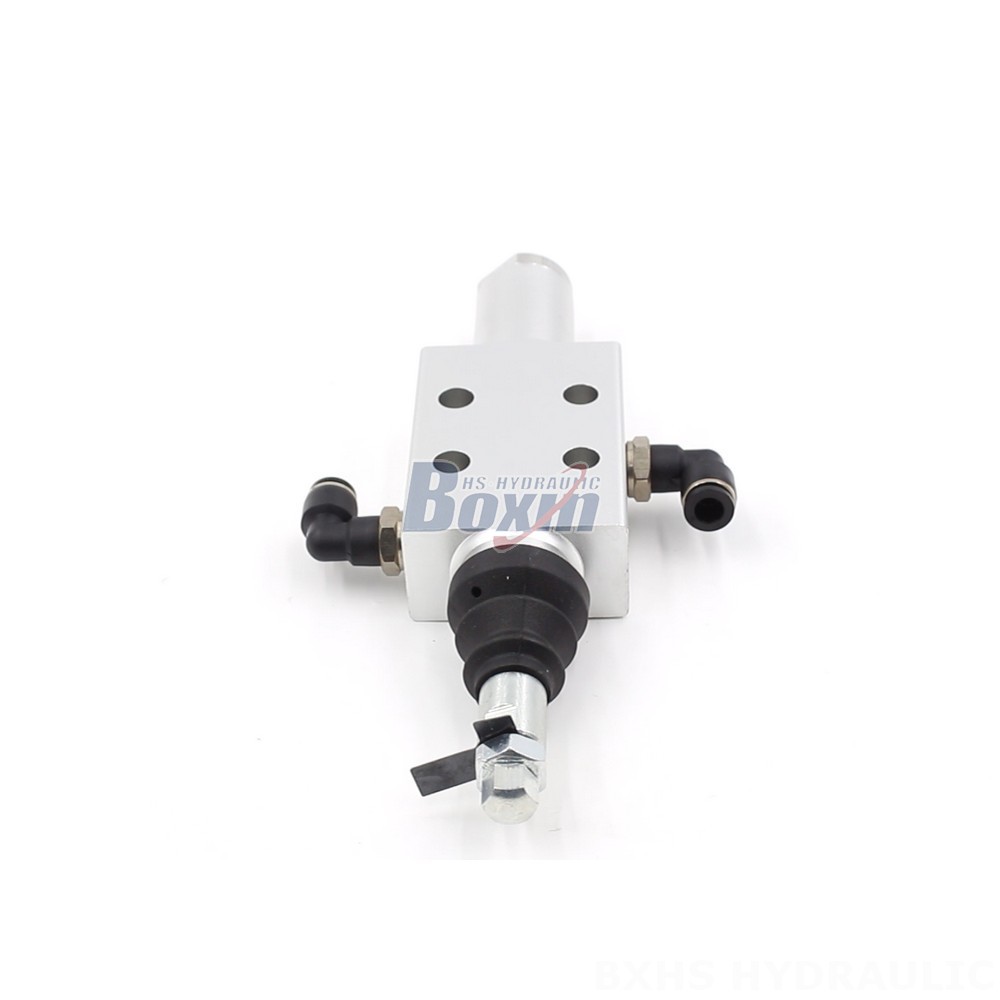

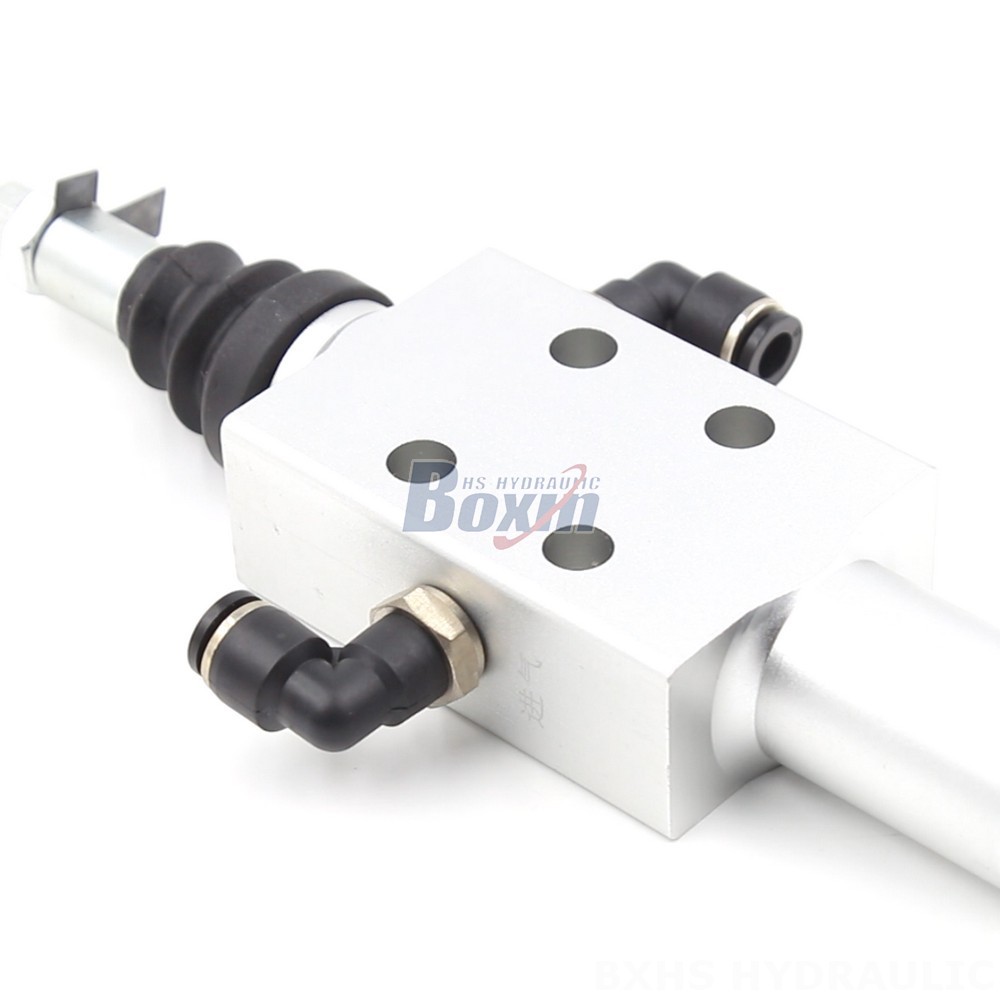

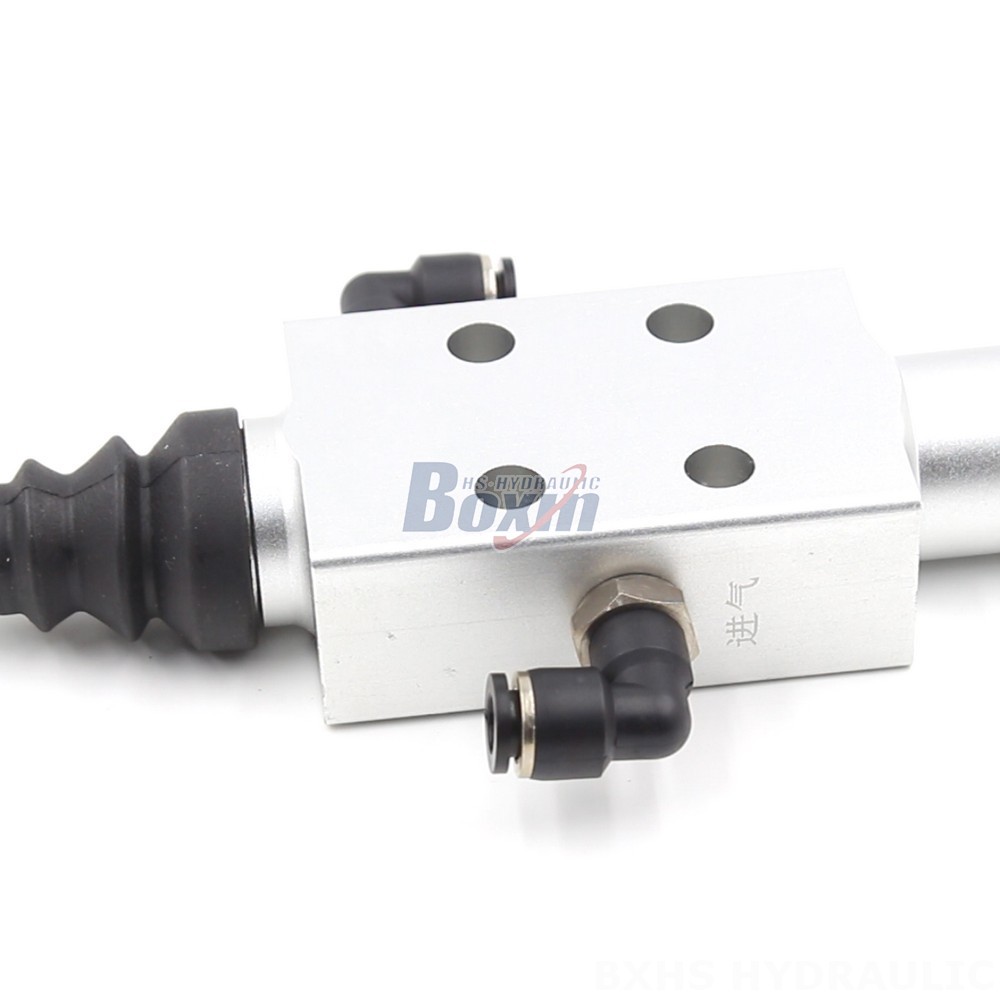

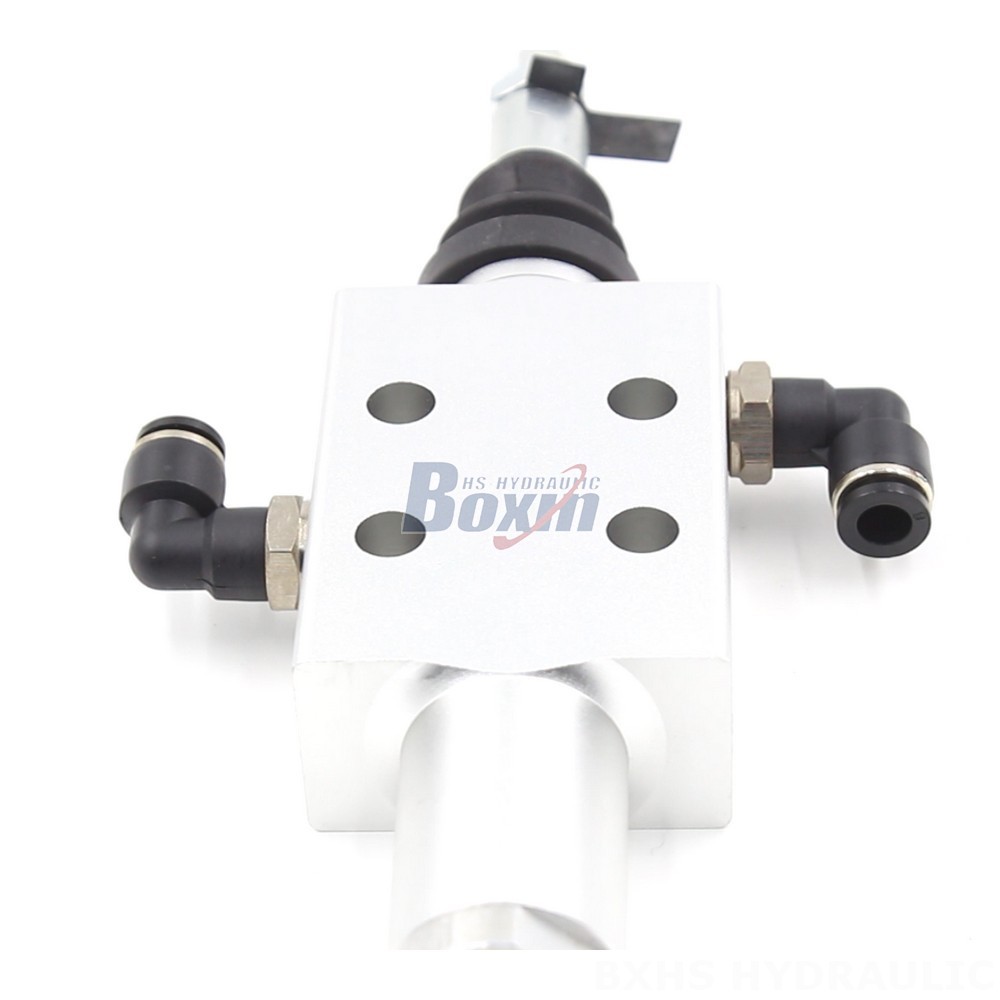

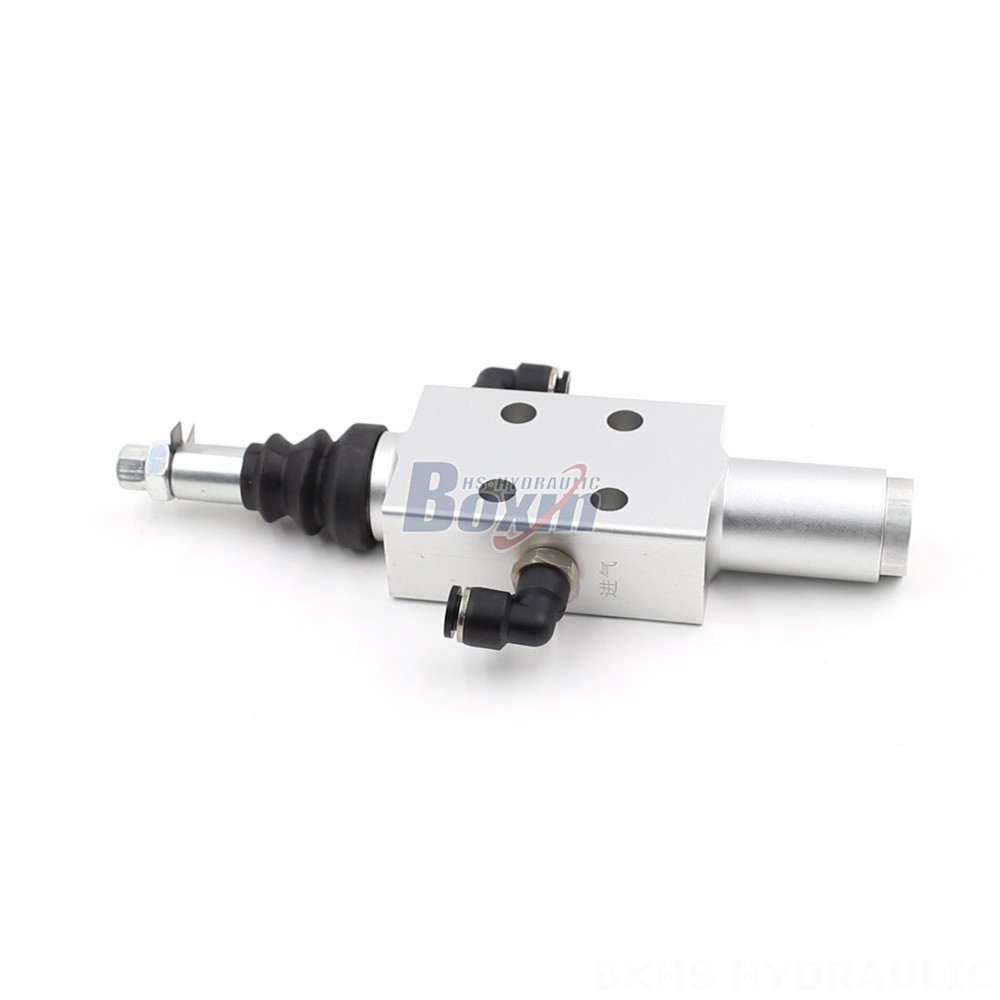

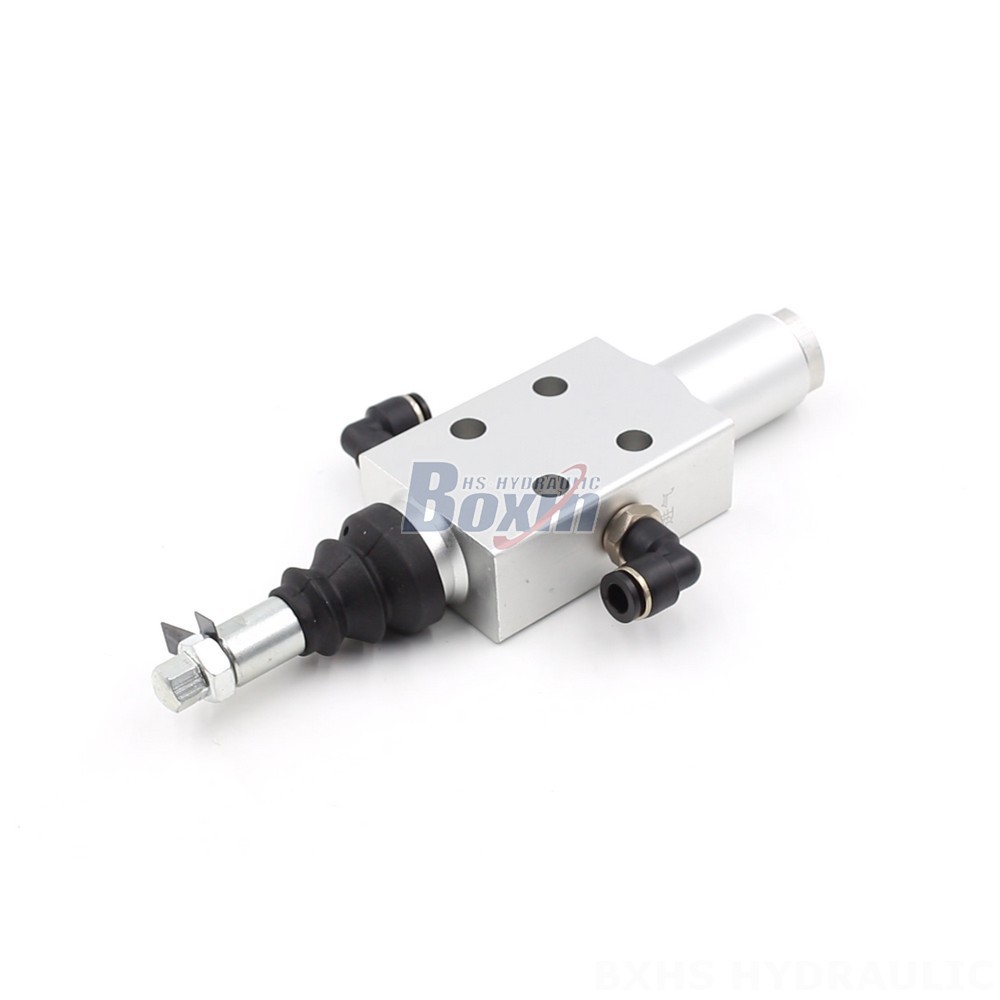

This XQF Series pneumatic overtravel valve is a 1 spool directional valve designed for material handling, construction, agriculture, and industrial vehicles. It's a monoblock valve featuring a maximum pressure of 200 bar (2900 psi) and operating viscosity range of 12-400 mm²/s (12-400 cSt). This valve offers robust overtravel protection for various applications.
| Série XQF Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Pneumático |
| Carrétel | 1 Carretel |
| Intervalo de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção |
| Intervalo de viscosidade operacional | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Fluxo Nominal | 50 L/min (13,2 US gpm) |
| Pressão Máxima | 200 bar (2900 psi) |
| Porta de Entrada | G1/4 |
| Porta de Saída | G1/4 |
| Tamanho da Porta | G1/4 |
Our XQF Series pneumatic overtravel valve is a high-performance 1 spool directional valve suitable for a wide range of applications. Its monoblock construction ensures durability and reliability. This valve is designed to operate at pressures up to 200 bar (2900 psi) and with viscosity ranges from 12-400 mm²/s (12-400 cSt). The valve is engineered to function effectively in ambient temperatures ranging from -40°C to +60°C (-40°F to +140°F). Its pneumatic control method makes it easy to integrate into various systems. This valve is a perfect solution for applications like material handling, construction and earth moving, agriculture, and industrial vehicles, including forklifts, telehandlers, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, harvesters, and sprayers. We offer customization options to meet your specific requirements, making it an ideal choice for your hydraulic system needs.
