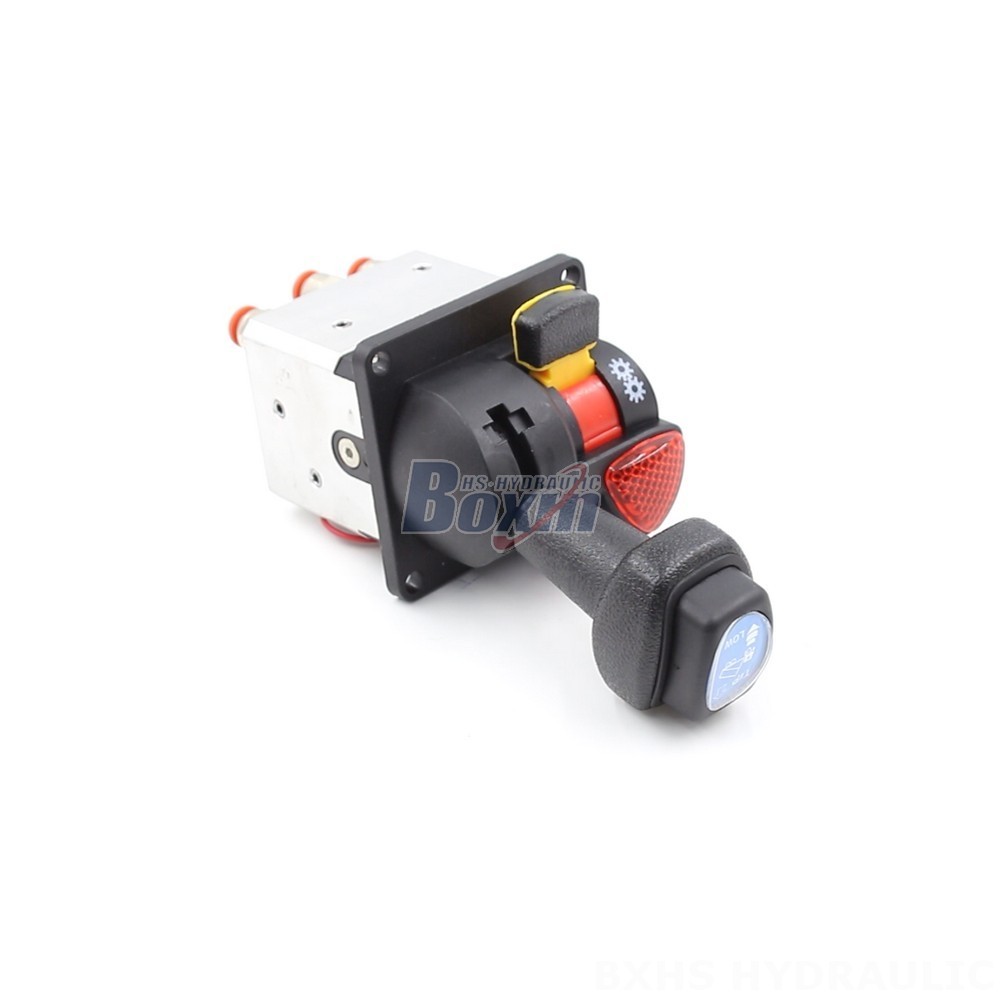

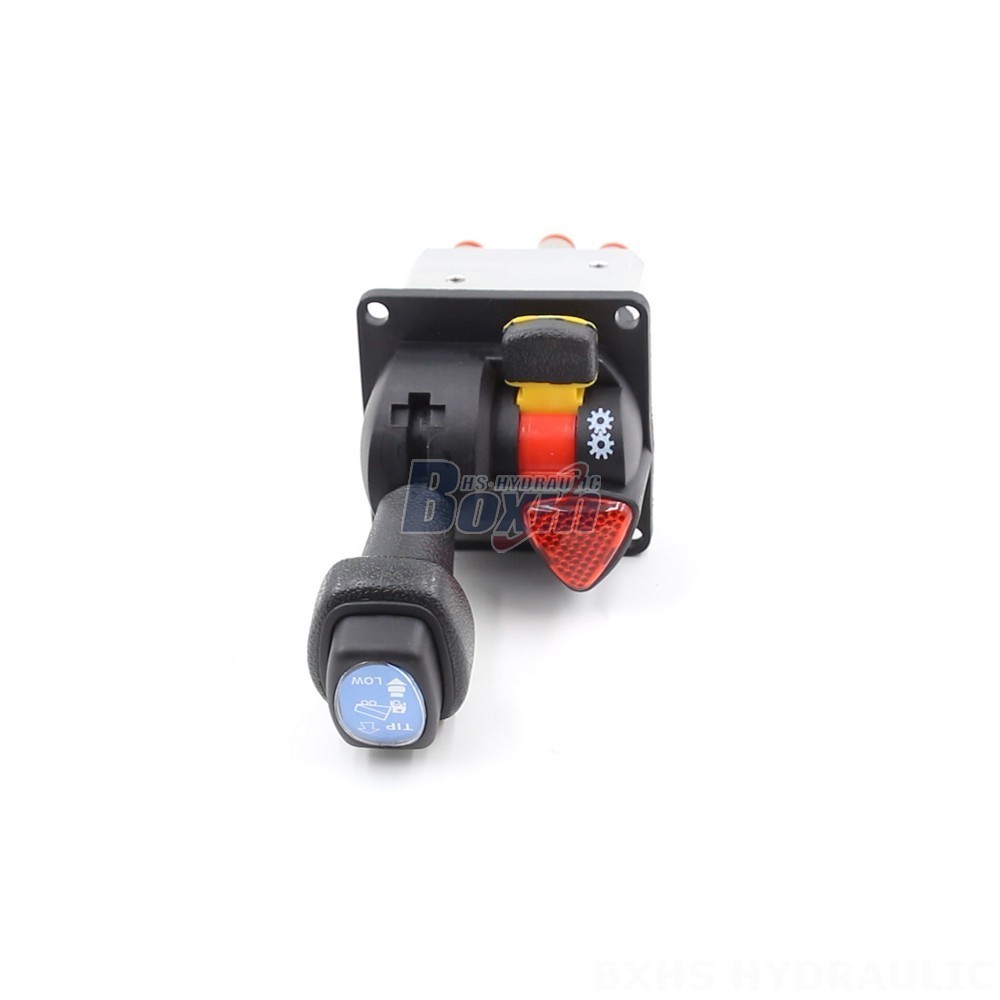

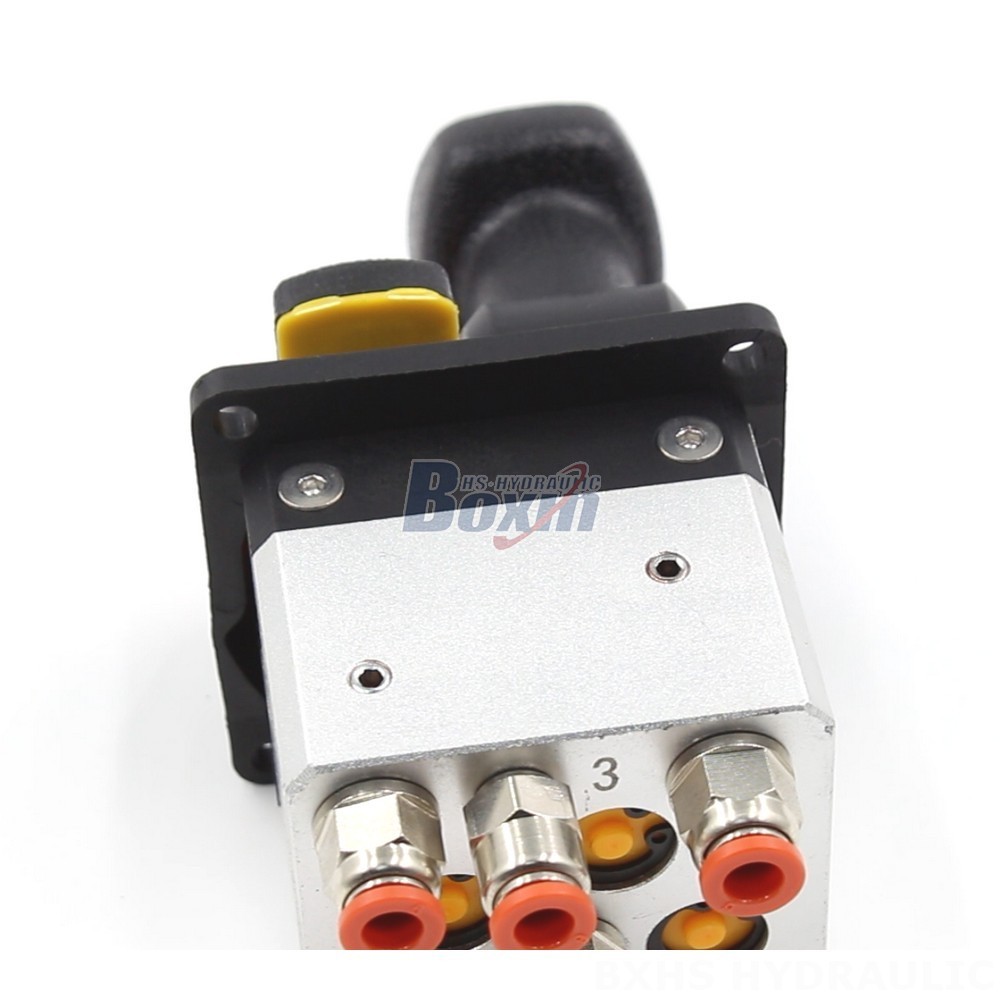

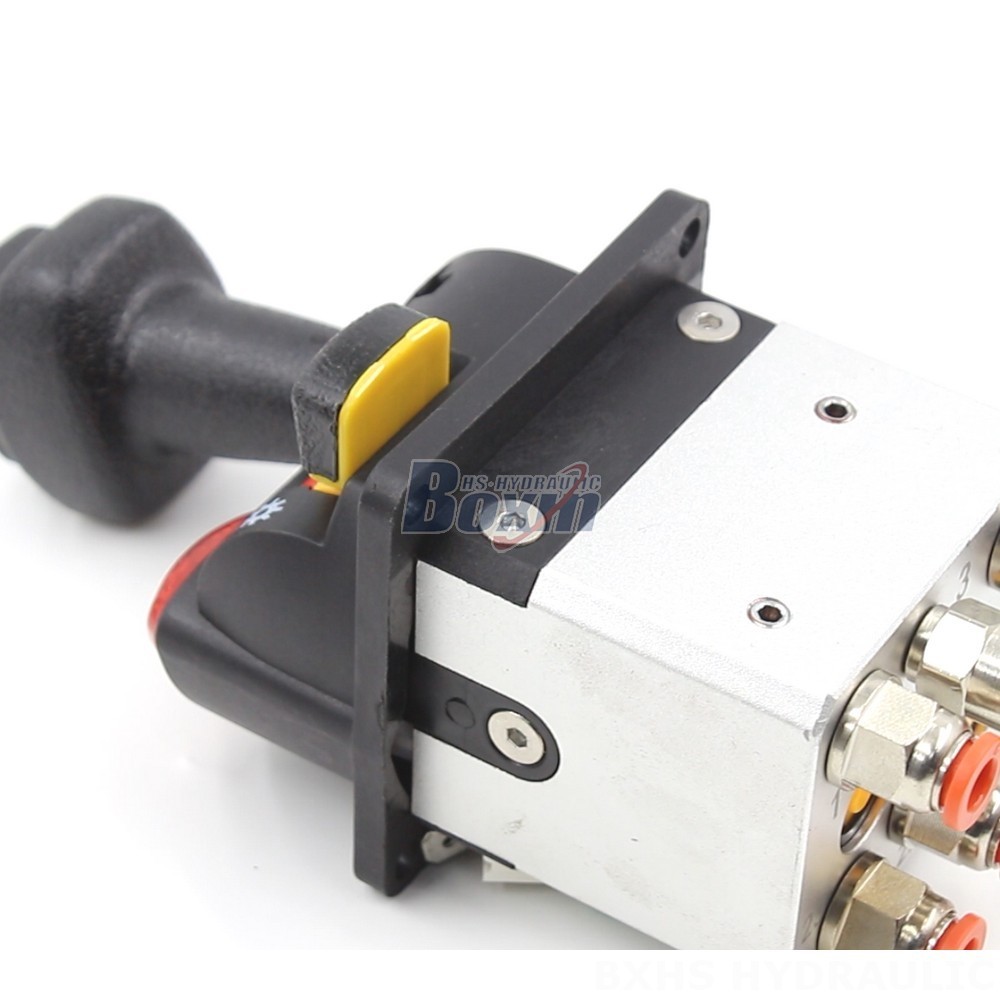

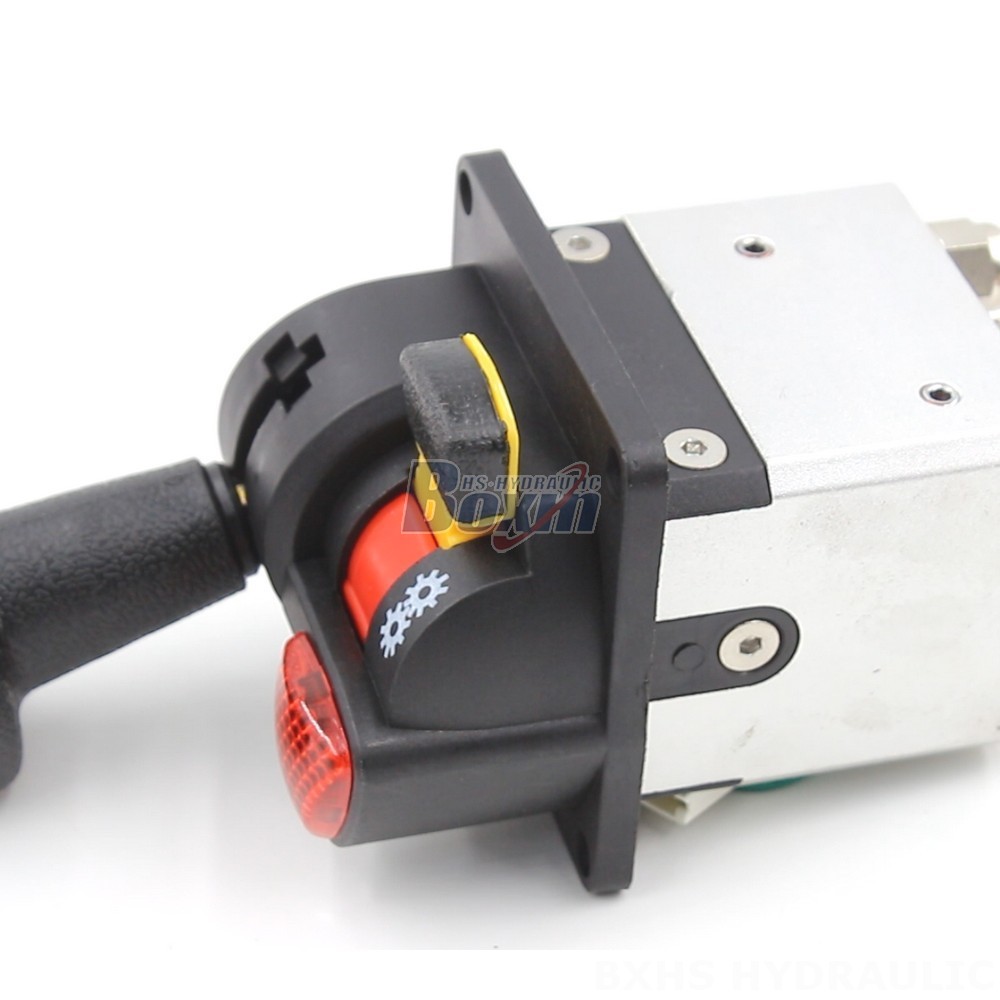

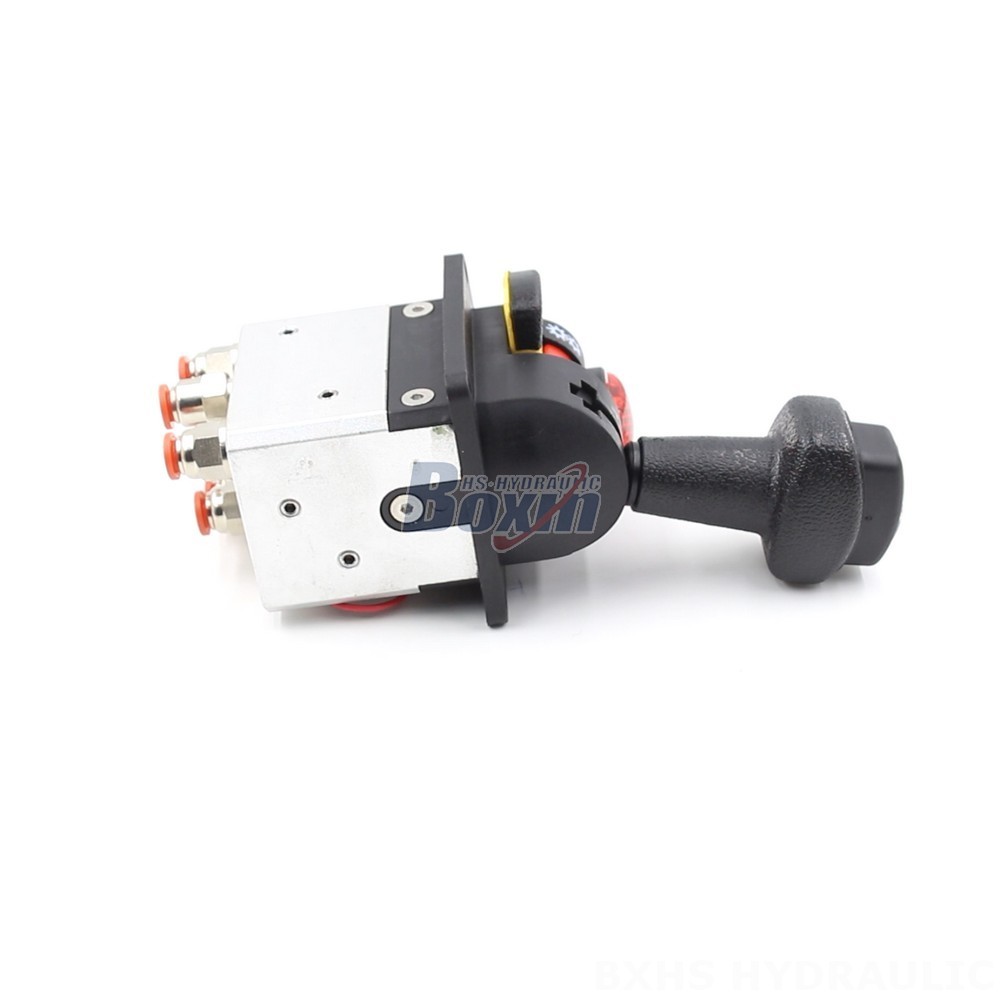

This BKQF34 series hydraulic selector valve is a pneumatic controlled monoblock valve with 1 spool, designed for various construction and agricultural applications. It features a rated flow of 40 L/min, max pressure of 1 MPa, and operating viscosity range of 12-400 mm²/s.
| Série BKQF34 Válvula de Controle Pneumática Parâmetros | |
|---|---|
| Método de Controle | Pneumático |
| Carrétel | 1 Carretel |
| Intervalo de temperatura ambiente | -40 °C a +80 °C (-40 °F a +176 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção |
| Intervalo de viscosidade operacional | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Fluxo Nominal | 40 L/min (10,5 US gpm) |
| Pressão Máxima | Pressão nominal |
| Porta de Entrada | G1/4 |
| Porta de Saída | G1/4 |
| Tamanho da Porta | G1/4 |
The BKQF34 series hydraulic selector valve is a robust and reliable solution for controlling hydraulic systems in various applications. This 1 spool, pneumatic controlled monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 1 MPa. It is suitable for a wide range of operating temperatures, from -40°C to +80°C. This valve is commonly used in construction and earth moving, material handling, agriculture, and industrial vehicles. Typical applications include forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini-excavators, midi-excavators, tractors, front-end loaders, harvesters, balers, and sprayers. The BKQF34 series valve is a factory direct product and can be customized to meet specific requirements.
