The SD11 Series Pneumatic Directional Control Valve is a high-performance valve designed for use in a wide range of industrial applications. With a rated flow of 70 L/min and a maximum pressure of 250 bar, this valve is capable of handling even the most demanding applications. The valve is constructed from high-quality materials and is built to last.
| Série SD11 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Elétrico, Pneumático e Manual |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 70 L/min (18,5 US gpm) |
| Pressão Máxima | 305 bar (4400 psi), 315 bar (4600 psi) |
| Porta de Entrada | G3/4, SAE 12 |
| Porta de Saída | G3/4, SAE 12 |
| Tamanho da Porta | G3/4, SAE 12 |

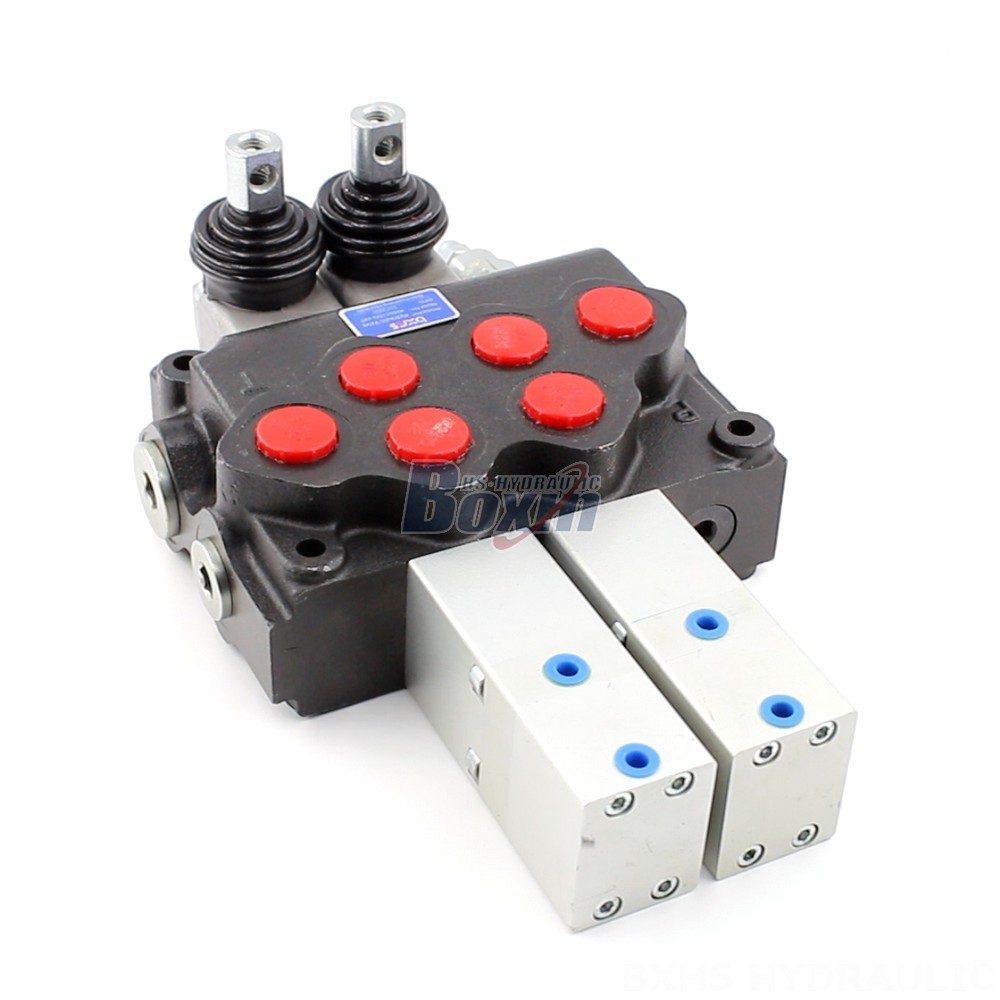

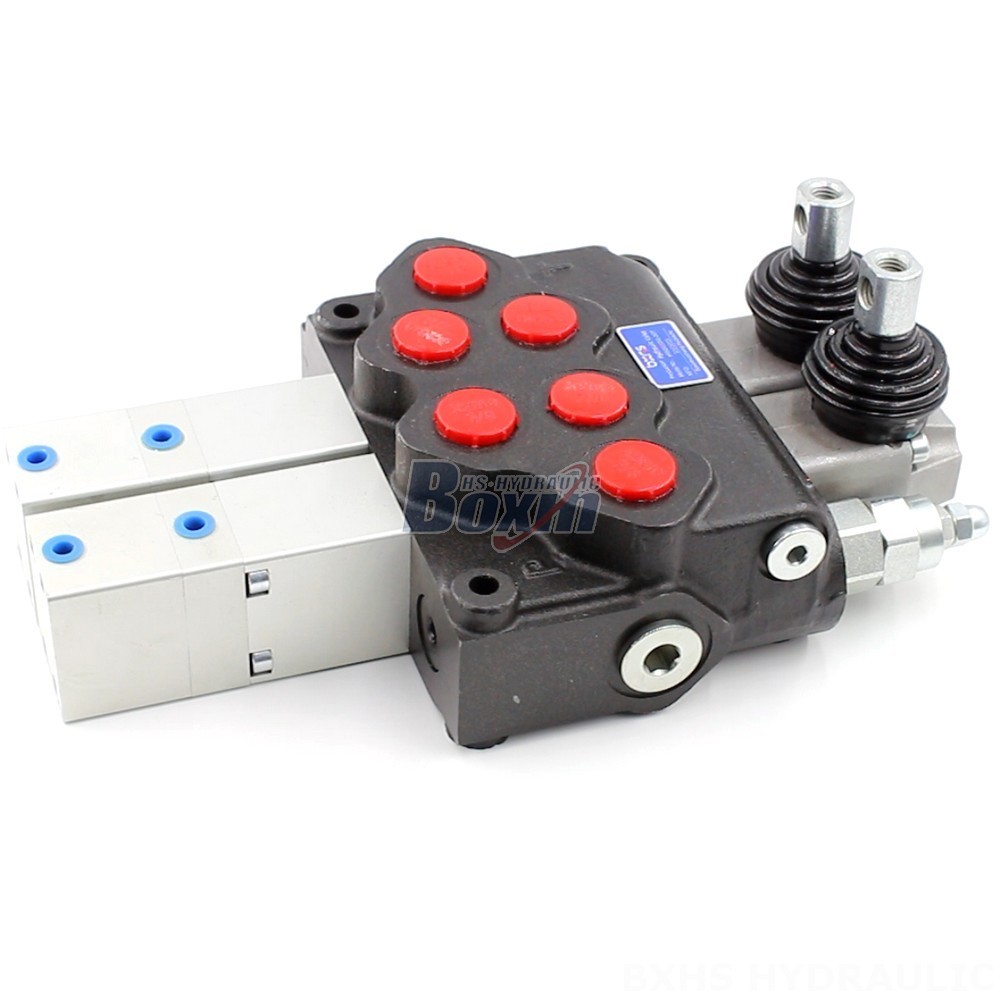

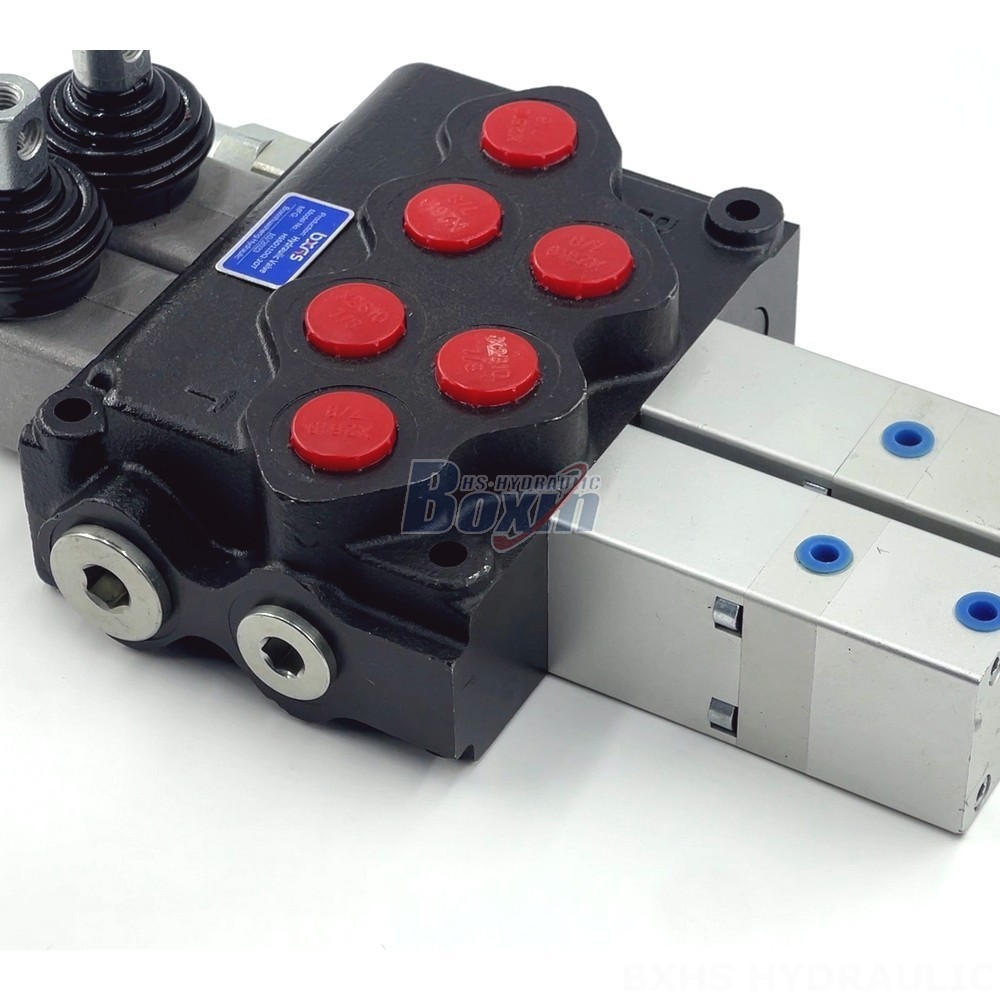

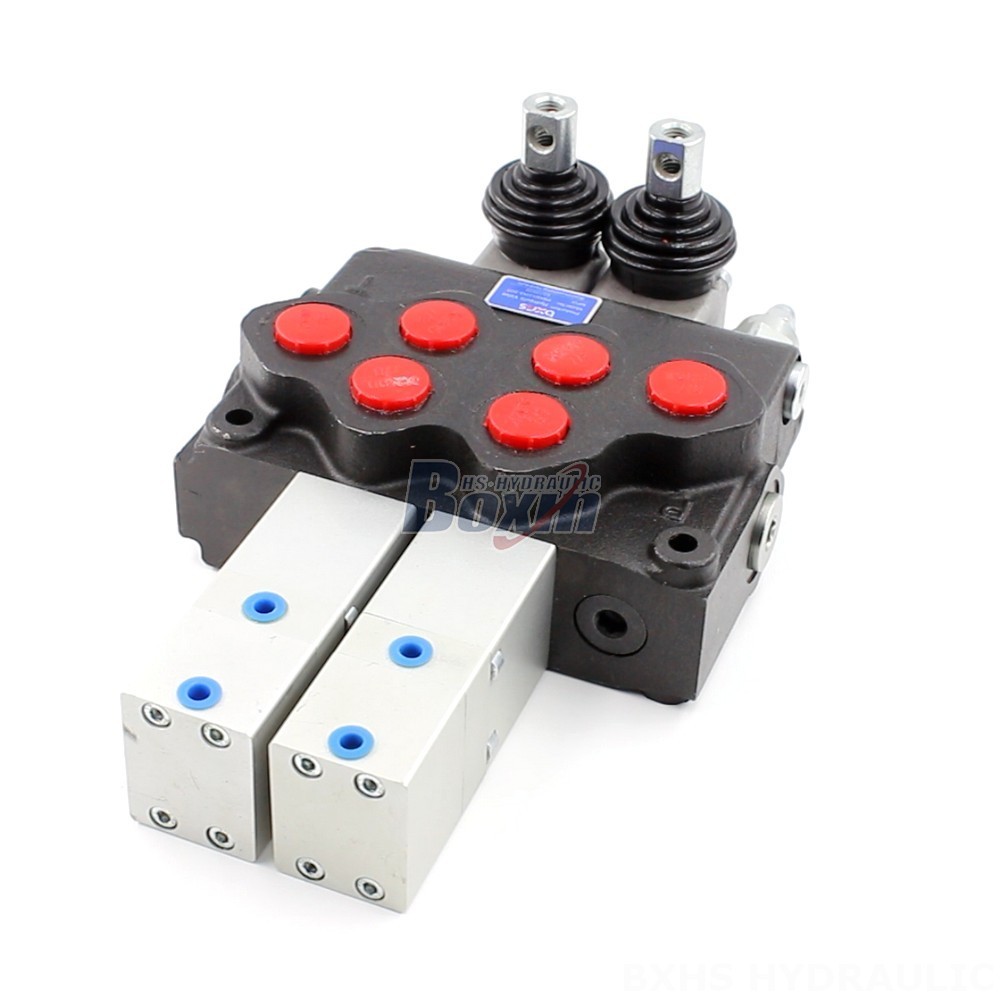

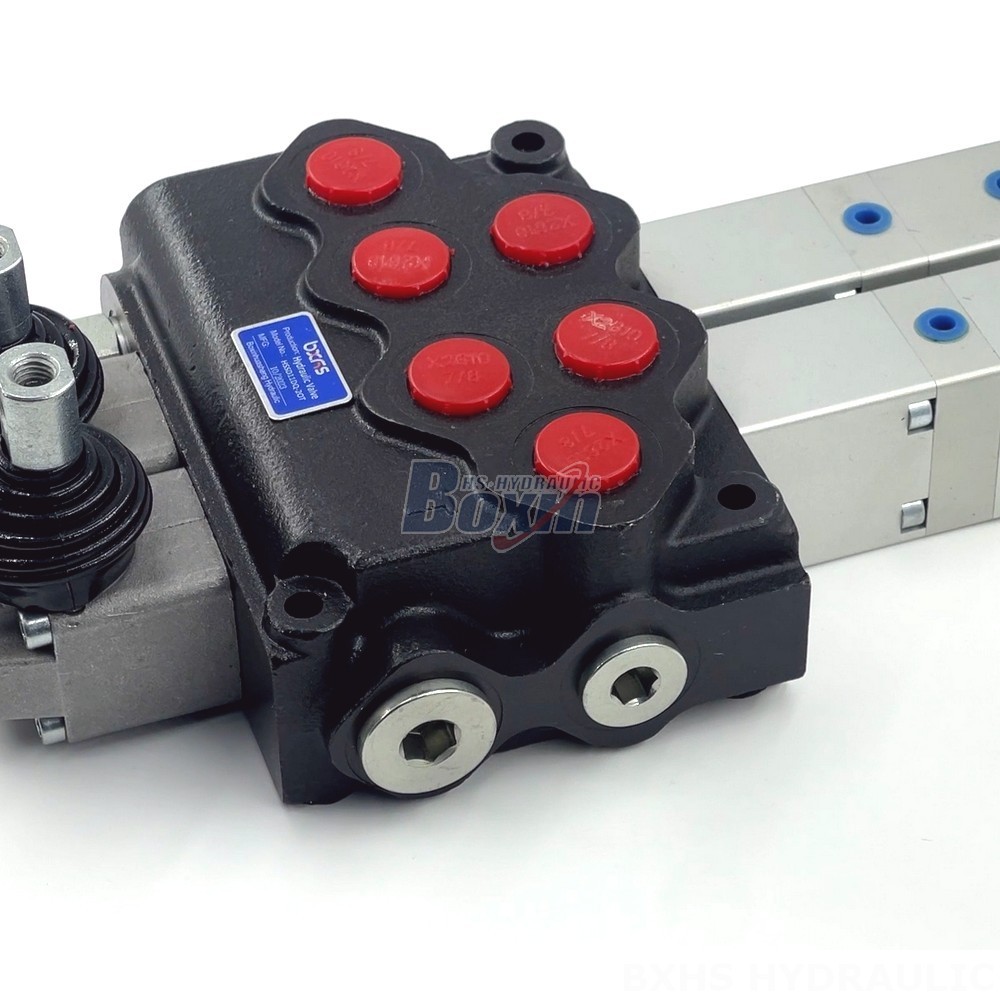

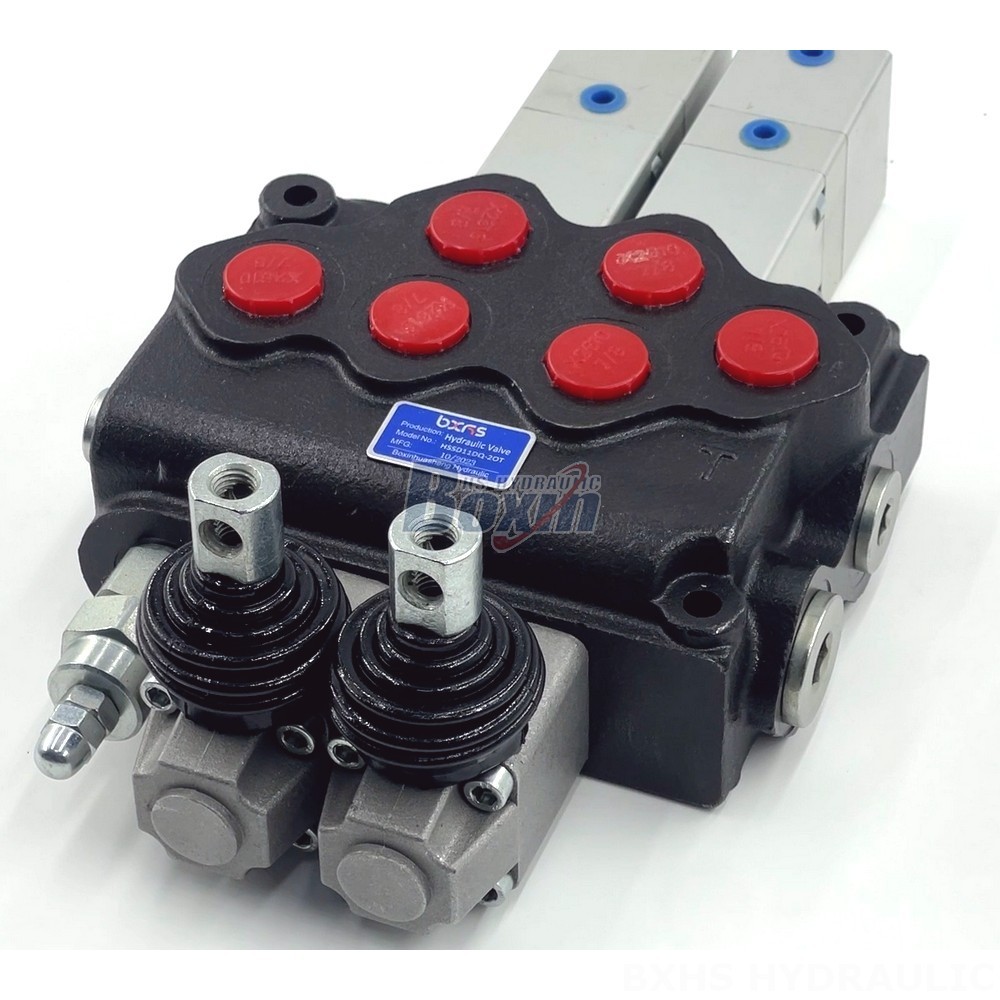

**SD11 Series Pneumatic Directional Control Valve**
The SD11 Series Pneumatic Directional Control Valve is a 2-section, monoblock valve with a rated flow of 70 L/min and a maximum pressure of 250 bar. The valve is constructed from high-quality materials and is built to last. It is ideal for use in a wide range of industrial applications, including:
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
The valve is available with a variety of spool options to meet the specific requirements of your application. It also features a wide operating temperature range of -40°C to +60°C, making it suitable for use in even the most challenging environments.
**Key Features:**
* Rated flow of 70 L/min
* Maximum pressure of 250 bar
* 2-section, monoblock valve
* Wide operating temperature range of -40°C to +60°C
* Variety of spool options available
* Compact and lightweight design
* Easy to install and maintain
