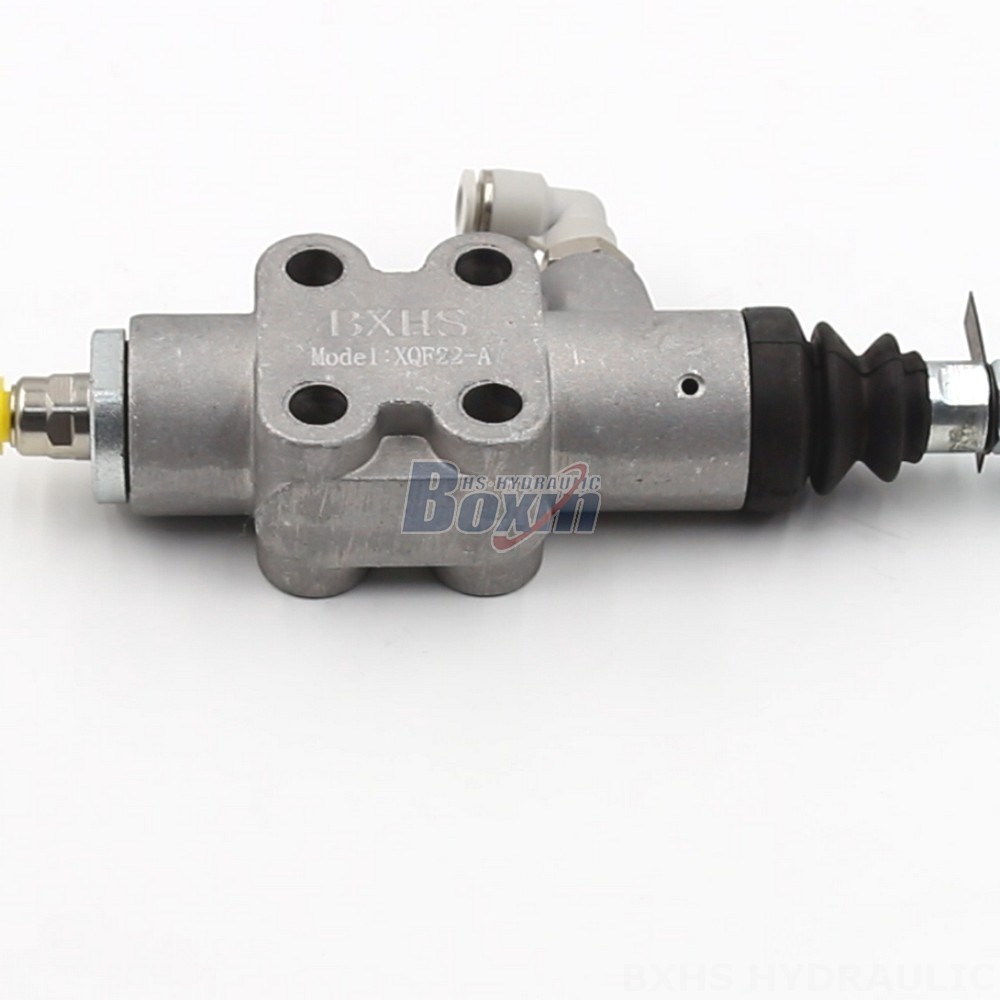

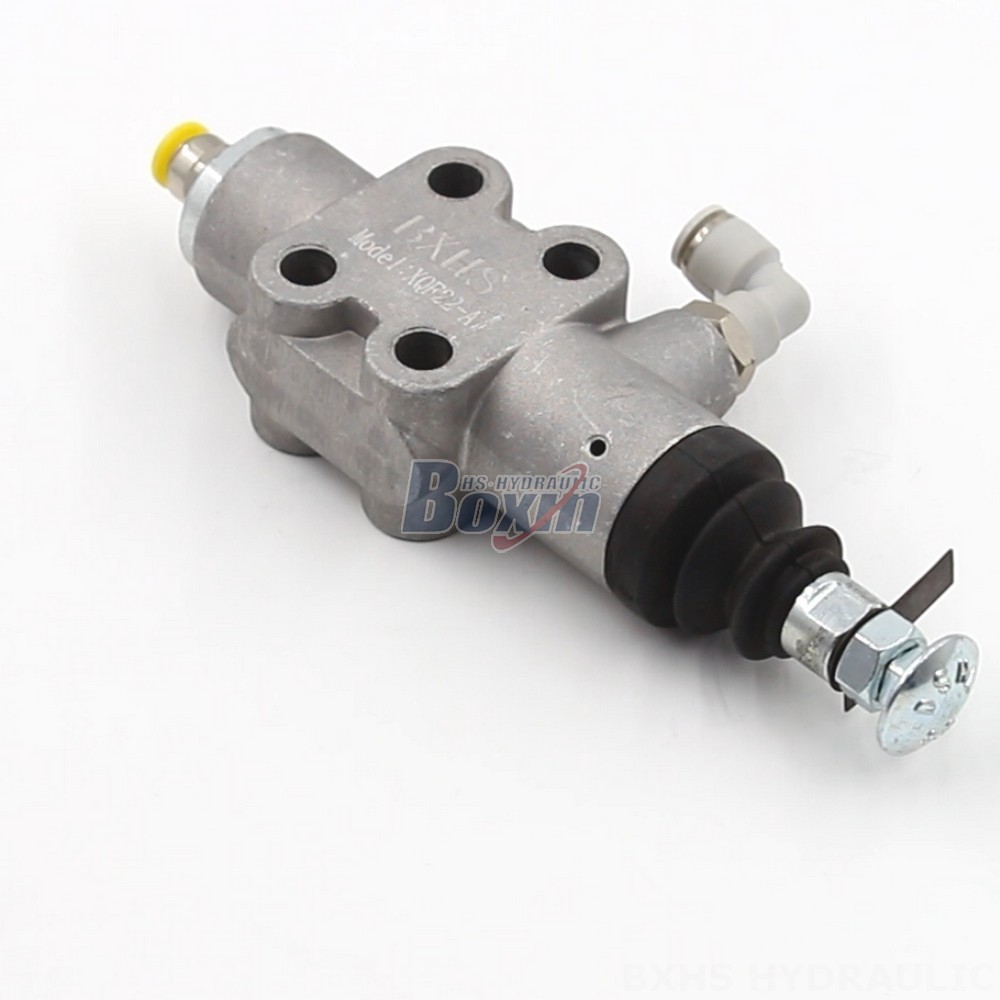

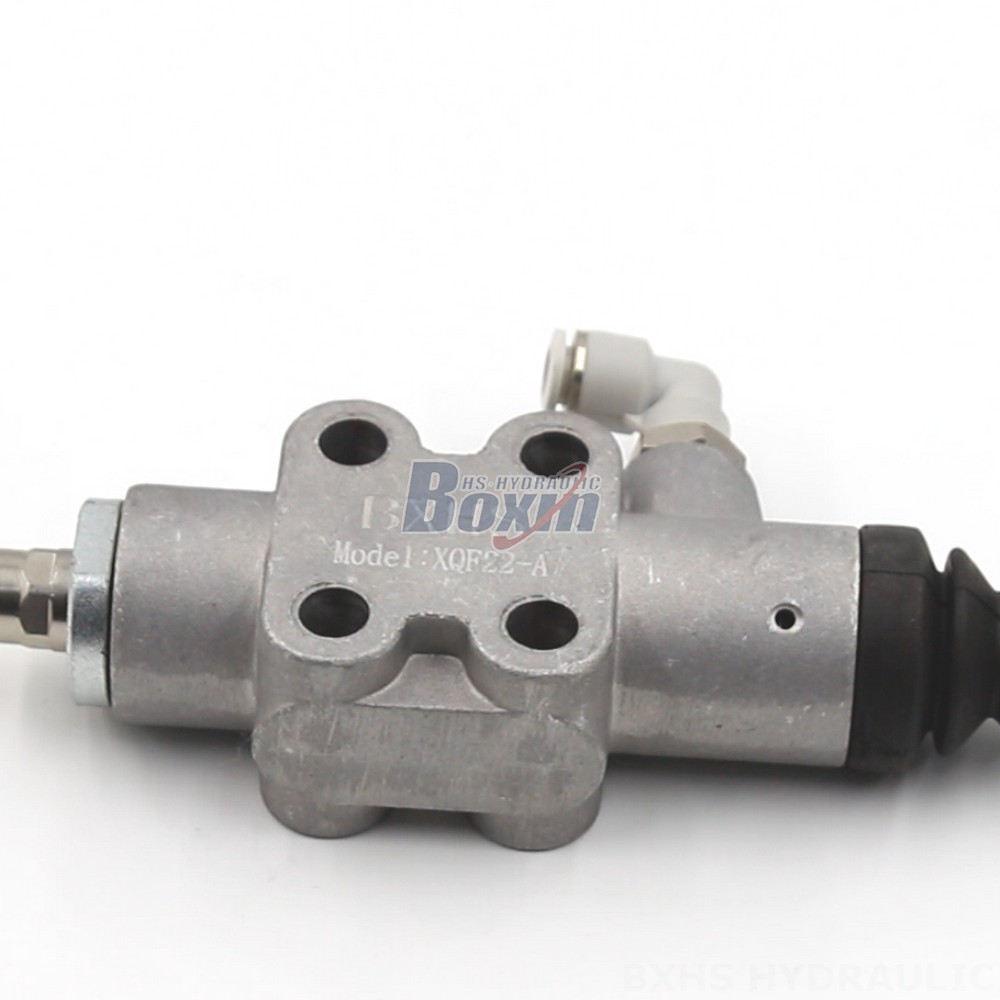

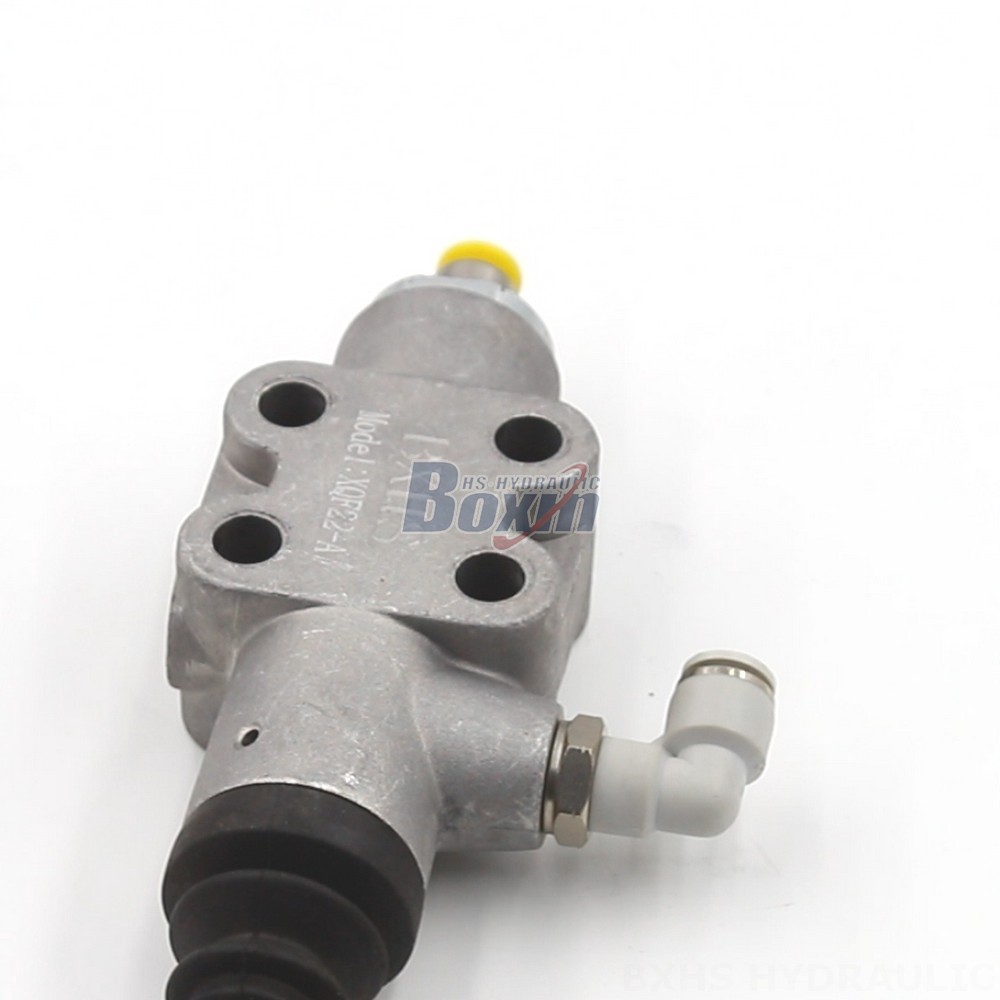

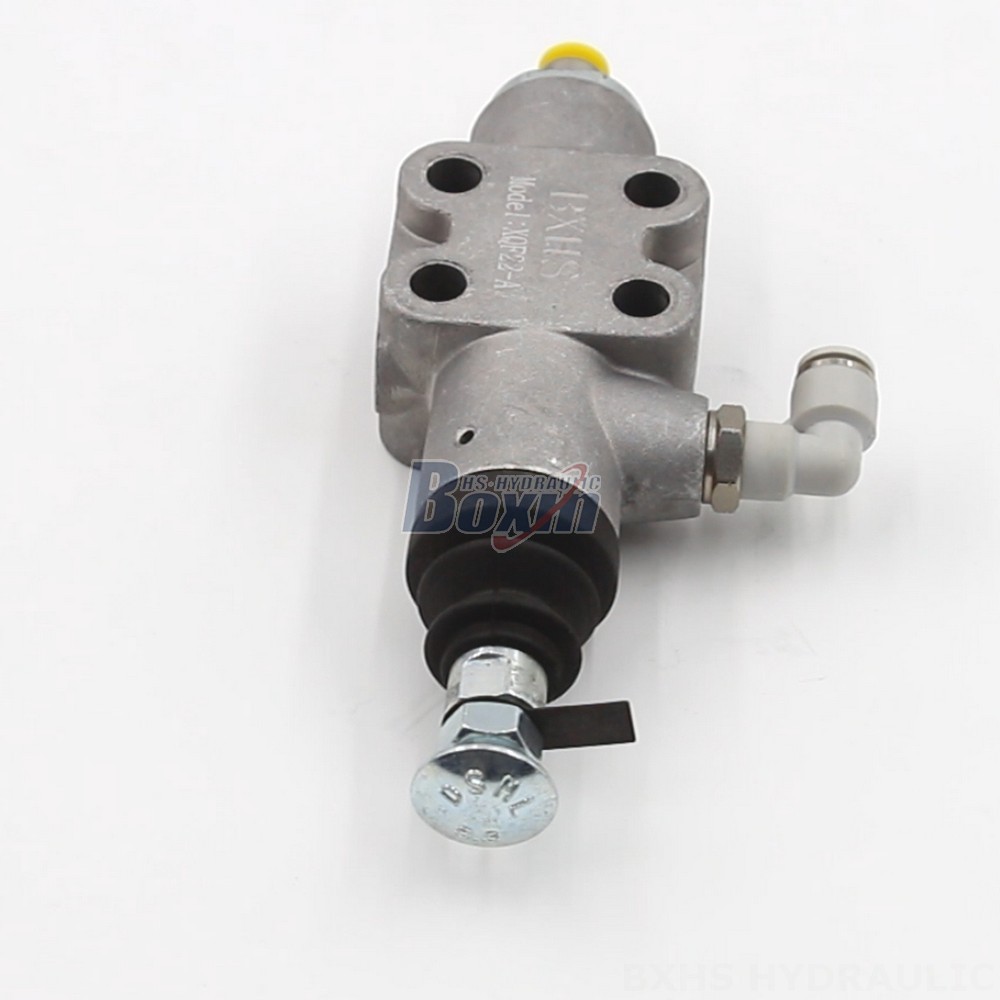

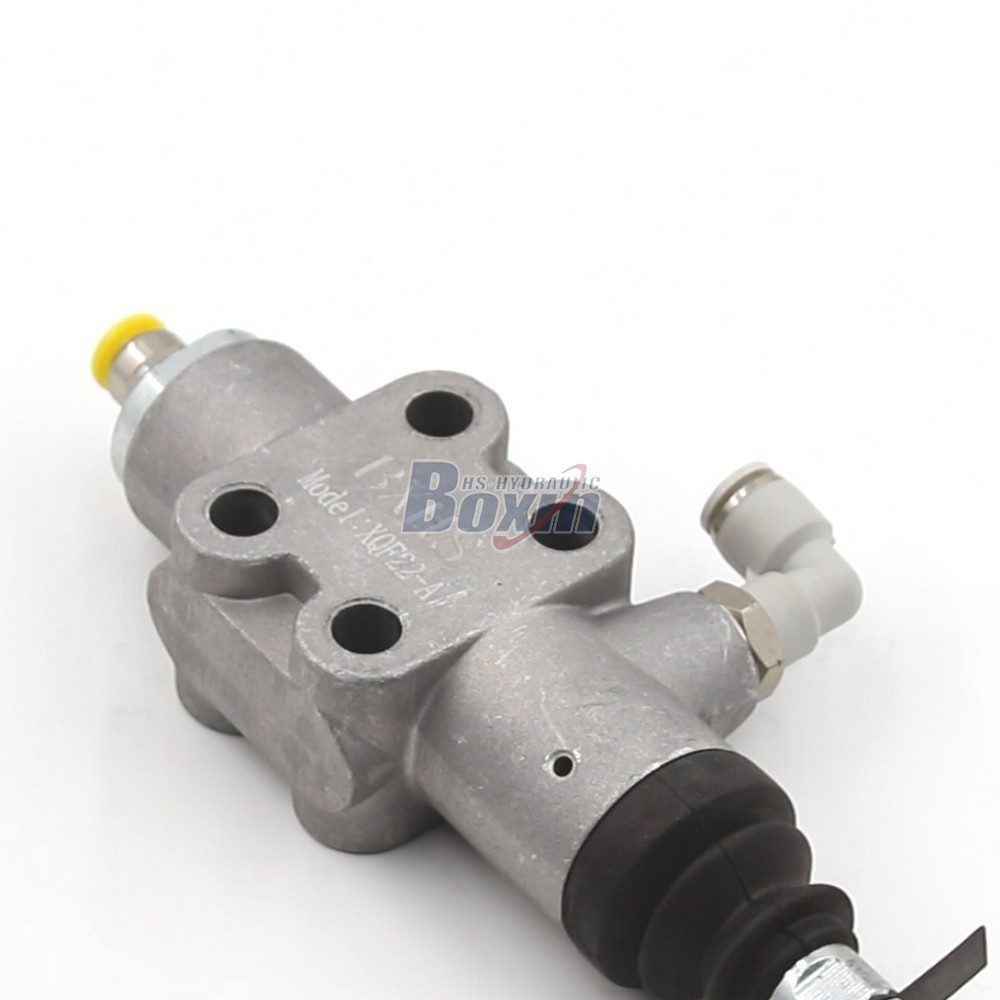

The XQF22-A Series Monoblock Spool Valve is a pneumatic directional control valve designed for a wide range of applications in construction equipment, material handling, and industrial vehicles. It features a robust monoblock structure, a maximum pressure rating of 200 bar (2900 psi), and a wide operating temperature range, making it suitable for demanding environments.
| Série XQF Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Pneumático |
| Carrétel | 1 Carretel |
| Intervalo de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção |
| Intervalo de viscosidade operacional | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Fluxo Nominal | 50 L/min (13,2 US gpm) |
| Pressão Máxima | 200 bar (2900 psi) |
| Porta de Entrada | G1/4 |
| Porta de Saída | G1/4 |
| Tamanho da Porta | G1/4 |
The XQF22-A Series Monoblock Spool Valve is a high-performance pneumatic directional control valve specifically engineered for heavy-duty applications in construction equipment, material handling, and industrial vehicles. Its monoblock design provides exceptional strength and durability, while its pneumatic control mechanism ensures precise and reliable operation. With a maximum pressure rating of 200 bar (2900 psi) and a wide operating temperature range of -40°C to +60°C (-40°F to +140°F), this valve is built to withstand even the most challenging conditions. Its compatibility with a variety of hydraulic fluids (12-400 mm²/s viscosity) makes it versatile for a wide range of applications. This valve is ideal for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors, and front-end loaders.
