Produção e Entrega
Prazo de produção de 15 a 30 dias
1120 Visualizações estão procurando por este produto
The SD11 Pneumatic Valve is an advanced, high-performance valve designed for demanding applications in various industries, including agriculture, industrial vehicles, construction, and material handling. Its robust construction, precision engineering, and exceptional flow and pressure control capabilities make it an ideal choice for controlling hydraulic systems in mobile and industrial equipment.
| Série SD11 Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Manual, Pneumático, Eletropneumático, Eletrohidráulico, Solenoide, Hidráulico, Hidráulico e Manual, Cabo, Joystick, Elétrico, Pneumático e Manual |
| Carrétel | 1 Carretel, 2 Carreteis, 3 Carreteis, 4 Carreteis, 5 Carreteis |
| Intervalo de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção, 2 secções, 3 secções, 4 secções, 5 secções, 6 secções, 7 secções |
| Intervalo de viscosidade operacional | 15 - 75 mm²/s (15 cSt a 75 cSt) |
| Fluxo Nominal | 70 L/min (18,5 US gpm) |
| Pressão Máxima | 305 bar (4400 psi), 315 bar (4600 psi) |
| Porta de Entrada | G3/4, SAE 12 |
| Porta de Saída | G3/4, SAE 12 |
| Tamanho da Porta | G3/4, SAE 12 |

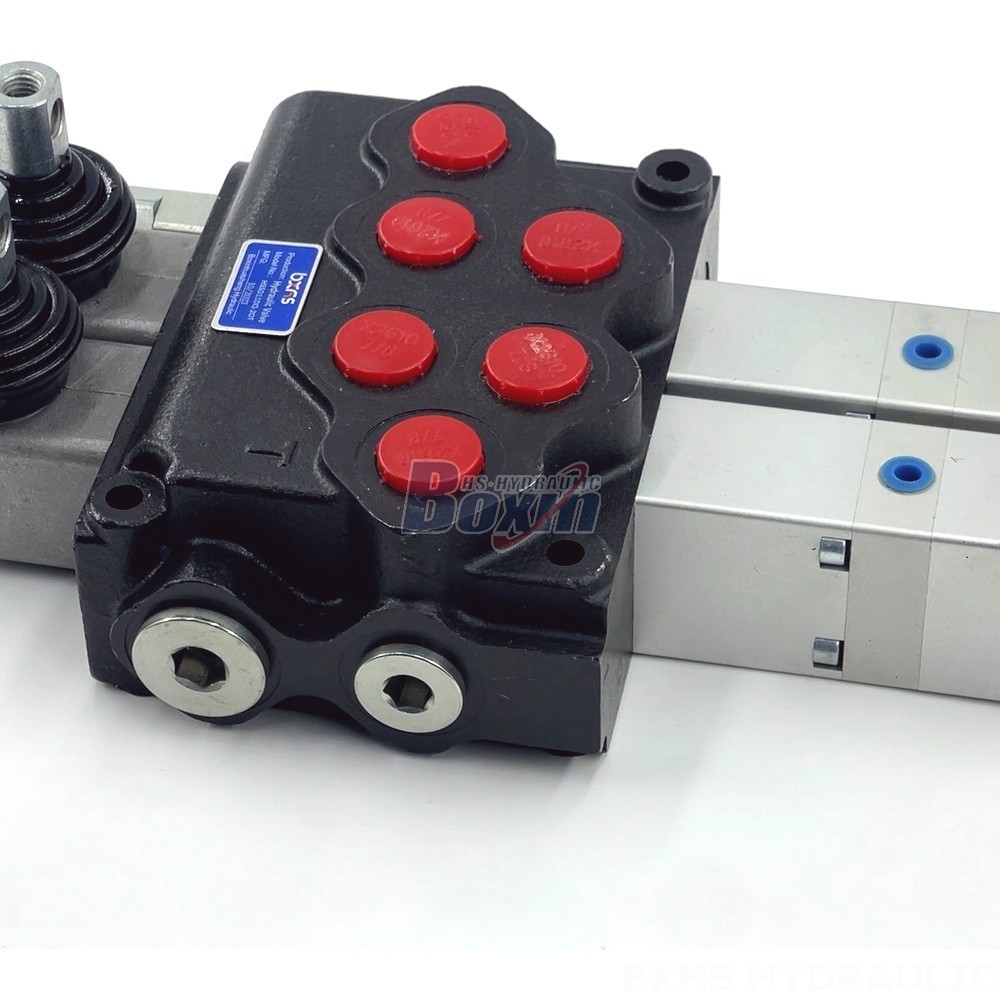

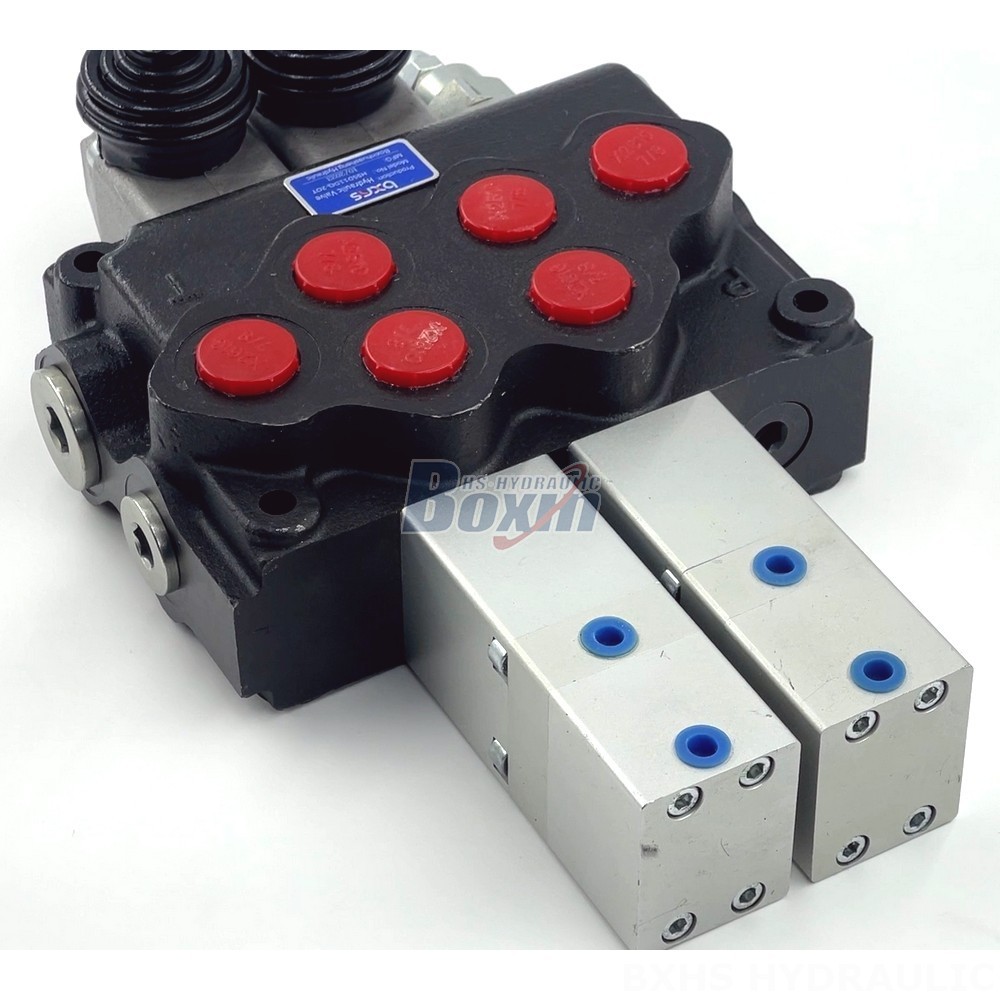

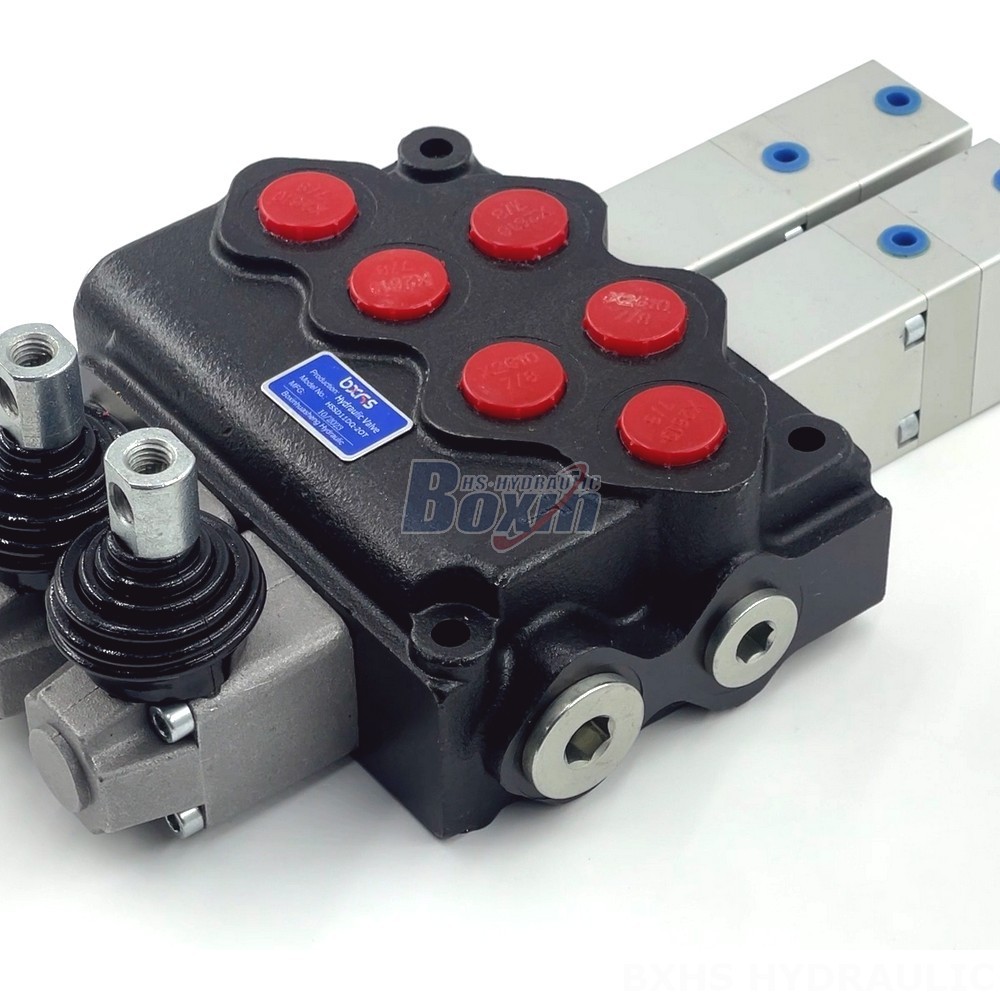

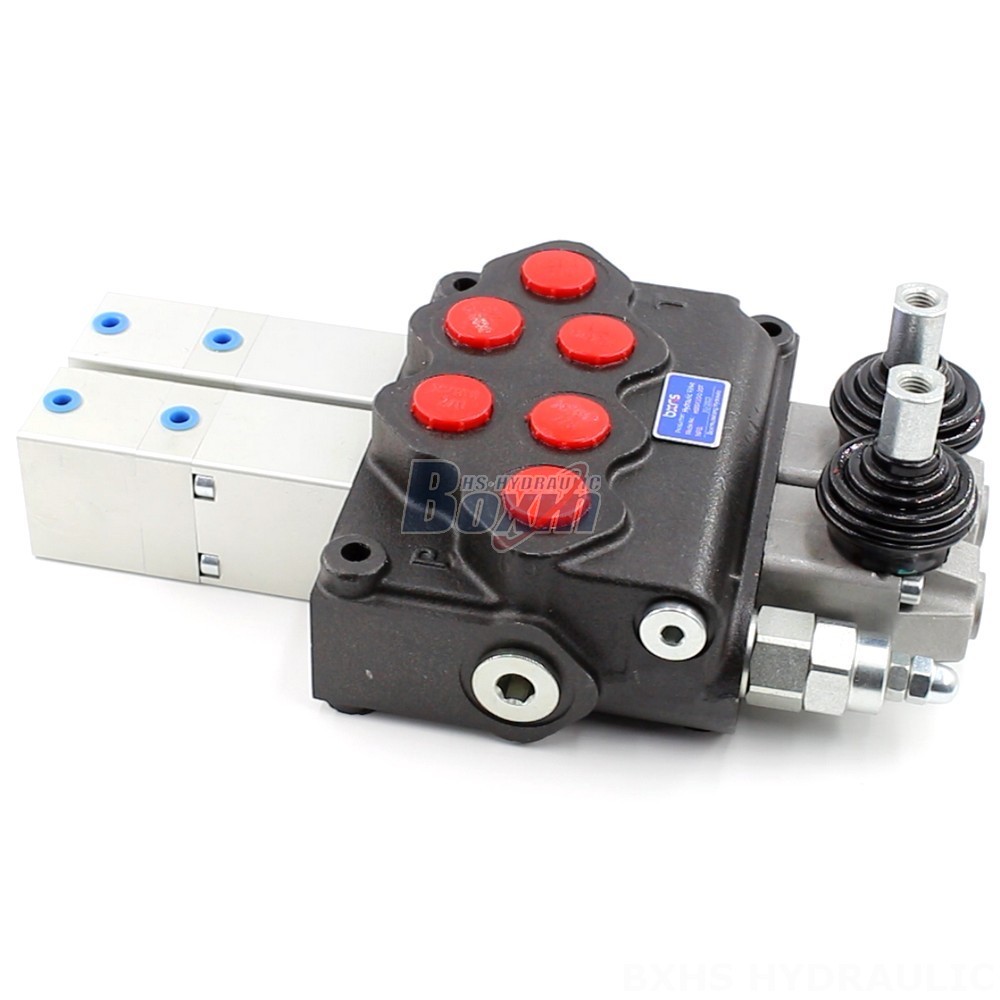

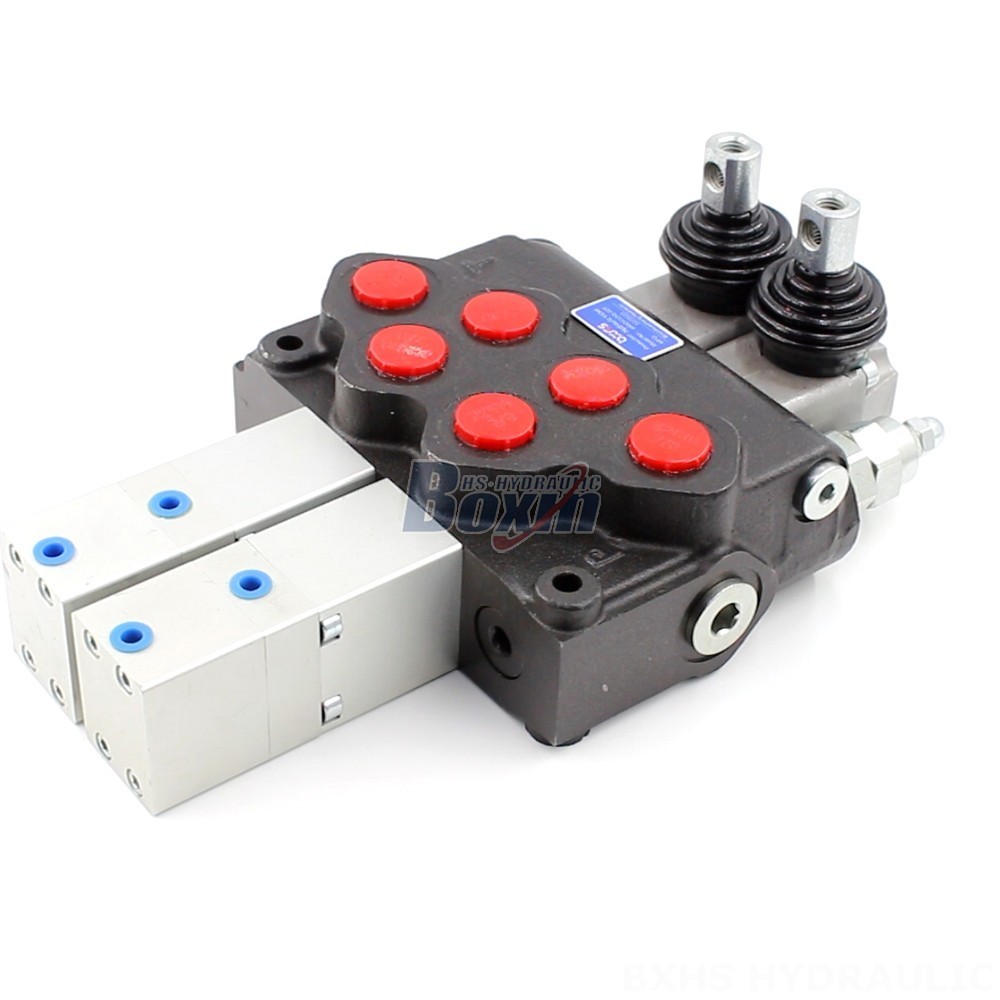

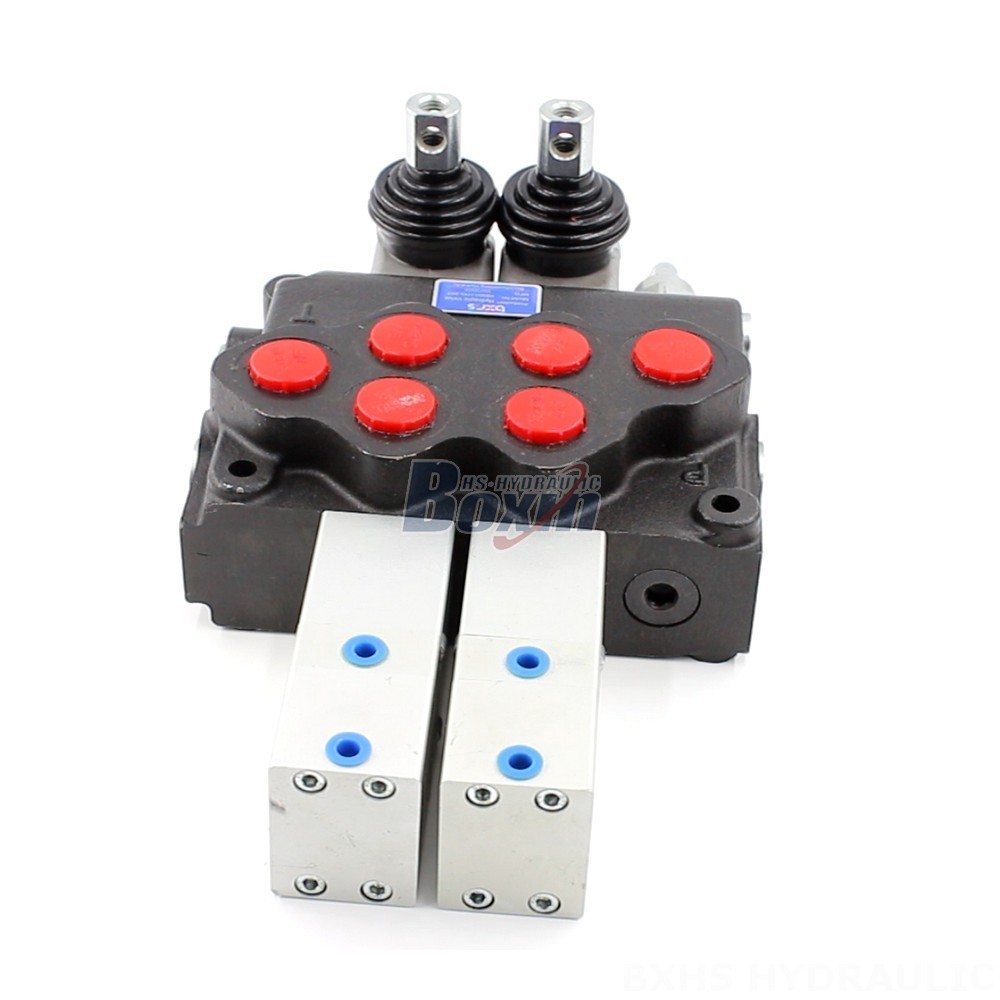

**SD11 Pneumatic Valve**
**Control Method:** Pneumatic
**Section:** 2 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 70 L/min (18.5 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +60°C (-40°F to +140°F)
**Spool:** 2 Spool
**Series:** SD11 Series
The SD11 Pneumatic Valve features a robust monoblock construction that ensures high durability and reliability in harsh operating conditions. Its advanced design provides precise flow and pressure control, enabling precise operation of hydraulic systems. The valve is suitable for a wide range of hydraulic applications, including mobile hydraulics, industrial automation, and agricultural machinery.
**Key Features:**
* High flow capacity (70 L/min) for efficient system performance
* Maximum pressure rating of 250 bar for demanding applications
* Monoblock construction for enhanced durability and reliability
* Precise flow and pressure control for optimal system operation
* Wide operating viscosity range for compatibility with various hydraulic fluids
* Compact design for easy integration into hydraulic systems
**Applications:**
* Mobile Hydraulics: Telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms
* Industrial Vehicles: Motor graders, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers
* Construction and Earth Moving: Excavators (mini, midi), skid steer loaders, compact wheel loaders
* Agriculture: Tractors, harvesters, sprayers, agricultural implements
