Produção e Entrega
Prazo de produção de 15 a 30 dias
1081 Visualizações estão procurando por este produto

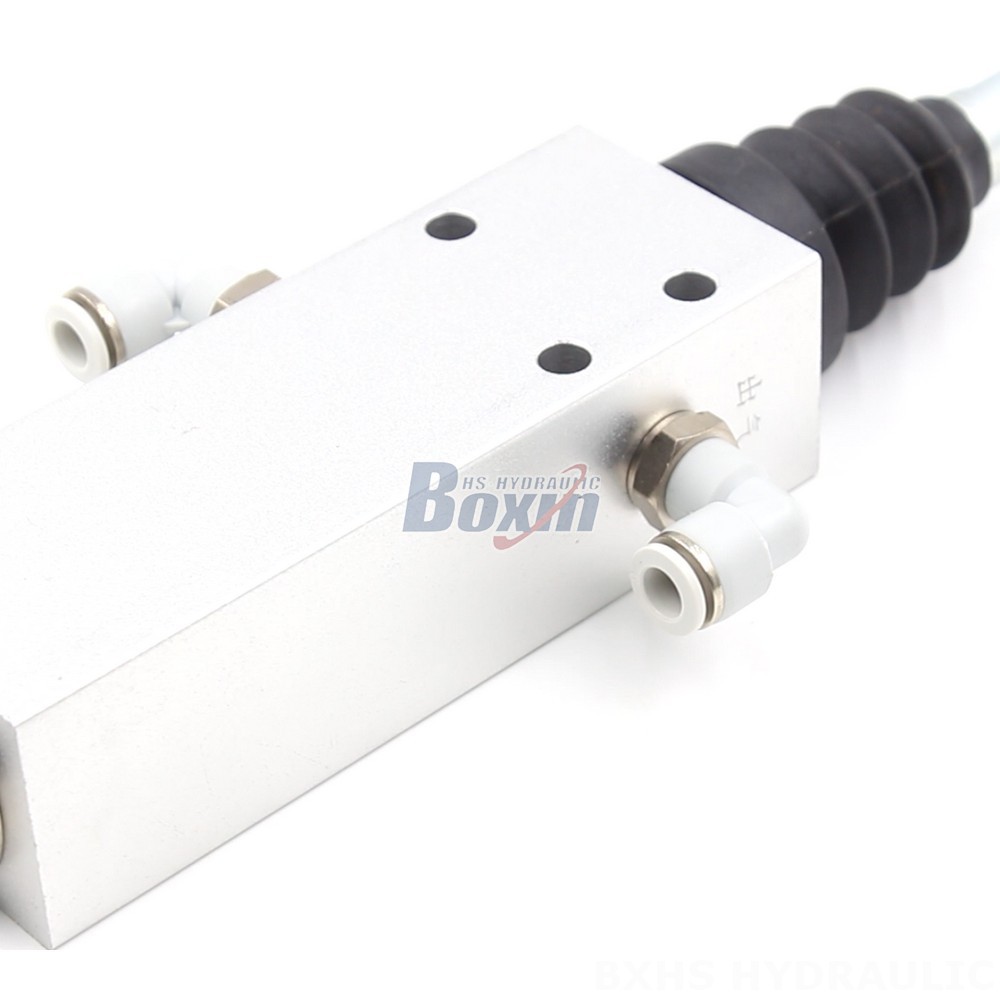

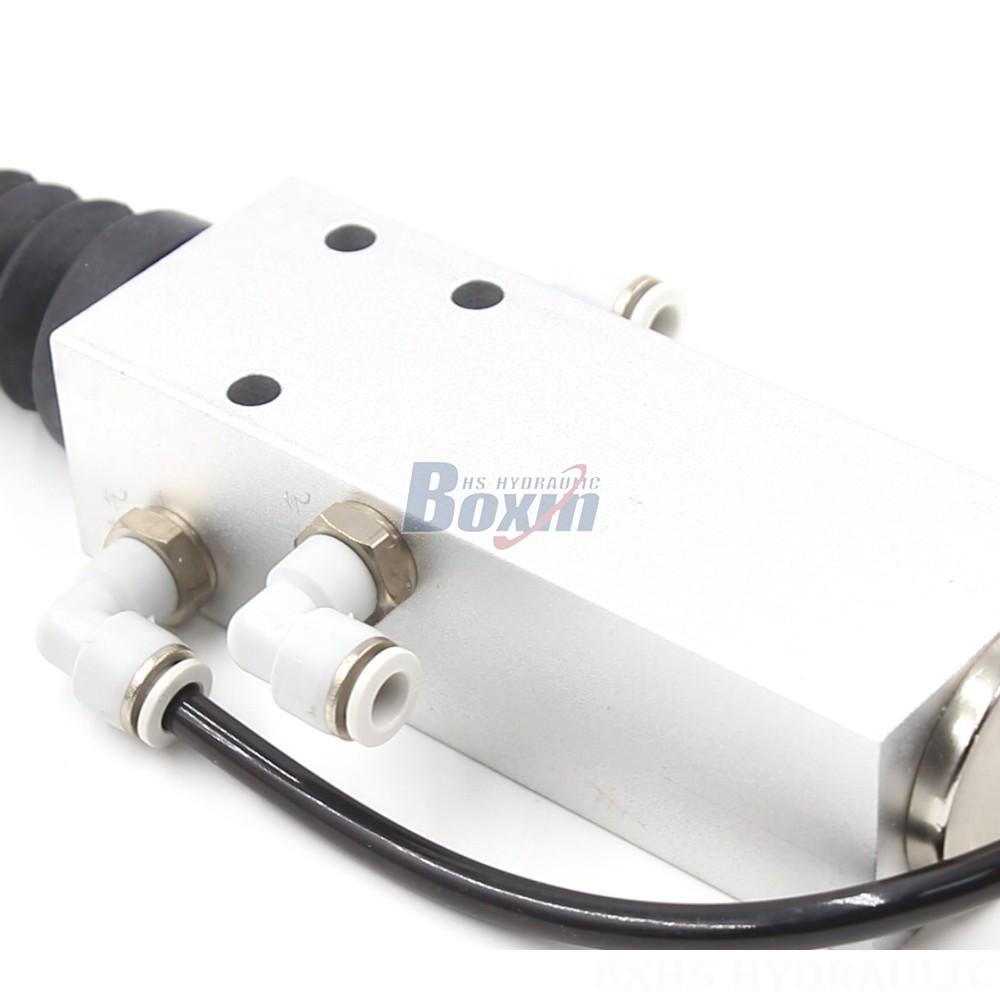

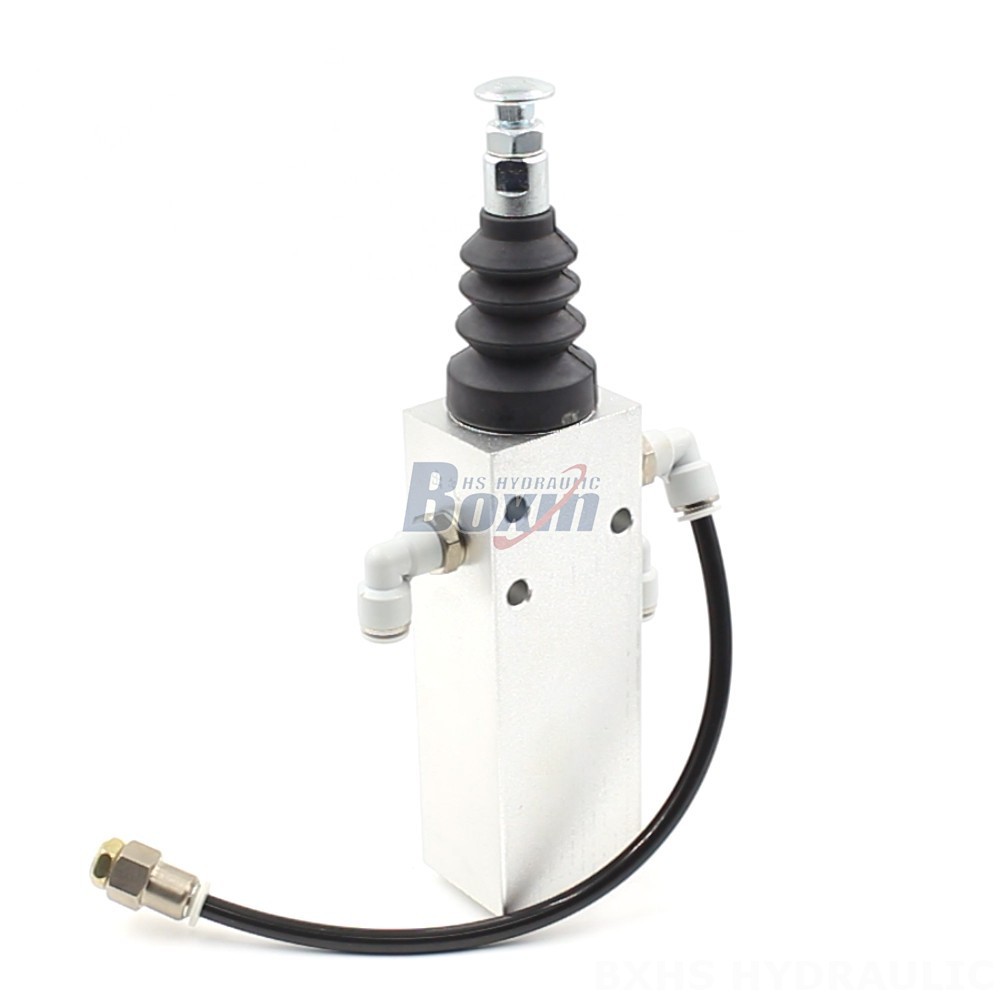

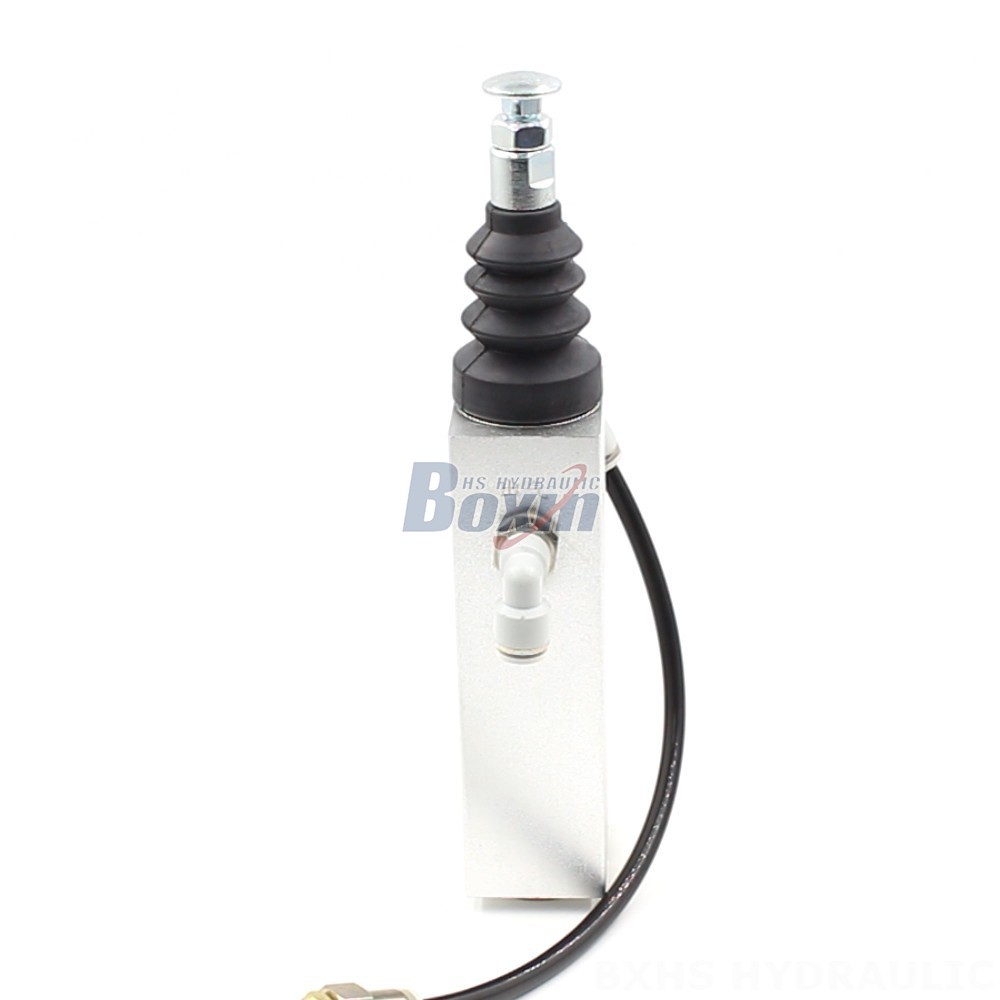

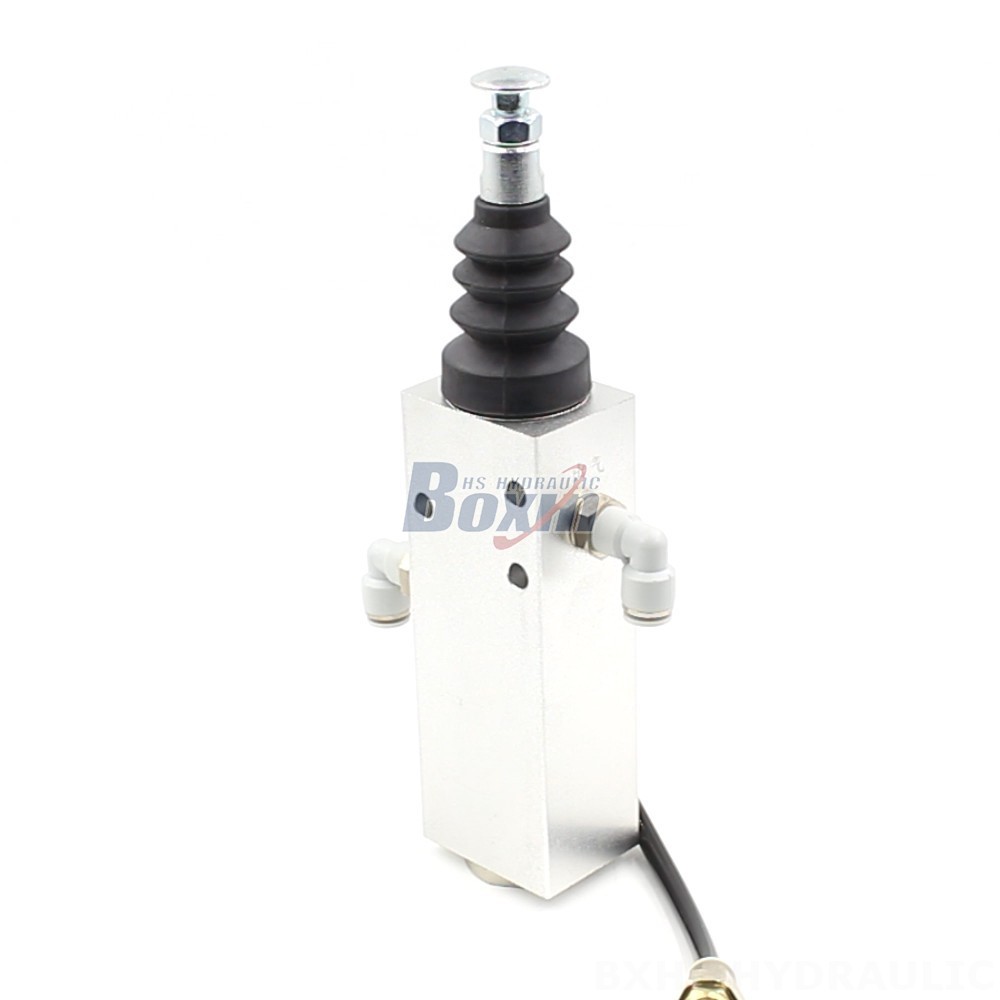

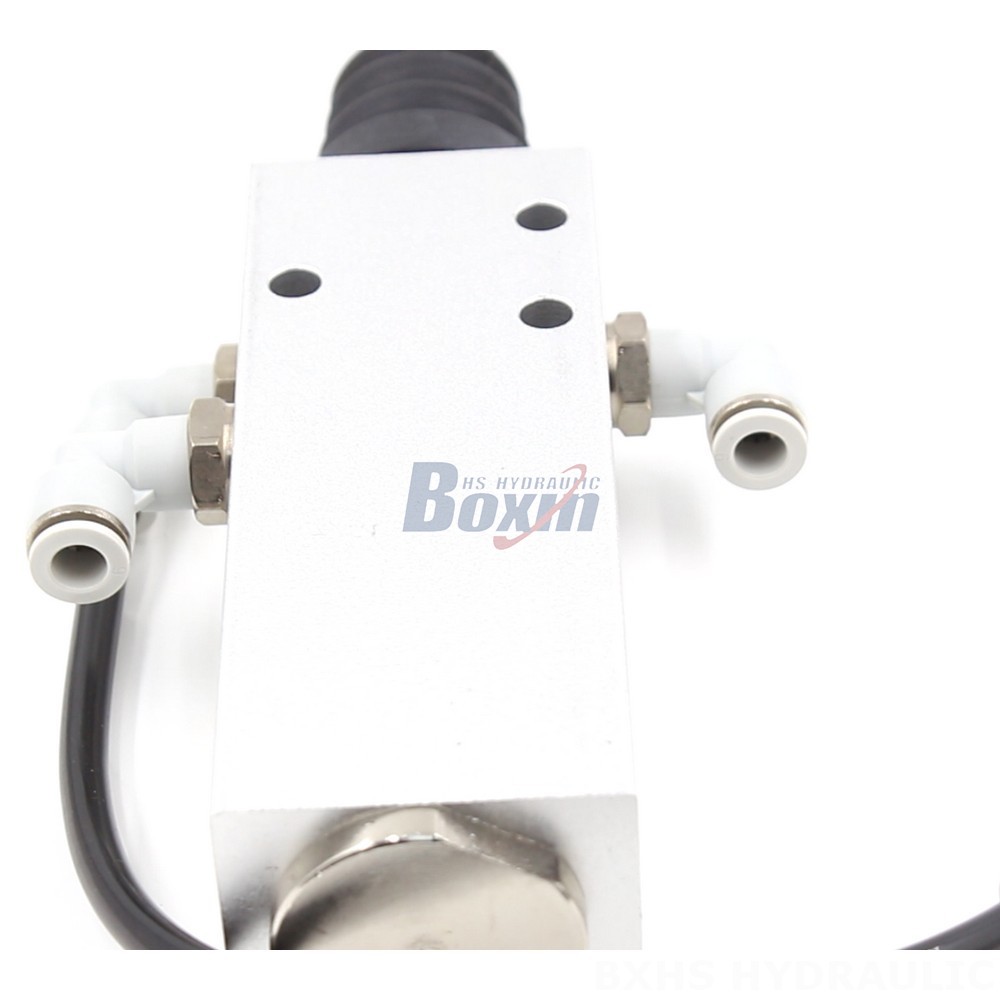

The XQF23 is a high-performance, durable hydraulic control valve designed for use in dump trucks and other construction equipment. It is a pneumatic monoblock valve with a maximum pressure of 200 bar and an operating viscosity range of 12-400 mm²/s. The XQF23 valve is suitable for a wide range of applications, including material handling, construction, and agriculture.
| Série XQF Válvula Direcional Monobloco Parâmetros | |
|---|---|
| Método de Controle | Pneumático |
| Carrétel | 1 Carretel |
| Intervalo de temperatura ambiente | -40 °C a +60 °C (-40 °F a +140 °F) |
| Tipo de estrutura | Válvula monobloco |
| Secção | 1 secção |
| Intervalo de viscosidade operacional | 12 - 400 mm²/s (12 cSt a 400 cSt) |
| Fluxo Nominal | 50 L/min (13,2 US gpm) |
| Pressão Máxima | 200 bar (2900 psi) |
| Porta de Entrada | G1/4 |
| Porta de Saída | G1/4 |
| Tamanho da Porta | G1/4 |
The XQF23 hydraulic control valve is a 1-section pneumatic valve with a single spool. It is designed for use in a wide variety of applications, including dump trucks, telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi excavators, and mini excavators. The valve is manufactured with a monoblock structure for maximum strength and durability. The XQF23 features a maximum pressure of 200 bar (2900 psi) and an operating viscosity range of 12-400 mm²/s (12 cSt to 400 cSt). The valve is designed to operate in ambient temperatures ranging from -40°C to +60°C (-40°F to +140°F). We offer global distribution of this valve and provide manufacturing, OEM, private label, custom, and wholesale services. We are also looking for distributors, wholesalers, agents, and traders.
